impression X1 manual (v1.0) from software version: 1.0 2
Notes:
Page 3
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 3
Table of contents
1 Description of Device.............................................................................................. 4
2 Safety Instructions .................................................................................................. 5
3 Mounting .................................................................................................................. 7
3.1.1 Operating on the Floor (Upright) .......................................................... 8
3.1.2 Mounting in hanging position ............................................................... 8
3.1.3 Mounting in sideways Position ............................................................. 9
3.2 Securing the Fixture ........................................................................................ 10
3.3 Connections .................................................................................................... 10
3.3.1 Power Supply..................................................................................... 10
3.3.2 NEUTRIK powerCON ...................................................................... 10
3.3.3 DMX ................................................................................................... 11
4 The Menu Field ...................................................................................................... 12
5 DMX Channel Selection (DMX Protocol) ............................................................. 14
5.1 Normal Mode (18 DMX channels) ................................................................... 14
5.2 Compressed Mode (14 DMX channels) .......................................................... 16
6
6
Maintaining and Cleaning ..................................................................................... 18
6.1 Safety regulations ........................................................................................... 18
6.2 Maintenance and Interval (rule-of-thumb) ....................................................... 18
7 Technical Specifications ...................................................................................... 19
8 Dimensions ............................................................................................................ 20
9 Index ....................................................................................................................... 21
Page 4
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 4
1 Description of Device
1. Moving head (actively and passively
cooled)
2. Arm of device
3. LCD-Display/Menu (data entry)
4. Base with various connectors, air
in/outlets and mounting system
5. Fuse holder (on the bottom)
Base sideview:
base side 1
6
7
5 3 1 2 4
base side 2
8 9
6. Mains Out (powerCON grey)
7. DMX- Output (5-pin)
8. DMX- Input (5-pin)
9. Mains In (powerCON blue)
bottom view
Page 5
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 5
2 Safety Instructions
1. Before powering on the fixture, make sure that the fixtures fans and air
inlets are clean and not blocked.
2. Ensure that the fixture head can rotate unhindered throughout its complete
range of pan and tilt movement. A safety distance of at least 0.5 m must be
maintained between the fixture and any easily inflammable material (e.g.
decoration material).
3. Attention! Don’t touch the fixture during the operation. This can cause
injuries and/or damages.
4. The fixture doesn’t contain any user serviceable parts. Opening the
fixture will void all warranties.
5. It is necessary to wait at least 15 minutes after disconnecting the mains
power before handling the fixture.. Pay attention to possible hot parts of the
fixture.
The IIMMPPRREESSSSIIOONN XX11 is a High-Tech Product. To guarantee a
smooth operation, it is necessary to respect the following rules.
The manufacturer of this device will not take responsibility for
damages through any disregard of the information provided in
this manual. Warranty claims also will be voided in the case that
the fixture housing is opened.
Never look directly into the beam of light or into one of the
LEDs. Attention: LED Class 2M can cause injuries of your eyes
even without optical instruments in front of them or within a
distance of less than 0.5m and short exposure time.
Hence: Avoid direct radiation into your eyes!
WARNING:
Never let optical parts come in contact with alcohol,
solvents or similar cleaners.
Page 6
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 6
6. To ensure safe operation, follow also the Installation guide described in the
chapter below. Operating the IIMMPPRREESSSSIIOONN XX11
without suitable safety aids
like Safety cables or clamps/hooks can increase the risk of an accident and
must be avoided.
7. Repair, maintenance, and installation work shall be done by qualified or
GLP certified staff only. You need to pay attention to the common rules of
technology that are not explicitly mentioned in this manual.
8. Use only original GLP spare parts. Any structural modification of the
system will terminate all warranty claims.
9. Please keep this instruction manual for future reference.
10. Should you have any questions about the operation of your fixture then
please contact your local GLP office, or their authorized distributor, a list of
which can be found at www.glp.de.
Page 7
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 7
3 Mounting
The IIMMPPRREESSSSIIOONN XX11
is fully operational whether it hangs or is mounted to the
wall. It can also be operated while standing on the floor. Keep a safety distance
of min. 0.5 m towards any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70),
DIN VDE 0711-217 and BGI 810-3.
The installation shall be done by qualified staff only.
For the various mounting positions of the IIMMPPRREESSSSIIOONN XX11
(standing on the
floor, sideways or hanging) different connectors are available. Through this a
safe and firm installation is assured. You'll find dedicated M10 threads on the
bottom side of the fixture which should be used. In addition the top of the base
is marked with a FRONT arrow allowing consistent orientation during
installation.
Page 8
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 8
3.1.1 Operating on the Floor (Upright)
The IIMMPPRREESSSSIIOONN XX11
is fitted with 4x solid
rubber feet which allows a stable standing
of the fixture. An additional securing is
usually not required. Please pay attention
to an even and gripping surface.

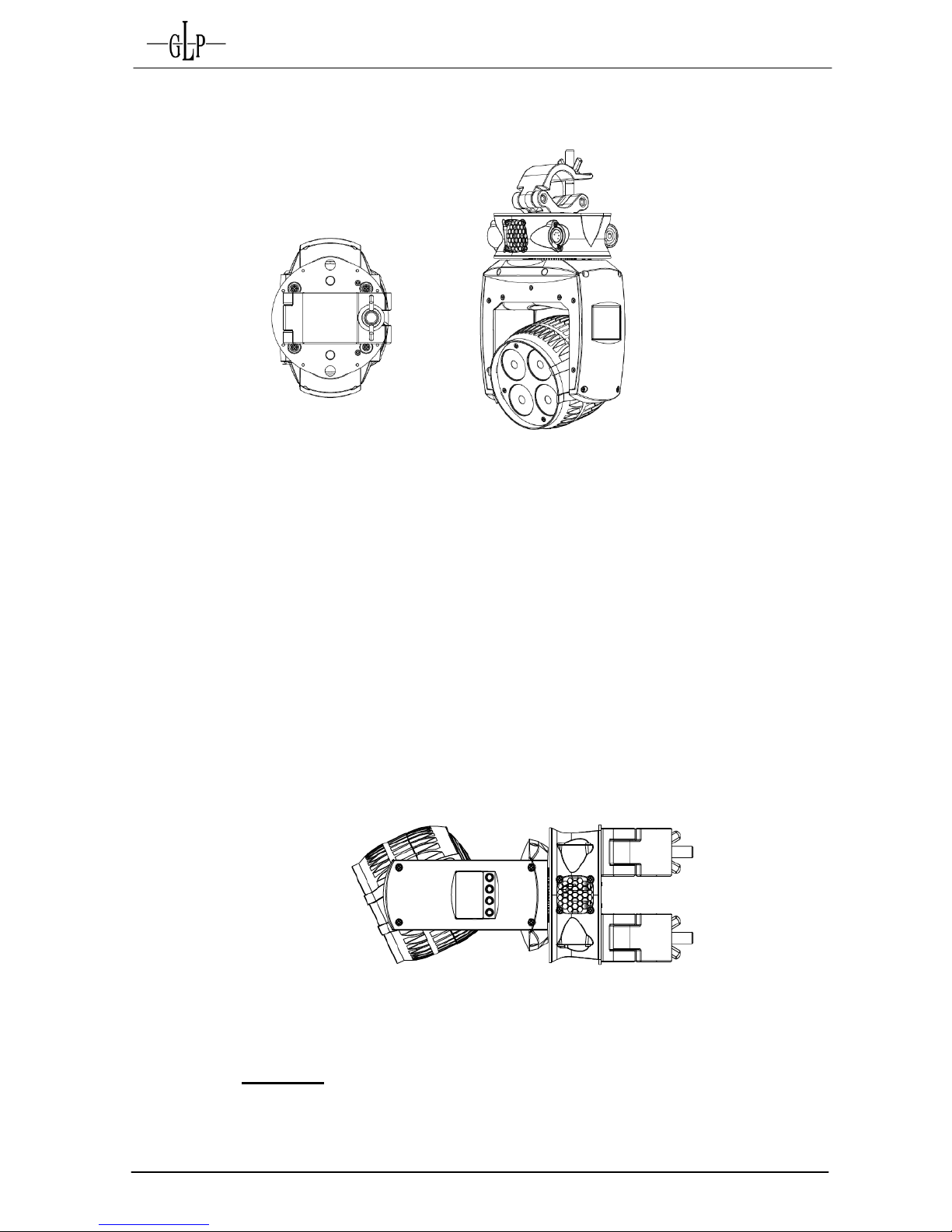

3.1.2 Mounting in hanging position
To operate the IIMMPPRREESSSSIIOONN XX11
in a hanging position please use a halfcoupler (clamp). This can be mounted directly to the bottom side of the
fixture. It should be attached centrically with a M10 mm thread bolt (max.
length 11mm).
Attention: Never use a longer bolt as this may damage the interior
of the fixture.
Page 9
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 9
3.1.3 Mounting in sideways Position
To operate the IIMMPPRREESSSSIIOONN XX11
in a sideways position please use two
half-couplers (clamps) attached to the bottom side of the base. They
should be attached with M10 mm thread bolts (max. length 11mm).
This technique is necessary to cope with the torque which accrues in this
mounting position. Never use the "Mounting in hanging position" technique
described above to fasten the fixture in the sideways position. A safe and
sound installation cannot be assured in this way. In addition this can
damage the fixture base.
Attention: Always use two (2) half-couplers for sideway mounting.
Page 10
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 10
3.2 Securing the Fixture
Regardless of the mounting method of the IIMMPPRREESSSSIIOONN XX11
you'll have to use
a stipulated safety wire. Attach the safety wire through one of the two holes
provided on the base of the fixture and connect it to the primary support
structure. Pay attention to a safe and proper fastening. The safety cable must
comply with BGI 810-3 (EN 60598-2-17 Section 17.6.6) and be capable of
bearing a static suspended load that is ten times the weight of the fixture and all
installed accessories.
3.3 Connections
3.3.1 Power Supply
~100-240 Volt AC, 50-60 Hz, powerCON AC connector
Connected load 85 VA (W) T2A (micro-fuse 5x20mm)
Please also see the printing on the case!
Disconnect from the mains supply for changing the fuse and use only
the above described micro-fuse type.
3.3.2 NEUTRIK powerCON
The IMPRESSION X1 is fitted with NEUTRIK powerCON locking 3
conductor AC connectors.
The grey connector must be used to draw AC mains power from the fixtures`
throughput sockets and the blue connectors must be used to supply power at
the fixtures` power input socket.
The total number of fixtures in one interconnected chain depends on your local
AC mains voltage but you must never connect more than a total load of 20A to
stay within the limits of the connector. The total load includes all connected
fixtures including the first one in the chain.
Note: The maximum allowed total load is 20A including the first fixture
in one interconnected daisy chain.
Page 11
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 11
Please note that there are two different generations of NEUTRIK powerCON
connectors (Type NAC3FCA). Due to different mechanical dimensions, only
the newer version of these two can be used for
iimmpprreessssiioonn XX1
1
fixtures.
You can identify the correct version by the imprint on the side and the
NEUTRIK Logo on the lock latch.
3.3.3 DMX
USITT DMX-512 Standard input/output in 5-pin connectors.
Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4 & 5 N.C.
The DMX- Addressing starts at the DMX- Address [001].
Page 12
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 12
4 The Menu Field
You’ll find the control board on the side part of the arm. It allows you
to make all necessary adjustments of the IIMMPPRREESSSSIIOONN XX11.. With the
Mode-key you get into the main menu. Afterwards you can navigate
through the menu with the Up/Down-keys. Push the Enter-key to get
in the next menu level or to confirm your settings. Make them and set
functions ON/OFF with the Up/Down-keys. Confirm and save it with
the Enter-key (the display shows OK). Push the Mode-key to cancel
the entry and go back to the main menu.
To lock or unlock the keys of the menu field press Mode+Enter+Up simultaneously.
DOWN - UP
MODE - ENTER
Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address 001
Set the DMX start address
Special
Manual DMX
Manual control of all fixture functions
Pan
Manual control for Pan (X-movement)
Pattern
Manual control for Pattern channel / bank
Speed
Movements
Manual control for Pan/Tilt movements
Pan/Tilt
Movements
Manual control for Pan/Tilt movements
Special
Manual control for Special functions
White
Temperature
Manual control for Color temperature
Dimmer
Manual control for Dimmer
Shutter
Manual control for Shutter
White
Manual control for White
Blue
Manual control for blue
Green
Manual control for green
Red
Manual control for red
Color Wheel
Manual control for the color wheel
Tilt
Manual control for Tilt (Y-movement)
Adjust
Key code
xxxx
Use the code for entering the calibration menu
(for authorized persons only)
Display
Contrast
Adjustment for the Display contrast
PWM Frequ. Adj.
Changes PMW frequency
Max Zoom
adjust
Calibration of Zoom-offset
Pan Offset
Calibration for Pan-offset
Tilt Offset
Calibration for Tilt-offset
LED
100mA/1A
adjust
Adjust dimming of the LEDs
LED adjust
White adjust
red
Adjust intensity for red channel
White adjust
blue
Adjust intensity for blue channel
White adjust
green
Adjust intensity for green channel
Clear
EEPROM
Erase EEPROM memory
Mode Down
Enter Up
Page 13
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 13
BLDiagnose
Diagnose of Boot-loader
Diagnose
Diagnose fixture functions
Temperature
Head
Read out head temperature
Default full
feature
Reset all settings to factory defaults
DOWN - UP
Display
Black out
Auto switch-off display illumination after 10
seconds
DMX hold
Holds last DMX signal in case of signal loss
DMX Image
Set image if
DMX off
Activates a stored scene if DMX is off
Save image
in memory
Stores the scene currently sent to the unit
Set dimming
mode
Linear Dimming / Extr. soft dimming / Soft
dimming
DMX input
Monitor
Indicates the presently received DMX signal per
DMX channel
Pan
Instantaneous value for Pan
Pattern
Instantaneous value for Pattern channel / bank
Speed
Movements
Speed adjustment for Pan/Tilt movements
see item below
Pan/Tilt
Movements
Instantaneous value for Pan/Tilt movements
Special
Instantaneous value for Special
White
Temperature
Adjustment of the color temperature for WHITE
Dimmer
Instantaneous value for Dimmer
Shutter
Instantaneous value for Shutter
White
Instantaneous value for White
Blue
Instantaneous value for Blue
Green
Instantaneous value for Green
Red
Instantaneous value for Red
Color Wheel
Instantaneous value for Color Mixing unit
Tilt
Instantaneous value for Tilt
Self test
program
Initiates a self-test program
Live time
On-time of fixture
Set DMX
Mode
Select the desired DMX Mode
Compressed
Mode
Fixture works in "Compressed" mode see also
section 0 unterhalb
Normal
Mode
Fixture works in "Normal" mode see also
section 0 unterhalb
High-Res.
Mode
Fixture works in "High Resolution" mode see
also section 0 unterhalb
Position
feedback
Switch automatic position feedback ON/OFF
Reverse Pan
Invert Pan movements: ON/OFF
Reverse Tilt
Invert Tilt movements: ON/OFF
Reset
RESET and new calibration for all functions
Page 14
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 14
5 DMX Channel Selection (DMX Protocol)
5.1 Normal Mode (18 DMX channels)
Channel
Function
Time and Value
DMX
1
Pan - High
Pan coarse
0° - 660°
0..255
2
Pan - Low
Pan fine
0..255
3
Tilt - High
Tilt coarse
0° - 300°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Color (fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White – CTO
3200K
104..111
White
5600K
112..119
White – CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Red
Color mixing system - Red
0 - 100%
0..255
7
Green
Color mixing system - Green
0 - 100%
0..255
8
Blue
Color mixing system - Blue
0 - 100%
0..255
9
White
Color mixing system - White
0 - 100%
0..255
10
Shutter
Shutter closed
0..15
Shutter pulse random
slow – fast
16..47
Fade on, snap off (random patterns)
slow – fast
48..79
Snap on, fade off (random patterns)
slow – fast
80..111
Fade on, fade off (random patterns)
slow – fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
Page 15
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 15
11
Intensity
Dimmer
0 - 100%
0..255
12
CTO
No CTO
Applicable
0..7
Continuously 2,500k – 10,000k
for ALL colors
8..255
13
Special
RESET
> 1 sec
250..255
14
Movement
No macros
0..0
Macros
Movement Speed Phase
Use channel 15 to adjust
Pan 1 0°
01..01
Pan 1 90°
02..03
Pan 1 180°
04..05
Pan 1 270°
06..07
Pan 2 0°
08..09
Pan 2 90°
10..11
Pan 2 180°
12..13
Pan 2 270°
14..15
Pan 3 0°
16..17
Pan 3 90°
18..19
Pan 3 180°
20..21
Pan 3 270°
22..23
Pan 4 0°
24..25
Pan 4 90°
26..27
Pan 4 180°
28..29
Pan 4 270°
30..31
Tilt size / phase see Pan
32..63
Pan / Tilt size / phase see Pan
64..95
Pan / Tilt (inverse) size / phase see Pan
96..127
Circle size / phase see Pan
128..159
Circle (inverse) size / phase see Pan
160..191
Lying eight size / phase see Pan
192..223
Random movement size / phase see Pan
224..255
15
Pan / Tilt
Pan/Tilt movement speed from controller
0..1
Speed
Pan/Tilt, slow – fast
2..255
Use this channel for the speed of the macros on channel 14
16
None
reserved
-
17
Pan - rotation
No rotation
0..5
Pan rotation CW
slow – fast
6..130
Pan rotation CCW
fast - slow
131..255
18
Tilt - rotation
No rotation
0..5
Tilt rotation CW
slow – fast
6..130
Tilt rotation CCW
fast - slow
131..255
Page 16
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 16
5.2 Compressed Mode (14 DMX channels)
Channel
Function
Time and Value
DMX
1
Pan - High
Pan coarse
0° - 660°
0..255
2
Pan - Low
Pan fine
0..255
3
Tilt - High
Tilt coarse
0° - 300°
0..255
4
Tilt - Low
Tilt fine
0..255
5
Color (fixed)
Colors adjustable via RGB
0..7
Color 01 - Red 1)
8..15
Color 02 - Amber 1)
16..23
Color 03 - Warm Yellow 1)
24..31
Color 04 - Yellow 1)
32..39
Color 05 - Green 1)
40..47
Color 06 - Turquoise 1)
48..55
Color 07 - Cyan 1)
56..63
Color 08 - Blue 1)
64..71
Color 09 - Lavender 1)
72..79
Color 10 - Malve 1)
80..87
Color 11 - Magenta 1)
88..95
Color 12 - Pink 1)
96..103
White – CTO
3200K
104..111
White
5600K
112..119
White – CTB
7200K
120..127
Rainbow Effect Stop 2)
128
Rainbow Effect 3)
slow - fast
129..223
Random colors
slow - fast
224..255
6
Red
Color mixing system - Red
0 - 100%
0..255
7
Green
Color mixing system - Green
0 - 100%
0..255
8
Blue
Color mixing system - Blue
0 - 100%
0..255
9
White
Color mixing system - White
0 - 100%
0..255
10
Shutter
Shutter closed
0..15
Shutter pulse random
slow – fast
16..47
Fade on, snap off (random patterns)
slow – fast
48..79
Snap on, fade off (random patterns)
slow – fast
80..111
Fade on, fade off (random patterns)
slow – fast
112..143
Strobe random
5s - 0.1s
144..199
Strobe effect slow - fast
1 Hz - 10 Hz
200..239
Shutter open
240..255
11
Intensity
Dimmer
0 - 100%
0..255
Page 17
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 17
12
Special
RESET
> 1 sec
250..255
13
Pan rotation
No rotation
0..5
Pan rotation CW
slow – fast
6..130
Pan rotation CCW
fast - slow
131..255
14
Tilt - rotation
No rotation
0..5
Tilt rotation CW
slow – fast
6..130
Tilt rotation CCW
fast - slow
131..255
1)
The predefined colors can be used as start-colors for the Rainbow effect. Please select first a
desired start-color before you activate the rainbow effect. All
IIMMPPRREESSSSIIOONN XX1
1
will then start from
that color and will execute the rainbow effect synchronously. Different
IIMMPPRREESSSSIIOONN XX1
1
can have
different start-colors but will still execute the rainbow effect synchronously. If you choose a color
different from the ones marked with 1) in the tables above the rainbow start-color will be red.
2)
Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued
from the current color.
3)
The Rainbow-effect will run synchronously only if started from one of the predefined colors (see also
point 1) before).
Locking and unlocking the Control Panel
Please lock and unlock the control panel by pressing the menu keys MODE & ENTER & UP at the
same time.
Additional Display Indications
As a default you'll find the following additional information in the first row of the LCD display:
Vxx/xx/xx/xx/x (e.g. V1.16/10/16/NN/NS)
NS ( DMX Mode = Normal / Dimmer Mode = Soft)
NN ( Pan Mode =Normal; Tilt Mode = Normal)
10 = Pan/ Tilt Driver Version
16 LED driver version
1.16 Main CPU version
Page 18
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 18
66
Maintaining and Cleaning
The IIMMPPRREESSSSIIOONN XX11
is a fixture of very low maintenance. It is only necessary to
clean the air inlets and outlets as well as the optical LED lenses from time to time.
For safe operation it is absolutely essential that the fixture is kept clean and that dust,
dirt and smoke-fluid residues must not build up on, or within the fixture. Otherwise the
fixture's light-output will be significantly reduced or damages can occur. Regular
cleaning will not only ensure the maximum light-output, but will also allow the fixture
to operate reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!
6.1 Safety regulations
Pull out the mains power plug!
Wait min. 15 minutes after disconnecting power to allow the fixture to cool
down.
6.2 Maintenance and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Hence no
general guidelines can be given. The intervals given below are only suggestions
from our experience.
Position
Interval
In this way
LED reflector and optical system
weekly
soft brush /lint-free cloth
Fan and air channel
monthly
vacuum cleaner, airbrush, etc.
Attention:
Never let optical parts come into contact with oil, fat, alcohol or similar
solvents.
Before running the fixture wait until all parts are dry.
Never touch lenses with bare fingers.
Attention:
Under no circumstances should alcohol or solvents be
used to clean the lenses!
Page 19
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 19
7 Technical Specifications
Power supply
Power consumption
85 VA (Watt)
Power Input
Auto sensing 100-240 V AC, 50-60 Hz
Power connectors
NEUTRIK powerCON
Power-in: NAC3FCA / NAC3MPA (blue)
Power-out: NAC3FCB / NAC3MPB (grey)
Fuse protection
Micro-fuse 5x20 mm, T2A
Operational Parameters
Max. Ambient
Temperature
5° - 45°C (integrated overheating switch)
40°-113°F
Mounting Position
Any (see relevant chapter)
Lighting System - Additive Color mixing
LED Type
4 x Osram Ostar RGBW multi-chip
Lifetime
50,000 h
Wavelength optimized for maximum presentable color space
Optical System
Full RGBW / High efficient Collimator cluster
Interchangeable lens carrier with 7° beam angle as standard option
Shutter / Dimmer (8/16 Bit)
Strobe- Effect with variable speed between 1-10 flashes per second, Random & Pulse-Effects
Continuous Dimmer 0 - 100%
DMX Control
Standard USITT DMX-512, 5 pin XLR: [+]=Pin 3 / [-]=Pin 2 / [Ground]=Pin 1 / Pin 4 & 5 N.C.
The DMX- Addressing starts at the DMX channel [001].
Pan / Tilt (8/16 Bit)
Pan- movement
660° in min. 2 seconds (Position Feedback)
Pan - rotation
endless pan-rotation with adjustable speed
Tilt- movement
360° in min. 0.9 seconds (Position Feedback)
Tilt - rotation
endless tilt-rotation with adjustable speed
Weights and Measures
Width
140 mm / 5.5´´
Length
190 mm / 7.5´´
Height (head vertical)
250 mm / 9.9´´
Weight (net)
3.1 kg / 6.8 lbs
Page 20
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 20
8 Dimensions
Page 21
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 21
9 Index
B
BGV C1............................................................ 7
C
Cleaning......................................................... 18
D
Description of Device ....................................... 4
Dimensions .................................................... 20
DIN VDE 0711-217 .......................................... 7
Display Indications ...................................... 17
DMX ............................................................... 11
E
e-mail ............................................................... 1
EN 60598-2-17 .............................................. 10
Enter-key ....................................................... 12
M
Maintenance .................................................. 18
Menu Field ..................................................... 12
Micro-fuse ...................................................... 10
Mode-key....................................................... 12
Mounting .......................................................... 7
Mounting in hanging Position .......................... 8
Mounting in sidewise Position ......................... 9
Mounting on the Floor ...................................... 8
N
NEUTRIK powerCON .................................. 10
Normal-Mode ................................................. 14
O
Optical parts ................................................ 18
P
Pan- Movement ............................................. 19
Power Supply .............................................. 10
S
Safety distance ............................................... 7
Safety Instructions .......................................... 5
Secure the Device ......................................... 10
Software Version ............................................. 1
T
Technical Specifications ............................... 19
Tilt- Movement .............................................. 19
U
Up/Down-keys .............................................. 12
V
VBG 70 ........................................................... 7
W
Warranty claims .............................................. 6
Weights and Measures ................................. 19
Page 22
GLP German Light Products GmbH
impression X1 manual (v1.0) from software version: 1.0 22
Loading...
