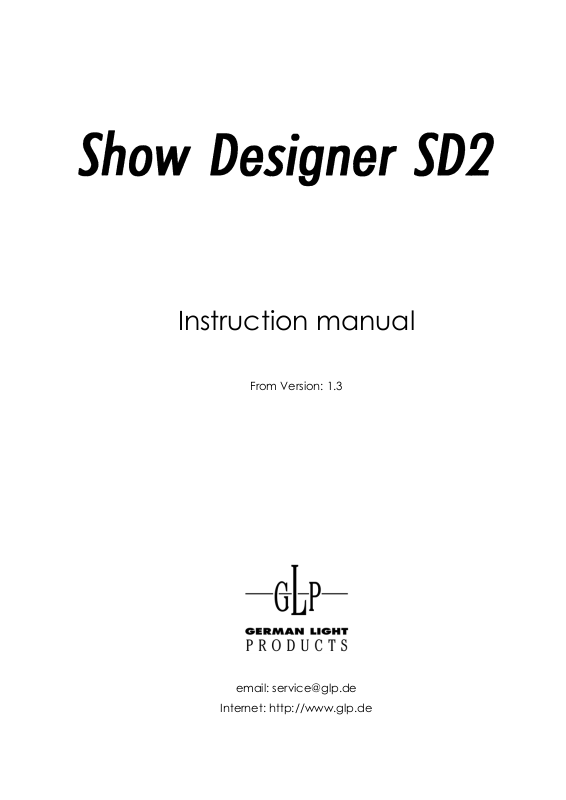

glp Glp Show Designer SD 2 Showdesigner SD2

Instruction manual

From Version: 1.3

email: [e-mail]

Internet: http://www.glp.de

GLP  German Light Produktion (V2.1) 2

GLP  German Light Produktion (V2.1) 3

Index

1 Switch on / Basic Functions........................................................ 6

2 Setup (Init).................................................................................... 7

2.1 Scanner Setup (Scanner).......................................................................7

2.1.1 Shutter............................................................................................ 10

2.1.2 Fixing DMX- Channels (DMX ch.)............................................... 11

2.1.3 Fixing all the other DMX- Channels (DMX ch.) ....................... 12

2.1.4 Administering Basic Positions for Schedules (Adj.Pos)............ 13

2.1.5 Insert DMX Values (Values)......................................................... 13

2.1.6 Earmarking Color and Gobo Keys (C/G-Values) ................... 14

2.1.7 Clearing all Scanner (Erase Scan)............................................. 15

2.1.8 Copying Scanner Setup (Copy)................................................ 15

2.1.9 Clearing Scanner Setup (Cl. Scanner) ..................................... 16

2.2 PAR Setup (PAR)....................................................................................18

2.2.1 None Fade Channels (No dimmer) .......................................... 18

2.2.2 Dimmer Channels (Dimmer) ...................................................... 19

2.2.3 Clearing PAR Setup (Clear all)................................................... 19

2.3 Set Password .........................................................................................20

2.4 Clear Memory (Erase Mem.)...............................................................20

2.5 DMX- Input ............................................................................................21

2.6 Midi ........................................................................................................23

2.7 Utilities....................................................................................................24

2.8 Saving Setup and quit (Save/Exit) ......................................................25

3 Administering Scanner- Groups (Scan-Group) .....................25

4 Saving Data ...............................................................................26

GLP  German Light Produktion (V2.1) 4

5 Manual Use ................................................................................ 27

5.1 Manual Control of Scanners................................................................27

5.2 Manual Control of PAR- Channels ......................................................28

6 Administering / Editing (Edit- Modus) .....................................28

6.1 Editing Scenes (editing).......................................................................30

6.1.1 Quick-Set and Quick-Set Reference for Pan/Tilt..................... 31

6.1.2 Motion examples for Pan/Tilt ..................................................... 32

6.2 Editing Chaser (Ed. chaser).................................................................33

6.3 Editing Programs (Edit prog.)...............................................................34

6.4 Edit Effect Chaser (Ed.eff.ch.)..............................................................37

7 Scene Group.............................................................................. 40

8 Show ........................................................................................... 42

8.1 Manual Overwrite.................................................................................43

8.2 Run Chaser and Effect Chaser ............................................................44

9 Technical Data .......................................................................... 45

GLP  German Light Produktion (V2.1) 5

1 Switch on / Basic Functions

After switching on the Show Designer SSDD22 you are entering the Main
Menu. From here you can use other lower menus with the help from

Function Keys.

- F1 - - F2 - - F3 - - F4 -

-- Show --

*** Show Designer SD2 ***

SceneGroup Memory Init

-- Edit -- Scan-Group

Ver: x.xx

- F5 - - F6 - - F7 - - F8 -

GLP  German Light Produktion (V2.1) 6

2 Setup (Init)

Put -F1- (Init) to got to the Setup Menu. All the initiation and basic
functions are done here. Attachments of DMX- Channels, Colors/Gobos,
Midi- Adjustments and a menu with Utilities.

- F1 - - F2 - - F3 - - F4 -

Scanner

*** Setup ***

DMX-Input Utility Save/Exit

PAR Erase Mem.

Midi

Password

- F5 - - F6 - - F7 - - F8 -

2.1 Scanner Setup (Scanner)

Put -F1- (Scanner) to go to the Scanner Setup Menu.

- F1 - - F2 - - F3 - - F4 -

Shutter

DMX ch. C/G-Values.

Values

Scanner setup

Erase Scan

Adj. Pos

Copy Cl.Scanner

- F5 - - F6 - - F7 - - F8 -

First chose the scanner to work with the Scanner Keys. It is only possible to
chose one scanner at the same time.

GLP  German Light Produktion (V2.1) 7

Indications and Procedure:

1) Divide the 512 usable DMX-Channels into Scanner and PAR Channels,
e.g. DMX-Channels 1-300 for Scanner and DMX-Channels 301-512 for
PAR.

2) Do not have double usage of DMX-Channels. There is a display
showing the used DMX-Channels in the Setup Menu Utility.

3) Scanners with different DMX- Addresses are shown one after the
other and rising in the Setup. For your own orientation you should
supply a setup-list as you can see below (There is a list for copying in
the appendix).

DMX-

1 2 3 4 5 6 7 8

Address

Channel/

Pan Tilt

Function

Unit 1 GLP MAX 250 ELC

DMX-

9 10 11 12 13 14 15 16

Spee

d

Pan

Spee

d

Tilt

Speci

al

Color Gobo

Address

Channel/

Function

Unit 2 GLP MAX 250 ELC

DMX-

Address

Pan Tilt Spee

d

Pan

17 18 19 20 21 100 and so

Spee

d

Tilt

Special Color Gobo Shutter

Shutt

er

on.

Channel/

Function

Unit 3 GLP Mighty-Scan

GLP  German Light Produktion (V2.1) 8

Pan Tilt Speed

Pan/ Tilt

Speed

Shutter Dim.

and so

on.

4) One DMX-Channel for different functions could be laid aside on
several Function Keys.

GLP  German Light Produktion (V2.1) 9

For example:

1) GLP Patend Light 575/1200 or Star Tec 1200
There are six Gobos at the Gobo channel on the DMX-Values 1 - 128.
From 129 - 255 it is Gobo rotation or Gobo position. It is possible to put
the six Gobos to the Gobo Keys and the Gobo rotation to SPECIAL
Key Red: Gobo.

2) GLP Max 250 HLX
On the Shutter-Channel (Channel 8) at the DMX-Values 0 - 127 are
the Shutter Frequencies, from 128 - 255 Speed is checked for Color/
Gobo. You can put the DMX-Values 0 - 127 e.g. to SPEC.4 and the
DMX-Values 128 - 255 to ROT.GOB.WH. The SPECIAL- Keys are having
the same DMX-Channel.

2.1.1 Shutter

First of all make the adjustments for the Shutter-Channel.

In this case it is only the adjustment for „Shutter open“ and „Shutter
close“. If you have got an independent scanner i.e. not over a chaser
(between open and close) you should put the DMX-Values for the
Shutter-Frequencies on a special key, e.g. Spec.4.

-F1- (Shutter) to go to the Set Shutter Menu.

Put

- F1 - - F2 - - F3 - - F4 -

Sh. DMX

Set Shutter

Sh. On Gobo

Gobo DMX

Sh.open

Sh.close

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Sh. DMX) Î „Set DMX channel:“ Î insert DMX- Channel with

NUM-Block Keys or Trackball and press ENTER.

GLP  German Light Produktion (V2.1) 10

¾ -F3- (Sh,open) Î „Set Shutter open:“ Î insert DMX-Value for Shutter

open with NUM-Block Keys or Trackball and press ENTER.

¾ -F4- (Sh.close) Î „Set Shutter close:“ Î insert DMX-Value for Shutter

close with NUM-Block Keys or Trackball and press ENTER.

If you have got a scanner which shutters with a Gobo wheel activate this
function with -F5-. „Set Shutter → Shutter use Gobo Ch.

Afterwards:

¾ -F5- (Gobo DMX) Î „Set DMX channel:“ Î insert DMX-Channel for

Gobo with NUM-Block Keys or Trackball and press ENTER.

Press ESC to quit this menu.

2.1.2 Fixing DMX- Channels (DMX ch.)

Press -F2- (DMX ch.) to leave the Scanner Setup Menu and go to Set

DMX-Channel (1 . . 512) Menu.

- F1 - - F2 - - F3 - - F4 -

Pan DMX

Tilt DMX

Set DMX-Channel (1 . . 512)

Col1 red

Col1 green

Gobo 1

Col1 blue

Gobo 2

Col2 Wh

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Pan DMX) Î „Give DMX channel of high byte:“ Î insert DMX-

Channel for Pan high byte with NUM-Block Keys or Trackball and
press ENTER.

Î „Give DMX channel of low byte:“

GLP  German Light Produktion (V2.1) 11

• If you have got a scanner with 8 Bit Î insert DMX-Channel for

Pan low byte with NUM-Block Keys (CLR) or Trackball as „OFF“
and press ENTER.

• If you have got a scanner with 16 Bit Î insert DMX-Channel for

Pan low byte with NUM-Block Keys or Trackball and press ENTER.

¾ -F2- (Tilt DMX) Î Same procedure as above (Pan DMX).

¾ -F3- (Gobo 1) Î See above

¾ -F4- (Gobo 2) Î See above (For Scanner with two Gobo wheels)

¾ -F5-, -F6-, and -F7- See above (For Scanner with RGB- Color-Mix-

System)

¾ -F8- (Col2 Wh) Î See above (For Scanner with Color-wheel)

2.1.3 Fixing all the other DMX- Channels (DMX ch.)

All the other functions (Shutter also) are laid down on the Special keys.

Stay within the Set DMX-Channel (1 . . 512) Menu and chose now with

the Special Keys the adequate scanner functions.

For example:

Dimmer Î „Give DMX channel number:“ Î insert DMX-Channel for

Dimmer with NUM-Block Keys or Trackball and press ENTER.

or put Shutter e.g. to Spec.4:

Spec.4 Î „Give DMX channel number:“ Î insert DMX-Channel for
Spec.4/Shutter with NUM-Block Keys or Trackball and press ENTER.

GLP  German Light Produktion (V2.1) 12

Press ESC to go back to the Scanner setup Menu.

2.1.4 Administering Basic Positions for Schedules (Adj.Pos)

Press -F6- (Adj.-Pos) Î „Adjust position for Pan/Tilt/Focus/Frost“ Î Here
you can put Pan, Tilt, Focus and Frost into any position. This position is
seen every time you change the spot with Init.

2.1.5 Insert DMX Values (Values)

Press -F3- (Values) to go to the Set Scanner DMX-Value Menu.

- F1 - - F2 - - F3 - - F4 -

Set Scanner DMX-Value

Use special keys to set min/max val.

- F5 - - F6 - - F7 - - F8 -

Chose channel with SPECIAL Keys and insert minimal and maximum
value.

For example:

Dimmer Î „Set DMX-Value min:“ Î insert minimal DMX-Value for Dimmer
with NUM-Block keys or Trackball and press ENTER.

Î „Set DMX-Value max:“ Î insert maximum DMX-Value for Dimmer with

NUM-Block keys or Trackball and press ENTER.

Same procedure with all the other channels.

GLP  German Light Produktion (V2.1) 13

If a Special key is not associated to a DMX-Channel you will see the
message „DMX-Channel not O.K.“.

Press ESC to go back to the Scanner setup Menu.

2.1.6 Earmarking Color and Gobo Keys (C/G-Values)

Press -F4- to go to the Set Color/Gobo-List Menu.

- F1 - - F2 - - F3 - - F4 -

Gobo 1

Gobo 2

Last Gobo Last Col.

Set Color/Gobo-List

Col1 red

Col1 green

Col1 blue

Col2 Wh

- F5 - - F6 - - F7 - - F8 -

Chose Gobo-key with GOBO, press -F1- (Gobo 1) or -F2- (Gobo 2) Î
„Gobo 1 value:“ Î insert DMX-Value for Gobo 1 with NUM-Block keys or
Trackball and press ENTER.

Same procedure for all the other GOBOS and COLORS.

There are 2x15 places available. With BANK you can switch to the other

15.

If you have got a scanner with two Gobo wheels or several Color-wheels
(e.g. RGB- mixture) administer the combination of the wheels ( Col1 red,
Col1 grn, Col1 blue, Col2 Wh, Gobo1, Gobo2) one after the other and
save them afterwards on a GOBO or COLOR- key.

¾

For example:.

GLP  German Light Produktion (V2.1) 14

-F3- (Last Gobo) and -F4- (Last Col.) make the assumption of

the DMX-Value of the proceeding Gobos or Colors possible.

Gobo Taste 2 Î -F3- (Last Gobo) Î -F1- (Gobo 1) „Gobo 1 value: xx“
Î take value with ENTER over or Î insert DMX-Value for Gobo 2 with

NUM-Block keys or Trackball and press ENTER.

Press ESC to go back to the Scanner setup Menu.

2.1.7 Clearing all Scanner (Erase Scan)

Starting from the Setup Menu you can clear all initialized scanner with -

F5-

(Erase Scan).

Press NUM-Block Key 1 to confirm or key 0/ESC to quit.

2.1.8 Copying Scanner Setup (Copy)

Here you can copy already initialized scanners to another not yet used
DMX-Channel. First you have to attach the Pan Channel of the new
scanner (as a reference) to a free DMX-Channel. If Pan is not the first
Channel of the scanner you have to remind this with the choice of the
new DMX-Channel.

See also „Indications and Procedure“ on page 8

For example:

DMX­Address

Channel
/
Function

50 51 52 53 54 55 56 57 and

so
on.

Gobo Color Shutter Spee

d Pan

last Scanner new Scanner

Spee
d Tilt

Pan Tilt Spec.and

so
on.

Press -F7- to go to the Copy functions Menu.

GLP  German Light Produktion (V2.1) 15

- F1 - - F2 - - F3 - - F4 -

Copy-scan

Predef-Sc

Del.scan

Copy functions

Pan-norm

Pan-inv

Tilt-norm

Tilt-inv

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Copy-scan) Î „Copy scanner data“ Î declare source

scanner with SCANNER keys Î declare end scanner with

SCANNER keys.

Predefined Scanner

Here you can copy one of the predefined scanner out of the ROM of the
SD2 to one DMX channel. It is necessary to attach the Pan Channel of
the new scanner (as a reference) to a free DMX-Channel. If Pan is not
the first Channel of the scanner you have to remind this with the choice
of the new DMX-Channel.

¾ -F2- (Predef-Sc) Î „Copy predefined scanner from ROM-area“ Î

Here it is possible to copy predefined scanner from the store to a
DMX-Channel. It is also necessary to have at least one PAN-channel
set. Then the SD2 is able to change all the other DMX-Addresses. (For
a list of all predefined scanner see at the end of this manual).

¾ -F3- (Del.scan) for deleting individual scanner.

Chose Scanner and press NUM-Block Key 1 or quit with 0/ESC.

¾ You are using -F5- to -F8- for inverting Pan and Tilt movements.

Press ESC to go back to the Scanner setup Menu.

2.1.9 Clearing Scanner Setup (Cl. Scanner)

GLP  German Light Produktion (V2.1) 16

Clearing individual scanner.

Chose scanner and press NUM-Block Key 1 to confirm the clearing or
0/ESC to pluck.

(Same effect as in 2.1.8

-F3- Del. scan)

GLP  German Light Produktion (V2.1) 17

2.2 PAR Setup (PAR)

Press -F2- (PAR) to go from the Setup Menu to the Set PAR type list Menu.

- F1 - - F2 - - F3 - - F4 -

No dimmer

Dimmer

Set PAR type list

Clear all

- F5 - - F6 - - F7 - - F8 -

2.2.1 None Fade Channels (No dimmer)

These are Dimmer-Channels which stay untouched when scenes are
dissolved by fading times, i.e. the announced DMX-Value „jumps“ from
one scene to another without dissolving. Use this mode for example for
rolling color changes.

-F1- (No dimmer) Î „No dimmer list:“

There are three different possibilities for inserting channels. They can also
be used in combination.

1) Channel and Channel

Insert DMX-Address for the „No dimmer“ Channel with NUM-

Block keys or Trackball Î insert more channels with the key
AND in the PAR-ADJUST section. Press ENTER.

2) Channel to Channel

Insert DMX-Address for the „No dimmer“ Channel with NUM-

Block keys or Trackball Î insert the final channel with the key
THRU in the PAR-ADJUST section. Press ENTER.

GLP  German Light Produktion (V2.1) 18

3) All channels from now on

Insert DMX-Address for the „No dimmer“ Channel with NUM-
Block keys or Trackball Î insert all other channels from now
with the key ALL in the PAR-ADJUST section.

For example:

-F1- (No dimmer) ΓNo dimmer list:“ Î

100 AND 101 AND 200 THRU 300 AND 400 ALL

The DMX-Channels 100, 101, 200-300 and 400-512 have been defined.

Though it is not sensible to have such leaps and gaps.

2.2.2 Dimmer Channels (Dimmer)

Here you can fade Dimmer Channels with a dissolving time from scene
to scene.

Insert as above (No dimmer channels).

2.2.3 Clearing PAR Setup (Clear all)

With -F8- (Clear All) you can clear all No dimmer and Dimmer Channels
together.

Press NUM-Block Key 1 to confirm or key 0/ESC to quit.

GLP  German Light Produktion (V2.1) 19

2.3 Set Password

Starting from the Setup Menu you’ll come to the Set password function
Menü with –F3- (Password).

- F1 - - F2 - - F3 - - F4 -

Init PW

Edit PW Del.all PW

Set password functions

- F5 - - F6 - - F7 - - F8 -

You can give separate passwords for the sections: INIT (Setup) and EDIT
(Programming).

¾ -F1- (Init PW) Î „Set Init password:“ Î enter the four-digit password

number with the NUM-Block keys. Confirm with a second entry of the
number and press the ENTER key twice.

-F2- (Edit PW) Î „Set Edit password:“ Î enter the four-digit password

¾

number with the NUM-Block keys. Confirm with a second entry of the
number and press the ENTER key twice.

¾ -F4- (Del.all PW) Î „Delete all password:“ Î Press NUM-Block Key 1

to confirm or key 0/ESC to quit.

2.4 Clear Memory (Erase Mem.)

Starting from the Setup Menu you can clear the whole memory of SD2
with -F4- (Erase Mem.).

GLP  German Light Produktion (V2.1) 20

Press NUM-Block Key 1 to confirm or key 0/ESC to quit.

2.5 DMX- Input

Starting from the Setup Menu you get via -F5- (DMX-Input) into the „Set
DMX input channel list Menu“

Here you can connect external DMX- Desk and patch to the
corresponding DMX- Channels (Soft Patch).

The external DMX- Desk is than controlling the corresponding DMX­Channels.

„Give first DMX input channel :“ Î Select the first Input- Sending­Channel of the DMX- Desk with the NUM-Block keys. That means the first
DMX- Channel which is send first from the external desk (confirm with
ENTER).

„Give first DMX output channel :“ Î Select the first Output- Channel of
the SD2 with the NUM-Block keys. That means the first DMX- Channel
which is corresponding to the first receiving channel (confirm with ENTER).

„Give number of used DMX channels :“ Î Enter the number of the via
the SD2 forwarded channels with the NUM-Block keys (confirm with

ENTER).

Example:

a) „Give first DMX input channel :“ Î Most channel [1] but could be also

every other channel. Set the first sending DMX-Channel of the
external DMX- Desk.

b) „Give first DMX output channel :“ Î Sets the corresponding output

DMX- Channel of the SD2. Can be every channel of the SD2.

c) „Give number of used DMX channels :“ Î Selects all addressed

channels up from the outgoing DMX- Channel. For example: Your
input channel is No.10. Your outgoing channel is No.30. Now you
select 5 used DMX- Channels (DMX 30 – 35) so the external DMX- Desk
is controlling the SD2 channels No.30 - -35.

GLP  German Light Produktion (V2.1) 21

GLP  German Light Produktion (V2.1) 22

2.6 Midi

Starting from the Setup Menu you’ll come to the Midi setup Menu with -

F6-

(Midi).

- F1 - - F2 - - F3 - - F4 -

Set key

Midi setup

OMNI ON

OMNI OFF

Show setClr set

OMNI-Status : ON (OFF)

Channel No Check

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Set key) Î „Send Midi note:“ Î Send a note with the Midi-

Keyboard and assign it to any key (e.g. SCENE-GROUP- Taste)
from SD2.

¾ -F3- (Show set) Î „Key set on:“ Î By pushing a Midi-Keyboard-

key you’ll see the key number of SSDD22.

¾ -F7- (Channel No) Î „Give channel number of Midi source: 0 –

16“ Î Every Midi has a channel number. If you have several
Midis at the same Midi wire you have to „tell“ the SD2 with the
channel number to which Midi it has to react. Î insert the
channel number with NUM-Block keys or Trackball and press
ENTER.

¾ -F5- (OMNI ON) Î „OMNI-Status : ON“ Î OMNI ON does not

consider the channel number from Midi. You should only chose
this if there is only one Midi connected with a Midi wire.

¾ -F6- (OMNI OFF) Î „OMNI Status : OFF“ Î Data from Midis is

only accepted when they have a channel number.

¾ -F8- (Check) Î „Number of detected Midi note :“ Î Here you

can check whether the Midi connection works correctly. You will
see the key numbers from the Midi- Keyboard.

Press ESC to quit any time and go back to the Midi / Main Menu.

GLP  German Light Produktion (V2.1) 23

2.7 Utilities

Starting from the Setup Menu you come to the Setup utilities Menu with -

F7-

(Utility).

- F1 - - F2 - - F3 - - F4 -

Used DMX

Setup utilities

Pan inv. Tilt inv.SG2-inv.

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Used DMX) Î For two seconds you can see how many

DMX-Channels are in use at the moment. The less they are the
faster SD2 is. You should always pay attention to the low channel
numbers of the DMX-tools and the gaps between the tools
(review).

¾

¾ -F7- (Pan inv.) Î You can invert the direction of the ARROW

¾ -F8- (Tilt inv.) Î You can invert the direction of the ARROW KEYS

GLP  German Light Produktion (V2.1) 24

-F5- (SG2-inv.) Î You can invert the SCENE- GROUP Fader SG2.

KEYS and of TRACKBALLS for Pan. It is necessary when SD2 is now

in front and then behind the stage.

and of TRACKBALLS for Tilt.

2.8 Saving Setup and quit (Save/Exit)

Press -F8- to quit the Setup Menu and save all entries.

3 Administering Scanner- Groups (Scan-Group)

Starting from the Main Menu you can concentrate scanner to groups
with -F4-.

First select scanner at SCANNER Selection Keys (1 to 16) then press -F4-
(Scan-Group) Î „Save scanner in GROUP → press GROUP key“ S.GROUP
Chose key 1-11.

Afterwards you can chose the scanner together in groups by pressing
the S.GROUP keys.

• To change the groups just superscribe S.GROUP.

• To clear the groups superscribe S.GROUP without chosen a

scanner before.

• CLEAR clears all chosen scanner.

• INV inverts the choice of the scanner.

GLP  German Light Produktion (V2.1) 25

4 Saving Data

Starting from the Main Menu you come to the Memory-functions Menu
with -F7- (Memory).

- F1 - - F2 - - F3 - - F4 -

Load Card Save Card

Load COM Send COM

*** Memory - functions ***

Erase Card Check COM

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Load Card) Î „Load data from memory card“ Î Loads all

data from the memory card to the controller. Press NUM-Block

Key 1 to confirm or key 0/ESC to quit.

Warning: All data is superscribed / deleted in the controller.

¾ -F2- (Save Card) Î „Save data in memory card“ Î Loads all

data from the controller to the memory card. Press NUM-Block

Key 1 to confirm or key 0/ESC to quit.

Warning: All data is superscribed / deleted on the Memory Card.

¾ -F3- (Load COM) Î „Load data from PC into memory“ Î Loads

data into the controller over the RS 232 cut (with optional
available PC- Software). Press NUM-Block Key 1 to confirm or key

0/ESC to quit.

Attention: Please read the exact procedure in the Software- guidance.

GLP  German Light Produktion (V2.1) 26

¾ -F4- (Send COM) Î „Save data in PC from memory“ Î Loads

all data of the controller into the PC. Press NUM-Block Key 1 to
confirm or key 0/ESC to quit.

¾ -F5- (Erase Card) Î „Erase memory card“ Î Clears all data on

the Memory Card. This takes about three minutes.

¾ -F7- (Check COM) Î „Check COM port Æ use test connector“

Î With the help of a test plug you can check the data transfer

from and/ or to the computer.

5 Manual Use

Starting from the Main Menu, Show Modus or Editier Modus you can
change adjustments at the scanners manually at any time.

You have to be either in the Show Modus or in the Edit Scene Menu to
check the PAR- Light.

5.1 Manual Control of Scanners

First of all you have to open the shutter. Press the SHUTTER key and chose
the requested scanner either directly or over the S.GROUP keys (shutter
open). Then press SHUTTER key again (LED of SHUTTER key and of scanners
go out).

For working or editing chose scanner again.

Now make adjustments of Color and Gobo. Press SPECIAL´s and insert
values with the help of the TRACKBALLS. Additional Pan/Tilt can be
checked with the COURSER keys.

GLP  German Light Produktion (V2.1) 27

5.2 Manual Control of PAR- Channels

Adjustments for the PAR light could be made in the Show Modus or in the
Edit Scene Menu.

Activate the SET-PAR key in the PAR-ADJUST section.

Î „Give DMX list:“ Î insert DMX-Channel with the NUM-Block keys
or Trackball and press ENTER.

Î „Give DMX value:“ Î insert DMX-Value with the NUM-Block keys
or Trackball and press ENTER.

Î Press FULL to maximize Value (255) directly.

Î Press ESC to finish entries.

As described in chapter 2.2.1 on page 15 all types of entries (ALL, AND,
THRU) can be used.

6 Administering / Editing (Edit- Modus)

Indications and Procedure:

Edit- Mode Show- Mode

Programs (2000)

Scenes Shutter Chaser

Effect Chaser

First you create all scenes in Edit- Modus. Up to 2000 could be saved.
After that these scenes are put together to programs and chasers in the
Edit Chaser or Edit Program Menu.

Show

overlay

GLP  German Light Produktion (V2.1) 28

Any combination of PAR-Light and scanners is possible in the scenes.

If the scenes were changed later (edited) this may have consequences
to the programs and chasers where the edited scene has been used.

Starting from the Main Menu press

Menu.

-F2- (-- Edit --) to come to the Editier

- F1 - - F2 - - F3 - - F4 -

Edit prog.

*** Edit ***

Del. Prog Del.ef.ch..

Ed.chaser

Del.chaser

Ed.eff.ch.

Edit scene

- F5 - - F6 - - F7 - - F8 -

¾ -F5- (Del. Pgm) Î „Delete program ? Yes=1 / No=0“ Î „Give

program number:“ Î insert Program number with NUM-Block
keys or Trackball and press ENTER.

Press ESC to drop any time.

¾

¾ QS-Ref. and Quick-Set is also in the Edit Scene Menu and described

-F6- (Del. chas.) Î „Delete chaser Yes=1 / No=0“ Î „Give

chaser number:“ Î insert chaser number with NUM-Block keys or
Trackball and press ENTER.

Press ESC to drop any time.

there. See 6.1.1 on page 31.

GLP  German Light Produktion (V2.1) 29

6.1 Editing Scenes (editing)

Starting from the Editier Menu press -F3- (Ed. scene) to come to the Edit
Scene Menu.

- F1 - - F2 - - F3 - - F4 -

Group Moving

QS.-RefQuick-Set

*** Edit scene ***

Del.scene.

Get scene Save

- F5 - - F6 - - F7 - - F8 -

Starting from this menu all scenes are made. Make the scanner and also
the PAR adjustments as in chapter 5 Manual Use on page 27.

Press -F8- (Save) to save Î and insert scene numbers with NUM-Block
keys or Trackball Î press ENTER to confirm.

Press ESC to drop any time.

All further functions in the Edit scene Menu are supporting you to make
scenes.

¾ -F1- (Group) allows the summary of scanners to groups.

Also see chapter 3 Administering Scanner- Groups (Scan-Group)
on page 6.

¾ -F6- (Del. scene) allows the deletion of scenes.

¾ -F7- (Get scene) allows the call up of already written scenes.

GLP  German Light Produktion (V2.1) 30

6.1.1 Quick-Set and Quick-Set Reference for Pan/Tilt

a) Quick-Set

16 basic positions for Pan/Tilt can be saved here. For making scenes

afterwards they can be recalled quickly. They could be positions for
particular scanners or for scan groups.

If you change the Quick-Set’s later there will be no effect for the

already made scenes, chasers or programs (static connection).

First you make the wanted Pan/Tilt Position (all other functions are not
to be considered). Î

-F2- (Quick-Set) Î „1 → Load / 2 → Save <1>:“

1 Î open Quick-Set numbers with NUM-Block Î ENTER

Quick-Sets are opened later in the same way.

2 Î save Quick-Set numbers with NUM-Block keys Î ENTER

b) Quick-Set Reference

16 more Pan/Tilt basic positions are available here. There is a
difference between the above described Quick-Sets and these. If you
change the Quick-Set Reference afterwards all written scenes,
chasers or programs are changing, too (dynamic connection).

GLP  German Light Produktion (V2.1) 31

6.1.2 Motion examples for Pan/Tilt

Starting from the Edit scene Menu press -F4- (Moving) to come to the

Pan/Tilt moving Menu.

- F1 - - F2 - - F3 - - F4 -

Sel mov. Stop mov.

*** Pan / Tilt moving ***

Size Speed Phase

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Sel mov.) selects the eight pre-defined motion examples.

-F1- Î Pan mov. Right/Left- Turn

-F2- Î Tilt mov. Up/Down- Turn

-F3- Î P/T mov. Diagonal- Turn

-F4- Î P/T inv.mv Diagonal- Turn inverted

-F5- Î Circle Circle

-F6- Î Circ. inv Circle inverted

-F7- Î Eight Eight

-F8- Î Eight. inv Eight inverted

¾ -F2- (Stop mov.) stops all motion examples.

¾ -F5- (Size) allows to insert the size of the motion example.

Insert size with the NUM-Block keys or Trackball and press ENTER.

¾ -F6- (Speed) allows to insert the speed of the motion example.

Insert speed with the NUM-Block keys or Trackball and press

ENTER.

GLP  German Light Produktion (V2.1) 32

¾ -F7- (Phase) allows to insert the starting phase of the motion

example.

Insert phase with the NUM-Block keys or Trackball and press

ENTER.

6.2 Editing Chaser (Ed. chaser)

You can program 100 different chasers with 56 steps each (Steps) with
the SD2.

Chasers save only Shutter or Dimmer (brightness) information. They could
be taken over from existing scenes. These chasers are then seen in the
Show-Modus over the SCENE GROUP- Keys. Chasers are totally
independent „Walking“ Lights.

Starting from the Editier Modus press -F2- (Ed.chaser) and insert the
chaser number to come to the Edit chaser Menu.

- F1 - - F2 - - F3 - - F4 -

Ins step Del step

*** Edit chaser ***

Chaser step : xxx

Edit scene Call sc. Next time Save/Exit

- F5 - - F6 - - F7 - - F8 -

The STEP- keys NEXT and LAST allow switching forward and back in the
chaser any time.

¾ -F1- (Ins step) allows to insert a new step.

¾ -F2- (Del step) allows to delete a step. All scenes are moving one

space down then. Leave the menu with Save/Exit and NO= 0 (Drop)
if you deleted by accidence. Then your data stays saved.

¾ -F5- (Edit scene) allows to jump into the Edit scene Menu to work

on the existing scenes or to create new ones. See also chapter

6.1 on page 30.

GLP  German Light Produktion (V2.1) 33

Press ESC to go back to the Edit chaser Menu.

¾

¾ -F7- (Next time) allows to insert Next Time for every step (0 – 25

¾ -F8- (Save/Exit) allows by inserting:

6.3 Editing Programs (Edit prog.)

You can program 100 different programs with 500 steps each with the
SD2.

Starting from the Editier Modus press -F1- (Edit prog.) and insert the
program number to come to the Edit program Menu.

-F6- ( Call sc.) allows to call an existing scene.

sec.). This is the time in between two chaser-steps.

Yes= 1 to save all adjustments and changes.

No= 0 or ESC to leave the menu without changes.

- F1 - - F2 - - F3 - - F4 -

Ins step Jump step

*** Edit program ***

Program step : xxx

Edit scene Get scene Special Save/Exit

- F5 - - F6 - - F7 - - F8 -

The STEP- keys NEXT and LAST allow switching forward and back in the
program any time.

¾

¾ -F2- (Jump step) allows to jump to any step.

-F1- (Ins step) allows to insert a new step. This might happen at

the end of a program or in between two steps.

GLP  German Light Produktion (V2.1) 34

¾ -F5- (Edit scene) allows to jump into the Edit scene Menu to work

on existing scenes or to create new ones. See also chapter 6.1
on page 30.

Press ESC to go back to the Edit chaser Menu.

¾ -F6- (Get scene) allows to get an existing scene.

¾ -F8- (Save/Exit) allows by inserting:

Yes= 1 to save all adjustments and changes.

No= 0 or ESC to leave the menu without changes.

GLP  German Light Produktion (V2.1) 35

Press -F7- (Special) to come to the Special Menu.

- F1 - - F2 - - F3 - - F4 -

Loop step Loop cnt

*** Special ***

Program step : xxx

Set time Next time Change ti. Del.Step

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Loop step) allows to create a loop step. Î „Give loop step:

„ Î Insert the loop step to whom you want to go back.

¾ -F2- (loop cnt) Î Here you can determine how often the loop

step should be repeated. Î „Give loop count“.

For example:

You have created the following program:

Step 1 2 3 4 5 6 7 8

Loop Step 3 2

Loop

2 1

2x

1x

Count

Note Jump on 3

twice

After starting the program the steps are performed in the following order:

1, 2, 3, 4, 5, 3, 4, 5, 3, 4, 5, 6, 7, 2, 3, 4, 5, 3, 4, 5, 3, 4, 5, 6, 7, 8

Jump on 2

once

GLP  German Light Produktion (V2.1) 36

¾ -F5- (Set time) Î Here you can fix the duration of the transition

towards the next step. Î „Give setup time: “. For example if you
insert 50 (=5 sec.) all functions will be adjusted towards the next
step within 5 seconds.

¾ -F6- (Next time) Î Here you can fix the duration of the AUTO

MODE switching towards the next step. Î „Give next time: “. For

example if you insert 50 (=5 sec.) the next step will be called after
5 seconds.

¾

-F7- (change ti.) Î This time fixes the point when colors and

gobos have to be changed at a step change. Î „Give change
time: “. For example if this time is half as big as the Set Time the
colors and gobos were changed when the spot is positioned
exactly between position A and position B.

¾ -F8- (Del.Step) Î Deletes the present step.

Attention: You do not have to confirm the deletion! Of course you can

cancel the deletion if you save or leave the Edit program

Menus and press No= 0 or ESC.

6.4 Edit Effect Chaser (Ed.eff.ch.)

You can program 100 different Effect Chaser each with up to 16 Steps.

Effect Chaser are nearly the same as the normal Chaser described in
chapter 6.2 on page 33. The different is that Effect Chaser grab only
certain functions of the scanners. For example Pan/Tilt or Color,... all
other functions are not concerned from this Effect Chaser. As opposed
to the normal Chaser you can now program chaser for each function
(not only Dimmer or Shutter). That means selective chaser for Pan/Tilt,

Color, Iris, Gobo,....

Effect Chaser are also put together by the DMX information from existing
scenes. There they take over only the selected DMX Channel information
from Pan/Tilt, Color, Gobo,...

GLP  German Light Produktion (V2.1) 37

These chasers are then seen in the Show-Modus over the SCENE GROUP­Keys. Chasers are totally independent „Walking“ Lights.

You can run 4 Effect Chaser at the same time. Additional a further
Shutter Chaser.

GLP  German Light Produktion (V2.1) 38

Starting from the Editier Modus press –F3- (Ed.eff.ch.) and insert the
chaser number to come to the Edit effect chaser Menu.

- F1 - - F2 - - F3 - - F4 -

Ins step Del step

*** Edit effekt chaser ***

Set Ch. Typ

Typ : ???

Effekt Chaser step : xxx

Edit scene Get Scene Next time Save/Exit

- F5 - - F6 - - F7 - - F8 -

The STEP- keys NEXT and LAST allow switching forward and back in the
chaser any time.

Procedure:

a) Insert the Effect Chaser number (0 – 100). Confirm with ENTER.

b) Select requested scanner with the SCANNER- or SCAN- GROUP- keys.

c) Select the type of the Effect Chaser with -F4- (Set Ch. Typ).

d) Then follow the procedure as described in chapter 6.2 on page 33.

e) Finally when you save the chaser you choose the scanner for which it

applys to. Therefor choose the requested scanner and save the Effect
Chaser.

f) Than you can assign the Effect Chaser to a SCENE GROUP- key.

¾ -F1- (Ins step) allows to insert a new step.

¾ -F2- (Del step) allows to delete a step. All scenes are moving one

space down then. Leave the menu with Save/Exit and NO= 0 (Drop) if
you deleted by accidence. Then your data stays saved.

¾ -F4- (Set Ch. typ) fixes the function on which the Effect Chaser will

grab on. Select either with the Color-, Gobo- keys or one of the
SPECIAL- keys.

¾ -F5- (Edit scene) allows to jump into the Edit scene Menu to work on

the existing scenes or to create new ones. See also chapter 6.1 on
page 30.

GLP  German Light Produktion (V2.1) 39

Press ESC to go back to the Edit chaser Menu.

¾ -F6- (Get scene) allows to call an existing scene.

¾ -F7- (Next time) allows to insert Next Time for each step (0 – 25 sec.).

This is the time in between two chaser-steps.

¾ -F8- (Save/Exit) allows by inserting:

Yes= 1 to save all adjustments and changes.

No= 0 or ESC to leave the menu without changes.

7 Scene Group

Here you can assign scanners, PAR- scenes and chasers to the SCENE­GROUP-keys. Every key is able to save one scanner-scene, one PAR-

scene and one chaser program.

Starting from the Main Menu press -F5- (Scene Group) to go to the

SCENE-GROUP Menu.

- F1 - - F2 - - F3 - - F4 -

Scanner

*** Set / Delete SCENE-GROUP ***

Delete all

PAR Chaser Eff. Chaser

Exit

- F5 - - F6 - - F7 - - F8 -

Press -F1- (Scanner) / -F2- (PAR) / -F3- (Chaser) to go to the Set
scanner scene Menu, Set PAR scene Menu or to the Set Chaser Program
Menu.

GLP  German Light Produktion (V2.1) 40

- F1 - - F2 - - F3 - - F4 -

Assign

Delete Set-time

Set scanner (PAR/Chaser) scene on SCENE-GROUP key

Exit

- F5 - - F6 - - F7 - - F8 -

¾ -F1- (Assign) allows to attach a scanner/ PAR-scene or a chaser

to a SCENE-GROUP-key. Î „Give number of chaser/scene: „ Î
Insert the scene or chaser number you want to attach to one of
the SCENE-GROUP- keys.

a) You can lay one Effect Chaser and/or one (Shutter)- Chaser over

every Scanner/Par- Scene.

b) You can also lay an (Shutter)- Chaser over an Effect Chaser.

¾ -F2- (Delete) allows to delete a scanner/ PAR-scene or a chaser

from a SCENE-GROUP-key. Î „Press one of the SCENE-GROUP
keys“ Î Chose the SCENE-GROUP- key you want to delete.

For Scanner- or PAR-scenes you can additionally insert a Set-Time.

¾ -F3- (Set-time) Î „Give set time of scene: „ Î Insert the time

when the scene should be called.

To activate this function press the TIMER- key beside the SCENE-GROUP-
keys.

¾

-F5- (Delete all) deletes all SCENE-GROUPs.

Press -F8- (Exit ) to leave this menu.

GLP  German Light Produktion (V2.1) 41

8 Show

Starting from the Main Menu press -F1- (--Show--)to come to the Show
Modus.

From here you can run down all programs, scenes and chasers.

- F1 - - F2 - - F3 - - F4 -

Jump step

Scan-Group

*** Show ***

Programme step :

Auto Audio Speed adj.

- F5 - - F6 - - F7 - - F8 -

Press the PROGRAMME- keys to get the made programs. You can get 24
of them directly. You can get the others if you press the N.Block-key and
the NUM-BLOCK- keys. Press ENTER to confirm.

¾ -F1- (Jump step) You can jump to any step while the program is

running.

¾ -F5- (Auto) activates the automatic run down of the program.

The administered Next- times were used as switch times.

¾ -F6- (Audio) activates the sound run down of the program.

Connect the controller with a music signal with the “Sound In”
Buchse.

¾ -F8- (Speed adj.) allows to change the program speed by +/-

30%. Then you can synchronize the individual programs.

Press the STEP NEXT or LAST- keys to switch forward and back manually.

GLP  German Light Produktion (V2.1) 42

The two BLACKOUT- keys react separately for scanner and PAR light.

The scenes or chasers from the SCENE-GROUP- keys could be called at
the same time. CROSS-FADER A is for SCENE-GROUP A and CROSS-FADER
B for SCENE-GROUP B.

• The TIMER- key activates the Set- Time adjustments.

• The FLASH- key switches between ON/OFF and Flash.

During the show you can change the present scene at any time with the
MASTER- key (manual). Of course it is not saved.

The MASTER- Fader steers all the dimmers (even from the PAR-light and
from the scanners). If there is no installed dimmer you have to use the

BLACKOUT- key from the scanner.

8.1 Manual Overwrite

During the Show you can manual step in at any time. The changes made
here are not saved. If you leave this mode the next program step will
cancel the changes.

Procedure:

While being in the Show Mode please push the MASTER- key (LED is on).
Now you are in the MASTER- OVERWRITE- Mode. Here you can make any
settings as usual.

That means: a) Select the scanner.

b) Set Color, Gobo, Pan/Tilt,...

Press the MASTER- key once more to exit this mode. The changes are
canceled by the next program step.

GLP  German Light Produktion (V2.1) 43

8.2 Run Chaser and Effect Chaser

Chaser, Scenes or Effect- Chaser run typically parallel to the programs.
There they can overwrite definite functions to change the mood of a
program without program them before.

Scenes on SCENE-GROUP- keys allows you to call different scenes or
chaser by flashing them or simultaneous to the music.

You can call on several at the same time. Use CROSS-FADER-A for
SCENE-GROUP-A and CROSS-FADER-B for SCENE-GROUP-B.

You can run 4 Effect Chaser at the same time. Another (Shutter)- Chaser
can run additionally. If you call on a fifth Effect- Chaser the first of them is
canceled.

If you use at the same time two Effect Chaser of the same type (e.g.
Color) the second chaser is only active when the first is canceled.

• The TIMER- key is activating the Set- Time Mode.

• The FLASH- key is switch over from ON/OFF to FLASH.

• With the SCENE- GROUP- key 12 (Tap Sync) you have a TAP

SYN- Control of the running chaser.

• The SG1 and SG2 Fader are not responsible for the Chasers.

The MASTER- Fader controls all dimmer both of PAR an Scanners. If you
don’t have a dimmer at your scanner please use the BLACKOUT- key for
the scan.

GLP  German Light Produktion (V2.1) 44

9 Technical Data

• DMX 512

• 512 DMX Channels

• 30 Colors / Gobos Direct- access

• Control- RGB

• 15 further Special Functions

• PAN/TILT with Trackball

• Scanner free definable

• Predefined Scanner

• Scanner and PAR Lights

• 3 and 5 pole DMX [Pin 3=+] [Pin 2=-]

• 200 Programs

• 450 Steps each Program

• 100 Effect Chaser each with

16 Steps

• 100 Chaser each with 450
Steps

• 1250 Scenes programmable

• 48 Scenekeys with

Crossfader

• Fade- Next- Change- Time

• Audio Controlled

• External DMX- Desk

GLP  German Light Produktion (V2.1) 45

Appendix 1: DMX- Address list

on

er

on

er

on

er

on

er

DMX- Address

channel/Functi

Scanner/Dimm

GLP  German Light Produktion (V2.1) 46

DMX- Address

channel/Functi

Scanner/Dimm

DMX- Address

channel/Functi

Scanner/Dimm

DMX- Address

channel/Functi

Scanner/Dimm

Appendix 2: List of Predefined Scanner (Predef-Sc)

GLP  German Light Produktion (V2.1) 47
