Clearly Heat Pumps
Technical Guide
www.glow-worm.co.uk
Visit www.glow-worm.co.uk to view and download technical data
Introduction
At Glow-worm we specialise in the most practical and straightforward renewable energy solutions all supported from beginning to end by Glow-worm’s experienced pre and aer-sales services, assisting you to make the right choices in this changing world of heating and hot water technologies.
The Glow-worm Clearly Heat Pumps Technical Guide is designed to assist with the selection and installation of our latest range of air to water heat pumps - providing all the technical information you will ever need, in one easy to use booklet.
With over 75 years of experience in providing UK homes with value for money heating and hot water solutions, Glow-worm has built a reputation on providing straightforward and reliable systems you can depend on.
Glow-worm not only provides straightforward renewable systems with easy ordering and totally flexible delivery, we also provide you with expert help and friendly support through design, technical help, extensive training courses, specialist onsite support and a nationwide aer sales and spares network.
If you require technical advice, simply call our dedicated renewable technical help line 0844 736 1143 for a fast and straightforward answer.
We hope this brochure gives you all the information you need to help you take the next stage in selecting your new Glow-worm air to water heat pump. Should you wish to discuss any area in more detail or if you need any further information, please contact us to see how we can help.
2
Visit www.glow-worm.co.uk to view and download technical data
Contact us
By phone
07773 824 639
By email
info@glow-worm.co.uk
By web
www.glow-wormheating.co.uk
3
Contents
Introduction 2
Clearly Heat Pumps 7, 12, 14kW Features & Benets 4 - 5
Clearly Heat Pumps 5kW Features & Benets 6 - 7
System components 8 - 9
Technical information 10 - 11
System sizing 12 - 13
Siting 13 - 17

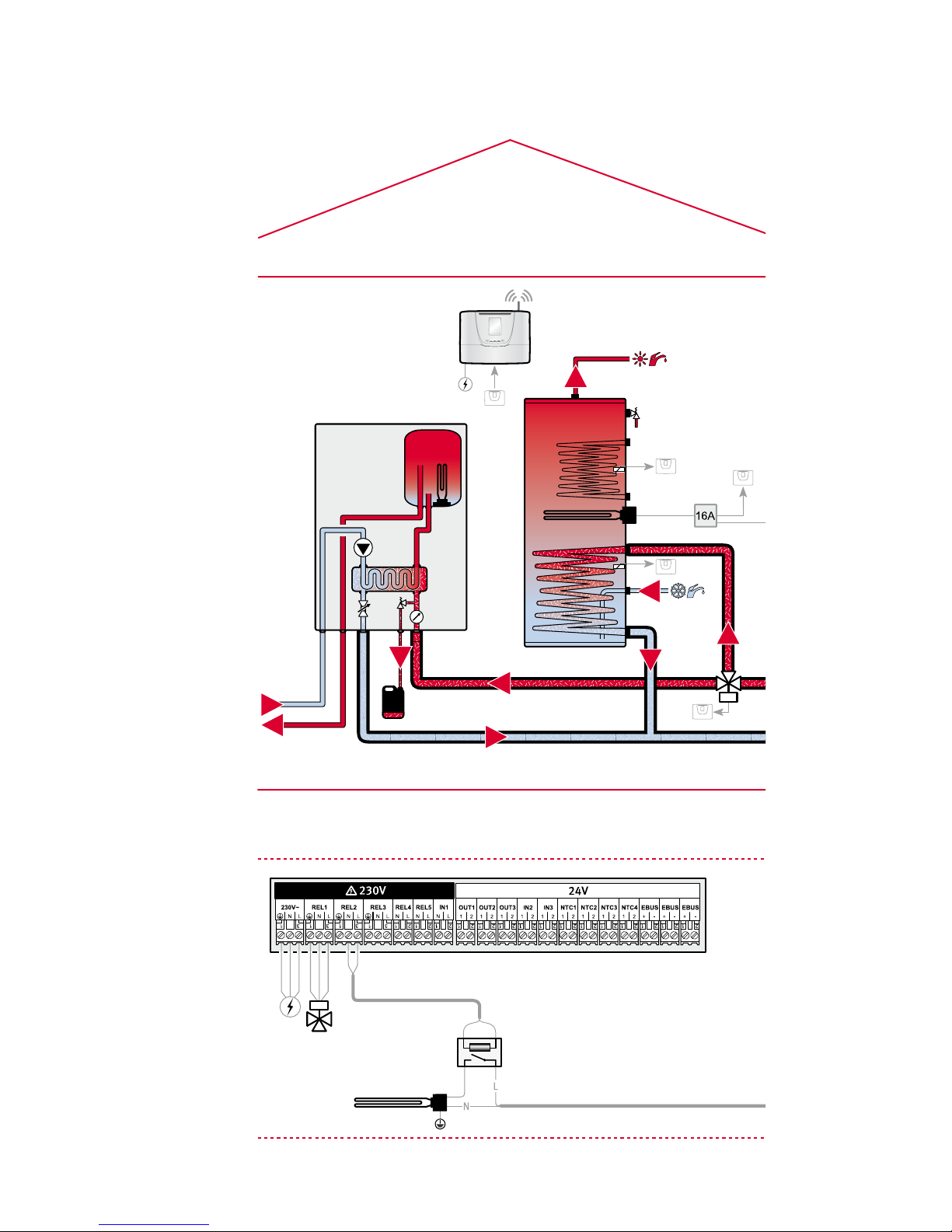

Envirosorb 5 schematics and wiring (Clearly Heat Pumps 5kW) 18 - 19

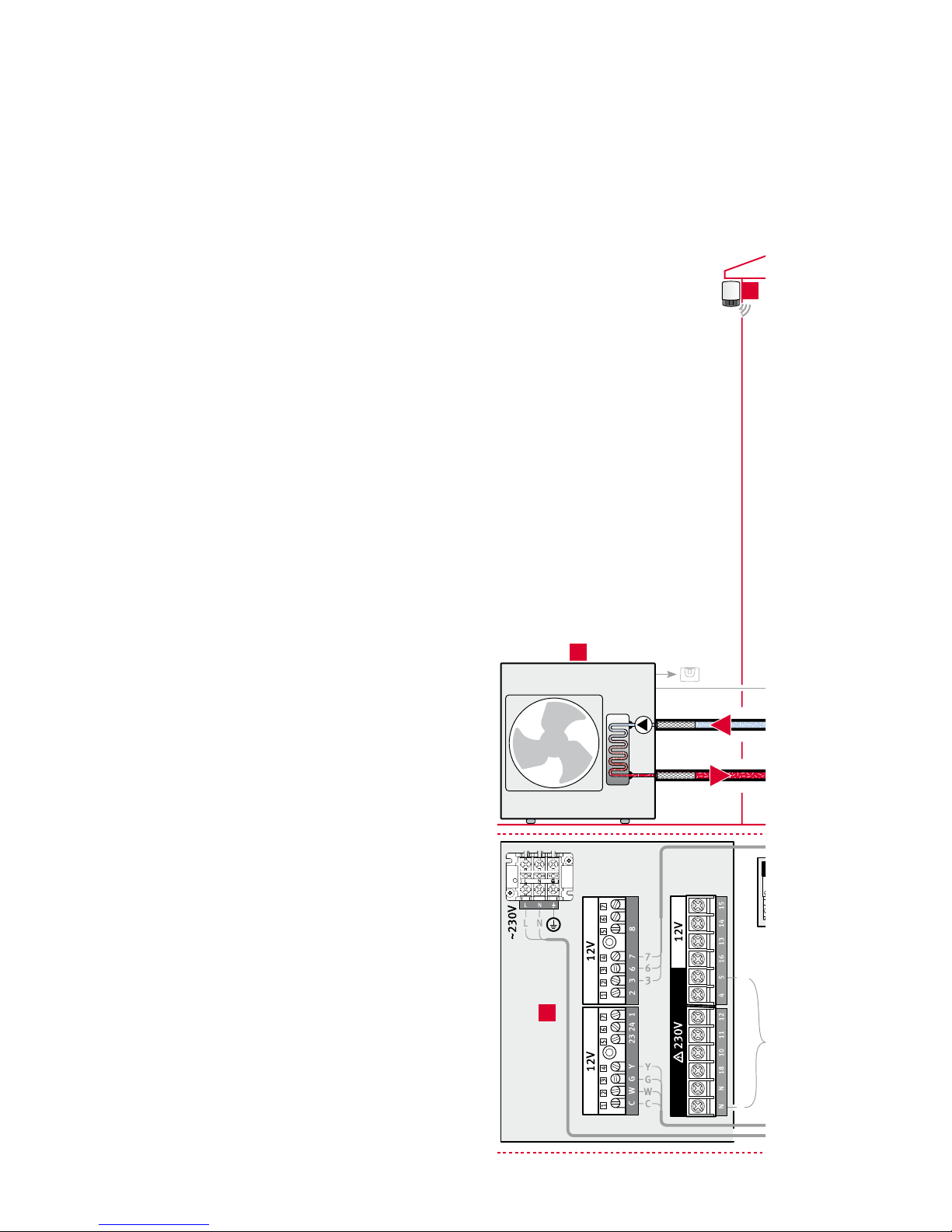

Envirosorb schematics and wiring (Clearly Heat Pumps 7, 12, 14kW) 20 - 21
Envirosorb including DHW (Clearly Heat Pumps 7, 12, 14kW) 22 - 23
Zoning 24
Easy ordering 24 - 25
Technical specications 26 - 27
Clearly Hybrid 28 - 29
Support & advice 30 - 31
Visit www.glow-worm.co.uk to view and download technical data
At Glow-worm, we specialise in creating the most practical and straightforward air to water heat pump solutions for homes across the UK. Glow-worm’s new straightforward air to water heat pump system has been designed for hassle free installation and complete heating comfort.
The new 7, 12 and 14kW models combine high performance inverter compressor technology with straightforward and hassle free installation to form the basis of a brand new Clearly Heat Pumps range.
Utilising next generation technology, Glow-worm’s new Clearly Heat Pumps range oers a high performance Central Heating and Domestic Hot Water solution for a wide range of domestic properties delivering excellent green credentials with possible carbon savings of up to 40%* and an impressive Coecient of Performance (CoP) of up to 4.06 at A7/W35**
Key benets
Straightforward range of air to water heat pump systems for
high-performance central heating and domestic hot water
7,12 and 14kW output models available
Range features innovative inverter compressor technology
MCS-accredited range
Hydraulic module eliminates the need for glycol in the central
heating circuit
No additional buer vessels required - creating one compact
space-saving system
Can deliver signicant carbon savings and help to achieve level 4
of Code for Sustainable Homes
Quick and easy installation with no F gas qualications required
Ultra-quiet operation
One complete system: heat pump, hydraulic module and controls
in a package that’s simple to order
Can be used in conjunction with the intuitive Climapro RF
handheld programmable room thermostat
* When replacing an older standard eciency boiler
**Tested to EN 14511
NEW Clearly Heat Pumps – 7, 12, 14kW
Features & Benets
4
Visit www.glow-worm.co.uk to view and download technical data
5
Envirosorb For use with Clearly Heat Pumps 12, 14kW
Envirosorb
For use with
Clearly Heat Pumps
7kW
Visit www.glow-worm.co.uk to view and download technical data
Clearly Heat Pumps 5kW combines high performance renewable technology with straightforward installation, to provide a highly ecient central heating and domestic hot water solution for smaller, well insulated properties.
Installation and servicing is hassle free with no F gas qualications needed to install and no need for glycol in the central heating circuit, thanks to advances in its Hydraulic Module system technology. All components are easily accessible within the compact unit and no separate expansion vessels or additional buer vessels are required, making this one of the most installation friendly heat pumps available on the UK market.
This highly ecient heat pump system provides excellent green credentials and can contribute signicantly towards meeting a range of environmental legislative targets. Clearly Heat Pumps 5kW can deliver carbon savings of over 40%* and can be used to help achieve level 4 of the Code for Sustainable Homes. Clearly Heat Pumps 5kW also has full MCS Accreditation meaning that it is eligible for possible future RHI funding.
*when replacing an older, standard eciency boiler
6
Key benets
Highly ecient heating and hot water solution for smaller
properties
One complete system: includes system control unit, wireless
outdoor sensor & Climapro RF wireless programmable control
Compact in size
Ultra quiet operation
Quick and straightforward to install & service, with no F Gas
qualications required
No Glycol needed in the central heating circuit
Compact, wall-hung hydraulic module including small buer
vessel, expansion vessel, circulating pump, lling valves, PRV and back up heater
MCS accredited
Can help to achieve Code for Sustainable Homes level 4
Comprehensive back up from nationwide aer sales service
Can be used in conjunction with the intuitive Climapro RF
handheld programmable room thermostat
NEW Clearly Heat Pumps - 5kW
Features & Benets
Visit www.glow-worm.co.uk to view and download technical data
7
Envirosorb 5 For use with Clearly Heat Pumps 5kW
Visit www.glow-worm.co.uk to view and download technical data
8
Introducing Glow-worm's complete range of straightforward air to water heat pumps System components
Envirosorb 5 (for Clearly Heat Pumps 5kW)
5kW model available
The slimline air to water heat pump is extremely quiet and very compact. With a COP of 3.73 it produces almost 5kW of heat energy which can be used for central heating and domestic hot water.
The heat pump is also incredibly straightforward to install with no F Gas qualications required and no glycol needed in the central heating circuit.
Dimensions
935mm x 880mm x 345mm
Key features
Slimline and compact monobloc outdoor unit
High COP eciency of 3.73*
Uses non ozone depleting R410a refrigerant
No F-gas qualication needed to install
Extremely quiet – modulating DC fan speed of 180-660 rpm
All components easily accessible for servicing/replacement
*Measured at air temperature 7°C and water at 35°C
Key features
7, 12 and 14kW models feature
inverter technology
No F gas qualications needed
for installation
Prelled with R410A non ozone
depleting refrigerant
All components easily accessible
for installation/servicing
Excellent Coecient of
Performance of up to 4.06. *
High flow temperature up to 60°C
*Measured at air temperature 7°C and water at 35°C

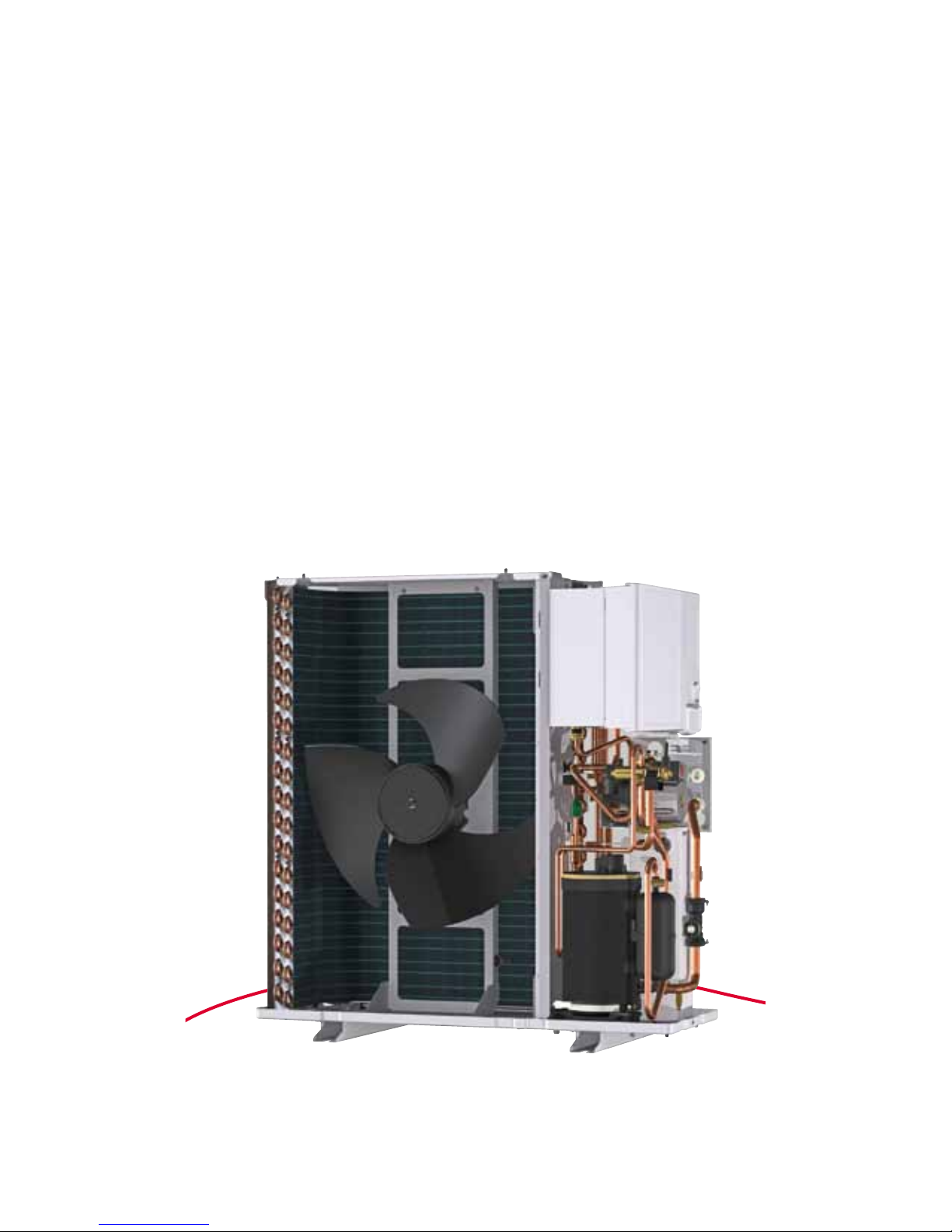

Envirosorb (for Clearly Heat Pumps 7, 12 & 14kW)
7, 12, & 14kW models available
The air to water heat pump oers a slimline and attractive outdoor unit solution. The impressive Envirosorb also benets from advanced inverter compressor technology.
Dimensions
7kW Model: 821mm x 908mm x 326mm 12 & 14kW Models: 1363mm x 908mm x 326mm
Visit www.glow-worm.co.uk to view and download technical data
9
Systempro
The Systempro acts as a central installer interface, where maintenance menus, fault history, system parameters, etc. can all be programmed and accessed.
Dimensions
290mm x 264mm x 45mm
Key features
Intelligent wiring centre for
the system
Central installer interface
No need for end user
interaction
Can be used to control a
multi-zone system
Climapro RF
Glow-worm’s most intuitive and user friendly control; Climapro RF is the main point of interaction with the system for the homeowner. The handheld control enables homeowners to simply and quickly programme their specic heating and hot water requirements in detail, from the comfort of their armchair.
Key features
Wireless, programmable room
thermostat for complete time and temperature control
Large backlit display
Handheld unit, can be wall
mounted or taken around the home
Provides room and weather
compensation when combined with wireless outdoor sensor
Wireless outdoor sensor
The Glow-worm wireless outdoor sensor intelligently communicates the outside temperature to the rest of the system to provide weather compensated flow temperatures for maximum eciency. The sensor is small and discreet, and no external wiring is required between the unit and the rest of the system.
Key features
Works on indirect sunlight,
which charges the inbuilt PV cells
No maintenance required
Simple and quick to install
Hydraulic Module SA
The Hydraulic Module contains the circulating pump, which transfers the heat generated by the heat pump into the heating system. It also separates the heat pump circuit from the central heating circuit meaning that you don’t need to ll the whole system with glycol anti-freeze. The Hydraulic Module in itself is compact and easy to install, as no separate expansion vessel or additional buer vessels are required.
Dimensions
890mm x 418mm x 370mm
Key features
Single indoor unit
6 kW variable immersion
heater to ensure maximum end user comfort
Incorporates two three way
valves for easy lling of the glycol circuit
Glow-worm cylinder
Clearly Heat Pumps is compatible with Glow-worm's range of stainless steel hot water twin coil cylinders.
Visit www.glow-worm.co.uk to view and download technical data
Heat pump eciencies
COP – The ‘Coecient of Performance’ simply put is the relationship between the power consumed by the appliance and the output in heat. For example a 90% ecient gas boiler can produce 0.9kW of heat from every 1kW of gas it uses, giving it a COP of 0.9. However, under the correct conditions, a heat pump can produce up to 4kW of heat from every 1kW of electricity it uses (giving it a COP of 4) Glow-worm’s Clearly Heat Pumps range have COPs up to 4.06.
The compressor
The compressor is the heart of the heat pump which needs to be protected. Some heat pumps such as the Glow-worm Envirosorb (for Clearly Heat Pumps 7, 12, 14kW) have an inverter compressor which means that the heat pump is able to modulate the compressor to suit the energy needs of the home which helps to protect it coming on, and going o frequently. An inverter compressor is essential on larger output heat pumps to maximise the life of the appliance and capitalise on the eciency of the system.
Clearly Heat Pumps Technical information
10
Visit www.glow-worm.co.uk to view and download technical data
Compressor
Expansion device
Heating flow upto 60°C
Heating return
Heat from ambient air
External heat exchanger
Plate heat exchanger
7°C
Refrigeration cycle
Using exactly the same principles as a fridge, the heat pump employs the characteristics of a refrigerant. A fan draws air across a large heat exchanger (or evaporator coil). As the refrigerant has a very low boiling point, even in the depths of winter, this refrigerant is boiling.
The refrigerant passes into the compressor, where it is compressed (think of the eect of a bicycle pump) to take it up to a temperature we can use to heat the home.
The now hot gas passes into a plate heat exchanger, where it gives up its heat to the heating system flow, whilst turning into a liquid. With the hot system water now on its way round the heating system, the refrigerant liquid nally passes through an expansion valve. The expansion valve acts like an aerosol, turning it back into a low temperature gas, to begin the whole process all over again.
11
Visit www.glow-worm.co.uk to view and download technical data
12
Technical information System sizing

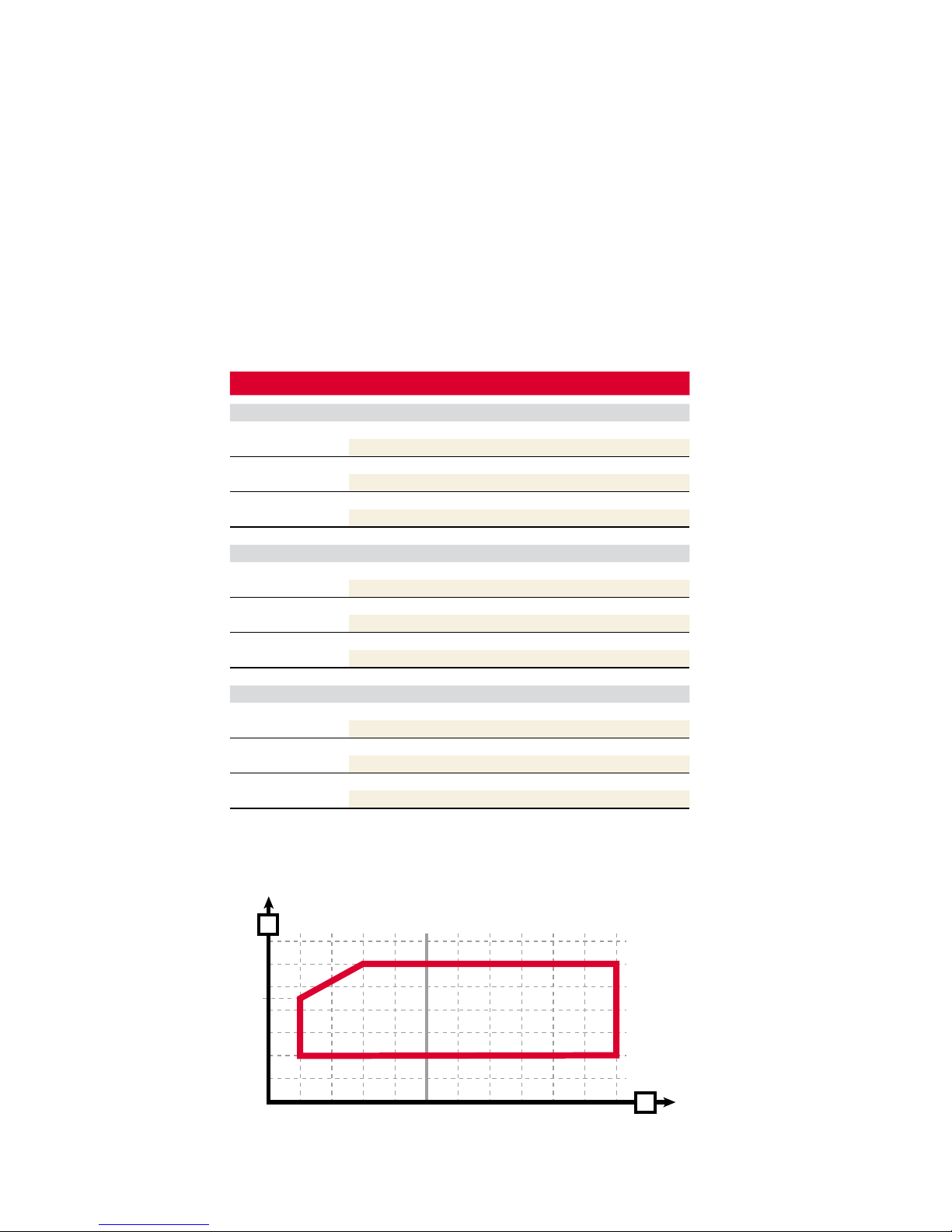

Functioning limits of the 7-14kW heat pump during heating
Naturally, a unit that uses air as its source for heat, will perform better as the temperature of that air increases. The industry standard for quoting the output of heat pumps is Air 7/ Water 35. So, a 14kW heat pump will deliver 14kW at an air temperature of 7°C when generating a flow temperature of 35°C. Below are the outputs at various other temperatures. The lower the flow temperature, and the higher the ambient temperature, the more ecient they become: the system should therefore be designed for as low flow temperature as possible.
Available Power - The Glow-worm range
Outdoor temp Units 5kW 7kW 12kW 14kW
35° Flow
-5
kW 3.1 4.55 7.40 8.31
COP 2.45 2.71 2.75 2.62
2
kW 4 5.41 8.72 10.2
COP 3.1 2.99 3.11 3.2
7
kW 4.8 7.2 11.82 14.5
COP 3.8 3.9 3.9 4.06
45° Flow
-5
kW 2.6 4.45 6.96 7.9
COP 1.8 2.28 2.24 2.1
2
kW 3.9 5.38 8.45 10.2
COP 2.6 2.55 2.61 2.6
7
kW 4.5 7.4 11.38 14
COP 3.1 3.16 3.03 3.21
55° Flow
-5
kW 2.02 4.24 7.06 7.6
COP 1.38 2.02 1.92 1.8
2
kW 3.7 5.14 8.47 10.2
COP 2.15 2.34 2.2 2.6
7
kW 4.35 6.71 11.04 13.9
COP 2.5 2.68 2.5 2.82
A
70
60
50
45
40
30
20
10
0
-20 -10 0 10 20 30
B
A= Flow temperature B= Outdoor temperature
Visit www.glow-worm.co.uk to view and download technical data
For a design with a 45 degree flow temperature, such as underfloor heating, or correctly sized radiators, the table below shows the maximum size of a property each output is suitable for, based on build year. Please note this does not take into account DHW.
These maximum sizes will ensure 100% coverage down to -5°C.
Pipe Sizing
Consideration needs to be given to the lower flow temperatures that come from heat pumps, and also the smaller t required (5°C):
Typically systems from 4-10kW should be in 28mm. 10kW - 14kW should be in 35mm (Some 14kW systems may require 42mm)
13
Technical information
5kW 7kW 12kW 14kW
New build (to 2010 regs) up to 65m2up to 100m2up to 185m2up to 200m
2
2006 - 2010 up to 50m2up to 90m2up to 135m2up to 155m
2
1995 - 2005 up to 55m2up to 85m2up to 100m
2
1975 - 1995 up to 70m2up to 80m
2
Technical information Siting

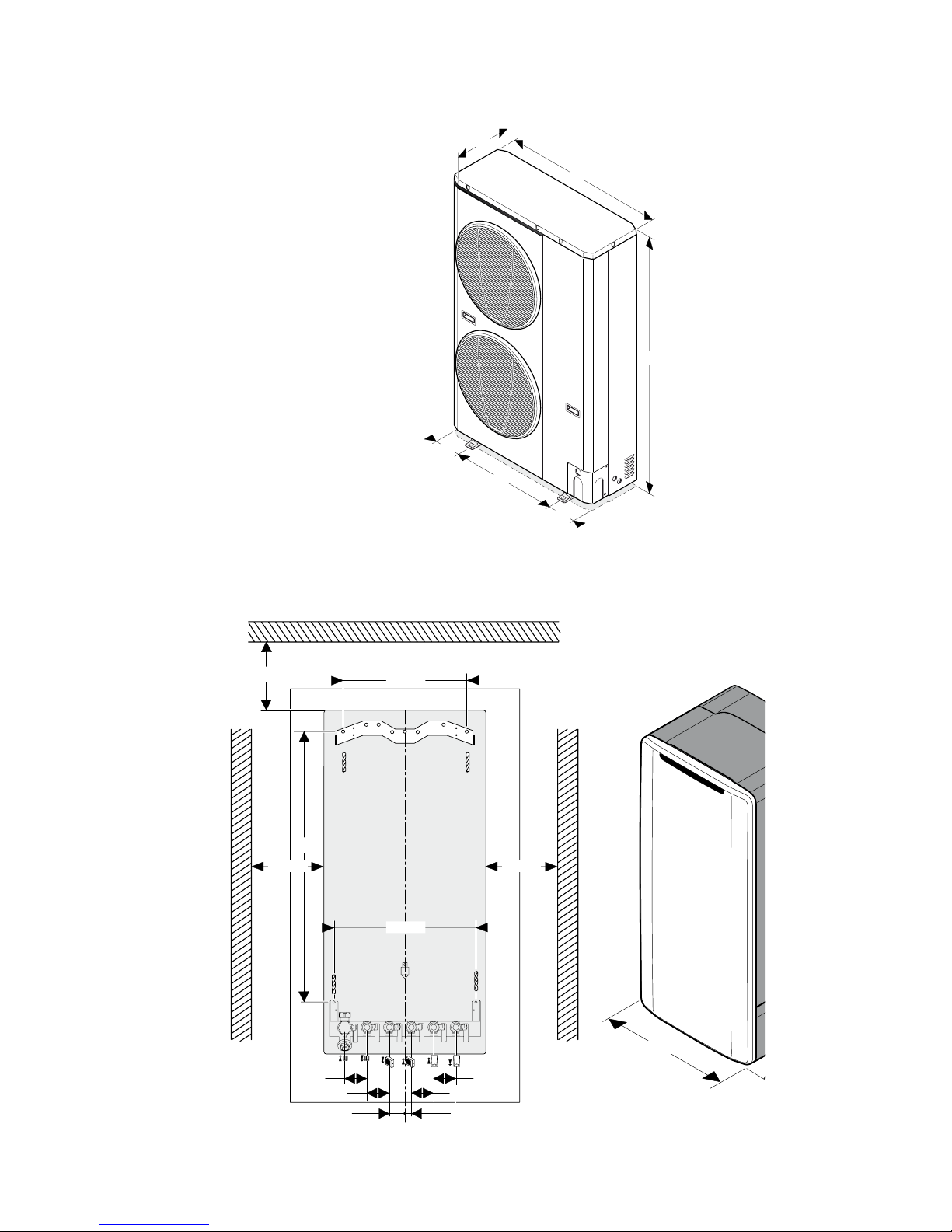

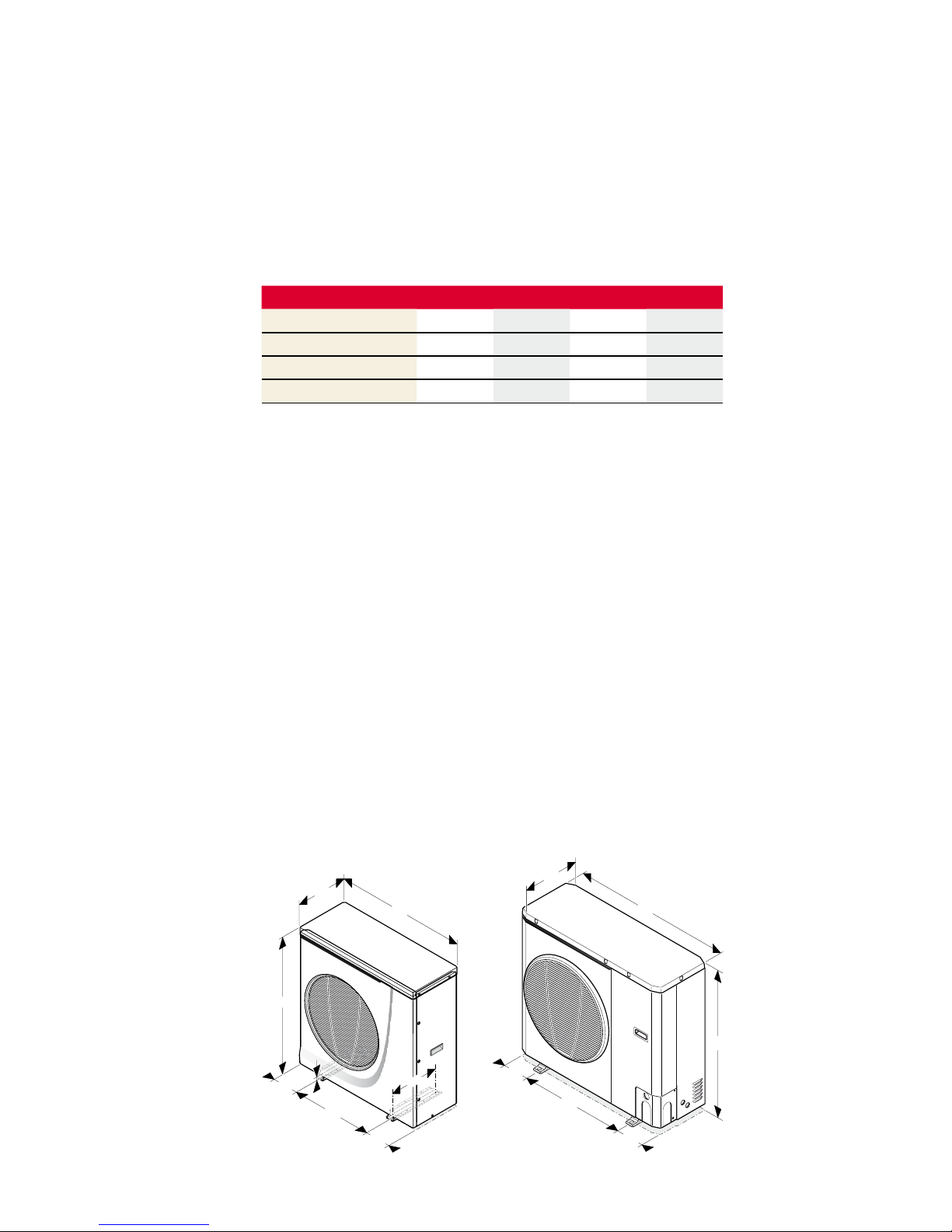

AWHP unit dimensions
All measurements in mm.
345
880
171
171
538
37
898
350
150
150
600
908
326
1363
150
150
600
908
326
821
5kW
150
150
600
908
326
1363
150
150
600
908
326
821
7kW
Visit www.glow-worm.co.uk to view and download technical data
14
Hydraulic Module
The Hydraulic Module must be placed indoors.
345
880
171
538
37
350
150
150
600
1363
150
150
600
908
326
821
=320=
=368=
700
50 min
50 min
50 mini
418
370
890
150
150
600
1363
908
821
=320=
=368=
700
57,5
57,5
57,5
57,5
1740,5
50 min
50 min
50 mini
12-14kW
150
150
600
908
326
1363
All measurements in mm.
Technical information Siting
AWHP unit dimensions
All measurements in mm.
Visit www.glow-worm.co.uk to view and download technical data
15
150
150
600
1363
150
150
600
908
326
821
=320=
=368=
700
50 min
50 min
50 mini
370
890
5
7
8
6
3
11
22
13
14
15
16
17
9
10
12
2
4
18
19
20
21
1
B
A
E
D
C

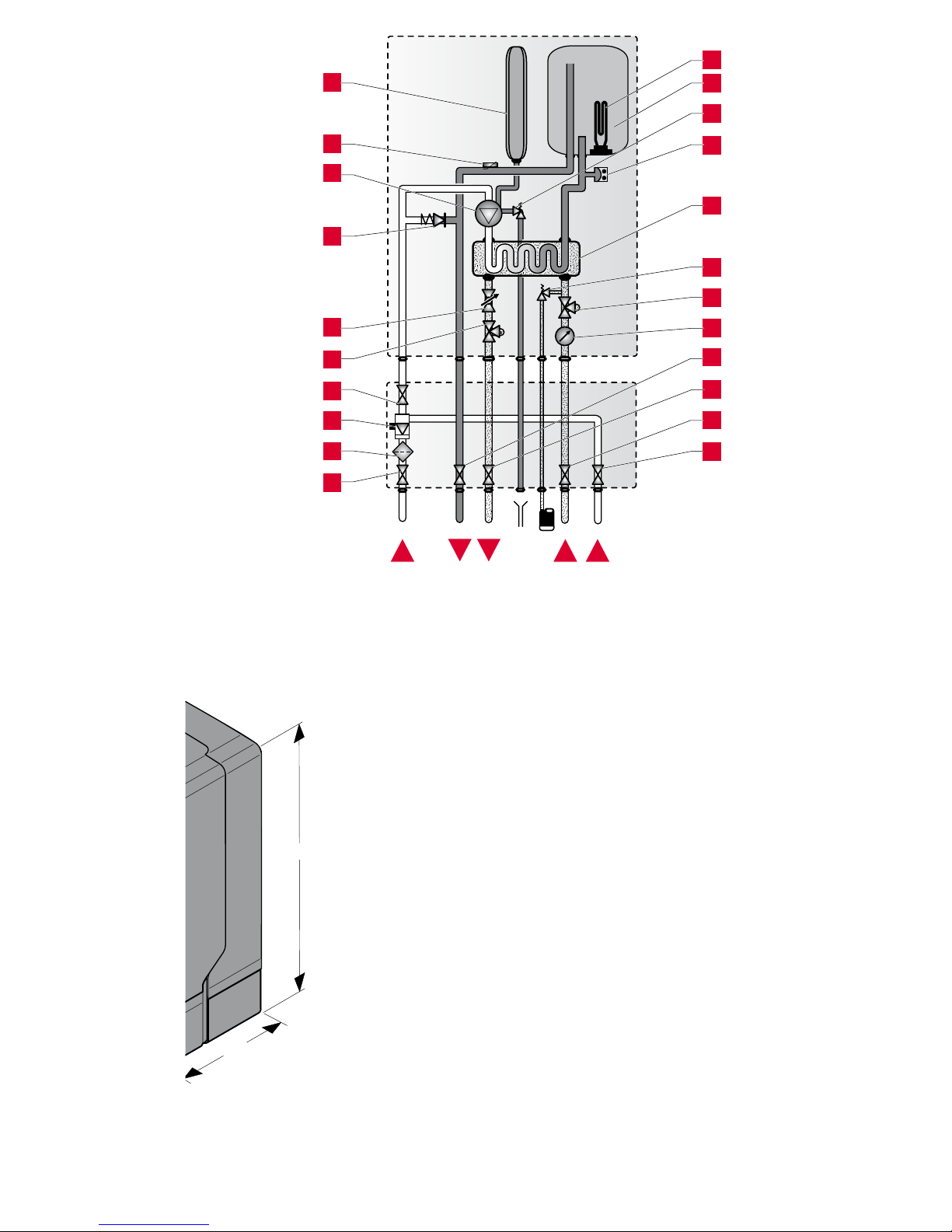

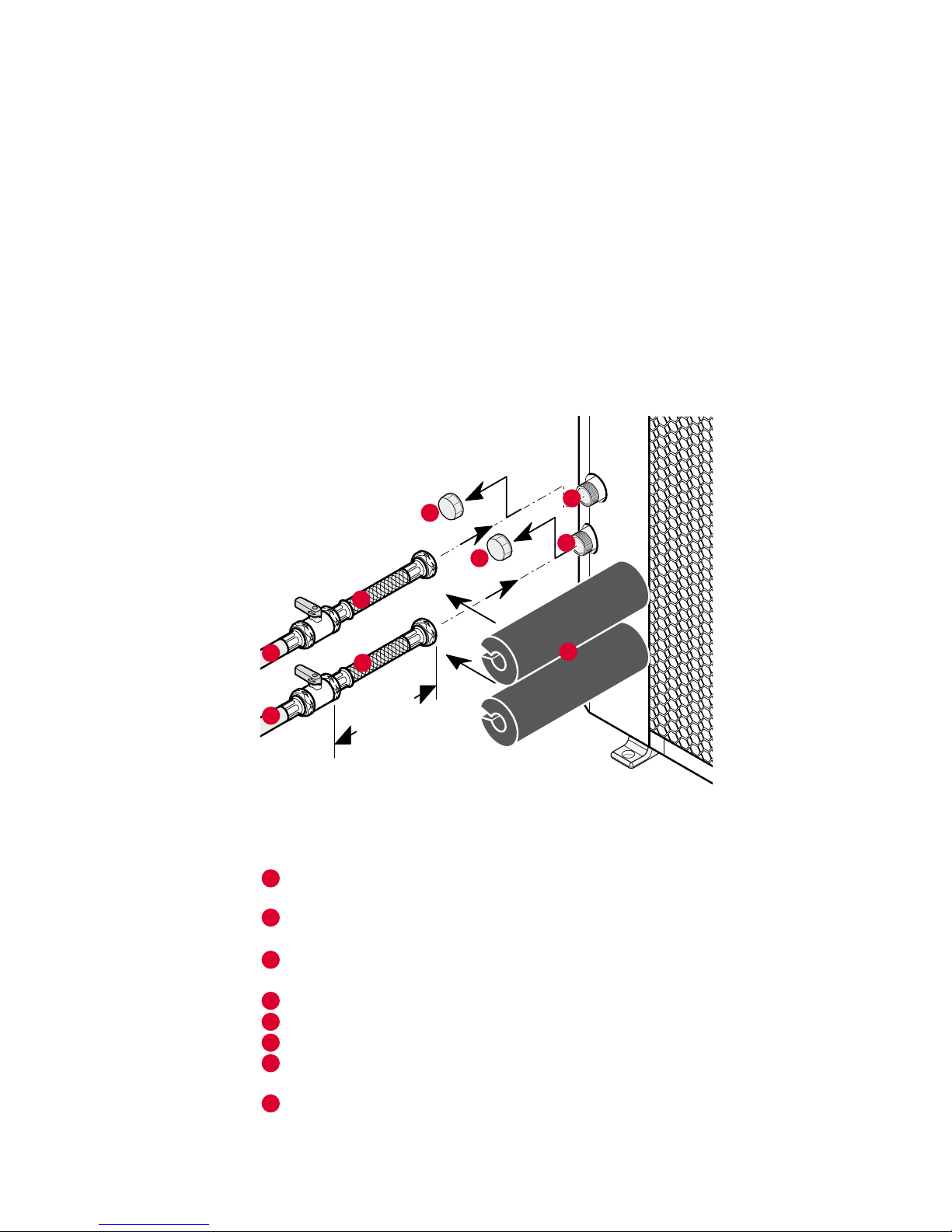

1 Heating circuit return shuto valve 2 Heating lter 3 Disconnector 4 Filler tap 5 3-way valve with shut-o valve for glycol relling 6 Balancing valve 7 By-pass 8 Pump 9 Heating outlet temperature sensor 10 Expansion tank 11 Tank 12 Heating circuit safety valve 13 Pressure sensor 14 Plate heat exchanger 15 Heat pump circuit safety valve 16 3-way valve with shut-o valve for glycol relling 17 Pressure gauge 18 Heating circuit flow shuto valve 19 Heat pump return circuit shuto valve 20 Heat pump flow circuit shuto valve 21 Cold water inlet shuto tap 22 Electric back-up heater
A Heating circuit return B Heating circuit flow c Heat pump circuit return D Heat pump circuit flow E Cold water inlet
Visit www.glow-worm.co.uk to view and download technical data
>200 mm
>1000 mm
>300 mm
>300 mm
>500 mm
>1500 mm
>500 mm
>500 mm
16

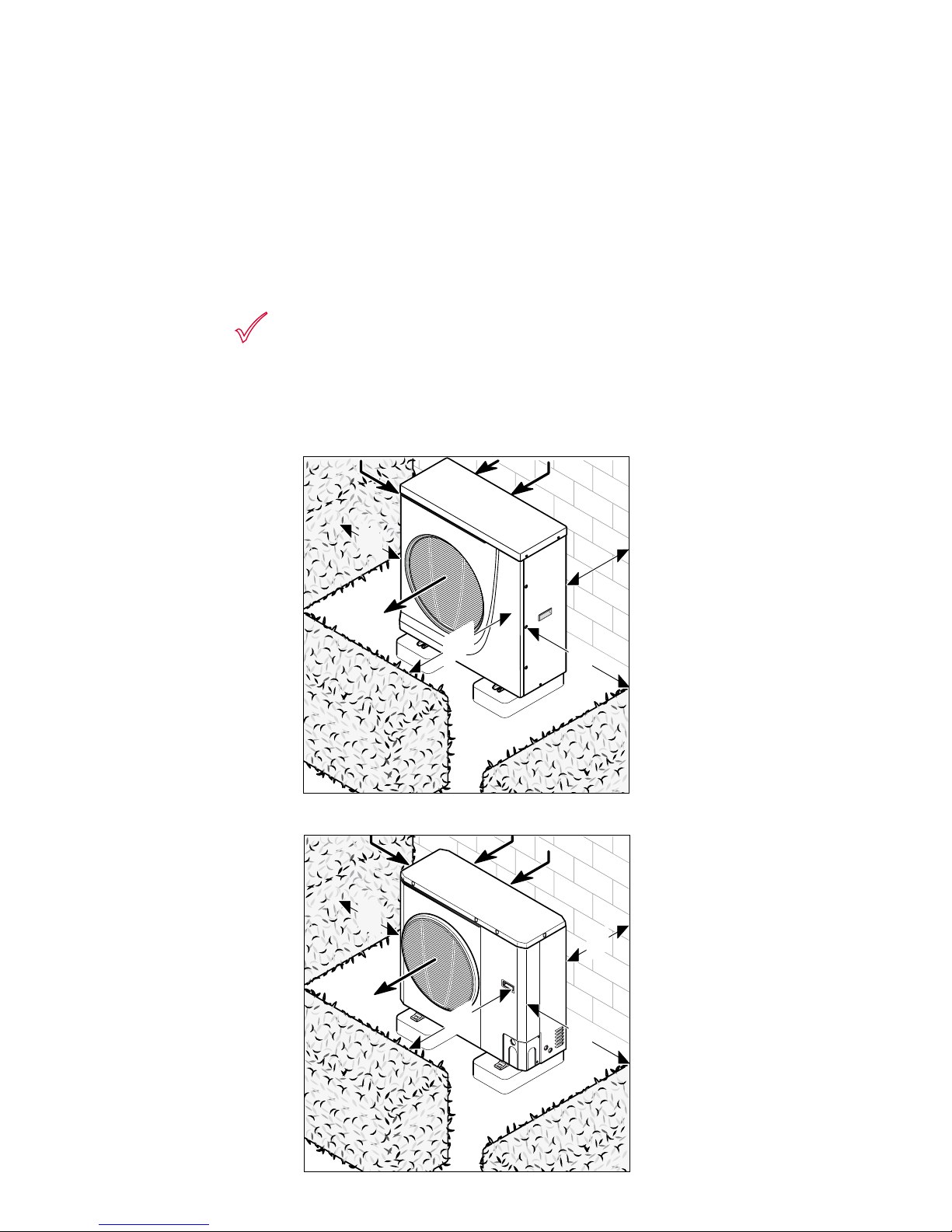

Minimum Clearances
5kW
7-14kW

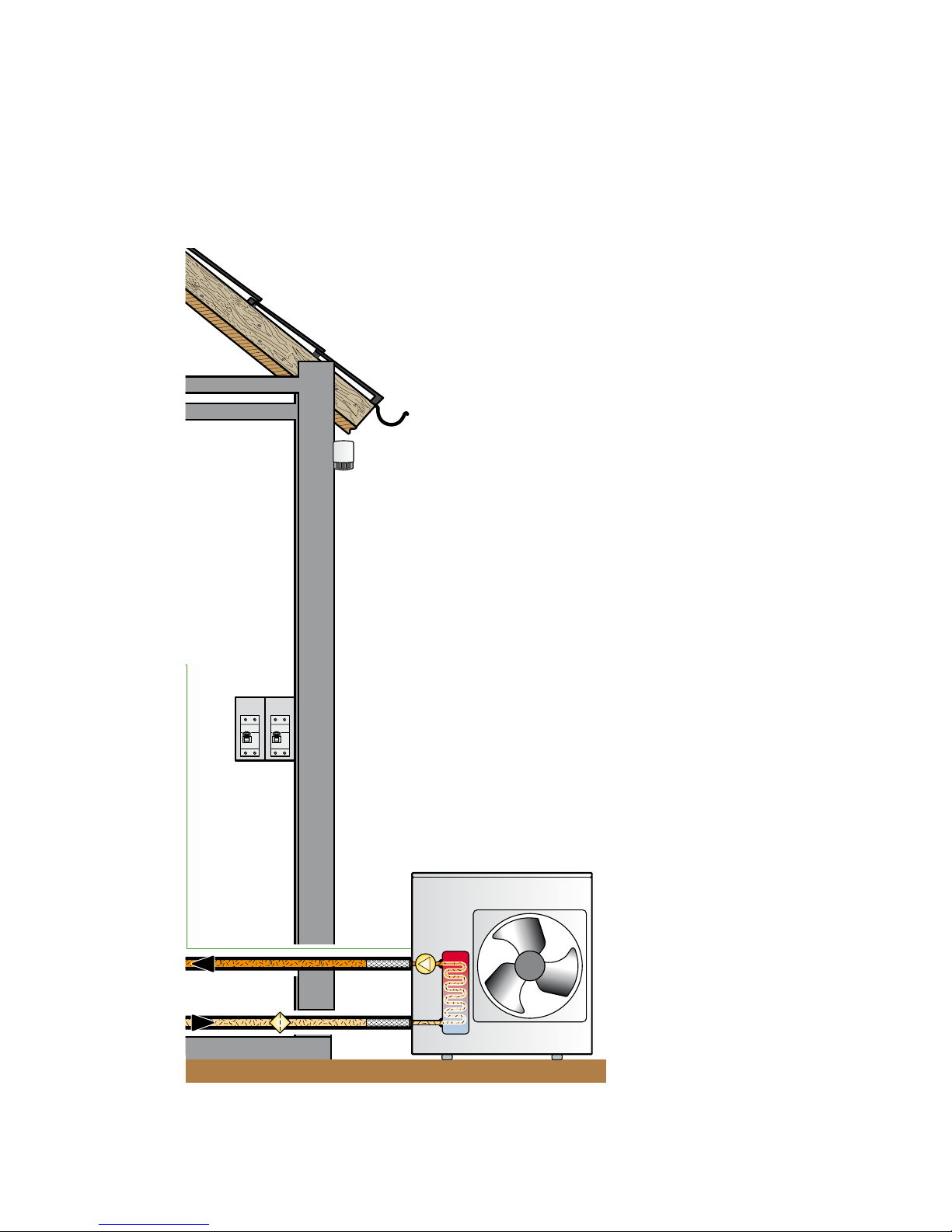

Although these are minimum clearances, please note that the air expelled to the front of heat pumps is extremely cold which needs to be taken into consideration. As cold air sinks, placing an air to water heat pump in a small, enclosed garden will chill the air available to the unit, and impede its operation and eciency. Raising the units slightly o the ground by using wall brackets or a stand will improve the eciency.
The unit should ideally be:
South facing
Sited in a wide
open space
The unit should NOT be:
Placed inside an
enclosed space (e.g. a garage)
Placed next to a fence
O
P
Visit www.glow-worm.co.uk to view and download technical data
Hydraulic connections :
Heat pump flow circuit ¼ turn shut-o valve in the direction of the building (not included) Return circuit ¼ turn shut-o valve in the direction of the heat pump (not included) Return circuit hose in the direction of the heat pump (not supplied) Cap Return connection (Ø1 «) to the heat pump Flow heat pump connection (Ø1 «) to the building Flow heat pump circuit hose in the direction of the building (not supplied)) Insulation (not supplied)
1m min.
1
2
3
4
5
4
6
7
8
1
2
3
5
4
6 7
8
17
Flexible hoses to be used to avoid noise transmission.
Please note:
Air source heat pumps do not fall within ‘permitted developments’,
therefore planning permission should always be sought
Care should be taken to ensure condensate can drain away freely
To avoid noise transmission from the unit into the home, flexible
hoses should be used immediately o the heat pump
Connections to the rear of the heat pumps are 1” BSP male threads
All external pipe work must be insulated to prevent heat loss
To maximise eciency, distance from heat pump to the hydraulic
module should be as short as possible.
The recommended Glycol solution of 30% will protect the heat
pump down to -15°C
The 230V power cable to the heat pump should be 3 x 2.5mm² while
eBus and control cables should be 0.75mm².
Heat pump should be raised suciently for condensate to drain
away without risk of freezing.
Visit www.glow-worm.co.uk to view and download technical data
18
230V
12
21
OUT1
12
21
OUT2
12
21
OUT3
12
21
IN2
12
21
IN3
12
21
NTC1
12
21
NTC2
12
21
NTC3
12
21
NTC4
12
-+
EBUS
12
-+
EBUS
12
-+
EBUS
13
LN
230V~
13
LN
REL1
13
LN
REL2
13
LN
REL3
12
LN
REL4
12
LN
REL5
12
LN
IN1
D
E
C
A
B
230V230V
Envirosorb 5 schematics and wiring (for Clearly Heat Pumps 5kW)
Key points –
Connection to the Envirosorb 5kW heat pump - Select Systempro scheme 4
Visit www.glow-worm.co.uk to view and download technical data
19
D
E
230V230V
Visit www.glow-worm.co.uk to view and download technical data
EBUS
230V230V
N L
L5
L5
N
N
D
E
230V 230V
1
8
6
4 5
3
1
2
4 5
6
3
8
12
11
7
C
A
B
10
9
20
Connection to the Envirosorb2 7-14kW range Select Systempro scheme 7
1 Heat pump controlled by On/O contact 2 Heat pump circuit lter (not supplied) 3 Hydraulic module 4 Heat pump electrical supply and protection (This must have its own
single isolation) 5 Hydraulic module electrical supply and protection 6 Heat pump control box 7 Wireless outdoor sensor with solar panel 8 Systempro control unit 9 Climapro RF programmable wireless room thermostat 10 Heating circuit 11 Overheating Safety (if underfloor heating) 12 Glycol PRV discharge
A Heating circuit return B Heating circuit flow C Heat pump circuit safety valve discharge D Heat pump circuit flow E Heat pump circuit return
Envirosorb2 schematics and wiring (for Clearly Heat Pumps 7-14kW)
Visit www.glow-worm.co.uk to view and download technical data
EBUS
230V230V
N L
L5
N
230V 230V
8
6
4 5
3
2
4 5
6
3
8
12
11
C
A
B
10
9
21
Visit www.glow-worm.co.uk to view and download technical data
230V
16A
230V
16A
230V
16A

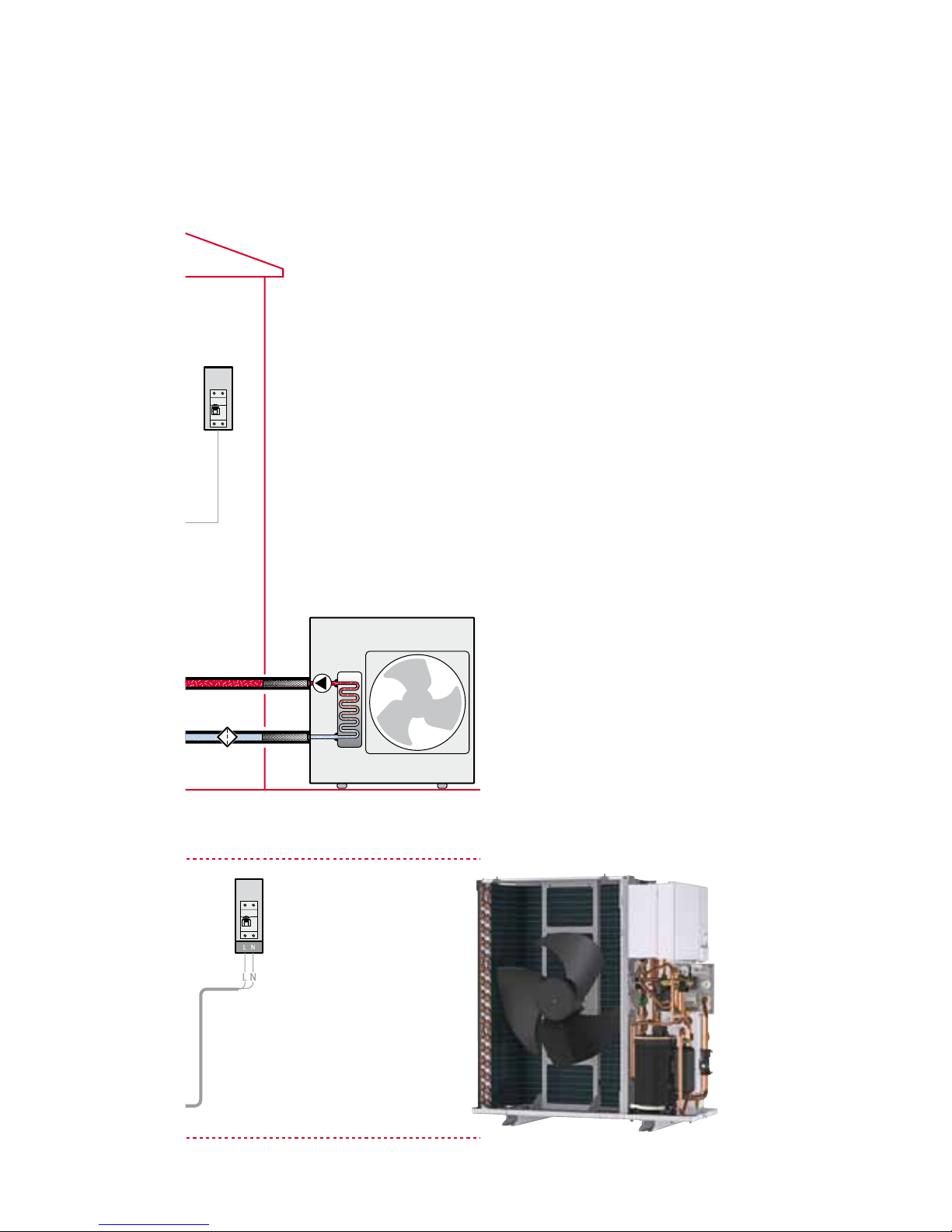

Clearly Heat Pumps including DHW
22
The wiring of the relay to the Systempro
Visit www.glow-worm.co.uk to view and download technical data
230V
16A
230V
16A
230V
16A
23
Note: The 3 port valve must be a 3 port diverter, and not a mid-position valve. It must be installed, so that it powers open the DHW circuit, and spring returns to close the DHW circuit. (Suitable valve would be a Honeywell 4044c reversed or similar).
A suitable 16A relay will be needed for the immersion heater in the cylinder.
The cylinder should have 2 sensor pockets, top and bottom, as control is done with 2 sensors. The top one manages the immersion heater. The bottom one controls the heat pump. Systempro intelligently uses both to achieve maximum DHW performance, minimum re-heat time, and optimum system performance.
Glow-worm’s Flurocyl twin coil cylinder range is suitable up to 12kW. For the 14kW heat pump, a larger surface area coil is necessary (ideally 3m of surface area).
Visit www.glow-worm.co.uk to view and download technical data
Clearly Heat Pump packs - Straightforward ordering
Clearly Heat Pumps easy ordering
As part of Glow-worm’s commitment to making things simple, the Clearly Heat Pumps range is available through a straightforward easy to order pack solution, containing all Clearly Heat Pump system components.
Pack contents
Clearly Heat Pumps
5kW Pack
Clearly Heat Pumps
7kW Pack
Clearly Heat Pumps
12kW Pack
Clearly Heat Pumps
Article No.
0020114863
0010012956 0010012957 0010012958
Envirosorb 5 5kW
P
O O O
Envirosorb 7kW
O
P O O
Envirosorb 12kW
O
O P O
Envirosorb 14kW
O
O O P
Hydraulic module SA
P
P P P
Systempro controller
P
P P P
Climapro RF
P
P P P
Wireless Outdoor Sensor
P
P P P
Zoning
Systempro can manage up to 3 zones plus DHW
An additional Climapro
2
will be needed for each additional zone
(0020085220)
24
Visit www.glow-worm.co.uk to view and download technical data
Clearly Heat Pumps
7kW Pack
Clearly Heat Pumps
12kW Pack
Clearly Heat Pumps
14kW Pack
0010012956 0010012957 0010012958
O O O
P O O
O P O
O O P
P P P P P P P P P P P P
25
Visit www.glow-worm.co.uk to view and download technical data
26
Clearly Heat Pumps technical specications
Clearly Heat Pump specications
Description
Units 5 7 12 14
Min. operating outside temperature (in heating)
°C -7 -20 -20 -20
Max. operating outside temperature (in heating)
°C 35 30 30 30
Specications, with underfloor heating
(flow : 35°C, return : 30°C, outside dry temperature (wet) : 7 (6)°C) Heating output
kW 4.7 7.2 11.9 14.5
Power input
kW 1.26 1.82 3.01 3.6
Rated electrical current
A 5.48 8 13 15.6
COP* A7(6) W35-30
3.73 3.96 3.94 4.06
Specication with radiators
(flow : 45°C, return : 40°C, outside dry temperature (wet) 7 (6)°C) Heating output
kW 4.41 7.4 12.9 14
Power input
kW 1.46 2.32 4.2 4.4
Rated electrical current
A 6.34 10 18.5 19
COP* A7(6) W45-40
3.02 3.18 3.03 3.21
Refrigerant circuit
Type of refrigerant
R410a R410a R410a R410a
Quantity of refrigerant
kg 1.8 1.81 2.485 3.385
Type of compressor
Rotary
Type of oil
Polyolester
Type of regulator
Electronic
Fan speed
rpm 180-660 200-680 250-750 200-820
Maximum operating pressure (PS)
bar 43.2 45 45 45
Pa 43.2*10 45*10 45*10 45*10
Heat pump circuit
Max. supply pressure
bar 3 3 3 3
Pa 3*10 3*10 3*10 3*10
Nominal static pressure
bar 1 0.4 0.45 0.3
Pa 1*10 4*10 4*10 4*10
Nominal water flow rate in heating mode
l/h 800 500 500 500
Minimum water flow rate
l/h 500 420 420 420
Minimum flow temperature setting (in heating)
°C 25 20 20 20
Maximum flow temperature setting (in heating)
°C 55 60 60 60
Heat pump water volume
l 1 1.2 2.3 2.3
Electrical
Supply voltage/frequency
V/Hz 1/N/PE 230V 50Hz
Fuse
A 15 type B 15 type B 25 type D 25 type D
Maximum absorbed power (P max)
kW 1.45 2.7 5.1 5.1
Maximum absorbed current (I max)
A 6.7 14 23 20
Index of electrical protection
IPX4 IPX4 IPX4 IPX4
Electrical classication
1 1 1 1
Dimensions
Height
mm 935 821 1363 1363
Width
mm 880 908 908 908
Depth
mm 345 326 326 326
Ø Water circuit connections
" 1 1 1 1
Nett total weight
kg 82.5 71 105 130
Sound power level : overall exterior noise (according to EN 12102 and EN ISO 9614-1)
dBA 62.6 64 67 68
Visit www.glow-worm.co.uk to view and download technical data
27
Notes:
* Coecient of Performance (according to EN 14511)
Units 5 7 12 14
°C -7 -20 -20 -20 °C 35 30 30 30
kW 4.7 7.2 11.9 14.5 kW 1.26 1.82 3.01 3.6
A 5.48 8 13 15.6
3.73 3.96 3.94 4.06
kW 4.41 7.4 12.9 14 kW 1.46 2.32 4.2 4.4
A 6.34 10 18.5 19
3.02 3.18 3.03 3.21
R410a R410a R410a R410a
kg 1.8 1.81 2.485 3.385
Rotary
Polyolester
Electronic
rpm 180-660 200-680 250-750 200-820
bar 43.2 45 45 45
Pa 43.2*10 45*10 45*10 45*10
bar 3 3 3 3
Pa 3*10 3*10 3*10 3*10
bar 1 0.4 0.45 0.3
Pa 1*10 4*10 4*10 4*10 l/h 800 500 500 500 l/h 500 420 420 420
°C 25 20 20 20
°C 55 60 60 60
l 1 1.2 2.3 2.3
V/Hz 1/N/PE 230V 50Hz
A 15 type B 15 type B 25 type D 25 type D
kW 1.45 2.7 5.1 5.1
A 6.7 14 23 20
IPX4 IPX4 IPX4 IPX4
1 1 1 1
mm 935 821 1363 1363 mm 880 908 908 908 mm 345 326 326 326
" 1 1 1 1
kg 82.5 71 105 130
dBA 62.6 64 67 68
Visit www.glow-worm.co.uk to view and download technical data

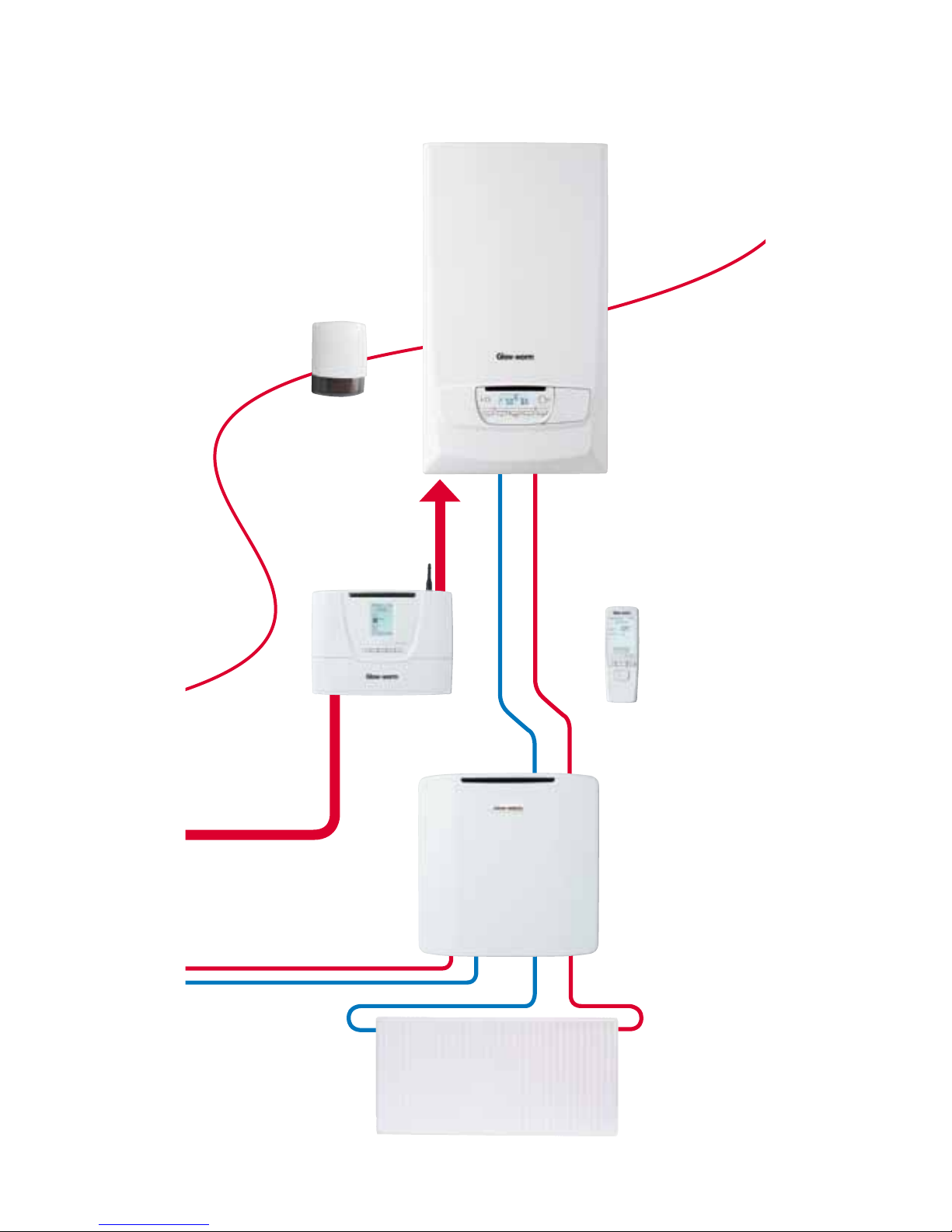

The Envirosorb 5 heat pump is also available as part of Glow-worm’s Cleary Hybrid system, which is the UK’s rst hybrid renewable domestic heating and hot water system using advanced controls to select the most cost eective method of heating at any time.
The Clearly Hybrid system combines the use of a High Eciency Glow­worm boiler, such as the Ultracom with the Envirosorb 5 air to water heat pump. The revolutionary heating system automatically selects when to use low carbon renewable energy from the heat pump or traditional energy from the High Eciency boiler, to always deliver cost eective heating and hot water to your customers.
The Clearly Hybrid system provides a perfect solution for consumers and organisations that are looking to use new, yet proven, technologies to deliver cost eective heating and reduce their carbon footprint.
Key benets of Clearly Hybrid
Automatically chooses the most ecient fuel source - cost eective
operation and lower carbon footprint
One complete package: heat pump, hydraulic module and control -
easy to install and commission
Use with any new Glow-worm High Eciency boiler: combi, system
and open vent models
Includes Glow-worm’s high performance Envirosorb 5 air
source heat pump
Full system with clear and simple operating controls
Can achieve over 40% carbon savings*
Envirosorb 5
*When replacing an older, standard eciency boiler
Clearly Hybrid system
28
Visit www.glow-worm.co.uk to view and download technical data
Systempro
Glow-worm High Eciency boiler
Climapro RF
Hydraulic Module HB
Wireless outdoor sensor
29
Visit www.glow-worm.co.uk to view and download technical data
30
Expert support & advice from start to nish
System design
Good designs are incredibly important if you are going to get the highest level of eciency and pay back from a Clearly Heat Pump system. Our award winning, expert design service is completely tailored to suit your individual site requirements. Using the latest state of the art CAD technology we provide high quality designs supported by full indemnity cover.
Our expert systems technologies team can also provide planning and on site support for the most unique and challenging of renewables projects.
Straightforward delivery
Glow-worm will deliver your Clearly Heat Pump system anywhere you want, be it direct to site or to your local trade counter where you placed your order. Our standard delivery service is 3 – 5 days from receipt of order, but you can choose a next day or timed delivery if you need things quicker.*
To ensure the site is ready to accept the delivery, we will call when we are 1 hour away from the delivery destination and will arrive with all the correct liing equipment to ensure that the product is safely transferred to site – life couldn’t be easier.
*Subject to an additional charge
Technical help
If you are planning or even in the middle of an installation and have a technical question you need answering, simply call our technical help line on 08447 361 143 for a straightforward answer.
Full local support
Our nationwide sales team provide installers and speciers with support and partnership from beginning to end.
Nationwide aer sales service
We are committed to supporting you with technical help and aer sales service online, over the telephone and through our network of dedicated fully trained renewable engineers on the road.
Visit www.glow-worm.co.uk to view and download technical data
31
Spares
If in the unlikely event a problem occurs and a genuine spare part is needed, then you can rest assured that Glow-worm’s market leading spare parts division will have the item you require. Thanks to our commitment towards maintaining functional spare parts, availability is for up to 15 years aer the range production ends.
Training
Glow-worm oers a wide range of training courses to suit your every need, covering its full range of High Eciency boilers, and renewable products.
Our renewable technologies courses include Clearly Solar, Clearly Heat Pumps (including Clearly Hybrid) and Clearly Heat Recovery product training as well as accredited courses such as solar and heat pump BPEC courses, and G3. Glow-worm also oer an MCS quality management course at our Centres of Excellence across the UK.
Online information
If you require standard technical advice information such as installation manuals and don’t want to spend time on the telephone, visit our website at www.glow-worm.co.uk where you will nd comprehensive technical information, solutions to common installation, system problems and advice on energy saving.
Loading...
