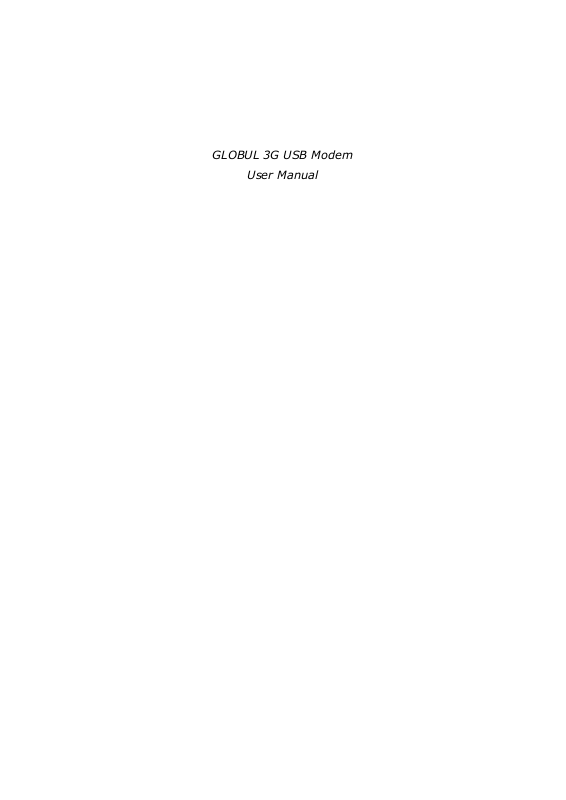

GLOBUL 3G USB Modem User Manual

GLOBUL 3G USB Modem

User Manual

Contents

1 Modem Introduction ..................................... 4

1.1 Introduction ....................................................... 4

1.2 Warning and Notice ............................................. 4

1.3 Applicability Scope .............................................. 6

1.4 System requirements .......................................... 6

1.5 Functions ........................................................... 6

1.6 Specification ....................................................... 6

1.7 LED indications ................................................... 8

2 Installation ................................................... 9

2.1 Outline and Parts ................................................ 9

2.2 Hardware Installation ........................................ 10

2.3 Software Installation ......................................... 12

2.4 Run the Application Software .............................. 19

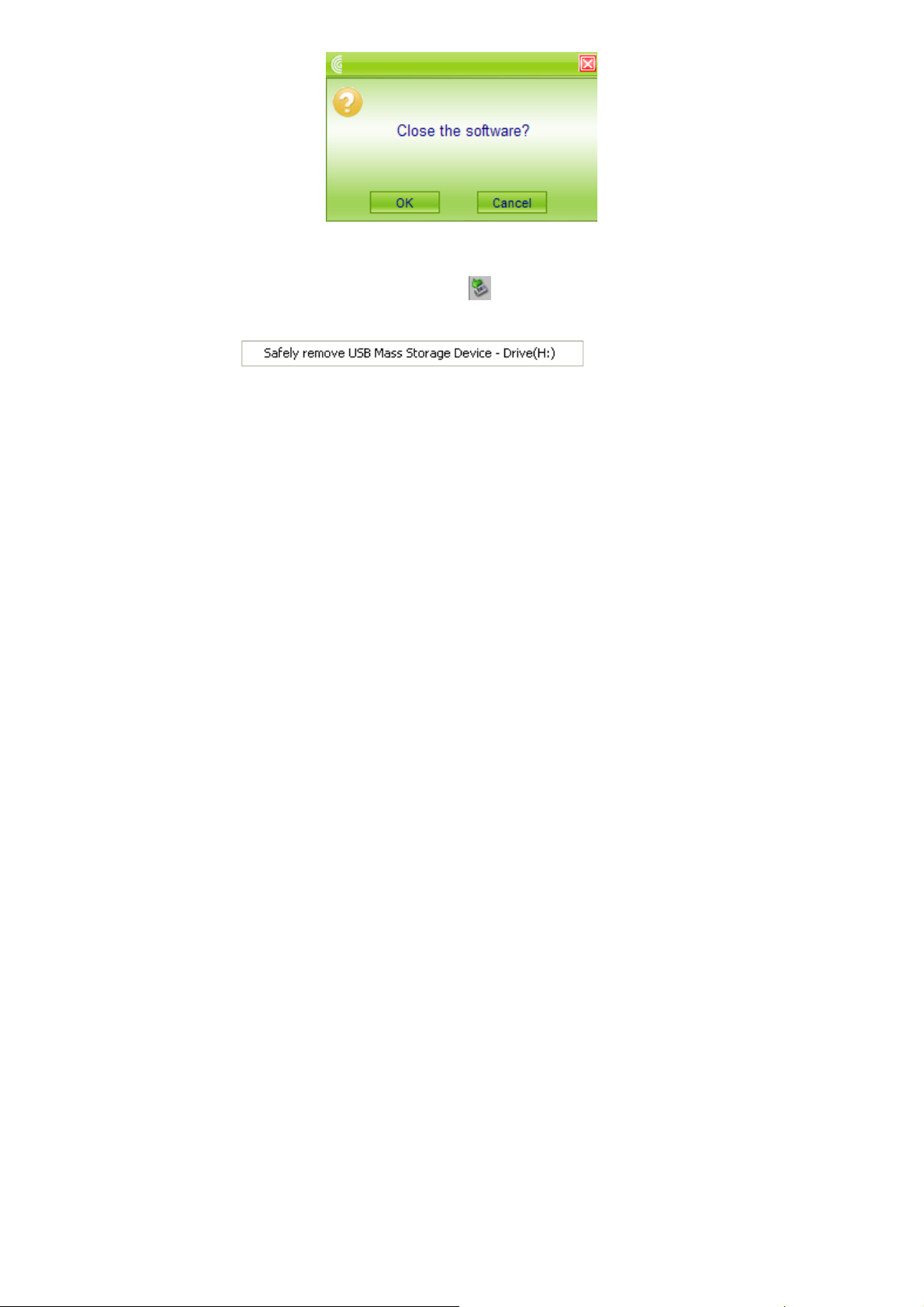

2.5 Hardware Uninstall ............................................ 19

2.6 Software Uninstall ............................................. 20

3 Functions & Operation ................................ 22

3.1 Interface introduction ........................................ 22

3.1.1 Main Interface ............................... 22

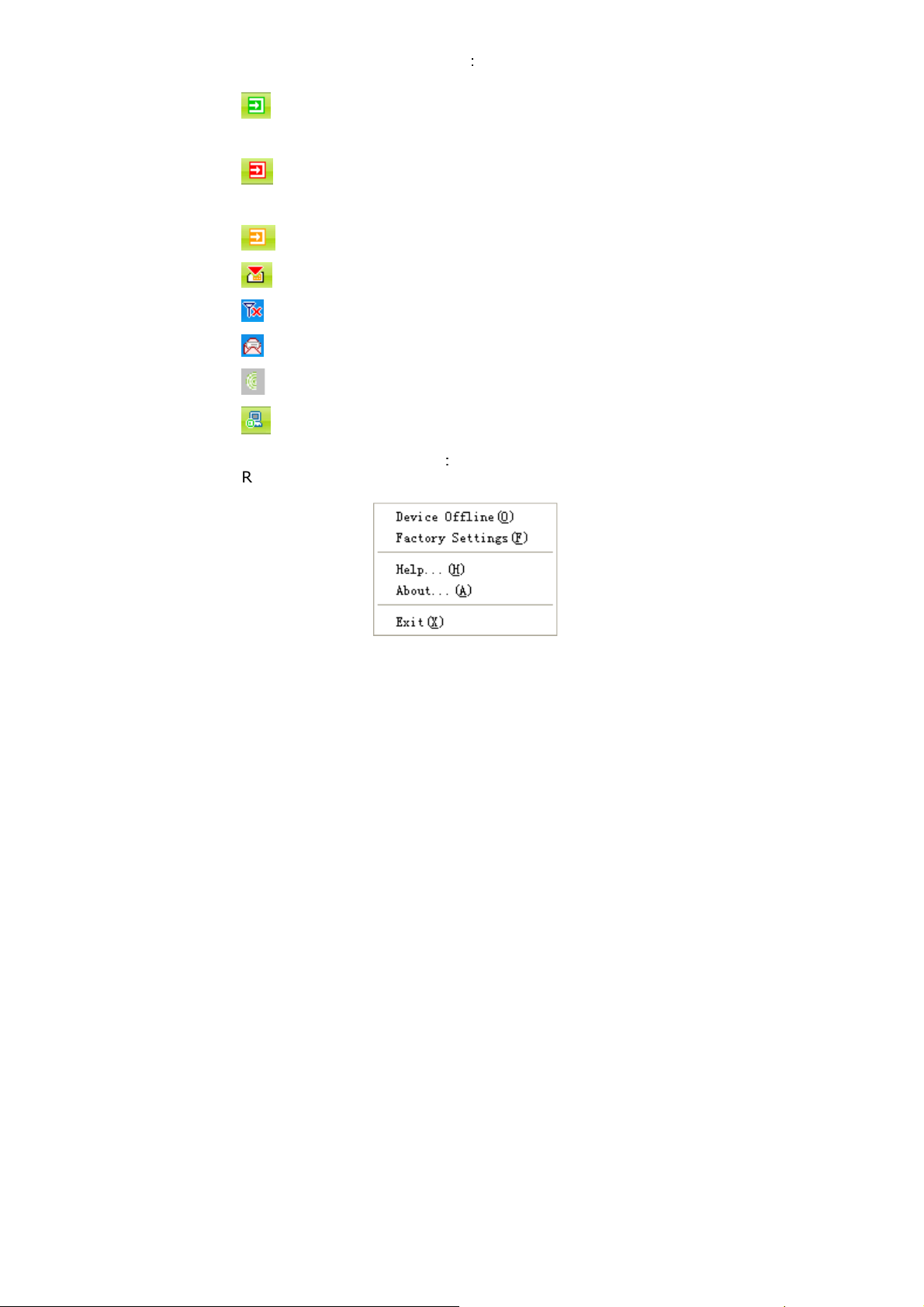

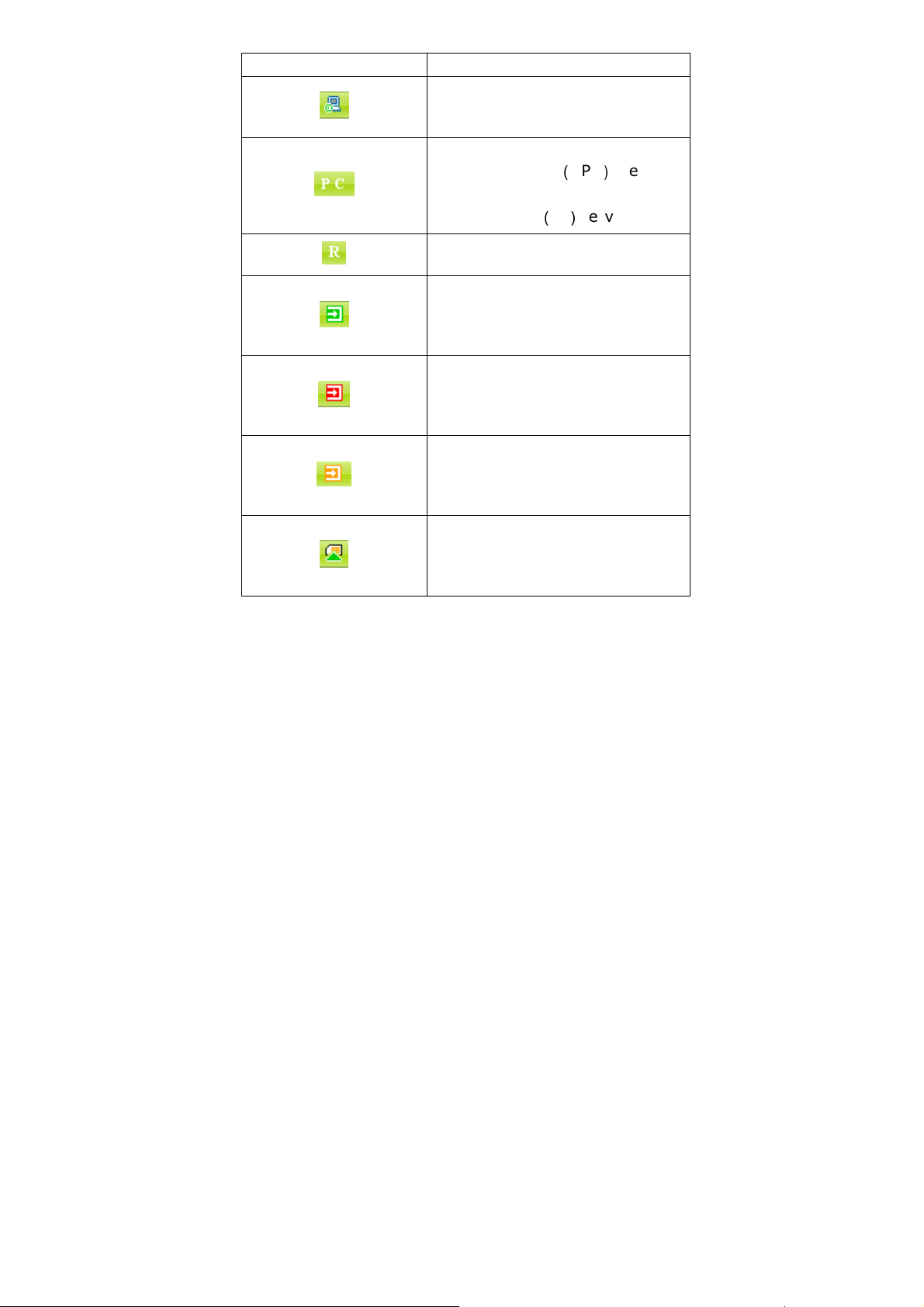

3.1.2 Description of Mini Icons ................. 25

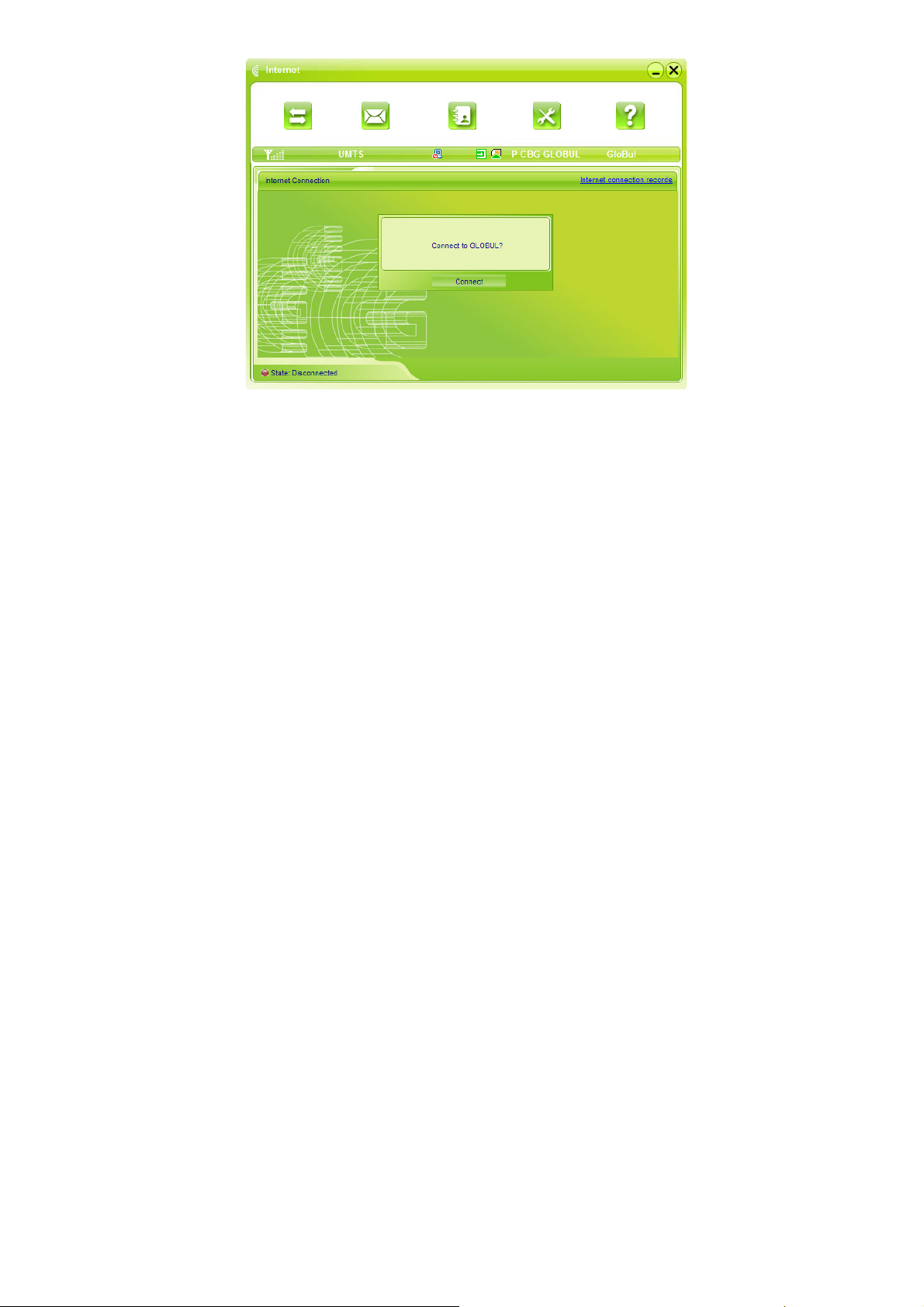

3.2 Connecting Internet ........................................... 27

3.3 SMS ................................................................ 30

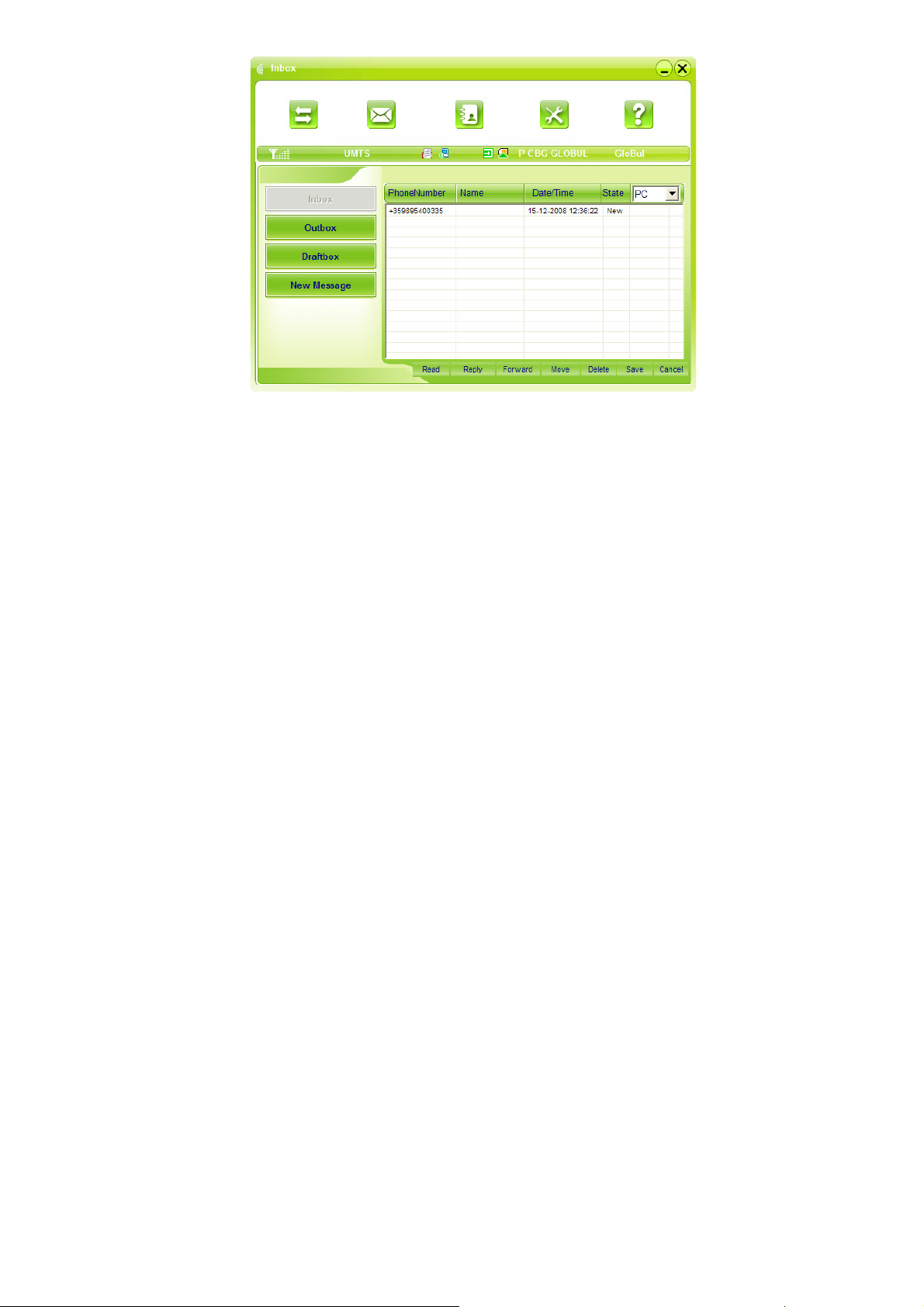

3.3.1 Read Short Message ....................... 32

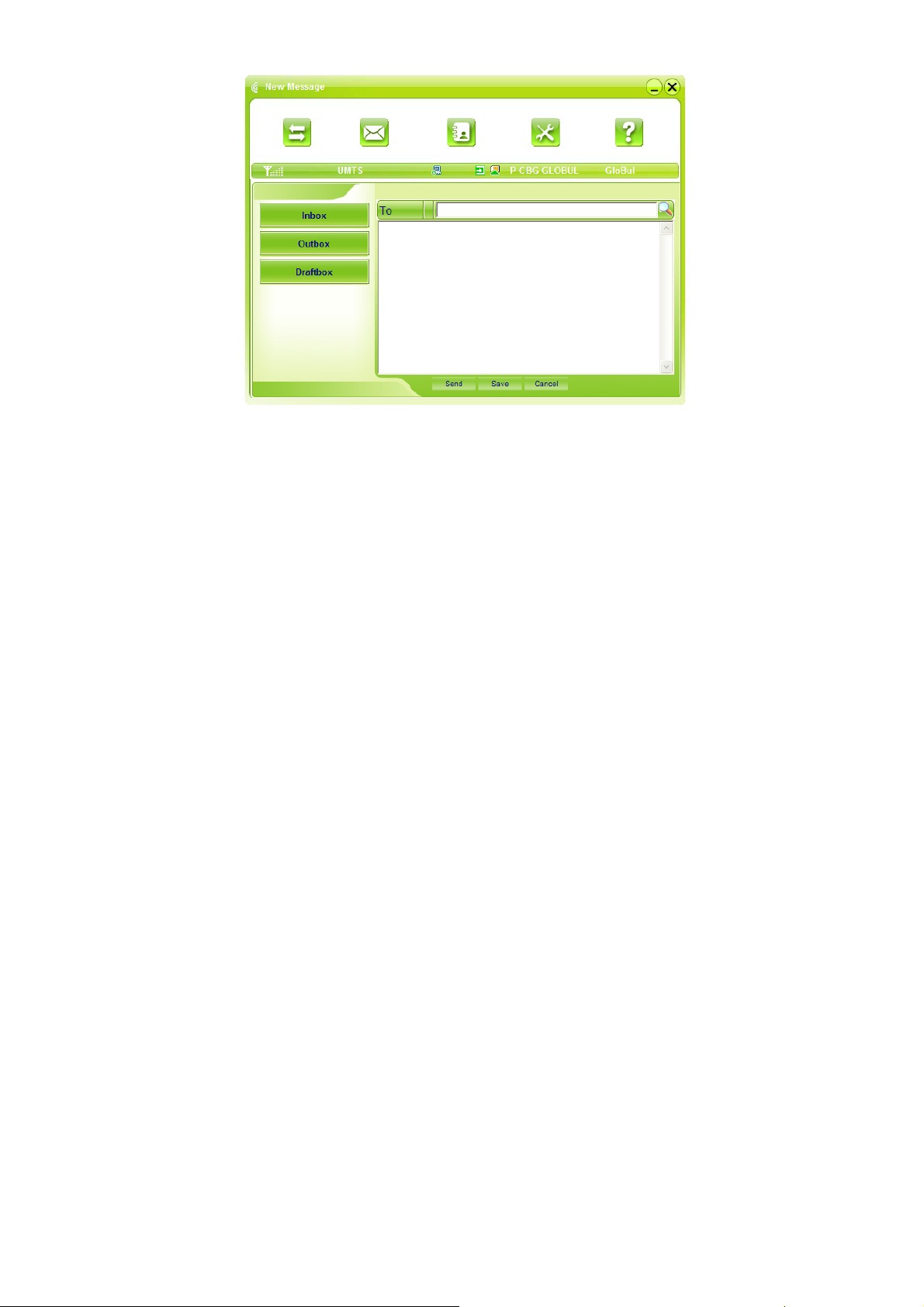

3.3.2 Create new message ...................... 32

3.3.3 Operating Guide ............................. 34

3.4 PhoneBook ....................................................... 36

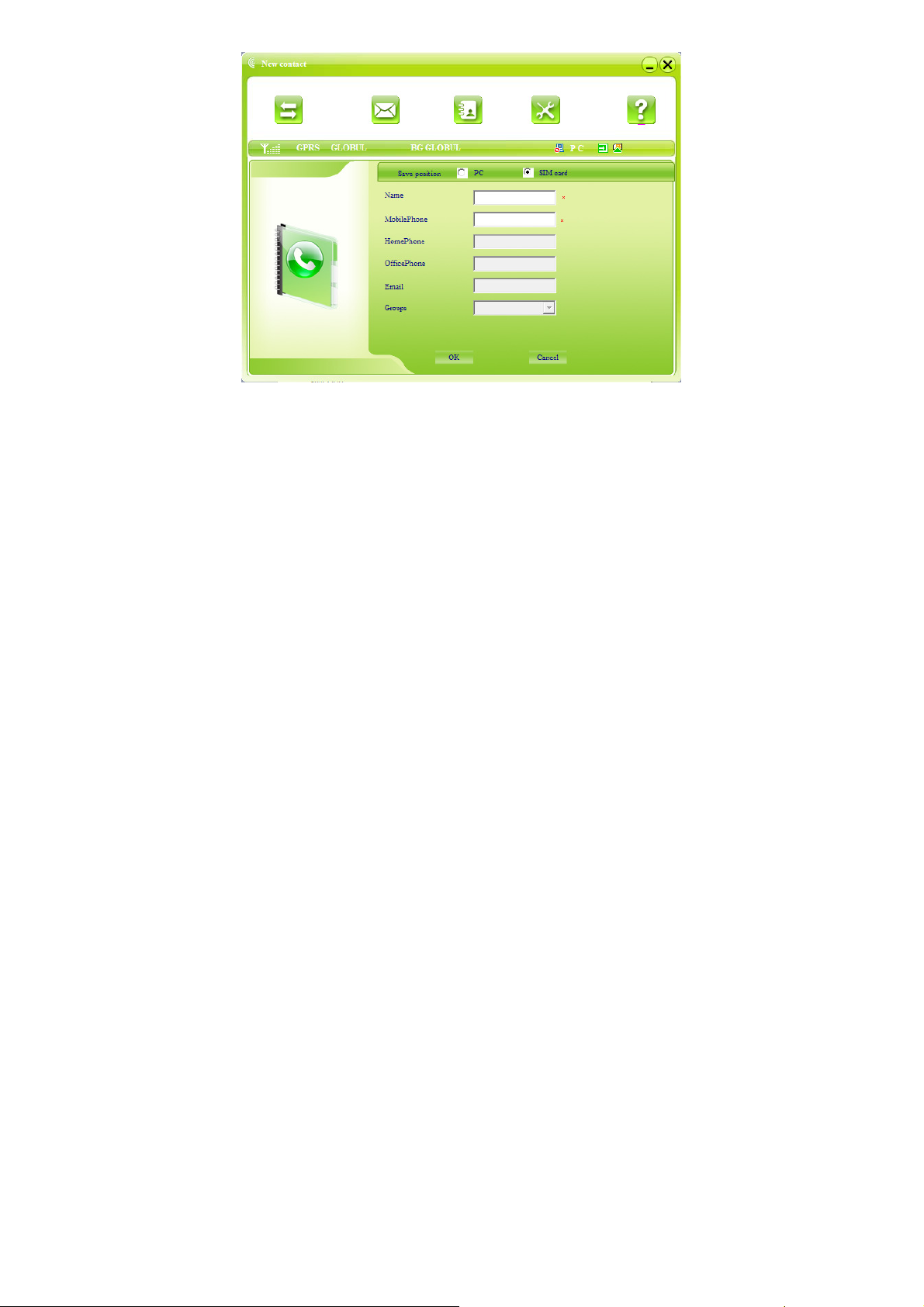

3.4.1 Creating a new contact ................... 36

3.4.2 Modifying contacts ......................... 37

3.4.3 Deleting contacts ........................... 37

3.4.4 Sending SMS to a contact................ 37

3.4.5 Searching for a contact ................... 38

3.5 Settings ........................................................... 38

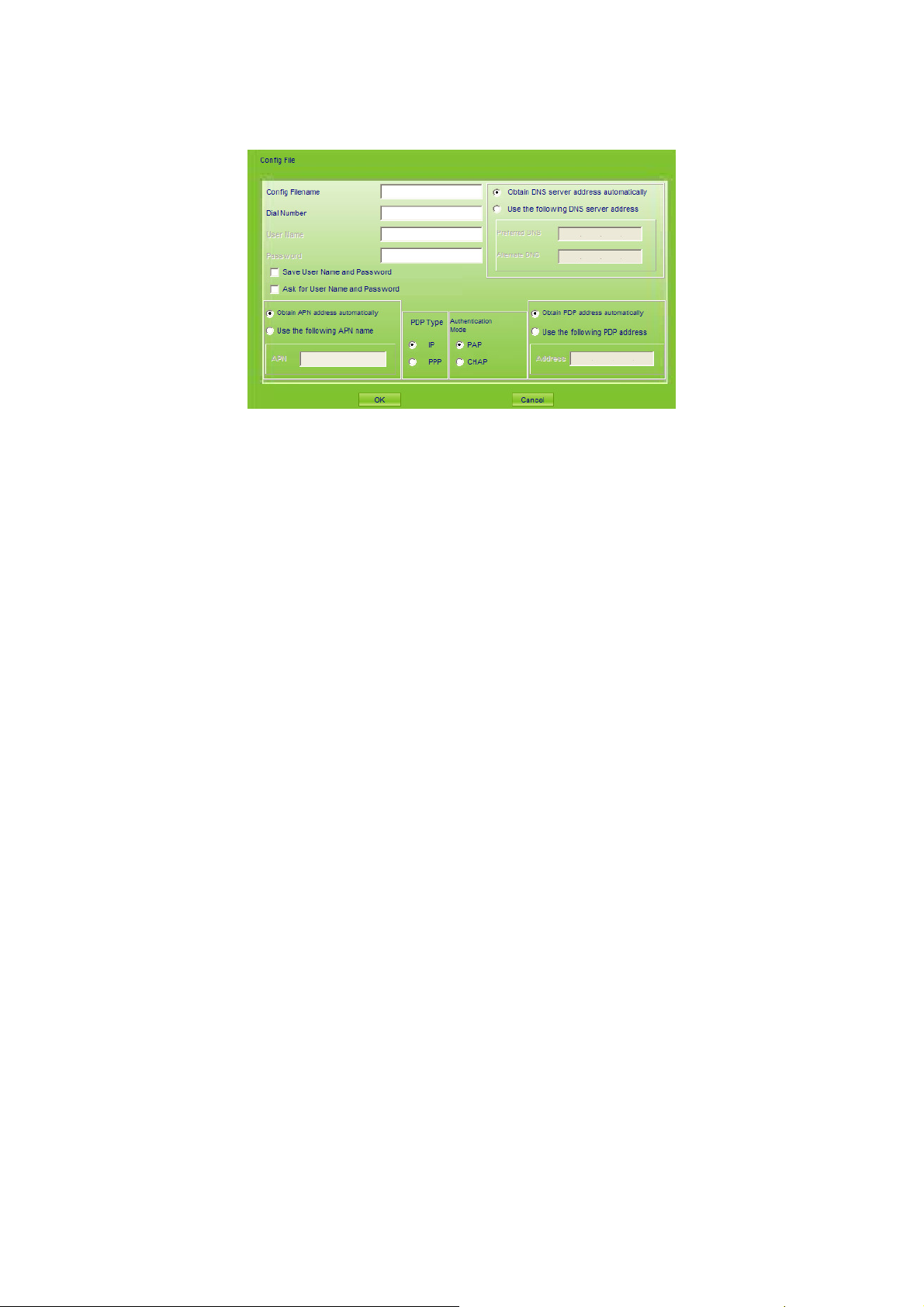

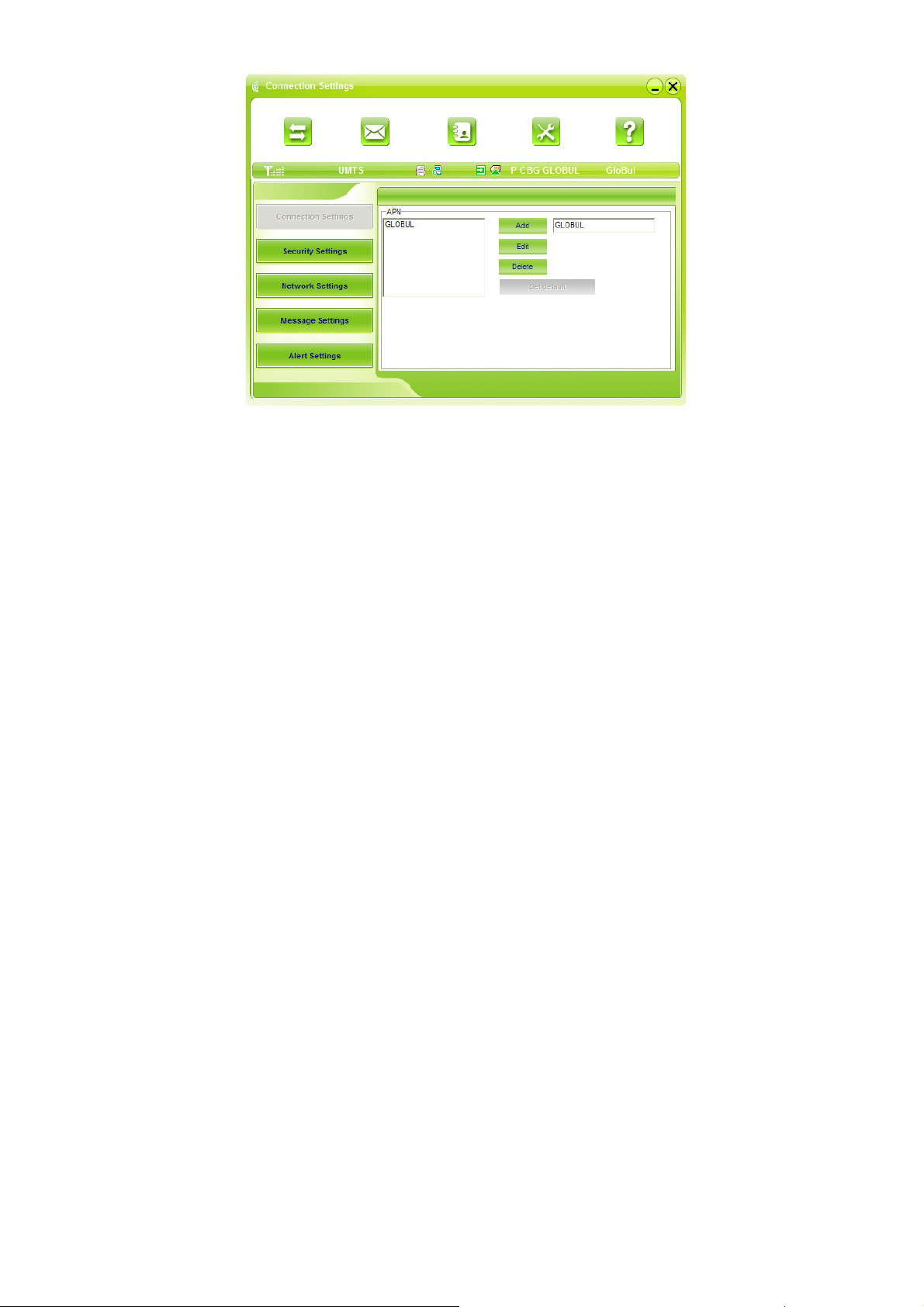

3.5.1 Connection Settings ....................... 39

3.5.2 Security Settings ........................... 41

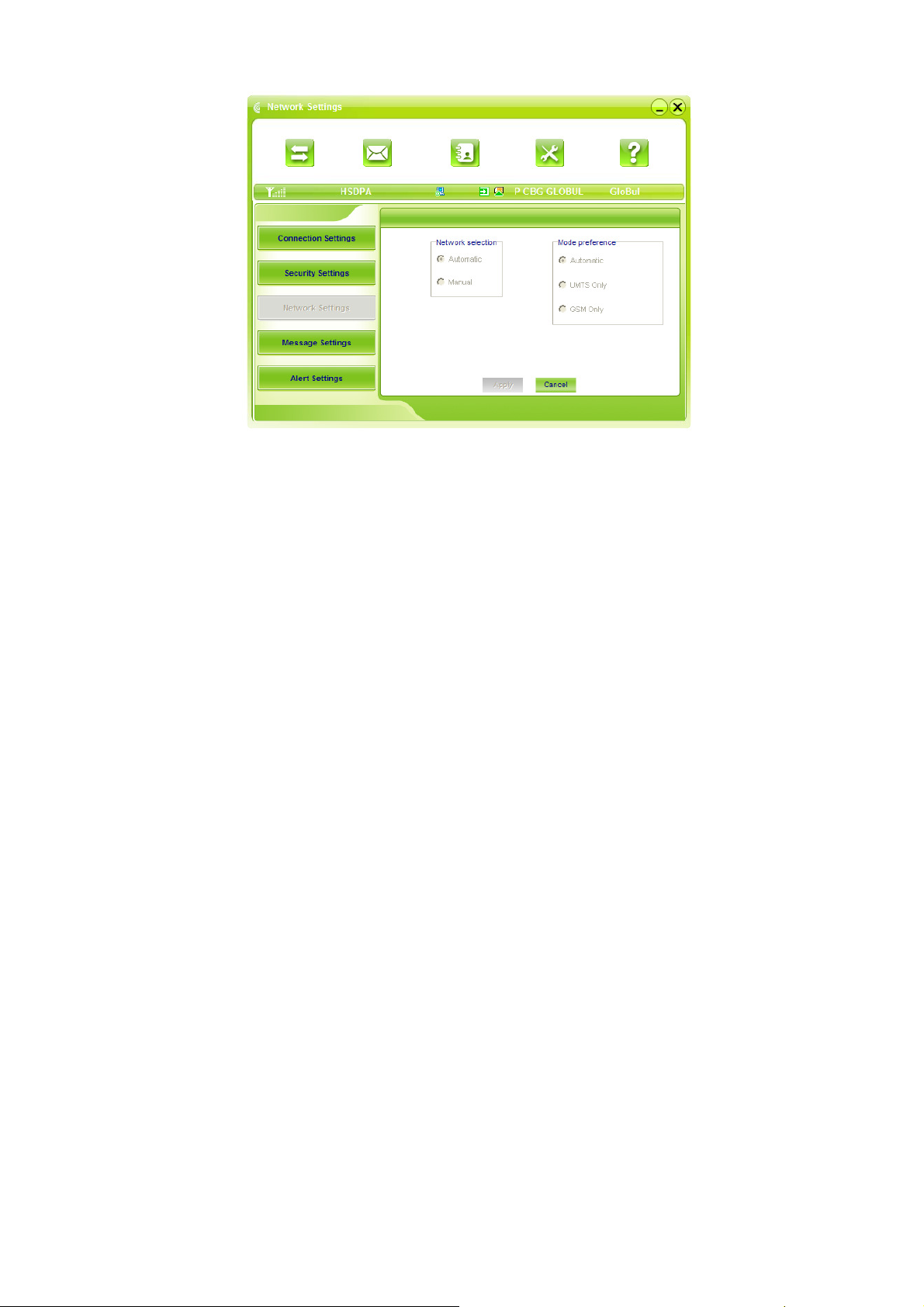

3.5.3 Network Settings ........................... 42

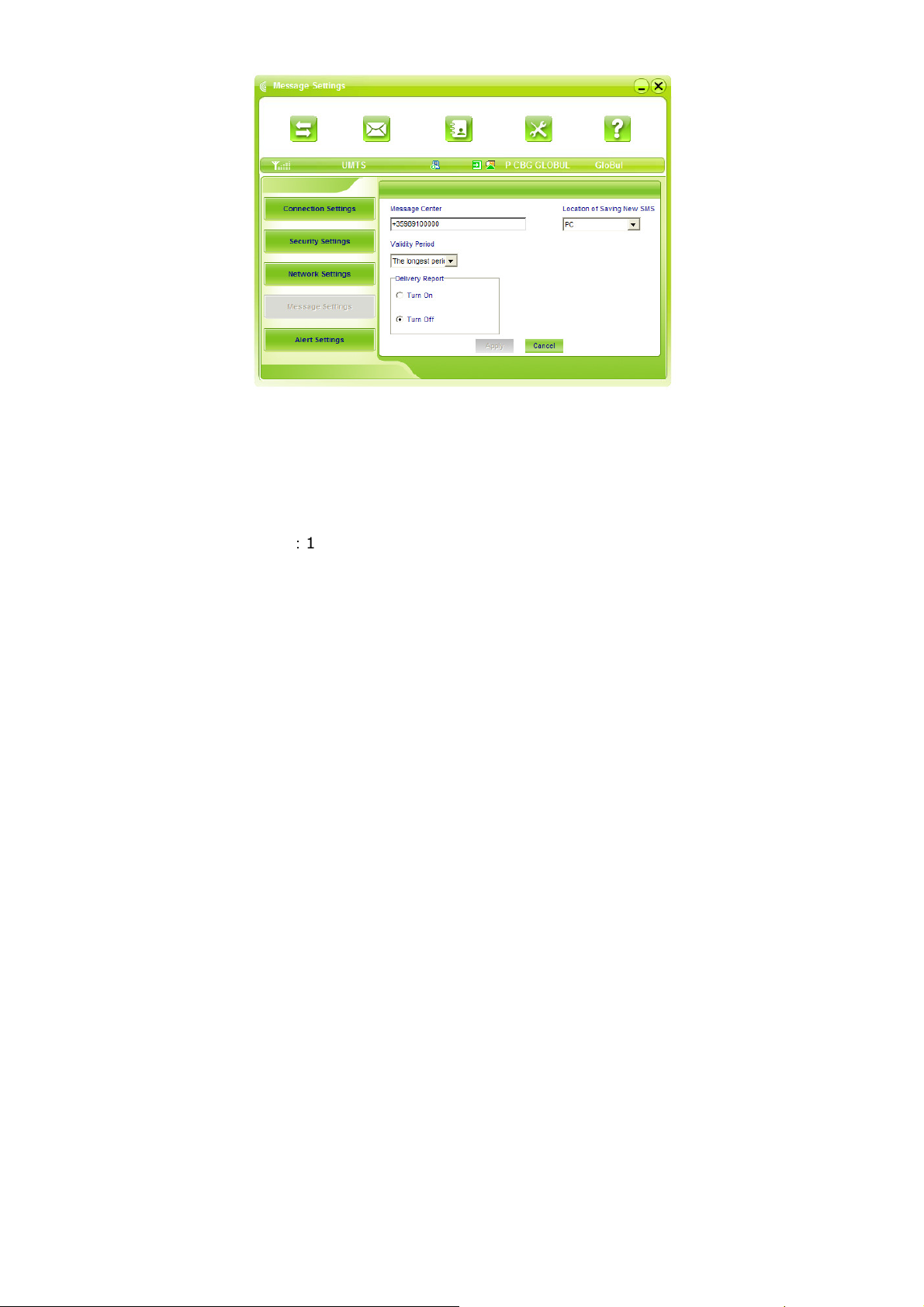

3.5.4 Message Settings ........................... 46

3.5.5 Alert settings ................................. 47

3.6 MicroSDHC card ................................................ 47

4 FAQ & Answers ........................................... 49

1 Modem Introduction

1.1 Introduction

Thank you for using ZTE MF637 USB Modem.

To guarantee the modem always in its best condition, please read this manual carefully and keep it for further use.

The pictures, symbols and contents in this manual are just for your reference. They might not be completely identical with your modem. We operate a policy of continuous development. We reserve the right to update the technical specifications in this document at any time without prior notice.

The ZTE MF637 USB modem is a multi-mode 3G USB modem, working in HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere.

1.2 Warning and Notice To the owner

 Some electronic devices are susceptible to

electromagnetic interference sent by modem if inadequately shielded, such as electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary.

 Operating of laptop and desktop PC and modem may

interfere with medical devices like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem.

 Be aware of the usage limitation when using a modem

at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Therefore, turn off your modem if required.

 Don’t touch the inner antenna area if not necessary.

Otherwise it will affect your modem’s performance.

 Store the modem out of the reach of little children. The

modem may cause injury if used as a toy.

Modem  Please use original accessories or accessories that are

authorized. Using any unauthorized accessories may affect your modem’s performance, and violate related national regulations about telecom terminals.

 Avoid using the modem near metallic structure device

or establishment that can emit electromagnet wave. Otherwise it may influence receiving signals.

 The modem is non-waterproof type, please keep it dry

and store in shady and cool place.

 Don’t use the modem immediately after a sudden

temperature change. In such case, it will produce dew inside and outside the modem, so don’t use it until it becomes dry.

 Take the modem carefully. Don’t lose, bend or cause it

struck. Otherwise it will lead to destruct damage.

 No dismantling by non-professional and only qualified

maintainer can undertake repair work.

1.3 Applicability Scope

Interface

Networks

Dimension

85.6mm×26.0mm×11.5mm

Weight

About

24g

HSUPA 5.76

Mbps

HSDPA 7.2

Mbps

WCDMA 384 Kbps

emory card

Support upto 4GB MicroSD

HC capacity

Temperature

0ºC ~ +55ºC

ZTE MF637 USB Modem supports the present mainstream types of laptops and desktop PCs, such as HP, IBM, Toshiba, Lenovo, Dell, Sony, etc.

1.4 System requirements

Operating System：Windows 2000 / XP / Vista Configuration (Recommended):

CPU 1GHz Pentium or above Hard Disk 50M or above RAM 512M or above

The performance of the modem may be influenced if configuration is under the recommended requirement.

1.5 Functions

Functions: SMS service, data service, applied management, data concurrence, support MicroSDHC card etc.

1.6 Specification

type

standards

Data Rate

USB

HSDPA/HSUPA/UMTS/GSM/GPRS/EDGE

1.7 LED indications

In the USB Modem there is a multi-colour-LED (light), which shows the status of the modem via different colours and flash-signalling. In this table below an explanation is given of all different situations:

Indicator Modem status

Orange Not detecting any network

Red always on Roaming status

Red blinking Active connection when roaming

Green always on Attached to 2G network

Green blinking Active connection via 2G network

Blue always on Attached to 3G network

Blue blinking Active connection 3G network

2 Installation

2.1 Outline and Parts

The following figure shows the appearance of the MF637. It is only for your reference. The actual product may be different.

○,1 SIM/USIM card slot It is where you insert the subscriber identity module/UMTS subscriber identity module (SIM/USIM) card. ○,2 Memory card slot (MicroSDHC card) It is where you insert memory card (MicroSDHC card). ○,3 USB port Connect your modem to the laptop or desktop computer. ○,4 Modem cap It protects your modem USB port when it is not used. ○,5 Indicator It indicates your modem status.

2.2 Hardware Installation

1. Insert the SIM/USIM card into the USB Modem:

First, you should insert your USIM/SIM card into the USB Modem, and confirm that your SIM/USIM card support data service, GPRS, EDGE, UMTS, HSDPA or HSUPA etc. If you have questions on this, please consult your service supplier.

To install SIM/USIM card  First take down the modem cap, then the USB

connector is visible.  Pull out the plastic socket above the USB connector. Note: Do not pull the socket rudely for the socket is fixed with the modem. Otherwise the socket will get damaged.

 Insert the SIM/USIM card with the metal contact

area facing downwards into the socket.

 Insert the plastic socket into the modem. You can

hear a click when the SIM/USIM card locks in place.

To Remove the SIM/USIM card from the USB modem

 Take down the modem cap.  Pull the plastic socket slightly, and you can hear a

click when the USIM/SIM card gets unlocked.

 Take out the SIM/USIM card.  Insert the socket into the modem.

2. Install the MicroSDHC card into the USB modem:

You can use a compatible MicroSDHC card to save more data. Only MicroSDHC card is supported by the modem and do not use other memory card in the modem. Install MicroSDHC card in the USB Modem, if you want to

use it.

Open the MicroSDHC card cover. Insert the MicroSDHC card into the memory card slot. Make sure the metal contact side of the memory card facing downwards, shown as the following picture.

Then close the memory card slot cover.

Note: The modem supports up to 4GB MicroSDHC card.

3. Connect the USB Modem to your laptop or desktop PC:



Plug the USB modem into your computer’s USB port and make sure that it is tightly inserted.

 The OS automatically detects and recognizes new

hardware and starts the installation wizard.

2.3 Software Installation

The system will automatically detect and recognize the

new hardware and display the new icon in the desktop status bar, indicating that the computer and the USB Modem have been connected properly. After a few seconds, there will show the following installation interface.

Note: If the system does not launch installation automatically, you can run the installation program in path of My Computer > GLOBUL MODEM > AutoRun.exe.

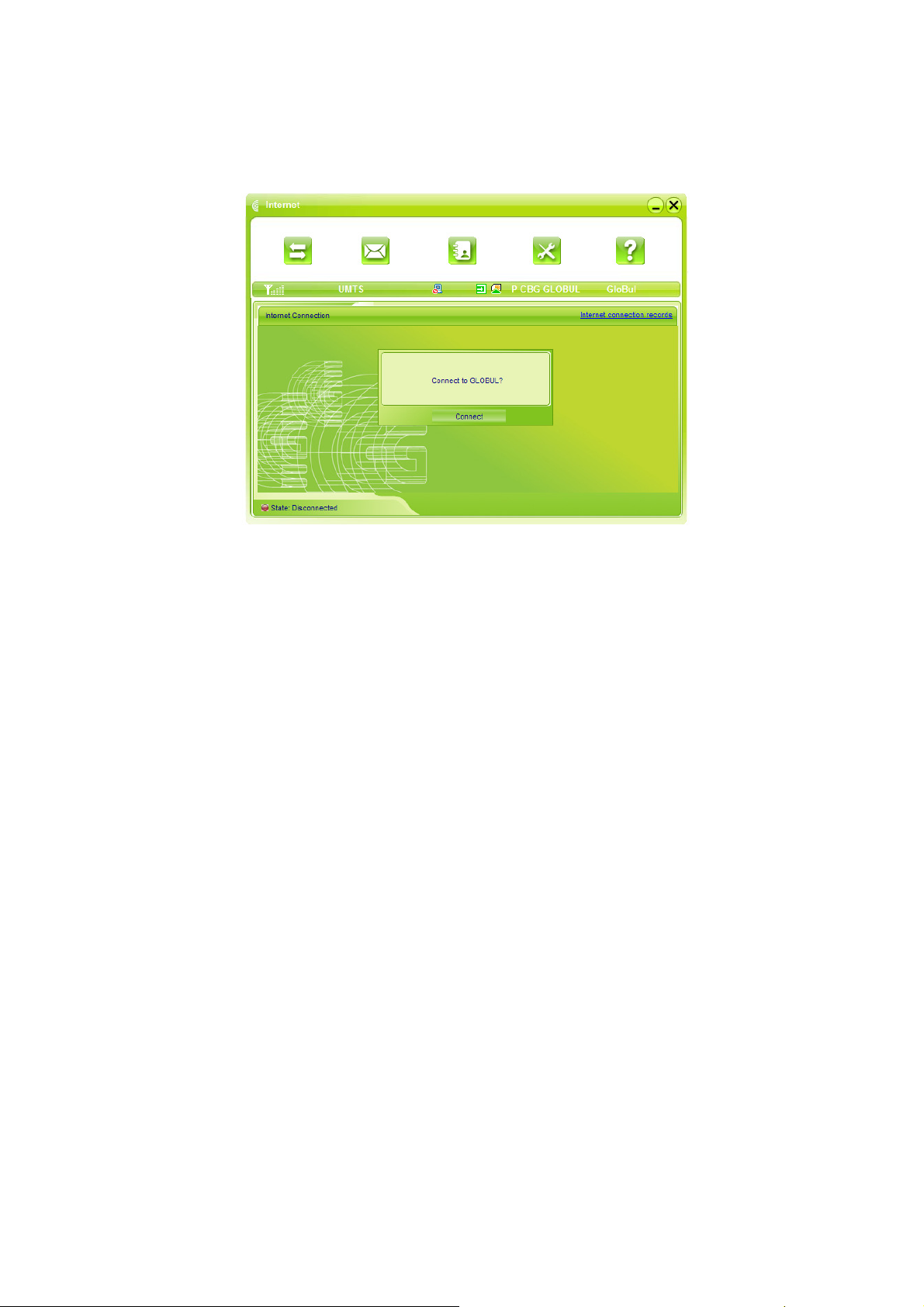

The following installation interface will show how to install the software.

 Recommend you to exit other programs, and then
