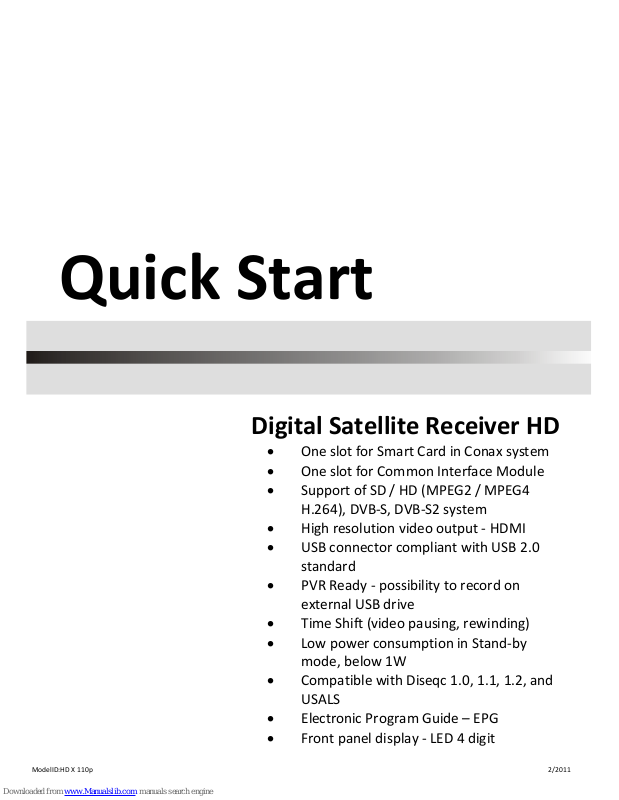

ModelID:HD X 110p 2/2011
Quick Start
Digital Satellite Receiver HD
• One slot for Smart Card in Conax system
• One slot for Common Interface Module
• Support of SD / HD (MPEG2 / MPEG4
H.264), DVB-S, DVB-S2 system
• High resolution video output - HDMI
• USB connector compliant with USB 2.0
standard
• PVR Ready - possibility to record on
external USB drive
• Time Shift (video pausing, rewinding)
• Low power consumption in Stand-by
mode, below 1W
• Compatible with Diseqc 1.0, 1.1, 1.2, and
USALS
• Electronic Program Guide – EPG
• Front panel display - LED 4 digit

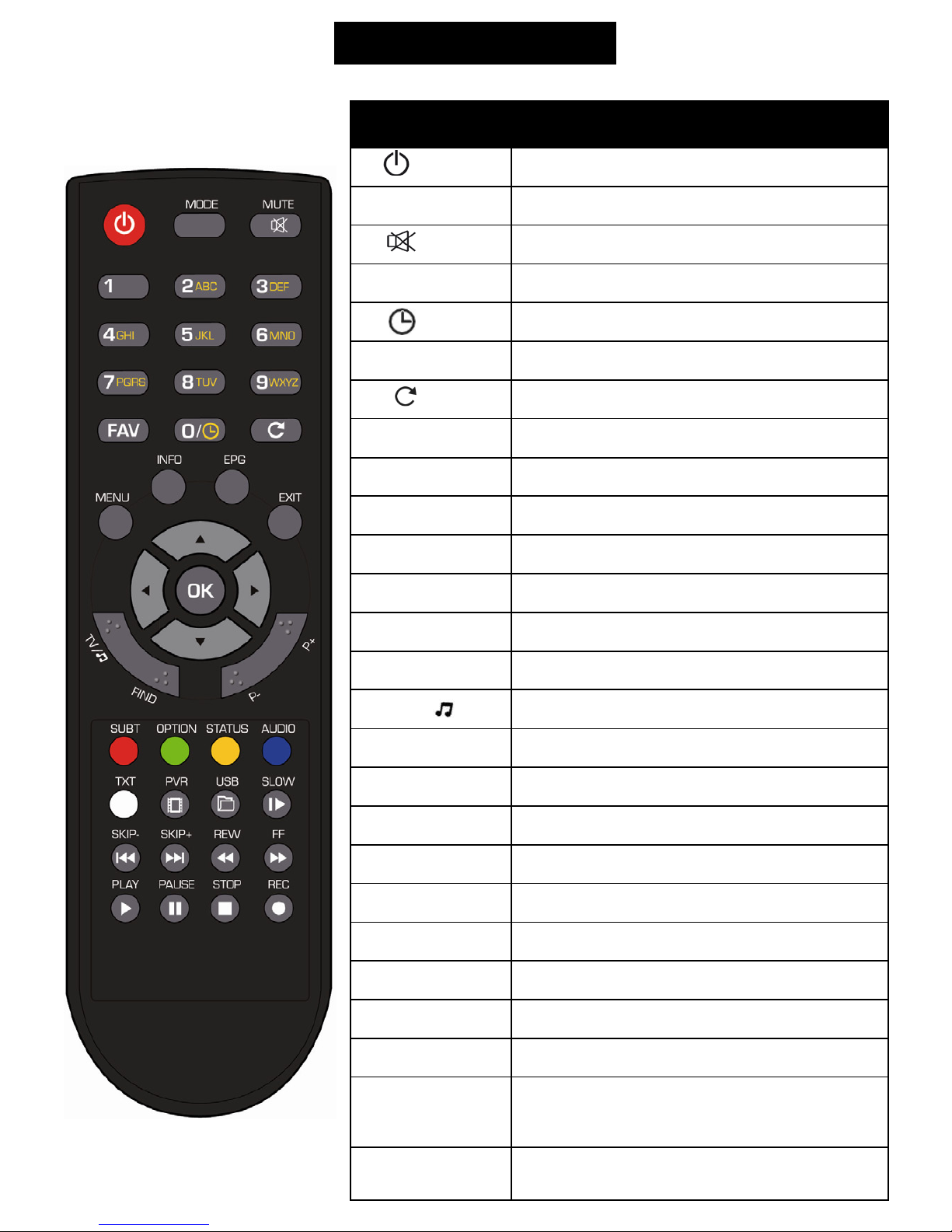

Remote controller
Button Function
- POWER
Switch your receiver on from standby mode.
MODE Switch receiver’s video output resolution
- MUTE
Enable or disable the audio.
Numeric buttons
Select channel or enter programming
parameters.
- SLEEP
Switch Sleep Timer between Off/ 10/ 30/ 60/
90/ 120 minutes.
FAV
Set receiver to the favourite list mode, display
actual favourite channel list.
- LAST
Switch to the previously watched channel.
MENU
Display the Main Menu on the screen, or return
to the previous menu or status.
INFO Display information bar of current service.
EPG Display the Electronic Program Guide on screen.
EXIT
Cancel the user selection and return to the
viewing mode from a menu.
◄ /►
Adjust volume level or move cursor left or right
in the menu.
▲/▼
Change channel or move cursor up or down in
the menu.
OK
Display channel list on screen. Select an item in
menu.
TV/
Switch receiver between TV and Radio mode.
FIND
Enables to find channel by name entered by
numeric buttons.
P- / P+
Move up the cursor to the next or previous page
in the menu or channel list.
SUBT Subtitle setup.
OPTION
Optional function (depends on receiver
software)
STATUS Show receiver’s status window.
AUDIO Audio channels setup.
TXT
Show teletext information of the current
channel.
PVR Run record manager.
USB Run multimedia player.
SLOW, SKIP-,
SKIP+, REW, FF,
PLAY, PAUSE,
STOP, REC
Steering of video functions (timeshift, playing
records and recording)
RED,GREEN,
YELLOW, BLUE,
WHITE
Colour buttons. (according function descriptions
on screen)
Basic connection
After purchasing receiver, unpack it and check
to make sure that all of the following items are
included in the packaging:
• Receiver
• Remote controller
• Quick Start manual
• Batteries - 2x AAA (optional)
To install the batteries in the remote control,
remove the flap protecting the battery
compartment If inside the chamber there are
used batteries, they must be removed. Then
put new batteries inside. When installing the
battery, pay special attention on the polarity the direction of insertion of both batteries. The
correct polarity of batteries is drawn on a
description inside the battery compartment in
the remote control. After installing the
batteries, place protecting flap on its original
position.

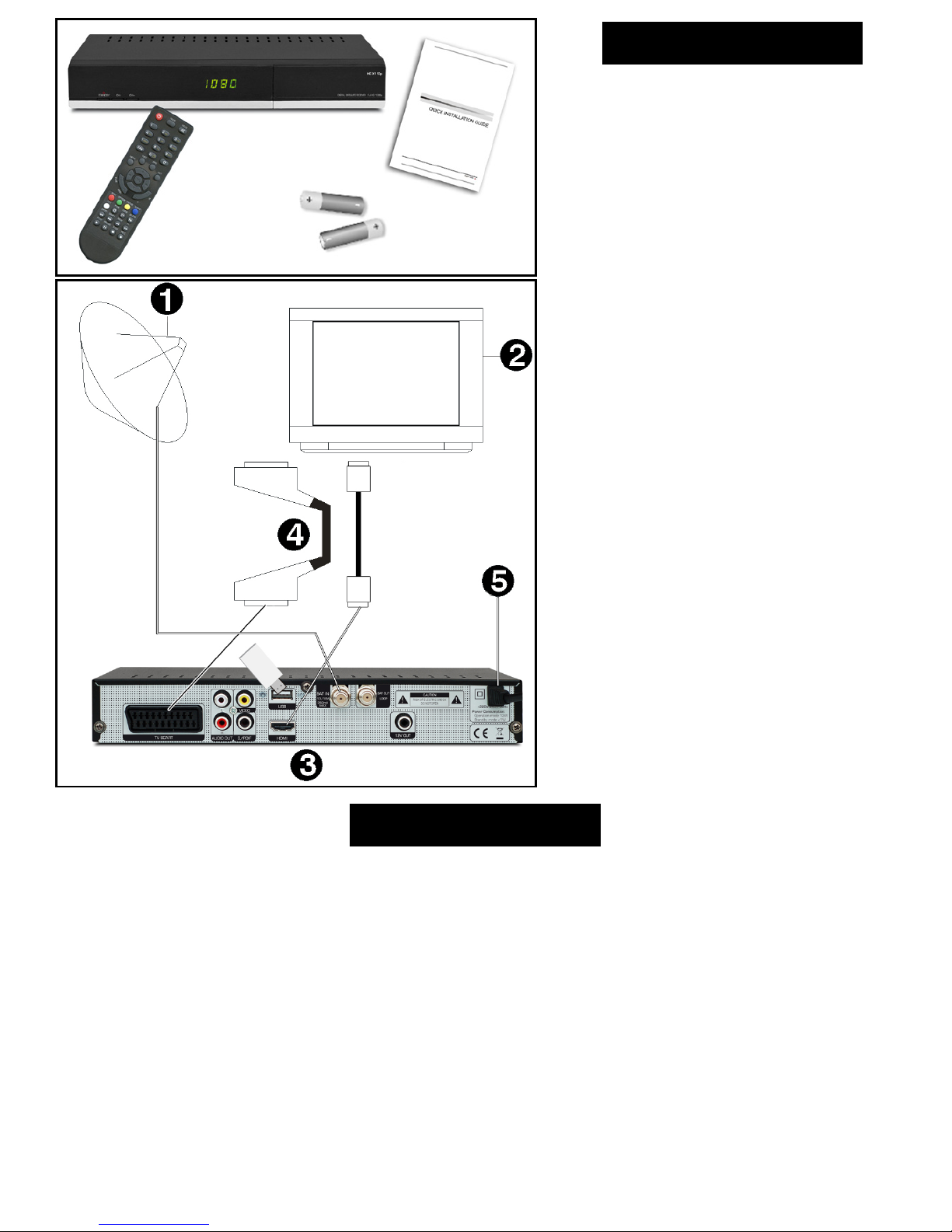

Next, connect cable from LNB/ANTENNA (1 on
picture) to receiver’s (3) SAT IN connector.
Using HDMI or SCART cable (4) connect
receiver with TV Set (2). Finally, at the end
connect main cord (5) to main socket.
Turn on the TV Set. After while on TV Set
screen You should see receiver’s OSD. If TV Set
not display receiver’s OSD, probably signal
source is set wrong in TV. Check TV Set
documentation for information how to change
signal source.
Operating notes
Working with external USB drive
During the selection and operation with USB drive (hard drive, flash memory), user should pay attention on:
• Drive is compliant with USB 2.0 and have the appropriate parameters of read and write speed,
• Drive contain single partition, formatted in a supported format,
• If necessary (especially for USB hard drives, which are characterized by a high power consumption), drive should
be supplied from an external power supply,
• Do not disconnect during a write/read data operation,
• Do not use very full or fragmented drive,
Mismatch above recommendations may result in incorrect operation of the devices and in extreme cases can cause
damage.
The manufacturer takes no responsibility for any damages directly or indirectly caused by loss of recorded or edited
data stored on an external USB drive which was connected to the receiver, and gives no warranty for any other data
on the USB drive when case of abnormal function receiver will happened.
Automatic Power Down
In accordance with actual European Union requirements, Your receiver is equipped with function "Automatic Power
Off". It works by switching the receiver into standby mode after a period of 3 hours after the last active use. In practice
this means that if during this time the receiver will not be given any command by using the remote control or keypad
on the front panel, the receiver turns off. Turning off the receiver will be preceded (2 minutes previous) by a relevant
message appears on the TV screen. Please also note that this feature is enabled by default in software versions
dedicated for European Union countries, but at Your own request, You can disable it using the appropriate functions in
the receiver menu.
Easy installation
Generally, once the receiver is switched on, it is ready to play channels from default channel list.
If after turning on You can see only receiver’s menu, and when You try to push MENU or EXIT button, “No channels!”
information appears, it means that channel list has been erased. There are two ways to create new channel list:
• Restore default channel list, or
• Scan Your own channel list
Restore default channel list
To restore default channel list, explore the menu with ▲/▼ buttons, and select Tools menu. Press OK to enter. You
may be asked about password (default is 0000 – enter using numeric buttons). Using ▲/▼ buttons select Factory
Setting option and press OK. Use ◄/►buttons to move cursor to “Yes“ and again confirm by OK button. After a while,
reboot receiver using POWER button.
If after above settings, channels are still not played, only “No Signal!” information appears on screen, go to next
chapter, where You can find how to configure Your satellite installation.
Configure Your satellite installation
To configure satellite installation, explore the menu with ▲/▼ buttons, and select Installation menu. Press OK to
enter. You may be asked about password (default is 0000 – enter using numeric buttons). Using ▲/▼ buttons select
Satellite List and press OK. In this menu, using ▲/▼ and OK buttons You can define which satellites are available in
Your installation. Next, press MENU to back to Installation.
If Your installation receive signal from more than one satellite, use ▲/▼ buttons to select Antenna Setup and press
OK. In satellite function use ◄/► buttons to choose satellite and in DiSEqC1.0 or DiSEqC1.1 function You can assign
selected satellite to corresponding DiSEqC switch input. Use MENU to back to Installation. Now Your satellite
installation should be finally configured and ready to receive connected signal.
Scan Your own channel list
After satellite installation configure, You can create Your own channel list.
If You want to erase all currently existing channels, explore the menu with ▲/▼ buttons, and select Edit Channel
menu. Press OK to enter. You may be asked about password (default is 0000 – enter using numeric buttons). Using
▲/▼ buttons select Delete All and press OK. Use ◄/►buttons to move cursor to “Yes“ and again confirm by OK
button. After a while, channel list will be empty.
Now, explore the menu with ▲/▼ buttons, and select Installation menu. Press OK to enter. You may be asked about
password (default is 0000 – enter using numeric buttons). Using ▲/▼ buttons select Multi Satellite Search and press
OK. Next, using ▲/▼ buttons select Search and press OK. Receiver start scanning all selected previously in Satellite
List function satellites. Please, be noted that this procedure may takes few minutes.
If after above procedures, Your receiver still cannot play channels, it is highly recommended to contact with Your local
professional installator or dealer.
Menu structure and functions description
Menu/Submenu Function
Edit Channel This menu enables to manage channels on channel lists.
TV Channel List Manage list of TV channels.
Radio Channel List Manage list of Radio channels.
Delete All Delete all channels from all channel lists.
Save as default Save actual satellite, TP and channel list as default.
Installation This menu enables to scan channels and setup antenna.
Antenna connection Enables to choose antenna installation type – fixed or motor.
Satellite List Enables to choose satellites from list for scanning issues.
Antenna Setup Enables to configure antenna / LNB parameters.
Single Satellite Search Scan channels of one satellite (selected from Satellite List).
Multi Satellite Search Scan channels of all satellites selected in Satellite List.
TP List Manage list of transponders for every satellite, enables to scan channels
from desired transponders.
System Setup This menu enables to set up receiver’s user interface functions.
Language Change language of OSD, audio, teletext and subtitles.
TV System Change screen settings - resolution, 16:9/4:3, RGB/CVBS.
Display setting Change screen parameters – brightness, contrast, saturation etc.
Local Time Settings Change time settings – time zone, manually set time.
Timer Setting Enables to plan events in future - wake up receiver on specified channel
or remind by message display.
Conax Conditional Access Display information about Smart Card inserted to card reader.
Parental Lock Lock access to menu and specified channels.
OSD Setting Change transparency of OSD, choose subtitle mode.
Favourite Enables to rename favourite channels groups.
Audio description setting Enables to turn on additional audio description.
Other Setup all other settings – power for LNB, channel play type and Auto
standby
Tools This menu enables to manage receiver’s software.
Information Display information about hardware and software version of receiver.
Factory Settings Recall standard settings of all receiver’s functions, delete old channels.
Upgrade By RS232 Enables to send software (or some part, like channel list) to another
receiver using RS232 null-modem cable.
S/W Upgrade by OTA Enables to upgrade receiver’s software using software from satellite
stream data (optional).
Common interface Display information about CAM module inserted to CI slot.
Upgrade By USB Enables to upgrade receiver’s software using software archive stored on
USB drive
Save to USB Save actual software to file on USB drive.
Media player Enables to view recorded before videos. Enables to view files (not all
filetypes supported) and directories stored on USB drive.
Remove USB device safely Unmount USB drive from receiver file system to safely remove from
device from USB slot.
Mailbox Display list of messages from operator to user.
Game This menu contain games.
REC This menu enables to manage timeshift function, recording and playing
recorded movies.
PVR storage information Displays information about connected USB drive.
PVR Setting Enables to set-up recording and timeshift functions.
Troubleshooting
Look through the trouble shooting information. Some simple checks or minor adjustment of the unit on your part may
help resolve the problems. If the problems prove to be beyond your capability, you had better hand it over to a
professional qualified technician.
Troubles Possible Causes Suggested Solutions
No power
The power cord has not been well
connected.
Plug the power cord into the outlet tightly
and turn on the power; if no power still, turn
off the power again, and turn it on in 5-10
minutes.
Receiver cannot
play scrambled
channels
Smart card/CI module is not inserted, or
is not inserted correctly into slot.
Insert smart card/CI module correctly (smart
card in integral card reader – chip side up).
Smart card is not activated.
It is highly recommended to contact with
operator to get to know how to activate
card.
Cannot scan
programs
The antenna is not adjusted well. Adjust the antenna.
Parameter input incorrectly.
Input Satellite, Frequency, SR, Polarization
parameter correctly.
No picture
Output cord connect incorrectly. Connect the output cord correctly.
The video output mode of the unit is
different from the mode of monitor.
Set proper working mode (use MODE
button).
No color
Output cord connect incorrectly. Connect the output cord correctly.
The video output system of the unit is
different from the mode of monitor.
Set proper working mode (use MODE
button).
The remote
control fails to
work
Batteries incorrectly installed. Install the battery correctly.
Batteries exhausted. Replace the battery.
Beyond the effective operation range. Operate within a normal range.
The remote sensor is pointed to by bright
light.
Place the unit elsewhere for a change.
Audio sound and
subtitle language
are not the
chosen items
Has not chosen the right sound channel . Press the Audio button to shift the channel.
No sound at all
The unit is in a mute status. Cancel the mute.
Volume set at a too low level. Augment the volume.
Cable connected incorrectly. Connect the cable correctly.
Serious distortion
or cannot receive
signal normally
Too much interferential signal. Adjust the antenna.
Safety precautions
CAUTION:
Warning: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to "dangerous voltage" and to prevent from a risk of electric shock.
Warning: To reduce the risk of electric shock, don't open the cabinet. Refer servicing to qualified
personnel only.
Warning: The exclamation point within an equilateral triangle is intended to alert the user to
important operating and maintenance (servicing).
Warning: Do not use this STB where contact with or immersion in water is a possibility. Do not use near flower vase,
washbowls, kitchen sinks, laundry tubs, swimming pools, etc.
Warning: Do not put the candle or lamp stand on the cabinet; otherwise, there is the danger of fire.
Warning: The unit should be connected to a power supply only of the type described in the operating instructions or as
marked on the unit. If you are not sure of the type of power supply (for example, 120 or 230 V) to your home, consult
your local dealer or local power company.
Warning: This product install diodes. Do not open the cabinet or touch any parts in the inner mechanism. Consult your
local dealer for technical service if the opening is required.
Note: To ensure proper use of this product, please read this User manual carefully and retain for further reference.
Note: This product install diodes. Do not open the cabinet to avoid the unit direct exposure to radiation.
Unit Cleaning: After the unit power is turned off, you can clean the cabinet, panel and remote control with a soft cloth
lightly moistened with a mild detergent solution.
Attachments: Never add any attachments and/or equipment without the manufacturer consent; as such additions may
result in the risk of fire, electric shock, or other personal injury.
Locating: Slots and openings in the cabinet are provided for ventilation to protect it from overheating. Do not block
these openings or allow them to be blocked by placing the STB on a bed, sofa, or other similar surface, nor should it be
placed over a radiator or heat register.
Power-Cord Protection: Place the power-supply cord out of the way, where it will not be walked on. Please take special
attentions to cords at plugs, convenience receptacles, and the point where they exit from the unit.
Object and Liquid Entry: Never put objects of any kind into this STB through openings, as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill any liquid on the STB.
Note: Moisture may be formed on the lens when the unit is suddenly moved from a cold environment or an aircondition room to a warm place or immediately after a heater has been turned on or in a steamy or very humid room.
If the moisture forms inside the unit, it may not operate properly. To correct this problem, turn on the power and wait
about two hours for the moisture to evaporate.
Parts Replacement: When the unit parts need to be replaced, user should make sure the service technician use the
replacement parts specified by the manufacturer or having the same characteristics as the original part. Unauthorized
replacement may put the unit In the risk of fire, electric shock or other hazards.
Safety Check: After all the maintenances and repairs are done, user is required to request the service technician to
conduct the overall safety check to ensure the machine is In the proper condition.
Environment protection
Attention!
Your product Is marked with this symbol. It means that used electrical and electronic products
should not be mixed with general household waste. There is a separate collection system for these
products.
Information on Disposal for Users (private households) in the European Union. Used electrical and
electronic equipment must be treated separately and In accordance with legislation that requires
proper treatment, recovery and recycling of used electrical and electronic equipment.
Following the implementation by member states, private households within the EU states may return their used
electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local
retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your
local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately
beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery
and recycling and thus prevent potential negative effects on the environment and human health which could otherwise
arise due to inappropriate waste handling.
Information on Disposal for Business Users
In the European Union. If the product is used for business purposes and you want to discard It: Please contact your
dealer who will inform you about the take-back of the product. You might be charged for the costs arising from takeback and recycling Small products (and small amounts) might be taken back by your local collection facilities,
In other Countries outside the EU. If you wish to discard of this product, please contact your local authorities and ask
for the correct method of disposal.
Declaration of conformity Technical specification
The manufacturer herewith declares the conformity of
that product with the following directives and
standards:
Low Voltage Directive 2006/95/EC
EN 60065:2002+A1:2006+A11:2008
EMC Directive 2004/108/EC
EN 55 013:2001+A1:2003+A2:2006
EN 55 020:2007
EN 61 000-3-2:2006+A1:2009+A2:2009
EN 61 000-3-3:2008
Model: Digital Satellite Receiver DVB-S2
Input frequency range: 950-2150MHz
RF Input connector: IEC169-24, Female, 300mA
Input impedance: 75Ω
RF Loop connector: IEC169-24, Female
Waveform: QPSK(DVB-S), QPSK/ 8PSK/
H8PSK/ 16APSK (DVB-S2)
Video decoding: MPEG2（MP@ML）,
AVC/H.264(HP@L4.1)
Video resolution: 480, 576, 720, 1080
Audio decoding: MPEG-1, 2 Layer 1 & 2
Rear panel connectors: HDMI, SCART, Coaxial
digital audio, RCA CVBS,
RCA audio stereo, USB,
RCA 12V output
Rated voltage: ~ 230V，50Hz
Rated consumption: 12 W
Standby consumption: < 1 W
Operating temperature: 5-40℃
Operating humidity: <95%
Net weight: ~1 kg
Receiver measurements: 265mm × 170mm × 43mm
Weight and dimensions are not absolutely exact
values. Specifications are subject to change (by
manufacturer) without notice.
Loading...
