DDiiggiittaall TTeerrrreessttrriiaall RReecceeiivveerr HHDD
EENN UUsseerr mmaannuuaall
Model ID: FT24 07/2010 jp
Page 2
User manual
Contents
1. Safety precautions ........................................................................................................................ 1
2. Environment protection ................................................................................................................ 3
3. Operating notes ............................................................................................................................ 4
3.1. Automatic Power Down ......................................................................................................... 4
3.2. Working with external USB drive (only for receivers with USB connector) ............................ 4
3.3. Battery installation ................................................................................................................. 5
3.4. Operation range of remote control ........................................................................................ 5
4. Features ........................................................................................................................................ 6
5. Accessories ................................................................................................................................... 6

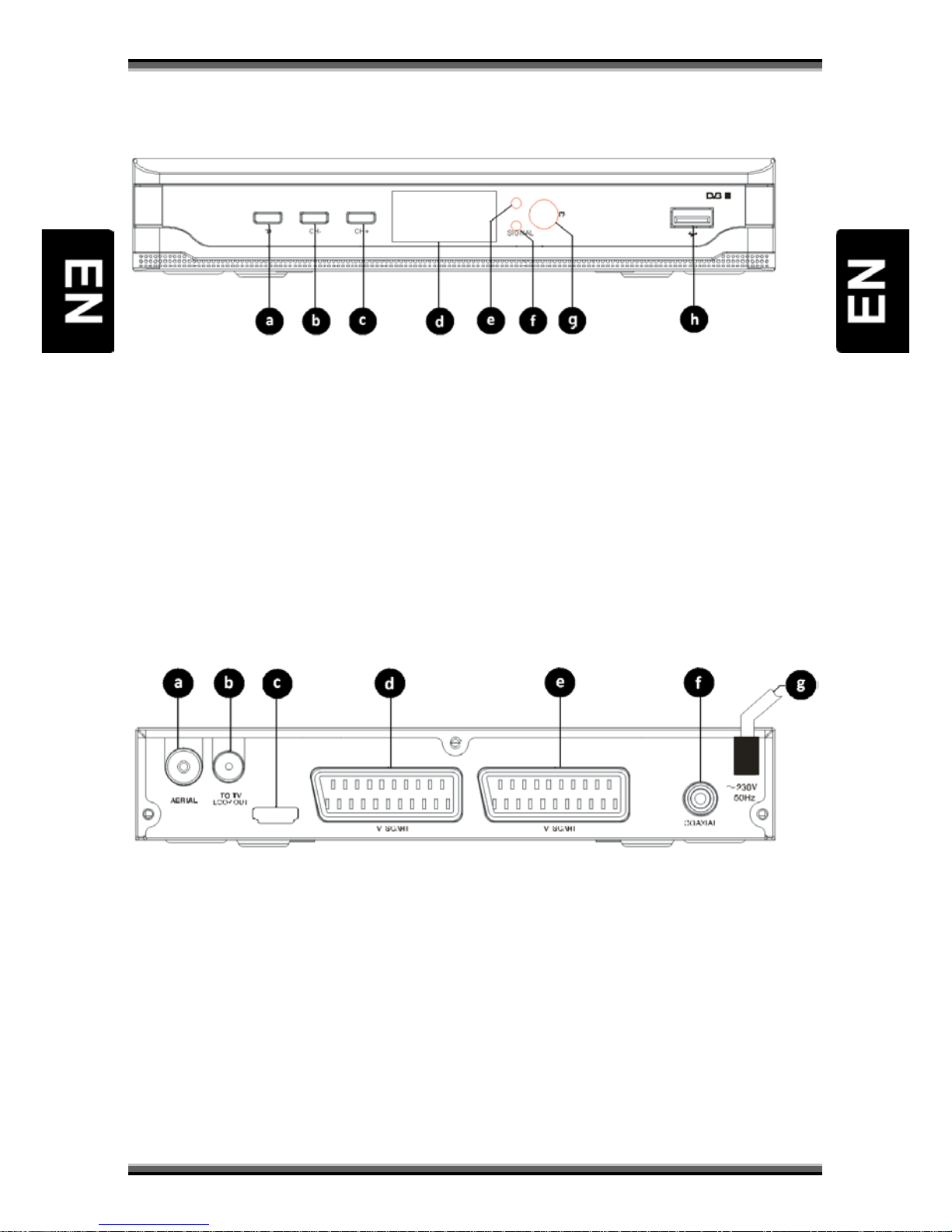

6. Front panel ................................................................................................................................... 7
7. Rear panel ..................................................................................................................................... 7

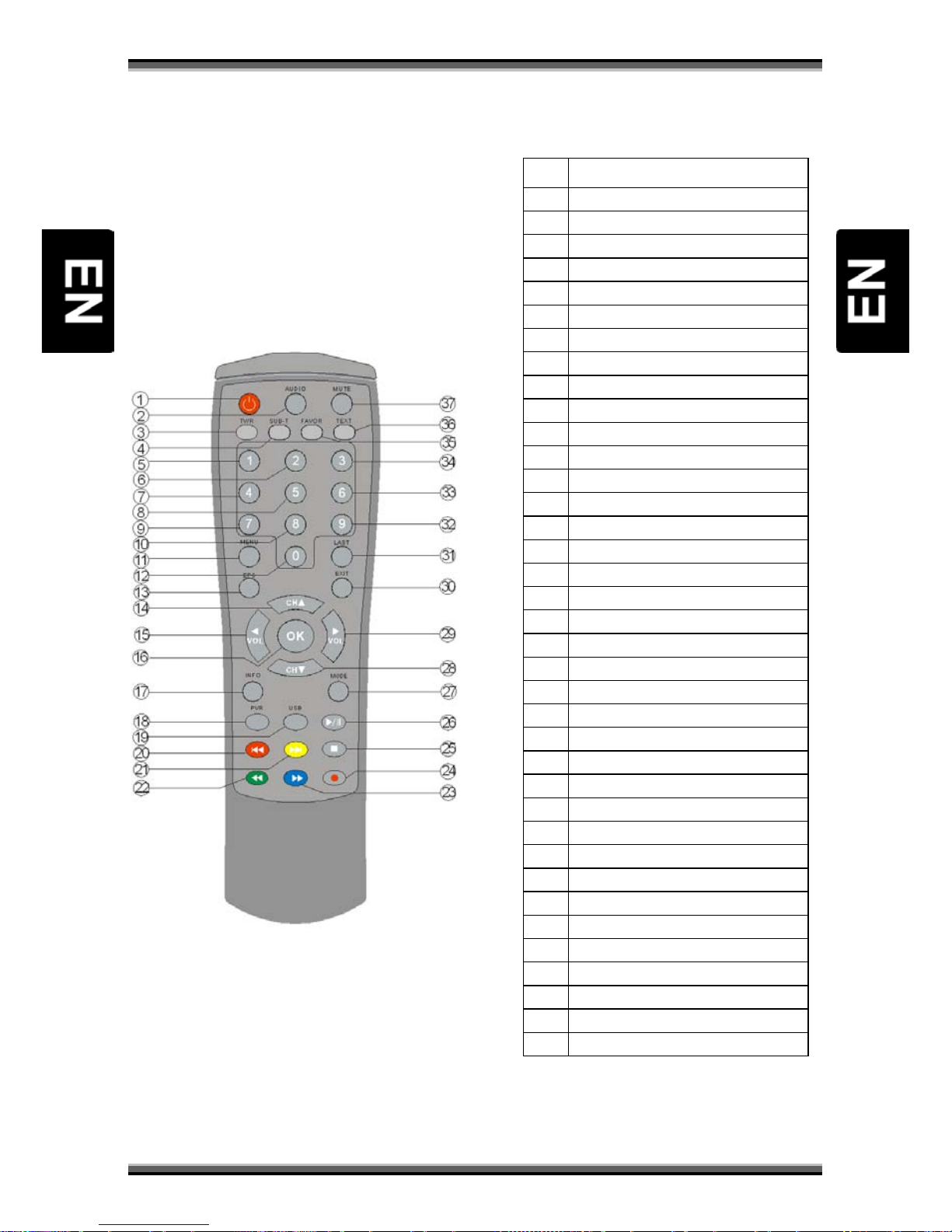

8. Remote controller ......................................................................................................................... 8
9. Basic connection ........................................................................................................................... 9

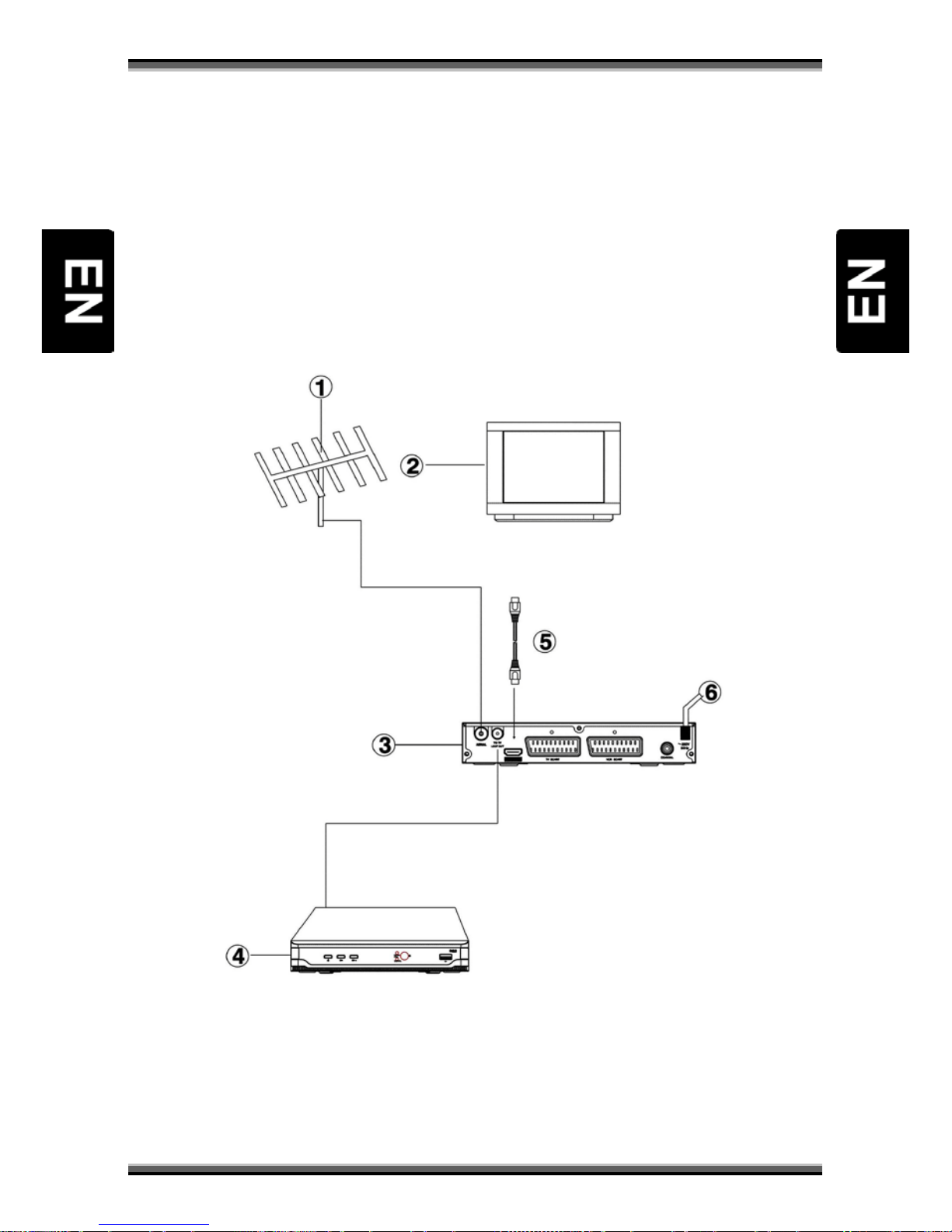

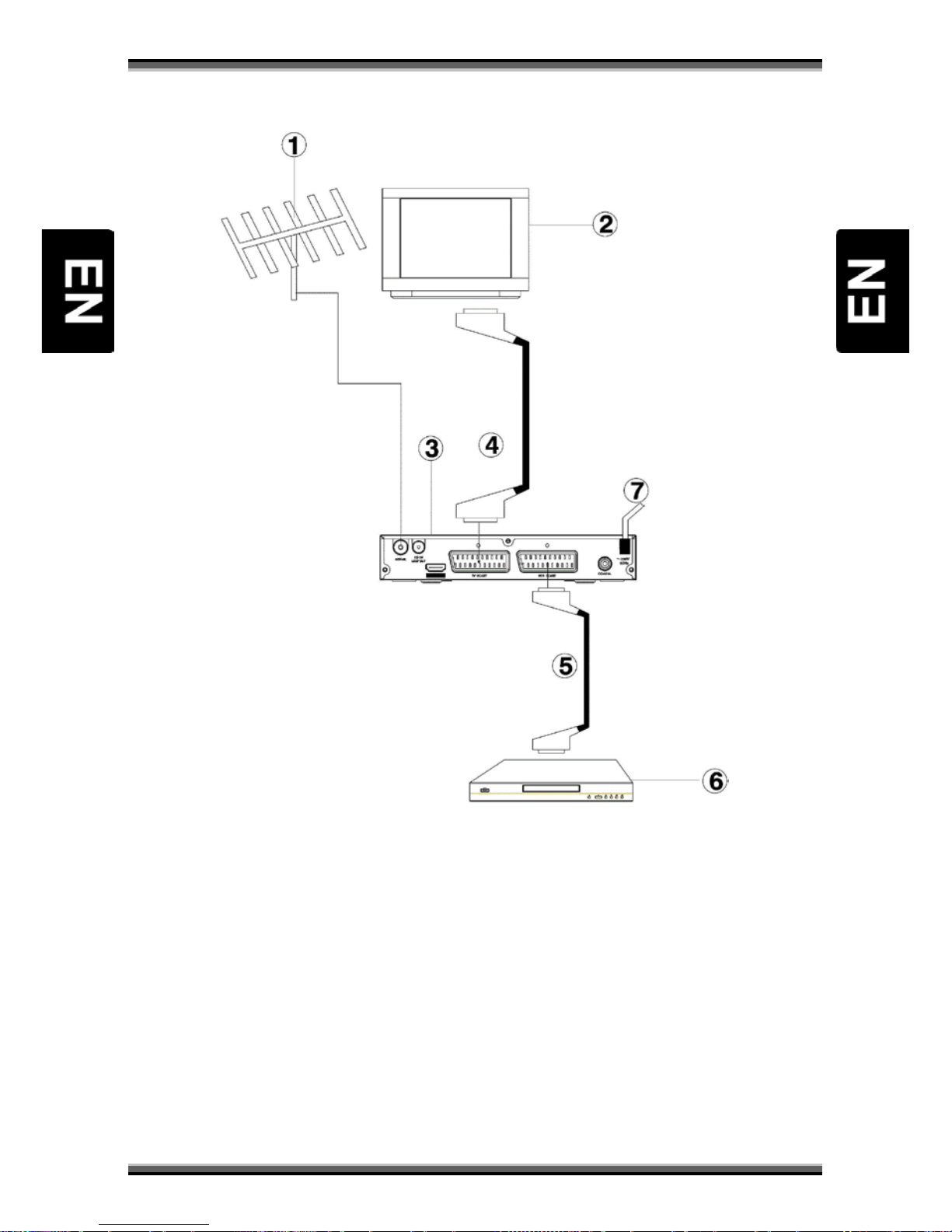

9.1. Connecting to TV set and second receiver ............................................................................. 9
9.2. Connecting to TV set, video recorder ................................................................................... 10

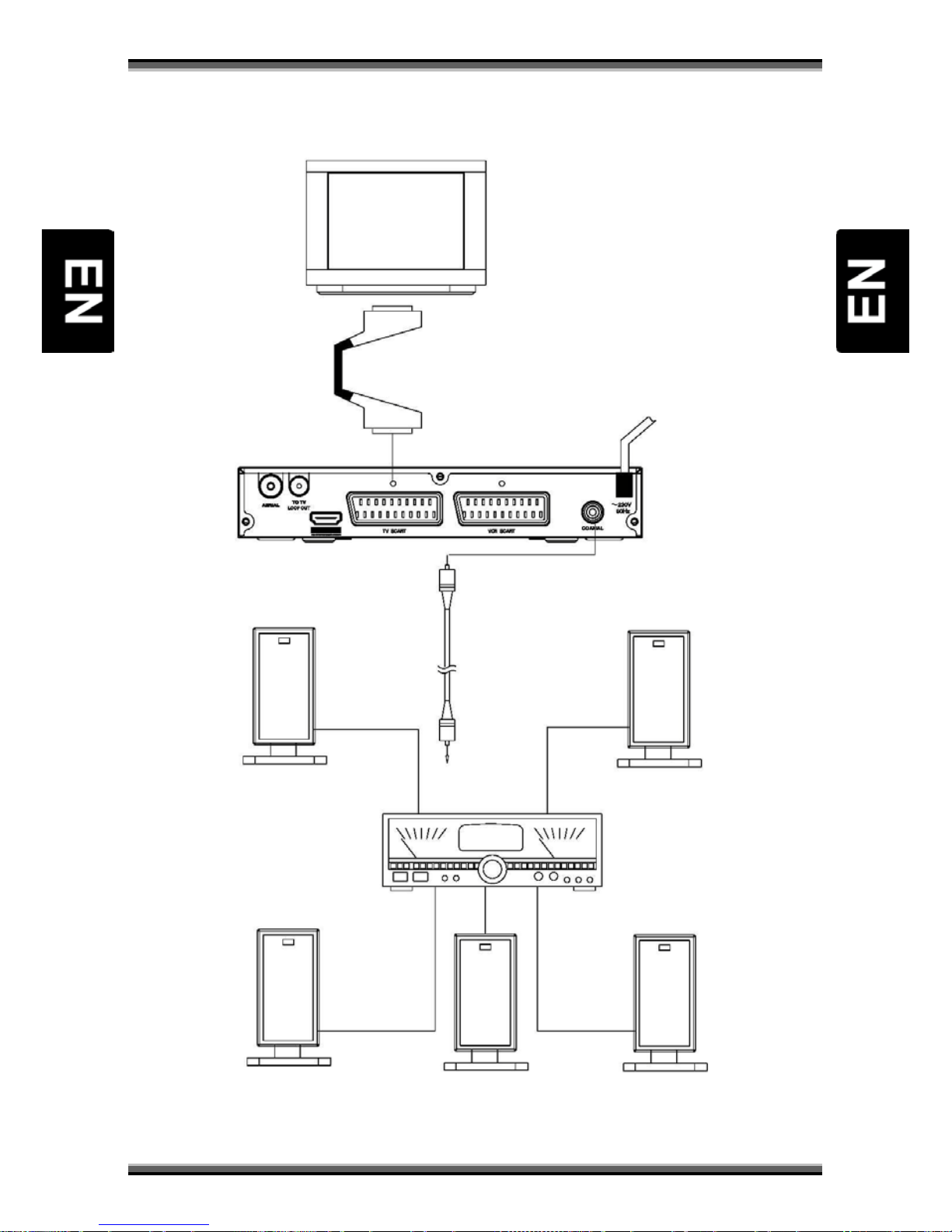

9.3. Connecting to decoder or amplifier ..................................................................................... 11
10. Easy installation .......................................................................................................................... 12
11. Main menu ................................................................................................................................. 12
11.1. Menu “Program” .................................................................................................................. 12
11.1.1. Program Edit ......................................................................................................... 13
11.1.2. EPG ........................................................................................................................ 13
11.1.3. Sort ....................................................................................................................... 13
11.1.4. LCN ........................................................................................................................ 14
11.2. Menu „Picture” .................................................................................................................... 14
11.2.1. Aspect Ratio .......................................................................................................... 14
11.2.2. Resolution ............................................................................................................. 14
11.2.3. TV Format ............................................................................................................. 14
11.2.4. Video Output......................................................................................................... 14
11.3. Menu „Channel Search” ....................................................................................................... 14
11.3.1. Auto Search ........................................................................................................... 14
11.3.2. Manual Search ...................................................................................................... 14
11.3.3. Country ................................................................................................................. 15
11.3.4. Antenna Power ..................................................................................................... 15
11.4. Menu „Time”........................................................................................................................ 15
11.4.1. Time Auto.............................................................................................................. 15
11.4.2. Time Zone ............................................................................................................. 15
11.4.3. Date / Time ........................................................................................................... 15
11.4.4. Power down after ................................................................................................. 15
11.5. Menu „Option” .................................................................................................................... 15
11.5.1. OSD Language ....................................................................................................... 16
11.5.2. Subtitle Language .................................................................................................. 16
11.5.3. Audio Language ..................................................................................................... 16
11.5.4. Digital Audio .......................................................................................................... 16
11.6. Menu „System” .................................................................................................................... 16
11.6.1. Parental Guidance ................................................................................................. 16
11.6.2. Set Password ......................................................................................................... 16
11.6.3. Restore Factory Default ........................................................................................ 17
11.6.4. Information ........................................................................................................... 17
11.7. USB....................................................................................................................................... 17
11.7.1. Multimedia............................................................................................................ 17
11.7.2. Photo Configure .................................................................................................... 17
11.7.3. PVR Configure ....................................................................................................... 18
11.7.4. USB Software Update ............................................................................................ 18
12. Troubleshooting .......................................................................................................................... 19
13. Technical specification ................................................................................................................ 20
Page 3
User manual
1
1. Safety precautions
CAUTION:
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert th
e user to
"dangerous voltage" and to
prevent from a risk of electric
shock.
Warning:
To reduce the risk of electric shock,
don't open the cabinet. Refer
servicing to qualified personnel only.
The exclamation point within an
equilateral triangle is intende
d to
alert the user to important
operating and maintenance
(servicing).
WARNING:
Do not use this STB where contact with or immersion in water is a possibility. Do not use
near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc.
WARNING: Do not put the candle or lamp stand on the cabinet; otherwise, there is the danger of fire.
WARNING: The unit should be connected
to a power supply only of the type described in the
operating instructions or as marked on the unit. If you are not sure of the type of power supply (for
example, 120 or 230 V) to your home, consult your local dealer or local power company.
WARNING:
This product install diodes. Do not open the cabinet or touch any parts in the inner
mechanism. Consult your local dealer for technical service if the opening is required.
Note: To ensure proper use of this product, please read this User manual carefully and retain for
further reference.
Note: This product install diodes. Do not open the cabinet to avoid the un
it direct exposure to
radiation.
Unit Cleaning: After the unit power is turned off, you can clean the cabinet, panel and remote control
with a soft cloth lightly moistened with a mild detergent solution.
Attachments: Never add any attachments and/or
equipment without the manufacturer consent; as
such additions may result in the risk of fire, electric shock, or other personal injury.
Page 4
User manual
2
Locating:
Slots and openings in the cabinet are provided for ventilation to protect it from overheating.
Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa, or other
similar surface, nor should it be placed over a radiator or heat register.
Power-Cord Protection: Place the power-supply cord out of the way, where it will not be walked on.
Please take special attentions to cords at plugs, convenience receptacles, and the point
where they
exit from the unit.
Object and Liquid Entry:
Never put objects of any kind into this STB through openings, as they may
touch dangerous voltage points or short-
out parts that could result in a fire or electric shock. Never
spill any liquid on the STB.
Note: Moisture may be formed on the lens In the following conditions:
when the unit is suddenly moved from a cold environment or an air-condition room to a warm place.
immediately after a heater has been turned on.
in a steamy or very humid room.
If the moisture forms inside the unit, it may not operate properly. To correct this problem, turn on the
power and wait about two hours for the moisture to evaporate.
Parts Replacement:
When the unit parts need to be replaced, user should make sure the service
technician use the replacement parts specified by the manufacturer or having the same characteristics
as the original part. Unauthorized replacement
may put the unit In the risk of fire, electric shock or
other hazards.
Safety Check:
After all the maintenances and repairs are done, user is required to request the service
technician to conduct the overall safety check to ensure the machine is In the proper condition.
Page 5
User manual
3
2. Environment protection
Attention!
Your product Is marked with this symbol. It means that used electrical and electronic products should
not be mixed with general household waste. There is a separate collection system for these products.
Information on Disposal for Users (private households) in the European Union
Used electrical and electronic equipment must be treated separately and In accordance with
legislation that requires proper treatment, recovery and recycling of used electrical and electronic
equipment.
Following the implementation by member states, private households within the EU states may return
their used electrical and electronic equipment to designated collection facilities free of charge*. In
some countries* your local retailer may also take back your old product free of charge if you purchase
a similar new one. *) Please contact your local authority for further details.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of these
separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the necessary
treatment, recovery and recycling and thus prevent potential negative effects on the environment and
human health which could otherwise arise due to inappropriate waste handling.
Information on Disposal for Business Users
In the European Union
If the product is used for business purposes and you want to discard It:
Please contact your dealer who will inform you about the take-back of the product. You might be
charged for the costs arising from take-back and recycling Small products (and small amounts) might
be taken back by your local collection facilities,
In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the correct
method of disposal.
Page 6
User manual
4
3. Operating notes
NOTE!
3.1. Automatic Power Down
In accordance with actual European Union requirements, Your receiver is equipped with function
"Automatic Power Off". It works by switching the receiver into standby mode after a period of 3 hours
after the last active use. In practice this means that if during this time the receiver will not be given
any command by using the remote control or keypad on the front panel, the receiver turns off. Turning
off the receiver will be preceded (2 minutes previous) by a relevant message appears on the TV screen.
Please also note that this feature is enabled by default, but at Your own request, You can disable it
using the appropriate functions in the receiver menu.
3.2. Working with external USB drive (only for receivers with USB
connector)
• During the selection and operation with USB drive (hard drive, flash memory), user should
pay attention on:
• Drive is compliant with USB 2.0 and have the appropriate parameters of read and write
speed,
• Drive contain single partition, formatted in a supported format,
• If necessary (especially for USB hard drives, which are characterized by a high power
consumption), drive should be supplied from an external power supply,
• Do not disconnect during a write/read data operation,
• Do not use very full or fragmented drive,
Mismatch above recommendations may result in incorrect operation of the devices and in extreme
cases can cause damage.
The manufacturer takes no responsibility for any damages directly or indirectly caused by loss of
recorded or edited data stored on an external USB drive which was connected to the receiver, and
gives no warranty for any other data on the USB drive when case of abnormal function receiver will
happened.
Page 7
User manual
5

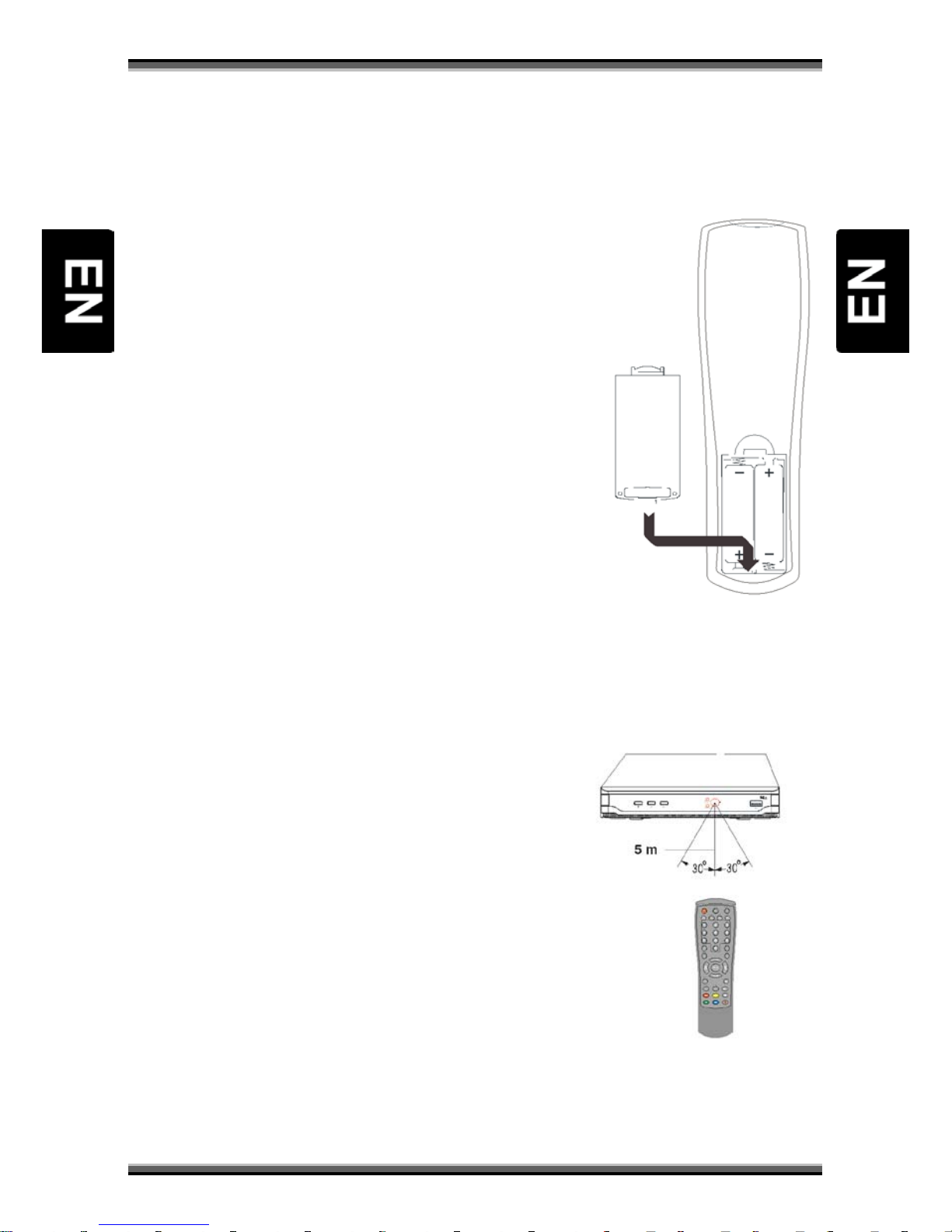

3.3. Battery installation
Insert the batteries observing the positive (+) and negative (-) polarities as per figure below .
Service life of batteries
• The batteries normally last for about one year despite
that it depends on how often and in what way the
remote control is operated.
• If the remote control fails to work even when operated
near the DVB receiver, replace the batteries.
• Use size 7 (AAA) batteries (2 pieces).
Warning!
• Do not use rechargeable (Ni-Cd) batteries.
• Do not attempt to recharge, short circuit, disassemble,
heat the batteries or throw them into the fire.
• Do not drop, tramp or impact the remote control. This
may damage the parts and lead to malfunction.
• Do not mix used battery with new one ever when using.
• If the remote control shall be spared for a long time,
remove the batteries. Otherwise, electrolyte may leak,
which may lead to malfunction, even fire accident when
some substance contacts with the electrolyte.
• Wipe away the electrolyte having leaked inside the remote control, and replace with new
batteries.
• If any electrolyte happens to touch some parts of your skin, wash it off thoroughly with
clean water immediately.
3.4. Operation range of remote control
Pointing the remote control to the signal sensor, it shall be
effective to operate the remote control within a distance of
about 5 meters and an angle of about 60 degrees.
The effective range may vary slightly with the brightness of
the room.
Warning!
• Do not point bright light to the remote control
sensor.
• Make sure that there is not any shield between
the remote control unit and the sensor when use
it.
• Do not use this remote control while the remote
control of other equipment is being used.
Page 8
User manual
6
4. Features
• Support of SD / HD (MPEG2 / MPEG4 H.264), DVB-T system
• Supported bandwidth - 7MHz or 8MHz
• High resolution video output – HDMI
• Supported video resolutions – 576i, 576p, 720p, 1080i
• Front panel display - LED 4 digit
• Digital audio output S/PDIF - coaxial
• Software update by USB
• USB connector compliant with USB 2.0 standard
• Low power consumption in Stand-by mode, below 1W
• Automatic Stand-By mode after 3 hours from last using receiver for power saving
• Electronic Program Guide - EPG
• Multilingual Menu, including English
• Time Shift (video pausing, rewinding)
• PVR Ready - possibility to record on external USB drive
• Parental Lock for channels and Menu
• Fast channels switching
• Possibility of creating own channels lists
• Possibility of creating Favorite Lists
• Channel Editing features - Remove, Lock, Move, Rename
• Subtitle support - Teletext and DVB
• Teletext suport
• OPTICUM USB HDD supported
5. Accessories
Please make sure the following accessories:
• 1 x Remote control
• 1 x User manual
• 2 x Batteries (1,5V AAA)
Page 9
User manual
7
6. Front panel
a) Power button
b) CH- button (previous channel)
c) CH+ button (next channel)
d) LED display (optional)
e) Power/Standby LED
f) Signal LED
g) Remote control sensor
h) USB 2.0 port
7. Rear panel
a) Aerial input connector (75Ω)
b) Loop Out connector
c) HDMI connector
d) TV SCART jack
e) VCR SCART jack
f) Digital Audio Coaxial output connector
g) Power cord cable
Warning! Please unplug the power cord and keep it orderly when the unit shall not be used for a long
time in case that the power cord may get scratched and thus leads to electric leak and shock.
Page 10
User manual
8
8. Remote controller
Nr Function
1 Standby
2 Audio
3 TV / Radio
4 Subtitles
5 Numeric button 1
6 Numeric button 2
7 Numeric button 4
8 Numeric button 5
9 Numeric button 7
10 Numeric button 8
11
Menu
12 Numeric button 0
13 Electronic Program Guide
14
▲
UP button / next channel
15
◄
LEFT button / decr. volume
16 OK button
17
INFO button
18 PVR button
19 USB button
20 RED / Skip 21 YELLOW / Skip +
22 GREEN / F.Rwd
23 BLUE / F.Fwd
24 RECORD
25 STOP
26 PLAY / PAUSE
27 MODE button
28
▼DOWN button / prev. channel
29
►
RIGHT button /incr. volume
30 EXIT button
31
LAST button
32 Numeric button 9
33 Numeric button 6
34
Numeric button 3
35 FAVOR button
36 TELETEXT button
37 MUTE button
Page 11
User manual
9
9. Basic connection
Warning!
• Ensure that the power switches of this unit and other equipment to be connected, are
turned off before commencing connection
• Read the instructions attentively before connecting other equipments
• Ensure that you observe the color-coding when connecting audio and video cords
• Please connect the unit with TV by only one kind of video output format, and setup a
suitable output mode, otherwise there might be image distortion.
9.1. Connecting to TV set and second receiver
1.Aerial
2.TV set
3.DVB-T receiver
4.Second DVB-T receiver
5.HDMI cable connected to TV set
6.AC power cord cable
Page 12
User manual
10
9.2. Connecting to TV set, video recorder
1.Aerial
2.TV set
3.DVB-T receiver
4.SCART cable connected to TV set
5.SCART cable connected to video recorder
6.Video recorder
7.AC power cord cable
Page 13
User manual
11
9.3. Connecting to decoder or amplifier
Page 14
User manual
12
10. Easy installation
Connect the receiver and other equipments related according to “Basic connection”.
Generally, once the receiver is switched on, the Installation Guide menu emerges:
• Explore the menu with ▲/▼ button, and select the necessary setting options with ◄/►
button: OSD Language and Country;
• When the setting is over, select Channel Search with ▲/▼ button and press OK button to
scan for TV services and radio services.
• When auto scan is finished, press MENU button or EXIT button to close all menus.
• Press OK button to pop up the Channel List and choose a preferred channel on the list with
▲/▼ button and press OK to enjoy it.
If no Easy Install menu appears after the receiver is turned on:
• Press MENU button to open the Main Menu, and use ◄/►button to enter the submenu
System to conduct Restore Factory Default and confirm by OK button.
• Enter Installation Guide menu and select Channel Search to start searching;
• Close the menus and press OK to bring up Channel List and choose and channel available to
enjoy.
11. Main menu
Press MENU key to open the Main Menu which includes 7 sub-menus:
• Program
• Picture
• Channel Search
• Time
• Option
• System
• USB
Use ◄/► button to select a submenu item, OK button to enter, ▲/▼ button to choose a setting
option, or EXIT to return to the upper-level menu.
Some operations should be performed according to the navigation guide displayed on the screen.
Colored buttons refer to different function operations in different menus.
11.1. Menu “Program”
Move the cursor to Program with ◄/►button and press▼/OK to open this menu:
• Program Edit
• EPG
• Sort
• LCN
Use ▲/▼ button to select a submenu, and ◄/► button to change the options; press EXIT button to
return to the Main Menu; OK button to confirm.
Page 15
User manual
13
11.1.1. Program Edit
Select Program Edit and press ► or OK button to enter it. You are required to input the preset
password to continue. Note: The default password is “ 000000”. Use ◄/► button to choose either All
TV list or All Radio list. All programs can be edited in the following ways:
Move
Select a program, then press RED button once, the program will be marked after its name. Use ▲/▼
button to move it to any place on the list as you like, and press OK button again to confirm the move,
the mark disappearing.
Rename
Press GREEN button to open the Rename window. Use direction buttons to highlight the letters for
renaming a program by pressing OK button to enter. Once the renaming operation is done, highlight
OK button on the pop-up keyboard and press OK button to confirm the operation. The Rename
window will disappear automatically in no time. The selected program is renamed.
Lock
Select a program. As you press YELLOW button, the program is locked with an icon of lock appearing to
the end of its name. To unlock a program, select it and press YELLOW button.
Delete
Press BLUE button to delete a selected program. The system will ask “ Do you want to delete this? OK
(Delete); EXIT (Cancel)” If you respond to the question by pressing OK button, the selected program
will be deleted from the list; if you press EXIT button when the question appears, this operation is
canceled and the program is not to be deleted.
FAV
Select a channel, then press FAVOR button to open the menu of Favorite Type which consists of five
options: Disable/ Movie/ News/ Sports/ Music. Use ▲/▼ button to select a proper type for the
program by pressing OK button to confirm. Press EXIT to close the Favorite Type menu. The program
that has been added to a favorite group will be marked to the end of its name. To cancel this
operation, press FAVOR again and set the Favorite Type to Disable, and confirm with OK button.
11.1.2. EPG
Move to the submenu of EPG and press OK button to open the window of Program Guide. If some
programs are available at the moment, they will appear on the window with all the relevant
information about them. Under the window are the navigation guides for further operation.
Book. Press OK button to book a program.
Book List. Press INFO button to bring up the book list.
Page Down. Press YELLOW button to turn down the pages to check EPG information when there are
couple of pages.
Page Up. Press BLUE button to turn up the pages to check EPG information when there are couple of
pages.
11.1.3. Sort
Select this submenu to sort the programs in the following ways: By LCN/ By ON ID/ By Service Name/
By Service ID.
Page 16
User manual
14
11.1.4. LCN
Select this submenu to enable or disable LCN mode.
11.2. Menu „Picture”
Move the cursor to Picture with ◄/►button and press▼/OK to open this menu:
• Aspect Ratio
• Resolution
• TV Format
• Video Output
Use ▲/▼ button to select a submenu, and ◄/► button to change the options; press EXIT button to
return to the Main Menu; OK button to confirm.
11.2.1. Aspect Ratio
Select this submenu to change screen aspect ratio: Auto, 4: 3 Pan & Scan, 4: 3 Letter Box and 16:9
Wide Screen.
11.2.2. Resolution
Select this submenu to change HDMI output resolution: 1080i, 576i, 576p, and 720p.
11.2.3. TV Format
Select this submenu to change TV standard between NTSC and PAL.
11.2.4. Video Output
Select this submenu to choose the SCART output mode between CVBS and RGB.
11.3. Menu „Channel Search”
Move the cursor to Channel Search with ◄/►button and press▼/OK to open this menu:
• Auto Search
• Manual Search
• Country
• Antenna Power
Use ▲/▼ button to select a submenu, and ◄/► button to change the options; press EXIT button to
return to the Main Menu; OK button to confirm.
11.3.1. Auto Search
Auto Search enables to scan channels from whole bandwidth. Auto Search includes two columns
respectively for DTV programs and Radio programs that have been detected. On the top left of the
window, the covering frequency is shown dynamically, and at the bottom of the window is the
progress bar indicating the searching progress. Once the search is finished, the window will disappear
automatically and the Installation Guide window appears instead.
11.3.2. Manual Search
Manual Search enables to scan channels from selected frequency. I t includes the following items:
Page 17
User manual
15
Frequency Channel
Use ◄/► button to shift the channel number.
Frequency (MHz)
It indicates the exact frequency of current channel as the channel number changes.
Bandwidth
It indicates the bandwidth value of current channel as the channel number above goes.
After channel choose, press OK button to start scanning or EXIT button to exit.
11.3.3. Country
Select this submenu to choose Your localisation. List of available frequencies to scan may depend on
this setting.
11.3.4. Antenna Power
Select this submenu to turn on or turn off additional power for antenna connected to AERIAL
connector. This setting may improve receiving signal if active antenna (with build in amplifier) is used
in Your installation. If You use other type of antenna (passive), it is highly recommended to turn off this
function, because it may cause receiver or installation dysfunction or even failure.
11.4. Menu „Time”
Move the cursor to Time with ◄/►button and press▼/OK to open this menu:
• Time Auto
• Time Zone
• Date/Time
• Power down after
Use ▲/▼ button to select a submenu, and ◄/► button to change the options; press EXIT button to
return to the Main Menu; OK button to confirm.
11.4.1. Time Auto
Select this submenu to shift the option: On (use automatic time from stream) or Off (manually set
time).
11.4.2. Time Zone
Time Zone is active only when T ime Auto function is set to On. Select this submenu to select Your local
time zone form between GMT -12: 00 ~ GMT +12:00.
11.4.3. Date / Time
Date / Time is active only when Time Auto function is set to Off and enables to set date and time
manually by user.
11.4.4. Power down after
Select this submenu to shift the options: Off, 30~180 Minutes. After selected time period receiver will
automatically turn off. (If no user intervention)
11.5. Menu „Option”
Page 18
User manual
16
Move the cursor to Option with ◄/►button and press▼/OK to open this menu:
• OSD Language
• Subtitle Language
• Audio Language
• Digital Audio
Use ▲/▼ button to select a submenu, and ◄/► button to change the options; press EXIT button to
return to the Main Menu; OK button to confirm.
11.5.1. OSD Language
Select this submenu to select user interface language.
11.5.2. Subtitle Language
Select this submenu to select default subtitles language. Subtitles are printed lines appearing at the
bottom of the screen which are the translation or transcription of the dialogues.
11.5.3. Audio Language
Select this submenu to select default audio track. Receiver will automatically play this language audio
track if it is only available for selected channel.
11.5.4. Digital Audio
Select this submenu to select digital audio output mode – Off (no signal at output), PCM (every audio
track will be automatically converted to PCM format, mostly supported by major part of HIFI systems),
and RAW (no conversion)
11.6. Menu „System”
Move the cursor to System with ◄/►button and press▼/OK to open this menu:
• Parental Guidance
• Set Password
• Restore Factory Default
• Information
Use ▲/▼ button to select a submenu, and ◄/► or OK button to open it; press EXIT button to return
to the Main Menu; OK button to confirm.
11.6.1. Parental Guidance
Select this submenu to open it followed by inputting the password. You can define age limit here.
Programs below this limit will be blocked by receiver. Note! Blocking may work with short delay.
11.6.2. Set Password
This function enables to change actual system password.
Input Old Password
Input New Password
Confirm Password
Use Numeric buttons to input old and new password and to confirm new password. Finally press EXIT
Page 19
User manual
17
button to return.
11.6.3. Restore Factory Default
Select this submenu to restore factory settings. User then will be informed as below:
OK: Start. Press OK button to start restoring the factory default settings.
EXIT: Quit. Press EXIT button to cancel and quit.
11.6.4. Information
Select this submenu to check information about the receiver like model, software and hardware
version.
11.7. USB
Move the cursor to USB with ◄/►button and press▼/OK to open this menu:
• Multimedia
• Photo Configure
• PVR Configure
• USB Software Update
Use ▲/▼ button to select a submenu, and ◄/► or OK button to enter it. Press EXIT button to return
to the Main Menu.
Note: Section can be valid only when a USB device has been well connected to the receiver.
11.7.1. Multimedia
There are below folders contained here:
− Music
− Photo
− PVR
11.7.1.1. Music
Select this folder and press OK button to open it in which user can look through the files available with
▲/▼ button and select any file with OK button to play. Press EXIT button to return.
11.7.1.2. Photo
Select this folder and press OK button to open it in which user can look through the files available with
▲/▼ button and select any file with OK button to play; to play a slide show, press PLAY button; press
EXIT button to return.
11.7.1.3. PVR
Select this folder and press OK button to open it in which user can look through the files available with
▲/▼ button and select any file with OK button to play; use RED button to toggle between Preview
mode and Fullscreen mode; Use Yellow button to delete a file; EXIT button to return.
11.7.2. Photo Configure
There are three items contained here:
Slide Time
Page 20
User manual
18
Defines display time period of every picture. (1~8 Second)
Slide Mode
Selects visual effect of picture switching. (Random, o, 1~ 59)
Aspect Ratio
Keep or Discard – Keep mode enables to view pictures with real width to high ratio. Discard mode
stretches picture to whole screen.
11.7.3. PVR Configure
There are two items contained here:
Record Device
Enables to select drive for PVR issues. Also displays information about file format, size and free space
of selected drive.
Format
Enables to format USB device in selected file format. NOTE! This function erase all data on USB drive
without chance to restore it back.
11.7.4. USB Software Update
Select this submenu to update receiver software. User then will be informed as below:
OK: Start. Press OK button to start update the software through the USB device.
EXIT: Quit. Press EXIT to cancel current operation and quit.
Page 21
User manual
19
12. Troubleshooting
Look through the trouble shooting information. Some simple checks or minor adjustment of the unit
on your part may help resolve the problems. If the problems prove to be beyond your capability, you
had better hand it over to a professional qualified technician.
Troubles Possible Causes Suggested Solutions (for reference)
No power
The power cord has not been well
connected
Plug the power cord into the outlet tightly and turn
on the power; if no power still, turn off the power
again, and turn it on in 5-10 minutes.
Cannot scan
programs
The antenna is not adjusted well Adjust the antenna or use an outdoor antenna
Use antenna incorrectly Use an antenna with 75 Ω impedance input
Parameter input incorrectly Input Frequency, Bandwidth parameter correctly
No picture
Output cord connect incorrectly Connect the output cord correctly
The video output mode of the unit
is different from the mode of
monitor
Reset the working mode
No color
Output cord connect incorrectly Connect the output cord correctly
The video output system of the
unit is different from the mode of
monitor
Reset the working system
The remote control
fails to work
Batteries incorrectly installed Install the battery correctly
Batteries exhausted Replace the battery
Beyond the effective operation
range
Operate within a normal range
The remote sensor is pointed to
by bright light
Place the unit elsewhere for a change
Audio sound and
subtitle language
are not the chosen
items
Has not chosen the right sound
channel
Press the Audio button to shift the channel
No sound at all
The unit is in a mute status Cancel the mute
Volume set at a too low level Augment the volume
Cable connected incorrectly Connect the cable correctly
No sound by chance There might be a short circuit
Correct the output-cable connection, and turn on
it.
Serious distortion or
cannot receive
signal normally
Too much interferential signal Adjust the antenna.
Page 22
User manual
20
13. Technical specification
High frequency tuner
Input frequency range: 174-230, 470-862MHz (VHF&UHF)
Bandwidth: 7 or 8MHz
Input signal level: -75 to -20dBm
RF Input connector: IEC169－2, Female
Loop connector: IEC169－2, Male (Optional)
Input impedance: 75Ω
Demodulation
Waveform: COFDM (Code Orthogonal Frequency Division Multiplexing)
Demodulation: QPSK，QAM16，QAM64
Transmission mode: 2K，8K
Guard interval: 1/4 , 1/8, 1/1 6 ,1/3 2
Code rate: 1/2,2/3,3/4,5/6,7/8
Video, Audio decoding
Video decoding: MPEG2（MP@ML）, MPEG 4 AVS/H.264
Video resolution: PAL 576i, 576p; NTSC 480i, 480p; 720p, 1080i
Audio decoding: ISO 11172-3
Audio track: Stereo, Left, Right
Video/Audio connector: HDMI, TV SCART, VCR SCART
Digital Audio connector: Coaxial
USB 2.0
Supported file formats: BMP, OGG
Output voltage of USB port: 5V, 1000 mA (Max.)
Power specification
Rated voltage: ~ 230V，50Hz
Rated consumption: 8 W
Standby consumption: < 1 W
Operating condition
Temperature: 5-40℃
Humidity: <95%
Others
Net weight: ~0,75 kg (receiver)
Packet measurements: 200 mm ×156 mm ×38 mm (receiver)
Weight and dimensions are not absolutely exact values.
Specifications are subject to change (by manufacturer) without notice.
Loading...
