Page 1

Instruction manual

Motorhome - 02/11-0 - GLO-MJ11-00EN

Instruction manual

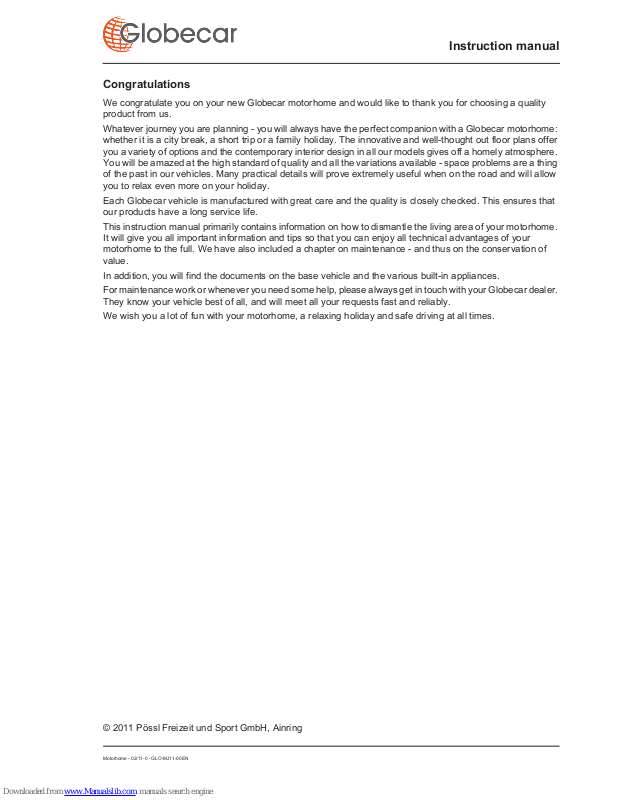

Congratulations

We congratulate you on your new Globecar motorhome and would like to thank you for choosing a quality product from us.

Whatever journey you are planning - you will always have the perfect companion with a Globecar motorhome: whether it is a city break, a short trip or a family holiday. The innovative and well-thought out floor plans offer you a variety of options and the contemporary interior design in all our models gives off a homely atmosphere. You will be amazed at the high standard of quality and all the variations available - space problems are a thing of the past in our vehicles. Many practical details will prove extremely useful when on the road and will allow you to relax even more on your holiday.

Each Globecar vehicle is manufactured with great care and the quality is closely checked. This ensures that our products have a long service life.

This instruction manual primarily contains information on how to dismantle the living area of your motorhome. It will give you all important information and tips so that you can enjoy all technical advantages of your motorhome to the full. We have also included a chapter on maintenance - and thus on the conservation of value.

In addition, you will find the documents on the base vehicle and the various built-in appliances. For maintenance work or whenever you need some help, please always get in touch with your Globecar dealer.

They know your vehicle best of all, and will meet all your requests fast and reliably. We wish you a lot of fun with your motorhome, a relaxing holiday and safe driving at all times.

Page 2

Motorhome - 02/11-0 - GLO-MJ11-00EN

Instruction manual

Page 3

3Motorhome - 02/11-0 - GLO-MJ11-00 EN

Contents

1 Records. . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Vehicle document . . . . . . . . . . . . . . . . . 5

1.2 Warranty . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Inspection records. . . . . . . . . . . . . . . . . 6

1.4 Inspection plan . . . . . . . . . . . . . . . . . . . 7

2 Introduction. . . . . . . . . . . . . . . . . . . 9

2.1 General . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Environmental tips. . . . . . . . . . . . . . . . 10

3 Safety . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Fire prevention . . . . . . . . . . . . . . . . . . 13

3.1.1 Avoidance of fire risks . . . . . . . . . . . . . 13

3.1.2 Fire-fighting . . . . . . . . . . . . . . . . . . . . . 13

3.1.3 In case of fire. . . . . . . . . . . . . . . . . . . . 13

3.2 General . . . . . . . . . . . . . . . . . . . . . . . . 13

3.3 Road safety. . . . . . . . . . . . . . . . . . . . . 14

3.4 Towing. . . . . . . . . . . . . . . . . . . . . . . . . 15

3.5 Gas system . . . . . . . . . . . . . . . . . . . . . 15

3.5.1 General information. . . . . . . . . . . . . . . 15

3.5.2 Gas bottles . . . . . . . . . . . . . . . . . . . . . 17

3.6 Electrical system . . . . . . . . . . . . . . . . . 17

3.7 Water system . . . . . . . . . . . . . . . . . . . 17

4 Before the journey . . . . . . . . . . . 19

4.1 Payload . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1.1 Terms . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1.2 Calculating the payload. . . . . . . . . . . . 20

4.1.3 Loading the vehicle correctly. . . . . . . . 21

4.2 Entrance step . . . . . . . . . . . . . . . . . . . 22

4.2.1 Electrically operated entrance step . . . 22

4.3 Television . . . . . . . . . . . . . . . . . . . . . . 22

4.4 Road safety. . . . . . . . . . . . . . . . . . . . . 23

5 During the journey . . . . . . . . . . . 25

5.1 Driving the motorhome . . . . . . . . . . . . 25

5.2 Driving speed . . . . . . . . . . . . . . . . . . . 25

5.3 Seat belts . . . . . . . . . . . . . . . . . . . . . . 26

5.3.1 Using the safety belt correctly . . . . . . . 26

5.4 Driver's seat and front passenger's

seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.4.1 Seats (Aguti) . . . . . . . . . . . . . . . . . . . . 27

5.4.2 Seats (ISRI). . . . . . . . . . . . . . . . . . . . . 28

5.5 Seating arrangement. . . . . . . . . . . . . . 29

5.6 External doors. . . . . . . . . . . . . . . . . . . 29

5.7 Filling up with diesel . . . . . . . . . . . . . . 30

6 Pitching the motorhome . . . . . 31

6.1 Handbrake. . . . . . . . . . . . . . . . . . . . . . 31

6.2 Entrance step . . . . . . . . . . . . . . . . . . . 31

6.3 230 V connection . . . . . . . . . . . . . . . . 31

6.4 Refrigerator . . . . . . . . . . . . . . . . . . . . . 31

6.4.1 Absorption refrigerator . . . . . . . . . . . . 31

6.4.2 Compressor refrigerator . . . . . . . . . . . 31

7 Living . . . . . . . . . . . . . . . . . . . . . . . . 33

7.1 External flaps . . . . . . . . . . . . . . . . . . . . 33

7.1.1 Flap for 230 V connection, square . . . . 33

7.1.2 External flap Thetford cassette . . . . . . 34

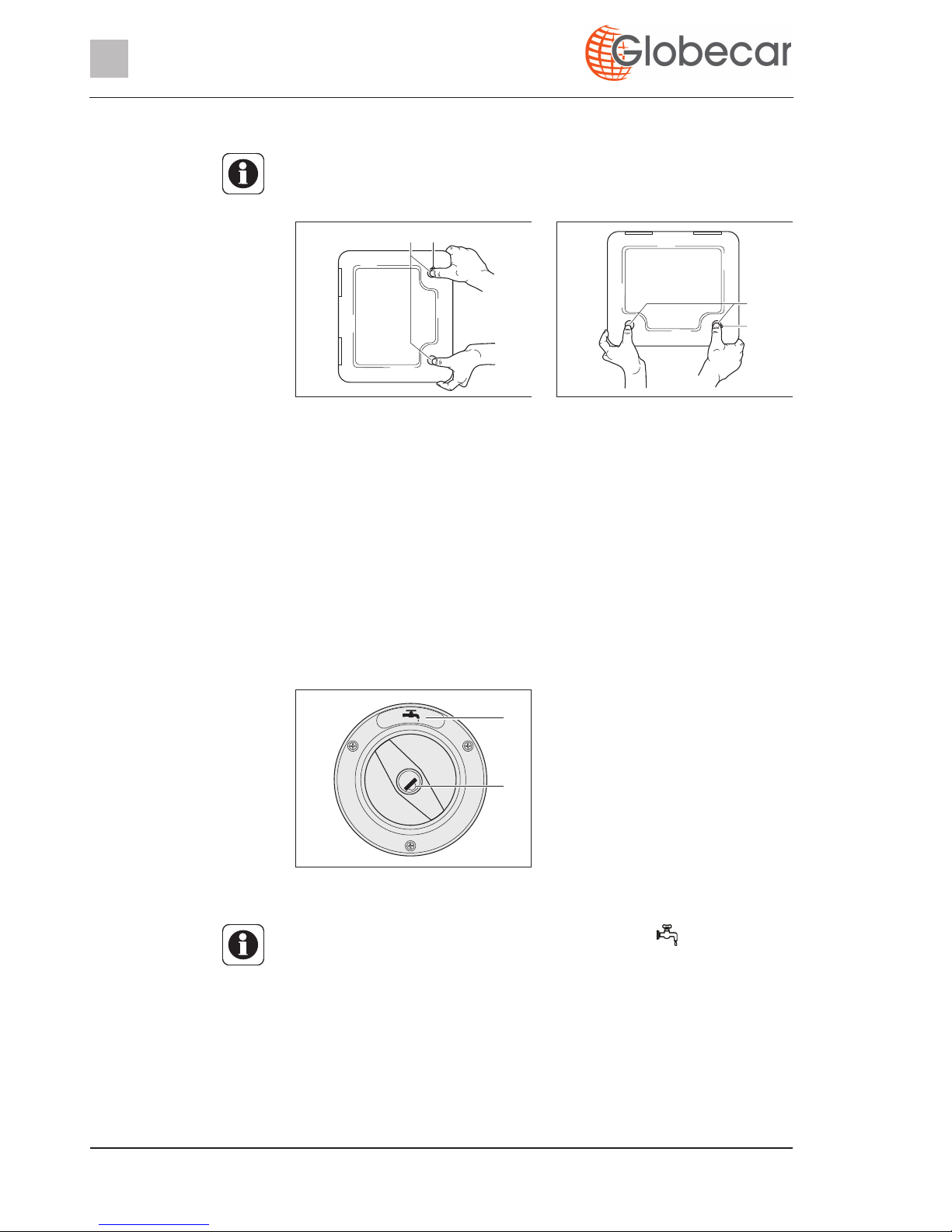

7.1.3 Cap for the fresh water filler neck . . . . 34

7.2 Ventilation . . . . . . . . . . . . . . . . . . . . . . 35

7.3 Windows . . . . . . . . . . . . . . . . . . . . . . . 35

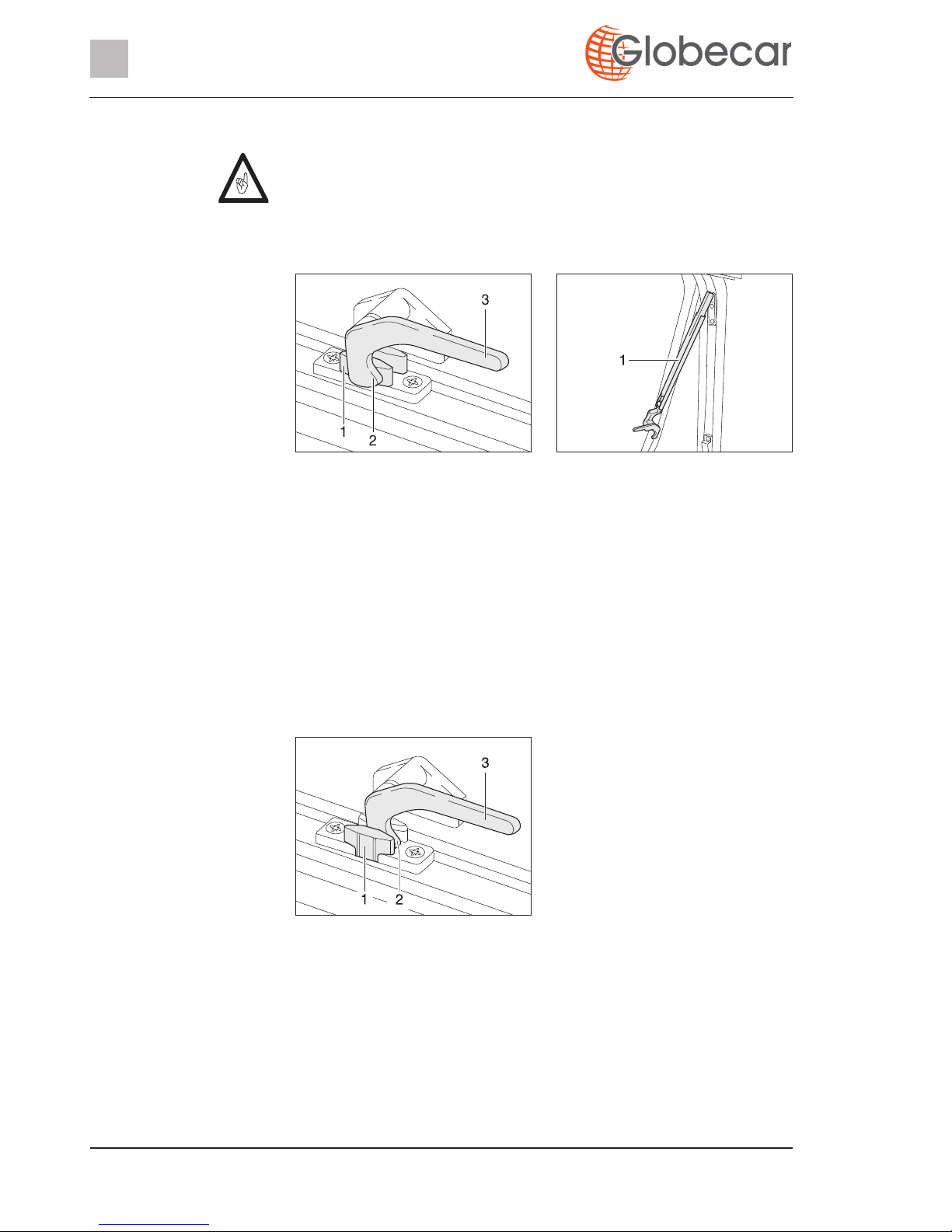

7.3.1 Hinged window with rotary hinges . . . . 36

7.3.2 Hinged window with automatic hinges. 38

7.3.3 Sliding window without lock . . . . . . . . . 39

7.3.4 Blind and roller insect screen. . . . . . . . 40

7.3.5 Roman shades for driver's window

and front passenger's window . . . . . . . 40

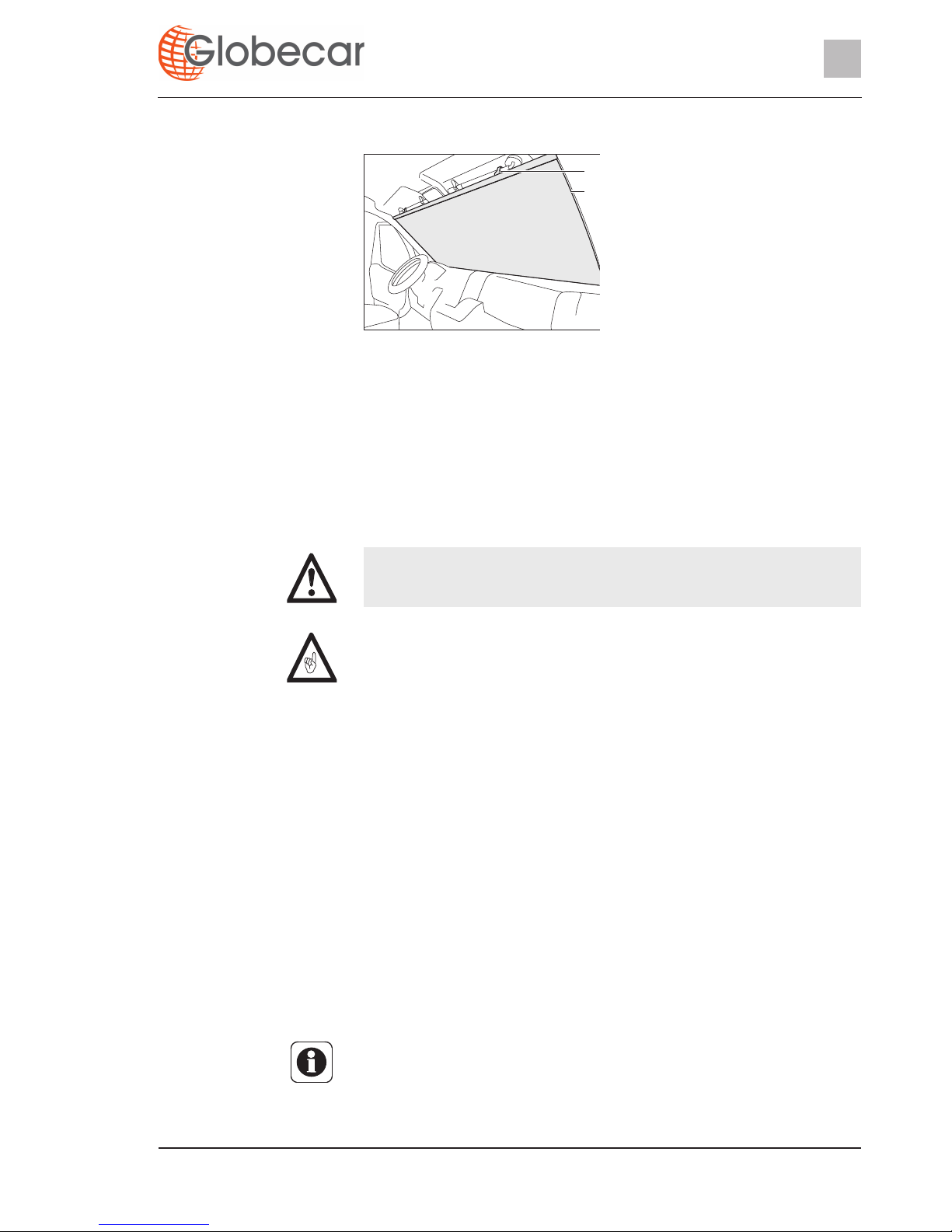

7.3.6 Blind for the windscreen . . . . . . . . . . . 41

7.4 Skylights . . . . . . . . . . . . . . . . . . . . . . . 41

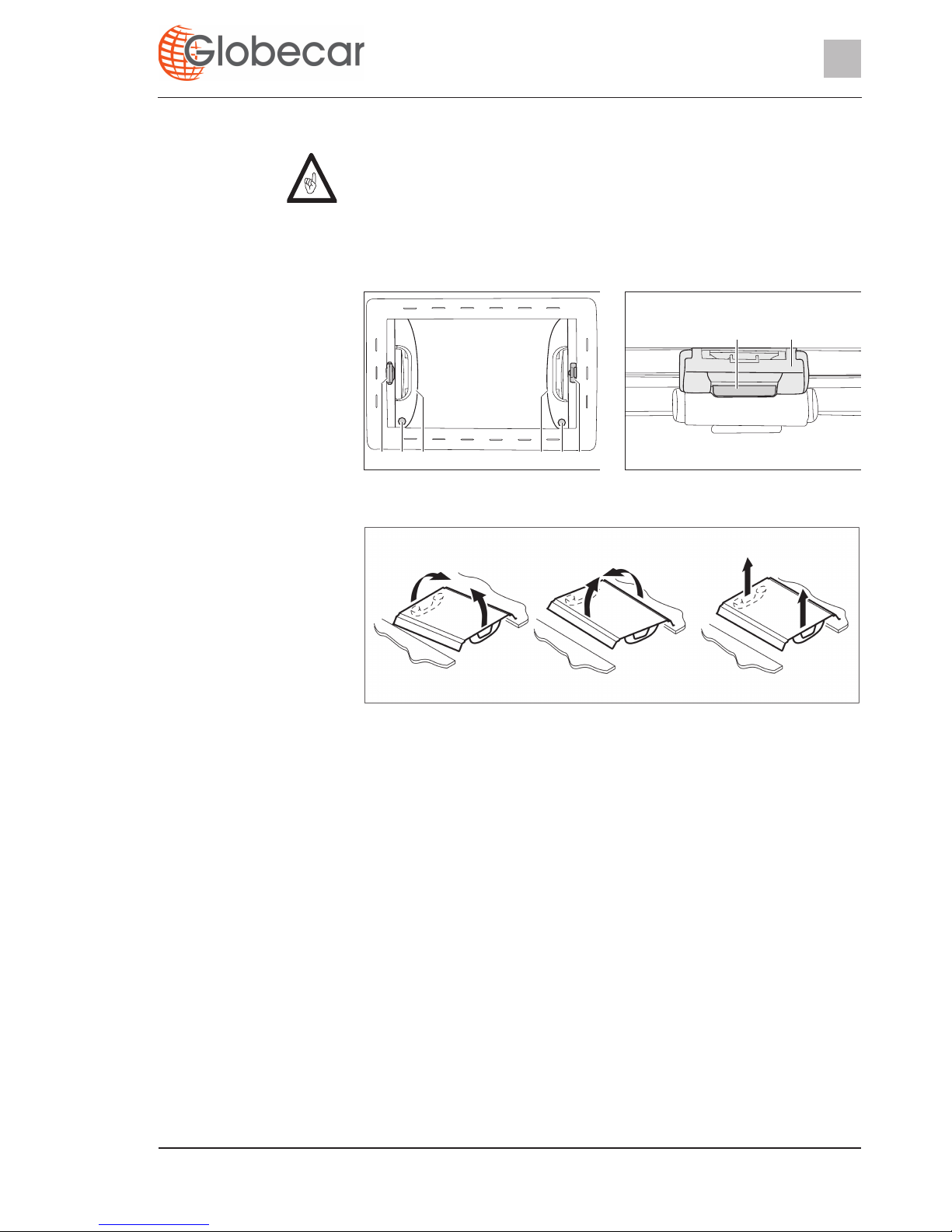

7.4.1 Skylight with snap latch . . . . . . . . . . . . 42

7.4.2 Hinged skylight . . . . . . . . . . . . . . . . . . 42

7.4.3 Wind-up skylight . . . . . . . . . . . . . . . . . 44

7.4.4 Multifunction skylight . . . . . . . . . . . . . . 45

7.5 Rotating the seats . . . . . . . . . . . . . . . . 46

7.6 Bench seat. . . . . . . . . . . . . . . . . . . . . . 47

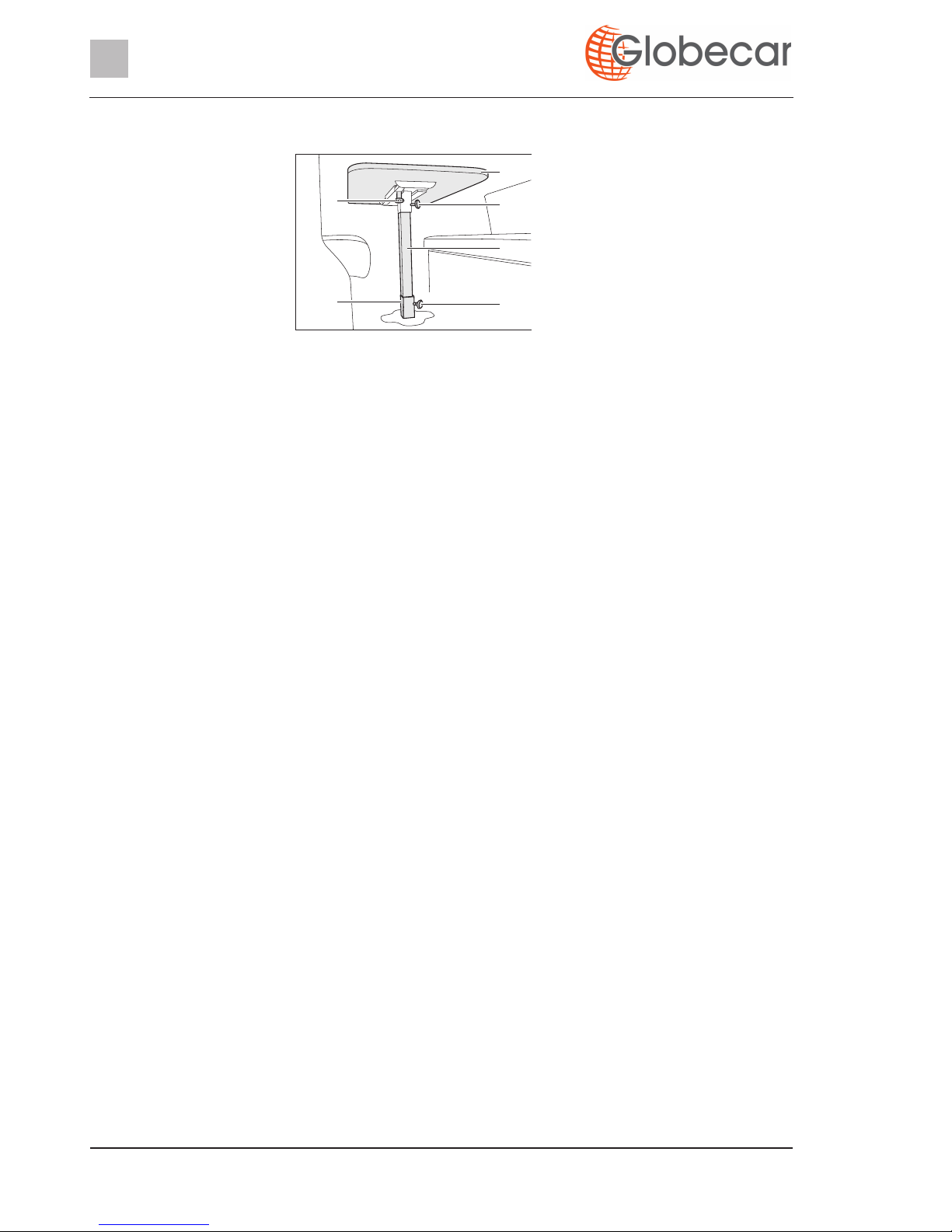

7.7 Tables . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.7.1 Suspension table with fold-out leg . . . . 47

7.7.2 Suspension table with dismantable

support leg . . . . . . . . . . . . . . . . . . . . . . 48

7.7.3 Fixed table of the rear seating group . . 50

7.7.4 Swivel table . . . . . . . . . . . . . . . . . . . . . 51

7.7.5 Folding table . . . . . . . . . . . . . . . . . . . . 52

7.8 Lamps . . . . . . . . . . . . . . . . . . . . . . . . . 52

7.8.1 Halogen spotlight (movable) . . . . . . . . 53

7.8.2 Halogen spotlight . . . . . . . . . . . . . . . . . 53

7.8.3 Lamp in pop-up roof. . . . . . . . . . . . . . . 54

7.9 Beds. . . . . . . . . . . . . . . . . . . . . . . . . . . 54

7.9.1 Fixed bed . . . . . . . . . . . . . . . . . . . . . . . 54

7.9.2 Bed in the pop-up roof . . . . . . . . . . . . . 56

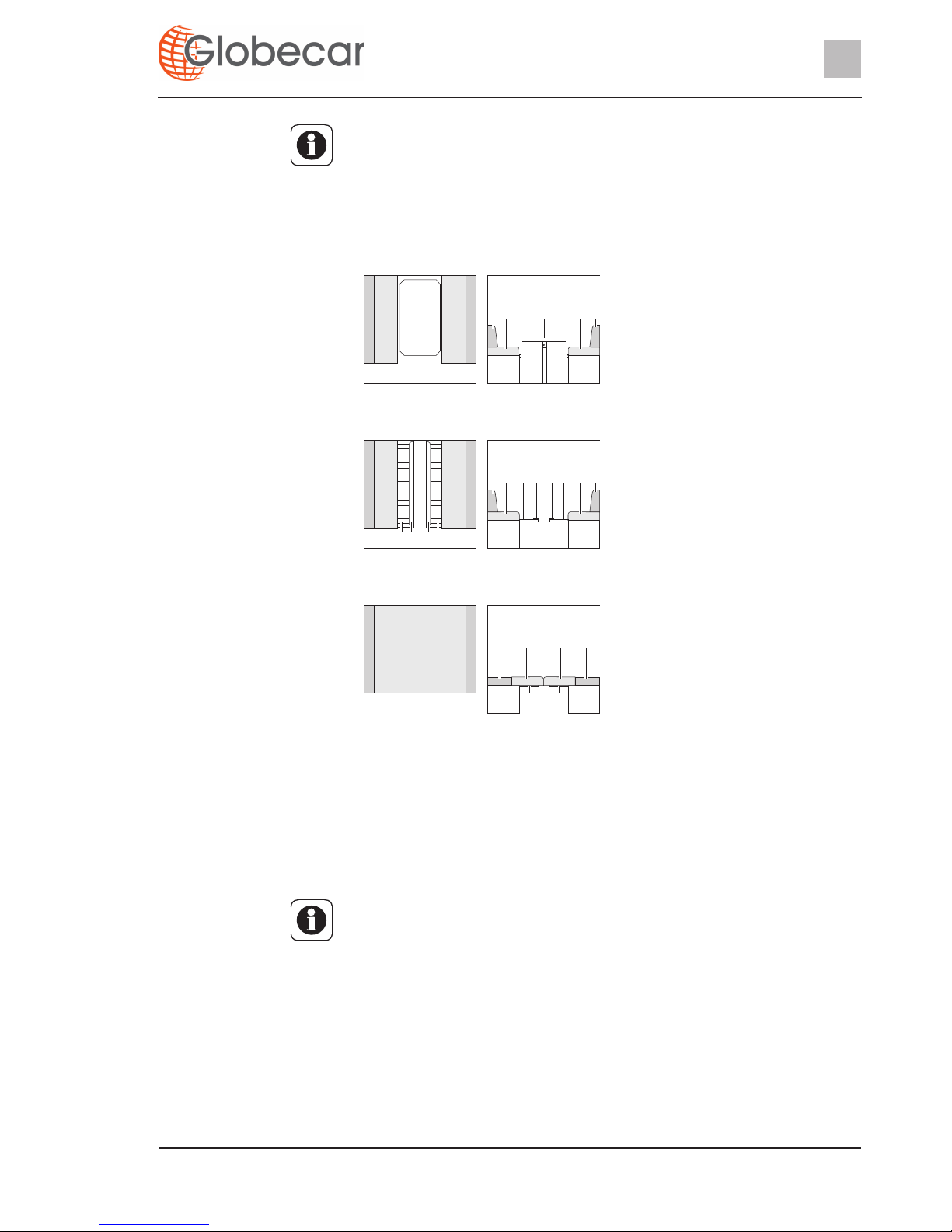

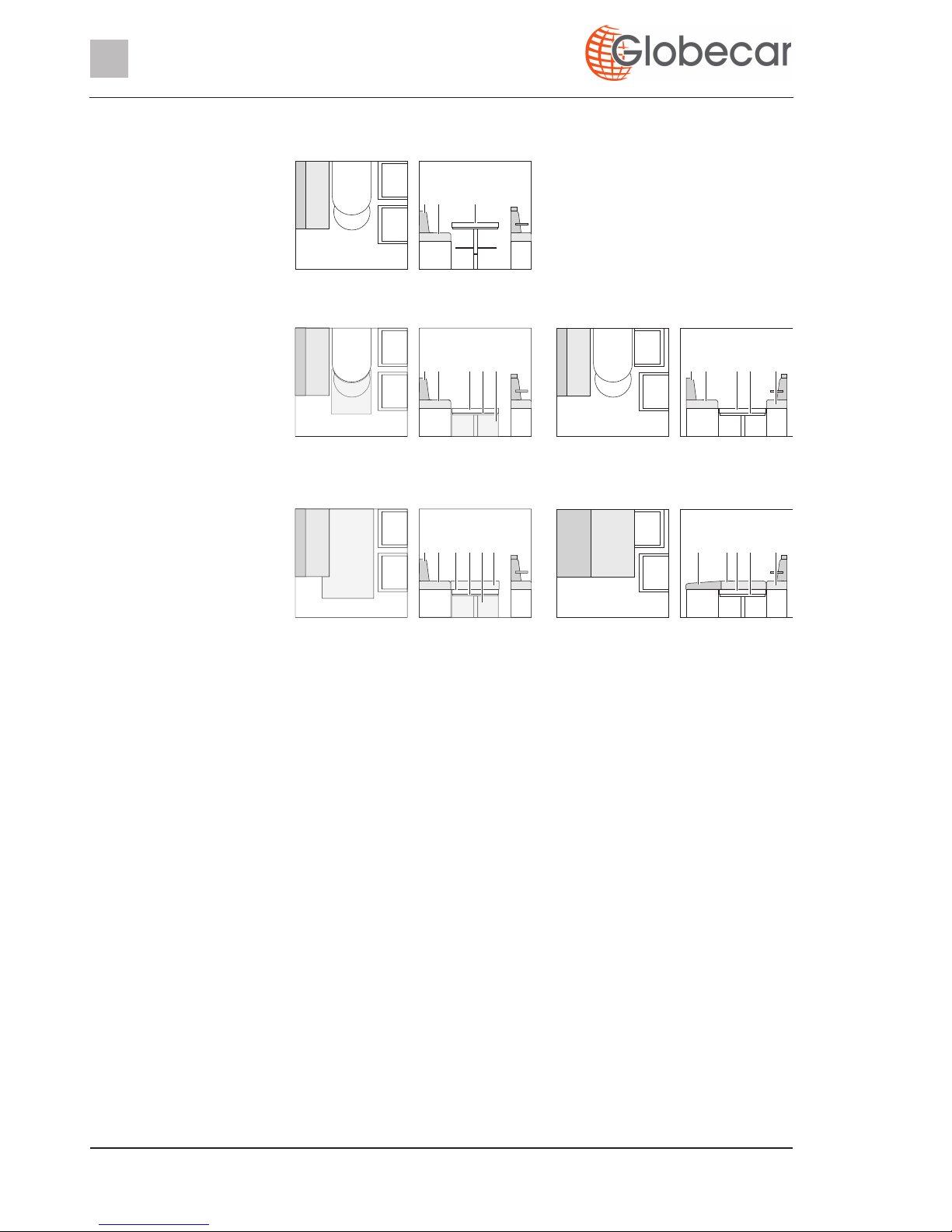

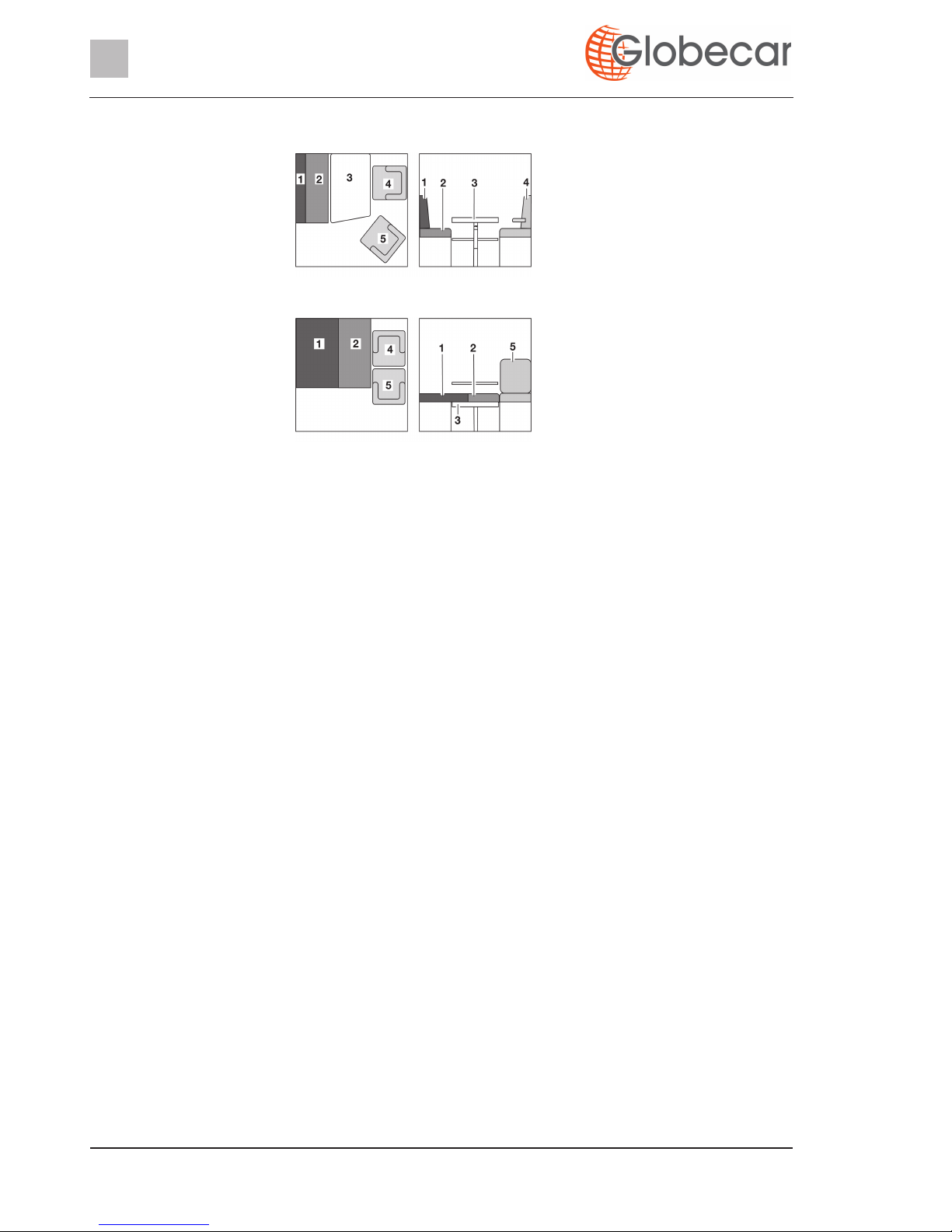

7.10 Converting seating groups for

sleeping . . . . . . . . . . . . . . . . . . . . . . . . 57

7.10.1 Seating group rear . . . . . . . . . . . . . . . . 57

7.10.2 Front seating group . . . . . . . . . . . . . . . 58

7.10.3 Facing seating unit with extension . . . . 59

7.10.4 Front seating group with extension . . . 60

8 Gas system. . . . . . . . . . . . . . . . . . . 61

8.1 General . . . . . . . . . . . . . . . . . . . . . . . . 61

8.2 Gas bottles. . . . . . . . . . . . . . . . . . . . . . 62

8.3 Changing gas bottles . . . . . . . . . . . . . . 63

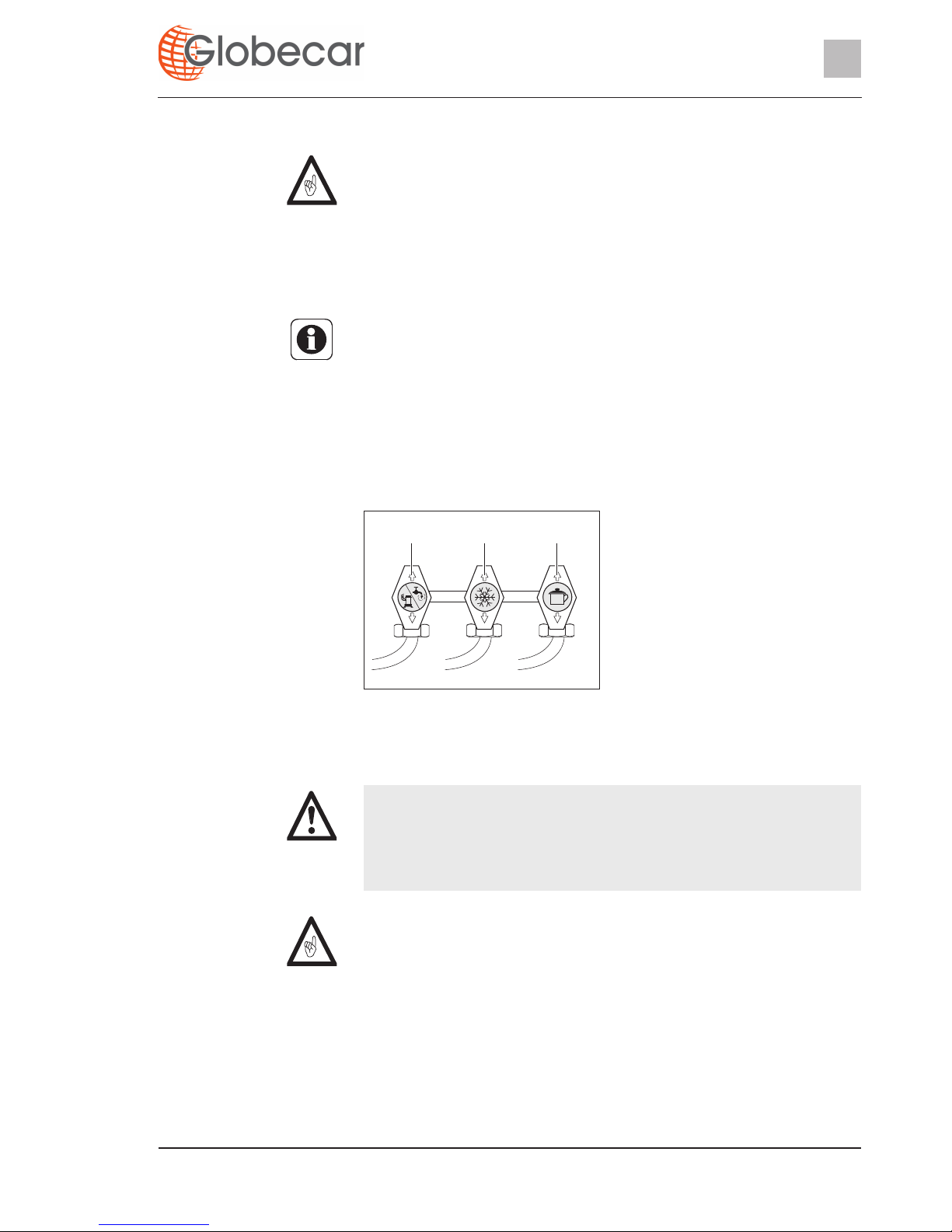

8.4 Gas isolator taps . . . . . . . . . . . . . . . . . 63

8.5 Hose break guard (crash sensor) . . . . 64

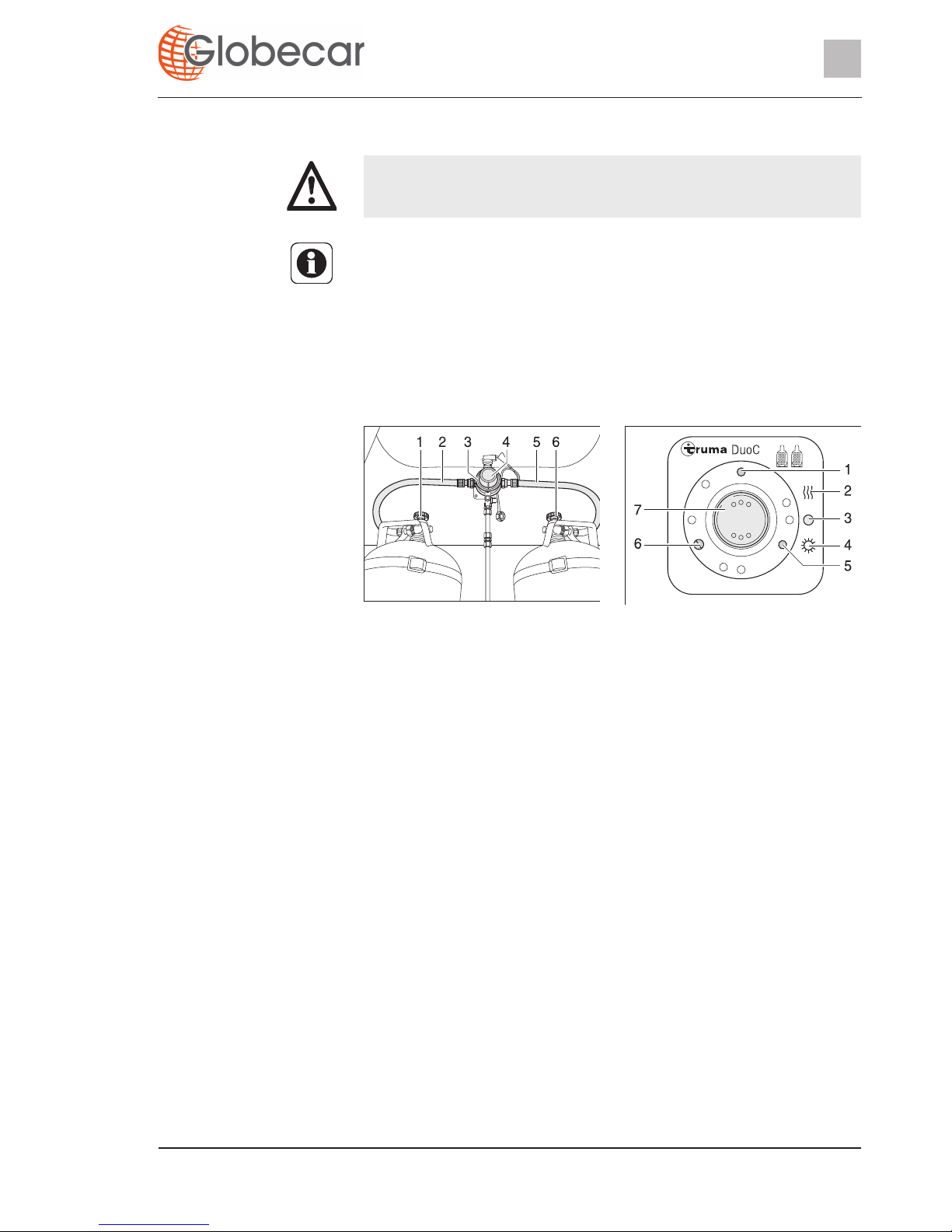

8.6 DuoControl switching facility . . . . . . . . 65

Page 4

Contents

4 Motorhome - 02/11-0 - PSL-MJ11-00 EN

9 Electrical system . . . . . . . . . . . . . 67

9.1 General safety instructions . . . . . . . . . 67

9.2 12 V power supply . . . . . . . . . . . . . . . . 67

9.2.1 Living area battery . . . . . . . . . . . . . . . . 67

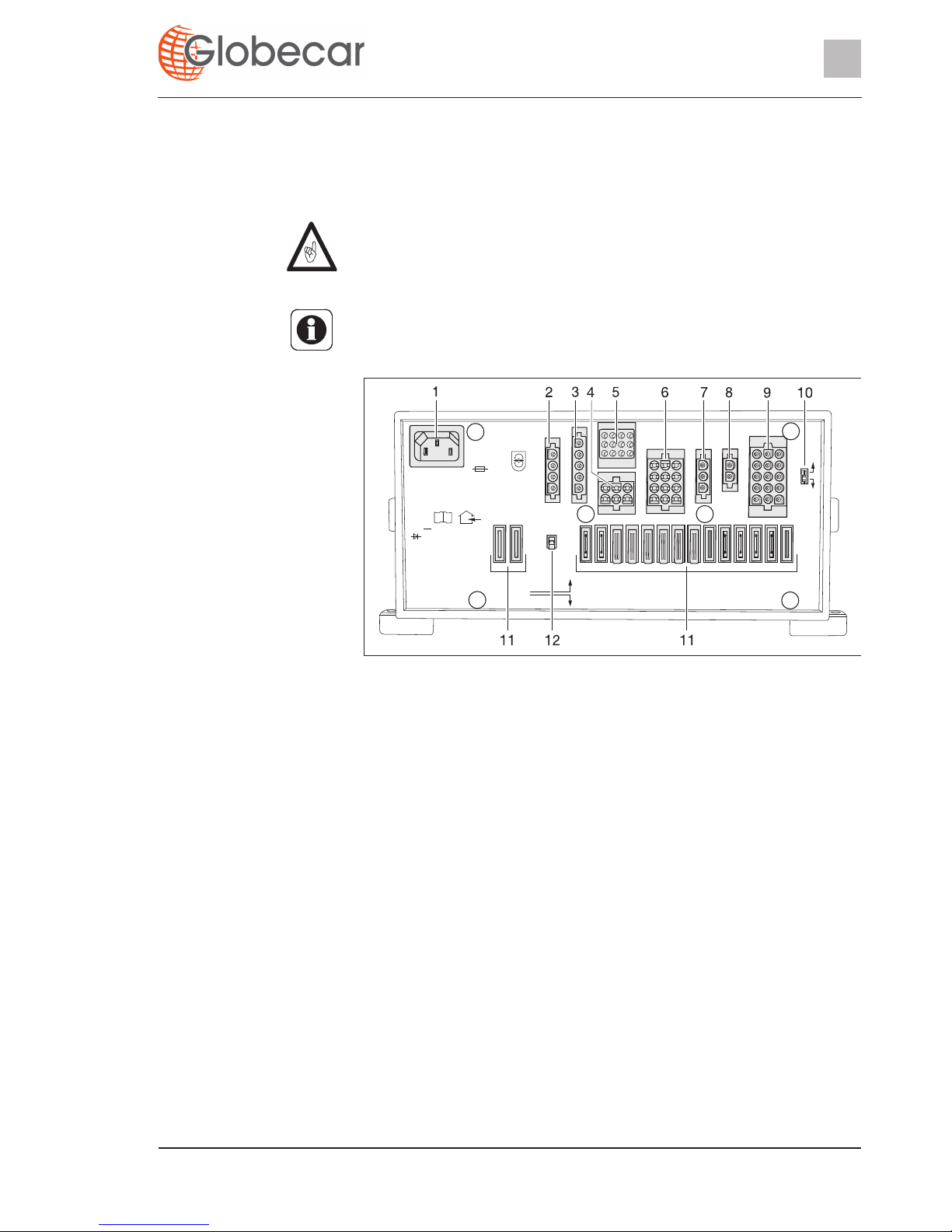

9.3 Transformer/rectifier (EBL 99) . . . . . . . 69

9.3.1 Battery cut-off switch . . . . . . . . . . . . . . 70

9.3.2 Battery monitoring . . . . . . . . . . . . . . . . 71

9.3.3 Charging the battery . . . . . . . . . . . . . . 71

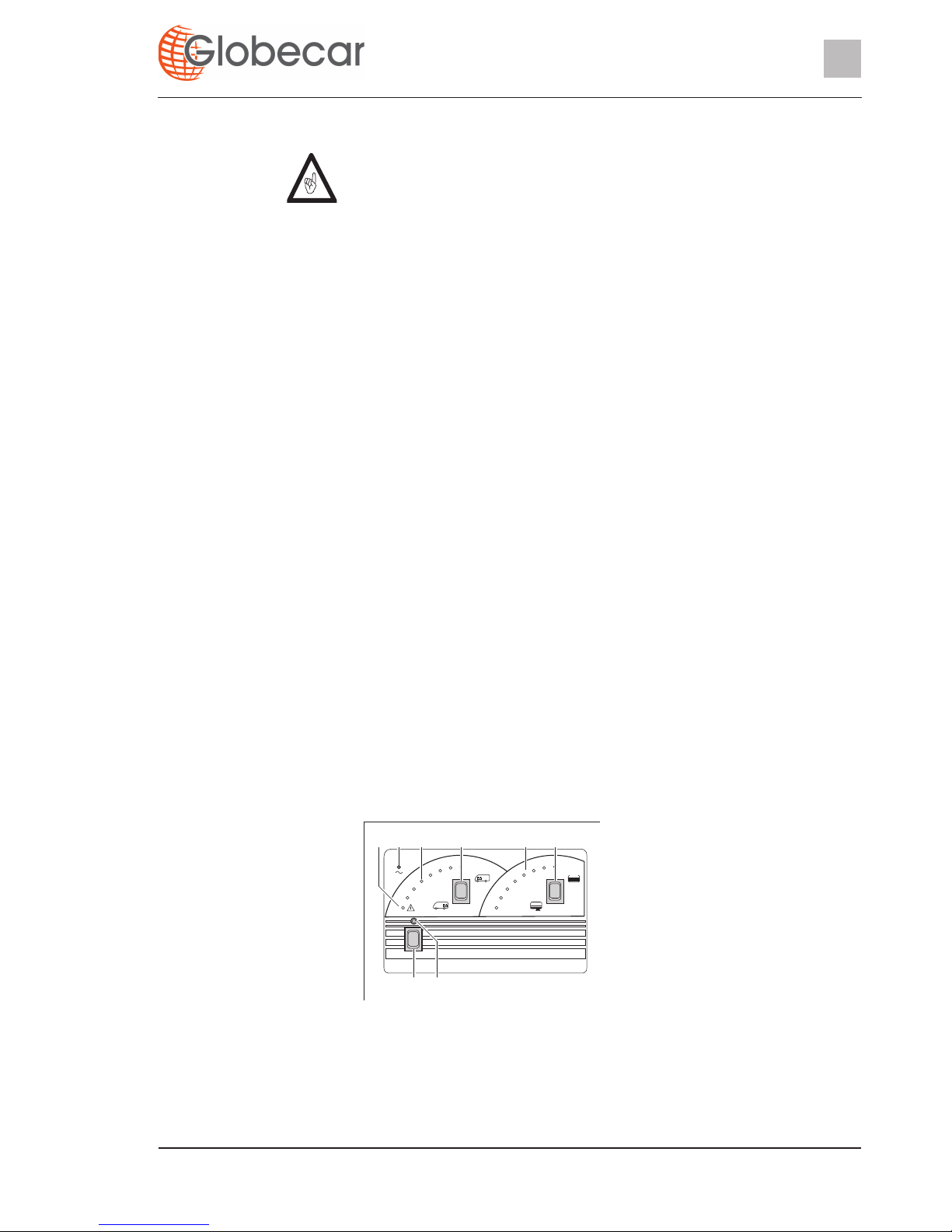

9.4 Panel LT 410 . . . . . . . . . . . . . . . . . . . . 71

9.4.1 V/tank gauge for battery voltage and

water or waste water levels . . . . . . . . . 72

9.4.2 Battery alarm for the living area

battery . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.4.3 12 V main switch . . . . . . . . . . . . . . . . . 72

9.4.4 12 V indicator lamp . . . . . . . . . . . . . . . 73

9.4.5 230 V indicator lamp . . . . . . . . . . . . . . 73

9.5 230 V power supply . . . . . . . . . . . . . . . 73

9.5.1 230 V connection . . . . . . . . . . . . . . . . . 73

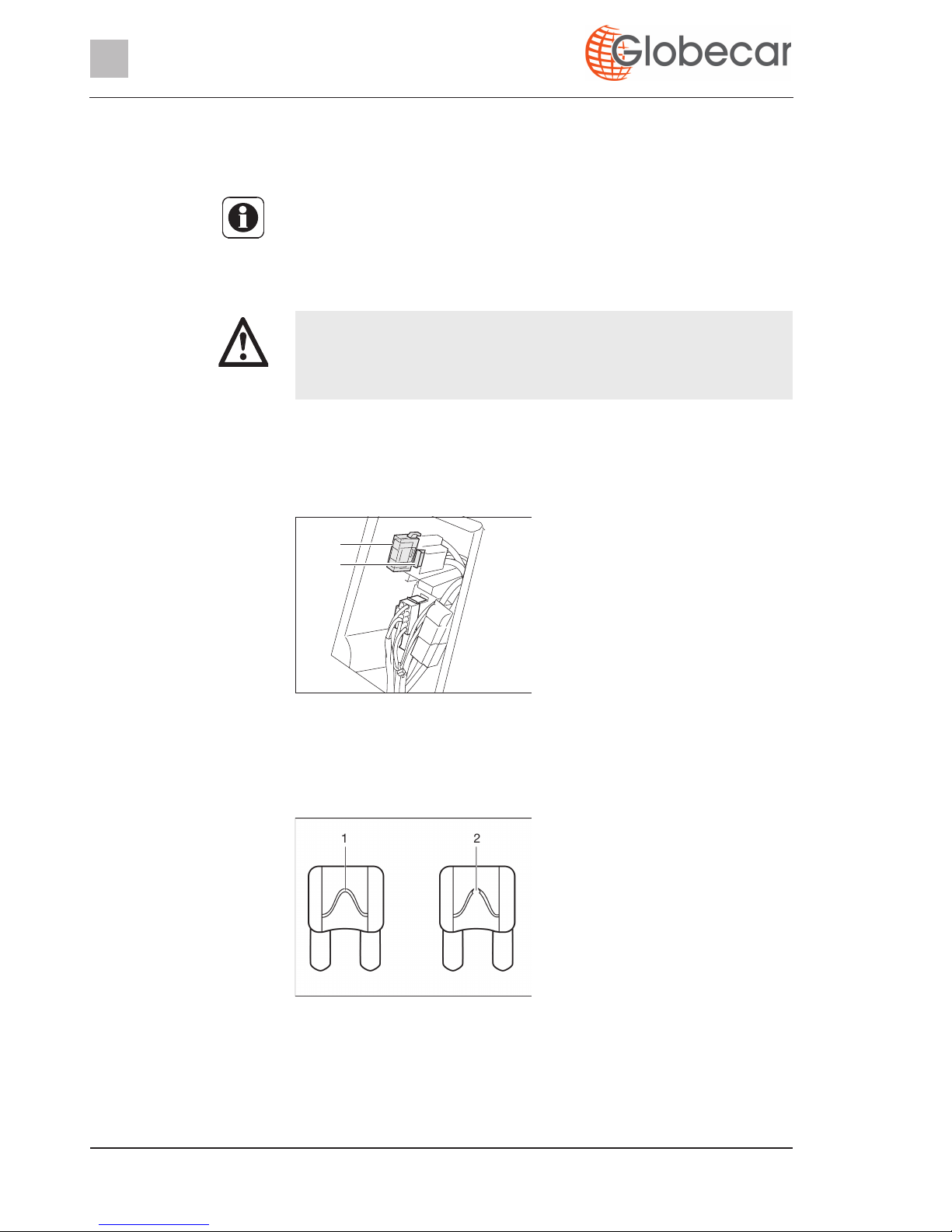

9.6 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.6.1 Main fuse . . . . . . . . . . . . . . . . . . . . . . . 74

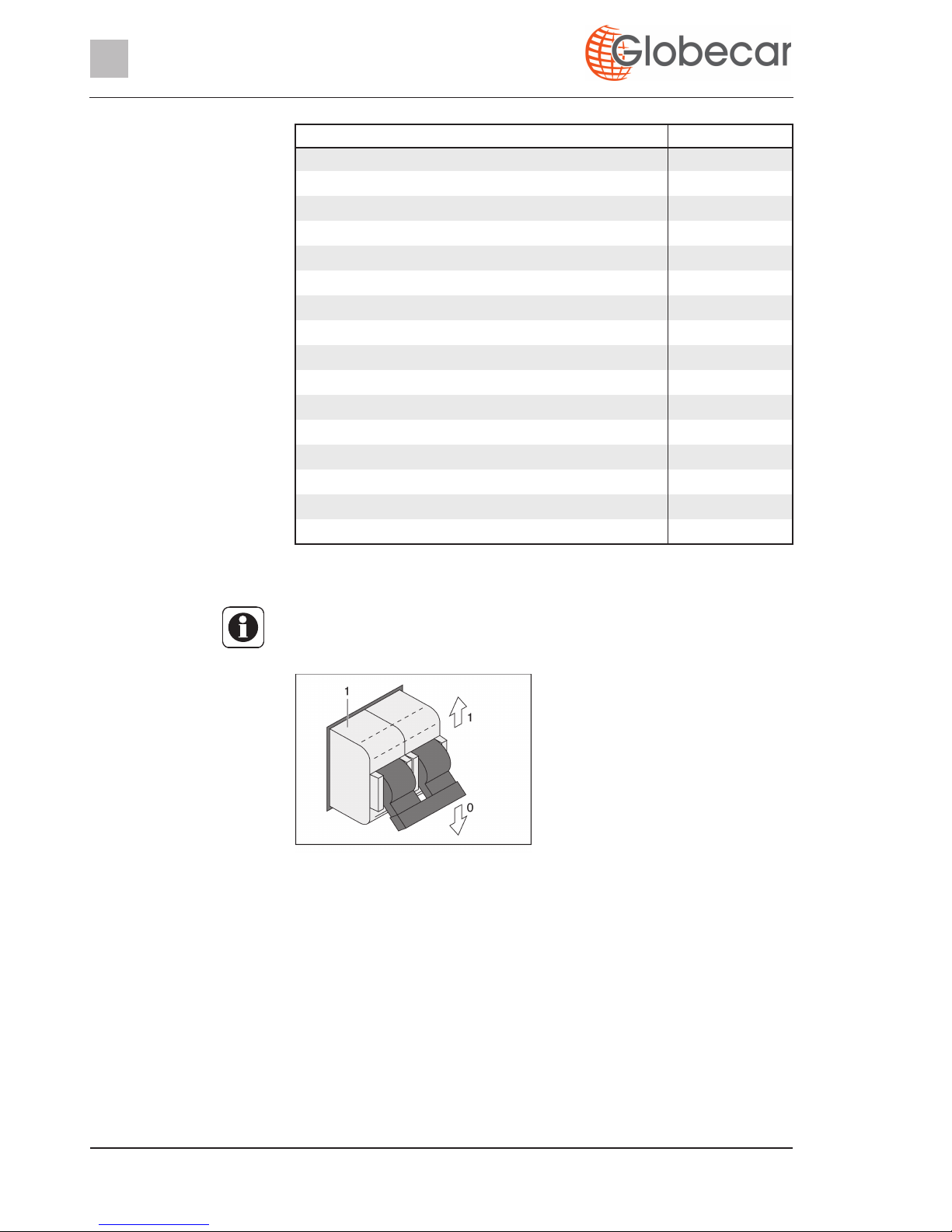

9.6.2 12 V fuses . . . . . . . . . . . . . . . . . . . . . . 74

9.6.3 230 V fuse . . . . . . . . . . . . . . . . . . . . . . 76

10 Appliances . . . . . . . . . . . . . . . . . . . 77

10.1 General . . . . . . . . . . . . . . . . . . . . . . . . 77

10.2 Heater . . . . . . . . . . . . . . . . . . . . . . . . . 77

10.2.1 To heat properly. . . . . . . . . . . . . . . . . . 78

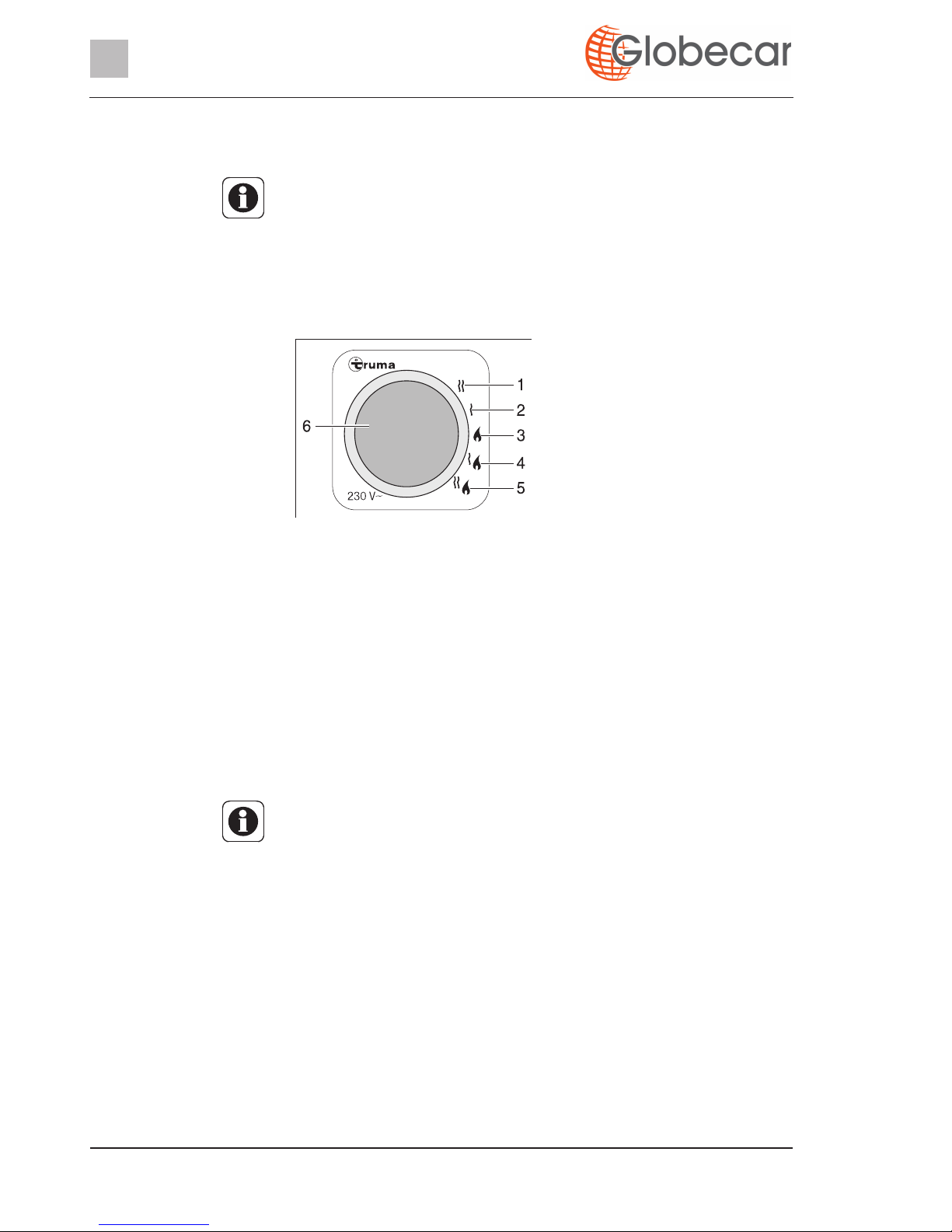

10.2.2 Truma Combi hot-air heater. . . . . . . . . 78

10.2.3 Heater for waste water tank and waste water pipes (winter comfort package) . 81

10.3 Boiler . . . . . . . . . . . . . . . . . . . . . . . . . . 81

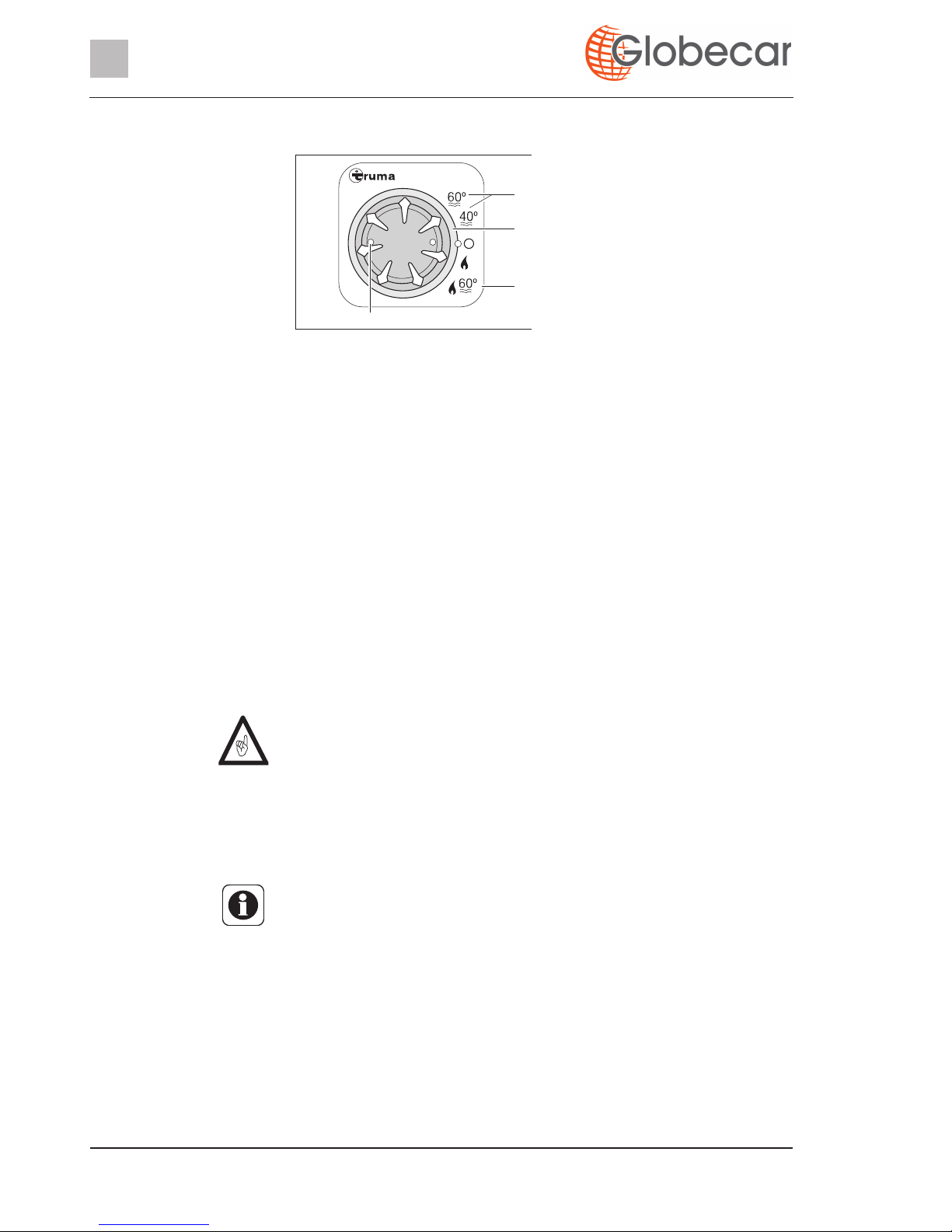

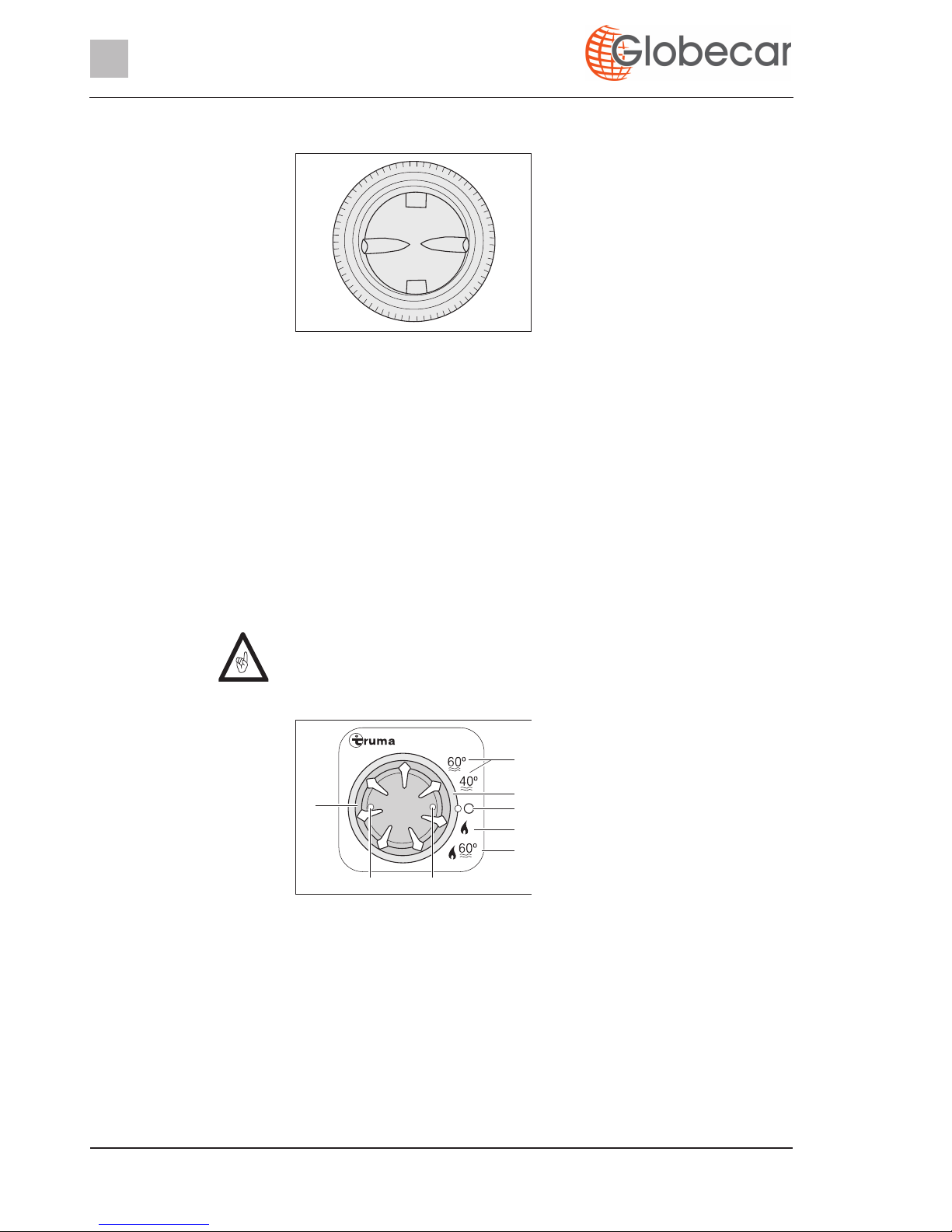

10.3.1 Truma Combi boiler . . . . . . . . . . . . . . . 82

10.4 Gas cooker. . . . . . . . . . . . . . . . . . . . . . 84

10.5 Refrigerator . . . . . . . . . . . . . . . . . . . . . 85

10.5.1 Refrigerator ventilation grill . . . . . . . . . 86

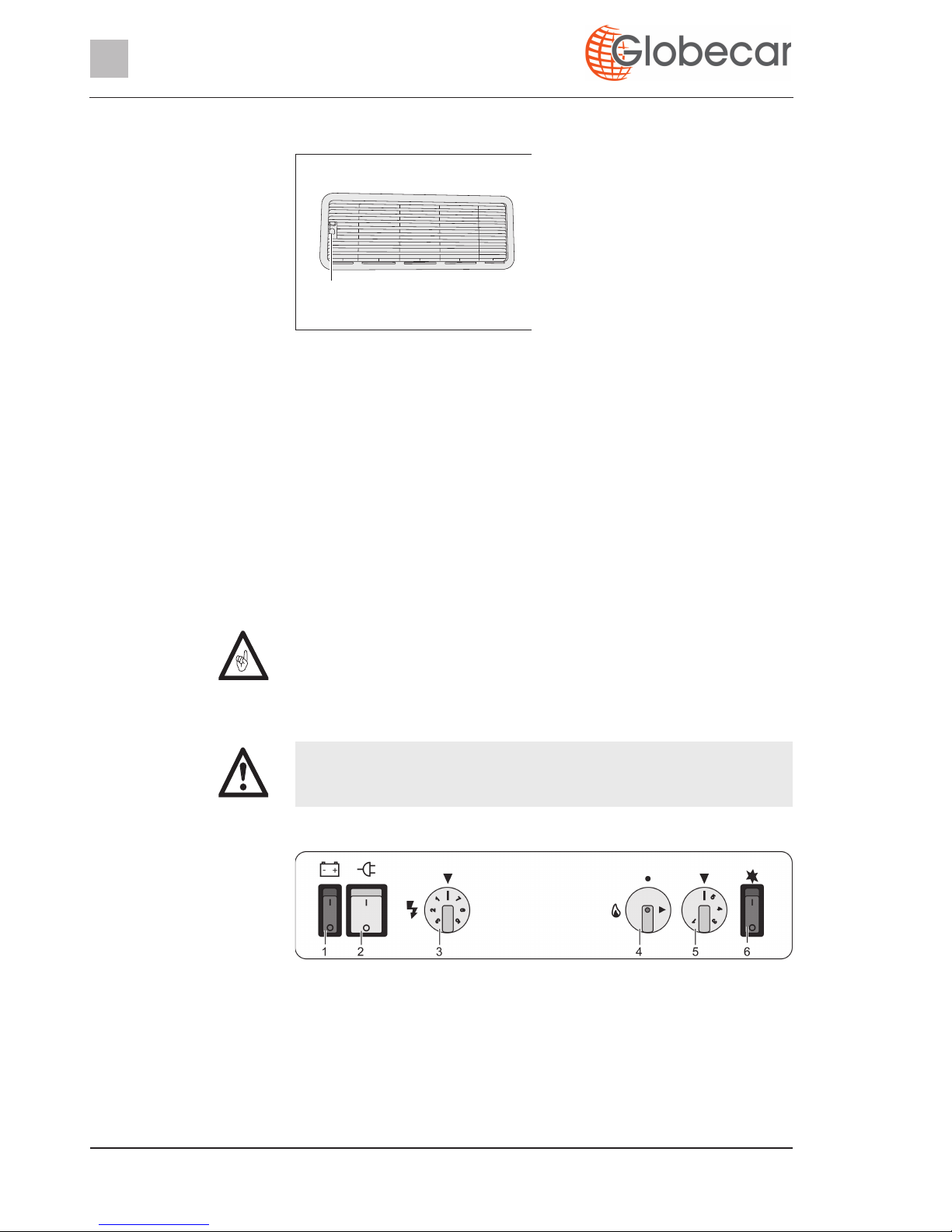

10.5.2 Operation (Dometic 4 series) . . . . . . . . 86

10.5.3 Operation (Waeco). . . . . . . . . . . . . . . . 88

10.5.4 Refrigerator door locking mechanism . 89

11 Sanitary fittings . . . . . . . . . . . . . . 91

11.1 Water supply, general . . . . . . . . . . . . . 91

11.2 Water tank . . . . . . . . . . . . . . . . . . . . . . 91

11.2.1 20 l maximum filling . . . . . . . . . . . . . . . 92

11.3 Waste water tank . . . . . . . . . . . . . . . . . 92

11.4 Water system . . . . . . . . . . . . . . . . . . . . 94

11.5 Toilet compartment . . . . . . . . . . . . . . . 95

11.6 Vario toilet compartment . . . . . . . . . . . 96

11.6.1 Converting into a shower cubicle . . . . . 96

11.6.2 Conversion to toilet compartment . . . . 96

11.7 Thetford toilet . . . . . . . . . . . . . . . . . . . . 96

12 Care . . . . . . . . . . . . . . . . . . . . . . . . . .99

12.1 External care . . . . . . . . . . . . . . . . . . . .99

12.1.1 Washing with a high-pressure cleaner .99

12.1.2 Washing the vehicle . . . . . . . . . . . . . . .99

12.1.3 Windows of acrylic glass . . . . . . . . . .100

12.1.4 Waste water tank . . . . . . . . . . . . . . . .100

12.1.5 Entrance step . . . . . . . . . . . . . . . . . . .100

12.2 Internal care . . . . . . . . . . . . . . . . . . . .100

12.3 Winter care . . . . . . . . . . . . . . . . . . . . .101

12.3.1 Winter operation . . . . . . . . . . . . . . . . .102

12.4 Lay-up. . . . . . . . . . . . . . . . . . . . . . . . .102

12.4.1 Temporary lay-up . . . . . . . . . . . . . . . .102

12.4.2 Winter lay-up . . . . . . . . . . . . . . . . . . .103

12.4.3 Starting up the vehicle after a temporary lay-up or after lay-up over

winter . . . . . . . . . . . . . . . . . . . . . . . . .104

13 Maintenance . . . . . . . . . . . . . . . . .105

13.1 Official inspections . . . . . . . . . . . . . . .105

13.2 Inspection work. . . . . . . . . . . . . . . . . .105

13.3 Maintenance work . . . . . . . . . . . . . . .105

13.4 Replacing bulbs and fluorescent

tubes. . . . . . . . . . . . . . . . . . . . . . . . . .105

13.4.1 Ceiling lamp . . . . . . . . . . . . . . . . . . . .106

13.4.2 Room lamp . . . . . . . . . . . . . . . . . . . . .106

13.4.3 Halogen spotlight (with glass shade) .107

13.4.4 Halogen spotlight (movable). . . . . . . .107

13.4.5 Surface-mounted halogen light

(swiveling). . . . . . . . . . . . . . . . . . . . . .108

13.5 Replacing the battery at the lamp in the

pop-up roof . . . . . . . . . . . . . . . . . . . . .108

13.6 Spare parts . . . . . . . . . . . . . . . . . . . . .109

13.7 Vehicle identification plate . . . . . . . . .109

13.8 Warning and information stickers . . . .110

14 Troubleshooting . . . . . . . . . . . . .111

14.1 Electrical system. . . . . . . . . . . . . . . . .111

14.2 Gas system. . . . . . . . . . . . . . . . . . . . .112

14.3 Cooker . . . . . . . . . . . . . . . . . . . . . . . .113

14.4 Heater/Boiler. . . . . . . . . . . . . . . . . . . .113

14.5 Refrigerator. . . . . . . . . . . . . . . . . . . . .114

14.5.1 Dometic refrigerator without AES . . .114

14.5.2 Waeco refrigerator . . . . . . . . . . . . . . .115

14.6 Water supply. . . . . . . . . . . . . . . . . . . .116

14.7 Body . . . . . . . . . . . . . . . . . . . . . . . . . .116

15 Technical data . . . . . . . . . . . . . . .117

15.1 Weights. . . . . . . . . . . . . . . . . . . . . . . .117

15.2 Dimensions. . . . . . . . . . . . . . . . . . . . .117

15.3 Equipment . . . . . . . . . . . . . . . . . . . . .118

Page 5

5Motorhome - 02/11-0 - GLO-MJ11-00EN

Records

1Records

1.1 Vehicle document

We reserve the right to alter the construction, equipment and the scope of delivery. Special equipment is also listed that is not included in the standard scope of delivery. The descriptions and illustrations in this brochure do not relate to a particular version. For all details, only the respective equipment list is valid.

1.2 Warranty

1. The legal guarantee and product warranty rights apply for the vehicle.

2. It is advisable to present the vehicle for inspection by a Globecar dealer at the end of the first year in order to assert any warranty claims that may arise. The presentation should take place 2 months at the latest after the anniversary of the initial registration (or delivery). As proof that the inspection has been completed, the inspection has to be confirmed on the corresponding page in this operating manual by a stamp, the date and the signature of the respective Globecar dealer.

3. The costs of the inspection are to be paid by the vehicle owner.

Vehicle data

Model:

Car manufacturer/type of engine:

Serial number:

Initial registration:

Purchased from company:

Key number:

Chassis number:

Customer address

Surname, Christian name:

Street, no.:

Postal code, town:

E-mail:

Dealer's stamp and signature

Page 6

6 Motorhome - 02/11-0 - GLO-MJ11-00EN

Records

1.3 Inspection records

Should it be determined during an inspection that additional work is necessary, then the carrying out of this work is dependent on the customer commissioning this to be done. Please also adhere to the service intervals stipulated by the manufacturers of the individual equipment. Information is included in the service documents enclosed.

Delivery

Date:

Signature and stamp of the Globecar dealer:

1th year

Date:

Signature and stamp of the Globecar dealer:

No defects found Found defects:

Page 7

7Motorhome - 02/11-0 - GLO-MJ11-00EN

Records

1.4 Inspection plan

We reserve the right to modify the inspection plan.

Pos. Component Activity Interval

Joints, hinges Lubricate Annually

Refrigerator, heater, boiler, cooker, lighting, storage flap and door closures, toilet, seat belts

Function check Annually

Windows, skylights Function check, water

ingress test

Annually

Upholstery, curtains, blinds Visual check Annually

Sealing strips, edges, -rubber Check for damage Annually

Water supply Water ingress test Annually

Hot-air system Function check, clean

fan wheel if necessary

Annually

Underbody protection, fastening of the underbody attachments

Visual check Annually

Electrical system Function check Annually

Gas system Official gas inspection Every two

years

Underbody Visual check, repair

underbody protection if necessary

Every two years

Page 8

8 Motorhome - 02/11-0 - GLO-MJ11-00EN

Records

Page 9

9Motorhome - 02/11-0 - GLO-MJ11-00EN

Introduction

2Introduction

Please read this instruction manual completely before using the vehicle for the first time!

Always keep this instruction manual in the vehicle. Also inform all other users of the safety regulations.

This instruction manual contains sections which describe model-specific equipment or special equipment. These sections are not specially marked. It may be that your vehicle has not been fitted with this special equipment. In some cases, the actual equipment of your vehicle may therefore be different from that shown in some illustrations and descriptions.

However, your vehicle may be fitted with other special equipment not described in this instruction manual.

Special equipment is described when an explanation is required. Adhere to the instruction manuals which are separately enclosed.

Should the vehicle be subjected to damage due to a failure to follow the instructions in this instruction manual, then the warranty claim is deemed invalid.

Our vehicles are subjected to continuous development. Please understand that we reserve the right to alter the form, equipment and technology. Therefore, no claims can be made against the manufacturer as a result of the contents of this instruction manual. The equipment which was known and included at the time of going to press is described.

The reprinting, translation and copying, including extracts is not permitted without prior written authorisation from the manufacturer.

X The non-observance of this symbol can lead to personal injury.

Z The non-observance of this symbol can lead to damage being caused to,

or inside the vehicle.

Z This symbol indicates recommendations or special aspects.

Z This symbol indicates actions which lead to environmental awareness.

Z The details "right", "left", "front" and "rear" always refer to the vehicle in

direction of travel.

Z All dimensions and weight details are "approximate".

Page 10

10 Motorhome - 02/11-0 - GLO-MJ11-00EN

Introduction

2.1 General

The vehicle is constructed in accordance with the latest technology and the recognised safety regulations. Nevertheless, personal injury may result and the vehicle may be damaged if the safety instructions in this instruction manual are not followed.

Depending on the configuration, the first-aid kit and hazard warning triangle are not included as standard. Equip the vehicle with a first-aid kit and hazard warning triangle before using it for the first time. In case of vehicles with a gross weight exceeding 3.5 t a flashing hazard warning light has to be carried additionally on the vehicle.

Only use the vehicle in a technically impeccable condition. Follow the instructions in the instruction manual.

Malfunctions which impair the safety of persons or the vehicle should be immediately remedied by qualified personnel. To avoid further damages, observe the duty to avert, minimise or mitigate loss for the user during faults.

Have the vehicle's braking and gas systems inspected and repaired by an authorised specialist workshop only.

Alterations to the body are only to be carried out with the authorisation of the manufacturer.

The vehicle is designed for the exclusive transport of persons. Luggage and accessories may only be transported up to the maximum permissible gross weight.

Observe the test and inspection periods stipulated by the manufacturer.

2.2 Environmental tips

Z Do not impair the tranquility and spruceness of nature. Z Remember that: All kinds of waste water and household waste are not to

be disposed of in drains or in the open countryside.

Z Only empty the waste water tank and toilet cassette or sewage tank at dis-

posal stations at the camping or caravan sites, which are especially provided for this purpose. When stopping in towns and communities, observe the instructions at caravan sites or ask where there are disposal stations.

Z Collect waste water on board only in the waste water tank or, if need be, in

other vessels suitable to this purpose.

Z Empty waste water tank as often as possible, even when it is not com-

pletely full (hygiene). If possible, flush out waste water tank and, if necessary, drainage pipe with

fresh water every time it is emptied.

Z Never allow the toilet cassette or sewage tank to become too full. Empty

the toilet cassette or sewage tank frequently, at the latest as soon as the level indicator lights up.

Z Separate household waste according to glass, tin cans, plastic and wet

waste also when on a journey. Enquire at the town or community authority about disposal points. Household waste is not to be disposed of in waste paper baskets which are situated at car parks.

Z Empty waste bins as often as possible into the cans or containers that are

provided for this purpose. This helps to avoid unpleasant smells and an accumulation of rubbish on board.

Page 11

11Motorhome - 02/11-0 - GLO-MJ11-00EN

Introduction

Z When parked, do not allow the engine to run more than necessary. When

running idle, a cold engine releases more contaminants than usual. The running temperature of the engine is achieved more quickly whilst the vehicle is in motion.

Z Use an environmentally-friendly WC chemical agent for the WC which can

also be biologically degraded and only use small doses.

Z When staying in towns and communities for longer periods, search for

parking areas which are especially designated for motorhomes. Enquire at the town or community authority about parking spaces.

Z Always leave the parking places in a clean condition.

Page 12

12 Motorhome - 02/11-0 - GLO-MJ11-00EN

Introduction

Page 13

13Motorhome - 02/11-0 - GLO-MJ11-00EN

Safety

3Safety

3.1 Fire prevention

3.1.1 Avoidance of fire risks

3.1.2 Fire-fighting

3.1.3 In case of fire

3.2 General

X Never leave children in the vehicle unattended. X Keep flammable materials clear of heating and cooking appliances. X Lights can get very hot. WHen the light is switched on, a safety distance

of 30 cm to combustible material has to be maintained. Fire hazard!

X Never use portable heating or cooking appliances. X Only authorised qualified personnel may modify the electrical system,

the gas system or the appliances.

X Always carry a dry powder fire extinguisher in the vehicle. The fire extin-

guisher must be approved, tested and close at hand.

X Have the fire extinguisher tested at regular intervals by authorised qual-

ified personnel. Observe the date of testing.

X The fire extinguisher is not included in the scope of delivery. X Always keep a fire blanket at hand near the cooker.

X Evacuate all passengers. X Cut off the electrical power supply and disconnect from the mains. X Close regulator tap on the gas bottle. X Sound the alarm and call the fire brigade. X Fight the fire if this is possible without risk.

Z Keep escape routes clear. Z Observe the fire extinguisher instructions for use.

X The oxygen in the vehicle interior is used up by breathing and the use of

gas operated appliances. That is why the oxygen needs to be replaced on a constant basis. For this purpose, forced ventilation options (e.g. skylights with forced ventilation, mushroom-shaped vents or floor vents) are fitted to the vehicle. Never cover or block forced ventilations from the inside or outside with objects such as e.g. a winter mat. Keep forced ventilations clear of snow and leaves. There is a danger of suffocation due to increased CO

levels.

X Observe the headroom of the doors. X Gas lines and electrical cables are laid in the floor. Never drill holes or

screw screws into the floor. There is danger of a gas explosion or of a power cut or short circuit due to damage to a line or cable.

Page 14

14 Motorhome - 02/11-0 - GLO-MJ11-00EN

Safety

3.3 Road safety

Z As far as the fitted appliances (heater, cooker, refrigerator, etc.) and the

base vehicle (engine, brakes, etc.) are concerned, the instruction manuals are authoritative. It is imperative that they be observed.

Z Fitting accessories or special equipment can alter the dimensions, weight

and road behaviour of the vehicle. Some of the parts must be entered in the vehicle papers.

Z Only use wheel rims and tyres which are approved for the vehicle. Informa-

tion concerning the size of the approved wheel rims and tyres is included in the vehicle documents or can be obtained from authorised dealers and service centres.

Z Firmly apply the handbrake when parking the vehicle.

Z When leaving the vehicle, it is imperative that all doors, external flaps and

windows are closed.

Z Hazard warning triangle and first-aid kit conforming to DIN 13164 are pre-

scribed by law and must be carried on the vehicle.

Z Only move the vehicle on the road if the driver has a driver's license valid

for the vehicle class.

Z When selling the vehicle, hand over all instruction manuals for the vehicle

and the fitted appliances.

X Before commencing the journey, carry out a functional check of indi-

cating and lighting equipment, the steering and the brakes.

X If the vehicle has been stationary for a long period (approx. 10 months)

have the braking and gas systems checked by an authorised specialist workshop.

X Before starting the journey and also after short breaks check whether the

entrance step has been retracted completely.

X Fold in the pop-up roof fully and lock it into place before commencing the

journey.

X Before commencing the journey, open and secure the shades on the

windscreen and on the driver's and front passenger's windows.

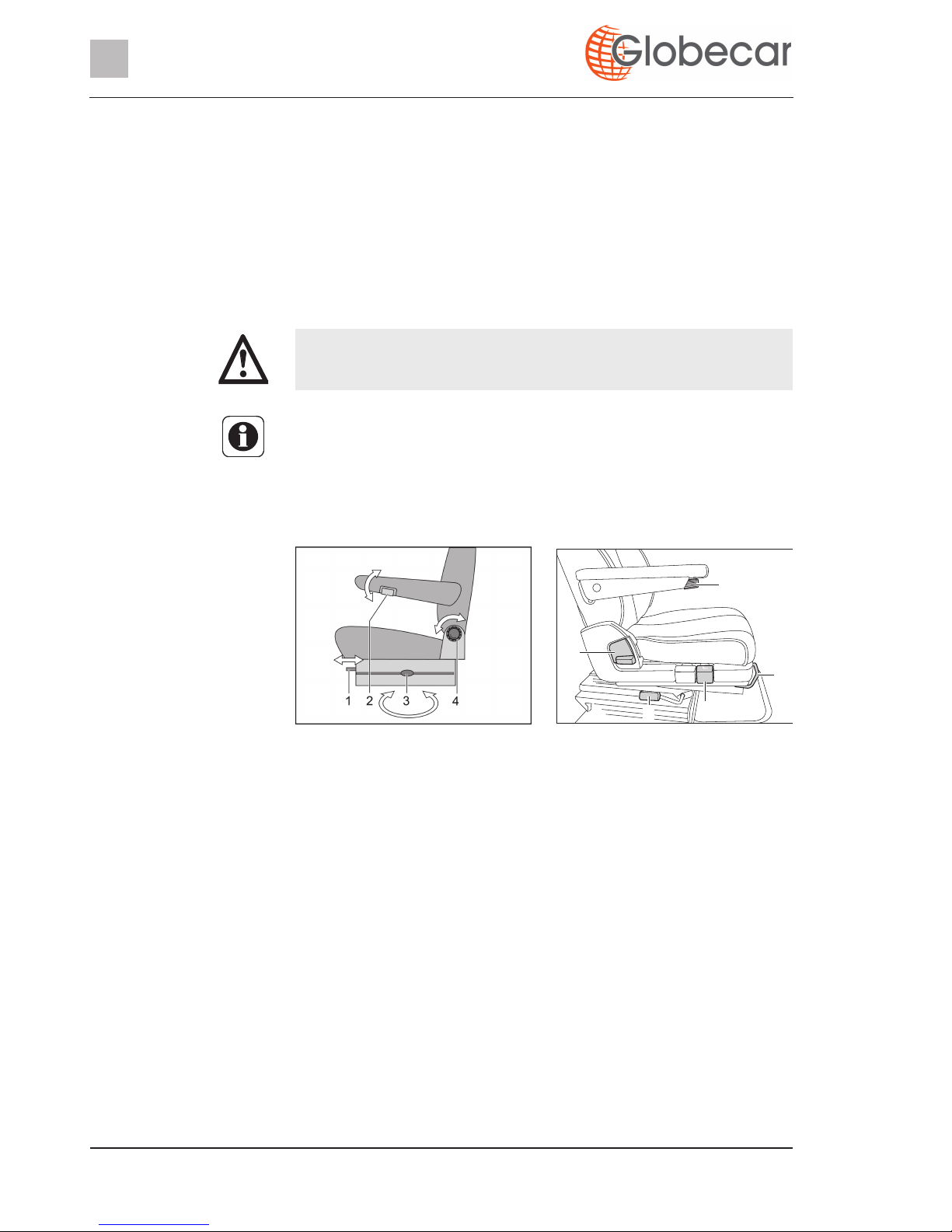

X Before starting the journey, rotate the seat in the direction of travel and

lock in position. The rotating seats must remain locked in the direction of travel during the journey.

X Before starting your journey, remove the television from the support and

store it securely.

X During the journey, persons are only to sit on the permitted seats (see

Chapter 5). The authorised number of seats is stipulated in the vehicle documents.

X Before starting the journey fasten your seat belt and keep it fastened

during the journey.

X Always secure children with the child-protection equipment that is man-

datory for the respective child's size and weight.

X Factory-set three-point safety belts must be used when attaching child

restraint systems.

X The base vehicle is a commercial vehicle (small truck). Adapt your

manner of driving correspondingly.

Page 15

15Motorhome - 02/11-0 - GLO-MJ11-00EN

Safety

3.4 Towing

3.5 Gas system

3.5.1 General information

X Observe the overall height of the vehicle (including roof loads) at under-

passes, tunnels, etc.

X In winter, the roof must be free of snow and ice before commencing the

journey.

Z Before commencing the journey, distribute the vehicle payload evenly (see

Chapter 4).

Z When loading the vehicle and when taking a rest from driving, in order to

load luggage or food, for example, observe the maximum permissible gross weight and axle loads (refer to vehicle documents).

Z Before commencing the journey, ensure that all cupboard doors, the toilet

door and all drawers and flaps are secure. Engage the refrigerator door securing device. Lock the folding wall of the Vario toilet compartment.

Z Before commencing the journey, close windows and skylights. Z Before commencing the journey, close all external flaps and lock them.

X Care is to be taken when connecting and detaching a trailer. Risk of acci-

dent and injury!

X No persons are to be between the towing vehicle and the trailer during

positioning for connecting and detaching.

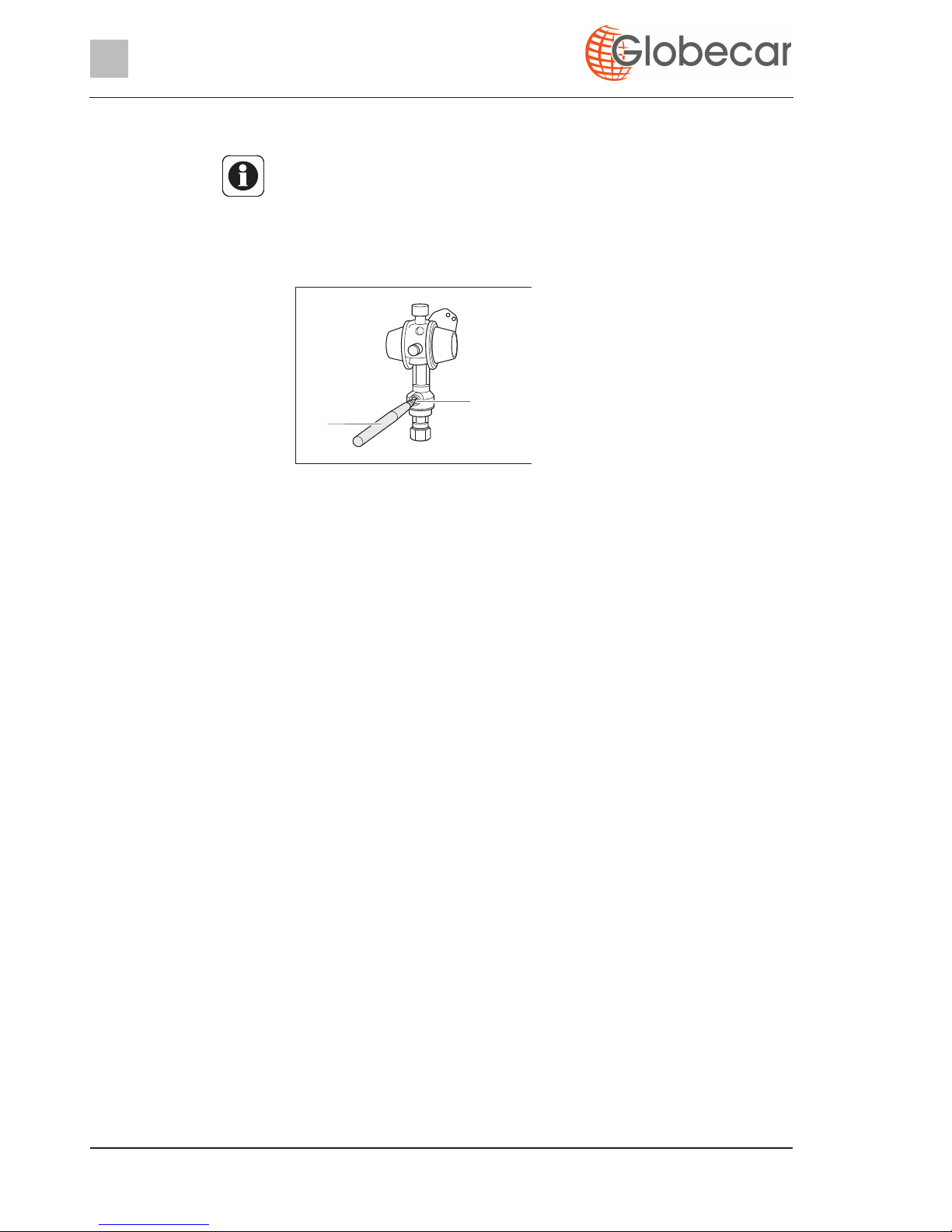

X Close all gas isolator taps and the regulator tap before commencing the

journey and when leaving the vehicle.

X No appliance (e.g. heating or refrigerator) that is operated through the

built-in burner may be operational while fuel is being filled up, on ferries or in the garage. Danger of explosion!

X If an appliance is operated through a burner, do not start the appliance

up in closed areas (e.g. garages). Danger of poisoning and suffocation!

X Have the gas system serviced, repaired or altered by an authorised

workshop only.

X Have the gas system checked by an authorised specialist workshop

before starting up and according to the national regulations. This also applies for not registered vehicles. For modifications to the gas system have the gas system immediately checked by an authorised specialist workshop.

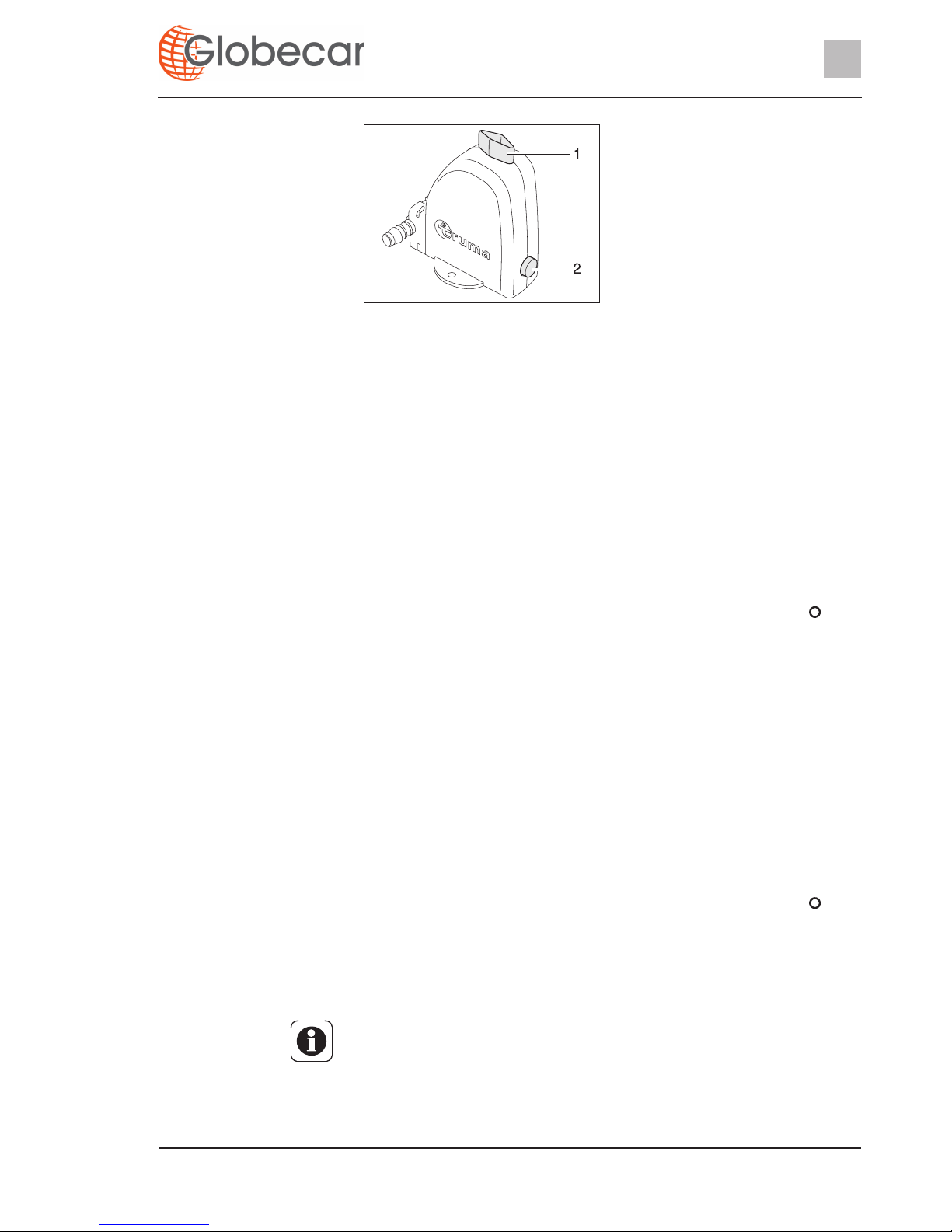

X The gas pressure regulator and the exhaust gas pipes also have to be

checked. The gas pressure regulator has to be replaced at least every 10 years. The vehicle owner is responsible for seeing that this is carried out.

X In case of a defect of the gas system (gas odour, high gas consumption)

there is danger of explosion! Close the regulator tap on the gas bottle immediately. Open doors and windows and ventilate well.

X In case of a defect in the gas system: Do not smoke; do not ignite any

open flames, and do not operate electric switches (light switches etc.).

Page 16

16 Motorhome - 02/11-0 - GLO-MJ11-00EN

Safety

X Have the defect in the gas system repaired by an authorised specialist

workshop.

X Open a skylight or a window before taking open sources of combustion

(gas cooker) into service.

X Do not use the gas cooker or gas oven for heating purposes. X If the vehicle or gas devices are not used, close the regulator tap on the

gas bottle.

X If there are several gas devices, each gas device must have its own gas

isolator tap. If individual gas devices are not in use, close the respective gas isolator tap.

X Ignition safety valves must close within 1 minute after the gas flame has

extinguished. A clicking sound is audible. Check function from time to time.

X The installed gas appliances are designed for use solely with propane or

butane gas or a mixture of both. The gas pressure regulator as well as all installed gas devices are set for a gas pressure of 30 mbar.

X Propane gas is capable of gasification up to -42 °C, whereas butane gas

gasifies at 0 °C. Below these temperatures no gas pressure is available. Butane gas is unsuitable for use in winter.

X Regularly inspect the gas tube fitted to the gas bottle connection for

tightness. The gas tube must not have any tears and must not be porous. Have the gas tube replaced by an authorised specialist workshop no later than 10 years after the manufacturing date. The operator of the gas system must see to it that the parts are replaced.

X Due to its function and construction, the gas bottle compartment is a

space which is open to the exterior. Never cover or block the standard forced ventilation. Otherwise leaking gas cannot be dispersed to the outside.

X Do not use the gas bottle compartment as storage space as it is not

moisture-proof.

X Secure the gas bottle compartment in order to prevent unauthorised per-

sons opening it. To do so lock the access.

X The regulator tap on the gas bottle must be accessible. X Only connect gas-operated devices (e.g. gas grill) which have been

designed for a gas pressure of 30 mbar.

X The exhaust gas pipe must be fitted tightly to the heating system and to

the vent and must be sealed. The exhaust gas pipe must not show any evidence of damage.

X Exhaust fumes must be able to escape into the atmosphere unhindered

and fresh air must be able to enter unhindered. Therefore keep the waste gas vents and intake openings clean and free (e.g. of snow and ice). No snow walls or aprons may be allowed to lie against the vehicle.

Page 17

17Motorhome - 02/11-0 - GLO-MJ11-00EN

Safety

3.5.2 Gas bottles

3.6 Electrical system

3.7 Water system

X Gas bottles are only to be transported within the designated gas bottle

compartment.

X Place gas bottles vertically in the gas bottle compartment. X Tie down gas bottles so that they are unable to turn or tilt. X If the gas bottles are not connected to the gas tube, always place the

protective cap on top.

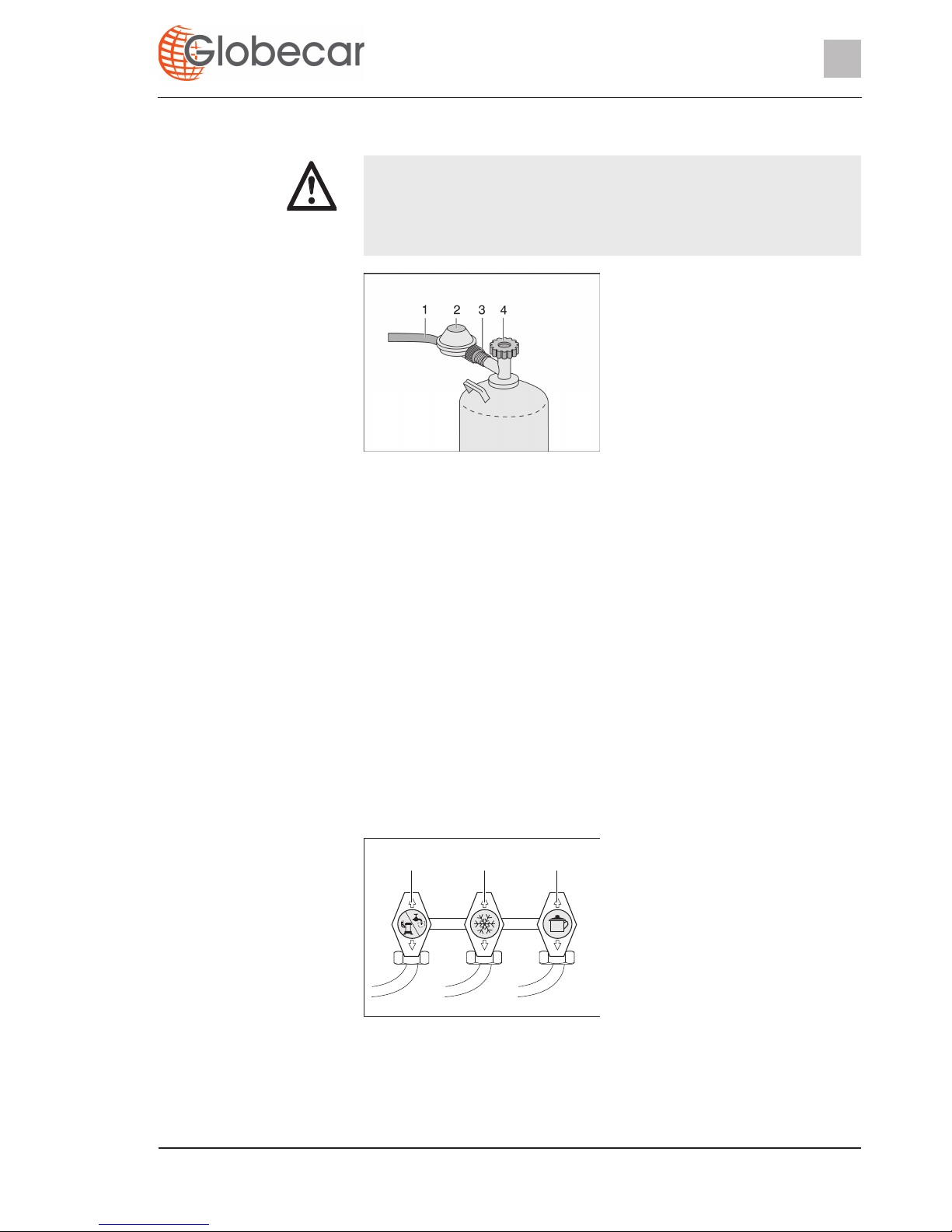

X Close the regulator tap on the gas bottle before the gas pressure regu-

lator or gas tube are removed from the gas bottle.

X Use your hands only to connect the gas pressure regulator or the gas

tube to the gas bottles. Do not use any tools.

X Only use special gas pressure regulators with a safety valve designed

for vehicle use. Other gas pressure regulators are not permitted and cannot meet the demanding requirements.

X Use only 11 kg or 5 kg gas bottles. Camping gas bottles with a built-in

reflux valve (blue bottle with max. 2.5 or 3 kg content) are permitted in exceptional cases with a safety valve.

X Never block the ventilation openings in the floor under the gas bottles.

X Only allow qualified personnel to work on the electrical system. X Prior to carrying out work on the electrical system, switch off all devices

and lights, disconnect the battery and disconnect the vehicle from the mains.

X Only use original fuses with the stipulated values. X Only replace defective fuses when the cause of the defect is known and

has been remedied.

X Never bridge or repair fuses.

X Water left standing in the water tank or in the water pipes becomes

undrinkable after a short period. For this reason, rinse the water pipes and the water tank thoroughly with several litres of fresh water before each use of the vehicle. To do this, open all water taps. After each use of the vehicle completely empty the water tank and the water pipes.

Z If the vehicle is not used for several days or if it is not heated when there is

a risk of frost, empty the entire water system. Leave the water taps on in central position. Leave the safety/drainage valve (if available) and all drain cocks open. Frost damage to appliances, frost damage to the vehicle and deposits in water-carrying components can be avoided in this way.

Page 18

18 Motorhome - 02/11-0 - GLO-MJ11-00EN

Safety

Page 19

19Motorhome - 02/11-0 - GLO-MJ11-00EN

Before the journey

4Before the journey

4.1 Payload

On loading, make sure that the payload's centre of gravity is as low as possible (directly above the floor of the vehicle). Otherwise this may affect the driving characteristics of the vehicle.

4.1.1 Terms

Maximum permissible

gross weight in a laden

condition

The maximum permissible gross weight in a laden condition is the weight that a vehicle may never exceed.

The maximum permissible overall weight in laden condition consists of the mass in ready-to-drive condition and of the payload.

The manufacturer has specified the maximum permissible gross weight in a laden condition in Field F.1 of the vehicle documents.

Mass in ready-to-drive

condition

The manufacturer specifies the mass in ready-to-drive conditions in Field G of the vehicle documents.

Payload The payload is made up as follows:

z Conventional load z Additional equipment z Personal equipment

Explanations of the individual components of the payload are contained in the following text.

Conventional load The conventional load is the weight specified by the manufacturer for the pas-

sengers. Conventional load means: 75 kg are calculated for every seat specified by the

manufacturer, regardless of how much the passengers actually weigh. The driver's seat is already included as part of the mass in ready-to-drive condition and must not be calculated as part of the conventional load.

The manufacturer specifies the number of seats in Field S.1 of the vehicle documents.

X Excessive payload and the wrong tyre pressure can cause the tyre to

burst. You can lose control of the vehicle.

X Adapt your speed to the payload. The stopping distance is longer when

the payload is higher.

Z The maximum permissible gross weight stated in the vehicle documents is

not to be exceeded by the payload.

Z Built-in accessories and special equipment reduce the payload. Z Adhere to the axle load stated in the vehicle documents.

Z In technical and scientific texts the term "mass" has replaced the term

"weight". However the term "weight" is still the more common term in general usage. To contribute toward understanding the term "mass" is therefore only used in established phrases in the following passages.

Page 20

20 Motorhome - 02/11-0 - GLO-MJ11-00EN

Before the journey

Additional equipment Additional equipment includes accessories and special equipment. Examples

of additional equipment include:

z Tow coupling z Roof racks z Awning z Bike or motorcycle rack z Satellite unit

Information about the weights of the various special equipment devices can be obtained from the manufacturer.

Personal equipment Personal equipment includes all items in the vehicle that are not included in

the conventional load and the additional equipment. For example, personal equipment can include the following:

z Foodstuffs z Crockery z Television z Radio z Clothes z Bedding z Toys z Books z Toiletries

No matter where kept, personal equipment also includes:

z Animals z Bikes z Boats z Surfboards z Sports equipment

4.1.2 Calculating the payload

The payload (see Section 4.1.1) is the difference in weight between

z Maximum permissible gross weight in a laden condition and z Vehicle mass complete in a ready-to-drive condition.

X Payload calculation at the manufacturer is partly based on all-inclusive

weights. For safety reasons, the maximum permissible gross weight in a laden condition must not be exceeded.

X Only the maximum permissible gross weight and the mass in a ready-to-

drive condition, not the actual weight of the vehicle, is stated in the vehicle documents. For your own safety, we recommend that you have your loaded vehicle (with passengers) weighed on a public weighbridge before you set out on your journey.

Page 21

21Motorhome - 02/11-0 - GLO-MJ11-00EN

Before the journey

The calculation of the payload from the difference between the maximum permissible gross weight in laden condition and the mass specified by the manufacturer in ready-to-drive condition is however only a theoretical value.

Only if the vehicle is weighed with full tanks (fuel and water), full gas bottles and complete additional equipment on a public weighbridge, can the actual payload be determined.

4.1.3 Loading the vehicle correctly

Mass in kg to be

calculated

Calculation

Example for calculating

the payload

Maximum permissible gross weight according to vehicle documents, Field F.1

3300

Vehicle mass in a ready-to-drive condition, including basic equipment according to vehicle documents, Field G

- 2720

This results in a permissible payload of

580

Conventional load, e.g. 3 persons at 75 kg each

- 225

Additional equipment - 40

For the personal equipment this results in

= 315

X To ensure safety never exceed the maximum permissible gross weight

in a laden condition.

X Distribute the load evenly between the left-hand and right-hand sides of

the vehicle.

X Distribute the load evenly between both axles. Observe the axle loads

specified in the vehicle documents. Additionally observe the permissible load-carrying capacity of the tyres.

X Securely store all the objects so that they cannot slide or slip. X Store heavy objects (awning, canned food, etc.) close to the axles. Low-

lying storage compartments whose doors do not open in the direction of travel are particularly suited for storing heavy objects.

X Store lighter objects (laundry) in the roof storage compartments.

Page 22

22 Motorhome - 02/11-0 - GLO-MJ11-00EN

Before the journey

4.2 Entrance step

4.2.1 Electrically operated entrance step

Operating switch The switch to operate the entrance step is located on the inside of the vehicle

in the area of the conversion door.

Extending:  Press the rocker switch (Fig. 1,1) down until the entrance step has

extended completely.

Retracting:  Press the rocker switch (Fig. 1,1) up until the entrance step has retracted

completely.

4.3 Television

X Before starting the journey and also after short breaks check whether the

entrance step has been retracted completely.

X Do not stand in the direct range of movement of the entrance step while

the entrance step is being extended or retracted.

X Do not step on the entrance step until it has extended completely. There

is a risk of injury!

X Never raise or lower persons or loads with the entrance step.

Z Clean dust and dirt regularly from the entrance step, do not grease or oil

moving parts.

Fig. 1 Operating switch entrance

step

X Before starting your journey, remove the television from the support and

store it securely.

Page 23

23Motorhome - 02/11-0 - GLO-MJ11-00EN

Before the journey

4.4 Road safety

Before commencing the journey, work through the checklist:

X Check the tyre pressure before a journey and at 2-week intervals. Wrong

tyre pressure causes excessive wear and can lead to damage or even to tyre burst. You can lose control of the vehicle.

No. Checks Checked

Base vehicle

1 All vehicle documents are on board

2 Tyres in proper condition

3 Vehicle lighting, brake and reversing lights function

4 Oil level at engine, gear unit and power steering checked

5 Coolant and liquid for windshield washer system topped up

6 Breaks function

7 Brakes react evenly

8 When braking, the vehicle remains on track

Housing body, outside

9 Awning completely retracted

10 Roof free of snow and ice (in winter)

11 External connections and lines disconnected and stored away

12 Pop-up roof folded in

13 Entrance step retracted

14 External flaps and doors closed and locked

15 Overall height of the vehicle including roof rack when loaded

measured and noted. Keep the height information close at hand in the driver's cabin

Housing body, inside

16 Windows and skylights closed and locked

17 Television securely stored

18 Television antenna retracted (if one is built in)

19 Loose parts stored away or fixed in position

20 Open storage spaces empty

21 Refrigerator door secured

22 Refrigerator set to 12 V operation

23 All drawers and flaps closed

24 Living area doors secured

25 Children's seats mounted to seats with three-point safety belts

26 Swivel seat locking device for driver's seat and front passen-

ger's seat locked

27 Curtains hooked into the retaining clips

28 Shades in the driver's cabin opened and secured

Page 24

24 Motorhome - 02/11-0 - GLO-MJ11-00EN

Before the journey

Gas system

29 Gas bottles firmly fixed in the gas bottle compartment so that

they are unable to turn

30 Protective cap set on top of the gas bottle

31 Regulator tap on the gas bottle and gas isolator taps are

closed

Electrical system

32 Check the battery voltage of the starter battery and the living

area battery (see Chapter 9). If the panel indicates that the battery voltage is too low, the respective battery has to be recharged. Observe the instructions in Chapter 9

Z Commence the journey with a fully charged starter

battery and living area battery.

No. Checks Checked

Page 25

25Motorhome - 02/11-0 - GLO-MJ11-00EN

During the journey

5During the journey

5.1 Driving the motorhome

5.2 Driving speed

X The base vehicle is a commercial vehicle (small truck). Adapt your

manner of driving correspondingly.

X Before starting the journey and also after short breaks check whether the

entrance step has been retracted completely.

X Always wear a seat belt during the journey at those seats where a seat

belt is mounted.

X Never open the seat belt during the journey. X Passengers must remain in the seats provided. X The door lock may not be opened. X Avoid braking suddenly. X Only change the destination on the navigation system when the vehicle

is at a standstill. Drive to a car park or stop in a safe area when changing the destination.

X Do not play a DVD on the monitor of the navigation system during the

journey.

Z Drive slowly on bad roads.

Z If an accident occurs as a result of these instructions not being observed,

the manufacturer will not be responsible for damages caused.

Z The safety measures specified in Chapter 3 have to be observed.

X The vehicle is equipped with a powerful engine. Meaning that you have

sufficient power reserves in difficult traffic situations. This high power allows a high end speed and requires above-average driving skills.

X The vehicle provides a huge surface exposed to wind. Particular danger

arises when a side wind suddenly occurs.

X Uneven or one-sided loading changes the road behavior. X On unknown roads the road surface conditions may be difficult and

unexpected traffic situations may arise. Therefore adapt your driving speed to the respective traffic situation and the ambient situation for your safety.

X Observe the statutory speed limits that apply in the respective country.

Z The skylights and windows are not designed for high speeds. Excessive

speeds can result in noise development that is too high.

Page 26

26 Motorhome - 02/11-0 - GLO-MJ11-00EN

During the journey

5.3 Seat belts

The vehicle is equipped with automatic three-point seat belts at those seats in the living area for which a seat belt is stipulated by law. The corresponding national regulations apply for using a seat belt.

5.3.1 Using the safety belt correctly

The safety belt is applied correctly when a fist still fits between your body and a safety belt.

5.4 Driver's seat and front passenger's seat

X Before starting the journey fasten your seat belt and keep it fastened

during the journey.

X Do not damage or clamp in the belts. Have damaged seat belts replaced

by an authorised specialist workshop.

X Do not change the belt attachment points, the automatic retractor and

the belt locks.

X Check the screwed connections of the seat belts at intervals in order to

ensure that they are firmly seated.

X Use each seat belt for one adult person only. X Do not belt up objects together with persons. X Seat belts are not sufficient for persons who are less than 150 cm tall. In

this case use additional retention devices. Observe the test certificates.

X Factory-set three-point safety belts must be used when attaching child

restraint systems.

X Replace (have replaced) the seat belts that were in use during an acci-

dent.

X Do not tilt the backrest of the seat too far back during the journey. Oth-

erwise the effectiveness of the seat belt is no longer ensured.

X Do not twist the belt. The belt must be positioned smoothly against the

body.

X Before applying the seat belt, adopt the correct sitting position.

X Before starting the journey, rotate the seat in the direction of travel and

lock in position.

X Lock the seats in the direction of travel and do not turn them during the

journey.

Z The driver's and front passenger's seat are a part of the base vehicle,

depending on model and vehicle equipment. In this case the adjustment of the seats is described in the operating instructions of the base vehicle.

Page 27

27Motorhome - 02/11-0 - GLO-MJ11-00EN

During the journey

5.4.1 Seats (Aguti)

Rotating seats into

driving position

The seats can be rotated in any direction. The seats can only be locked in position in the direction of travel.

 Push both armrests upward.  Push the driver's seat/front passenger's seat backwards or into the central

position.

 Rotate the seat in the direction of travel and lock in position.

Adjusting the armrest The height of the armrests is infinitely adjustable.

 Turn the knurled wheel (Fig. 2,2) in an anticlockwise direction (when

viewed from the front). The latch of the armrest is released by this.

 Move the armrest to the desired position.  Turn the knurled wheel as far as possible in a clockwise direction.

Adjusting an appropriate

seating position

The position of the driver's and front passenger's seats can be adjusted. The handles which are required for this purpose are positioned to the front, right or left of the seat.

 Pull the handle (Fig. 2,1). The seat can be moved forward or backward.  Turn the knurled knob (Fig. 2,4). The angle of the backrest can be

adjusted.

Fig. 2 Driver's and front passenger's

seats (Aguti)

1 Lengthways adjustment 2 Armrest adjustment 3 Rotating 4 Backrest adjustment

Z Rotating the seats in the stationary vehicle is described in Chapter 7. Z Move the seats all the way down or forward before turning. Otherwise, the

seats cannot be turned.

Page 28

28 Motorhome - 02/11-0 - GLO-MJ11-00EN

During the journey

Adjusting the seat height Depending on the model, the height of the seat is infinitely adjustable.

 Pull the lever (Fig. 3,1) upwards.  Take pressure off or apply pressure to seat. The seat moves up or down.  Release lever when the desired position is reached. The seat is locked.

5.4.2 Seats (ISRI)

Rotating seats into

driving position

The seats can be rotated in any direction. The seats can only be locked in position in the direction of travel.

 Push both armrests upward.  Push the driver's seat/front passenger's seat backwards or into the central

position.

 Rotate the seat in the direction of travel and lock in position.

Adjusting the armrest The height of the armrests is infinitely adjustable.

 For ease in handling, first move the armrest slightly upward.  For fine adjustments, turn the handwheel (Fig. 4,1) upwards or downwards.

Fig. 3 Seat height adjustment

Fig. 4 Driver's and front passenger's

seats (ISRI)

1 Armrest adjustment 2 Lengthways adjustment 3 Height adjustment 4 Rotating 5 Backrest adjustment

Z Rotating the seats in the stationary vehicle is described in Chapter 7.

Page 29

29Motorhome - 02/11-0 - GLO-MJ11-00EN

During the journey

Adjusting an appropriate

seating position

Both the height and the position of the driver's and front passenger's seats can be adjusted. The handles which are required for this purpose are positioned to the front, right or left of the seat.

 Pull the handle (Fig. 4,2). The seat can be moved forward or backward.  Pull the handle (Fig. 4,5). The angle of the backrest can be adjusted.  Pull the handle (Fig. 4,3). The seat can be lifted or lowered toward the front.

5.5 Seating arrangement

Seats which may be used during travel are equipped with a sticker (Fig. 5).

5.6 External doors

X The backrest is under strong spring tension. If there is no resistance to

the backrest, it quickly moves forward after unlocking.

Z If the backrest quickly moves forward uncontrolled it can damage the seat-

belt lock.

X During the journey, persons are only to sit on the permitted seats. The

authorised number of seats is stipulated in the vehicle documents.

X Sitting on the divans is forbidden during the journey. X Wearing of seat belts is compulsory at all seats.

Fig. 5 "Seat" symbol

X Only drive with the external doors locked.

Z Locking the doors can prevent them from opening of their own accord, e.g.

during an accident.

Z Locked doors also prevent forced entry, e.g. when waiting at a set of traffic

lights. However, in an emergency, locked doors make it more difficult for helpers to enter the vehicle.

Z When leaving the vehicle, always lock the doors. Z The doors are part of the base vehicle. The opening and closing of the

doors is described in the instruction manual of the base vehicle.

Page 30

30 Motorhome - 02/11-0 - GLO-MJ11-00EN

During the journey

5.7 Filling up with diesel

Refer to the instruction manual for the base vehicle for the position of the fuel filler neck.

X No appliance (e.g. heating or refrigerator) that is operated through the

built-in burner may be operational while fuel is being filled up, on ferries or in the garage. Danger of explosion!

Page 31

31Motorhome - 02/11-0 - GLO-MJ11-00EN

Pitching the motorhome

6Pitching the motorhome

6.1 Handbrake

Firmly apply the handbrake when parking the vehicle.

6.2 Entrance step

In order to exit the vehicle, first fully extend the entrance step.

6.3 230 V connection

The vehicle can be connected to a 230 V power supply (see Chapter 9).

6.4 Refrigerator

6.4.1 Absorption refrigerator

12 V operation of the refrigerator is only possible when the vehicle engine is running. If the vehicle engine is switched off, set the refrigerator to 230 V operation or gas operation.

6.4.2 Compressor refrigerator

The refrigerator only functions in 12 V operation.

Z An applied handbrake can prevent the driver's seat from turning. If neces-

sary release the handbrake briefly.

Page 32

32 Motorhome - 02/11-0 - GLO-MJ11-00EN

Pitching the motorhome

Page 33

33Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7Living

7.1 External flaps

The external flaps fitted to the vehicle are all fitted with identical locking cylinders. Therefore, all locks can be opened with a single key.

7.1.1 Flap for 230 V connection, square

Opening:  Grip into the recessed grip (Fig. 6,2) at the external flap (Fig. 6,1) and lift

the external flap upwards.

Closing:

 Lower the external flap downward and press it shut.

Z Before commencing the journey, close all external flaps and lock them.

Z When leaving the vehicle, close all external flaps.

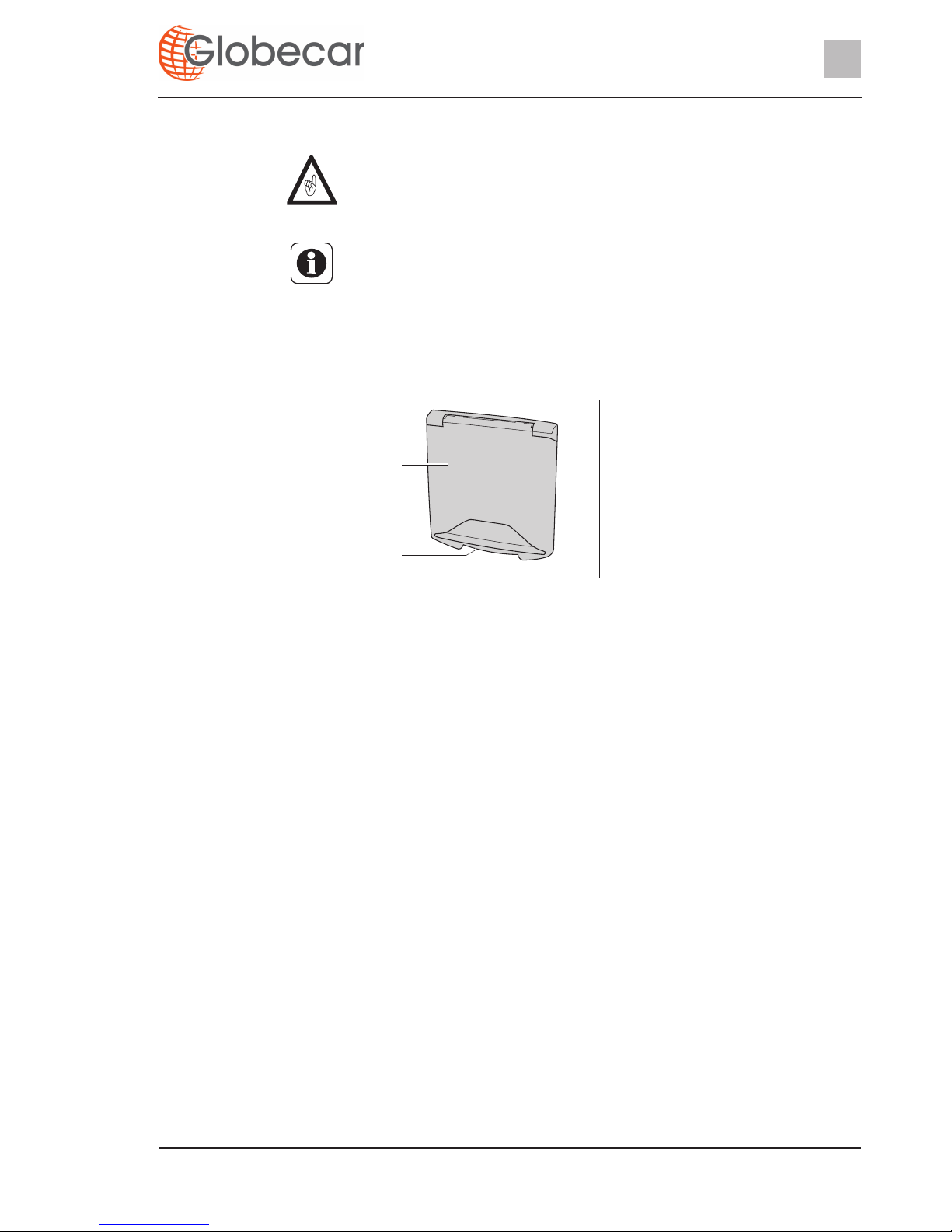

Fig. 6 Flap for 230 V connection

1 External flap 2 Recessed grip

Page 34

34 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.1.2 External flap Thetford cassette

Opening:  Insert the key into the locking cylinder of the push-button lock (Fig. 7,1) and

turn a quarter turn.

 Remove the key.  Press both push-button locks (Fig. 7,1 and 2) simultaneously with your

thumb and open the external flap.

Closing:

 Close the external flap and press it shut.  Insert the key into the locking cylinder (Fig. 7,1) and turn a quarter turn.  Remove the key.

7.1.3 Cap for the fresh water filler neck

Opening:  Insert the key in the locking cylinder (Fig. 9,2) and turn it in an anticlockwise

direction.

 Remove the cap.

Z Do not let the external flap fall closed in order to avoid damage.

Fig. 7 External flap Thetford cassette Fig. 8 External flap Thetford

cassette 2

2 1

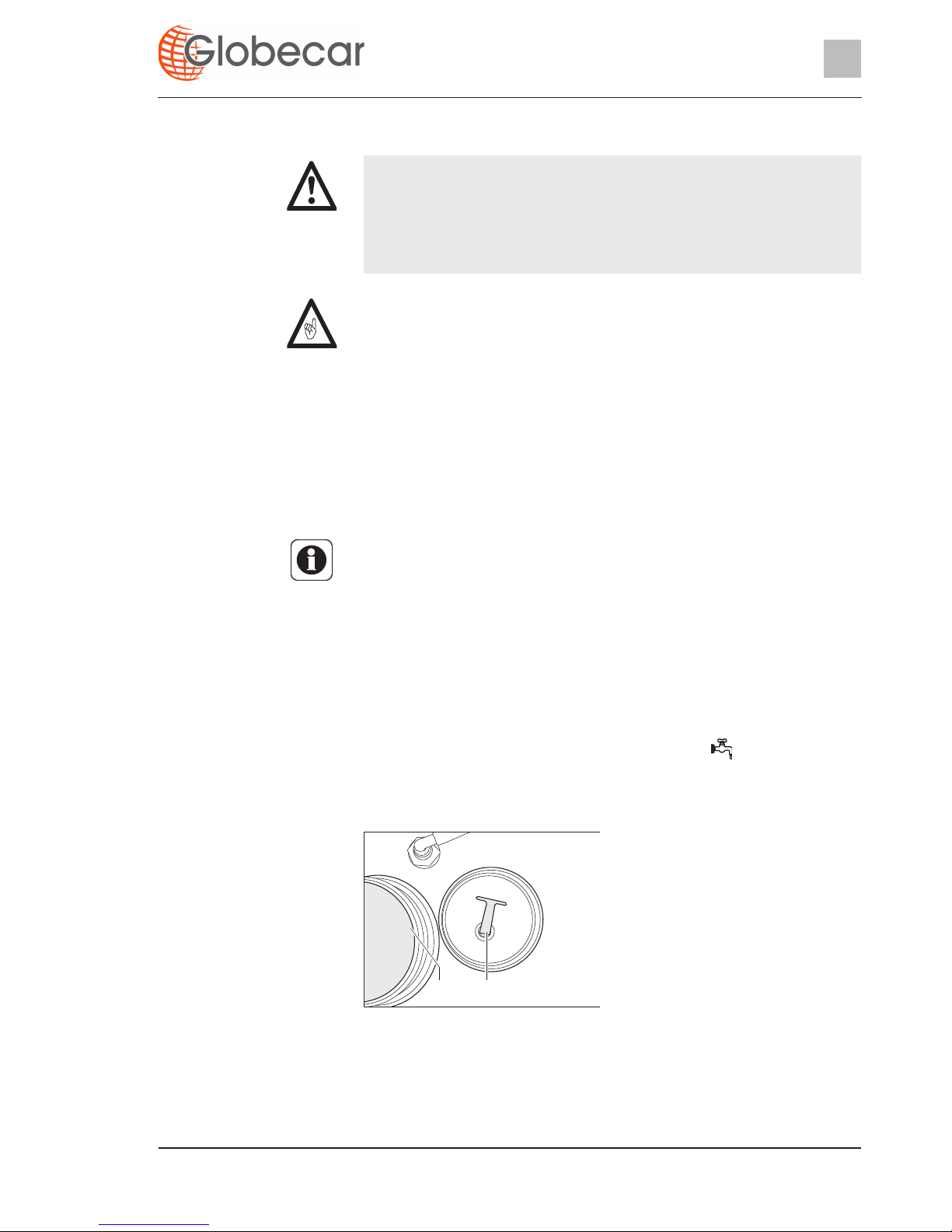

Fig. 9 Cap for the fresh water filler

neck

Z The fresh water filler neck is identified by the symbol ( )" (Fig. 9,1) or the

word "WASSER" ("WATER").

Page 35

35Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

Closing:  Insert the cap in the fresh water filler neck.

 Turn key clockwise.  Remove the key.

7.2 Ventilation

Condensation Ensure that there is a continuous exchange of air by providing frequent and

efficient ventilation. This is the only method for ensuring that condensation is not formed during cool weather. During the colder season, a pleasant living climate is created if heating output, air distribution and ventilation are synchronised. To avoid draft close the air outlet nozzles on the dashboard and set the air distribution of the base vehicle to air circulation. If the vehicle is laid up for a longer period, occasionally ventilate it well, especially in summer as heat accumulation can occur.

7.3 Windows

X The oxygen in the vehicle interior is used up by breathing and the use of

levels.

Z Although sufficient ventilation is provided, in certain weather conditions,

condensation can form on metal objects (e.g. screwed connections in the floor).

Z Additional cold spots can occur at thermal "bridges" (e.g. mushroom-

shaped vents, skylight edges, sockets, filler necks, flaps, etc.).

Z The windows are fitted with a blind and a roller insect screen. Z If the blind is completely closed, exposure to direct sunlight can cause heat

to accumulate between the blind and the glass window. The window could be damaged. For that reason, close the blind only 2/3 of the way in direct sunlight.

Z Before commencing the journey, close the windows. Z Close and lock the hinged windows at the sliding door and behind the

sliding door before using the sliding door.

Z Open the blinds at the hinged window at the sliding door before using the

sliding door.

Z Depending on the weather, close the windows far enough to prevent mois-

ture from entering.

Z To open and close the hinged windows, open or close all catch levers

which are fitted to the hinged window.

Page 36

36 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.3.1 Hinged window with rotary hinges

Opening:  Turn the catch lever (Fig. 10,3) a quarter turn towards the centre of the

window.

 Open the hinged window until the required position has been reached and

secure in position using the knurled knob (Fig. 11,1).

The hinged window remains locked in the required position.

Closing:

 Turn the knurled knob (Fig. 11,1) until the latch is released.  Close the hinged window.  Turn the catch lever (Fig. 10,3) a quarter turn towards the window frame.

The locking catch (Fig. 10,2) is located on the inside of the window catch (Fig. 10,1).

Z When leaving the vehicle, always close the windows. Z In case of strong temperature differences or in extreme weather conditions,

light condensation can form on the double-glazed acrylic glass. The glass is designed in such a way that condensation can evaporate when the external temperature increases. There is no danger of the double-glazed acrylic glass being damaged by condensation.

Z Set all the catch levers mounted on the hinged window to the same position

in order to avoid tensions in the window.

Z When opening the hinged windows, ensure that there are no torsional

forces. Open and close the hinged windows evenly.

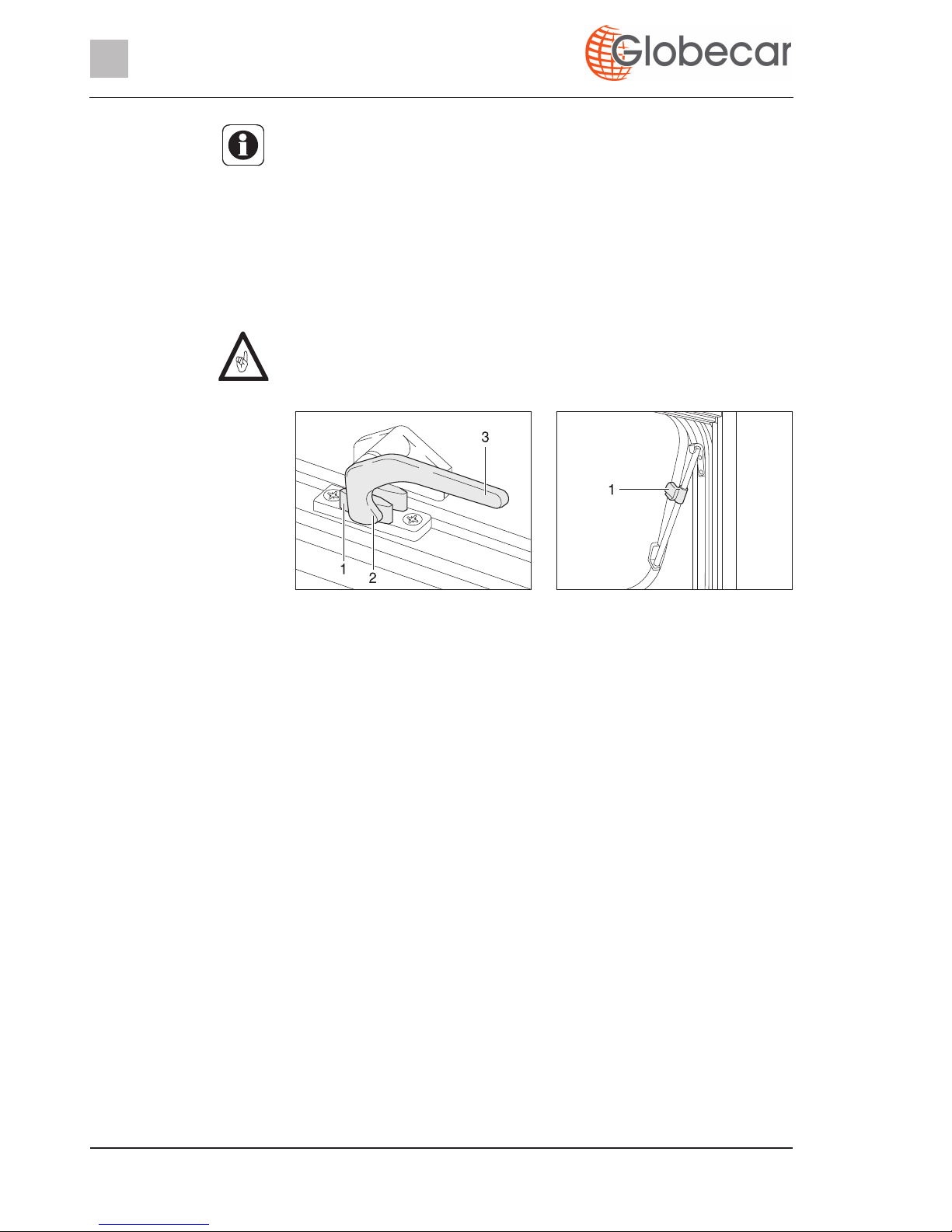

Fig. 10 Catch lever in "closed" position Fig. 11 Hinged window with rotary

hinges, open

Page 37

37Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

Continuous ventilation With the catch lever, the hinged window can be placed in two positions:

z "Continuous ventilation" (Fig. 12) z "Firmly closed" (Fig. 10)

To place the hinged window into the "continuous ventilation" position:

 Turn the catch lever (Fig. 12,3) a quarter turn towards the centre of the

window.

 Lightly open the hinged window outwards.  Return the catch lever to its initial position. The locking catch (Fig. 12,2)

has to be moved into the recess of window catch (Fig. 12,1).

During the journey, the hinged window may not be in the "continuous ventilation" position.

If it rains, the "continuous ventilation" hinged window position could lead to splashing water penetrating the living area. Therefore, close the hinged windows completely.

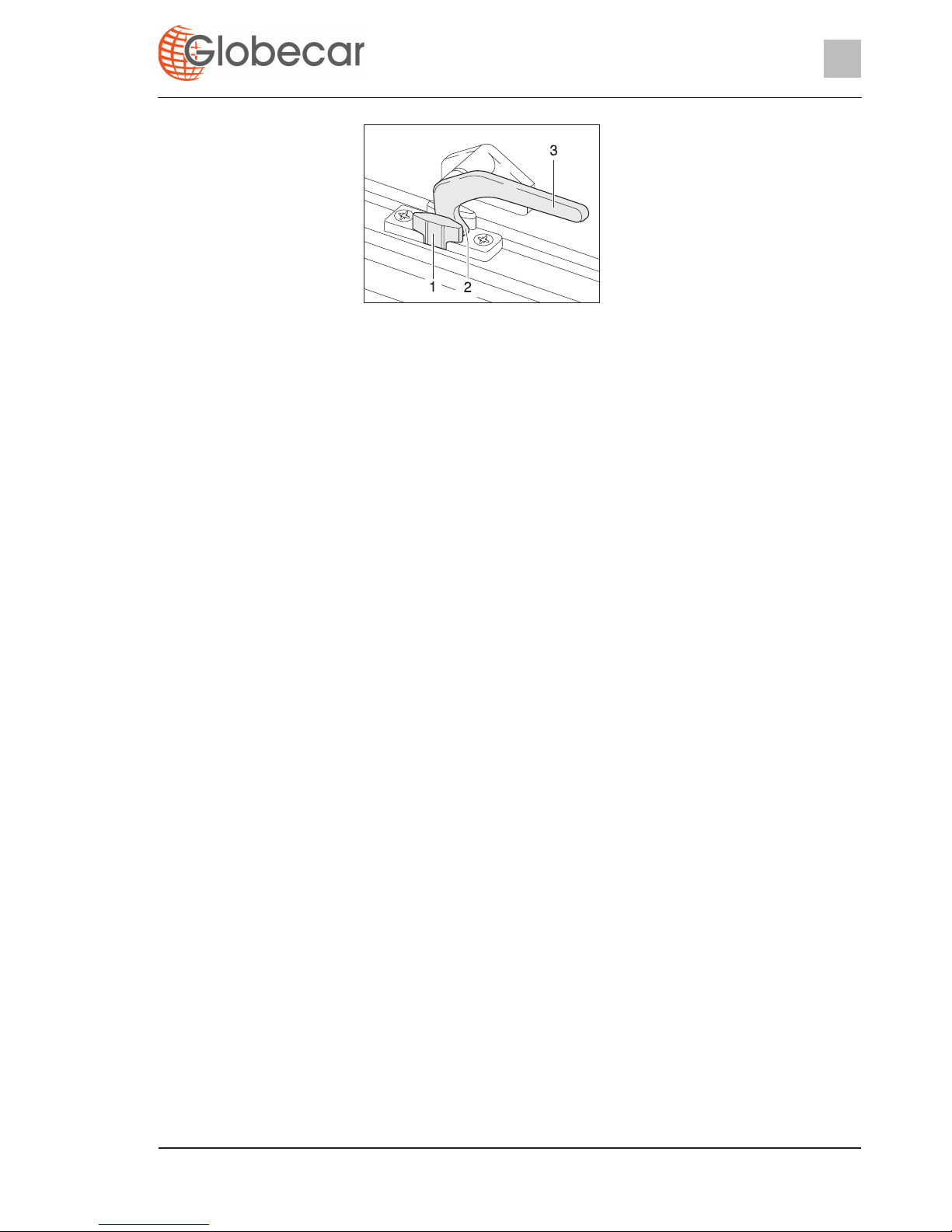

Fig. 12 Catch lever in the "continuous

ventilation" position

Page 38

38 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.3.2 Hinged window with automatic hinges

Opening:  Turn the catch lever (Fig. 13,3) a quarter turn towards the centre of the

window.

 Open the hinged window to the desired latched position. The automatic

hinge (Fig. 14,1) locks in place automatically.

The hinged window remains locked in the required position.

Closing:

 Open the hinged window as wide as necessary until the latch releases.  Close the hinged window.  Turn the catch lever (Fig. 13,3) a quarter turn towards the window frame.

The locking catch (Fig. 13,2) is located on the inside of the window catch (Fig. 13,1).

Continuous ventilation With the catch lever, the hinged window can be placed in two positions:

z "Continuous ventilation" (Fig. 15) z "Firmly closed" (Fig. 13).

Z Open the window completely in order to unblock the locking device. If the

locking device is not unblocked and the window is closed nevertheless, there is the danger of the window being torn due to the massive counterpressure.

Z When opening the hinged windows, ensure that there are no torsional

forces. Open and close the hinged windows evenly.

Fig. 13 Catch lever in "closed" position Fig. 14 Hinged window with automatic

hinges, open

Fig. 15 Catch lever in the "continuous

ventilation" position

Page 39

39Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

To place the hinged window into the "continuous ventilation" position:

 Turn the catch lever (Fig. 15,3) a quarter turn towards the centre of the

window.

 Lightly open the hinged window outwards.  Turn the catch lever a quarter turn towards the window frame. The locking

catch (Fig. 15,2) has to be moved into the recess of window catch (Fig. 15,1).

During the journey, the hinged window may not be in the "continuous ventilation" position.

If it rains, the "continuous ventilation" hinged window position could lead to splashing water penetrating the living area. Therefore, close the hinged windows completely.

7.3.3 Sliding window without lock

Opening:  Press the handle (Fig. 16,1) and push or pull it forwards or backwards at

the same time.

 Open window half up to the required position.

Closing:  Close the window as far as possible and let the handle lock in place.

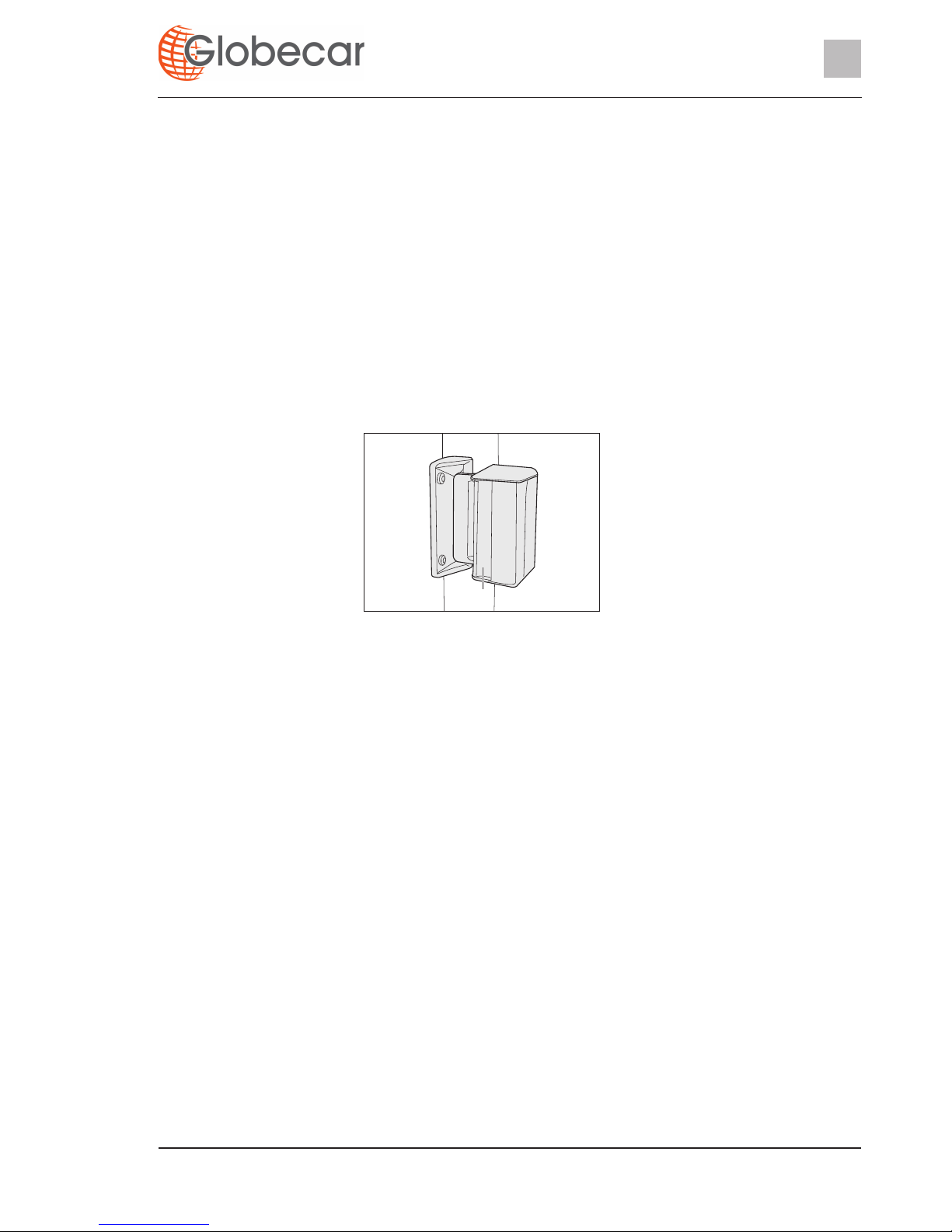

Fig. 16 Sliding window

Page 40

40 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.3.4 Blind and roller insect screen

The windows are fitted with a blind and a roller insect screen. The blind and insect screen can be adjusted separately.

Blind

Closing:

 Grip into the notch (Fig. 17,2) and pull the blind from the top downwards as

far as wished.

Opening:

 Grip into the notch (Fig. 17,2) and push the blind upwards.

Roller insect screen

Closing:  Use the handle (Fig. 17,1) to pull the roller insect screen downwards.

Opening:

 Use the handle (Fig. 17,1) to push the roller insect screen upwards.

7.3.5 Roman shades for driver's window and front passenger's window

Closing:  Press the locking mechanism (Fig. 19,1) together and lift it slightly.

 Close the Roman shades for the driver's window and the front passenger's

window.

Opening:

 Open the Roman shade for the driver's window and the front passenger's

window and slide the locking mechanism into the notch.

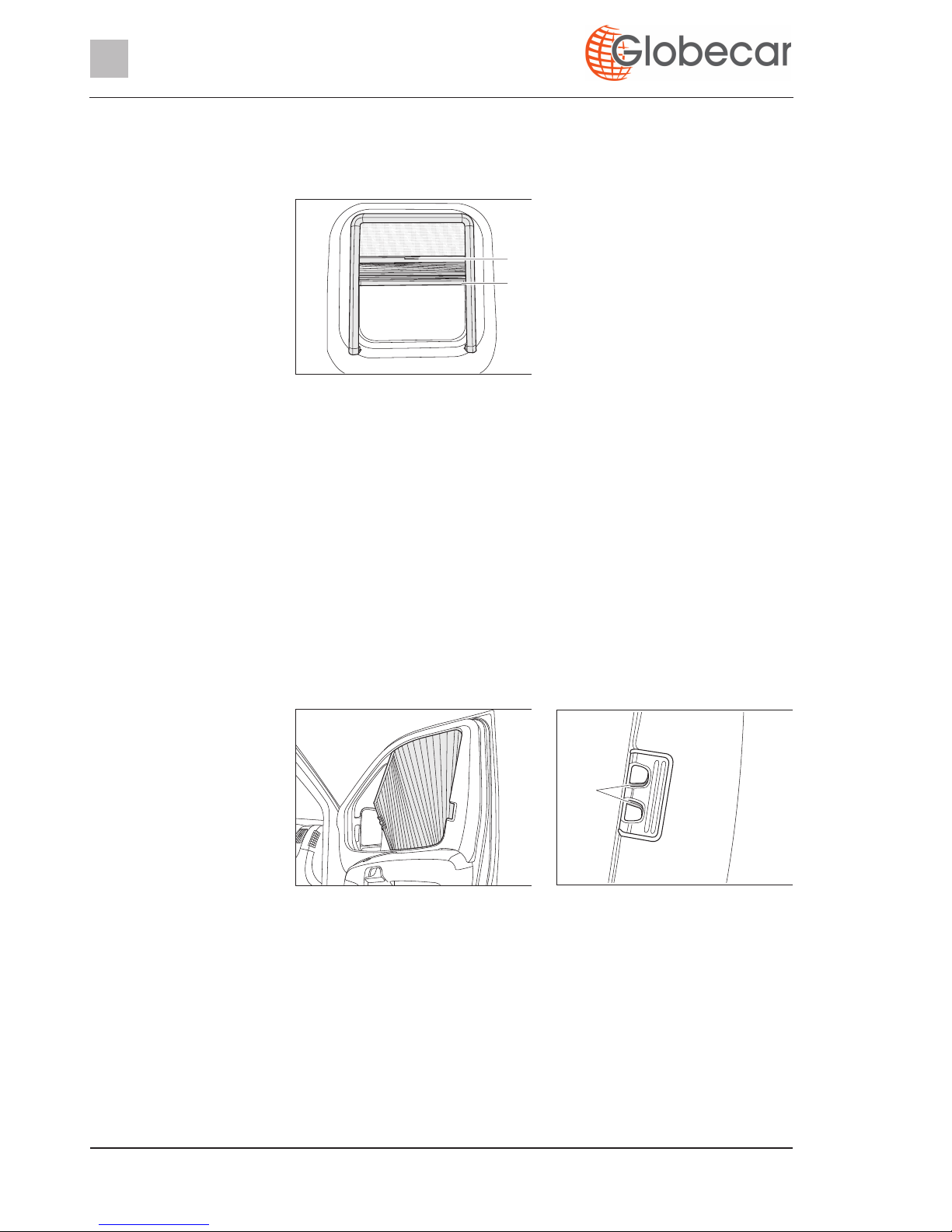

Fig. 17 Hinged window

Fig. 18 Roman shades on driver's/

front passenger's windows

Fig. 19 Roman shade, locking mecha-

nism

Page 41

41Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.3.6 Blind for the windscreen

Closing:  Fold down the sun visors.

 Pull the blind (Fig. 20,2) upwards and hook into the sun visors using the

hooks (Fig. 20,1).

Opening:

 Release the blind (Fig. 20,2) from the sun visor.  Fold the sun visors upwards.

7.4 Skylights

Fig. 20 Blind for the windscreen

1 2

X The apertures for forced ventilation must always be kept open. Never

cover or block forced ventilations with objects such as e.g. a winter mat. Keep forced ventilations clear of snow and leaves.

Z The skylights are fitted with a blind or Roman shade and with a roller insect

screen or folding insect screen. After the latch has been released, the blind and roller insect screen automatically spring back to the initial position by tensile force. In order not to damage the tension mechanics, hold onto the blind or roller insect screen and allow it to slowly return to the initial position. The Roman shade and folding insect screen are made of thin woven fabric. In order not to damage the Roman shade or the insect screen, grasp the respective handle and carefully return it to the initial position.

Z If the blind or the Roman shade is completely closed, exposure to direct

sunlight can cause heat to accumulate between the blind/the Roman shade and the skylight. The skylight could be damaged. For that reason, close the blind/Roman shade only 2/3 of the way in direct sunlight. Open the skylight slightly or move it to ventilation position.

Z Depending on the weather, close the skylights far enough to prevent mois-

ture from entering.

Z Never step on the skylights. Z Before commencing the journey, close the skylights. Z Before commencing the journey, check that the skylights are closed and

locked.

Z Before commencing the journey, open the blinds or Roman shades.

Z When leaving the vehicle, always close the skylights.

Page 42

42 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.4.1 Skylight with snap latch

The skylight can be pushed upwards either from one side or from both sides.

Opening:

 Pull down the insect screen (Fig. 21,2) with the handle (Fig. 21,1). The

insect screen folds down.

 Push the skylight upwards using both handles (Fig. 21,3).  Fold the insect screen upward and latch it in at the frame (Fig. 21,4).

Closing:  Pull down the insect screen (Fig. 21,2) with the handle (Fig. 21,1). The

insect screen folds down.

 Pull the skylight downwards with force using both handles (Fig. 21,3).  Fold the insect screen upward and latch it in at the frame (Fig. 21,4).

7.4.2 Hinged skylight

The hinged skylight is opened on one side only.

Opening:

 Press the safety knob (Fig. 22,2) and pull the bar (Fig. 22,1) down with both

hands.

 Pull the bar (Fig. 23,1) in the guides (Fig. 23,2) to the rearmost position

(Fig. 23,3).

Fig. 21 Skylight with snap latch

Z If it rains, the ventilation skylight position could lead to water entering the

living area. Therefore close hinged skylight completely.

Fig. 22 Securing knob at the hinged

skylight

Fig. 23 Hinged skylight, guide

1 2 3

Page 43

43Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

Closing:  Use both hands to push the bar (Fig. 23,1) slightly upwards.

 Push the bar back in the guides.  Push the bar upwards with both hands until it is above the safety knob

(Fig. 22,2).

Ventilation position The hinged skylight can be put in two ventilation positions: Bad weather posi-

tion (Fig. 24,1) and central position (Fig. 24,2). Depending on the model, the skylight can be locked in the central position with the latch (Fig. 25,1).

 Press the safety knob (Fig. 22,2) and pull the bar (Fig. 22,1) down with both

hands.

 Pull the bar in the guides (Fig. 23,2) to the desired position.  Push the bar slightly upwards and into the selected guide (Fig. 24,1 or 2)

and lock if necessary.

Roman shade To close and open the Roman shade:

Closing:

 Pull out Roman shade at the handle and release in the required position.

The Roman shade will stay in that position.

Opening:  Slowly push the Roman shade at the handle to its initial position.

Insect screen To close and open the insect screen:

Closing:  Pull the insect screen by the handle to the opposite handle of the Roman

shade.

Opening:

 Press the rear part of the handle of the insect screen. The latch is released.  Use handle to return the insect screen slowly to its initial position.

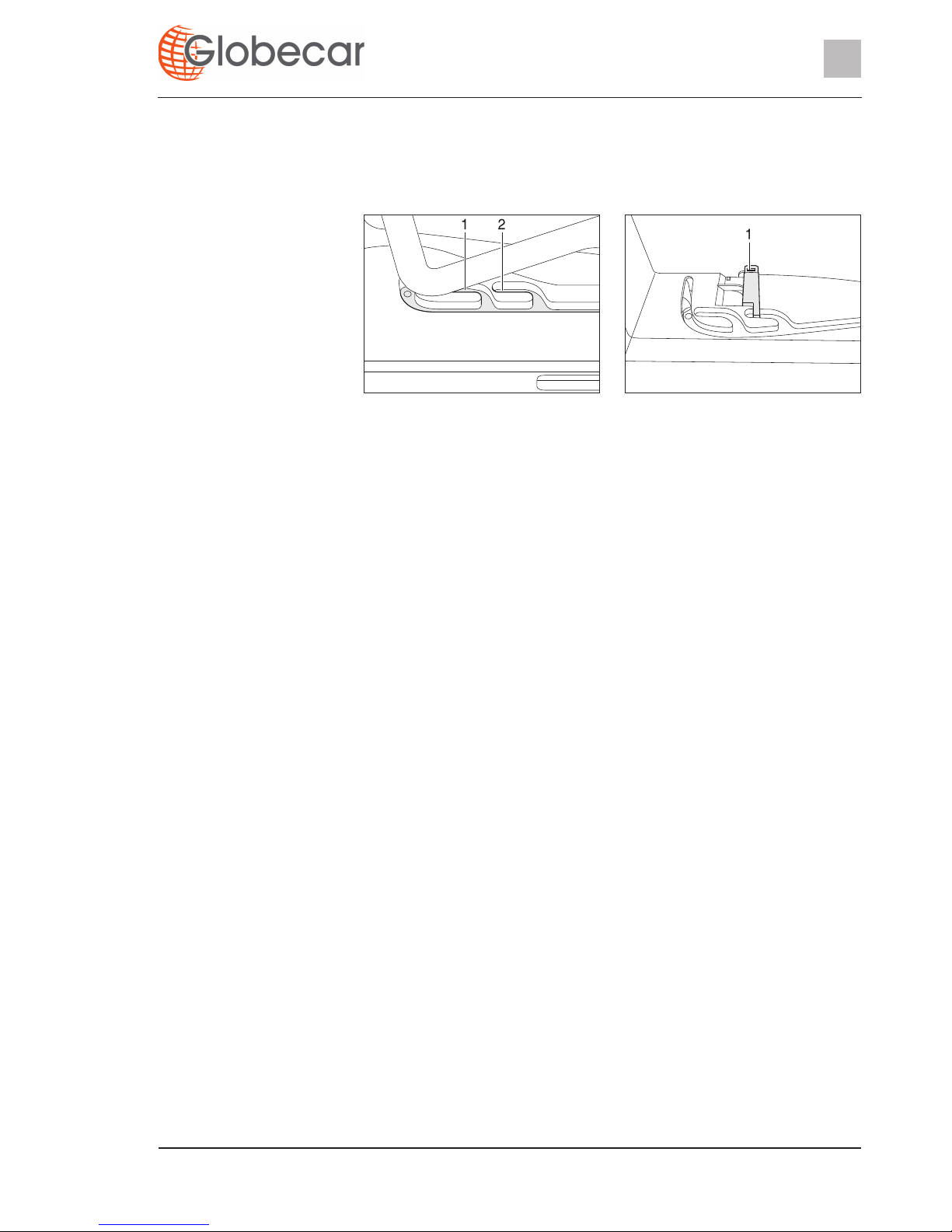

Fig. 24 Hinged skylight in ventilation

position

Fig. 25 Locking mechanism in ventila-

tion position

Page 44

44 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.4.3 Wind-up skylight

The wind-up skylight can be opened using the manual crank.

Opening:  Rotate the hand crank (Fig. 26,2) until a resistance can be felt (max.

opening angle 70°).

Closing:

 Rotate the hand crank until the wind-up skylight is closed. The wind-up sky-

light can be locked after rotating two or three more times.

 Check the locking mechanism. To do so, press your hand against the

acrylic glass.

Roman shade The Roman shade can be closed in any position, as desired. If the Roman

shade is locked with the insect screen, the insect screen is also moved along on closing the Roman shade.

Closing:

 Pull the handle of the Roman shade (Fig. 26,3) and release in the desired

position. The Roman shade will stay in that position.

Opening:

 Slowly push the Roman shade at the handle to its initial position.

Insect screen If the insect screen is locked with the Roman shade, the Roman shade is also

moved along on closing the insect screen.

Closing:  Pull insect screen at the handle (Fig. 26,1) to the opposite handle of the

Roman shade (Fig. 26,3) and allow to engage.

Opening:  Press the handle of the insect screen (Fig. 26,1) at the back upwards and

detach the insect screen from the Roman shade (Fig. 26,3).

 Slowly push insect screen at the handle to its initial position.

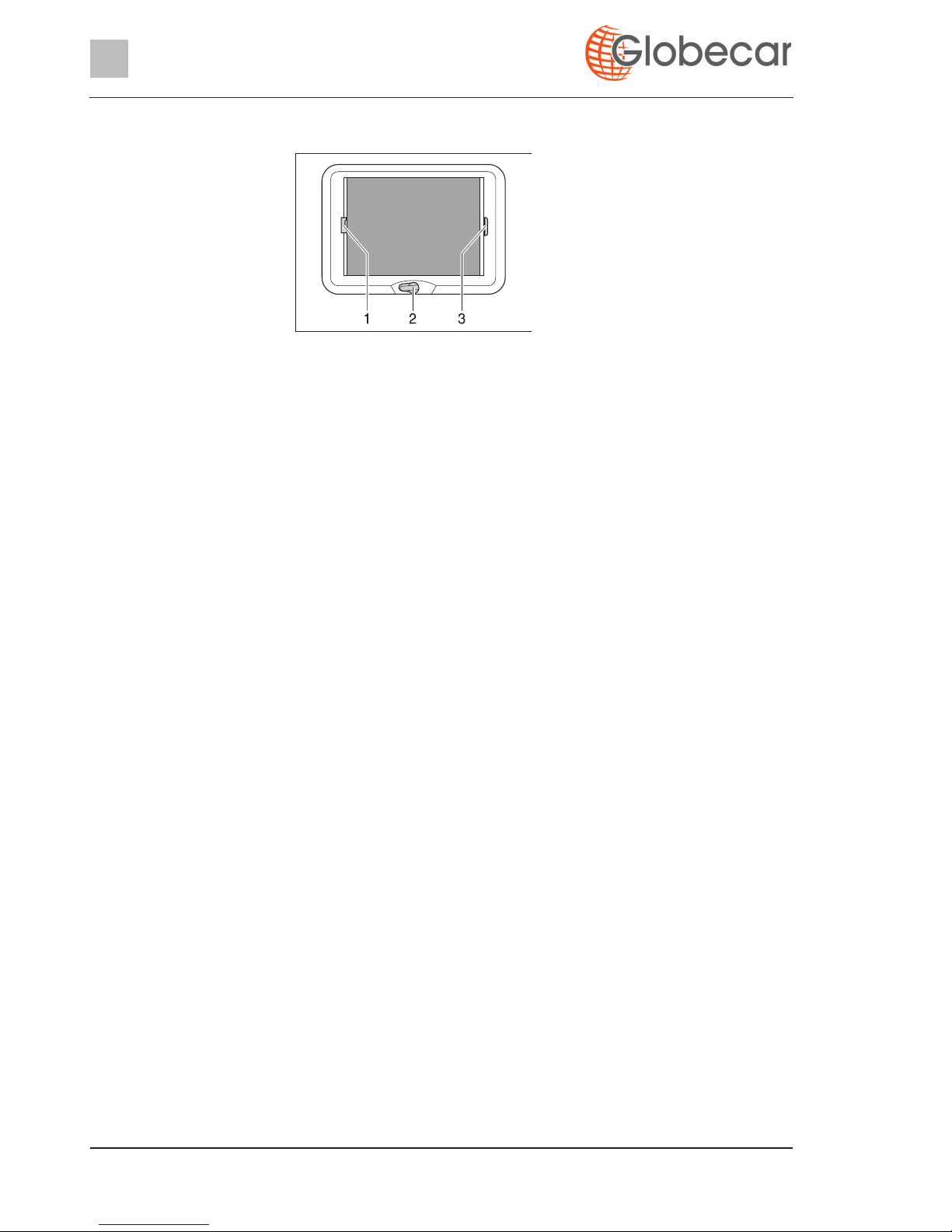

Fig. 26 Wind-up skylight

Page 45

45Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.4.4 Multifunction skylight

The multifunction skylight can be opened in various positions.

Opening:  Grip one handle (Fig. 27,3) with one hand respectively and bring the multi-

function skylight into the desired position.

 When the multifunction skylight is opened upwards, press the locks

(Fig. 27,2) and slide the multifunction skylight at the handles to the rear.

Blind To close and open the blind:

Closing:  Press the red release knobs at the handle (Fig. 27,1) together and pull the

blind to the desired position using the handle.

 Release the handle. The blind will stay in that position.

Opening:  Press the red release knobs at the handle (Fig. 27,1) together. The latch is

released.

 Use handle to return the blind slowly to its initial position.

Z Do not stand on the acrylic glass of the multifunction skylight. Z Before commencing the journey, check that the multifunction skylight is

closed and locked.

Z The multifunction skylight is not to be opened or closed during the journey. Z The multifunction skylight may only be handled with both hands on the

grips.

Fig. 27 Multifunction skylight Fig. 28 Multifunction skylight blind

locking mechanism

Fig. 29 Positions of the multifunction skylight

1 2 23 43

1 2

Page 46

46 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

Roller insect screen To close and open the roller insect screen:

Closing:

 Pull the roller insect screen at the handle (Fig. 27,4) to the opposite handle

of the blind (Fig. 27,1) and allow to engage.

Opening:  Hold the roller insect screen at the handle (Fig. 28,2) and press the

unlocking bar (Fig. 28,1) at the handle. The lock is released.

 Use handle to return the roller insect screen slowly to its initial position.

7.5 Rotating the seats

Depending on the model, the lever for turning the seats is located at the front of the seat or on the left or right side.

Turning:  Push the armrests at the driver's/front passenger's seat upward.

 Push the driver's seat/front passenger's seat backwards or into the central

position.

 Push or pull the lever (Fig. 30,3 or Fig. 31,4) to turn the seat. The seat is

released from the locking device.

The seats can be rotated in any direction. The seats can only be locked in position in the direction of travel.

X Before starting the journey, rotate the seat in the direction of travel and

lock in position. The rotating seats must remain locked in the direction of travel during the journey.

Z Chapter 5 describes the adjustment of the seat position and of the arm-

rests.

Z Move the seats all the way down before turning. Otherwise, the seats

cannot be turned.

Fig. 30 Driver's and front passenger's

seats (Aguti)

Fig. 31 Driver's and front passenger's

seats (ISRI)

Page 47

47Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.6 Bench seat

Bench seat extension The bench seat can be extended if required.

Increasing the seating area

 Pull out the extension at the handle (Fig. 32,2) under the cover.

Storage space An additional storage space is located under the bench seat.

Opening the storage space

lid:

 Open the storage space lid by pulling the latch (Fig. 32,3).

7.7 Tables

7.7.1 Suspension table with fold-out leg

The suspension table may also be used as a bed foundation.

Conversion to bed

foundation:

 Slightly lift the front of the table-top.  Unlock the table leg (Fig. 33,2) at the hinge and fold it in.  Press the release knob (Fig. 34,1) at the locking mechanism of the table-

top.

 Detach the suspension table from the upper attachment rail.

Fig. 32 Bench seat

Z Do not pull at the cover (Fig. 32,1).

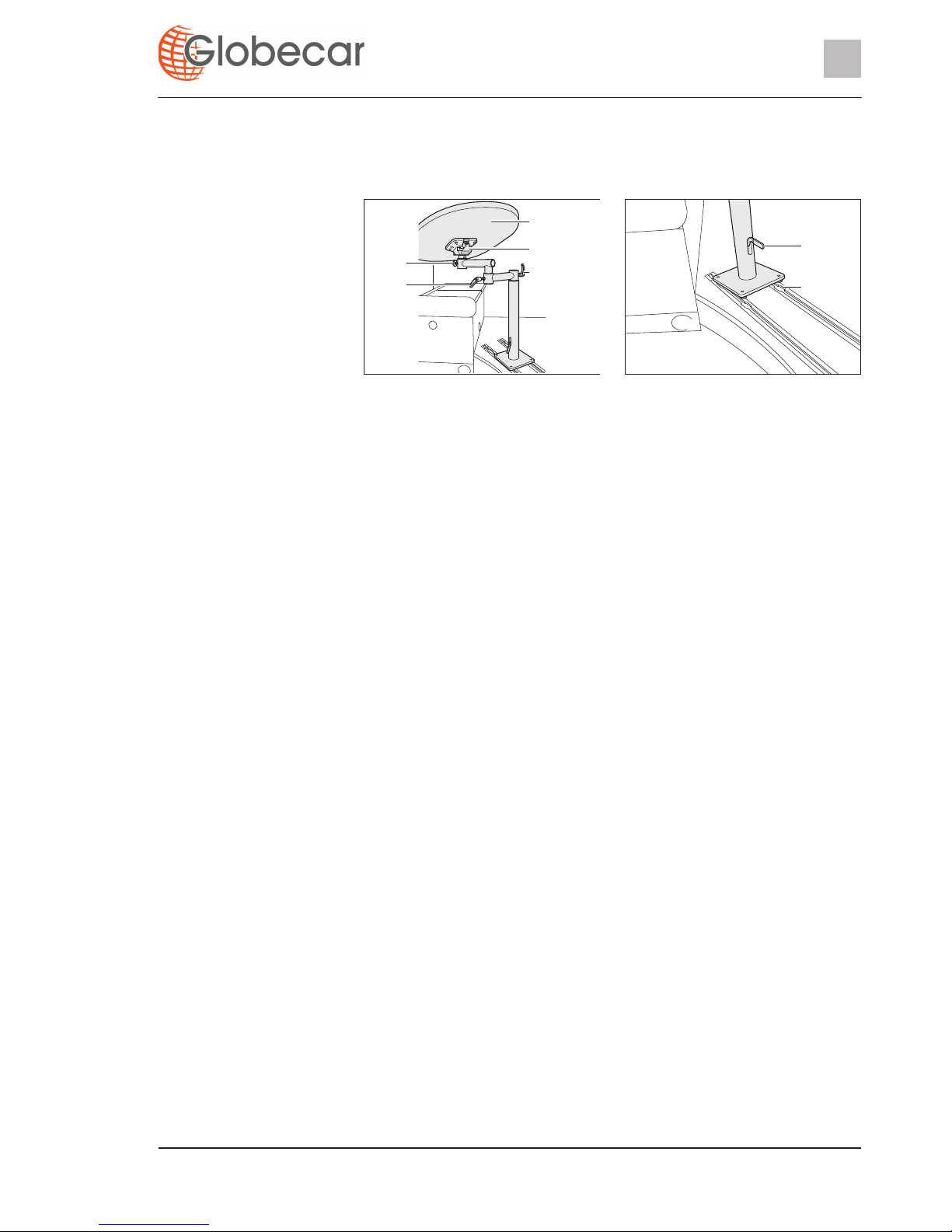

Fig. 33 Suspension table with fold-out

leg

Fig. 34 Table top locking mechanism

Page 48

48 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

 Attach suspension table to the lower attachment rail (Fig. 33,1) and rest it

onto the table leg hinge (Fig. 33,3).

 Lock the table-top.

7.7.2 Suspension table with dismantable support leg

Variant 1

The table size can be enlarged by swiveling out a table-top extension.

Extending:  Pull the knob (Fig. 35,2) of the locking mechanism downward and swivel

out the table-top extension (Fig. 35,1).

Reducing size:

 Swivel the table-top extension (Fig. 35,1) under the table-top (Fig. 35,6)

until the locking mechanism latches audibly.

The dismantable support leg enables the suspension table to be used as a bed foundation.

Conversion to bed

foundation (extra bed):

 Swivel out the table-top extension (Fig. 35,1).  Lift the front of the table-top (Fig. 35,6) by approx. 45°.  Pull out the lower part of the support leg (Fig. 35,4) down and lay aside.  Remove the table-top from its upper retainer.  Hook the table-top with the retainers at an angle of 45° into the lower

attachment rail (Fig. 35,3) and set it down onto the floor with the upper part of the support leg (Fig. 35,5).

 Lock the table-top.  Place the bed extension (Fig. 36,2) for the extra bed onto the table-top

extension (Fig. 36,1).

Conversion to bed

foundation (spare bed):

 Turn the driver's seat and push it all the way forward.  Swivel out the table-top extension (Fig. 35,1).  Lift the front of the table-top (Fig. 35,6) by approx. 45°.  Pull out the lower part of the support leg (Fig. 35,4) down and lay aside.  Remove the table-top from its upper retainer.  Hook the table-top with the retainers at an angle of 45° into the lower

attachment rail (Fig. 35,3) and set it down onto the floor with the upper part of the support leg (Fig. 35,5).

 Lock the table-top.

Fig. 35 Suspension table with disman-

table support leg

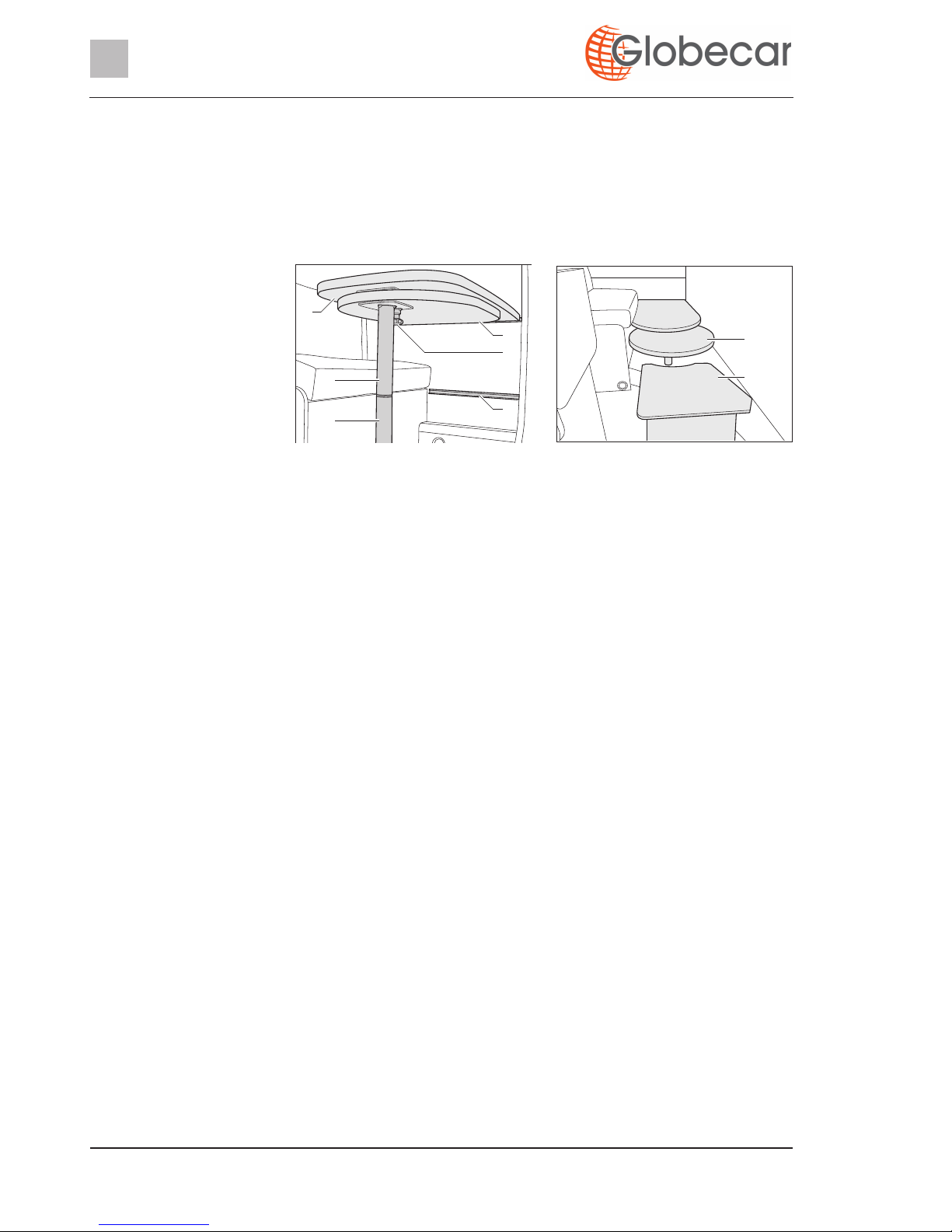

Fig. 36 Bed extension (extra bed)

Page 49

49Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

Variant 2

The table size can be enlarged by inserting a table-top extension.

Extending:

 Turn open the locking screws (Fig. 37,4) and pull the table forwards.  Insert the table-top extension and tighten the locking screws (Fig. 37,4).

Reducing size:  Remove the table-top extension and store it.

 Turn open the locking screws (Fig. 37,4) and pull the table backwards.

The dismantable support leg enables the suspension table to be used as a bed foundation.

Conversion to bed

foundation (extra bed):

 Lift the front of the table-top by approx. 45°.  Turn open the locking screws (Fig. 37,4) and pull the table forwards.  Tighten the locking screws (Fig. 37,4).  Pull out the lower part of the support leg (Fig. 37,2) down and lay aside.  Remove the table-top from its upper retainer.  Hook the table-top with the retainers at an angle of 45° into the lower

attachment rail (Fig. 37,3) and set it down onto the floor with the upper part of the support leg.

 Lay the table-top extension between the table and wall.  Increase the seating area (see Section 7.6).  Slide the wedge (Fig. 37,1) for the seat extension between the cushions.  Undo the velcro at the back cushion (Fig. 37,6) behind the driver's seat.  Loosen the knurled screw (Fig. 38,1) from the back cushion frame and

slide the back cushion frame (Fig. 38,2) together. If necessary, slide the driver's seat right to the front.

 Lay the seat and back cushions (Fig. 37,5 and 6) together.  Place on the additional wedges.

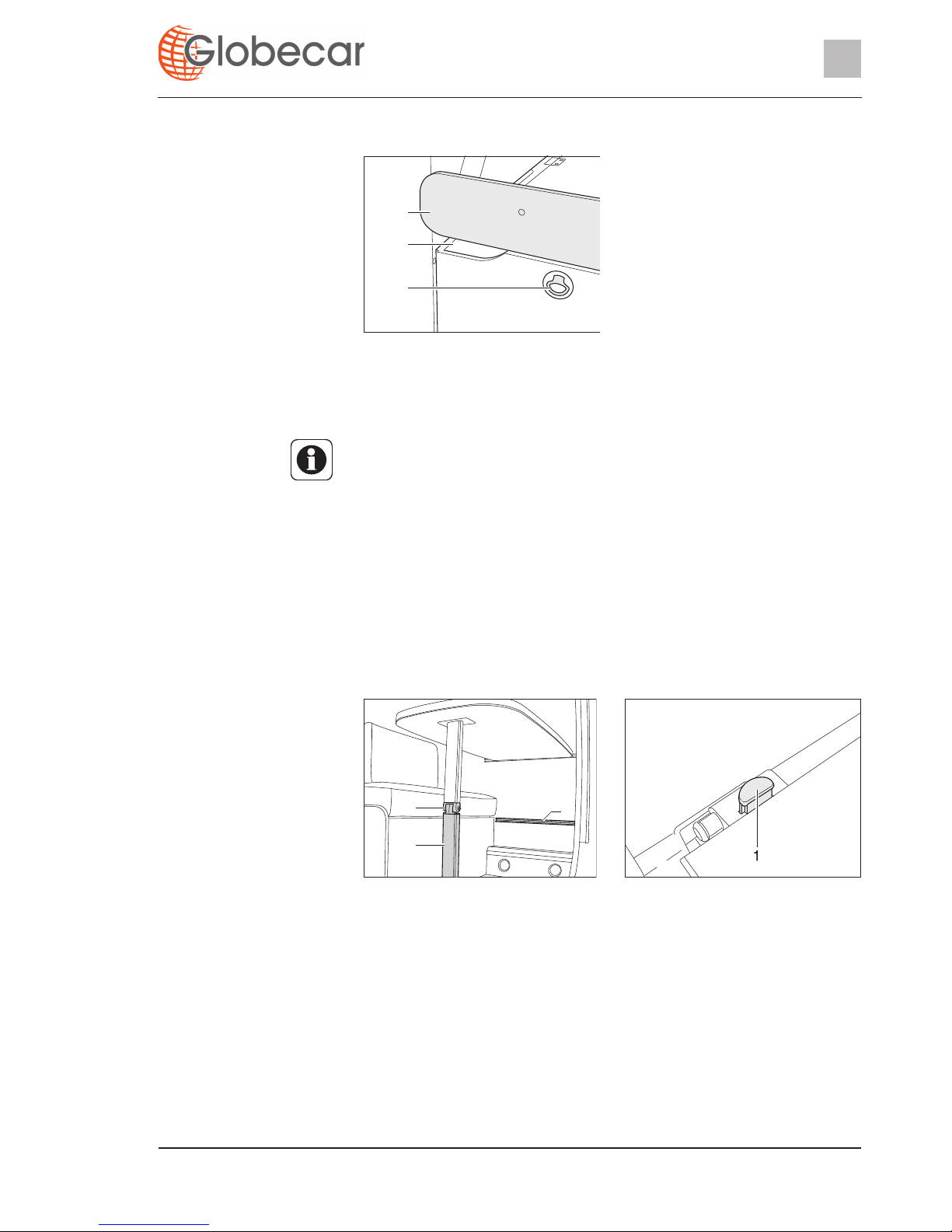

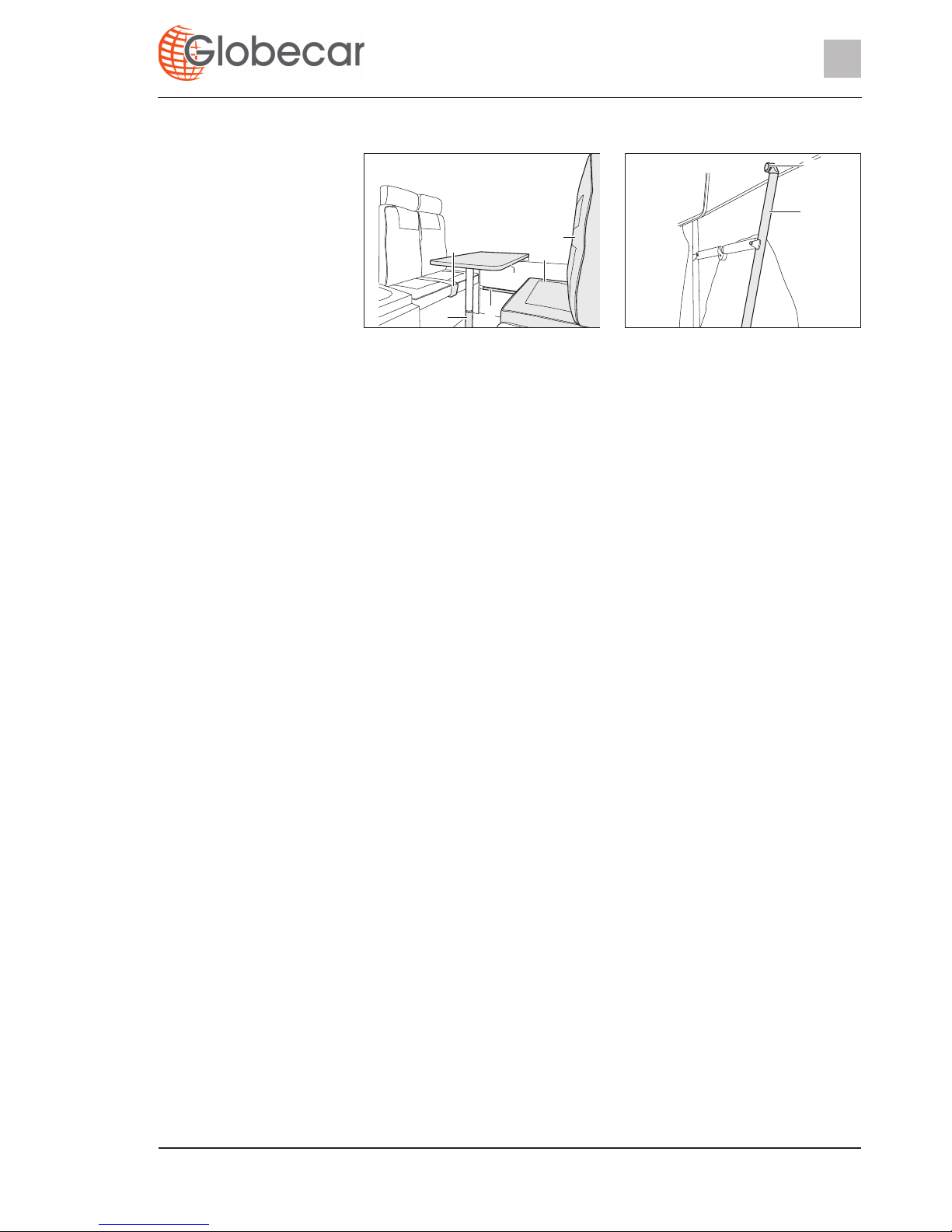

Fig. 37 Suspension table Fig. 38 Back cushion frame

Page 50

50 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.7.3 Fixed table of the rear seating group

The table-top of the fixed table of the rear seating group can be moved lengthways.

Shift the table-top:

 Undo the knurled screw (Fig. 39,6).  Move the table-top (Fig. 39,1) to the desired position.  Retighten the knurled screws.

Conversion to bed

foundation:

 Undo the knurled screw (Fig. 39,2).  Lift off the table-top (Fig. 39,1).  Undo the knurled screw (Fig. 39,4).  Turn the table leg (Fig. 39,3) out of the base holder (Fig. 39,5).  Store the table leg and the table-top behind the driver's seat.  Pull out the slatted frames at the bench seats about 50 cm.  Place the cushions.

Fig. 39 Fixed table of the rear seating

group

Page 51

51Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.7.4 Swivel table

The swivel table can be moved on rails or be removed completely. The tabletop of the swivel table can be swiveled into different positions.

Install the swivel table:

 Place the table frame in the holder (Fig. 41,2) and slide it to the desired

position.

 Push the locking mechanism (Fig. 41,1) downwards.  Insert the table-top into the holder and secure with the knurled screw

Fig. 40,5).

 Fasten the table-top with the lever screws (Fig. 40,3 and 4).

Swivelling the table-top:

 Loosen the lever screws (Fig. 40,3 and 4).  Swivel table top (Fig. 40,1) into required position.  Retighten the lever screws (Fig. 40,3 and 4).

Removing the swivel table:

 Loosen the knurled screw (Fig. 40,5).  Pull the table-top (Fig. 40,1) out of the holder.  Loosen the locking mechanism (Fig. 41,1) of the table frame.  Slide the table frame towards the holder (Fig. 41,2) and remove upwards.

Placing the swivel table

behind the seat:

 Pull the table-top securing mechanism (Fig. 40,2) upwards and bring the

table-top (Fig. 40,1) into a vertical position.

 Loosen the locking mechanism (Fig. 41,1) of the table frame.  Slide the swivel table on the rails completely to the left (behind the driver's

seat) or to the right (behind the front passenger's seat).

 Push the locking mechanism (Fig. 41,1) of the table frame downwards.  Loosen the lever screws (Fig. 40,3 and 4).  Swivel table top (Fig. 40,1) into required position.  Retighten the lever screws (Fig. 40,3 and 4).

Fig. 40 Swivel table Fig. 41 Table frame holder

Page 52

52 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.7.5 Folding table

The folding table can be used as a table or as an additional storage space outside the vehicle. When the side door is opened, the folding table can be mounted onto the rear of the kitchen unit.

Setting up in the vehicle:  Loosen the securing strap (Fig. 42,2) (snap fastener).

 Pull the table leg (Fig. 42,5) upwards out of the holders (Fig. 42,3).  Fold the table-top (Fig. 42,4) upwards and insert the table leg (Fig. 43,1)

into the holder (Fig. 43,2).

Setting up outside the

vehicle:

 Loosen the securing strap (Fig. 42,2) (snap fastener).  Pull the table leg (Fig. 42,5) upwards out of the holders (Fig. 42,3).  Fold the table-top (Fig. 42,4) slightly upwards and slide to the back

(Fig. 42, arrow).

 Slide the table-top into the holders on the rear of the kitchen unit (Fig. 42,1).  Insert the table leg (Fig. 43,1) into the holder (Fig. 43,2).

7.8 Lamps

Fig. 42 Folding table, folded in Fig. 43 Folding table, table leg holder

X Bulbs and light fittings can be extremely hot. X Let the bulbs and lamp holders cool down before touching them. X When the light is switched on or is still hot, a safety distance of at least

30 cm to combustible material such as net curtains or curtains has to be maintained. Fire hazard!

Page 53

53Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

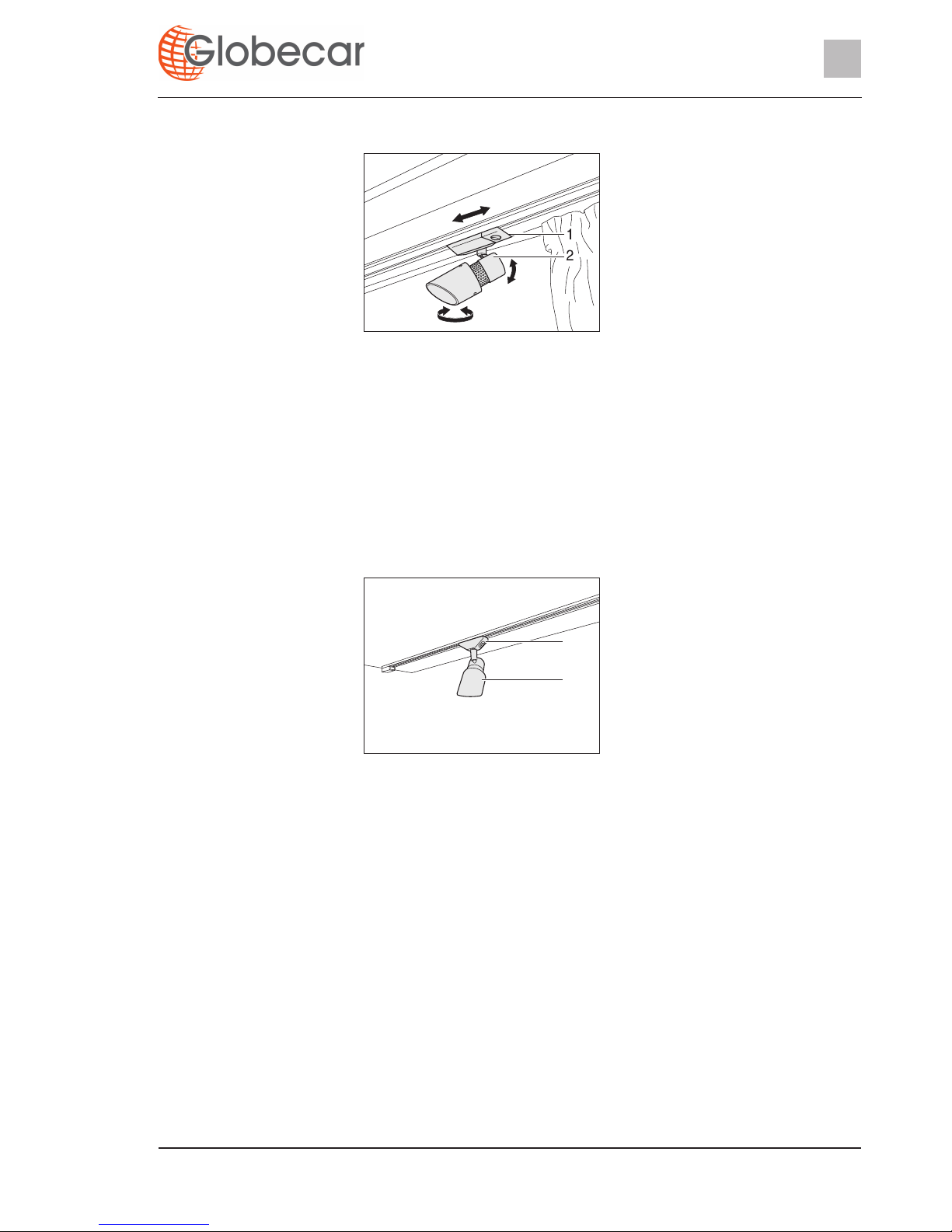

7.8.1 Halogen spotlight (movable)

Turning spotlight:  Grasp the housing (Fig. 44,2) and turn it.

The housing can be turned in different directions:

z To the left and to the right z Up and down

Shifting spotlight:

 Grasp the holder (Fig. 44,1).  Push spotlight along the rail system to desired position.

7.8.2 Halogen spotlight

Moving a halogen spotlight:  Grasp the holder (Fig. 45,1) and turn it by 45°.

 Remove the halogen spotlight (Fig. 45,2) from the rail system.  Insert the halogen spotlight (Fig. 45,2) at the desired position into the rail

system and turn by 45°.

 Turn by 45° at the holder Fig. 45,1).

Fig. 44 Spotlight

Fig. 45 Halogen spotlight

Page 54

54 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.8.3 Lamp in pop-up roof

Switching on the light:  Push the switch (Fig. 46,1) to the left.

Switching the light off:

 Push the switch (Fig. 46,1) to the middle.

Switching on and off with

the remote control:

 Push the switch (Fig. 46,1) to the right.  Press the button (Fig. 47,1) to switch the light on and off.

7.9 Beds

7.9.1 Fixed bed

A storage compartment is underneath the bed. Depending on the model, fold the slatted frame from the inside upwards or lift out of the latch or remove the bulkheads in order to place items in the storage compartment or remove them.

Opening:

 Lift the mattress forwards and set it down on the panel.  Lift and hold the slatted frame.

Closing:

 Move the slatted frame downwards completely.  If necessary, push the mattress behind the panel.

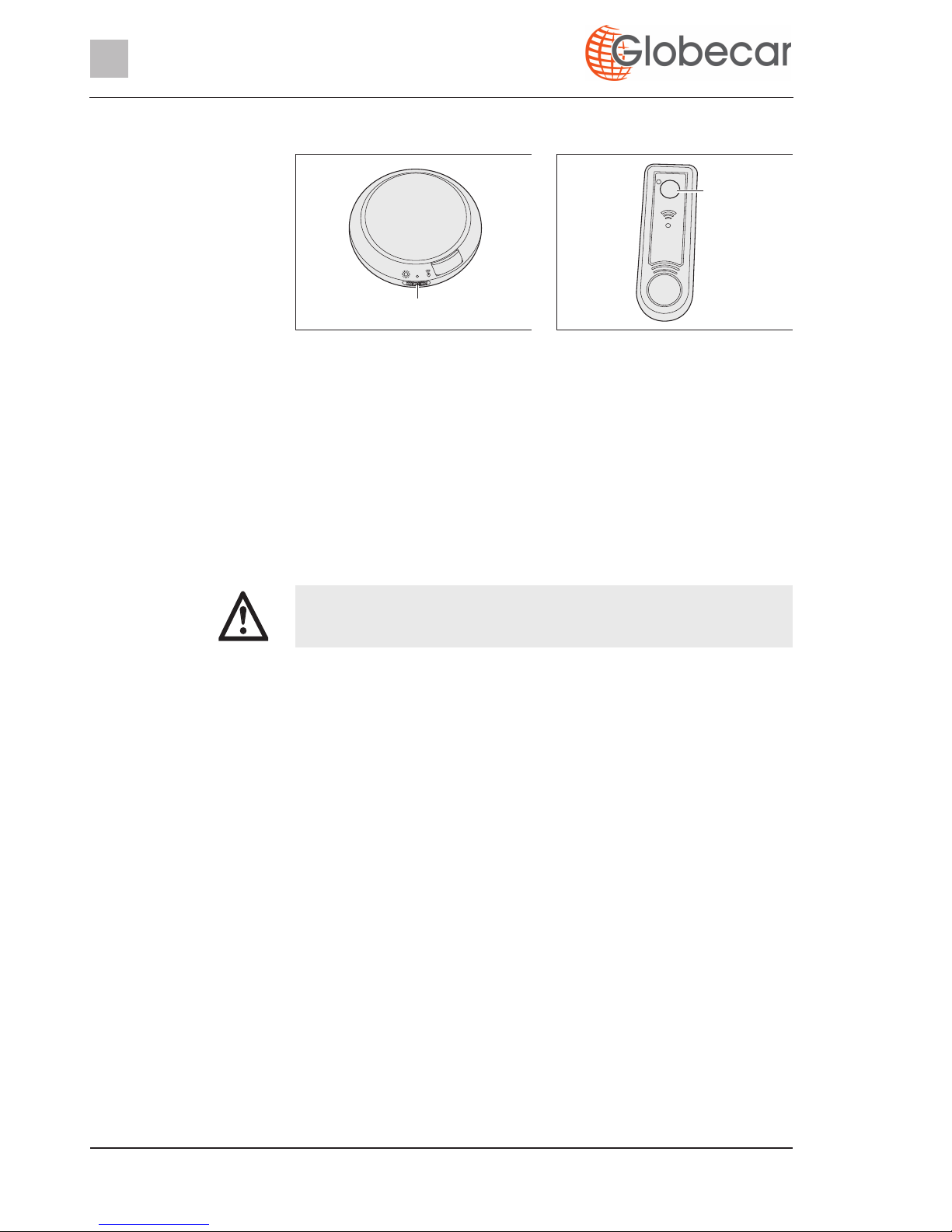

Fig. 46 Lamp in pop-up roof Fig. 47 Remote control for lamp in

pop-up roof

OFF

REMOTE

CONTROL

X Do not let the slatted frame fall downwards during closing!

Page 55

55Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

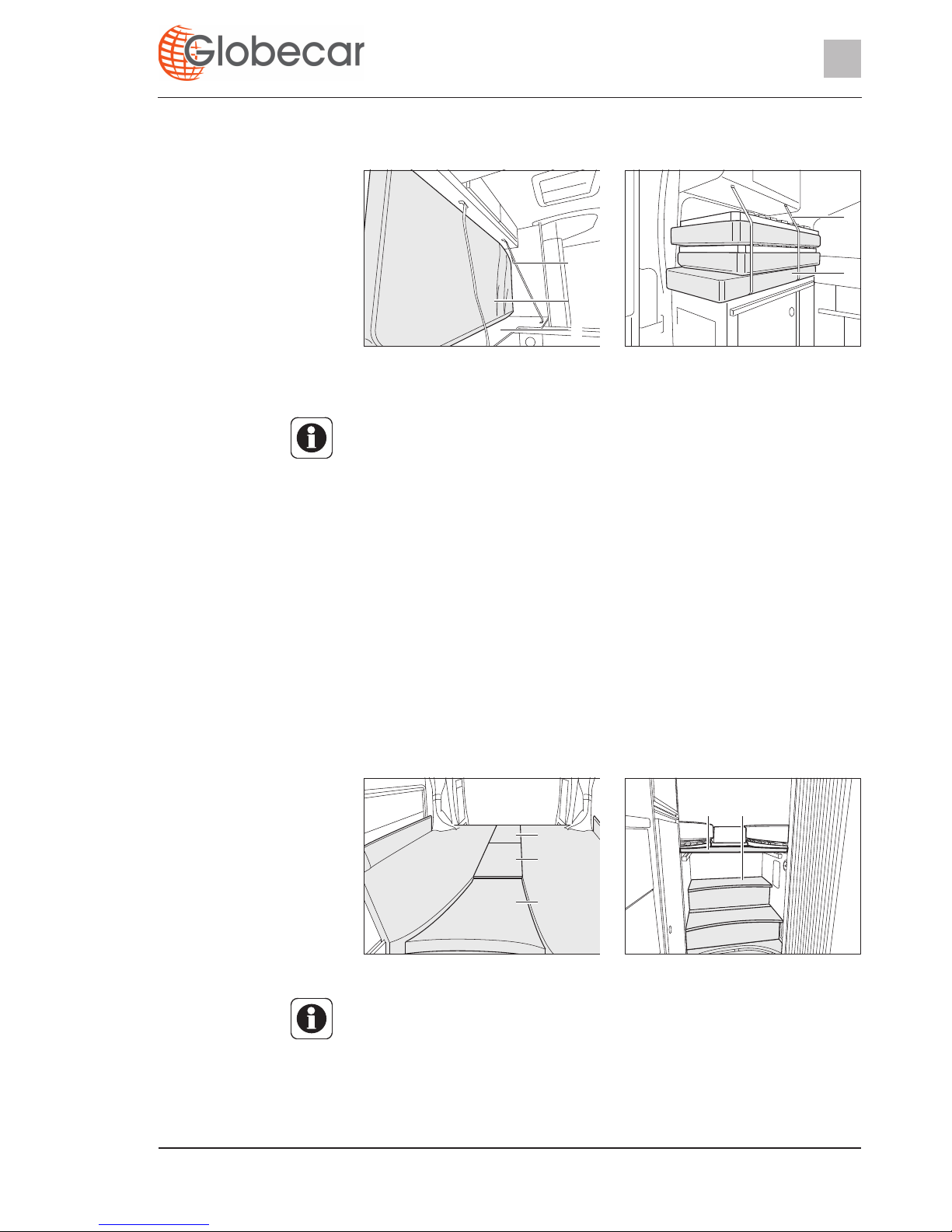

Dismantling the fixed bed In order to increase the storage compartment space the bed can also be dis-

mantled and stored completely.

Dismantling Variant 1:

 Remove the middle cushion and middle board.  Remove the mattress.  Lift the slatted frame out of the latch and place it on the cover (Fig. 48,3).  Place the cushions, mattresses and slatted frames (Fig. 48,2) next to each

other.

 Secure everything using the belt (Fig. 48,1).

Dismantling Variant 2:

 Remove the mattress.  Lay the slatted frame together with the mattress on the cover.  Stack the cushions, mattresses and slatted frames (Fig. 49,2) onto each

other.

 Secure everything using the belt (Fig. 49,1).

Enlarging the fixed bed It is possible to connect two single beds into a double bed.

Fig. 48 Dismantling Variant 1 Fig. 49 Dismantling Variant 2

Z The first step of the stairs can be removed additionally in order to create a

passage.

Fig. 50 Double bed rear Fig. 51 Double bed stairs

Z In order to use the stairs do not use the board (Fig. 51,1) above the stairs

as well as the additional cushion (Fig. 50,3).

1 2

Page 56

56 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

Connecting beds:  Lay the middle board between the two beds.

 Lay the board (Fig. 51,1) onto the braces above the stairs (Fig. 51,2).  Insert the additional cushions (Fig. 50,1, 2 and 3).

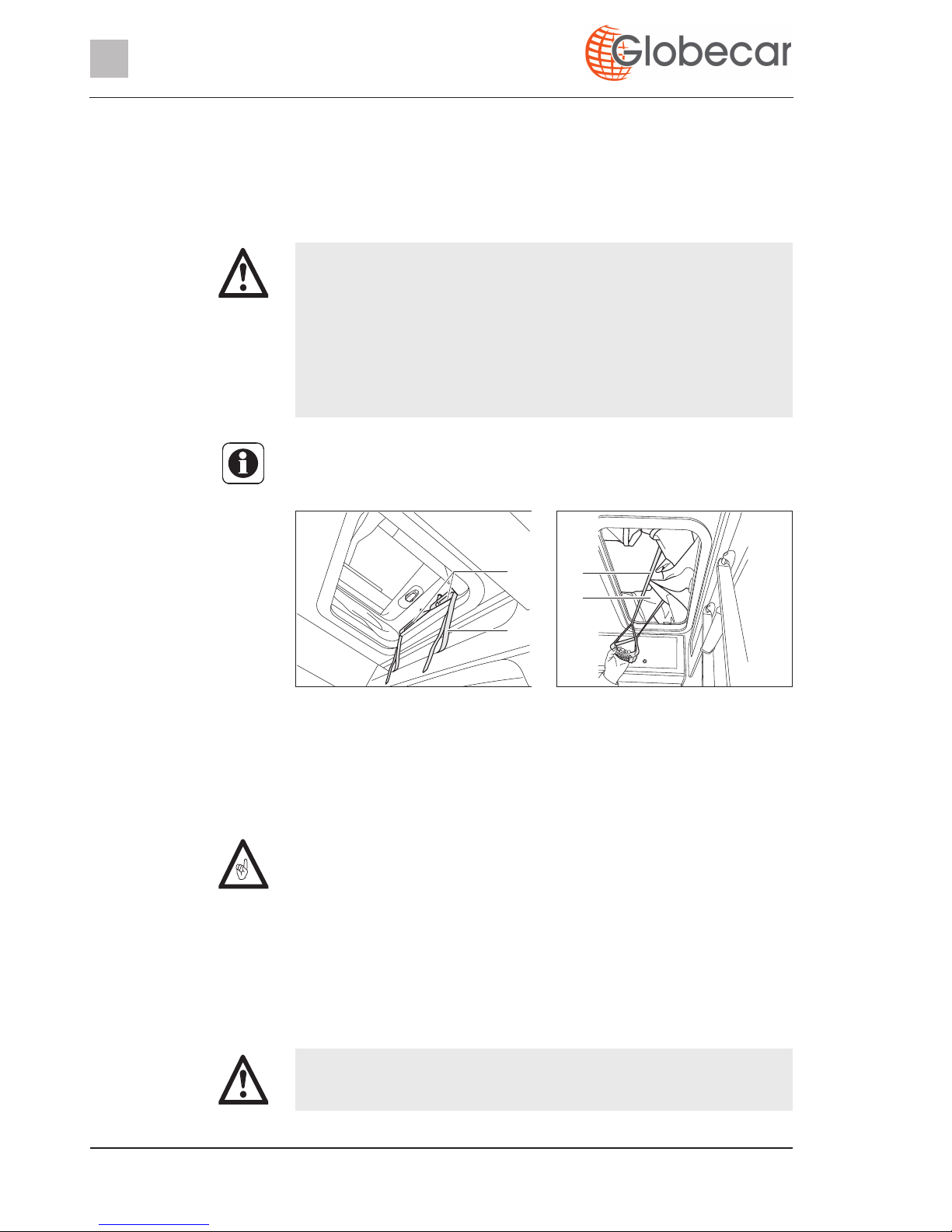

7.9.2 Bed in the pop-up roof

Opening:  Loosen the safeguards (Fig. 52,2).

 Press the locking mechanisms at the handles (Fig. 52,1) of the pop-up roof.  Use both hands to push the pop-up roof upwards.

Closing:

 Open the doors of the vehicle.  Close the elastic bands in the pop-up roof so that the cloth bellows

(Fig. 53,2) are not clamped in.

 Use the pulling devices (Fig. 53,1) to pull the pop-up roof downwards.  Pull the pop-up roof closed at the handles (Fig. 52,1) until the locking

mechanism latches in audibly.

X The maximum load for the bed in the pop-up roof amounts to 200 kg. X Fold in the pop-up roof before commencing the journey. X Only use the bed in the pop-up roof if the safety guards are in position. X Never leave small children without supervision. X Ensure in particular with regard to small children less than 6 years of

age, that they cannot fall out of the bed.

X Switch off the reading lamps in the pop-up roof when it is folded in. Fire

hazard!

Z Mount the safety guard when the persons are already in the pop-up roof.

Fig. 52 Opening the pop-up roof Fig. 53 Closing the pop-up roof

Z Before closing the pop-up roof open the doors of the vehicle. Material

damage may otherwise occur through excess pressure.

X The locking mechanism of the pop-up roof must latch audibly into place.

Page 57

57Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.10 Converting seating groups for sleeping

7.10.1 Seating group rear

 Dismantle the table (Fig. 54,3) (see Section 7.7).  Pull out the slatted frames (Fig. 54,4).  Fold out the extension (Fig. 55,5) at the slatted frame.  Pull the seat cushions (Fig. 55,2) to the middle of the slatted frame.  Insert the back cushions (Fig. 55,1) between the seat cushions and the

exterior wall.

Z When the pop-up roof is being folded in: Ensure that the safety guards and

the cloth bellows are not clamped in.

Fig. 54 Prior to conversion

Fig. 55 During conversion

Fig. 56 After conversion

1 Back cushion 2 Seat cushion 3 Table 4 Slatted frame 5 Extension at the slatted frame

1 2 13 2

2 4 43 2 1

1 2 12

2 4 5 5 4 2 1

4 5 5 4

1 2 12

21 12

4 4

Z The formed cushion parts in the side panels can be removed to extend the

sleeping area.

Page 58

58 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.10.2 Front seating group

 Turn the driver's seat (Fig. 57,4) so that the backrest faces the driver's

door.

 Turn the front passenger's seat (Fig. 57,5) so that the backrest faces the

front passenger's door.

 Convert the table (Fig. 57,3) to a bed foundation (see Section 7.7).  Pull the seat cushion (Fig. 58,2) on the table.  Place the back cushion (Fig. 58,1) on the bench seat.  Slide the front passenger's seat (Fig. 58,5) as far as possible to the driver's

side.

 Slide the driver's seat (Fig. 58,4) as near as possible to the front pas-

senger's seat.

Fig. 57 Prior to conversion

Fig. 58 After conversion

1 Back cushion 2 Seat cushion 3 Table 4 Driver's seat 5 Front passenger's seat

Page 59

59Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.10.3 Facing seating unit with extension

 Extend the table (Fig. 59,3) and convert it into a bed foundation (see Sec-

tion 7.7).

 Remove the back cushion (Fig. 59,1) and lay it aside.  Fold in the back frame.  Pull the handle and open the bench seat extension (Fig. 59,4).  Pull the seat cushion (Fig. 59,5) apart.  Insert the additional cushion (Fig. 59,6).  Place the back cushion (Fig. 61,1) between the seat cushion (Fig. 61,2)

and the driver's seat.

 Insert the additional cushion (Fig. 61,7) between the back cushion and the

wall.

 Insert the additional cushions (Fig. 61,8) between the seat cushion and the

wall.

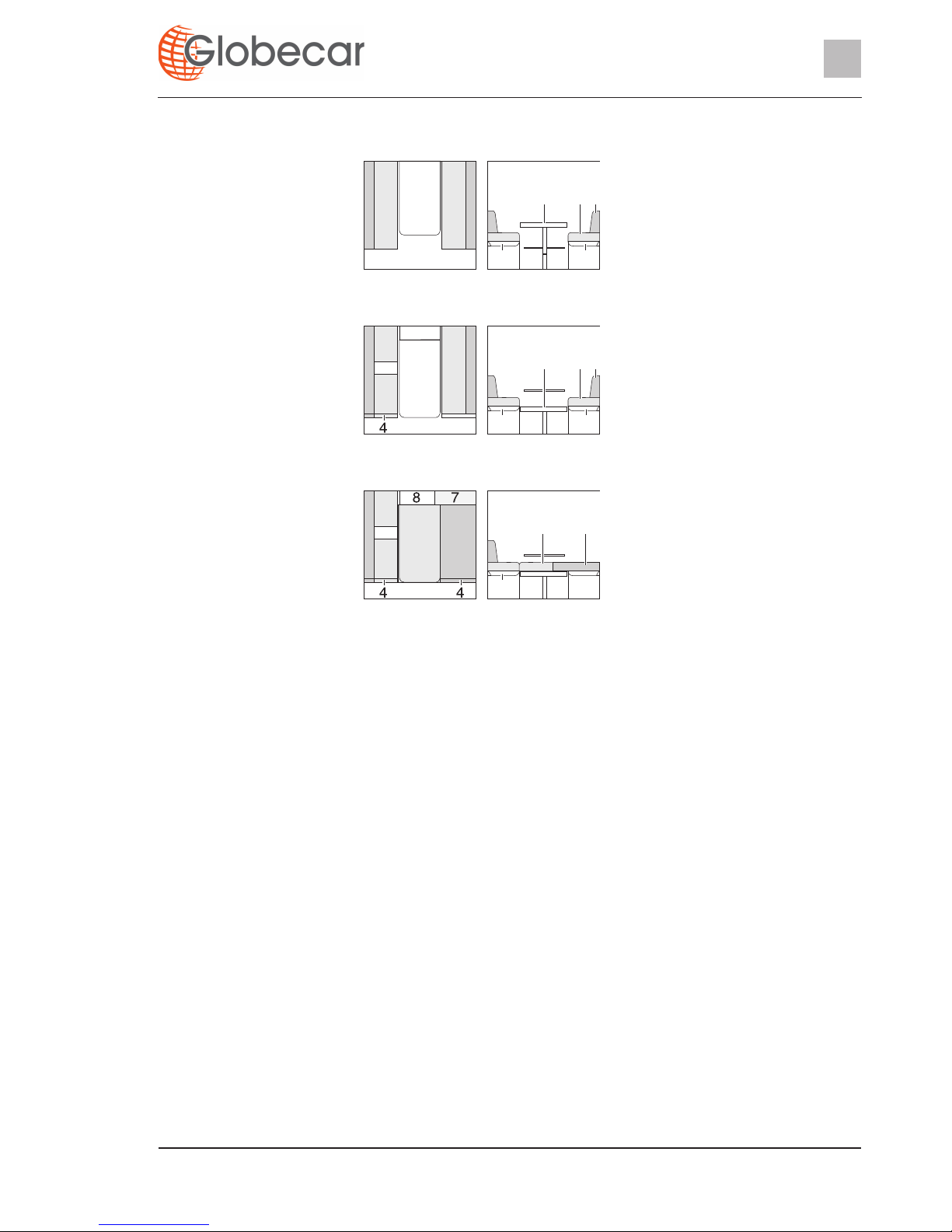

Fig. 59 Prior to conversion

Fig. 60 During conversion

Fig. 61 After conversion

1 Back cushion 2 Seat cushion 3 Table 4 Bench seat extension 5 Seat cushion 6 Additional cushion 7 Additional cushion 8 Additional cushion

13 2

2 1

13 2

2 1

Page 60

60 Motorhome - 02/11-0 - GLO-MJ11-00EN

Living

7.10.4 Front seating group with extension

Variant 1 (extra bed):  Extend the table (Fig. 62,3) and convert it into a bed foundation (see Sec-

tion 7.7).

 Place the bed extension (Fig. 63,5) for the extra bed onto the table-top

extension (Fig. 63,4).

 Place the additional cushion (Fig. 65,6) on the table and the bed extension.

Variant 2 (spare bed):

 Turn the driver's seat (Fig. 64,7) and push it all the way forward.  Extend the table (Fig. 64,3) and convert it into a bed foundation (see

Section 7.7).

 Reposition the back cushion (Fig. 64,1).  Place the seat cushion (Fig. 66,2) between the back cushion (Fig. 66,1)

and the driver's seat (Fig. 66,7).

Fig. 62 Prior to conversion

1 Back cushion 2 Seat cushion 3 Table 4 Table-top extension 5 Bed extension 6 Additional cushion 7 Driver's seat

Fig. 63 During conversion (extra bed) Fig. 64 During conversion

(spare bed)

Fig. 65 After conversion (extra bed) Fig. 66 After conversion (spare bed)

1 2

321

4 5

1 2

321

4 5

1 2

321 4 7

1 2 6

21 3 4 5 6

31 2

321 4 7

Page 61

61Motorhome - 02/11-0 - GLO-MJ11-00EN

Gas system

8Gas system

8.1 General

X Close all gas isolator taps and the regulator tap before commencing the

journey and when leaving the vehicle.

X Closing of the isolator and regulator valves is not required at vehicles

that are equipped with a crash sensor.
