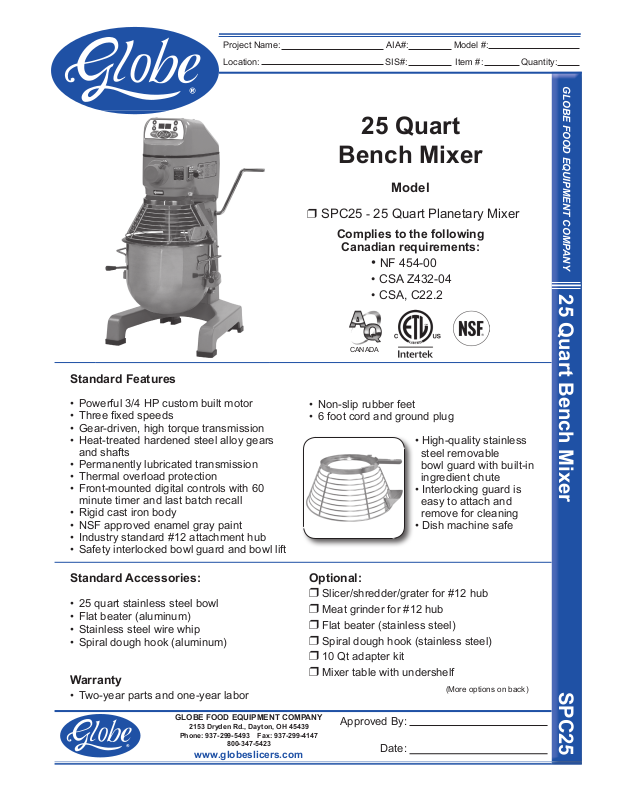

Globe SPC25 User Manual
Project Name: AIA#: Model #:
Location: SIS#: Item #: Quantity:
25 Quart
Bench Mixer
Model
GLOBE FOOD EQUIPMENT COMPANY
Standard Features
• Powerful 3/4 HP custom built motor
• Three xed speeds
• Gear-driven, high torque transmission
• Heat-treated hardened steel alloy gears
and shafts
• Permanently lubricated transmission
• Thermal overload protection
• Front-mounted digital controls with 60
minute timer and last batch recall
• Rigid cast iron body
• NSF approved enamel gray paint
• Industry standard #12 attachment hub
• Safety interlocked bowl guard and bowl lift
r SPC25
- 25 Quart Planetary Mixer
Complies to the following
Canadian requirements:
• NF 454-00
• CSA Z432-04
• CSA, C22.2
CANADA
• Non-slip rubber feet
• 6 foot cord and ground plug
• High-quality stainless
steel removable
bowl guard with built-in
ingredient chute
• Interlocking guard is
easy to attach and
remove for cleaning
• Dish machine safe
25 Quart Bench Mixer SPC25
Standard Accessories:
• 25 quart stainless steel bowl
• Flat beater (aluminum)
• Stainless steel wire whip
• Spiral dough hook (aluminum)
Warranty
• Two-year parts and one-year labor
GLOBE FOOD EQUIPMENT COMPANY
2153 Dryden Rd., Dayton, OH 45439
Phone: 937-299-5493 Fax: 937-299-4147
800-347-5423
www.globeslicers.com
Optional:
r Slicer/shredder/grater for #12 hub
r Meat grinder for #12 hub
r Flat beater (stainless steel)
r Spiral dough hook (stainless steel)
r 10 Qt adapter kit
r Mixer table with undershelf
(More options on back)
Approved By:
Date:
25 Quart Bench Mixer SPC25
SPC25
Drawings available through KCL. www.kclcad.com
Model Elevation Right Plan Back BIM 3D Revit
SPC25
SPECIFICATIONS
Model Motor Volts Amps
SPC25 3/4 HP 115/60/1 11 Gear 25 qt / 24 L
Cord & Plug: Attached 6 foot exible 3-wire cord with molded plug ts a grounded receptacle. NEMA 5-15P
Transmission
Type
Capacity Controls
Front-mounted digital
controls & timer
Agitator Speeds (RPMs)
1st 2nd 3rd 1st 2nd 3rd
101 185 355 57 105 202
Complies with the following
Canadian (Québec) requirements
• NF 454-00 • CSA Z432-04 • CSA, C22.2
Attachment Speeds (RPMs)
STANDARD ACCESSORIES:
• 25 Quart #304 series stainless
steel bowl
• Aluminum spiral dough hook and
at beater
• Stainless steel wire whip and
bowl guard with built-in
ingredient chute
OPTIONAL ATTACHMENTS &
ACCESSORIES:
• XXBOWL-25 Stainless steel bowl
• XXBEAT-25 Alum. at beater
• XXBEAT-25SS S/S at beater
• XXHOOK-25 Alum. dough hook
• XXHOOK-25SS S/S dough hook
• XXWHIP-25 S/S wire whip
• XXHDWHIP25-4 Heavy-duty 4 mm
S/S wire whip
• XXACC10-25 Adapter kit - 10 qt
bowl, hook, beater and whip
• XTable S/S countertop mixer table
with under shelf (30'' W x 24'' D x
24'' H)
Chopper Plate Sizes Available:
CP02-12 1/16'' (2 mm)
CP04-12 5/32'' (4 mm)
CP05-12 3/16'' (5 mm)
CP06-12 1/4'' (6 mm)
CP08-12 5/16'' (8 mm)
CP10-12 3/8'' (10 mm)
CP12-12 1/2'' (12 mm)
CP14-12 9/16'' (14 mm)
CP16-12 5/8'' (16 mm)
CP18-12 11/16'' (18 mm)
CP00-12 Stufng Plate
• XST12 1/2'' stufng tube (sheep)
• XST34 3/4'' stufng tube (hog)
• XMCA-SS Meat Grinder
Assembly (Polished stainless
steel cylinder, worm gear, ring,
and s/s pan. Includes knife, 3/16''
plate, and pusher.)
• XXCK Chopper knife for the
XMCA-SS
• XASP Adjustable slicing plate
(for vegetables only)
• XVSGH 9'' Slicer/Shredder/
Grater Housing Only (no plates
included-must select from plates
listed below)
• XPH Plate holder -*only 1
required
Shredding Plates:
XSP332* 3/32'' (2.3 mm)
XSP316* 3/16'' (4.7 mm)
XSP14* 1/4'' (6.3 mm)
XSP516* 5/16'' (7.9 mm)
XSP12* 1/2'' (12.7 mm)
XGP* Grating plate
FACTORY INSTALLED OPTION:
• XXCORR-25 Correctional
package includes tamper
resistant external fasteners.
DIMENSIONS & SHIPPING INFORMATION Freight Class 85
Cartons are reinforced for shipping. The weight and dimensions of this reinforced carton are included below and may vary from shipment to shipment.
This product ships on a pallet.
Model Foot Print Overall Dimensions Net Weight Shipping Dimensions Shipping Weight
SPC25 18.4'' D x 18.4'' W
(47 cm x 46.7 cm)
GLOBE FOOD EQUIPMENT COMPANY
21.9'' L x 22.5'' W x 35.9'' H
(56 cm x 57.2 cm x 91.2 cm)
www.globeslicers.com
264 lbs.
(120 kg)
40'' L x 32'' W x 49'' H
(102 cm x 81 cm x 125 cm)
325 lbs.
(147 kg)
2153 Dryden Rd.
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
Ver. 1. 032012 Rev. 2 GFE 070113
Specications are subject to change without notice.Printed in U.S.A. 07-2013
