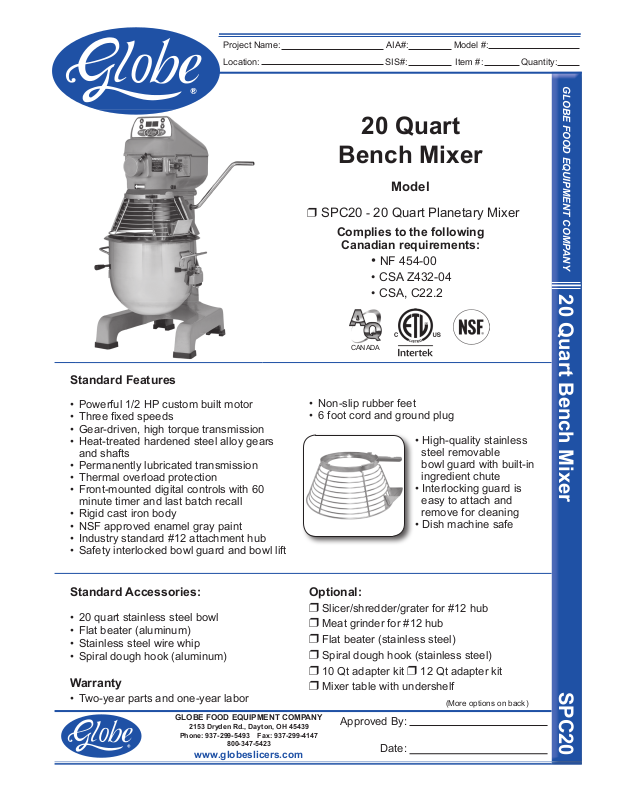

Globe SPC20 User Manual
Project Name: AIA#: Model #:
Location: SIS#: Item #: Quantity:
20 Quart
Bench Mixer
Model
GLOBE FOOD EQUIPMENT COMPANY
Standard Features
• Powerful 1/2 HP custom built motor
• Three xed speeds
• Gear-driven, high torque transmission
• Heat-treated hardened steel alloy gears
and shafts
• Permanently lubricated transmission
• Thermal overload protection
• Front-mounted digital controls with 60
minute timer and last batch recall
• Rigid cast iron body
• NSF approved enamel gray paint
• Industry standard #12 attachment hub
• Safety interlocked bowl guard and bowl lift
r SPC20
- 20 Quart Planetary Mixer
Complies to the following
Canadian requirements:
• NF 454-00
• CSA Z432-04
• CSA, C22.2
CANADA
• Non-slip rubber feet
• 6 foot cord and ground plug
• High-quality stainless
steel removable
bowl guard with built-in
ingredient chute
• Interlocking guard is
easy to attach and
remove for cleaning
• Dish machine safe
20 Quart Bench Mixer SPC20
Standard Accessories:
• 20 quart stainless steel bowl
• Flat beater (aluminum)
• Stainless steel wire whip
• Spiral dough hook (aluminum)
Warranty
• Two-year parts and one-year labor
GLOBE FOOD EQUIPMENT COMPANY
2153 Dryden Rd., Dayton, OH 45439
Phone: 937-299-5493 Fax: 937-299-4147
800-347-5423
www.globeslicers.com
Optional:
r Slicer/shredder/grater for #12 hub
r Meat grinder for #12 hub
r Flat beater (stainless steel)
r Spiral dough hook (stainless steel)
r 10 Qt adapter kit r 12 Qt adapter kit
r Mixer table with undershelf
(More options on back)
Approved By:
Date:
20 Quart Bench Mixer SPC20
SPC20
Drawings available through KCL. www.kclcad.com
Model Elevation Right Plan Back BIM 3D Revit
SPC20
SPECIFICATIONS
Model Motor Volts Amps
SPC20 1/2 HP 115/60/1 6 Gear 20 qt / 19 L
Cord & Plug: Attached 6 foot exible 3-wire cord with molded plug ts a grounded receptacle. NEMA 5-15P
STANDARD ACCESSORIES:
• 20 Quart #304 series stainless
steel bowl
• Aluminum spiral dough hook and
at beater
• Stainless steel wire whip and
bowl guard with built-in
ingredient chute
OPTIONAL ATTACHMENTS &
ACCESSORIES:
• XXBOWL-20 Stainless steel bowl
• XXBEAT-20 Alum. at beater
• XXBEAT-20SS S/S at beater
• XXHOOK-20 Alum. dough hook
• XXHOOK-20SS S/S dough hook
• XXJHOOK-20 Alum. J dough
hook
• XXWHIP-20 S/S wire whip
• XXHDWHIP20-4 Heavy-duty 4 mm
S/S wire whip
Transmission
Type
• XXAWHIP-20 S/S Aileron (wing)
whip
• XXSCRP-20 scraper with
mounting kit
• XXACC10-20 Adapter kit - 10 qt
bowl, hook, beater and whip
• XXACC12-20 Adapter kit - 12 qt
bowl, hook, beater and whip
• XXPASTRY-20 Alum. pastry knife
• XTable S/S countertop mixer table
with under shelf (30'' W x 24'' D x
24'' H)
• Chopper Plate Sizes Available:
CP02-12 1/16'' (2 mm)
CP04-12 5/32'' (4 mm)
CP05-12 3/16'' (5 mm)
CP06-12 1/4'' (6 mm)
CP08-12 5/16'' (8 mm)
CP10-12 3/8'' (10 mm)
CP12-12 1/2'' (12 mm)
CP14-12 9/16'' (14 mm)
Capacity Controls
Front-mounted digital
controls & timer
CP16-12 5/8'' (16 mm)
CP18-12 11/16'' (18 mm)
CP00-12 Stufng Plate
• XST12 1/2'' stufng tube (sheep)
• XST34 3/4'' stufng tube (hog)
• XMCA-SS Meat Grinder
Assembly (Polished stainless
steel cylinder, worm gear, ring,
and s/s pan. Includes knife, 3/16''
plate, and pusher.)
• XXCK Chopper knife for the
XMCA-SS
• XASP Adjustable slicing plate
(for vegetables only)
• XVSGH 9'' Slicer/Shredder/
Grater Housing Only (no plates
included-must select from plates
listed below)
• XPH Plate holder -*only 1
required
Agitator Speeds (RPMs)
1st 2nd 3rd 1st 2nd 3rd
104 194 353 59 11 0 201
Complies with the following
Canadian (Québec) requirements
• NF 454-00 • CSA Z432-04 • CSA, C22.2
Attachment Speeds (RPMs)
Shredding Plates:
XSP332* 3/32'' (2.3 mm)
XSP316* 3/16'' (4.7 mm)
XSP14* 1/4'' (6.3 mm)
XSP516* 5/16'' (7.9 mm)
XSP12* 1/2'' (12.7 mm)
XGP* Grating plate
FACTORY INSTALLED OPTION:
• XXCORR-20 Correctional
package includes tamper
resistant external fasteners.
DIMENSIONS & SHIPPING INFORMATION Freight Class 85
Cartons are reinforced for shipping. The weight and dimensions of this reinforced carton are included below and may vary from shipment to shipment.
This product ships on a pallet.
Model Foot Print Overall Dimensions Net Weight Shipping Dimensions Shipping Weight
SPC20 16.7'' D x 18.7'' W
(42 cm x 46 cm)
GLOBE FOOD EQUIPMENT COMPANY
22'' L x 22.4'' W x 34.5'' H
(56 cm x 57 cm x 87.6 cm)
www.globeslicers.com
Ver. 1. 032012 Rev. 2 GFE 070113
199 lbs.
(80 kg)
40'' L x 32'' W x 48'' H
(102 cm x 81 cm x 122 cm)
Specications are subject to change without notice.Printed in U.S.A. 07-2013
270 lbs.
(122 kg)
2153 Dryden Rd.
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
