Globe SP8-RL PARTS LIST

Parts Catalog

SP8-RL Mixer

MIXER

MODEL: SP8-RL

08-04-14

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF MIXER.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 • Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

Not for resale

TABLE OF CONTENTS

Page

Base 1 - 2

Head 3 - 4

Gears 5 - 6

Planetary 7

Wiring Diagram 8

SP8-RL BASE COMPONENTS

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

43

44

45

46

47

48

1

3

4

7

8

9

10

2

5

6

6A

26

27

28

39

36

30

31

32

33

34

35

37

38

40

41

42

29

1

SP8-RL BASE PARTS LIST

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 BOWL LIFT HANDLE ASSEMBLY X08065-74 1
2 HANDLE, BOWL LIFT - 1
3 COTTER PIN X08066 1
4 ROD, BOWL LIFT - 1
5 ROLL PIN - 1 Ø5x24mm
6 CONNECTOR, BOWL LIFT - 1

6A SHOULDER SCREW X08069A 1

7 ROLL PIN X08070 1 Ø3x18mm
8 WASHER, FLAT X08071 2 M8x16x1.5mm

9 SPRING X08072 1 M5
10 NUT, HEX X08074 1 M8
11 MIXER COLUMN X08075 1
12 WASHER, FLAT X08076 4 M8
13 SCREW, HEX HEAD X08077 4 M8x25mm
14 STRAIN RELIEF, 90 DEGREE X08078 1
15 CORD AND PLUG X08079 1
16 SET SCREW, SOCKET HEAD - CUP POINT X08080 1 M5x20mm
17 SCREW, PAN HEAD X08081 1 M5x21mm
18 CIRCUIT BREAKER X08082 1
19 CAPACITOR, MOTOR X08083 1
20 BRACKET, CAPACITOR MOUNTING X08084 1
21 NUT, HEX X08155 4 M3
22 SCREW, ROUND HEAD X08156 1 M3x24mm
23 BRACKET, MICROSWITCH MTG (W/HDWR) X08157 1
24 MICROSWITCH, BOWL LIFT X08158 1
25 SCREW, ROUND HEAD X08159 2 M3
26 BOWL CRADLE X08086 1
27 SCREW, PAN HEAD X08087 2 M4x4mm
28 CLIP X08088 1
29 BOWL CLAMP ASSEMBLY (SET/2) X08089-93 2
30 SCREW, HEX HEAD & NUTS X08085 2 M5x45mm
31 BOWL CLAMP X08089 2
32 KNOB, PLASTIC X08090 2
33 SPRING X08091 2
34 WASHER, FLAT X08092 2 M5
35 NUT, HEX X08093 2 M5
36 BOWL LIFT BRACKET ASSEMBLY X08094-95
37 SCREW, PAN HEAD - 2 M5x10mm
38 BRACKET, BOWL LIFT - 1
39 BOWL LOCK PIN ASSEMBLY X08096-98 1
40 PIN, BOWL LOCK X08096 2
41 WASHER, SPLIT LOCK X08097 2 M8
42 NUT, STOP X08098 2 M8
43 MIXER BASE X08099 1
44 MIXER FEET (SET/4) X08100 1
45 WASHER, FLAT X08101 4 M8x16mm
46 WASHER, SPLIT LOCK X08102 4 M8
47 SCREW, HEX HEAD X08103 4 M8 x 16mm
48 LABEL, HAZARDOUS VOLTAGE (NOT SHOWN) X91014 1

2

SP8-RL HEAD COMPONENTS

3

2

4

5

6

9

8

10

1

TIME

12

11

7

14

23

25

26

NOTE: SEE PAGE 1-2 FOR

MOTOR CAPACITOR.

24

*27

22

30

29

20

17

19

18

15

16

*28

21

13

31

32

35

37

33

38

34

3

36

SP8-RL HEAD PARTS LIST

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 COVER, TRANSMISSION X08003 1
2 SCREW, FLAT HEAD X08002 1 M4x30mm
3 SCREW, FLAT HEAD X08001 2 M5x20mm
4 PANEL, DIGITAL CONTROL X08C-36 1
5 SCREW, ROUND HEAD X08005 4 M3x6mm
6 EMERGENCY STOP BUTTON X08006 1
7 COVER, TRANSMISSION CASE X08148 1
8 WASHER, SPLIT LOCK X08008 4 M6
9 SCREW, HEX HEAD X08007 4 M6x16mm

10 GASKET X08148-1 1

CIRCUIT BOARD, DIGITAL CONTROL

11

(INCLUDES X08160-2)

CIRCUIT BOARD, DIGITAL SWITCH X08160-2 1

12 SCREW, ROUND HEAD & WASHER - SS X08161-162 4 M3x10mm
13 MOTOR ASSEMBLY X08056-57-1 1
14 MOTOR SHAFT AND CORE - 1
15 MOTOR COIL - 1
16 BALL BEARING X08055 1
17 OIL SEAL X08054 1

WORM 60Hz X08053 1

18

WORM 50Hz X08053-1 1

19 NUT, HEX X08051 4 M10
20 ROLL PIN X08052 1 Ø3x10mm
21 REAR COVER ASSEMBLY X08058-64 1
22 COVER, REAR MOTOR X08062 1
23 ROLL PIN - 1 Ø6x12mm
24 SHROUD X08062-1 1
25 SCREW, PAN HEAD - 3 M3x6mm
26 BALL BEARING X08059 1

*27 SCREEN, MOTOR COOLING X08060 1
*28 SCREW, PAN HEAD X08061 2 M4x6mm

29 WASHER, SPLIT LOCK X08064 4 M5
30 SCREW, HEX HEAD & WASHER X08063 4 M5x50mm
31 CASE, TRANSMISSION X08010 1
32 PIN, LOCATOR X08009 2
33 LABEL, ARROW X91012 1
34 LABEL, STOP TO CHG GEAR X91010 1
35 LABEL, WARNING X91007 1
36 GASKET, GEAR ARM X08040 1
37 PLATE, GEAR ARM X08045-1 1
39 SCREW, FLAT HEAD X08050 4 M4x10mm

*PART CONFIGURATION MAY VARY.

X08160-RL 1

4

SP8-RL PLANETARY COMPONENTS

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 NUT, HEX - NYLON INSERT X08015 1 M6
2 WASHER, FLAT X08016 1 M6x16x1mm
3 PINION BEATER (17T) X08017 1
4 BALL BEARING X08018 1
5 PLANETARY GEAR (56T) X08019 1
6 CAP SCREW, SOCKET HEAD X08034 4 M6x13mm
7 PLANETARY HOLDER X08020 1
8 BALL BEARING X08022 1
9 OIL SEAL X08023 1 35X17X7mm

10 PLANETARY SHAFT ASSEMBLY X08024 1
11 SHAFT KEY X08036 1 4x8x8mm
12 DOWEL PIN X08037 1
13 SPRING X08038 1
14 WASHER, FLAT X08039 1 13.1x1mm
15 COVER, PLANETARY HOLDER X08021 1
16 SCREW, BINDER HEAD X08035 3 M2.6x4mm

SAFETY GUARD, WIRE X08154-1 1

17

SAFETY GUARD, PLASTIC (W/CLIPS) X08154-2

18 CLIP X08149 2
19 WASHER, FLAT X08150 4 M4
20 SCREW, SELF TAPPING TRUSS HEAD - CLIP MTG X08151 4 M4x8mm

5

CONFIGURATION APPLIES

TO S/N 7014279 AND UP

SP8-RL GEARBOX COMPONENTS

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 MASTER SHAFT (18T) X08143-1 1

WORM GEAR, BRONZE 60Hz (20T) X08145

2

WORM GEAR, BRONZE 50Hz (22T) X08145-1

3 SHAFT KEY X08130 1 5x5x12
4 RETAINING RING X08135 1 S-15
5 BALL BEARING X5C31 1 6200
6 BALL BEARING X08201 1 6200ZZ
7 TRANSMISSION SHAFT (14T) X08129-3 1
8 GEAR, THIRD SPEED (36T) X08132 1
9 SHAFT KEY X08130 1 5x5x12

10 BALL BEARING X5C31 1 6200
11 RETAINING RING X08135 1 S-15
12 BALL BEARING X08201 1 6200ZZ
13 DRIVE SHAFT X08124-1 1
14 GEAR, FIRST SPEED (47T) X08107-3 1
15 BALL BEARING X08202 1 6203LLU
16 BUSHING & SEAL SET X08116-1 1
17 OIL BUSHING - 1
18 OIL SEAL - 1
19 BALL BEARING X08203 1 6202ZZ
20 SHAFT KEY X08144 1 5x5x14mm
21 SHAFT KEY X08127 1 5x5x26mm

1

6

SP8-RL GEARBOX COMPONENTS

CONFIGURATION APPLIES

TO S/N 7013893 - 7013927

AND S/N 7014061 - 7014071

7

SP8-RL GEARBOX PARTS LIST

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 BALL BEARING X08104 1
2 LEAD-IN OIL PAD X08105 1
3 SLOW SPEED GEAR ASSEMBLY X08106-107-2 1
4 BUSHING X08106 1
5 ROLLER PIN - 1
6 SPRING, SLICE - 1
7 GEAR, FIRST SPEED (47T) X08107-2 1
8 BUSHING X08108 1
9 BUSHING, THIRD SPEED X08110 1

10 DRIVE SHAFT X08124 1

11 SHAFT KEY X08127 1 5x5x26mm
12 BUSHING, SECOND SPEED X08111 1
13 BEARING PAD X08113 1
14 BALL BEARING X08114 1
15 BUSHING & SEAL SET X08116-1 1
16 OIL SEAL - 1
17 OIL BUSHING - 1
18 WASHER, FLAT - SS X08119 1 M8x22x1mm
19 NUT, HEX - NYLON INSERT X08120 1 M8
20 BALL BEARING X08128 1
21 TRANSMISSION SHAFT (14T) X08129-2 1
22 SHAFT KEY X08130 1 5x5x12mm
23 SHAFT KEY X08131 1 5x5x14mm
24 GEAR, THIRD SPEED (36T) X08132 1
25 BUSHING, BRONZE, 47mm X08133-1 1

*26 BUSHING, BRONZE, 32mm X08133 1
*27 GEAR, SECOND SPEED (27T) X08134 1

28 RETAINING RING X08135 1 S-15
29 BALL BEARING X08128 1
30 BALL BEARING X08128 1
31 MASTER SHAFT (18T) X08143 1
32 SHAFT KEY X08144 1 5x5x14mm

33

34 RETAINING RING X08135 1 S-15
35 BALL BEARING X08128 1

*26/27 CONFIGURATION ONLY USED ON S/Ns 7014067-7014071.

WORM GEAR, BRONZE 60Hz (20T) X08145

1

WORM GEAR, BRONZE 50Hz (22T) X08145-1

8

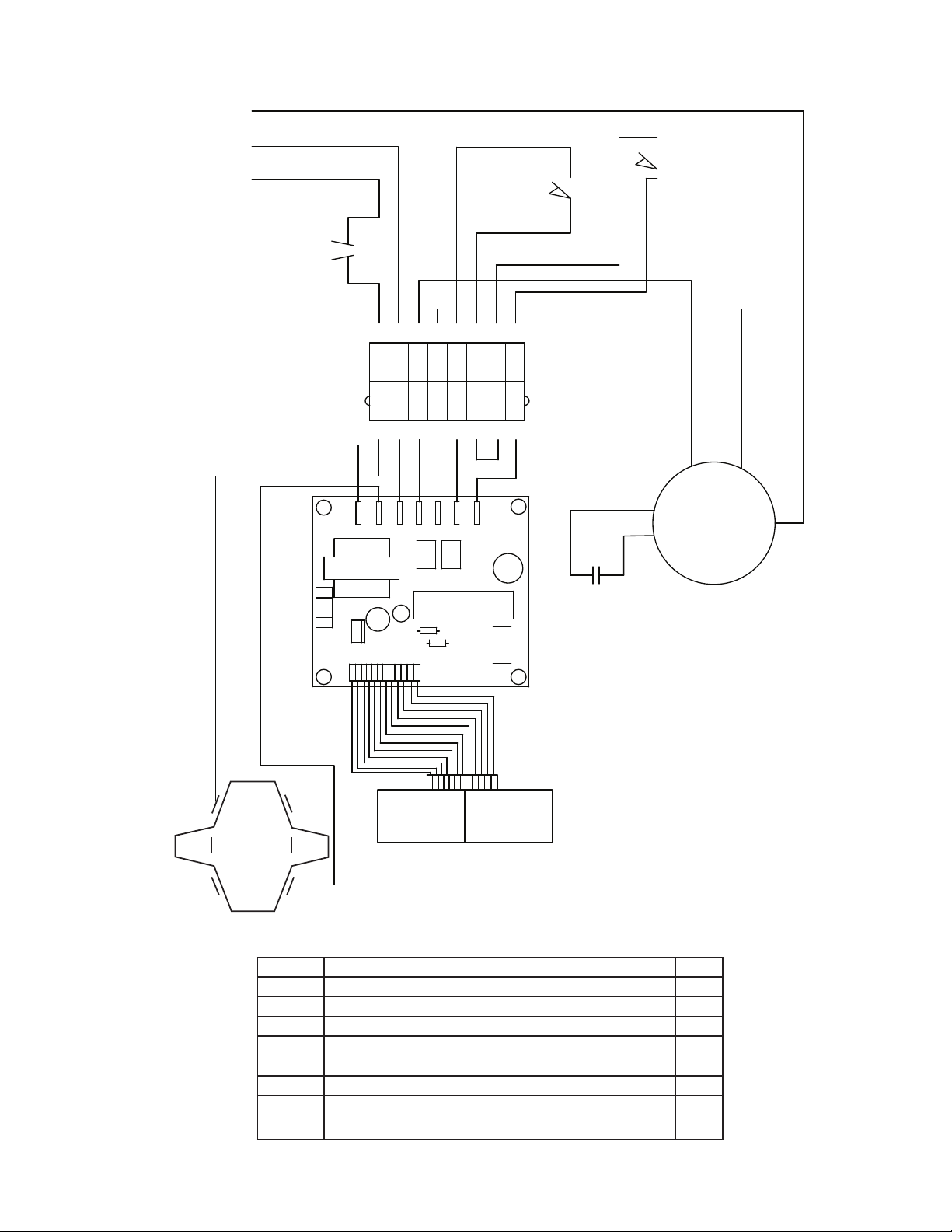

ELECTRICAL DIAGRAM, SP8-RL MIXER, 120V, 1 PH

PF

L

L

L

L

M1

1~

1/4HP

T

T T

T

F1

S1

FR1

1 3

L

L + 2

T

T

IC

PF

TIME ON

F2

S2

1 2 3 5 4 6 7

LIMIT MOTOR-OUT AC AC GND

4 2

F3

18AWG

18AWG

18AWG

18AWG

18AWG

18AWG

18AWG

18AWG

18AWG

1 3

4

a

b

2

18AWG

18AWG

18AWG

20mF

450VAC

C1

STOP

BUTTON

ITEM DESCRIPTION QTY

C1 CAPACITOR 1
F1 OVERLOAD PROTECTION 1
F2 MICROSWITCH (SAFETY GUARD) 1
F3 MICROSWITCH (BOWL LIFT) 1

FR1 TERMINAL BLOCK 1

IC IC BOARD 1
S1 EMERGENCY STOP BUTTON 1
S2 START BUTTON, TIMER IC CONTROL 1

M1 MOTOR, 1/4HP, 1PH, 120V/220V, 50/60Hz 1

9

995051 GFE-SP8-RL 04Aug2014 Rev D ECN 1835
