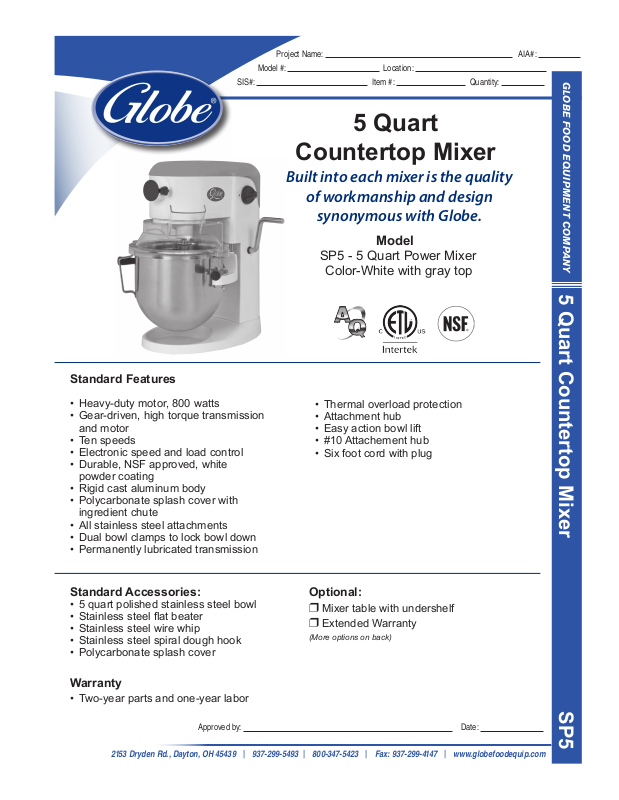

Project Name: AIA#:
Model #: Location:
SIS#: Item #: Quantity:
GLOBE FOOD EQUIPMENT COMPANY
5 Quart
Countertop Mixer
Built into each mixer is the quality
of workmanship and design
synonymous with Globe.
Model
SP5 - 5 Quart Power Mixer
Color-White with gray top
5 Quart Countertop Mixer SP5
Standard Features
• Heavy-duty motor, 800 watts
• Gear-driven, high torque transmission
and motor
• Ten speeds
• Electronic speed and load control
• Durable, NSF approved, white
powder coating
• Rigid cast aluminum body
• Polycarbonate splash cover with
ingredient chute
• All stainless steel attachments
• Dual bowl clamps to lock bowl down
• Permanently lubricated transmission
Standard Accessories:
• 5 quart polished stainless steel bowl
• Stainlesssteelatbeater
• Stainless steel wire whip
• Stainless steel spiral dough hook
• Polycarbonate splash cover
• Thermal overload protection
• Attachment hub
• Easy action bowl lift
• #10 Attachement hub
• Six foot cord with plug
Optional:
r Mixer table with undershelf
r Extended Warranty
(More options on back)
Warranty
• Two-year parts and one-year labor
Approved by: Date:
2153 Dryden Rd., Dayton, OH 45439 | 937-299-5493 | 800-347-5423 | Fax: 937-299-4147 | www.globefoodequip.com
5 Quart Countertop Mixer SP5
SP5
Drawings available through KCL. www.kclcad.com
Model Elevation Right Plan Back BIM 3D Revit
SP5
SPECIFICATIONS
Model Motor Volts Amps
SP5 800 W 115/60/1 4 Gear 5 qt / 5 L
Cord & Plug:Attached6footexible3-wirecordwithmoldedplugtsagroundedreceptacle. NEMA 5-15P
FEATURES:
Transmission: Heavy duty
transmission with precision
milled gears operate the
planetary action and provide high
torque mixing power. Gears are
packed in a long lasting grease,
and all shafts are mounted in ball
bearings.
Electronic Speed and Load
Control:
Guarantees consistent kneading
and mixing performance.
Manual Reset:
Electrically controlled thermal
overload protection.
Transmission
Type
STANDARD ACCESSORIES:
• 5 Quart #304 series stainless
steel bowl
• Stainless steel dough hook,
beater, and wire whip
• Polycarbonate splash cover with
built-in ingredient chute
• Spatula
OPTIONAL ACCESSORY:
• XXTABLE - Mixer Table with
undershelf (Stainless steel top with
galvanized steel undershelf and
legs.) 30'' W x 24'' D x 24'' H
(76.2cm x 61cm x 61cm)
Capacity
OFF 30 50 70 90 105 120 145 165 180 200 50 to 450
0 1 2 3 4 5 6 7 8 9 10
EXTENDED WARRANTY
• SP-XD58 Extended warranty
for the SP5 mixer. Coverage
extends factory warranty to
2-years. Only available at time
of purchase. (U.S.A. Only)
Agitator Speeds (RPMs)
Attachment Speeds
(RPMs)
DIMENSIONS & SHIPPING INFORMATION Freight Class 85
Cartons are reinforced for shipping. The weight and dimensions of this reinforced carton are included below and may vary from shipment to shipment.
This product ships on a pallet.
Model Foot Print Overall Dimensions Net Weight Shipping Dimensions Shipping Weight
SP5 13.1'' D x 15.3'' W
(33.4 cm x 38.9 cm)
15.3'' L x 13.1'' W x 17.1'' H
(38.9 cm x 33.4 cm x 43.3 cm)
33 lbs.
(15 kg)
18.5'' L x 15'' W x 21.5'' H
(46 cm x 37 cm x 52 cm)
40 lbs.
(18 kg)
2153 Dryden Rd., Dayton, OH 45439 | 937-299-5493 | 800-347-5423 | Fax: 937-299-4147 | www.globefoodequip.com
Specifications are subject to change without notice.Printed in U.S.A. 07-2014
