Globe SP40E-405-420503 PARTS LIST

Parts Catalog

SP40E-405-420503

Mixer

Model:

7/22/2019 Rev -

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF UNIT.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

SP40E-405-420503

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

© Globe Food Equipment Company, 2019

Not for resale

995230 ECN 1995

Table of Contents

PageDescription

SP40E Base Components 4
SP40E Head Components 8
SP40E Hub Assembly Components 12
SP40E Planetary Components 14
SP40E Gearbox Components 16

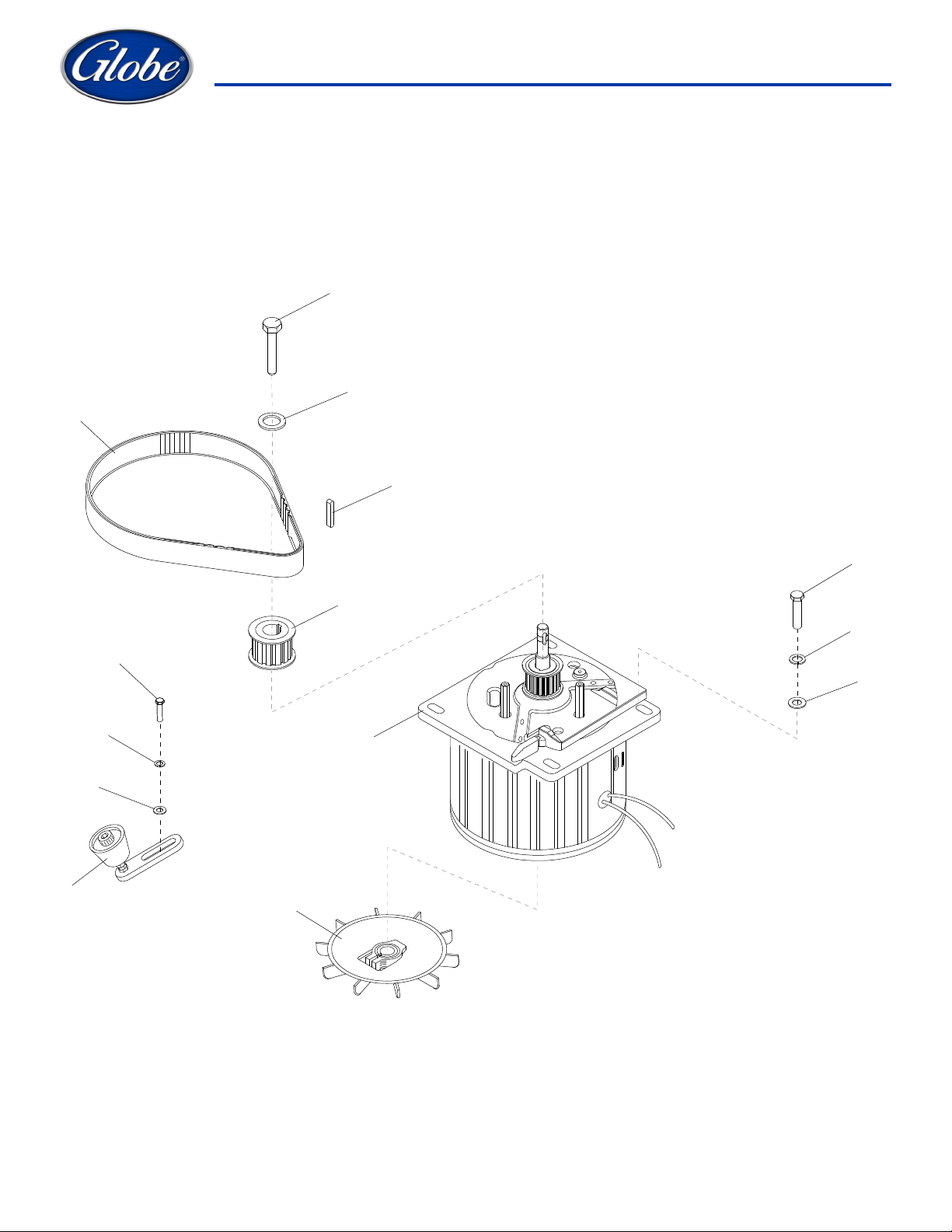

SP40E Motor Components 20
SP40E Motor Brake Components 22

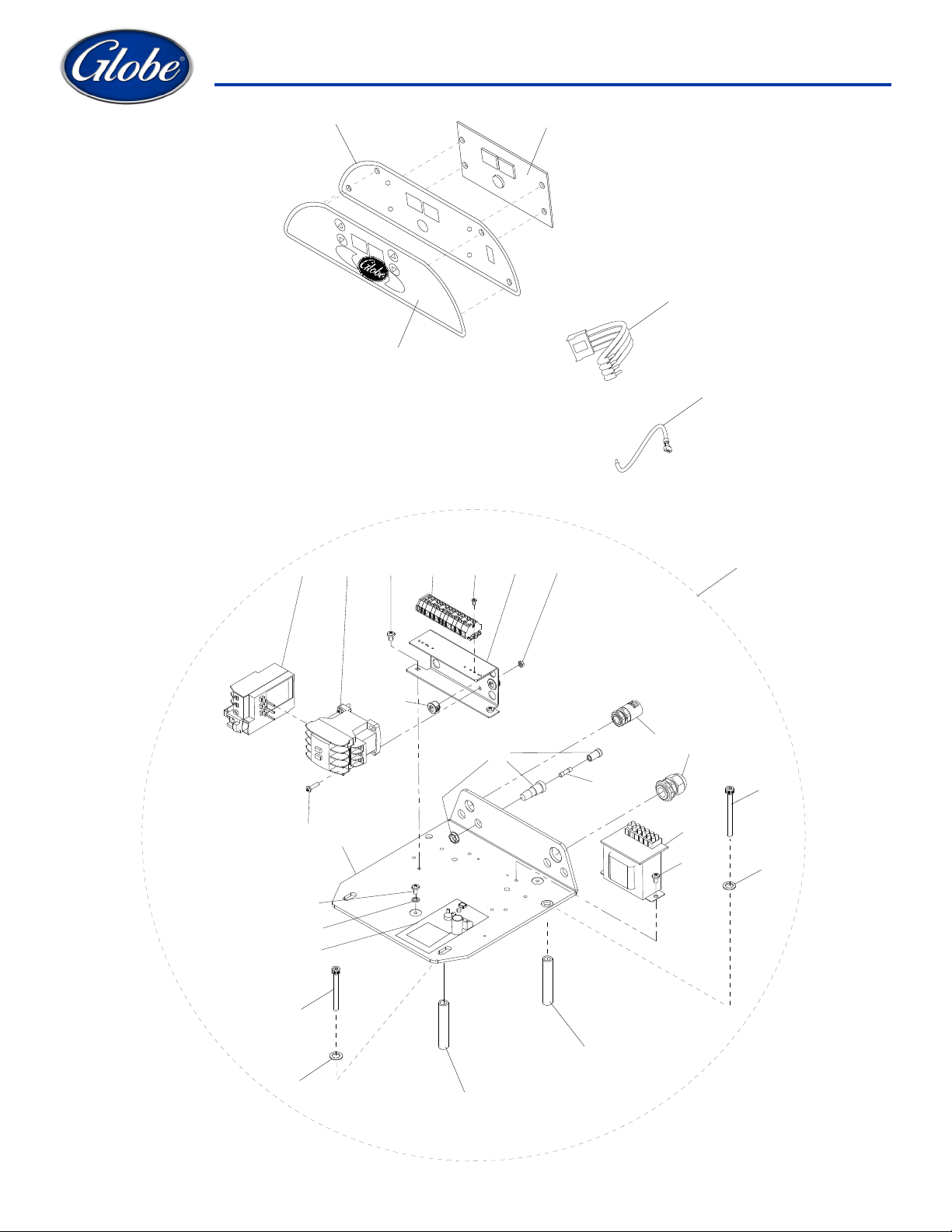

SP40E Digital Components 24
SP40E Wiring Diagram, 380_420V_50-60HZ Three Phase 26

SP40E Base Components

14A

7A

7B

7

5

2

6

1A

2B

8A

2A

1

14

13A

15

20

27

25

26

20

29

30

28

20

21

23

23

24

7C

7D

7E

7C

7F

7G

7H

3

9

4B

4A

11B

11C

4

8

8B

13

22

20

21

12

20

19

18A

11A

18

17

16

11

16A

10

10A

4

© Globe Food Equipment Company

r

SP40E Base Components

Q.

1 X40036 1Guard, Rear

1A X30101 4Hex Screw M8x20mm & Flat Washer

2 X40102 1Mixer Column Cover
2A X40056 3Truss Hd Screw PHH M6-1.0x10mm, SS-18
2B 3Washer M6 Flat

3 X40034 1Bowl Cradle

4 X40109 2Dowel Screw Assembly
4A X01372 2
4B X40110 2

5 2Bowl Clamp Stop Pin

6 X40106 1Screw M10x54mm Hex Hd/Nut (Touch Shaft)

7 X30033 1Bowl Clamp Assembly (Set/2)
7A X30108 2Bowl Clamp Hardware Kit
7B X30033-2 1Bowl Clamp (Set/2, New Style)
7C 4Washer M12 Flat
7D 2Hardware Cap Retainer
7E 2Spring
7F 2Washer M10 Split Lock

7G 4Nut M12 Acorn
7H 2Hardware Cap

8 X40035 2Cradle Slide Guides
8A 8Washer M8 Flat
8B X30197 8Ext. Hex Hd Screw M8-1.25x25mm, SS

9 X40162-163 1Front/Rear Rubber Feet (Set)

10 4Shipping Washer
10A 4Shipping Bolt 3/8x45mm
10B 450012 1Seismic Flange Kit (Not Shown)

11 X40038-DG 1Mixer Base
11A X40040 2Dowel Pin Ø8x16mm Column Locator
11B 4Washer M12 Flat
11C 4Screw M12x40mm Hex Hd

12 X40037 1Base Screen

13 X40042 1Mixer Column
13A X30178 2Dowel Pin Ø8x16mm Head Locator

14 X40055 1Plate, Rear Cover

14A X40056 6Truss Hd Screw PHH M6-1.0x10mm, SS-18

15 X30051 1Microswitch, Bowl Lift
16 X30104 1Screw Sleeve

16A X30105 1Roll Pin Ø4x30mm

17 X25145 1Retaining STW-35 Ring
18 X40041 1Bowl Lift Screw

18A X20123 1Key, Round Ends H-5xW-5xL-18mm

19 X30043 1Ball Bearing
20 5
21 X30045 2Oblique Gear (30T)
22 X40047 1Shaft, Hand Wheel
23 X40073 2Key H-5xW-5xL-20mm Round Ends
24 X40050 1Oilless Bearing
25 X40053M 1Hand Wheel Crank With Handle, Metal
26 X30053-1 1Hand Wheel Crank Handle
27 1Set Screw M10x8mm Cup Pt.
28 1Hand Wheel Cap
29 1Spacer (50m mod x 25.3mm Id x 10.2mm)

Lock Washer M12, ID-12.7, OD-21, TH-2.5mm, SS

Cap Nut, M12-1.75, OD-19mm, HT-22mm, Class 10, Zn

(Incl. items 7A-7H)

(Incls. items 26-27)

Ext. Retaining Ring, OD-25, Groove-23.9, Ring ID-23.2, TH-1.2mm, B.O.

(Metal Wheel Only)

QtyDescriptionItem Part Numbe

Serial Number

5

© Globe Food Equipment Company

r

SP40E Base Components

A

Q.

QtyDescriptionItem Part Numbe

30 X02595 1United Kingdom, Hazardous Voltage LBL (Not Shown)

30 X02594 1Spanish, Hazardous Voltage LBL (Not Shown)

30 X02593 1Portuguese/Brazil Hazardous Voltage LBL (Not Shown)

30 X02592 1Thai, Hazardous Voltage LBL (Not Shown)

30 X02591 1

rabic, Hazardous Voltage LBL (Not Shown)

Serial Number

6

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

7

© Globe Food Equipment Company

SP40E Head Components

C

H

A

N

G

I

N

G

S

P

E

E

D

B

E

F

O

R

E

S

T

O

P

M

I

X

E

R

2

3

1

3

1

2

18

SAFETY
GUARD
SPRING LOCK

3A

18B

3B

3

4A

1

4B

2

4

5

6

A

B

C

10

9

7

26A

8

11

12B

12C

12

23B

24C

GEAR SHIFT

LEVER ASSEMBLY

24

24A

24B

23

22

23A

21

20

15

13A

14

15A

16

17

SPRING LOCK

SEE ENLARGED VIEW

19C

19B

19A

19

13

26

26B

20

SHIFT LEVER
SEE ENLARGED VIEW

27

27A

28

25B

25

25A

8

© Globe Food Equipment Company

r

SP40E Head Components

A

A

Q.

1 X30207 2Flat Hd Screw-Socket M8-1.25x108mm, B.O.
2 X30220 1Flat Hd Screw-Socket M6-1.0x90mm, B.O.

3 X40002 1Cover, Switch Box
3A X40056 6Truss Hd Screw PHH M6-1.0x10mm, SS-18
3B X40003 1Gasket, Switch Box

4 X40077 1Cover, Gear Housing
4A X30198 4
4B X30197 4Ext. Hex Hd Screw M8-1.25x25mm, SS

5 X10073 2Oil Plug

6 X30024 1Ball Bearing

7 X10012 1Ball Bearing

8 X60080 1Wheel, Main Cog (97T)

9 X40081 1Key H-5xW-5xL-12mm Round Ends
10 X40082 1
11 X10012 1Ball Bearing
12 X30076 1Plate, Ventilation
13 X40087-1 1Transmission Case, Removable Bowl Guard

13A 2Pin, Locating

14 X02580 1United Kingdom, Maint. of Intern. Gear LBL
14 X02579 1Spanish, Maint. of Intern. Gear LBL
14 X02578 1Portuguese/Brazil, Maint. of Intern. Gear LBL
14 X02577 1Thai, Maint. of Intern. Gear LBL
14 X02576 1
15 X10900 1Grease Fitting

15A X10217 1Grease Tube

16 X91012 1Label, Arrow
17 X02585 1United Kingdom, Avoid Gear Damage LBL
17 X02584 1Spanish, Avoid Gear Damage LBL
17 X02583 1Portuguese/Brazil, Avoid Gear Damage LBL
17 X02582 1Thai, Avoid Gear Damage LBL
17 X02581 1
18 X10134 1Safety Guard Spring Lock

18A 2Washer M3 Flat
18B X10134B 2Round Hd Screw-PHH M3-0.5x8mm, SS-18

19 X40096 1Touch Shaft Assy, Brass

19 X30096N 1Touch Shaft, Nylon
19A X30095 1Spring
19B X30186 2Hex Nut M5-0.8 OD-8, TH-4mm, Zinc
19C X40187 1Tube

20 X40057-60 1Gear Shift Lever Assembly (Incls. 18-21C)

21 X30057-1 1Knob, Gear Shift

22 1Shaft

23 1Cover
23A X30179 4Flat Hd Screw-Socket M8-1.0x16mmHd, Zn
23B X30059-1 1Gasket

24 1Shaft Bias
24A 2Roller
24B 2Spring

24C 1Roll Pin Ø5x28mm

25 X10057 1Microswitch, Interlock

25A 854-2 2Screw, Magnet Mounting

25B 854-3 4Nut, Magnet Mounting

26 X30062 1Bracket, Microswitch

Lock Washer M8, ID-8.5mm, OD-12.7mm, TH-2mm

Thin Hex Nut M18-1.5, OD-27, Thick-9mm, CLASS 04, Zn

rabic, Maint. of Intern. Gear LBL

rabic, Avoid Gear Damage LBL

QtyDescriptionItem Part Numbe

Serial Number

9

© Globe Food Equipment Company

r

SP40E Head Components

A

Q.

26A 2Screw M6x20mm Hex Hd
26B 4Nut M6 Hex

27 X02605 1United Kingdom, Emergency Stop Panel LBL
27 X02604 1Spanish, Emergency Stop Panel LBL
27 X02603 1Portuguese/Brazil, Emergency Stop Panel LBL
27 X02602 1Thai, Emergency Stop Panel LBL
27 X02601 1

27A X30065 4Truss Hd Screw-Phillips M5-0.8x10mm, SS

28 X02515 1Button, Emergency Stop

rabic, Emergency Stop Panel LBL

QtyDescriptionItem Part Numbe

Serial Number

10

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

11

© Globe Food Equipment Company

SP40E Hub Assembly Components

A

8

1

7

6

5

4

3

2

2

12

© Globe Food Equipment Company

r

A

SP40E Hub Assembly Components

A

Q.

1 X10007 1
2 X40017-DG 1

2A 1Gasket

3 X10089 1Oil 45x35x8mm Seal
4 X10075 1Bearing
5 X30018-1 2Thrust Washer ID-35mm, OD-55mm, TH-1mm
6 X40014 1Level Drive Gear (35T)
7 X10005 1Thumb Screw 1/2-13x3/4"
8 X80B52 4Socket Hd Cap Screw M6-1.0x20mm, B.O.

ttachment Hole Plug
ttachment Hub

QtyDescriptionItem Part Numbe

Serial Number

13

© Globe Food Equipment Company

21

SP40E Planetary Components

1

2

27

28

24

23

25

26

22

4

6

3

5

7

8

9B

20

19

16

10

14

15

12

13

9

9A

11

17

18

14

© Globe Food Equipment Company

r

SP40E Planetary Components

Q.

1 X40019-28 1Complete Planetary Assembly
2 X40019 1Screw M10x24mm (Old Style Shaft)
3 X30020 1Nut M14 Stop & Washers
4 X40021 1Pinion, Beater (21T)
5 X10102 1Ball Bearing
6 X40023-DG 1Planetary Shaft Holder
7 X30024 1Ball Bearing
8 X40025 1Oil Seal

9 X40027 1Planetary Shaft, External Thread (New Style)
9A X30028 1Dowel Pin M12x17mm
9B X40026 1Key H-7xH-7xL23mm Round Ends
10 X400S2 1Plastic Slide Sheath, Removable Safety Guard
11 X200S3 1Spring Plunger Hardware Kit
12 1Spring
13 1Plunger
14 1Plate, Plunger Retention
15 2Screw M3x8mm Flat Hd
16 X400S1 1Bowl Guard Assembly, Stainless Steel
17 1Removable Bowl Guard
18 X30504 1Handle, Plastic - Removable Safety Guard
19 X02625 1Cover, Plastic
20 X02000 1Scraper Mounting Kit
21 XXSCRP-40 1Bowl Scraper Assembly
22 1Scraper Mounting Hub
23 2Washer
24 2Washer M8 Flat
25 2Washer M8 Split Lock
26 2Screw M8x25mm Hex Hd
27 1Scraper Arm
28 1Bowl Scraper

(Incls. items 2-9B)

(Incls. items 11-15)

(Incls. items 17-18)

(Incls. items 21-28)

(Incls. items 22-26)

QtyDescriptionItem Part Numbe

Serial Number

15

© Globe Food Equipment Company

SP40E Gearbox Components

A

1

1B

A

1

25

C

2

*3

*4

5

6A

6

6B

6D

6C

8

9

7

28

26

30

*27

28A

29

31

B

34

35

*36

37A

37

19

15

16

18

17

20

21

22

23

14

11

10

12

13

13A

13B

13C

32

39C

39D

39E

38

*33

39A

*39

39B

24

PARTS MOUNT BELOW TRANSMISSION CASE

*PART CONFIGURATION MAY VARY.

16

© Globe Food Equipment Company

r

SP40E Gearbox Components

Q.

1 X40111 1Nut M24 Jam
1A X40111A 1

Lock Washer M24, ID-25.5, OD-40, TH-5mm, Plain

1B 1Washer M24 Flat D Shape

2 X30112 1Retaining Ring STW-52

3 X30024 1Ball Bearing

4 0Shim

5 X40113 1Lead-In Oil Pad

6 X40114-117 1Slow Speed Gear Assembly

(Incl. items 6A-6D)

6A 1Bushing
6B 1Dowel Ø8x16mm Pin

6C 1Slice Spring

6D 1Gear, Slow Speed (52T)

7 X40118 1Gear, Bevel (52T)

8 X40014 1Level Drive Gear (35T)

9 X30018-1 1Thrust Washer ID-35mm, OD-55mm, TH-1mm
10 X40222 1Gear, Clutch (34T) New Style
11 X40119 1Bushing, Clutch
12 X30133 1Sleeve, Clutch
13 X40130 1Drive Shaft

13A X40121 1Key H-8xW-8xL-45mm Round Ends
13B X30121 2Key H-8xW-8xL-40mm Round Ends

13C X30131 1Key H-10xW-10xL-55mm Round Ends

14 X40119 1Bushing, Clutch
15 X40122 1Gear, Clutch (45T)
16 X30124 1Heel
17 X40125 1Ball Bearing
18 X40126 1

Ext. Retaining Ring ID-3, G-3.182, OD-3.325, TH-0.093" B.O.

19 X40128 1Oil Seal
20 X30221 1O-Ring 36x30x3mm
21 X40127 1Guard, Oil Bushing
22 X30221 1O-Ring 36x30x3mm
23 1Washer M20 Flat D Shape
24 X30111 2Thin Hex Nut M20-1.5, OD-29, HT-10mm, Zn
25 X40147 1Nut, Stop

26 X25106 1

Int. Retaining Ring ID-2, G-2.122, OD-2.210, TH-0.062" B.O.

27 X10012 1Ball Bearing
28 X40150-2 1Transmission Shaft (13T) New Style, Splined

28A X40149 1Key H-8xW-8xL-24mm Round Ends

29 X40223 1Gear (31T) New Style
30 X40144 1Bushing, Spacer
31 X40143-2 1Gear (20T) New Style, Splined
32 X40141 1Retaining Ring STW-24
33 X30140 1Ball Bearing
34 X40082 1
35 X30146 1

Thin Hex Nut M18-1.5, OD-27, Thick-9mm, CLASS 04, Zn

Int. Retaining Ring ID-1-3/4, Groove-1.858, OD-1.942, TH-0.062"

36 X10012 2Ball Bearing
37 X40224 1Shaft, Master (13T)

37A X40081 1Key H-5xW-5xL-12mm Round Ends

38 X30140 1Ball Bearing

39 X40134-139 1Yoke, Shifter Assembly (Incl. 39A-39E)
39A 1Yoke, Shifter
39B 1Guide, Rod Shifter
39C 2Plunger, Yoke Shifter

QtyDescriptionItem Part Numbe

Serial Number

17

© Globe Food Equipment Company

r

SP40E Gearbox Components

Q.

39D 2Spring, Yoke Shifter
39E 2Spring, Retainer

QtyDescriptionItem Part Numbe

Serial Number

18

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

19

© Globe Food Equipment Company

A

M

A

D

E

I

N

J

A

P

A

N

4

SP40E Motor Components

2A

2B

2C

3C

3

1

2

1B

3A

1C

3B

1

5

20

© Globe Food Equipment Company

r

SP40E Motor Components

Q.

QtyDescriptionItem Part Numbe

1 X02676 1Motor Assembly with Brake, 3HP 405-420503
1A X40069 4Screw M8x30mm Hex Hd
1B X08102 4Lock Washer M8 ID-8.5, OD-14.8, TH-2mm Zn

1C X08076 4

2 X00734 1Wheel, Motor Cog (20T) 50HZ
2A X08077 1Ext. Hex Hd Screw M8-1.25x20mm, Zinc
2B X30074 2Flat Washer M8, ID-8, OD-24, TH-2mm, Zn

2C X30073 1Shaft Key 5x5x25

3 X30158 1Belt Tensioner
3A X40159 2Screw M8x24mm Hex Head
3B X08102 2Lock Washer M8 ID-8.5, OD-14.8, TH-2mm Zn

3C X08076 2

4 X40072-2 1Cogged Belt (S8M-896)

5 X40061 1Cooling Fan

Flat Washer, M8 ID-8.4mm, OD-16mm, TH-1.6mm, Zn

Flat Washer, M8 ID-8.4mm, OD-16mm, TH-1.6mm, Zn

Serial Number

21

© Globe Food Equipment Company

SP40E Motor Brake Components

1

3

2

7

6

5

13

16

11

4

8

9

10

12

14

15

22

© Globe Food Equipment Company

17

r

SP40E Motor Brake Components

Q.

1 X25500 1Cover, Motor Brake Components

2 4Screw M5x10mm Button Hd

3 X25500-1 1Gasket

4 X40004-1-DG 1Cover, Transmission

5 X40501 1Motor Brake, Magnetic

6 4Washer M5 Split Lock

7 4Cap Screw M5x12mm Socket Hd

8 4Nut M5 Hex

9 1Nut M18 Hex
10 1Washer M18 Flat
11 X40500 1Brake Housing
12 3Washer M5 Split Lock
13 3Screw M5x10mm Socket Hd
14 X30502 3Hex Standoff
15 1Shaft Key 5x5x17mm
16 1Top Cover, Motor
17 1Motor Shaft

(Incl. w/Motor Assembly)

(Incl. w/Motor Assembly)

QtyDescriptionItem Part Numbe

Serial Number

23

© Globe Food Equipment Company

SP40E Digital Components

S

T

O

P

S

T

A

R

T

M

i

n

u

t

e

s

S

e

c

o

n

d

s

8

2

9 10

1

11

12

13

3

14

4

5

6

23B

23A

15

26
25

24

7

16

23

17

22

18

19

20

21

10

22B

22A

24

© Globe Food Equipment Company

r

SP40E Digital Components

A

Q.

1 X00567 1Switch, Membrane

2 X01338 1

3 X00568 1Control Board

4 X00675 14 Wire Harness With Connector

5 X00676 1Single Wire With Quick Connect

6 X02675 1Electronic Part Assembly

7 X02554 1Plate, Mounting

X40154-1ABB

8

9 X02628 1Contactor
10 H02521 4Cheese Hd Screw-Combo M5x8mm, Zn
11 X02672 1Block, Connecting
12 H02523 2Cheese Hd Screw-PHH M3x10mm, Zn
13 X02524 1Bracket, Mounting
14 H02504 2Hex Nut M4, OD-8mm, TH-3.5mm, Zn
15 H02526 2Cheese Hd Screw-PHH M4x15mm, Zn
16 X02525 2Cable Feed Through
17 X02072 1Fixture, Fuse
18 X02073 1Fuse
19 X02527 1Cable Feed Through
20 X02528 1Relief, Strain
21 X02632 1Transformer, Control
22 X30085 2Tube M8x108mm Support

22A 2Washer M8 Flat
22B X30010 2Socket Hd Cap Screw M8-1.25x90mm B.O.

23 X30153 2Tube, Support

23A 2Washer M8 Flat
23B X30086 2Socket Hd Cap Screw M8-1.25x100mm, B.O.

24 X02619 1Brake Circuit
25 H02532 2Washer M5, OD-12, ID-5, TH-1mm, Zn
26 H02533 2Truss Hd Screw-Combo M5x8mm, Zn

luminum Panel

(Incls. screws/gasket)

(Incls. items 7-26)

QtyDescriptionItem Part Numbe

1Relay, Overload

Serial Number

25

© Globe Food Equipment Company

SP40E Wiring Diagram, 380_420V_50-60HZ Three Phase

5

5
A1A

6

V

80V

2

5

0
A

1

TR1

2

TR2

3

4

4

9

BRAKE

MOTOR

6T3

4T2

9596979

2T1

8.8.8.8

J3

J5 J4

11

11

1

10

J5

J5

J4

J3

J3TR2

1

2

C24V INPUT

1

2

EMERGENCY STOP

MICROSWITCH MICROSWITCH

TR2

TR1

TR1 J4

9

9

4

14NO

13NO

2

6T3

5L3

L

4T2

3L2

2T1

1L1

L1

PE

4

5

5

6

6

9

7

L2

L2

L1

L1

24V

400V

15V

415V

FUSE(1A)

0

26

© Globe Food Equipment Company
