Globe SP40E-220-240501 Parts List

Parts Catalog

SP40E-220-240501

Mixer

Model:

5/22/2019 Rev -

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF UNIT.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

SP40E-220-240501

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

© Globe Food Equipment Company, 2019

Not for resale

995217 ECN 1981

Table of Contents

PageDescription

SP40E Base Components 4
SP40E Head Components 8
SP40E Hub Assembly Components 12
SP40E Planetary Components 14
SP40E Gearbox Components 16

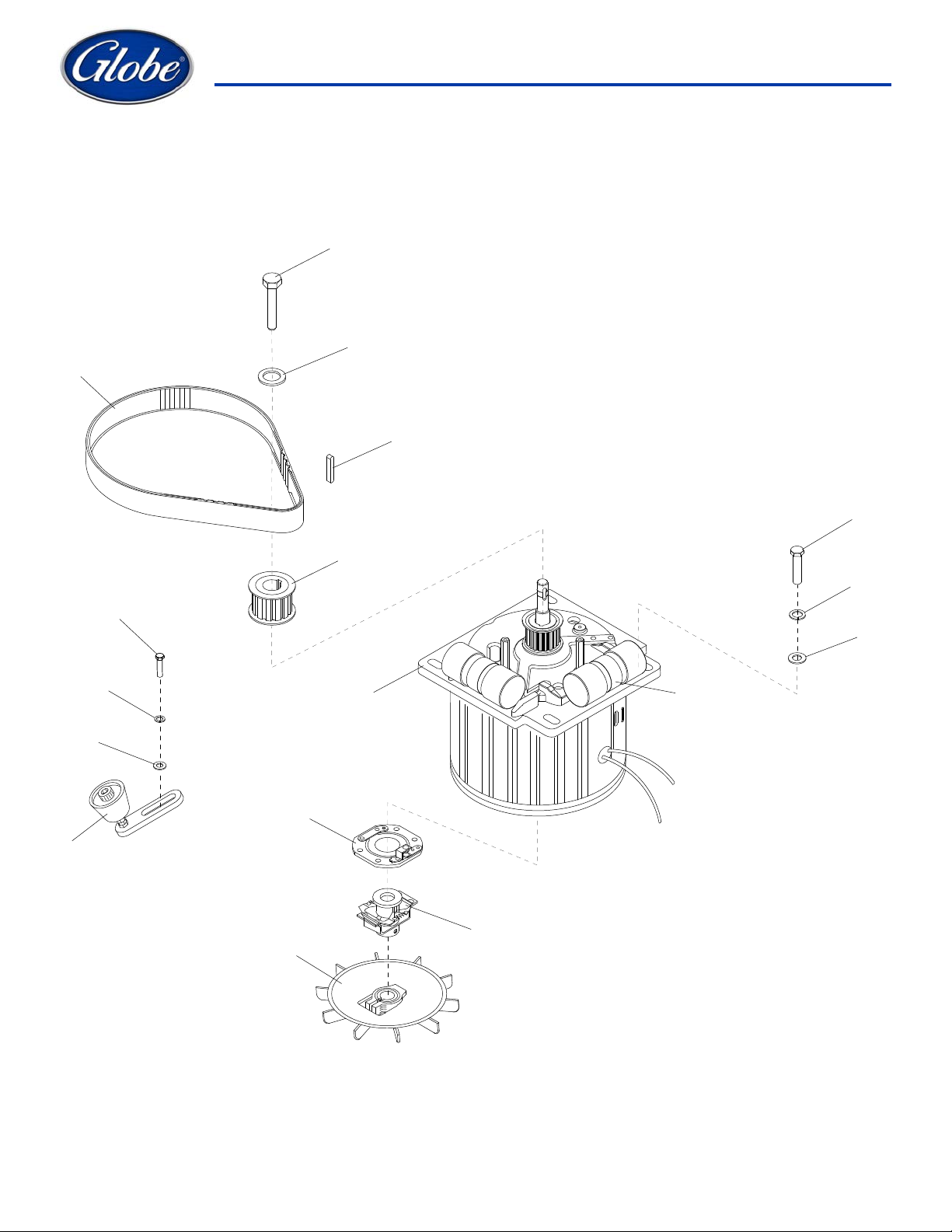

SP40E Motor Components 20
SP40E Motor Brake Components 22
SP40E Digital Components 24
SP40E Wiring Diagram, 220V Single Phase 26

SP40E Base Components

14A

7A

7B

7

5

2

6

1A

2B

8A

2A

1

14

13A

15

20

27

25

26

20

29

30

28

20

21

23

23

24

7C

7D

7E

7C

7F

7G

7H

3

9

4B

4A

11B

11C

4

8

8B

13

22

20

21

12

20

19

18A

11A

18

17

16

11

16A

10

10A

4

© Globe Food Equipment Company

r

SP40E Base Components

Q.

1 X40036 1Guard, Rear

1A X30101 4Hex Screw M8x20mm & Flat Washer

2 X40102 1Mixer Column Cover
2A X40056 3Truss Hd Screw PHH M6-1.0x10mm, SS-18
2B 3Washer M6 Flat

3 X40034 1Bowl Cradle

4 X40109 2Dowel Screw Assembly
4A X01372 2
4B X40110 2

5 2Bowl Clamp Stop Pin

6 X40106 1Screw M10x54mm Hex Hd/Nut (Touch Shaft)

7 X30033 1Bowl Clamp Assembly (Set/2)
7A X30108 2Bowl Clamp Hardware Kit
7B X30033-2 1Bowl Clamp (Set/2, New Style)
7C 4Washer M12 Flat
7D 2Hardware Cap Retainer
7E 2Spring
7F 2Washer M10 Split Lock

7G 4Nut M12 Acorn
7H 2Hardware Cap

8 X40035 2Cradle Slide Guides
8A 8Washer M8 Flat
8B X30197 8Ext. Hex Hd Screw M8-1.25x25mm, SS

9 X40162-163 1Front/Rear Rubber Feet (Set)

10 4Shipping Washer
10A 4Shipping Bolt 3/8x45mm
10B 450012 1Seismic Flange Kit (Not Shown)

11 X40038-DG 1Mixer Base
11A X40040 2Dowel Pin Ø8x16mm Column Locator
11B 4Washer M12 Flat
11C 4Screw M12x40mm Hex Hd

12 X40037 1Base Screen

13 X40042 1Mixer Column
13A X30178 2Dowel Pin Ø8x16mm Head Locator

14 X40055 1Plate, Rear Cover

14A X40056 6Truss Hd Screw PHH M6-1.0x10mm, SS-18

15 X30051 1Microswitch, Bowl Lift
16 X30104 1Screw Sleeve

16A X30105 1Roll Pin Ø4x30mm

17 X25145 1Retaining STW-35 Ring
18 X40041 1Bowl Lift Screw

18A X20123 1Key, Round Ends H-5xW-5xL-18mm

19 X30043 1Ball Bearing
20 5
21 X30045 2Oblique Gear (30T)
22 X40047 1Shaft, Hand Wheel
23 X40073 2Key H-5xW-5xL-20mm Round Ends
24 X40050 1Oilless Bearing
25 X40053 1Hand Wheel Crank With Handle, Plastic
25 X40053M 1Hand Wheel Crank With Handle, Metal
26 X30053-1 1Hand Wheel Crank Handle
27 1Set Screw M10x8mm Cup Pt.
28 1Hand Wheel Cap

Lock Washer M12, ID-12.7, OD-21, TH-2.5mm, SS

Cap Nut, M12-1.75, OD-19mm, HT-22mm, Class 10, Zn

(Incl. items 7A-7H)

(Incls. items 26-27)

Ext. Retaining Ring, OD-25, Groove-23.9, Ring ID-23.2, TH-1.2mm, B.O.

(Metal Wheel Only)

QtyDescriptionItem Part Numbe

Serial Number

5

© Globe Food Equipment Company

r

SP40E Base Components

A

Q.

QtyDescriptionItem Part Numbe

29 1Spacer (50m mod x 25.3mm Id x 10.2mm)

30 X02595 1United Kingdom, Hazardous Voltage LBL (Not Shown)

30 X02594 1Spanish, Hazardous Voltage LBL (Not Shown)

30 X02593 1Portuguese/Brazil Hazardous Voltage LBL (Not Shown)

30 X02592 1Thai, Hazardous Voltage LBL (Not Shown)

30 X02591 1

rabic, Hazardous Voltage LBL (Not Shown)

Serial Number

6

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

7

© Globe Food Equipment Company

SP40E Head Components

C

H

A

N

G

I

N

G

S

P

E

E

D

B

E

F

O

R

E

S

T

O

P

M

I

X

E

R

2

3

1

3

1

2

18

SAFETY
GUARD
SPRING LOCK

3A

18B

3B

3

4A

1

4B

2

4

5

6

A

B

C

10

9

7

26A

8

11

12B

12C

12

23B

24C

GEAR SHIFT

LEVER ASSEMBLY

24

24A

24B

23

22

23A

21

20

15

13A

14

15A

16

17

SPRING LOCK

SEE ENLARGED VIEW

19C

19B

19A

19

13

26

26B

20

SHIFT LEVER
SEE ENLARGED VIEW

27

27A

28

25B

25

25A

8

© Globe Food Equipment Company
