Parts Catalog
SP05 Mixer
MIXER
MODELS: SP05 and SP05-Q
08-01-14
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF SLICER.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 • Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
Not for resale
TABLE OF CONTENTS
Serial Number 6513801 and Up
Mixer Base Components 1 - 2
Bowl Lift Components 3 - 4
Transmission 5 - 6
Motor 7
Wiring Diagrams 8
Page
SP05/SP05-Q MIXER BASE COMPONENTS
1
2
3
4
5
9
10
11
12
13
14
8
22
21
23
24
25
26
27
28
29
30
6
7
16
15
32
33
19
18
17
20
21
31
1
SP05/SP05-Q BASE PARTS LIST
Item Description Qty Part Numbers Standard Hardware
1 Whip 1 XXWhip-05
2 Beater 1 XXBeat-05
3 Spiral Hook 1 XXHook-05
Safety Guard, SP05
4
Safety Guard, SP05-Q X5E01
5 Mixer Bowl 1 XXBowl-05
6 Mixer Cover 1 X5A13-1
7 Mixer Cover Reinforcement 1 X5A39
8 Mixer Cover Screw 1 H00523 M5x18 Truss Head Screw
9 Circuit Board Housing Screw 4 X00524
10 Housing Mounting Plate 1 X5A21
11 Circuit Board Housing 1 X5A33
12 Electronic Circuit Board 1 X5A20-1
13 Circuit Board Mounting Screw 4 X00525
14 Mounting Plate Standoff 2 X5A41
15 Standoff Washer 2 H00320 M5 Split Lock Washer
16 Mounting Plate Nut 2 H00028 M5 Hex Nut
17 On/Off/Speed Selector 1 X5A05-1
18 Selector Spring 1 X5A08-1
19 Selector Plunger 1 X5A09
20 Selector Alignment Tab 1 X5A44
21 Potentiometer w/Hardware 1 X5A15
22 Potentiomenter Insulation Pad 1 X5A16
23 Selector Stop Screw 2 H00526 M2x5 Socket Hd Cap Screw
24 Hole Plug (SP05 only) 1 X5A26
25 Mixer Body 1 X5A25-1
26 Mixer Base 1 X5A27
27 Mixer Mounting Washer 4 H00191 M8 Flat Washer
28 Mixer Mounting Lock Washer 4 H00527 M8 Split Lock Washer
29 Mixer Mounting Screw 4 H00117 M8x20 Hex Head
30 Mixer Foot 4 X5UH-1260
31 Label, Electrical Hazard 1 X91018
32 Label Warning 1 X91019
33 Label, Globe Logo 1 871-3
1
X5E01-1
2
SP05/SP05-Q BOWL LIFT COMPONENTS
1
2
3
6
5
38
37
34
22
16
23
10
24
28
13
18
14
27
15
30
18
26
25
29
17
4
7
8
9
31
3
2
32
33
1
35
12
36
21
11
19
20
3
SP05/SP05-Q BOWL LIFT PARTS LIST
Item Description Part Number Qty Standard Hardware
1 Lift Shaft Mounting Screw H00197 4 M6x15 Hex Head
2 Lift Shaft Lock Washer H00042 4 M6 Split Lockl Washer
3 Lift Shaft Washer H00014 4 M6 Flat Washer
4 Bowl Lift Shaft X5B03 2
5 Lift Shaft Bushing X5B04 2
6 Bowl Limit Set Screw H00183 1 M5x10 Cup Point
7 Limit Pad Mounting Screw H00528 2 M3x5 Flat Head
8 Bowl Limit Pad X5B07 1
9 Bowl Cradle X5B08 1
10 Bowl Lift Bracket X5B09 1
11 Lift Bracket Mounting Screw H00305 2 M5x15 Flat Head
12 Lift Bracket Nut H00028 2 M5 Hex Nut
13 Bowl Lift Rod X5B12 1
14 Lift Rod Pin H00529 1 M3x16 Spring Pin
15 Lift Rod Attachment Pin H00530 1 M2x20 Cotter Pin
16 Bowl Lift Connector X5B14 1
17 Connector Pin H00531 1 M4x20 Spring Pin
18 Lift Rod Washer H00191 2 M8 Flat Washer
19 Lift Rod Spring X08091 2
20 Lift Rod Lock Nut H00532 1 M8 Lock Nut, Nylon Insert
21 Bowl Lift Handle X5B20 1
22 Bowl Lift Handle Retaining Ring X5B19 2 STW-12
23 Handle Seal Ring X5B22 1 16x10x3mm O-Ring
24 Bowl Clamp Assembly (Set of 2) X08089-93 1
25 Bowl Clamp Screw - 2
26 Bowl Clamp Washer - 2 #10 Flat Washer
27 Bowl Clamp Arm - 2
28 Bowl Clamp Handle X08090 2
29 Bowl Clamp Spring - 2
30 Bowl Clamp Nut - 4 #10 Hex Nut
31 Bowl Lock Pin X5B34 2
32 Bowl Lock Washer H00536 2 M8 Internal Tooth
33 Bowl Lock Nut, Nylon Insert H00532 2 M8 Lock Nut, Nylon Insert
Bowl Guard Interlock Microswitch
34
Kit (SP05-Q Only)
X5E02 1
*Overload Relay, 5 Amp X00537
35
**Overload Relay, 8 Amp X00538
36 Power Cord and Plug X5B23 1
37 Ground Screw Lock Washer H00540 M5 Internal Tooth
38 Ground Screw (Green) X00539 1 M5x10 Hex Head
*Before serial number 6513800.
**Serial number 6513800 and up.
1
4

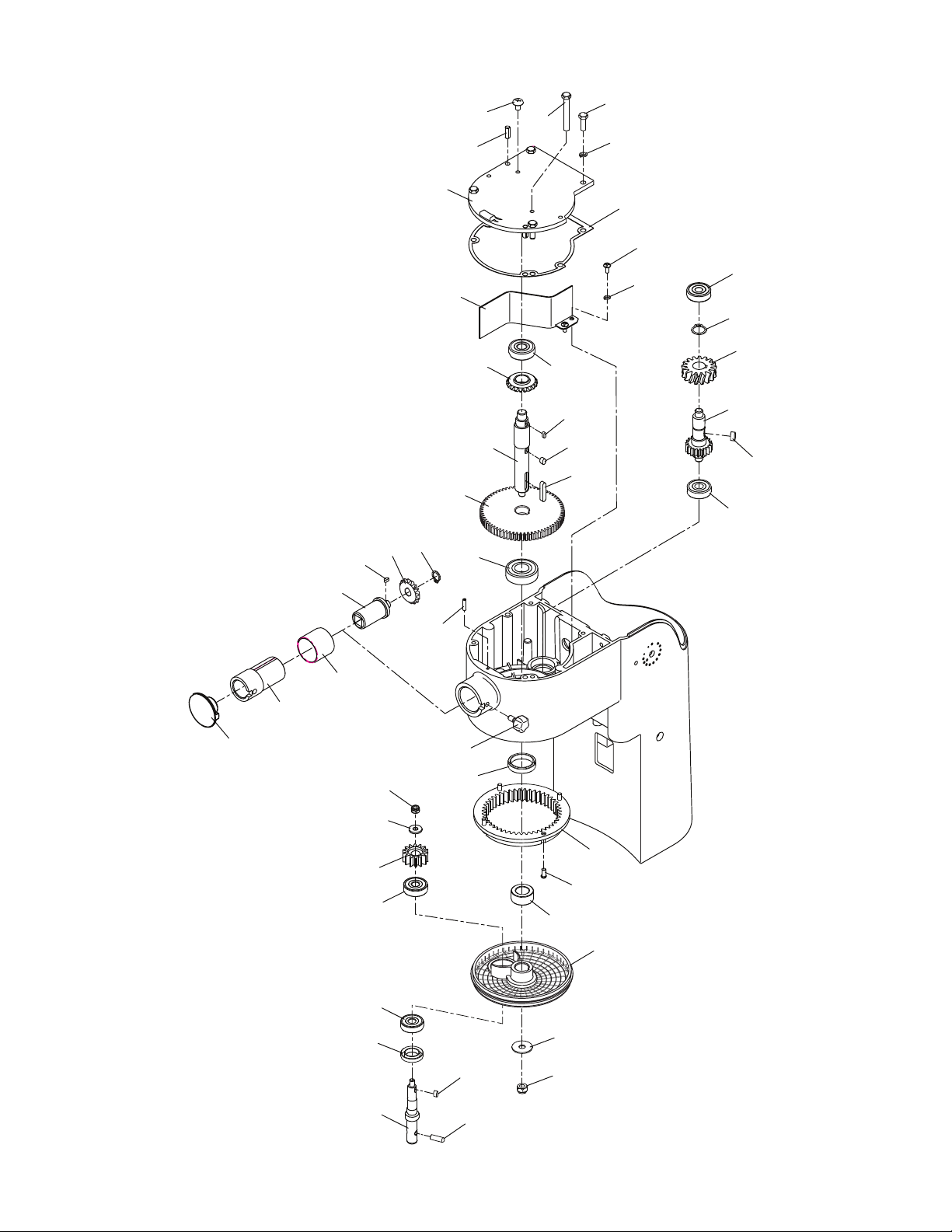

SP05/SP05-Q TRANSMISSION
18
19
20
12
13
14
47
46
39
40
41
42
43
44
49
11
10
45
16
17
21
9
8
7
22
48
15
6
3
5
2
1
30
31
32
33
34
35
4
23
24
25
26
27
28
36
38
29
37
5
SP05/SP05-Q TRANSMISSION PARTS LIST
Item Description Part Number Qty Standard Hardware
1 Attachment Hole Plug X5C01 1
2 Attachment Hub X5C02 1
3 Attachment Hub Set Screw H00541 1 M4x16 Cup Point
4 Attachment Release Knob X5C21 1
5 Anti-Oil Bushing X5C47 1
6 Level Drive Gear Hub X5C03 1
7 Level Drive Gear Key H00542 1 3x3x6mm, Round Ends
8 Level Drive Gear (16T) X5C05 1
9 Level Drive Gear Retaining Ring X5C06 1 STW-10
10 Transmission Case Cover X5C09 1
11 Locating Pin X5C19 2 M6 Spring Pin
12 Transmission Cover Screw H00116 4 M6x20mm Hex Head
13 Lock Washer H00042 4 M6 Split Lock
14 Gasket X5C10 1
15 Drive Shaft Upper Ball Bearing X10117 1
16 Level Drive Gear (20T) X5C12 1
17 Drive Shaft X5C13 1
18 Level Drive Gear Key H00543 1 3x3x8mm, Round Ends
19 Drive Gear Key H00544 1 5x5x8mm, Round Ends
20 Planetary Holder Key H00545 1 5x5x28mm, Round Ends
21 Drive Gear (66T) X5C17-1 1
22 Drive Shaft Lower Ball Bearing X5C18 1
23 Drive Shaft Oil-Seal X5C22 1
24 Internal Planetary Gear (47T) X5C23 1
25 Planetary Gear Mounting Screw H00546 4 M5x10mm Button Head
26 Oil-Seal Bushing (Set) X08116-1 1
27 Planetary Holder X5C32 1
28 Drive Shaft Washer X00547 1 M8x30mm Flat Washer
29 Drive Shaft Nut H00532 1 M8 Lock Nut, Nylon Insert
30 Pinion Gear Nut H00548 1 M6 Lock Nut, Nylon Insert
31 Pinion Gear Washer H00120 1 M6 Flat Washer, Lg Dia
32 Pinion Gear (14T) X5C30 1
33 Planetary Shaft Upper Ball Bearing X5C31 1
34 Planetary Shaft Lower Ball Bearing X5C35 1
35 Planetary Oil-seal X5C36 1
36 Planetary Shaft X5C37 1
37 Dowel Pin X08037 1
38 Pinion Gear Key H00549 1 4x4x8mm, Round Ends
39 Transmission Shaft Upper Ball Bearing X5C39 1
40 Level Drive Gear Retaining Ring X5C40 1 STW-15
41 Level Drive Gear (16T) X5C41 1
42 Transmission Shaft (22T) X5C42-1 1
43 Level Drive Gear Key H00550 1 5x5x12mm, Round Ends
44 Transmission Shaft Lower Ball Bearing X5C31 1
45 Divider Plate X5C45 1
46 Divider Plate Lock Washer H00551 2 M4 Split Lock
47 Divider Plate Mounting Screw H00552 2 M4x10 Pan Head
48 Screw, Hex Head H00553 1 M6x55mm
49 Screw, Pan Head H00554 1 M6x10mm
6

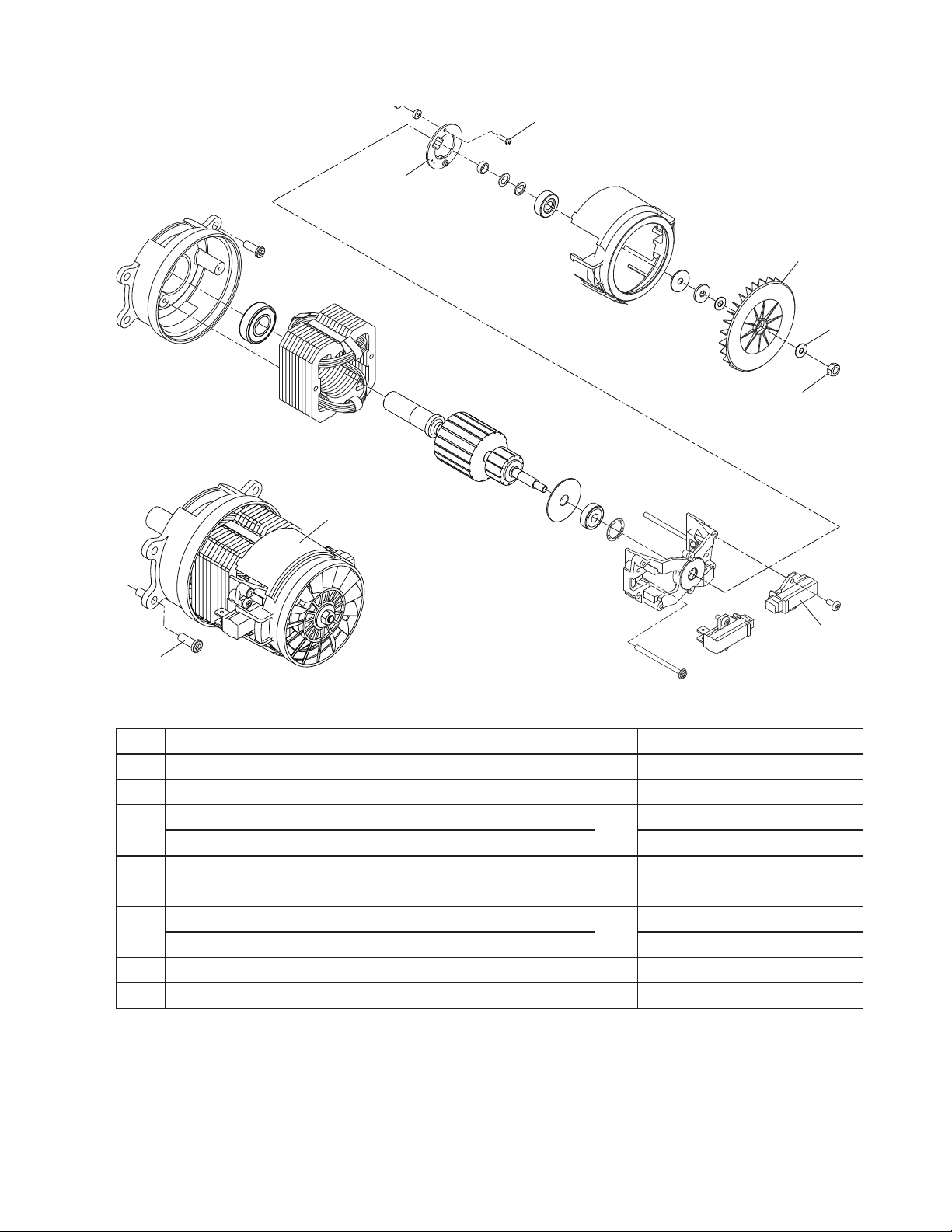

SP05/SP05-Q MOTOR COMPONENTS
6
5
2
7
8
9
3
Item Description Part Number Qty Standard Hardware
1 *Motor Replacement Kit (Not shown) X00558 1
2 **Motor Assembly X00559 1
3 Motor Mounting Screw X00556 4 M6x16 SHCS
**Carbon Brush, New Style X5D09-1
4
†Carbon Brush, Old Style X5D09
5 Tachometer X5D15-1 1
6 Tachometer Mounting Screw H00557 2 M3x14 Pan Head, Nylon
**Motor Fan, New Style X5D11-1
7
†Motor Fan, Old Style X5D11
8 Motor Assembly Washer H00120 1 M6x18mm Flat Washer
9 Nut, Reverse Thread (LH) H00555 1 M6-1.0 Hex Nut – LH Thd
**Serial number 6513800 and up.
†Before serial number 6513800.
2
1
4
*Note: Older Mixers with 4 or 5 Amp Overload Relay require Relay replacement to comply with
higher amperage replacement Motor.
7
N
GND

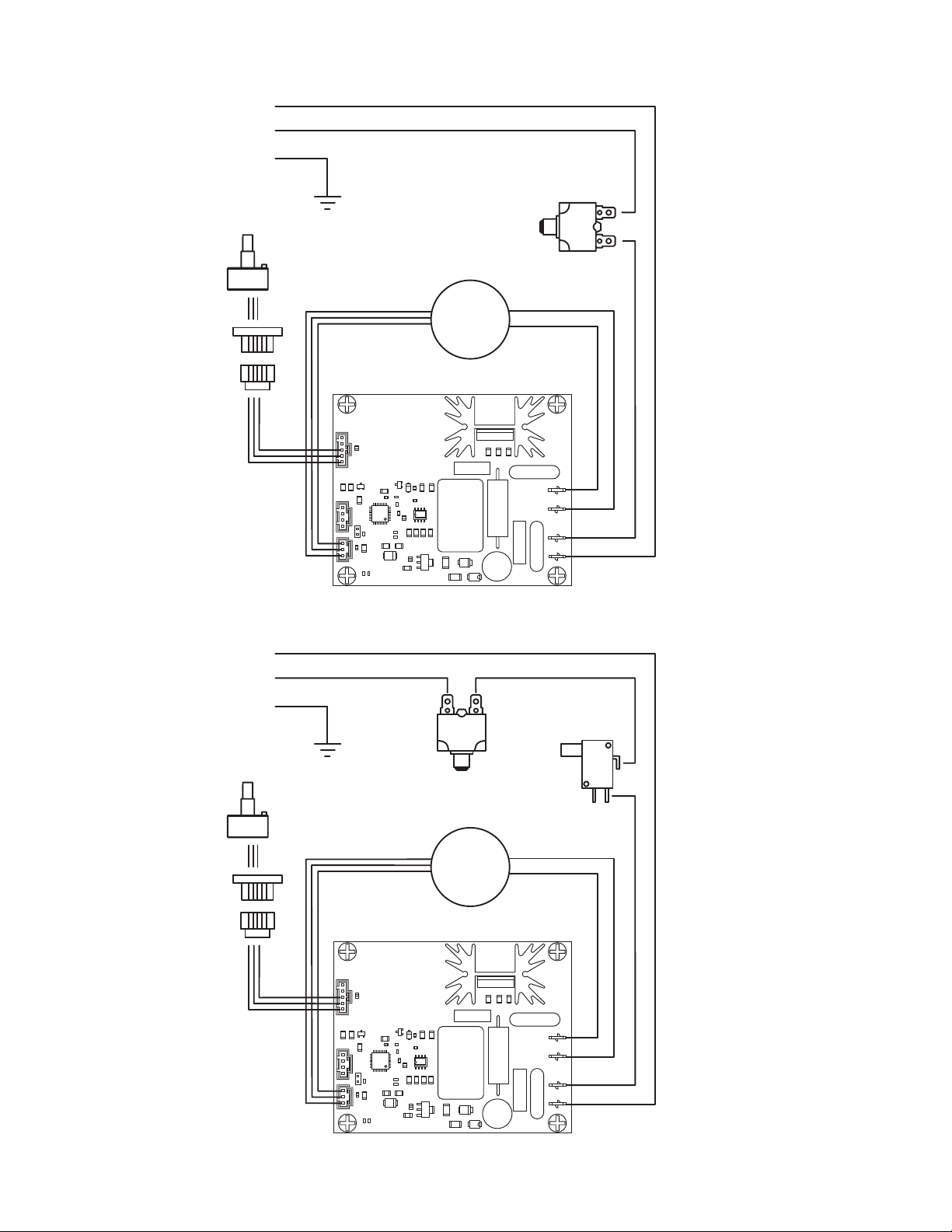

SP05/SP05-Q WIRING DIAGRAMS 115V/60Hz/1 PH
L
F1
S1
M1 ~
N
GND
L
S1
800W
C9
J5
1
Q1
R4
R2
R5
J1
JP1
1
J2
C3
1
D4
C17
Q3
C6
R19R20
L1
C7
C2
C10
C1
U1
C5
R27
R1
C4
R3
U2
R8
R11R9R10
R12
C8
R7
R6
C14
D1
R13
U3
C13
F1
Q2
R16R18R17
C16
C15
D3
R14
D2
V2
M+
R15
C12
E3
M-
E4
L
C11
V1
E2
E1
WHT
N
BLK
S2
SP05
M1 ~
SP05-Q
800W
C9
J5
1
Q1
R4
R2
R5
J1
JP1
1
J2
C3
1
D4
C17
Q3
C6
R20
R19
L1
C7
C2
C10
C1
U1
C5
R27
R1
C4
R3
U2
R8
R11R9R10
R12
C8
R7
R6
C14
D1
R13
U3
C13
Q2
R16R18R17
C16
C15
D3
R14
D2
V2
M+
R15
C12
E3
M-
E4
C11
L
V1
E2
N
E1
8
995005 GFE-SP05/SP05-Q 08Aug2014 Rev E ECN 1822
