Parts Catalog
SP08E-220-240501
Mixer
Model:
10/02/19 Rev -
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF UNIT.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
SP08E-220-240501
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 · Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
© Globe Food Equipment Company, 2019
Not for resale
995236 ECN 1999
Table of Contents
PageDescription
SP08E Base Components 4
SP08E Head Components 6
SP08E Gearbox Components 10
SP08E Planetary Components 12
SP08E Electrical Diagram 14
SP08E Base Components
1
4
3
6A
17
16
11
9
12
43
13
10
8
7
6
2
5
14
15
24
27
26
28
29
30
25
32
33
31
21
36
22
20
37
23
19
35
34
18
38
39
40
41
42
4
© Globe Food Equipment Company
r
SP08E Base Components
A
Q.
QtyDescriptionItem Part Numbe
1 X08065-74 1Bowl Lift Handle Assembly
2 1Handle, Bowl Lift
3 X08066 1Cotter Pin
4 1Rod, Bowl Lift
5 1Roll Pin Ø5x24mm
6A X08069A 1Shoulder Screw
6 1Connector, Bowl Lift
7 X08070 1Roll Pin Ø3x18mm
8 X08071 2Washer M8x16x1.5mm Flat
9 X08072 1Spring M5
10 X08074 1Nut M8 Hex
11 X08075 1Mixer Column
12 X08076 4
13 X08077 4Ext. Hex Hd Screw M8-1.25x20mm, Zinc
14 X08078 1Strain Relief, 90 Degree
15 X08079 1Cord And Plug
16 X08080 1Set Screw M5x20mm Socket Hd - Cup Point
17 X08081 1Screw M5x21mm Pan Hd
18 X08082 1Circuit Breaker
19 X08083 1Capacitor, Motor
20 X08084 1Bracket, Capacitor Mounting
21 X08086 1Bowl Cradle
22 X08087 2Screw M4x4mm Pan Hd
23 X08088 1Clip
24 X08089-93 1Bowl Clamp Assembly (Set/2)
25 X08085 2Screw M5x45mm Hex Hd & Nuts
26 2Bowl Clamp
27 X08090 2Knob, Plastic
28 2Spring
29 2Washer M5 Flat
30 2Nut M5 Hex
31 X08094-95 1Bowl Lift Bracket Assembly
32 2Screw M5x10mm Pan Hd
33 1Bracket, Bowl Lift
34 X08096-98 1Bowl Lock Pin Assembly (Set 2)
35 2Pin, Bowl Lock
36 2Washer M8 Split Lock
37 2Nut M8 Stop
38 X08099 1Mixer Base
39 X08100 1Mixer Feet (Set/4)
40 X08101 4Washer M8x16mm Flat
41 X08102 4Lock Washer M8 ID-8.5, OD-14.8, TH-2mm Zn
42 X08103 4Screw M8 x 16mm Hex Hd
43 X02716 1UK, CE Mixer Hazardous Voltage Lbl
43 X02715 1Spanish, CE Mixer Hazardous Voltage Lbl
43 X02714 1Port./Brazil, CE Mixer Hazardous Voltage Lbl
43 X02713 1Thai, CE Mixer Hazardous Voltage Lbl
43 X02712 1
Flat Washer, M8 ID-8.4mm, OD-16mm, TH-1.6mm, Zn
rabic, CE Mixer Hazardous Voltage Lbl
Serial Number
5
© Globe Food Equipment Company

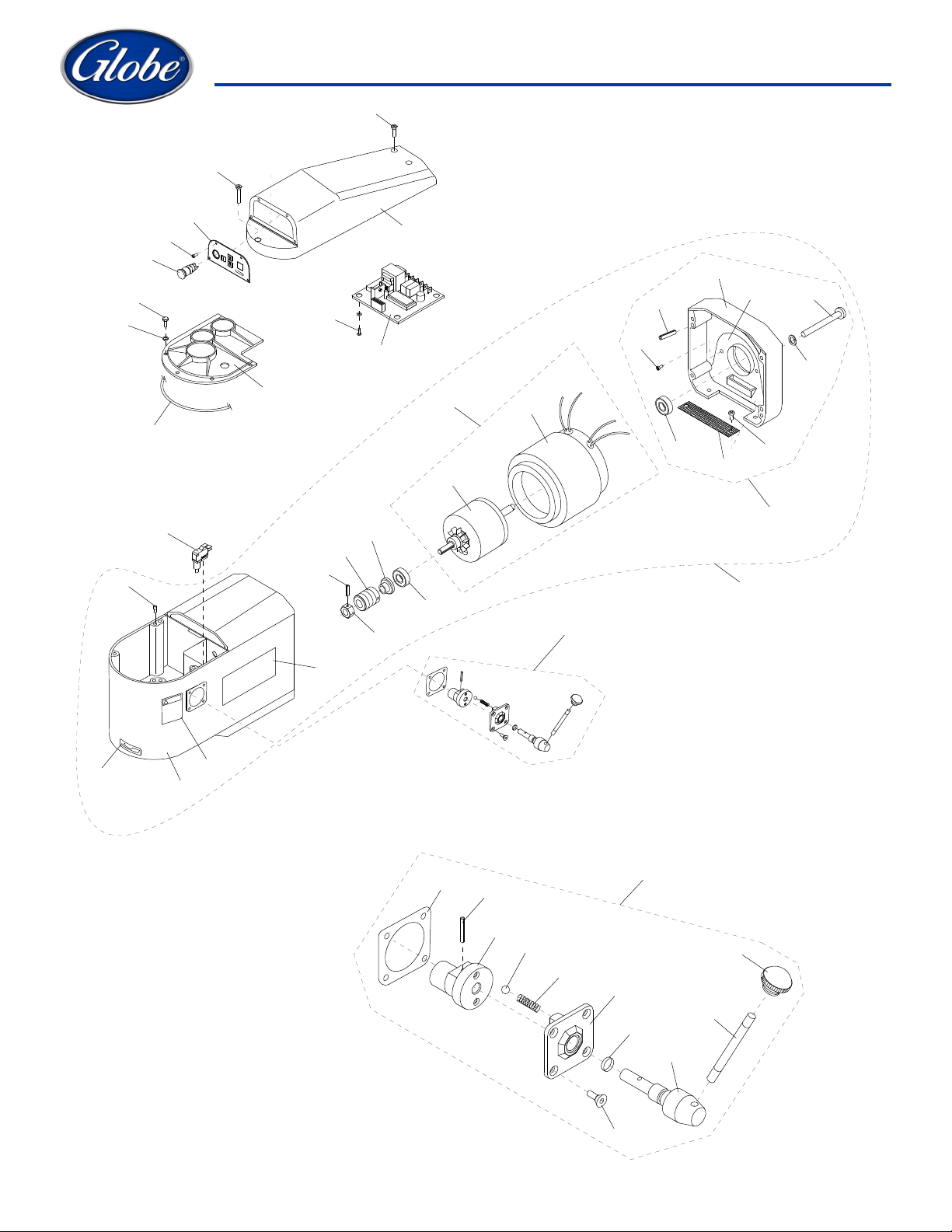

SP08E Head Components
2 3
1
1
.
L
o
w
e
r
t
h
e
b
o
w
l
a
n
d
i
n
s
e
r
t
i
n
g
r
e
d
i
e
n
t
.
2
.
R
a
i
s
e
b
o
w
l
t
o
o
p
e
r
a
t
i
n
g
p
o
s
i
t
i
o
n
.
3
.
S
e
l
e
c
t
t
h
e
f
i
r
s
t
s
p
e
e
d
,
p
r
e
s
s
s
t
a
r
t
b
u
t
t
o
n
4
.
D
o
n
o
t
c
h
a
n
g
e
g
e
a
r
s
w
h
i
l
s
t
m
i
x
e
r
i
s
t
u
r
n
i
n
g
O
P
E
R
A
T
I
N
G
I
N
S
T
R
U
C
T
I
O
N
:
A
V
O
I
D
G
E
A
R
D
A
M
A
G
E
S
t
o
p
M
i
x
e
r
B
e
f
o
r
e
C
h
a
n
g
i
n
g
S
p
e
e
d
U
s
e
O
n
l
y
1
s
t
S
p
e
e
d
f
o
r
D
o
u
g
h
F
o
l
l
o
w
C
a
p
a
c
i
t
y
C
h
a
r
t
i
n
O
w
n
e
r
s
M
a
n
u
a
l
C
A
U
T
I
O
N
!
2
3
1
P
A
R
S
P
A
R
M
I
X
E
R
S
S
T
A
R
T
T
I
M
E
1
2
NOTE: SEE PAGE 1-2 FOR
4
5
3
6
7
8
12
11
9
24
26
10
25
MOTOR CAPACITOR.
32
28
36
29
*30
35
33
34
*31
16
17
37
14
15
20
18
21
22
19
23
39
SEE ENLARGED VIEW
40
41
42
43
27
13
38
48
44
49
46
47
*PART CONFIGURATION MAY VARY
45
6
© Globe Food Equipment Company
r
SP08E Head Components
A
A
l
Q.
QtyDescriptionItem Part Numbe
1 X08001 2Screw M5x20mm Flat Head
2 X08002 1Screw M4x30mm Flat Head
3 X08003 1Cover, Transmission
4 X08004 1Panel, Digital Control
5 X08005 4Screw M3x6mm Round Head
6 X02701 1Emergency Stop Button
7 X08007 4Screw, M6-1.0 x 16 mm Hex Hd
8 X08008 4
Washer, Spring M6, ID-6MM, OD-10MM, THICK-1.5MM
9 1Cover, Transmission Case
10 X08148-1 1Gasket
11 X08160-220 1Circuit Board, Digital Control (Incls. X08160-1)
11 X08160-1 1Circuit Board, Digital Switch
12 X08161-162 4Screw M3x10mm Round Head & Washer - SS
13 X02702 1Transmission Case & Motor
14 1Tranmission Case
15 X02711 1
15 X02707 1
United Kingdom, CE Mixer Avoid Gear Damage Lbl
rabic, CE Mixer Avoid Gear Damage Lbl
15 X02708 1Thai, CE Mixer Avoid Gear Damage Lbl
15 X02709 1
Portuguese/Brazil, CE Mixer Avoid Gear Damage Lbl
15 X02710 1Spanish, CE Mixer Avoid Gear Damage Lbl
16 X91012 1Label, Arrow
17 X08009 2Pin, Locator
18 X02720 1UK, CE Mixer Avoid Serious Injury Warning Lbl
18 X02721 1Port./Brazil, CE Avoid Serious Injury Warning Lbl
18 X02719 1
Spanish, CE Mixer Avoid Serious Injury Warning Lbl
18 X02718 1Thai, CE Mixer Avoid Serious Injury Warning Lbl
18 X02717 1
rabic, CE Mixer Avoid Serious Injury Warning Lb
19 X08051 4Nut M10 Hex
20 X08052 1Roll Pin Ø3x10mm
21 X02703 1Worm 50Hz
22 X08054 1Oil Seal
23 X08055 1Ball Bearing
24 1Motor Assembly
25 1Motor Shaft And Core
26 1Motor Coil
27 X08058-64 1Rear Cover Assembly
28 1Roll Pin Ø6x12mm
29 X08055 1Ball Bearing
30 1Screen, Motor Cooling
31 2Screw M4x6mm Pan Hd
Part Configuration May Vary
Part Configuration May Vary
32 1Cover, Rear Motor
33 X08063 4Screw M5x50mm Hex Head & Washer
34 4Washer M5 Split Lock
35 1Shroud
36 3Roll Pin Ø3x18mm
37 X30051 1Microswitch, Bowl Lift
38 X08040-50 1Gear Arm Assembly
39 X08040 1Gasket, Gear Arm
40 1Roll Pin Ø3x18mm
41 1Shaft Bias
42 2Roller
43 2Spring
44 1Plate, Gear Arm
Serial Number
7
© Globe Food Equipment Company
r
SP08E Head Components
Q.
45 X10042 4Flat Hd Screw-Phillips M4-0.7x10mm, Zn
46 1O-Ring
47 1Shaft, Gear Arm
48 X08046 1Knob, Black Plastic
49 1Gear Arm
QtyDescriptionItem Part Numbe
Serial Number
8
© Globe Food Equipment Company
INTENTIONALLY LEFT BLANK PAGE
9
© Globe Food Equipment Company
SP08E Gearbox Components
1
3
2
7
8
9
10
4
5
6
25
26
30
27
28
34
29
35
36
31
37
32
38
20
17
19
18
16
21
23
24
22
12
11
14
15
33
39
41
13
42
40
43
44
45
10
© Globe Food Equipment Company
r
SP08E Gearbox Components
Q.
1 X08104 1Ball Bearing
2 1Lead-In Oil Pad
3 X08106-107 1Slow Speed Gear Assembly
4 1Bushing
5 1Roller Pin
6 1Spring, Slice
7 1Gear, First Speed (42T)
8 X08108 1Bushing
9 X08109 1Gear, Clutch (25T)
10 X08110 1Bushing, Third Speed
11 X08123 1Clutch Sleeve
12 X08124 1Drive Shaft
13 X08125 1Shaft Key 5x5x18mm
14 X08126 1Shaft Key 4x4x28mm
15 X08127 1Shaft Key 5x5x26mm
16 X08111 1Bushing, Second Speed
17 X08112 1Gear, Second Speed (34T)
18 X08113 1Bearing Pad
19 X08114 1Ball Bearing
20 X08116-1 1Bushing & Seal Set
21 1Oil Seal
22 1Oil Bushing
23 X08119 1Washer M8x22x1mm Flat - SS
24 X08120 1Nut M8 Hex - Nylon Insert
25 X08128 1Ball Bearing
26 X08129 1Transmission Shaft (19T)
27 X08130 1Shaft Key 5x5x12mm
28 X08131 1Shaft Key 5x5x14mm
29 X08132 1Gear, Third Speed (36T)
30 X08133 1Bushing, Bronze
31 X08134 1Gear, Second Speed (27T)
32 X08135 1Retaining Ring S-15
33 X08128 1Ball Bearing
34 X08128 1Ball Bearing
35 X08143 1Master Shaft (18T)
36 X08130 1Shaft Key 5x5x12mm
37 X08145 1Worm Gear, Bronze 60Hz (20T)
37 X08145-1 1Worm Gear, Bronze 50Hz (22T)
38 X08135 1Retaining Ring S-15
39 X08128 1Ball Bearing
40 X08137-141 1Shifter Yoke Assembly
41 1Shifter Yoke
42 2Shifter Yoke Plunger
43 2Shifter Yoke Spring
44 2Nut M3
45 1Shifter Guide Rod
Replaces O-Ring Config.
QtyDescriptionItem Part Numbe
Serial Number
11
© Globe Food Equipment Company
SP08E Planetary Components
2
1
3
4
5
16
17
14
15
7
6
8
10
9
18
11
12
13
12
© Globe Food Equipment Company
r
SP08E Planetary Components
Q.
1 X01873 1Planetary Assembly
2 X08015 1Nut M6 Hex - Nylon Insert
3 X08016 1Washer M6x16x1mm Flat
4 X08017 1Pinion Beater (17T)
5 X08018 1Ball Bearing
6 X08020 1Planetary Holder
7 X08022 1Ball Bearing
8 X08023 1Oil Seal 32X17X7mm
9 X08024 1Planetary Shaft Assembly
10 X08036 1Shaft Key 4x8x8mm
11 X08037 1Dowel Pin
12 X08038 1Spring
13 X08039 1Washer 13.1x1mm Flat
14 X08019 1Planetary Gear (56T)
15 X08034 4Cap Screw M6x13mm Socket Hd
16 X08021 1Cover, Planetary Holder
17 X08035 3Screw M2.6x4mm Binder Hd
18 X02704 1Splash Cover, Plastic
QtyDescriptionItem Part Numbe
Serial Number
13
© Globe Food Equipment Company
SP08E Electrical Diagram
PF
L
L
PF
18AWG
18AWG
18AWG
F1
FR1
L
L
L
L + 2 T T
18AWG
F2
F3
18AWG
18AWG
18AWG
T
T
1 3
4 2
18AWG
18AWG
18AWG
T T
1 2 3 5 4 6 7
LIMIT MOTOR-OUT AC AC GND
C1
M1
1~
S1
a
18AWG
18AWG
1 3
STOP
BUTTON
4
2
20mF
450VAC
1/4HP
IC
S2
TIME ON
b
Item Description Qty
C1 Capacitor 1
F1 Overload Protection 1
F2 Microswitch (Safety Guard) 1
F3 Microswitch (Bowl Lift) 1
FR1 Terminal Block 1
IC Ic Board 1
S1 Emergency Stop Button 1
S2 Start Button, Timer LC Control 1
M1 Motor, 1/4HP, 1PH, 120V/220V, 50/60HZ 1
14
© Globe Food Equipment Company
