Globe SG13 PARTS LIST

Parts Catalog

SG13

S-Series Slicer

Smart Manual

Model:

5/30/2019 Rev. AB

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF UNIT.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

SG13

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

© Globe Food Equipment Company, 2019

Not for resale

995107 ECN 0493

Table of Contents

PageDescription

SG13 Knife Drive Assembly Components 4
SG13 Index Knob Components 6
SG13 Base Shroud Components 8
SG13 Gauge Plate Components 10
SG13 Index Slide Assembly Components 12
SG13 Ring Guard Assembly Components 14
SG13 Electrical Base Components 16
SG13 Knife Drive Motor Components 20
SG13 Transport Arm Assembly Components 22
SG13 Lift Lever Base Components 26
SG13 Carriage and End Weight Assembly Components 28
SG13 Knife and Knife Cover Components 30
SG13 Sharpener Assembly Components 32
SG13 Removable Carriage Components - Option 34
SG13 Knife Removal Tool - Option 36
SG13 Removable Knife Kit - Option 38
SG13 Removable Knife Drive Kit - Option 40
SG13 Wiring Schematic 42

SG13 Knife Drive Assembly Components

1

2

1

1

2

1

0

9 8

7 6 5 4

1

4

1

3

3

1

5

1

4

© Globe Food Equipment Company

r

SG13 Knife Drive Assembly Components

Q.

1 450211 1Knife Drive Assembly
2 420088 1Knife Drive Bearing Assembly
3 1Knife Cover Bumper
4 1Shaft, Knife Drive
5 1Knife Drive Bearing Mount
6 2Ball Bearing, Sealed
7 1Outer Ring, Bearing Spacer
8 1Inner Ring, Bearing Spacer

9 1Retaining Ring 5101-98 Bowed External
10 1Retaining Ring N5002-200
11 520244 1Knife Drive Boot
12 450115 1Knife Drive Pulley
13 510033 1Nut 7/8-20 Hex (Zinc)
14 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
15 810275 4Bellville Disc Spring Washer .255 ID x .50 OD

(Incl. items 2-15)
(Incl. items 3-10)

QtyDescriptionItem Part Numbe

Serial Number

5

© Globe Food Equipment Company

SG13 Index Knob Components

10

16

15

14

12

13

11

9

5

4

8

7

1

3

6

6

© Globe Food Equipment Company

2

r

SG13 Index Knob Components

Q.

1 500044 1Index Knob Assembly (Incl. items 2-3)

2 500022 1Index Knob

3 800136 1Index Knob Tension Spring

4 450214 1Index Bearing Hub Assembly Kit (Incl. items 5-9)

5 1Index Knob Bearing Hub

6 800104 3Mach. Screw #10-24x5/8 Flat Hd Slotted

7 2Index Knob Bearing

8 1Spacer, Index Bearing

9 1Beveled Retaining Ring
10 500049 1Index Cam with Stop Assembly
11 520350 1Index Cam
12 3Set Screw, Knurl Grip Cup Pt 1/4-28x3/4 (SST)
13 1Socket Cap Screw #10-32x3/4 Flat Hd (SS)
14 800105 1Socket Cap Screw #10-32x5/8 Button-Hd
15 300054 1Cam Stop
16 800138 2Button Hd Cap Screw #10-32 x 3/8 SST

(Incl. items 11-16)

QtyDescriptionItem Part Numbe

Serial Number

7

© Globe Food Equipment Company

SG13 Base Shroud Components

13

12

14

15

11

10

9

8

7

6

1

2

4

5

3

8

© Globe Food Equipment Company

r

SG13 Base Shroud Components

Q.

1 1Slicer Base

2 871-2 1Globe Logo Decal 3.5"

3 121071 1Membrane Switch Kit (Incl. items 4-8)

4 1Membrane Switch, Smart Manual

5 910088 1Pad, Alcohol Prep

6 1User Interface Panel, Smart/Auto

7 810422 2Nylon Locknut 6-32

8 810423 4Mach. Screw #4-40 x 1/4, 18-8 PH Cr (SST)

9 121062 1Display Assembly
10 510031 4Slicer Foot
11 920202 2Globe Logo Decal, S-Series
12 920200 1Warning Label, Large
13 920198 1Warning Label, Large French
14 920201 1Warning Label, Small
15 920199 1Warning Label, Small French

QtyDescriptionItem Part Numbe

Serial Number

9

© Globe Food Equipment Company

SG13 Gauge Plate Components

6

5

1

3

2

4

10

© Globe Food Equipment Company

r

SG13 Gauge Plate Components

Q.

QtyDescriptionItem Part Numbe

1 450212 1Gauge Plate Base Assembly

2 450054 1Post Nut, Gauge Plate Ball Joint

3 500001 1Gauge Plate Seal

4 890411 2

5 810228 2Flat Washer, fits 3/8 Screw, .885 OD

6 450070 1Gauge Plate

Cap Screw 3/8-16x1-1/2, Hex Hd with Nylon Patch

Serial Number

11

© Globe Food Equipment Company

SG13 Index Slide Assembly Components

15
14

24

25

27

1

28

21

18

20

19

17

7

8

9

10

6

11

12

22

23

2

3

13

5

16

26

4

30

29

32

12

© Globe Food Equipment Company

31

37

34

33

38

40

39

36

35

r

SG13 Index Slide Assembly Components

A

A

t

A

Q.

QtyDescriptionItem Part Numbe

1 400140 1Index Slide Kit

2 1Index Slide with Bushings

3 810400 2Set Screw #10-32x3/8 Cup Pt.

4 810379 1Retaining Clip Ring 5304-18

5 1Follower Adjustment Post

6 800091 1Set Screw #8-32 x 3/16 Knurled Grip - Cup Pt.

7 400121 1Cam Follower Kit

8 1Follower

9 2Wave Spring Cam Follower
10 2Flat Washer .266 ID, .625 OD Type A
11 890390 1Jam Nut 3/8-24 Sharpener Wheel
12 800144 2Cap Screw 1/4-28x1-1/4 Socket Hd
13 800146 4Set Screw 5/16-18x3 Sq. Hd Cup Point
14 1Stop Plate, Tilt Back
15 800145 2Nut 1/4-28 Hex
16 400122 1Index Slide Shaft Kit
17 1Index Slide Shaft
18 1Index Spring
19 800152 1Retaining Ring (Klipring) 5304-75
20 800058 2Washer 5/16-18-1 Hex Hd Tapping Screw
21 810431 1Cap Screw 1/4-20 x 3/4 Hex Hd
22 810432 1Nut, Thin 1/4-20 Hex
23 450057 2Screw, Anti-Rotation
24 450050 1Ball Joint Rest
25 800168 1Gauge Plate Spacer Kit (Kit of 4)
26 800043 1Nut 7/8-14 UNF Hex Jam
27 300154 1
28 800105 2Socket Cap Screw #10-32x5/8 Button-Hd
29 400128 1
30 1
31 810003 2
32 121079 1Index Close Switch Kit
33 1Switch Mounting Plate
34 2Mach. Screw #2-56x7/16 Pan Hd. Phillips
35 2Lock Washer #2 Internal Tooth
36 1Micro Switch, Pin Action
37 1Micro Switch Insulator
38 1Nut Plate
39 800077 2Mach. Screw #10-24x3/8 Button Hd Cap (SST)
40 870087 2Flat Washer (Electrical Box Mounting)

djustment Stop

nti-Rotation Plate Ki
nti-Rotation Plate

Screw 1/4-20x3/4 Crossed Rec., Flat Hd, Tapping

(Incl. items 2-28)

(Incl. items 8-13)

(Incl. items 17-20)

(Incl. items 30-31)

(Incl. items 32-40)

Serial Number

13

© Globe Food Equipment Company

SG13 Ring Guard Assembly Components

16

8

15
14

13

9

12

Item 1
Ring Guard Assembly

17

18

2

5

7
6

10

4

3

11

19

14

© Globe Food Equipment Company

r

SG13 Ring Guard Assembly Components

A

Q.

QtyDescriptionItem Part Numbe

1 500047 1Ring Guard Assembly Kit

2 520316 1Ring Guard

3 520243 1Round Boot, Ring Guard

4 810438 1Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated

5 520242 1Oval Boot, Ring Guard

6 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted

7 810345 2Flat Washer 1/4 Screw Thread (18-8 SST)

8 450213 1Ring Guard Spacer Assembly

9 460064 1Spacer, Ring Guard
10 520242 1Oval Boot, Ring Guard
11 810438 2Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
12 460069 1Sharpener Mount Assembly Kit
13 1Sharpener Mount Assembly
14 800185 1
15 800184 1Curved Disk Spring, 1/4" Rod Size
16 810483 1Slotted Set Screw 10-32
17 810358 1Mach. Screw 1/4-20x1 Truss Hd Slotted
18 810345 1Flat Washer 1/4 Screw Thread (18-8 SST)
19 450130 2Locator Pin

corn Nut, 1/4-28 SST

(Incl. items 2-19)

(Incl. items 9-11)

(Incl. items 13-16)

Serial Number

15

© Globe Food Equipment Company

55

3 2

1

8

1 2

3 2 1

214

4

5

2

4

8

5

7

4

0

SG13 Electrical Base Components

1

7

6

5

53

3

4

2

14

49

45

50

51

46

47

56

32

54

63

42
41
43

30

31

59

58

60

33

62

61

19

18

10

11

13

9

12

15

16

17

20

24

23

29

22

Items 25-28 Not Shown
Items 34-39 Not Shown

16

© Globe Food Equipment Company

r

SG13 Electrical Base Components

Q.

1 121083 1Home Sensor Kit (Incl. items 2-7)

2 1Home/Cut Sensor Mount

3 1Sensor, Reed Switch, Carriage Home

4 2

Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)

5 2Lock Washer #2 Internal Tooth

6 1Nut Plate

7 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping

8 121084 1Cut/Auto Sensor Kit

(Incl. items 8-14)

9 1Cut/Auto Engage Sensor Mount
10 1Sensor, Reed Switch, Cut Sensor
11 2

Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)

12 2Lock Washer #2 Internal Tooth
13 1Nut Plate
14 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
15 310208 1Inner Wireway Cover
16 100121 1Wire Harness, Table Close Sensor
17 100122 1Wiring Harness, Automatic Switch
18 110226 2Clamp, Nylon Loop
19 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
20 110107 1Harness, Reed Switch, Knife Cover Sensor
21 121082-01 1Capacitor Clamp Kit

(Incl. items 22-24)

22 1Capacitor, Knife Motor (120V)
23 110228 1Capacitor Clamp
24 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
25 121082-02 1Capacitor Clamp Kit

(Incl. items 26-28) Not Shown

26 1Capacitor, Knife Motor (220V) Not Shown
27 110229 1Capacitor Clamp Not Shown
28 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping Not Shown
29 130225 1Power Supply Cord, 120VAC, 15A
30 110227 1Strain Relief, Power Cord
31 800057 1Screw 1/4-20x.75 Hex Washer Hd Tapping
32 510045-01 1Sleeve, Large Diameter Wire
33 510044-01 1Sleeve, Small Diameter Wire
34 130008-01 1Power Cord (220V) Not Shown
35 1Power Supply Cord Not Shown
36 1Male Power Plug, Europe CEE7/7, 50Hz Not Shown
37 130008-02 1Power Cord (220V) Not Shown
38 1Power Supply Cord Not Shown
39 1Three Blade Male Plug, NEMA 3-15, 60Hz Not Shown
40 121080 1Ground Location Tab Kit

(Incl. items 41-43)

41 1Ground Location Tab
42 1Screw, Green #8-32x5/16" SL Hex Washer Hd
43 1Lock Washer #8 External Tooth
44 121086-01 1Control Board Kit

(Incl. items 45-47)

45 1Control Board Assembly
46 800175 4Screw #8-32x3/4 Crossed Recessed Tapping
47 810450 4Self Retaining Spacer
48 121081 1Ribbon Cable Kit

(Incl. items 49-50)

49 1Ribbon Cable Assembly
50 2Retaining Clip, Ribbon Cable
51 140017-01 1Circuit Breaker (120V)
51 140017-02 1Circuit Breaker (220V) Not Shown
52 300063 1Electronics Cover & Gasket Kit

(Incl. items 53-55)

QtyDescriptionItem Part Numbe

Serial Number

17

© Globe Food Equipment Company

r

SG13 Electrical Base Components

Q.

53 1Cover, Electronics
54 1Gasket, Electronic Cover
55 800067 8Screw #10-24x1/2 Hex Washer Hd Tapping
56 100125 1Wire Harness, Circuit Breaker
57 300067 1Front Wireway Cover Kit
58 1Cover, Front Wireway
59 800067 2Screw #10-24x1/2 Hex Washer Hd Tapping
60 510045-02 1Sleeve, Large Diameter Wire
61 110230 1Nylon Loop Clamp 5/16
62 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
63 100120 1Wiring Harness, Carriage Tilt Sensor

(Incl. items 58-60)

QtyDescriptionItem Part Numbe

Serial Number

18

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

19

© Globe Food Equipment Company

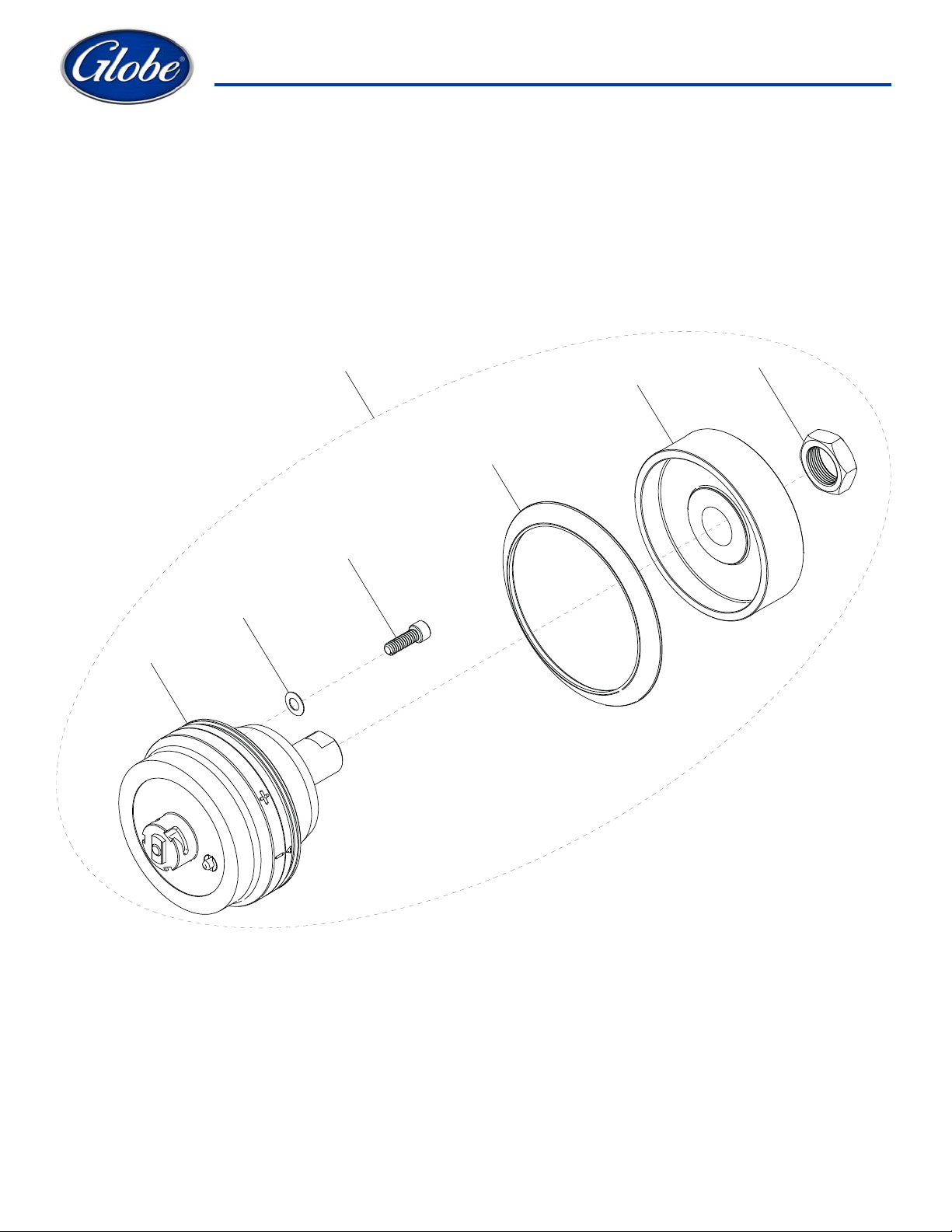

SG13 Knife Drive Motor Components

20

16

18

22

17

21

23

19

15

24

14

13

12

1

11

10

9

7

6

8

5

4

2

3

20

© Globe Food Equipment Company

r

SG13 Knife Drive Motor Components

Q.

1 400124 1Knife Tensioner Kit

2 800135 2Thread Forming Screw 1/4-20x5/8 PHP

3 1Cap Screw 5/16-18 x 1-3/4, Grade 8 Hex Hd

4 1Knife Motor Tensioner Bracket

5 2Sleeve Spacer

6 810420 1Nyloc Nut 5/16-18, Grade 5

7 400125 1Threaded Ball Joint, Knife Tensioner (Incl. items 8-9)

8 1Ball Joint Rod End 5/16'-24 Thd

9 1Tension Shaft 5/16-24 x 3 Full Thread
10 1Nut 5/16-24 UNF Zinc Plated Steel Hex Jam
11 1Nut 5/16-24x1 Hex Coupling
12 810416 1Flat Washer 5/16 (Zinc)
13 810417 1Washer 5/16 Neoprene
14 800161 1Washer 5/16 Leveling
15 120158-01 1Knife Drive Motor, Single Phase, 120V, 60Hz
15 120158-02 1Knife Drive Motor, Single Phase, 220V, 60Hz Not Shown
15 120158-03 1Knife Drive Motor, Single Phase, 220V, 50Hz Not Shown
16 400113 1Motor Mount Pivot Rod Assembly
17 1Motor Mount Pivot Rod
18 810429 1Retaining Ring, 5304-31 (Klipring)
19 810420 1Nyloc Nut 5/16-18, Grade 5
20 400123 1Motor Pivot Block Kit
21 1Motor Pivot Block
22 800094 1Set Screw #10-32x1/4, Knurl-Grip Cup Pt.
23 800068 2Washer #10-24x1 Hex Hd Tap. Screw Slotted
24 800092 1Knife Drive Belt

(Incl. items 2-14)

(Incl. items 17-191)

(Incl. items 21-23)

QtyDescriptionItem Part Numbe

Serial Number

21

© Globe Food Equipment Company

SG13 Transport Arm Assembly Components

64

63

69

66

70

65

71

68

67

15

74
75

8

14

73

72

20

76

13

9

24

18

23

19

22

21

16

17

12

11

7

10

6

5

3

81

43

45

80

2

41

79

40

46

42

1

29

44

39

78

36

4

28

77

38

53

27

37

33

31

34

35

54

33

34

48

26

25

30

33

32

47

49

50

61

58

© Globe Food Equipment Company

59

22

56

62

60

57

55

52

51

r

SG13 Transport Arm Assembly Components

Q.

1 400129 1Carriage Arm & Gasket Kit (Incl. item 2)

2 500004 1Carriage Arm Gasket

3 500052 1Carriage Knob & Captive Clip Kit (Incl. items 4-5)

4 1Carriage Arm Tie Down Knob

5 800180 1Washer, Nylon

6 400115 1Transport Replacement Assembly

7 1Transport with Bushings

8 400017 1Transport Attachment Pin

9 1Shoulder Washer .51 IDx.88 Nylon
10 1Shoulder Washer .51 IDx1.125 Nylon
11 810406 1Hex Cap Screw 5/16-24x1,18-8 (SST)
12 1Shoulder Washer .51 IDx1.125 Nylon
13 810272 1Flat Washer 5/16 Screw Size (SST)
14 810420 1Nyloc Nut 5/16-18, Grade 5
15 1Mach. Sealing Screw 8-32x1/4 PH Phillips
16 1Dome Plug for 5/8 Hole
17 1Socket Hd Cap Screw 3/8-16 x 1 (SST)
18 800015 1Transport Tie Down Screw
19 800048 1Nut 5/16-24 Hex UNF Thread (Zinc Plated Steel)
20 800014 1Roller Bearing Assembly
21 1Roller Bearing Bolt
22 1Roller Bearing
23 1Bearing Sleeve
24 1Spacer Sleeve
25 300061 1Table Interlock Kit
26 1Transport Slide Lock Plate
27 1Lock Plate Assembly
28 1Lock Plate
29 1Dowel Pin, 5/32 x 5/16 (SST)
30 1Reverse Shoulder Bolt
31 1E-Clip Retaining Ring for 1/4" Shaft
32 1Shoulder Bolt 1/4" x 1/2", #10-32 Thread
33 3Curved Disk Spring .265 ID,.490 OD,.011 Thick
34 2Washer, Nylon .265 ID, .50 OD, .094 Thick
35 1Cam Lock Plate Assembly
36 1Cam Lock Plate
37 1Dowel Pin, 5/32 x 5/16 (SST)
38 1Shoulder Bolt 1/4" x 1", #10-32 Thread
39 1Lock Out Assembly
40 1Pivot Stop Plate

41 1Slide Pivot Plate Bracket
42 810457 1Mach. Screw, #10-32 x 1/2 Phil Truss
43 1Nut #10-32 Thin Nylon Lock Hex
44 1Mach. Screw #5-40 x 1/2 Button Socket Cap
45 800170 1Hex Nut, Nylon Lock #5-40
46 800057 2Screw 1/4-20x.75 Hex Washer Hd Tapping
47 121089 1Carriage Tilt Switch Kit
48 1Carriage Tilt Back Sensor Mount
49 1Micro Switch Insulator
50 1Micro Switch
51 2Mach. Screw #2-56x7/16 Pan Hd. Phillips
52 2Lock Washer #2 Internal Tooth
53 1Nut Plate

(Incl. items 7-24)

(Incl. items 21-24)

(Incl. items 26-46)

(Incl. items 36-37)

(Incl. items 40-45)

(Incl. items 48-54)

QtyDescriptionItem Part Numbe

Serial Number

23

© Globe Food Equipment Company

r

SG13 Transport Arm Assembly Components

A

k

Q.

QtyDescriptionItem Part Numbe

54 800099 2Mach. Screw #8-32x3/8 Hex Hd
55 400131 1Transport Roller Bar Kit
56 1Transport Roller Bar
57 810004 1Tapping Screw 1/4-20x1 Cross Rec. FH
58 400132 1Transport Shaft Kit
59 1Transport Shaft
60 800059 1Washer 5/16-18x1.25 Hex Hd Tapping Screw
61 800071 1Mach. Screw 5/16-18x1 Truss Hd Slotted
62 500005 1Transport Bumper
63 800131 1Sleeved Spring Assembly
64 121090 1Carriage Magnet Kit
65 1Transport Switch Magnet Mount
66 1Magnet
67 2
68 2Lock Washer #2 Internal Tooth
69 1Nut Plate
70 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
71 300064 1Transport Cover Kit
72 510058 1Oil Well Gasket
73 300080 1Transport Cover
74 800109 4Screw 1/4-20x.50 Button Hd Cap
75 4Washer 1/4 Flat
76 800053 1Felt Insert
77 400114 1Carriage Arm Handle Assembly with Nut
78 1Carriage Arm Handle
79 400155 1
80 810226 1Lock Washer, 1/2 Screw Size, Internal Tooth
81 810224 1Hex Nut, 1/2-13 Left Hand, Thread

Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)

nti Rotation Bloc

(Incl. items 56-57)

(Incl. items 59-61)

(Incl. items 65-70)

(Incl. items 72-75)

(Incl. items 78-81)

Serial Number

24

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

25

© Globe Food Equipment Company

10

SG13 Lift Lever Base Components

Item 1
Manual Kickstand Assembly

9

3

6

7

8

2

5

4

26

© Globe Food Equipment Company

r

SG13 Lift Lever Base Components

Q.

1 300046 1Manual Kickstand Assembly

2 1Manaul Kickstand Bracket

3 1Manual Kickstand Arm

4 1Socket Hd. Cap Screw #10-32 x 3/8 SST

5 1Hex Nut #10-32 SST

6 1

7 810272 1Flat Washer 5/16 Screw Size (SST)

8 1Nylon-Insert Thin Hex Nut 1/4-20 SST

9 1Cap Screw, Hx Hd 5/16-18 UNC x 3/4
10 1Manual Kickstand Boot

Long Shoulder 5/16" Dia. x 1/4" Screw 1/4"-20 Thrd

(Incl. items 2-10)

QtyDescriptionItem Part Numbe

Serial Number

27

© Globe Food Equipment Company

SG13 Carriage and End Weight Assembly Components

B

E

F

O

R

E

T

I

L

T

I

N

G

F

O

O

D

C

H

U

T

E

,

P

U

L

L

F

O

O

D

C

H

U

T

E

T

O

H

O

M

E

P

O

S

I

T

I

O

N

A

N

D

C

L

O

S

E

S

L

I

C

E

R

T

A

B

L

E

.

B

E

F

O

R

E

T

I

L

T

I

N

G

F

O

O

D

C

H

U

T

E

,

P

U

L

L

F

O

O

D

C

H

U

T

E

T

O

H

O

M

E

P

O

S

I

T

I

O

N

A

ND

C

L

O

S

E

S

L

I

C

E

R

T

A

B

L

E

.

A

v

a

n

t

d

e

b

a

s

c

u

l

e

r

l

e

p

l

a

t

e

a

u

p

o

r

t

e

-

p

r

o

d

u

i

t

,

t

i

r

e

z

l

e

p

l

a

t

e

a

u

p

o

r

t

e

-

p

r

o

d

u

i

t

e

n

p

o

s

i

t

i

o

n

d

e

r

e

p

o

s

e

t

f

e

r

m

e

z

l

e

p

l

a

t

e

a

u

d

e

l

a

t

r

a

n

c

h

e

u

s

e

.

20

21

12

11

7

14

13

9

5
6

2

10

8

17

1

3

4

15

18

16

23

22

24

25

19

26

© Globe Food Equipment Company

28

r

SG13 Carriage and End Weight Assembly Components

Q.

1 400138 1Carriage Assembly Kit

2 400012 1Carriage Insert Assembly

3 920196 1Carriage Tilt Label

4 920197 1Carriage Tilt Label (French)

5 800085 4Washer 1/4'' Screw, Self Aligning

6 800188 4Custom Nut, 1/4-20

7 450158 1End Weight Shaft Assembly

8 400135 1Rod Mount Kit End Weight

9 1End Weight Rod Mount
10 800037 2Mach. Screw 1/4-20 x 5/8 FH Slotted
11 400136 1End Weight Stop Kit
12 1End Weight Stop
13 800038 2Mach. Screw 1/4-20 x 5/8 RH Slotted
14 800205 1Stop Pin, Delrin End Weight
15 500046 1Thumb Guard Assembly
16 1Carriage Thumb Guard
17 510038 1Carriage Thumb Guard Gasket
18 810366 4Thumb Guard Screw
19 500027 1End Weight Assembly
20 420065 1End Weight Arm Assembly
21 500024 1End Weight Handle
22 800164 1End Weight Face Washer Kit
23 1Washer .04 mm thick End Weight Face
24 4Washer .01 mm thick End Weight Face
25 500007 1Molded End Weight Assembly
26 800047 1Delrin 1/8 Dia x 3/8 Pin

(Incl. items 2-18)

(Incl. items 9-10)

(Incl. items 16-18)

(Incl. items 20-26)

(Incl. items 23-24)

QtyDescriptionItem Part Numbe

Serial Number

29

© Globe Food Equipment Company

SG13 Knife and Knife Cover Components

7

9

14

13

12

11

10

1

2

Items 4-6 Not Shown

3

8

30

© Globe Food Equipment Company

r

SG13 Knife and Knife Cover Components

Q.

1 400139 1Knife Kit (Incl. items 2-3)

2 1Knife, 13 Inch Steel

3 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST)

4 400161 1Stainless Steel Knife Kit

5 1Knife, 13 inch (SST) Not Shown

6 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST) Not Shown

7 250247 1Knife Cover Assembly

8 460090 1Knife Cover Sub-Assembly

9 500045 1Knife Cover Swivel Lock Assembly
10 1Knife Cover Swivel Lock
11 2Flat Washer #10 Thin Profile
12 2Curved Disk Spring
13 1Nut, 6-32 INC-2B Hex, with Nylon Insert
14 520237 1Barrel Plug, Push-In

(incl. items 5-6) Not Shown

(Incl. items 8-14)

(Incl. items 10-14)

QtyDescriptionItem Part Numbe

Serial Number

31

© Globe Food Equipment Company

SG13 Sharpener Assembly Components

S

T

O

R

E

D

P

O

S

I

T

I

O

N

L

I

F

T

A

N

D

R

O

T

A

T

E

T

O

S

H

A

R

P

E

N

40

23

36

30

31

34

37

38

39

32

35

41

4

5

3

Item 1
Sharpener Assembly

6

10

7

2

9

8

12

11

24

33

25

17

29

26

28

27

13

22

21

20

18

19

14

16

15

32

© Globe Food Equipment Company

r

SG13 Sharpener Assembly Components

Q.

1 440044 1Sharpener Assembly

2 430051 1Honing Stone Assembly

3 1Honing Stone Shaft Assembly (Incl. items 4-6)

4 890390 1Jam Nut 3/8-24 Sharpener Wheel

5 240045 1Honing Stone

6 1Honing Stone Shaft Assembly

7 1Honing Stone Bracket

8 1Honing Stone Slide

9 2Mach. Screw 4-40x3/8 FH Phillips
10 810272 2Flat Washer 5/16 Screw Size (SST)
11 1Wave Spring, Honing Stone
12 1Retaining Ring, Type E, for 5/16 Shaft
13 430052 1Sharpening Stone Assembly
14 1Sharpening Stone Shaft Assembly
15 410048 1CBN Sharpening Stone
16 1Hex Nut 3/8-24 UNF-2B
17 1Shapening Stone Shaft
18 1Sharpening Stone Bracket
19 1Wave Spring, Sharpening Stone
20 810272 3Flat Washer 5/16 Screw Size (SST)
21 1Retaining Ring, Type E, for 5/16 Shaft
22 810437 1Flat Washer
23 400137 1Sharpener Mount Center Kit
24 1Sharpener Center Mount
25 1Slotted Ball Plunger, 1/4-28 SST
26 1Thin Hex Nut, 1/4-28
27 1Sharpener Return Spring
28 2Mach. Screw 6-32x3/8 Pan Hd Cross-Rec.
29 1Slotted Set Screw 10-32 Sharpener Actuator
30 1Honing Stone Lever
31 1Sharpener Handle Rod
32 1Slotted Set Screw 10-32 Sharpener Actuator
33 810437 1Flat Washer
34 800184 1Curved Disk Spring, 1/4" Rod Size
35 250069 1Sharpener Cover
36 510041 1Top Section, Sharpener Handle
37 810233 1
38 810246 2Mach. Screw, Truss Hd Slotted 10-32x1/2 (SST)
39 2Curved Disk Spring
40 920215 1Label, Sharpen Position

41 920216 1Label, Stored Position

Mach. Screw 8-32x1/2 Black, Phillips, w/Nylon Patch

(Incl. items 2-41)
(Incl. items 3-12)

(Incl. items 14-22)
(Incl. items 15-17)

(Incl. items 24-34)

QtyDescriptionItem Part Numbe

Serial Number

33

© Globe Food Equipment Company

SG13 Removable Carriage Components - Option

1

8

12

7

6

10

4

11

5

3

2

9

34

© Globe Food Equipment Company

r

SG13 Removable Carriage Components - Option

Q.

1 450221 1Removable Carriage Arm Assembly Kit

2 450217 1Carriage Arm for Removable Carriage

3 450220 1Removable Carriage Machanism Assembly Kit

4 500056 1Removable Carriage Knob Assembly

5 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted

6 1Lock Out Assembly

7 2Compression Spring

8 1E-Clip Retaining Ring for 1/4" Shaft

9 420103 1Guide Block
10 450219 1Removable Carriage Attachment Assembly Kit
11 1Carriage Attachment Assembly
12 500057 1Removable Carriage Gasket

QtyDescriptionItem Part Numbe

Serial Number

35

© Globe Food Equipment Company

SG13 Knife Removal Tool - Option

.

.4.2.2.2.

-

+

ÿ

-

+

ÿ

.1.

.5.4.4.

Use two hands when handling knife removal

tool. If dropped, damage to knife and tool can occur.

1. Close table, unplug
slicer, tilt carriage &
remove knife cover.

2. On the shaft under
the knife, align

with ( ) (See 2.)

3. Before installing
knife removal tool,
both handles must
be rotated outward.

On the knife shaft,

1.

(

align

(See 1.)

2. Align knife removal
tool with locations
on ring guard

.

in red

)

+

KNIFE REMOVAL

( - )

2

KNIFE INSTALLATION

with ( )

4.4

4. Align knife

5

removal tool with
locations on ring
guard in

inward to lock knife
into tool

5. Rotate both handles

6. Use both handles to lift
knife removal tool &

knife away from slicer.

3. Rotate both handles
outward to release
knife.

4. Use both hands
to lift tool away
from knife
removal tool.

red

1

.

S-Series

Knife Removal Tool

36

© Globe Food Equipment Company

r

SG13 Knife Removal Tool - Option

Q.

1 450200 1Removable Knife Tool Assembly

QtyDescriptionItem Part Numbe

Serial Number

37

© Globe Food Equipment Company

SG13 Removable Knife Kit - Option

1

2

3

38

© Globe Food Equipment Company

r

SG13 Removable Knife Kit - Option

Q.

1 450222-01 1Removable Knife Kit
2 1Knife, 13" Removable
3 1Post, Service Knife Release
4 450222-03 1Removable Knife Kit, SST (Not Shown)
5 1Knife, 13" SST Removable (Not Shown)
6 1Post, Service Knife Release (Not Shown)

QtyDescriptionItem Part Numbe

Serial Number

39

© Globe Food Equipment Company

SG13 Removable Knife Drive Kit - Option

2

7

1

6

5

4

3

40

© Globe Food Equipment Company

r

SG13 Removable Knife Drive Kit - Option

Q.

1 450226-01 1Removable Knife Drive Kit
2 1Shaft, Removable Knife Drive
3 520244 1Knife Drive Boot
4 450115 1Knife Drive Pulley
5 510033 1Nut 7/8-20 Hex (Zinc)
6 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
7 810275 4Bellville Disc Spring Washer .255 ID x .50 OD

QtyDescriptionItem Part Numbe

Serial Number

41

© Globe Food Equipment Company

SG13 Wiring Schematic

7

5

2P3P4P5P6P7

*Table Close Wire Harness - P/N 100121

*Carriage Tilt Wire Harness - P/N 100120

*Carriage Switch Wire Harness - P/N 100122

*Ribbon Cable - P/N 100126

Home Sensor

P/N 110108

*Carriage Switch

P/N 110223

Display Printed

Circuit Board

P/N 121062

Membrane Switch

P/N 910192

*Ribbon Cable

P7 - COM
P6 - KNIFE PWR LED
P5 - NOT USED
P4 - NOT USED
P3 - STOP BUTTON

P2 - START BUTTON
P1 - UNIT PWR LED

*Table Close

Sensor

P/N 110109

J1 J2J3 J

Printed Circuit Board

J6

J11

P
P1

J13

Dip Switch

J16

P/N 121061-02**

*Carriage Tilt

Sensor
P/N 110109

J4

**Board Kit w/Spacers - P/N 121086

Knife Cover
Sensor
P/N 110107

Cut Sensor
P/N 110111

J
J10
J12

J14

BLACK

WHITE

BLACK

BLACK

Power Cord

120VAC - P/N 130225
240VAC - P/N 130226

GREEN

GND

BLACK

P/N 100125

120VAC / 4A - P/N 140017-01
240VAC / 2A - P/N 140017-02

Capacitor

120VAC / 4uF - P/N 140015
240VAC / 2uF - P/N 140016

WHITE or BROWN

WHITE or BROWN

Circuit Breaker

Knife

120VAC/60Hz - P/N 120158-01
240VAC/60Hz - P/N 120158-02

Dip Switch Setting

240VAC/50Hz - P/N 120158-03

SG13 Manual

42

© Globe Food Equipment Company

Motor
