Parts Catalog
S13AE
S-Series Slicer
Standard Automatic
Model:
11/26/2019 Rev. A
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF UNIT.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
S13AE
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 · Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
© Globe Food Equipment Company, 2019
Not for resale
995225 ECN 0546
Table of Contents
PageDescription
S13AE Knife Drive Assembly Components 4
S13AE Index Knob Components 6
S13AE Base Shroud Components 8
S13AE Gauge Plate Components 10
S13AE Auto Engage Lever Components 12
S13AE Index Slide Assembly Components 14
S13AE Ring Guard Assembly Components 16
S13AE Continuous Ring Guard Assembly Components 18
S13AE Electrical Base Components 20
S13AE Knife Drive Motor Components 24
S13AE Transport Arm Assembly Components 26
S13AE Automatic Drive Assembly Components 30
S13AE Automatic Lift Lever Base Components 32
S13AE Carriage Assembly Components 34
S13AE Knife and Knife Cover Components 36
S13AE Sharpener Assembly Components 38
S13AE Front Mounted Sharpener - Option 40
S13AE Knife Removal Tool - Option 42
S13AE Removable Knife Kit - Option 44
S13AE Removable Knife Drive Kit - Option 46
S13AE Wiring Schematic 48

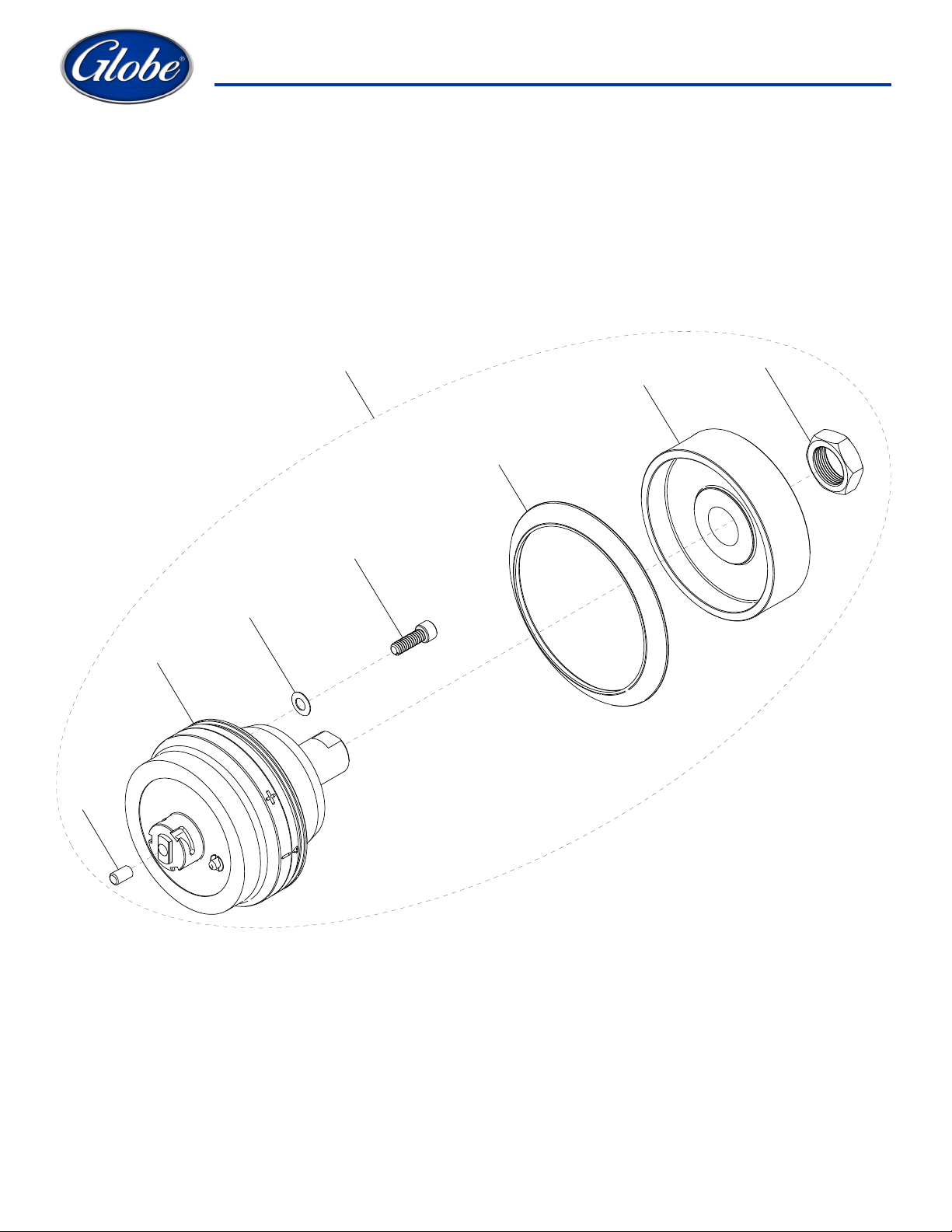

S13AE Knife Drive Assembly Components
1
2
1
1
2
1
0
9 8
7 6 5 4
1
4
1
3
3
1
5
1
4
© Globe Food Equipment Company
r
S13AE Knife Drive Assembly Components
Q.
1 450211 1Knife Drive Assembly
2 420088 1Knife Drive Bearing Assembly
3 510078 1Knife Cover Bumper
4 1Shaft, Knife Drive
5 1Knife Drive Bearing Mount
6 2Ball Bearing, Sealed
7 1Outer Ring, Bearing Spacer
8 1Inner Ring, Bearing Spacer
9 1Retaining Ring 5101-98 Bowed External
10 1Retaining Ring N5002-200
11 520244 1Knife Drive Boot
12 450115 1Knife Drive Pulley
13 510033 1Nut 7/8-20 Hex (Zinc)
14 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
15 810275 4Bellville Disc Spring Washer .255 ID x .50 OD
(Incl. items 2-15)
(Incl. items 3-10)
QtyDescriptionItem Part Numbe
Serial Number
5
© Globe Food Equipment Company
S13AE Index Knob Components
10
12
13
14
11
4
8
7
6
1
5
3
9
6
© Globe Food Equipment Company
2
r
S13AE Index Knob Components
Q.
1 500044 1Index Knob Assembly (Incl. items 2-3)
2 500022 1Index Knob
3 800136 1Index Knob Tension Spring
4 450214 1Index Bearing Hub Assembly Kit (Incl. items 5-9)
5 1Index Knob Bearing Hub
6 2Index Knob Bearing
7 1Spacer, Index Bearing
8 1Beveled Retaining Ring
9 800104 3Mach. Screw #10-24x5/8 Flat Hd Slotted
10 500050 1Index Cam Assembly
11 520350 1Index Cam
12 1Socket Cap Screw #10-32x3/4 Flat Hd (SS)
13 800105 1Socket Cap Screw #10-32x5/8 Button-Hd
14 3Set Screw, Knurl Grip Cup Pt 1/4-28x3/4 (SST)
(Incl. items 11-14)
QtyDescriptionItem Part Numbe
Serial Number
7
© Globe Food Equipment Company
S13AE Base Shroud Components
13
11
11
12
14
15
1
2
10
8
© Globe Food Equipment Company
9
8
7
6
4
5
3
r
S13AE Base Shroud Components
A
A
A
Q.
1 1Slicer Base
2 920203 1
2 980353 1
2 980354 1
3 121072 1Membrane Switch Kit (Incl. items 4-8)
4 1Membrane Switch, Automatic Slicer
5 910088 1Pad, Alcohol Prep
6 1User Interface Panel, Smart/Auto
7 810422 2Nylon Locknut 6-32
8 810423 4Mach. Screw #4-40 x 1/4, 18-8 PH Cr (SST)
9 121062 1Display Assembly
10 510031 4Slicer Foot
11 920202 2Globe Logo Decal, S-Series
12 920200 1Warning Label, Large
13 920198 1Warning Label, Large French
13 980377 1Warning Label, Large Italian
13 980376 1Warning Label, Large Spanish
14 920201 1Warning Label, Small
15 920199 1Warning Label, Small French
15 980381 1Warning Label, Small Spanish
15 980382 1Warning Label, Small Italian
uto Engage Label
uto Engage Label, Spanish
uto Engage Label, Italian
QtyDescriptionItem Part Numbe
Serial Number
9
© Globe Food Equipment Company
S13AE Gauge Plate Components
6
5
1
3
2
4
10
© Globe Food Equipment Company
r
S13AE Gauge Plate Components
Q.
QtyDescriptionItem Part Numbe
1 450212 1Gauge Plate Base Assembly
2 450054 1Post Nut, Gauge Plate Ball Joint
3 500001 1Gauge Plate Seal
4 890411 2
5 810228 2Flat Washer, fits 3/8 Screw, .885 OD
6 450250 1Gauge Plate
Cap Screw 3/8-16x1-1/2, Hex Hd with Nylon Patch
Serial Number
11
© Globe Food Equipment Company
11
S13AE Auto Engage Lever Components
10
12
13
1
3
2
6
4
7
8
5
9
12
© Globe Food Equipment Company
r
A
r
S13AE Auto Engage Lever Components
A
k
A
y
A
A
Q.
QtyDescriptionItem Part Numbe
1 400021 1
2 400038 1Position Block Assembly (Incl. items 3-4)
3 1
4 1Socket Set Screw 1/4-20x1/4,18-8 Cup Pt. (SST)
5 500029 1
6 1
7 1Set Screw 1/4-20x.42 Cup Point
8 1Handle Shaft
9 1
10 400126 1Bearing Block Assembly Kit
11 1Bearing Block Assembly
12 810429 1Retaining Ring, 5304-31 (Klipring)
13 810003 2
uto Engage Assembly Ba
uto Engage Position Bloc
uto Engage Lever Assembl
uto Engage Lever Hub
uto Engage Handle Knob
Screw 1/4-20x3/4 Crossed Rec., Flat Hd, Tapping
(Incl. items 6-9)
(Incl. items 11-13)
Serial Number
13
© Globe Food Equipment Company
S13AE Index Slide Assembly Components
19
17
24
15
14
25
7
8
9
10
6
11
12
13
5
27
22
23
2
1
28
21
3
18
20
16
26
4
30
29
31
14
© Globe Food Equipment Company
r
S13AE Index Slide Assembly Components
A
A
t
A
Q.
QtyDescriptionItem Part Numbe
1 400140 1Index Slide Kit
2 1Index Slide with Bushings
3 810400 2Set Screw #10-32x3/8 Cup Pt.
4 800146 4Set Screw 5/16-18x3 Sq. Hd Cup Point
5 800144 2Cap Screw 1/4-28x1-1/4 Socket Hd
6 800091 1Set Screw #8-32 x 3/16 Knurled Grip - Cup Pt.
7 400121 1Cam Follower Kit
8 1Follower
9 2Wave Spring Cam Follower
10 1Flat Washer .266 ID, .625 OD Type A
11 890390 1Jam Nut 3/8-24 Sharpener Wheel
12 1Follower Adjustment Post
13 810379 1Retaining Clip Ring 5304-18
14 1Stop Plate, Tilt Back
15 800145 2Nut 1/4-28 Hex
16 400122 1Index Slide Shaft Kit
17 1Index Slide Shaft
18 1Index Spring
19 800152 1Retaining Ring (Klipring) 5304-75
20 800058 2Washer 5/16-18-1 Hex Hd Tapping Screw
21 810431 1Cap Screw 1/4-20 x 3/4 Hex Hd
22 810432 1Nut, Thin 1/4-20 Hex
23 450057 2Screw, Anti-Rotation
24 450050 1Ball Joint Rest
25 800168 1Gauge Plate Spacer Kit (Kit of 4)
26 800043 1Nut 7/8-14 UNF Hex Jam
27 300154 1
28 800105 2Socket Cap Screw #10-32x5/8 Button-Hd
29 400128 1
30 1
31 810003 2
djustment Stop
nti-Rotation Plate Ki
nti-Rotation Plate
Screw 1/4-20x3/4 Crossed Rec., Flat Hd, Tapping
(Incl. items 1-28)
(Incl. items 8-13)
(Incl. items 17-20)
(Incl. items 29-31)
Serial Number
15
© Globe Food Equipment Company
S13AE Ring Guard Assembly Components
16
8
15
14
13
9
12
Item 1
Ring Guard Assembly
17
18
2
5
7
6
10
4
3
11
19
16
© Globe Food Equipment Company
r
S13AE Ring Guard Assembly Components
A
Q.
QtyDescriptionItem Part Numbe
1 500047-02 1Ring Guard Assembly Kit
2 520316-02 1Ring Guard
3 520243 1Round Boot, Ring Guard
4 810438 1Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
5 520242 1Oval Boot, Ring Guard
6 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted
7 810345 2Flat Washer 1/4 Screw Thread (18-8 SST)
8 450213 1Ring Guard Spacer Assembly
9 460064 1Spacer, Ring Guard
10 520242 1Oval Boot, Ring Guard
11 810438 2Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
12 460069 1Sharpener Mount Assembly Kit
13 1Sharpener Mount Assembly
14 800185 1
15 800184 1Curved Disk Spring, 1/4" Rod Size
16 810483 1Slotted Set Screw 10-32
17 810358 1Mach. Screw 1/4-20x1 Truss Hd Slotted
18 810345 1Flat Washer 1/4 Screw Thread (18-8 SST)
19 450130 2Locator Pin
corn Nut, 1/4-28 SST
(Incl. items 2-19)
(Incl. items 9-11)
(Incl. items 13-16)
Serial Number
17
© Globe Food Equipment Company
S13AE Continuous Ring Guard Assembly Components
8
9
12
13
Item 1
Continuous Ring
Guard Assembly
2
5
7
10
4
11
3
14
6
18
© Globe Food Equipment Company
r
S13AE Continuous Ring Guard Assembly Components
Q.
1 550017-02 1Continuous Ring Guard Assembly Kit
2 520275-02 1Continuous Ring Guard
3 520243 1Round Boot, Ring Guard
4 810438 1Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
5 520242 1Oval Boot, Ring Guard
6 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted
7 810345 2Flat Washer 1/4 Screw Thread (18-8 SST)
8 450213 1Ring Guard Spacer Assembly
9 460064 1Spacer, Ring Guard
10 520242 1Oval Boot, Ring Guard
11 810438 2Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
12 810358 1Mach. Screw 1/4-20x1 Truss Hd Slotted
13 810345 1Flat Washer 1/4 Screw Thread (18-8 SST)
14 450130 2Locator Pin
(Incl. items 2-14)
(Incl. items 9-11)
QtyDescriptionItem Part Numbe
Serial Number
19
© Globe Food Equipment Company

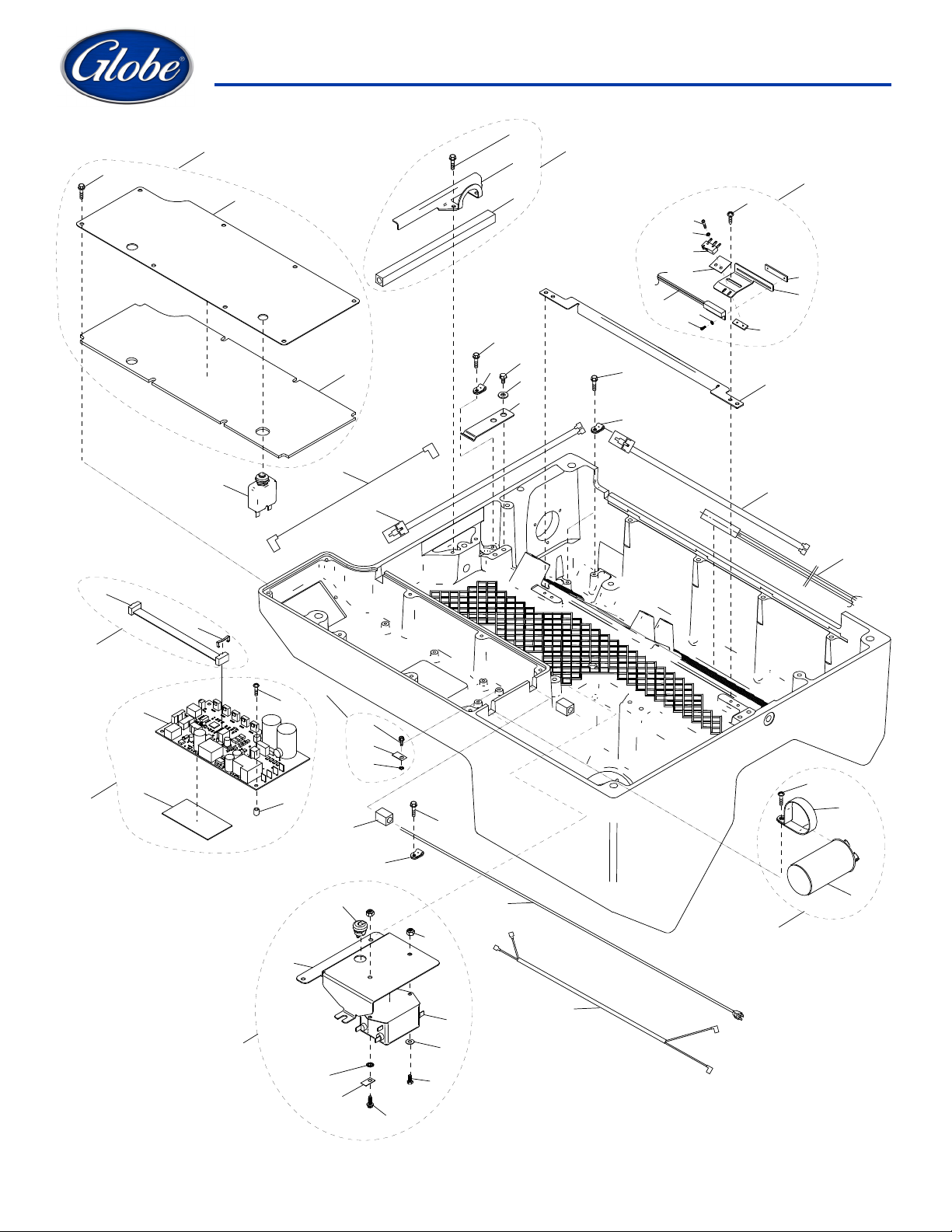

S13AE Electrical Base Components
2 1
3 2 1
586059616
7
6
6
656463625
7
45
42
41
43
46
44
47
55
56
51
49
50
54
53
52
48
16
15
3
4
9
10
8
7
1
12
6
2
5
11
13
14
17
32
38
39
33
34
40
35
36
28
25
30
29
31
26
27
22
21
20
19
18
Items 31-32 Not Shown
20
© Globe Food Equipment Company
r
S13AE Electrical Base Components
A
Q.
QtyDescriptionItem Part Numbe
1 121084 1
2 1Cut/Auto Engage Sensor Mount
3 1Sensor, Reed Switch, Cut Sensor
4 2
5 2Lock Washer #2 Internal Tooth
6 1Nut Plate
7 1Micro Switch Insulator
8 1Micro Switch, Pin Action
9 2Mach. Screw #2-56x7/16 Pan Hd. Phillips
10 2Lock Washer #2 Internal Tooth
11 1Nut Plate
12 800069 4Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
13 310208 1Inner Wireway Cover
14 100122 1Wiring Harness, Automatic Switch
15 110226 2Clamp, Nylon Loop
16 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
17 110107 1Harness, Reed Switch, Knife Cover Sensor
18 121082-02 1Capacitor Clamp Kit
19 1Capacitor, Knife Motor (220V)
20 110229 1Capacitor Clamp
21 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
22 130008-01 1Power Cord (220V)
23 1Power Supply Cord Not Shown
24 1Male Power Plug, Europe CEE7/7, 50Hz Not Shown
25 510045-01 2Sleeve, Large Diameter Wire
26 110227 1Strain Relief, Power Cord
27 800057 1Screw 1/4-20x.75 Hex Washer Hd Tapping
28 121080 1Ground Location Tab Kit
29 1Ground Location Tab
30 1Screw, Green #8-32x5/16" SL Hex Washer Hd
31 1Lock Washer #8 External Tooth
32 121085 1220V Automatic Control Board
33 1220V Auto Control Board
34 510050 1Thermal Pad
35 800175 4Screw #8-32x3/4 Crossed Recessed Tapping
36 810450 4Self Retaining Spacer
37 810450 4Self Retaining Spacer Not Shown
38 121081 1Ribbon Cable Kit
39 1Ribbon Cable Assembly
40 2Retaining Clip, Ribbon Cable
41 140017-02 1Circuit Breaker (220V)
42 300063 1Electronics Cover & Gasket Kit
43 1Cover, Electronics
44 1Gasket, Electronic Cover
45 800067 8Screw #10-24x1/2 Hex Washer Hd Tapping
46 100125 1Wire Harness, Circuit Breaker
47 100120 1Wiring Harness, Carriage Tilt Sensor
48 300067 1Front Wireway Cover Kit
49 1Cover, Front Wireway
50 510045-02 1Sleeve, Large Diameter Wire
51 800067 2Screw #10-24x1/2 Hex Washer Hd Tapping
52 300019 1
53 4Washer 1/4 Flat
Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)
uto Engage Position Leaf Spring
(Incl. items 2-12)
(Incl. items 23-25)
(Incl. items 29-31)
(Incl. items 33-36)
(Incl. items 39-40)
(Incl. items 43-45)
(Incl. items 49-51)
Serial Number
21
© Globe Food Equipment Company
r
S13AE Electrical Base Components
Q.
54 800057 2Screw 1/4-20x.75 Hex Washer Hd Tapping
55 110230 1Nylon Loop Clamp 5/16
56 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
57 130229 1Wire Harness, Line Filter
58 130231 1Line Filter Assembly
59 1Mount Plate, Line Filter
60 130230 1Strain Relief
61 890380 2Nut 8-32 Nylock Hex (SS)
62 1Line Filter
63 870072 1#8 Flat Washer, SST
64 800099 1Mach. Screw #8-32x3/8 Hex Hd
65 1Screw, Green #8-32x5/16" SL Hex Washer Hd
66 1Ground Location Tab
67 1Lock Washer #8 External Tooth
(Incl. items 59-67)
QtyDescriptionItem Part Numbe
Serial Number
22
© Globe Food Equipment Company
INTENTIONALLY LEFT BLANK PAGE
23
© Globe Food Equipment Company
S13AE Knife Drive Motor Components
20
16
18
22
17
21
23
19
15
24
14
13
12
1
11
10
9
7
6
8
5
4
2
3
24
© Globe Food Equipment Company
r
S13AE Knife Drive Motor Components
Q.
1 400124 1Knife Tensioner Kit
2 800135 2Thread Forming Screw 1/4-20x5/8 PHP
3 1Cap Screw 5/16-18 x 1-3/4, Grade 8 Hex Hd
4 1Knife Motor Tensioner Bracket
5 2Sleeve Spacer
6 810420 1Nyloc Nut 5/16-18, Grade 5
7 400125 1Threaded Ball Joint, Knife Tensioner (Incl. items 8-9)
8 1Ball Joint Rod End 5/16'-24 Thd
9 1Tension Shaft 5/16-24 x 3 Full Thread
10 1Nut 5/16-24 UNF Zinc Plated Steel Hex Jam
11 1Nut 5/16-24x1 Hex Coupling
12 810416 1Flat Washer 5/16 (Zinc)
13 810417 1Washer 5/16 Neoprene
14 800161 1Washer 5/16 Leveling
15 120158-03 1Knife Drive Motor, Single Phase, 220V, 50Hz
16 400113 1Motor Mount Pivot Rod Assembly
17 1Motor Mount Pivot Rod
18 810429 1Retaining Ring, 5304-31 (Klipring)
19 810420 1Nyloc Nut 5/16-18, Grade 5
20 400123 1Motor Pivot Block Kit
21 1Motor Pivot Block
22 800094 1Set Screw #10-32x1/4, Knurl-Grip Cup Pt.
23 800068 2Washer #10-24x1 Hex Hd Tap. Screw Slotted
24 800092 1Knife Drive Belt
(Incl. items 2-14)
(Incl. items 17-19)
(Incl. items 21-23)
QtyDescriptionItem Part Numbe
Serial Number
25
© Globe Food Equipment Company

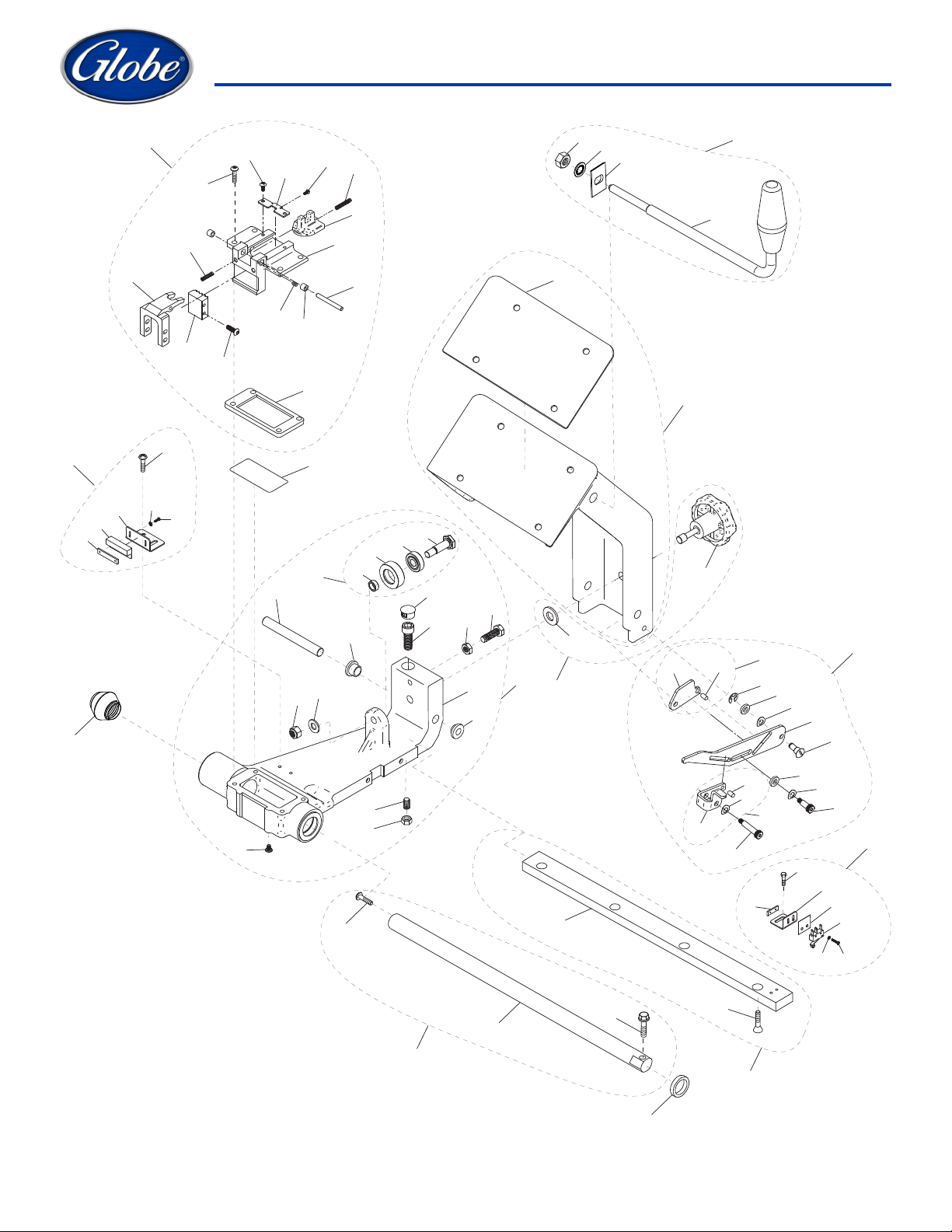

S13AE Transport Arm Assembly Components
2
8
3
5
56
55
61
58
57
74
63
60
62
59
69
75
78
76
15
71
70
68
8
67
19
77
20
72
79
18
53
64
9
73
24
65
66
13
14
23
22
21
11
12
17
7
10
16
6
3
48
2
5
84
83
82
1
36
4
81
29
38
80
37
33
45
27
31
34
33
46
25
26
30
34
33
32
39
40
41
42
44
43
52
49
51
50
47
54
26
© Globe Food Equipment Company
r
S13AE Transport Arm Assembly Components
Q.
1 400195 1Carriage Arm & Gasket Kit (Incl. item 2)
2 500004 1Carriage Arm Gasket
3 500052 1Carriage Knob & Captive Clip Kit (Incl. items 4-5)
4 1Carriage Arm Tie Down Knob
5 800180 1Washer, Nylon
6 400115 1Transport Replacement Assembly
7 1Transport with Bushings
8 400017 1Transport Attachment Pin
9 1Shoulder Washer .51 IDx.88 Nylon
10 1Shoulder Washer .51 IDx1.125 Nylon
11 1Dome Plug for 5/8 Hole
12 1Socket Hd Cap Screw 3/8-16 x 1 (SST)
13 800015 1Transport Tie Down Screw
14 800048 1Nut 5/16-24 Hex UNF Thread (Zinc Plated Steel)
15 1Mach. Sealing Screw 8-32x1/4 PH Phillips
16 810406 1Hex Cap Screw 5/16-24x1,18-8 (SST)
17 1Shoulder Washer .51 IDx1.125 Nylon
18 810272 1Flat Washer 5/16 Screw Size (SST)
19 810420 1Nyloc Nut 5/16-18, Grade 5
20 800014 1Roller Bearing Assembly
21 1Roller Bearing Bolt
22 1Roller Bearing
23 1Bearing Sleeve
24 1Spacer Sleeve
25 300069 1Transport Interlock Kit
26 1Transport Slide Lock Plate
27 1Lock Plate Assembly
28 1Lock Plate
29 1Dowel Pin, 5/32 x 5/16 (SST)
30 1Reverse Shoulder Bolt
31 1E-Clip Retaining Ring for 1/4" Shaft
32 1Shoulder Bolt 1/4" x 1/2", #10-32 Thread
33 3Curved Disk Spring .265 ID,.490 OD,.011 Thick
34 2Washer, Nylon .265 ID, .50 OD, .094 Thick
35 1Cam Lock Plate Assembly
36 1Cam Lock Plate
37 1Dowel Pin, 5/32 x 5/16 (SST)
38 1Shoulder Bolt 1/4" x 1", #10-32 Thread
39 121089 1Carriage Tilt Switch Kit
40 1Carriage Tilt Back Sensor Mount
41 1Micro Switch Insulator
42 1Micro Switch
43 2Mach. Screw #2-56x7/16 Pan Hd. Phillips
44 2Lock Washer #2 Internal Tooth
45 1Nut Plate
46 800099 2Mach. Screw #8-32x3/8 Hex Hd
47 400131 1Transport Roller Bar Kit
48 1Transport Roller Bar
49 810004 4Tapping Screw 1/4-20x1 Cross Rec. FH
50 400132 1Transport Shaft Kit
51 1Transport Shaft
52 800059 1Washer 5/16-18x1.25 Hex Hd Tapping Screw
53 800071 1Mach. Screw 5/16-18x1 Truss Hd Slotted
(Incl. items 9-24)
(Incl. items 21-24)
(Incl. items 26-38)
(Incl. items 28-29)
(Incl. items 36-37)
(Incl. items 40-46)
(Incl. items 48-49)
(Incl. items 51-53)
QtyDescriptionItem Part Numbe
Serial Number
27
© Globe Food Equipment Company
r
S13AE Transport Arm Assembly Components
A
t
A
A
A
t
A
r
A
A
k
Q.
QtyDescriptionItem Part Numbe
54 500005 1Transport Bumper
55 800131 1Sleeved Spring Assembly
56 121090 1Carriage Magnet Kit
57 1Transport Switch Magnet Mount
58 1Magnet
59 2
60 2Lock Washer #2 Internal Tooth
61 1Nut Plate
62 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
63 400130 1
64 1Transport Auto Engage
65 1
66 1
67 1Sleeve Bushing
68 810473 1Set Screw, 8-32x3/8, Brass Tip Dog Point (SST)
69 1Clamp Release Spring
70 1
71 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
72 810423 1Mach. Screw #4-40 x 1/4, 18-8 PH Cr (SST)
73 1Slide Spring
74 1
75 1
76 800105 1Socket Cap Screw #10-32x5/8 Button-Hd
77 510058 1Oil Well Gasket
78 800109 4Screw 1/4-20x.50 Button Hd Cap
79 800053 1Felt Insert
80 400188 1Carriage Arm Handle Assembly with Nut
81 1Carriage Arm Handle
82 450239 1
83 810226 1Lock Washer, 1/2 Screw Size, Internal Tooth
84 810224 1Hex Nut, 1/2-13 Left Hand, Thread
Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)
uto Engage Pickup Ki
uto Engage Slide
uto Engage Pivot Dowl
uto Engage Spring Stop Bracke
uto Engage Pivot Leve
uto Engage Belt Clamp
nti Rotation Bloc
(Incl. items 57-62)
(Incl. items 64-78)
(Incl. items 81-84)
Serial Number
28
© Globe Food Equipment Company
INTENTIONALLY LEFT BLANK PAGE
29
© Globe Food Equipment Company

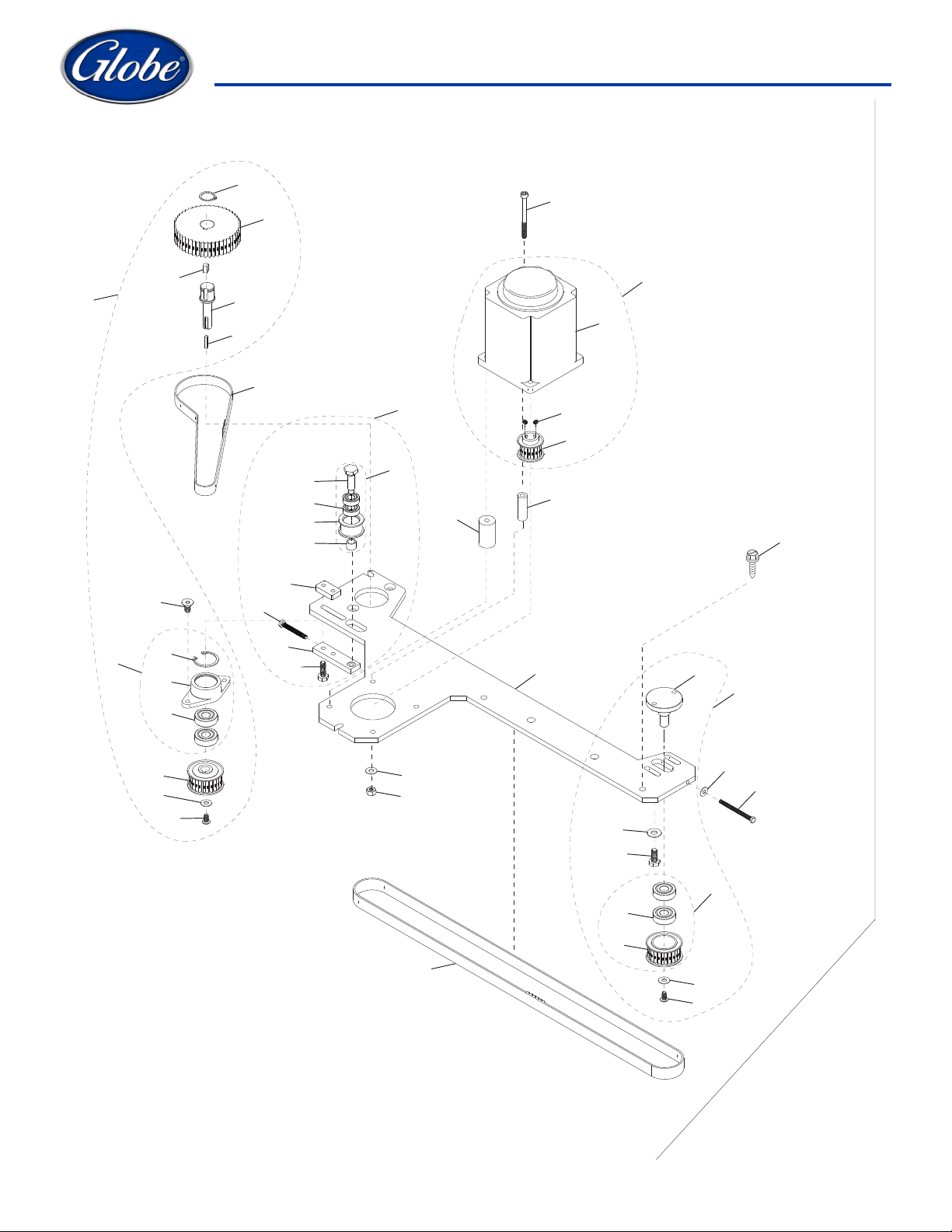

S13AE Automatic Drive Assembly Components
Item 1
Automatic Drive Kit
18
43
17
16
22
29
19
24
23
25
20
21
39
30
40
37
38
33
34
35
36
32
31
41
2
46
47
49
48
42
3
5
4
26
28
27
44
45
15
30
© Globe Food Equipment Company
14
13
12
11
6
8
7
10
9
r
A
S13AE Automatic Drive Assembly Components
A
A
A
Q.
1 400133 1
2 1
3 800057 4Screw 1/4-20x.75 Hex Washer Hd Tapping
4 400143 1Idler Assembly Kit
5 1Pulley Shaft
6 450097 1Idler Assembly (Incl. items 7-8)
7 1Idler Pulley (24 Tooth)
8 2Bearing 6000 Double Seal
9 800077 1Mach. Screw #10-24x3/8 Button Hd Cap (SST)
10 800076 1Washer #10 Flat (18-8 SST)
11 800072 2Bolt 1/4-20x5/8' Hex
12 2Washer 1/4 Flat
13 800088 1Mach. Screw #8-32x2 Hex Hd (SS)
14 870072 1#8 Flat Washer, SST
15 800008 1
16 400141 148/24 Tooth Drive Pulley Kit
17 1Drive Pulley (48 Tooth)
18 1Retaining Ring 5100-62 External
19 1Key, 3/16x3/16 Drive
20 1Shaft, Dual Pulley
21 1Key, 1/8x1/8 Drive
22 450096 1Bearing Block Assembly
23 1Bearing Block
24 1Retaining Ring N5002-102 Internal
25 2Bearing 6000 Double Seal
26 450093 1Drive Pulley (24 Tooth)
27 800077 1Mach. Screw #10-24x3/8 Button Hd Cap (SST)
28 800076 1Washer #10 Flat (18-8 SST)
29 2
30 800009 1
31 400154 1Belt Tension Kit
32 400151 1Belt Tensioner Assembly
33 1Tension Pulley Shaft
34 2Bearing, Tension
35 1Tension Sleeve
36 1Spacer
37 1Tensioner Bar
38 810431 2Cap Screw 1/4-20 x 3/4 Hex Hd
39 810007 1Screw, Machine #10-32x1-1/2 Hx Hd Drive
40 400150 1Nut Plate
41 450090 3Standoff, Automatic Motor
42 450091 1Standoff, Automatic Motor
43 800074 4Screw #10-24x2.25 Socket Hd Cap
44 800076 4Washer #10 Flat (18-8 SST)
45 800075 4Nut #10-24 Hex
46 400144 1Carriage Drive Motor Kit
47 120160 1Carriage Drive Motor (BLDC)
48 1Motor Drive Pulley (16 Tooth)
49 800091 2Set Screw #8-32 x 3/16 Knurled Grip - Cup Pt.
utomatic Drive Kit
utomatic Base Plate
utomatic Driven Belt
Screw 1/4-20x1/2 Socket Flat Countersunk Hd Cap
utomatic Drive Belt
(Incl. items 2-49)
(Incl. items 5-12)
(Incl. items 17-29)
(Incl. items 23-25)
(Incl. items 32-40)
(Incl. items 47-49)
QtyDescriptionItem Part Numbe
Serial Number
31
© Globe Food Equipment Company
S13AE Automatic Lift Lever Base Components
3
2
5
9
8
7
6
11
14
13
1
4
12
10
32
© Globe Food Equipment Company
r
S13AE Automatic Lift Lever Base Components
Q.
1 300066 1Lift Lever Base Support Kit (Incl. items 2-4)
2 1Lift Lever Base Support
3 400037 2Lift Lever Base Support Post
4 800057 2Screw 1/4-20x.75 Hex Washer Hd Tapping
5 400134 1Lift Lever Assembly Kit
6 1Lift Lever Weldment
7 1Lift Lever Handle
8 300078 1Lift Lever Support & Stop
9 810438 4Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
10 800058 2Washer 5/16-18-1 Hex Hd Tapping Screw
11 300030 1Lift Lever Bracket
12 800072 4Bolt 1/4-20x5/8' Hex
13 2Lift Lever Roller
14 2Retaining Ring 5115-37 Push-On External
(Incl. items 7-14)
QtyDescriptionItem Part Numbe
Serial Number
33
© Globe Food Equipment Company
S13AE Carriage Assembly Components
Item 1
Carriage Assembly
2
11
10
12
3
13
4
5
6
8
9
7
34
© Globe Food Equipment Company
r
S13AE Carriage Assembly Components
Q.
1 450241 1Carriage Assembly
2 1End Weight Assembly
3 800037 2Mach. Screw 1/4-20 x 5/8 FH Slotted
4 1End Weight Shaft Assembly
5 800205 1Stop Pin, Delrin End Weight
6 1End Weight Stop
7 800038 2Mach. Screw 1/4-20 x 5/8 RH Slotted
8 4Gasket, Standoff
9 4Standoff, Shield
10 800206 4Washer 1/4 Flat
11 890341 1Machine Screw, Truss Hd
12 510075 1Shield
13 400012 1Carriage Insert Assembly
(Incl. items 2-13)
QtyDescriptionItem Part Numbe
Serial Number
35
© Globe Food Equipment Company
S13AE Knife and Knife Cover Components
7
9
14
13
12
11
10
1
2
Items 4-6 Not Shown
3
8
36
© Globe Food Equipment Company
r
S13AE Knife and Knife Cover Components
Q.
1 400139 1Knife Kit (Incl. items 2-3)
2 1Knife, 13 Inch Steel
3 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST)
4 400161 1Stainless Steel Knife Kit
5 1Knife, 13 inch (SST) Not Shown
6 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST) Not Shown
7 250247 1Knife Cover Assembly
8 460090 1Knife Cover Sub-Assembly
9 500045 1Knife Cover Swivel Lock Assembly
10 1Knife Cover Swivel Lock
11 2Flat Washer #10 Thin Profile
12 2Curved Disk Spring
13 1Nut, 6-32 INC-2B Hex, with Nylon Insert
14 520237 1Barrel Plug, Push-In
(Incl. items 5-6) Not Shown
(Incl. items 8-14)
(Incl. items 10-14)
QtyDescriptionItem Part Numbe
Serial Number
37
© Globe Food Equipment Company
S13AE Sharpener Assembly Components
S
T
O
R
E
D
P
O
S
I
T
I
O
N
L
I
F
T
A
N
D
R
O
T
A
T
E
T
O
S
H
A
R
P
E
N
40
38
39
23
30
36
31
34
37
32
35
41
4
5
3
Item 1
Sharpener Assembly
6
10
7
2
9
8
12
11
24
33
25
17
29
26
28
27
13
22
21
20
18
19
14
15
16
© Globe Food Equipment Company
38
r
S13AE Sharpener Assembly Components
Q.
1 440044 1Sharpener Assembly
2 430051 1Honing Stone Assembly
(Incl. items 2-41)
(Incl. items 3-12)
3 1Honing Stone Shaft Assembly (Incl. items 4-6)
4 890390 1Jam Nut 3/8-24 Sharpener Wheel
5 240045 1Honing Stone
6 1Honing Stone Shaft Assembly
7 1Honing Stone Bracket
8 1Honing Stone Slide
9 2Mach. Screw 4-40x3/8 FH Phillips
10 810272 2Flat Washer 5/16 Screw Size (SST)
11 1Wave Spring, Honing Stone
12 1Retaining Ring, Type E, for 5/16 Shaft
13 430052 1Sharpening Stone Assembly
14 1Sharpening Stone Shaft Assembly
(Incl. items 14-22)
(Incl. items 15-17)
15 410048 1CBN Sharpening Stone
16 1Hex Nut 3/8-24 UNF-2B
17 1Shapening Stone Shaft
18 1Sharpening Stone Bracket
19 1Wave Spring, Sharpening Stone
20 810272 3Flat Washer 5/16 Screw Size (SST)
21 1Retaining Ring, Type E, for 5/16 Shaft
22 810437 1Flat Washer
23 400137 1Sharpener Mount Center Kit
(Incl. items 24-34)
24 1Sharpener Center Mount
25 1Slotted Ball Plunger, 1/4-28 SST
26 1Thin Hex Nut, 1/4-28
27 1Sharpener Return Spring
28 2Mach. Screw 6-32x3/8 Pan Hd Cross-Rec.
29 1Slotted Set Screw 10-32 Sharpener Actuator
30 1Honing Stone Lever
31 1Sharpener Handle Shaft
32 1Slotted Set Screw 10-32 Sharpener Actuator
33 810437 1Flat Washer
34 800184 1Curved Disk Spring, 1/4" Rod Size
35 250069 1Sharpener Cover
36 510041 1Sharpener Handle, Top
36 500070 1Sharpener Handle, Top
37 810233 1
Mach. Screw 8-32x1/2 Black, Phillips, w/Nylon Patch
37 800223 1Mach. Screw 8-32 x 3/8 Black, FH Phillips
Refer to Serial Number Document
Refer to Serial Number Document
Refer to Serial Number Document
Refer to Serial Number Document
38 810246 2Mach. Screw, Truss Hd Slotted 10-32x1/2 (SST)
39 2Curved Disk Spring
40 920215 1Label, Sharpen Position
41 920216 1Label, Stored Position
QtyDescriptionItem Part Numbe
Serial Number
39
© Globe Food Equipment Company
S13AE Front Mounted Sharpener - Option
Used with Continous Ring Guard Assembly
1
2
8
3
5
4
7
6
40
© Globe Food Equipment Company
r
S13AE Front Mounted Sharpener - Option
Q.
1 460080 1Sharpener, Front Mounted
2 800210 1Screw M6x1.6mm Socket Hd Cap
3 400186 1Sharpening Stone, Fine
4 400184 1Locking Knob Assembly
5 800211 1Plug
6 400185 1Sharpening Stone, Course
7 400187 1Sharpening Stone, Truing
8 510080 1Knife Gap Set Tool
QtyDescriptionItem Part Numbe
Serial Number
41
© Globe Food Equipment Company
r
e
e
.4.2.2.2.
-
+
?
-
+
?
.1.
.5.4.4.
5
S13AE Knife Removal Tool - Option
6
1
Use two hands when handling knife removal
tool. If dropped, damage to knife and tool can occur.
KNIFE REMOVAL
1. Close table, unplug
slicer, tilt carriage &
remove knife cover.
2. On the shaft under
( - )
the knife, align
with ( ) (See 2.)
3. Before installing
knife removal tool,
both handles must
be rotated outward.
1.
On the knife shaft,
align
(See 1.)
2. Align knife removal
tool with locations
on ring guard
in
2
4.4
KNIFE INSTALLATION
with ( )
( + )
.
red
4. Align knife
5
removal tool with
locations on ring
guard in
red
5. Rotate both handles
inward to lock knif
into tool.
6. Use both handles to lift
knife removal tool &
knife away from slice
3. Rotate both handles
outward to releas
knife.
4. Use both hands
to lift tool away
from knife
removal tool.
S-Series
Knife Removal Tool
2
3
4
42
© Globe Food Equipment Company
r

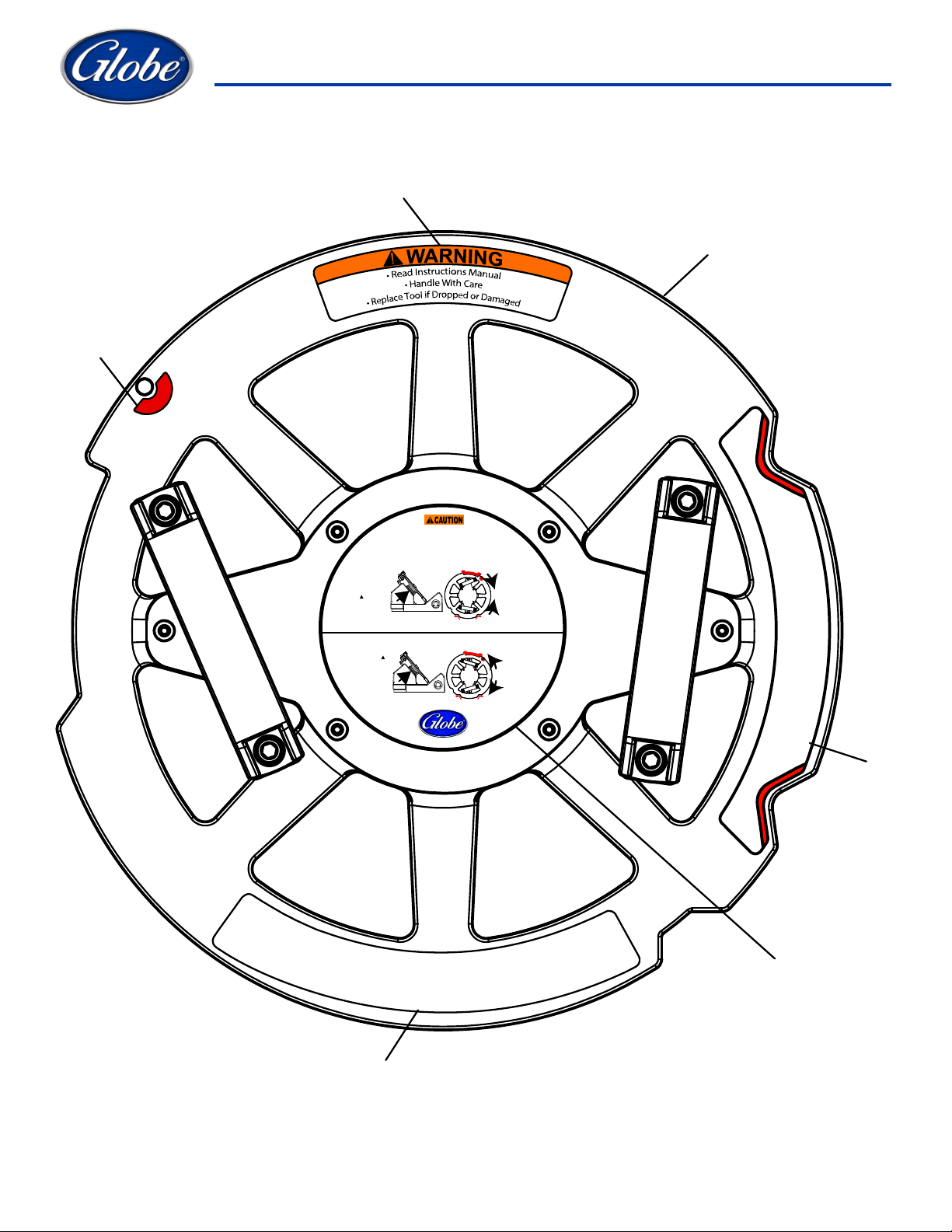

S13AE Knife Removal Tool - Option
Q.
1 450200 1Removable Knife Tool Assembly
2 920227 1Dual Pin Location Decal
2 1French Dual Pin Location Decal
2 1Spanish Dual Pin Location Decal
2 1Italian Dual Pin Decal
3 920226 1Instructional Label
3 1Spanish Instructional Label
3 1Italian Instructional Label
4 920237 1French Caution Label
4 1Spanish Caution Label
4 1Italian Caution Label
5 920232 1Single Pin Location Decal
6 920225 1Warning Label
6 1French Warning Label
6 1Spanish Warning Label
6 1Italian Warning Label
QtyDescriptionItem Part Numbe
Serial Number
43
© Globe Food Equipment Company
S13AE Removable Knife Kit - Option
1
2
3
44
© Globe Food Equipment Company
r
S13AE Removable Knife Kit - Option
Q.
1 450222-01 1Removable Knife Kit
2 1Knife, 13" Removable
3 1Post, Service Knife Release
4 450222-03 1Removable Knife Kit, SST (Not Shown)
5 1Knife, 13" SST Removable (Not Shown)
6 1Post, Service Knife Release (Not Shown)
QtyDescriptionItem Part Numbe
Serial Number
45
© Globe Food Equipment Company
S13AE Removable Knife Drive Kit - Option
2
3
8
1
6
5
4
7
46
© Globe Food Equipment Company
r
S13AE Removable Knife Drive Kit - Option
Q.
1 450226-01 1Removable Knife Drive Kit
2 1193 1Plug
3 1Shaft, Removable Knife Drive
4 520244 1Knife Drive Boot
5 450115 1Knife Drive Pulley
6 510033 1Nut 7/8-20 Hex (Zinc)
7 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
8 810275 4Bellville Disc Spring Washer .255 ID x .50 OD
QtyDescriptionItem Part Numbe
Serial Number
47
© Globe Food Equipment Company
S13AE Wiring Schematic
A
Knife Cover
*Carriage Tilt
E
Sensor
P/N 110107
Sensor
P/N 110109
P/N 130226
Power Cord
BROWN
BLU
P/N 140017-02
Circuit Breaker
ND CIRCUIT BREAKER
BLACK AND WHITE WIRES FROM
LINE FILTER TO CONTROL BOARD
P/N 130229
P/N 1 30231
Filter
BLACK
Line
GREEN
GND
Cut Sensor
P/N 110111
P/N 140016
Capacitor
WHITE or BR OWN
W HIT E or BR OWN
Knife
P/N 120158-03
Motor
P/N 1 00125
WHITE
BLACK
BLACK
BLACK
J14
J10
J12
J7
J9
Power Wires
Carriage Motor
F1
J5
J8
P/N 120160
Motor
Carriage
J4
Hall Sensors
J3
Carriage Motor
P/N 121061-0X
Printed Circuit Board
J1 J2
J6
J11
J13
P5P6P7
P4
Dip Switch
J16
P1
P2
P3
*Ribbon Cable
P4 - SPEED BUTTON
P2 - START BUTTON
P3 - STOP BUTTON
P7 - COM
P1 - UNIT PWR LED
P6 - KNIFE PWR LED
P5 - LENGTHBUTTON
S13AE Automatic
Dip Switch Setting
P/N 910193
Membrane Switch
*Carriage Switch Wire Harness - P/N 100122
*Carriage Tilt Wire Harness - P/N 100120
*Ribbon Cable - P/N 100126
*Carriage Switch
P/N 110223
P/N 121062
Circuit Board
Display Printed
48
© Globe Food Equipment Company
Loading...
