Globe S13A-70 Parts Manual

Parts Catalog

S13A-70

S-Series Slicer

Standard Automatic

Model:

11/26/2019 Rev. A

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF UNIT.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

S13A-70

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

© Globe Food Equipment Company, 2019

Not for resale

995235 ECN 0546

Table of Contents

PageDescription

S13A-70 Knife Drive Assembly Components 4
S13A-70 Index Knob Components 6
S13A-70 Base Shroud Components 8
S13A-70 Gauge Plate Components 10
S13A-70 Auto Engage Lever Components 12
S13A-70 Index Slide Assembly Components 14
S13A-70 Ring Guard Assembly Components 16
S13A-70 Electrical Base Components 18
S13A-70 Knife Drive Motor Components 20
S13A-70 Transport Arm Assembly Components 22
S13A-70 Automatic Drive Assembly Components 26
S13A-70 Automatic Lift Lever Base Components 28
S13A-70 Carriage Assembly Components 30
S13A-70 Knife and Knife Cover Components 32
S13A-70 Sharpener Assembly Components 34
S13A-70 Knife Removal Tool - Option 36
S13A-70 Removable Knife Kit - Option 38
S13A-70 Removable Knife Drive Kit - Option 40
S13A-70 Wiring Schematic 42

S13A-70 Knife Drive Assembly Components

1

2

1

1

2

1

0

9 8

7 6 5 4

1

4

1

3

3

1

5

1

4

© Globe Food Equipment Company

r

S13A-70 Knife Drive Assembly Components

Q.

1 450211 1Knife Drive Assembly
2 420088 1Knife Drive Bearing Assembly
3 510078 1Knife Cover Bumper
4 1Shaft, Knife Drive
5 1Knife Drive Bearing Mount
6 2Ball Bearing, Sealed
7 1Outer Ring, Bearing Spacer
8 1Inner Ring, Bearing Spacer

9 1Retaining Ring 5101-98 Bowed External
10 1Retaining Ring N5002-200
11 520244 1Knife Drive Boot
12 450115 1Knife Drive Pulley
13 510033 1Nut 7/8-20 Hex (Zinc)
14 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
15 810275 4Bellville Disc Spring Washer .255 ID x .50 OD

(Incl. items 2-15)
(Incl. items 3-10)

QtyDescriptionItem Part Numbe

Serial Number

5

© Globe Food Equipment Company

S13A-70 Index Knob Components

10

12

13

14

11

4

8

7

6

1

5

3

9

6

© Globe Food Equipment Company

2

r

S13A-70 Index Knob Components

Q.

1 500044 1Index Knob Assembly (Incl. items 2-3)

2 500022 1Index Knob

3 800136 1Index Knob Tension Spring

4 450214 1Index Bearing Hub Assembly Kit (Incl. items 5-9)

5 1Index Knob Bearing Hub

6 2Index Knob Bearing

7 1Spacer, Index Bearing

8 1Beveled Retaining Ring

9 800104 3Mach. Screw #10-24x5/8 Flat Hd Slotted
10 500050 1Index Cam Assembly
11 520350 1Index Cam
12 1Socket Cap Screw #10-32x3/4 Flat Hd (SS)
13 800105 1Socket Cap Screw #10-32x5/8 Button-Hd
14 3Set Screw, Knurl Grip Cup Pt 1/4-28x3/4 (SST)

(Incl. items 11-14)

QtyDescriptionItem Part Numbe

Serial Number

7

© Globe Food Equipment Company

S13A-70 Base Shroud Components

13

11

11

12

14

15

1

2

10

8

© Globe Food Equipment Company

9

8

7

6

4

5

3

r

S13A-70 Base Shroud Components

A

Q.

1 1Slicer Base

2 920203 1

3 121072 1Membrane Switch Kit (Incl. items 4-8)

4 1Membrane Switch, Automatic Slicer

5 910088 1Pad, Alcohol Prep

6 1User Interface Panel, Smart/Auto

7 810422 2Nylon Locknut 6-32

8 810423 4Mach. Screw #4-40 x 1/4, 18-8 PH Cr (SST)

9 121062 1Display Assembly
10 510031 4Slicer Foot
11 920202 2Globe Logo Decal, S-Series
12 920200 1Warning Label, Large
13 920198 1Warning Label, Large French
14 920201 1Warning Label, Small
15 920199 1Warning Label, Small French

uto Engage Label

QtyDescriptionItem Part Numbe

Serial Number

9

© Globe Food Equipment Company

S13A-70 Gauge Plate Components

6

5

1

3

2

4

10

© Globe Food Equipment Company

r

S13A-70 Gauge Plate Components

Q.

QtyDescriptionItem Part Numbe

1 450212 1Gauge Plate Base Assembly

2 450054 1Post Nut, Gauge Plate Ball Joint

3 500001 1Gauge Plate Seal

4 890411 2

5 810228 2Flat Washer, fits 3/8 Screw, .885 OD

6 450250 1Gauge Plate

Cap Screw 3/8-16x1-1/2, Hex Hd with Nylon Patch

Serial Number

11

© Globe Food Equipment Company

11

S13A-70 Auto Engage Lever Components

10

12

13

1

3

2

6

4

7

8

5

9

12

© Globe Food Equipment Company

r

A

r

S13A-70 Auto Engage Lever Components

A

k

A

y

A

A

Q.

QtyDescriptionItem Part Numbe

1 400021 1

2 400038 1Position Block Assembly (Incl. items 3-4)

3 1

4 1Socket Set Screw 1/4-20x1/4,18-8 Cup Pt. (SST)

5 500029 1

6 1

7 1Set Screw 1/4-20x.42 Cup Point

8 1Handle Shaft

9 1
10 400126 1Bearing Block Assembly Kit
11 1Bearing Block Assembly
12 810429 1Retaining Ring, 5304-31 (Klipring)
13 810003 2

uto Engage Assembly Ba

uto Engage Position Bloc

uto Engage Lever Assembl
uto Engage Lever Hub

uto Engage Handle Knob

Screw 1/4-20x3/4 Crossed Rec., Flat Hd, Tapping

(Incl. items 6-9)

(Incl. items 11-13)

Serial Number

13

© Globe Food Equipment Company

S13A-70 Index Slide Assembly Components

19

17

24

15

14

25

7

8

9

10

6

11

12

13

5

27

22

23

2

1

28

21

3

18

20

16

26

4

30

29

31

14

© Globe Food Equipment Company

r

S13A-70 Index Slide Assembly Components

A

A

t

A

Q.

QtyDescriptionItem Part Numbe

1 400140 1Index Slide Kit

2 1Index Slide with Bushings

3 810400 2Set Screw #10-32x3/8 Cup Pt.

4 800146 4Set Screw 5/16-18x3 Sq. Hd Cup Point

5 800144 2Cap Screw 1/4-28x1-1/4 Socket Hd

6 800091 1Set Screw #8-32 x 3/16 Knurled Grip - Cup Pt.

7 400121 1Cam Follower Kit

8 1Follower

9 2Wave Spring Cam Follower
10 1Flat Washer .266 ID, .625 OD Type A
11 890390 1Jam Nut 3/8-24 Sharpener Wheel
12 1Follower Adjustment Post
13 810379 1Retaining Clip Ring 5304-18
14 1Stop Plate, Tilt Back
15 800145 2Nut 1/4-28 Hex
16 400122 1Index Slide Shaft Kit
17 1Index Slide Shaft
18 1Index Spring
19 800152 1Retaining Ring (Klipring) 5304-75
20 800058 2Washer 5/16-18-1 Hex Hd Tapping Screw
21 810431 1Cap Screw 1/4-20 x 3/4 Hex Hd
22 810432 1Nut, Thin 1/4-20 Hex
23 450057 2Screw, Anti-Rotation
24 450050 1Ball Joint Rest
25 800168 1Gauge Plate Spacer Kit (Kit of 4)
26 800043 1Nut 7/8-14 UNF Hex Jam
27 300154 1
28 800105 2Socket Cap Screw #10-32x5/8 Button-Hd
29 400128 1
30 1
31 810003 2

djustment Stop

nti-Rotation Plate Ki
nti-Rotation Plate

Screw 1/4-20x3/4 Crossed Rec., Flat Hd, Tapping

(Incl. items 1-28)

(Incl. items 8-13)

(Incl. items 17-20)

(Incl. items 29-31)

Serial Number

15

© Globe Food Equipment Company

S13A-70 Ring Guard Assembly Components

16

8

15
14

13

9

12

Item 1
Ring Guard Assembly

17

18

2

5

7

6

10

4

3

11

19

16

© Globe Food Equipment Company

r

S13A-70 Ring Guard Assembly Components

A

Q.

QtyDescriptionItem Part Numbe

1 500047-02 1Ring Guard Assembly Kit

2 520316-02 1Ring Guard

3 520243 1Round Boot, Ring Guard

4 810438 1Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated

5 520242 1Oval Boot, Ring Guard

6 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted

7 810345 2Flat Washer 1/4 Screw Thread (18-8 SST)

8 450213 1Ring Guard Spacer Assembly

9 460064 1Spacer, Ring Guard
10 520242 1Oval Boot, Ring Guard
11 810438 2Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
12 460069 1Sharpener Mount Assembly Kit
13 1Sharpener Mount Assembly
14 800185 1
15 800184 1Curved Disk Spring, 1/4" Rod Size
16 810483 1Slotted Set Screw 10-32
17 810358 1Mach. Screw 1/4-20x1 Truss Hd Slotted
18 810345 1Flat Washer 1/4 Screw Thread (18-8 SST)
19 450130 2Locator Pin

corn Nut, 1/4-28 SST

(Incl. items 2-19)

(Incl. items 9-11)

(Incl. items 13-16)

Serial Number

17

© Globe Food Equipment Company

S13A-70 Electrical Base Components

2 1

3 2

1

42

39

38

40

43

41

44

52

53

48

46

47

51
50

49

45

16

15

3

4

9
10
8

7

1

12

6

2

5

11

13

14

17

30

35

36

31

32

37

33

34

26

23

28
27
29

24

25

22

21

20

19

18

18

© Globe Food Equipment Company

r

S13A-70 Electrical Base Components

A

Q.

QtyDescriptionItem Part Numbe

1 121084 1

2 1Cut/Auto Engage Sensor Mount

3 1Sensor, Reed Switch, Cut Sensor

4 2

5 2Lock Washer #2 Internal Tooth

6 1Nut Plate

7 1Micro Switch Insulator

8 1Micro Switch, Pin Action

9 2Mach. Screw #2-56x7/16 Pan Hd. Phillips
10 2Lock Washer #2 Internal Tooth
11 1Nut Plate
12 800069 4Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
13 310208 1Inner Wireway Cover
14 100122 1Wiring Harness, Automatic Switch
15 110226 2Clamp, Nylon Loop
16 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
17 110107 1Harness, Reed Switch, Knife Cover Sensor
18 121082-01 1Capacitor Clamp Kit
19 1Capacitor, Knife Motor (120V)
20 110228 1Capacitor Clamp
21 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
22 130225 1Power Supply Cord, 120VAC, 15A
23 510045-01 2Sleeve, Large Diameter Wire
24 110227 1Strain Relief, Power Cord
25 800057 1Screw 1/4-20x.75 Hex Washer Hd Tapping
26 121080 1Ground Location Tab Kit
27 1Ground Location Tab
28 1Screw, Green #8-32x5/16" SL Hex Washer Hd
29 1Lock Washer #8 External Tooth
30 121088-01 1Control Board Kit
31 1Control Board Assembly
32 510050 1Thermal Pad
33 800175 4Screw #8-32x3/4 Crossed Recessed Tapping
34 810450 4Self Retaining Spacer
35 121081 1Ribbon Cable Kit
36 1Ribbon Cable Assembly
37 2Retaining Clip, Ribbon Cable
38 140017-01 1Circuit Breaker (120V)
39 300063 1Electronics Cover & Gasket Kit
40 1Cover, Electronics

41 1Gasket, Electronic Cover
42 800067 8Screw #10-24x1/2 Hex Washer Hd Tapping
43 100125 1Wire Harness, Circuit Breaker
44 100120 1Wiring Harness, Carriage Tilt Sensor
45 300067 1Front Wireway Cover Kit
46 1Cover, Front Wireway
47 510045-02 1Sleeve, Large Diameter Wire
48 800067 2Screw #10-24x1/2 Hex Washer Hd Tapping
49 300019 1
50 4Washer 1/4 Flat
51 800057 2Screw 1/4-20x.75 Hex Washer Hd Tapping
52 110230 1Nylon Loop Clamp 5/16
53 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping

Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)

uto Engage Position Leaf Spring

(Incl. items 2-12)

(Incl. items 18-21)

(Incl. items 27-29)

(Incl. items 31-34)

(Incl. items 36-38)

(Incl. items 40-44)

(Incl. items 46-49)

Serial Number

19

© Globe Food Equipment Company

S13A-70 Knife Drive Motor Components

20

16

18

22

17

21

23

19

15

24

14

13

12

1

11

10

9

7

6

8

5

4

2

3

20

© Globe Food Equipment Company

r

S13A-70 Knife Drive Motor Components

Q.

1 400124 1Knife Tensioner Kit

2 800135 2Thread Forming Screw 1/4-20x5/8 PHP

3 1Cap Screw 5/16-18 x 1-3/4, Grade 8 Hex Hd

4 1Knife Motor Tensioner Bracket

5 2Sleeve Spacer

6 810420 1Nyloc Nut 5/16-18, Grade 5

7 400125 1Threaded Ball Joint, Knife Tensioner (Incl. items 8-9)

8 1Ball Joint Rod End 5/16'-24 Thd

9 1Tension Shaft 5/16-24 x 3 Full Thread
10 1Nut 5/16-24 UNF Zinc Plated Steel Hex Jam
11 1Nut 5/16-24x1 Hex Coupling
12 810416 1Flat Washer 5/16 (Zinc)
13 810417 1Washer 5/16 Neoprene
14 800161 1Washer 5/16 Leveling
15 120158-01 1Knife Drive Motor, Single Phase, 120V, 60Hz
16 400113 1Motor Mount Pivot Rod Assembly
17 1Motor Mount Pivot Rod
18 810429 1Retaining Ring, 5304-31 (Klipring)
19 810420 1Nyloc Nut 5/16-18, Grade 5
20 400123 1Motor Pivot Block Kit
21 1Motor Pivot Block
22 800094 1Set Screw #10-32x1/4, Knurl-Grip Cup Pt.
23 800068 2Washer #10-24x1 Hex Hd Tap. Screw Slotted
24 800092 1Knife Drive Belt

(Incl. items 2-14)

(Incl. items 17-19)

(Incl. items 21-23)

QtyDescriptionItem Part Numbe

Serial Number

21

© Globe Food Equipment Company

S13A-70 Transport Arm Assembly Components

2

8

3

5

56

55

61

58

57

74

63

60

62

59

69

75

78

76

15

71

70

68

8

67

19

77

20

72

79

18

53

64

9

73

24

65

66

13
14

23

22

21

11
12

17

7

10

16

6

3

48

2

5

84

83

82

1

36

4

81

29

38

80

37
33

45

27

31

34

33

46

25

26

30

34

33

32

39

40

41

42

44

43

52

49

51

50

47

54

22

© Globe Food Equipment Company

r

S13A-70 Transport Arm Assembly Components

Q.

1 400129 1Carriage Arm & Gasket Kit (Incl. item 2)

2 500004 1Carriage Arm Gasket

3 500052 1Carriage Knob & Captive Clip Kit (Incl. items 4-5)

4 1Carriage Arm Tie Down Knob

5 800180 1Washer, Nylon

6 400115 1Transport Replacement Assembly

7 1Transport with Bushings

8 400017 1Transport Attachment Pin

9 1Shoulder Washer .51 IDx.88 Nylon
10 1Shoulder Washer .51 IDx1.125 Nylon
11 1Dome Plug for 5/8 Hole
12 1Socket Hd Cap Screw 3/8-16 x 1 (SST)
13 800015 1Transport Tie Down Screw
14 800048 1Nut 5/16-24 Hex UNF Thread (Zinc Plated Steel)
15 1Mach. Sealing Screw 8-32x1/4 PH Phillips
16 810406 1Hex Cap Screw 5/16-24x1,18-8 (SST)
17 1Shoulder Washer .51 IDx1.125 Nylon
18 810272 1Flat Washer 5/16 Screw Size (SST)
19 810420 1Nyloc Nut 5/16-18, Grade 5
20 800014 1Roller Bearing Assembly
21 1Roller Bearing Bolt
22 1Roller Bearing
23 1Bearing Sleeve
24 1Spacer Sleeve
25 300069 1Transport Interlock Kit
26 1Transport Slide Lock Plate
27 1Lock Plate Assembly
28 1Lock Plate
29 1Dowel Pin, 5/32 x 5/16 (SST)
30 1Reverse Shoulder Bolt
31 1E-Clip Retaining Ring for 1/4" Shaft
32 1Shoulder Bolt 1/4" x 1/2", #10-32 Thread
33 3Curved Disk Spring .265 ID,.490 OD,.011 Thick
34 2Washer, Nylon .265 ID, .50 OD, .094 Thick
35 1Cam Lock Plate Assembly
36 1Cam Lock Plate
37 1Dowel Pin, 5/32 x 5/16 (SST)
38 1Shoulder Bolt 1/4" x 1", #10-32 Thread
39 121089 1Carriage Tilt Switch Kit
40 1Carriage Tilt Back Sensor Mount

41 1Micro Switch Insulator
42 1Micro Switch
43 2Mach. Screw #2-56x7/16 Pan Hd. Phillips
44 2Lock Washer #2 Internal Tooth
45 1Nut Plate
46 800099 2Mach. Screw #8-32x3/8 Hex Hd
47 400131 1Transport Roller Bar Kit
48 1Transport Roller Bar
49 810004 4Tapping Screw 1/4-20x1 Cross Rec. FH
50 400132 1Transport Shaft Kit
51 1Transport Shaft
52 800059 1Washer 5/16-18x1.25 Hex Hd Tapping Screw
53 800071 1Mach. Screw 5/16-18x1 Truss Hd Slotted

(Incl. items 9-24)

(Incl. items 21-24)

(Incl. items 26-38)

(Incl. items 28-29)

(Incl. items 36-37)

(Incl. items 40-46)

(Incl. items 48-49)

(Incl. items 51-53)

QtyDescriptionItem Part Numbe

Serial Number

23

© Globe Food Equipment Company

r

S13A-70 Transport Arm Assembly Components

A

t

A

A

A

t

A

r

A

A

k

Q.

QtyDescriptionItem Part Numbe

54 500005 1Transport Bumper
55 800131 1Sleeved Spring Assembly
56 121090 1Carriage Magnet Kit
57 1Transport Switch Magnet Mount
58 1Magnet
59 2
60 2Lock Washer #2 Internal Tooth
61 1Nut Plate
62 800069 2Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
63 400130 1
64 1Transport Auto Engage
65 1
66 1
67 1Sleeve Bushing
68 810473 1Set Screw, 8-32x3/8, Brass Tip Dog Point (SST)
69 1Clamp Release Spring
70 1
71 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
72 810423 1Mach. Screw #4-40 x 1/4, 18-8 PH Cr (SST)
73 1Slide Spring
74 1
75 1
76 800105 1Socket Cap Screw #10-32x5/8 Button-Hd
77 510058 1Oil Well Gasket
78 800109 4Screw 1/4-20x.50 Button Hd Cap
79 800053 1Felt Insert
80 400188 1Carriage Arm Handle Assembly with Nut
81 1Carriage Arm Handle
82 450239 1
83 810226 1Lock Washer, 1/2 Screw Size, Internal Tooth
84 810224 1Hex Nut, 1/2-13 Left Hand, Thread

Mach. Screw #1-64x1/4, 18-8 Pan Hd. Phillips (SST)

uto Engage Pickup Ki

uto Engage Slide
uto Engage Pivot Dowl

uto Engage Spring Stop Bracke

uto Engage Pivot Leve
uto Engage Belt Clamp

nti Rotation Bloc

(Incl. items 57-62)

(Incl. items 64-78)

(Incl. items 81-84)

Serial Number

24

© Globe Food Equipment Company

INTENTIONALLY LEFT BLANK PAGE

25

© Globe Food Equipment Company

S13A-70 Automatic Drive Assembly Components

Item 1
Automatic Drive Kit

18

43

17

16

22

29

19

24
23

25

20

21

39

30

40

37

38

33
34
35
36

32

31

41

2

46

47

49
48

42

3

5

4

26

28

27

44

45

15

26

© Globe Food Equipment Company

14

13

12
11

6

8
7

10
9

r

A

S13A-70 Automatic Drive Assembly Components

A

A

A

Q.

1 400133 1

2 1

3 800057 4Screw 1/4-20x.75 Hex Washer Hd Tapping

4 400143 1Idler Assembly Kit

5 1Pulley Shaft

6 450097 1Idler Assembly (Incl. items 7-8)

7 1Idler Pulley (24 Tooth)

8 2Bearing 6000 Double Seal

9 800077 1Mach. Screw #10-24x3/8 Button Hd Cap (SST)
10 800076 1Washer #10 Flat (18-8 SST)
11 800072 2Bolt 1/4-20x5/8' Hex
12 2Washer 1/4 Flat
13 800088 1Mach. Screw #8-32x2 Hex Hd (SS)
14 870072 1#8 Flat Washer, SST
15 800008 1
16 400141 148/24 Tooth Drive Pulley Kit
17 1Drive Pulley (48 Tooth)
18 1Retaining Ring 5100-62 External
19 1Key, 3/16x3/16 Drive
20 1Shaft, Dual Pulley
21 1Key, 1/8x1/8 Drive
22 450096 1Bearing Block Assembly
23 1Bearing Block
24 1Retaining Ring N5002-102 Internal
25 2Bearing 6000 Double Seal
26 450093 1Drive Pulley (24 Tooth)
27 800077 1Mach. Screw #10-24x3/8 Button Hd Cap (SST)
28 800076 1Washer #10 Flat (18-8 SST)
29 2
30 800009 1
31 400154 1Belt Tension Kit
32 400151 1Belt Tensioner Assembly
33 1Tension Pulley Shaft
34 2Bearing, Tension
35 1Tension Sleeve
36 1Spacer
37 1Tensioner Bar
38 810431 2Cap Screw 1/4-20 x 3/4 Hex Hd
39 810007 1Screw, Machine #10-32x1-1/2 Hx Hd Drive
40 400150 1Nut Plate

41 450090 3Standoff, Automatic Motor
42 450091 1Standoff, Automatic Motor
43 800074 4Screw #10-24x2.25 Socket Hd Cap
44 800076 4Washer #10 Flat (18-8 SST)
45 800075 4Nut #10-24 Hex
46 400144 1Carriage Drive Motor Kit
47 120160 1Carriage Drive Motor (BLDC)
48 1Motor Drive Pulley (16 Tooth)
49 800091 2Set Screw #8-32 x 3/16 Knurled Grip - Cup Pt.

utomatic Drive Kit
utomatic Base Plate

utomatic Driven Belt

Screw 1/4-20x1/2 Socket Flat Countersunk Hd Cap

utomatic Drive Belt

(Incl. items 2-49)

(Incl. items 5-12)

(Incl. items 17-29)

(Incl. items 23-25)

(Incl. items 32-40)

(Incl. items 47-49)

QtyDescriptionItem Part Numbe

Serial Number

27

© Globe Food Equipment Company

S13A-70 Automatic Lift Lever Base Components

3

2

5

9

8

7

6

11

14

13

1

4

12

10

28

© Globe Food Equipment Company

r

S13A-70 Automatic Lift Lever Base Components

Q.

1 300066 1Lift Lever Base Support Kit (Incl. items 2-4)

2 1Lift Lever Base Support

3 400037 2Lift Lever Base Support Post

4 800057 2Screw 1/4-20x.75 Hex Washer Hd Tapping

5 400134 1Lift Lever Assembly Kit

6 1Lift Lever Weldment

7 1Lift Lever Handle

8 300078 1Lift Lever Support & Stop

9 810438 4Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
10 800058 2Washer 5/16-18-1 Hex Hd Tapping Screw
11 300030 1Lift Lever Bracket
12 800072 4Bolt 1/4-20x5/8' Hex
13 2Lift Lever Roller
14 2Retaining Ring 5115-37 Push-On External

(Incl. items 7-14)

QtyDescriptionItem Part Numbe

Serial Number

29

© Globe Food Equipment Company

S13A-70 Carriage Assembly Components

Item 1

Carriage Assembly

2

11

10

12

3

13

4

5

6

8

9

7

30

© Globe Food Equipment Company

r

S13A-70 Carriage Assembly Components

Q.

1 450241 1Carriage Assembly

2 1End Weight Assembly

3 800037 2Mach. Screw 1/4-20 x 5/8 FH Slotted

4 1End Weight Shaft Assembly

5 800205 1Stop Pin, Delrin End Weight

6 1End Weight Stop

7 800038 2Mach. Screw 1/4-20 x 5/8 RH Slotted

8 4Gasket, Standoff

9 4Standoff, Shield
10 800206 4Washer 1/4 Flat
11 890341 1Machine Screw, Truss Hd
12 510075 1Shield
13 400012 1Carriage Insert Assembly

(Incl. items 2-13)

QtyDescriptionItem Part Numbe

Serial Number

31

© Globe Food Equipment Company

S13A-70 Knife and Knife Cover Components

7

9

14

13

12

11

10

1

2

Items 4-6 Not Shown

3

8

32

© Globe Food Equipment Company

r

S13A-70 Knife and Knife Cover Components

Q.

1 400139 1Knife Kit (Incl. items 2-3)

2 1Knife, 13 Inch Steel

3 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST)

4 400161 1Stainless Steel Knife Kit

5 1Knife, 13 inch (SST) Not Shown

6 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST) Not Shown

7 250247 1Knife Cover Assembly

8 460090 1Knife Cover Sub-Assembly

9 500045 1Knife Cover Swivel Lock Assembly
10 1Knife Cover Swivel Lock
11 2Flat Washer #10 Thin Profile
12 2Curved Disk Spring
13 1Nut, 6-32 INC-2B Hex, with Nylon Insert
14 520237 1Barrel Plug, Push-In

(Incl. items 5-6) Not Shown

(Incl. items 8-14)

(Incl. items 10-14)

QtyDescriptionItem Part Numbe

Serial Number

33

© Globe Food Equipment Company

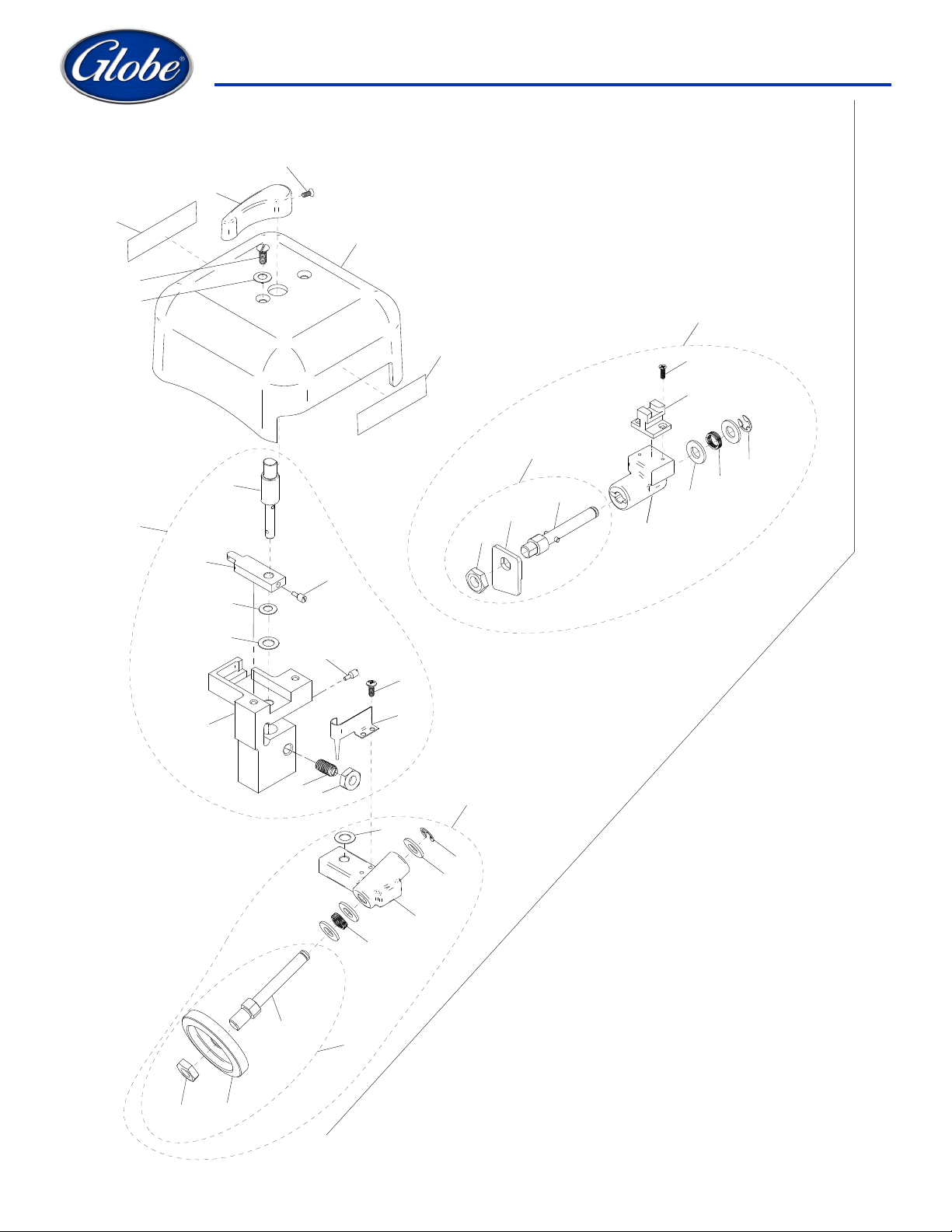

S13A-70 Sharpener Assembly Components

S

T

O

R

E

D

P

O

S

I

T

I

O

N

L

I

F

T

A

N

D

R

O

T

A

T

E

T

O

S

H

A

R

P

E

N

40

38
39

23

30

36

31

34

37

32

35

41

4

5

3

Item 1
Sharpener Assembly

6

10

7

2

9

8

12

11

24

33

25

17

29

26

28

27

13

22

21

20

18

19

14

15

16

© Globe Food Equipment Company

34

r

S13A-70 Sharpener Assembly Components

Q.

1 440044 1Sharpener Assembly

2 430051 1Honing Stone Assembly

(Incl. items 2-41)
(Incl. items 3-12)

3 1Honing Stone Shaft Assembly (Incl. items 4-6)

4 890390 1Jam Nut 3/8-24 Sharpener Wheel

5 240045 1Honing Stone

6 1Honing Stone Shaft Assembly

7 1Honing Stone Bracket

8 1Honing Stone Slide

9 2Mach. Screw 4-40x3/8 FH Phillips
10 810272 2Flat Washer 5/16 Screw Size (SST)
11 1Wave Spring, Honing Stone
12 1Retaining Ring, Type E, for 5/16 Shaft
13 430052 1Sharpening Stone Assembly
14 1Sharpening Stone Shaft Assembly

(Incl. items 14-22)

(Incl. items 15-17)

15 410048 1CBN Sharpening Stone
16 1Hex Nut 3/8-24 UNF-2B
17 1Shapening Stone Shaft
18 1Sharpening Stone Bracket
19 1Wave Spring, Sharpening Stone
20 810272 3Flat Washer 5/16 Screw Size (SST)
21 1Retaining Ring, Type E, for 5/16 Shaft
22 810437 1Flat Washer
23 400137 1Sharpener Mount Center Kit

(Incl. items 23-32, 40-41)

24 1Sharpener Center Mount
25 1Slotted Ball Plunger, 1/4-28 SST
26 1Thin Hex Nut, 1/4-28
27 1Sharpener Return Spring
28 2Mach. Screw 6-32x3/8 Pan Hd Cross-Rec.
29 1Slotted Set Screw 10-32 Sharpener Actuator
30 1Honing Stone Lever
31 1Sharpener Handle Shaft
32 1Slotted Set Screw 10-32 Sharpener Actuator
33 810437 1Flat Washer
34 800184 1Curved Disk Spring, 1/4" Rod Size
35 250069 1Sharpener Cover
36 510041 1Sharpener Handle, Top
36 500070 1Sharpener Handle, Top
37 810233 1

Mach. Screw 8-32x1/2 Black, Phillips, w/Nylon Patch

37 800223 1Mach. Screw 8-32 x 3/8 Black, FH Phillips

Refer to Serial Number Document

Refer to Serial Number Document

Refer to Serial Number Document

Refer to Serial Number Document

38 810246 2Mach. Screw, Truss Hd Slotted 10-32x1/2 (SST)

39 2Curved Disk Spring
40 920215 1Label, Sharpen Position
41 920216 1Label, Stored Position

QtyDescriptionItem Part Numbe

Serial Number

35

© Globe Food Equipment Company

r

e

e

.4.2.2.2.

-

+

?

-

+

?

.1.

.5.4.4.

5

S13A-70 Knife Removal Tool - Option

6

1

Use two hands when handling knife removal

tool. If dropped, damage to knife and tool can occur.

KNIFE REMOVAL

1. Close table, unplug
slicer, tilt carriage &
remove knife cover.

2. On the shaft under

( - )

the knife, align

with ( ) (See 2.)

3. Before installing
knife removal tool,
both handles must
be rotated outward.

1.

On the knife shaft,
align
(See 1.)

2. Align knife removal
tool with locations
on ring guard
in

2

4.4

KNIFE INSTALLATION

with ( )

( + )

.

red

4. Align knife

5

removal tool with
locations on ring
guard in

red

5. Rotate both handles
inward to lock knif
into tool.

6. Use both handles to lift
knife removal tool &
knife away from slice

3. Rotate both handles
outward to releas
knife.

4. Use both hands
to lift tool away
from knife
removal tool.

S-Series

Knife Removal Tool

2

3

4

36

© Globe Food Equipment Company

r

S13A-70 Knife Removal Tool - Option

Q.

1 450200 1Removable Knife Tool Assembly
2 920227 1Dual Pin Location Decal
2 1French Dual Pin Location Decal
3 920226 1Instructional Label
4 920237 1French Caution Label
5 920232 1Single Pin Location Decal
6 920225 1Warning Label
6 1French Warning Label

QtyDescriptionItem Part Numbe

Serial Number

37

© Globe Food Equipment Company

S13A-70 Removable Knife Kit - Option

1

2

3

38

© Globe Food Equipment Company

r

S13A-70 Removable Knife Kit - Option

Q.

1 450222-01 1Removable Knife Kit
2 1Knife, 13" Removable
3 1Post, Service Knife Release
4 450222-03 1Removable Knife Kit, SST (Not Shown)
5 1Knife, 13" SST Removable (Not Shown)
6 1Post, Service Knife Release (Not Shown)

QtyDescriptionItem Part Numbe

Serial Number

39

© Globe Food Equipment Company

S13A-70 Removable Knife Drive Kit - Option

2

3

8

1

6

5

4

7

40

© Globe Food Equipment Company

r

S13A-70 Removable Knife Drive Kit - Option

Q.

1 450226-01 1Removable Knife Drive Kit
2 1193 1Plug
3 1Shaft, Removable Knife Drive
4 520244 1Knife Drive Boot
5 450115 1Knife Drive Pulley
6 510033 1Nut 7/8-20 Hex (Zinc)
7 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
8 810275 4Bellville Disc Spring Washer .255 ID x .50 OD

QtyDescriptionItem Part Numbe

Serial Number

41

© Globe Food Equipment Company

S13A-70 Wiring Schematic

7

5

9J8

2P3P4P5P6P7

*Carriage Tilt Wire Harness - P/N 100120
*Carriage Switch Wire Harness - P/N 100122

*Ribbon Cable - P/N 100126

*Carriage Switch

P/N 110223

Display Printed

Circuit Board

P/N 121062

Membrane Switch

P/N 910193

*Ribbon Cable

P7 - COM
P6 - KNIFE PWR LED
P5 - LENGTH BUTTON
P4 - SPEED BUTTON
P3 - STOP BUTTON
P2 - START BUTTON
P1 - UNIT PWR LED

J1 J2J3 J

Printed Circuit Board

J6

J11

P
P1

J13

Dip Switch

J16

P/N 121061-01**

Carriage Motor Carriage Motor

Hall Sensors

**Board Kit w/Spacers,

w/Pads, and Screws
P/N 121088

*Carriage Tilt

Sensor
P/N 110109

J4

F1

Power Wires

Knife Cover

Sensor

P/N 110107

J

Cut Sensor
P/N 110111

J

J10

J12

J14

BLACK

WHITE

BLACK

BLACK

Power Cord

120VAC - P/N 130225
240VAC - P/N 130226

GREEN

GND

BLACK

P/N 100125

Capacitor

120VAC / 4uF - P/N 140015
240VAC / 2uF - P/N 140016

WHITE or BROWN

WHITE or BROWN

Circuit Breaker

120VAC / 4A - P/N 140017-01
240VAC / 2A - P/N 140017-02

Carriage

Dip Switch Setting

S13A Automatic

© Globe Food Equipment Company

Motor

P/N 120160

42

120VAC/60Hz - P/N 120158-01
240VAC/60Hz - P/N 120158-02
240VAC/50Hz - P/N 120158-03

Motor

Knife
