Page 1
Parts Catalog
S13
S-Series Slicer
Manual
Model:
5/29/2019 Rev. W
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF UNIT.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
S13
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 · Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
© Globe Food Equipment Company, 2019
Not for resale
995106 ECN 0493
Page 2
Page 3
Table of Contents
PageDescription
S13 Knife Drive Assembly Components 4
S13 Index Knob Components 6
S13 Base Shroud Components 8
S13 Gauge Plate Components 10
S13 Index Slide Assembly Components 12
S13 Ring Guard Assembly Components 14
S13 Electrical Base Components 16
S13 Knife Drive Motor Components 18

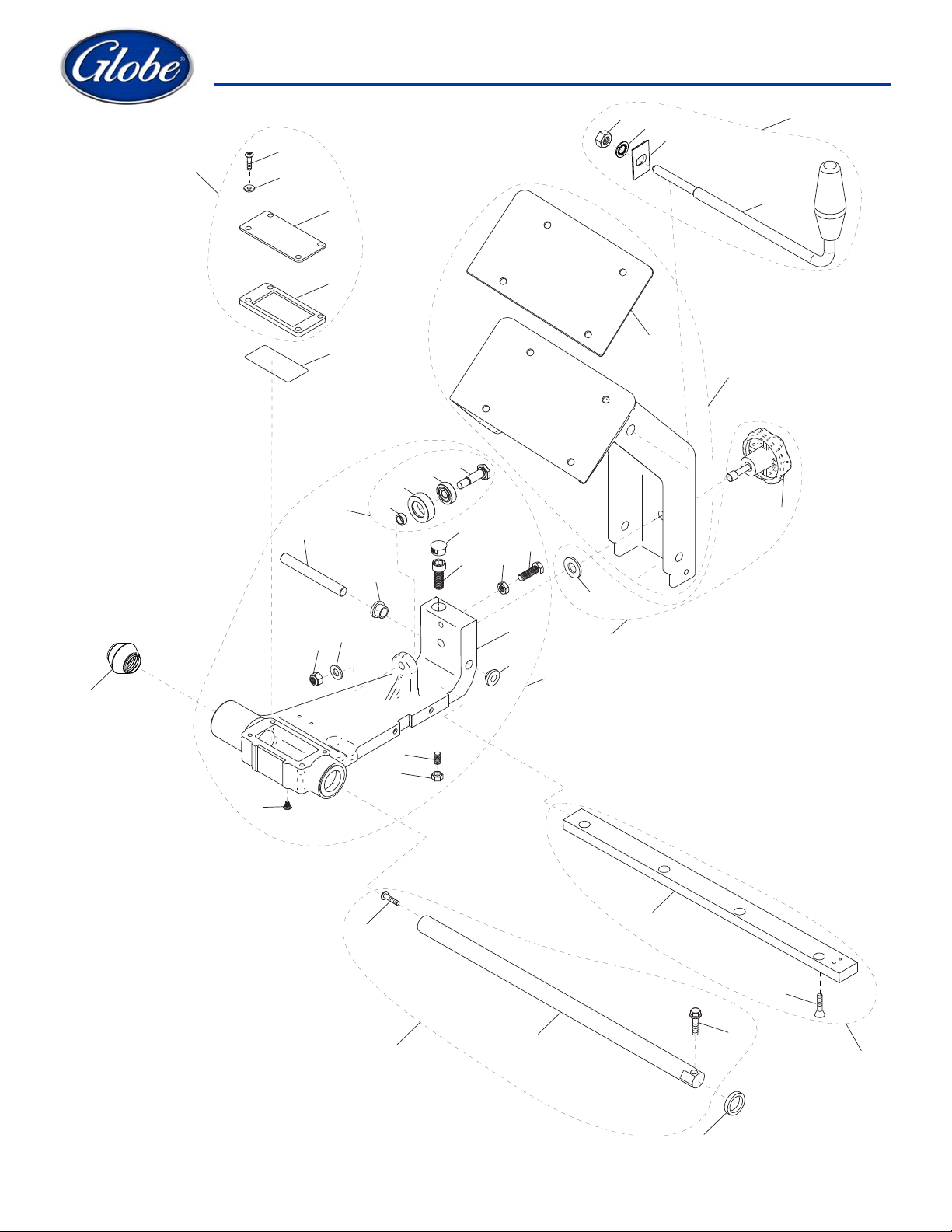

S13 Transport Arm Assembly Components 20

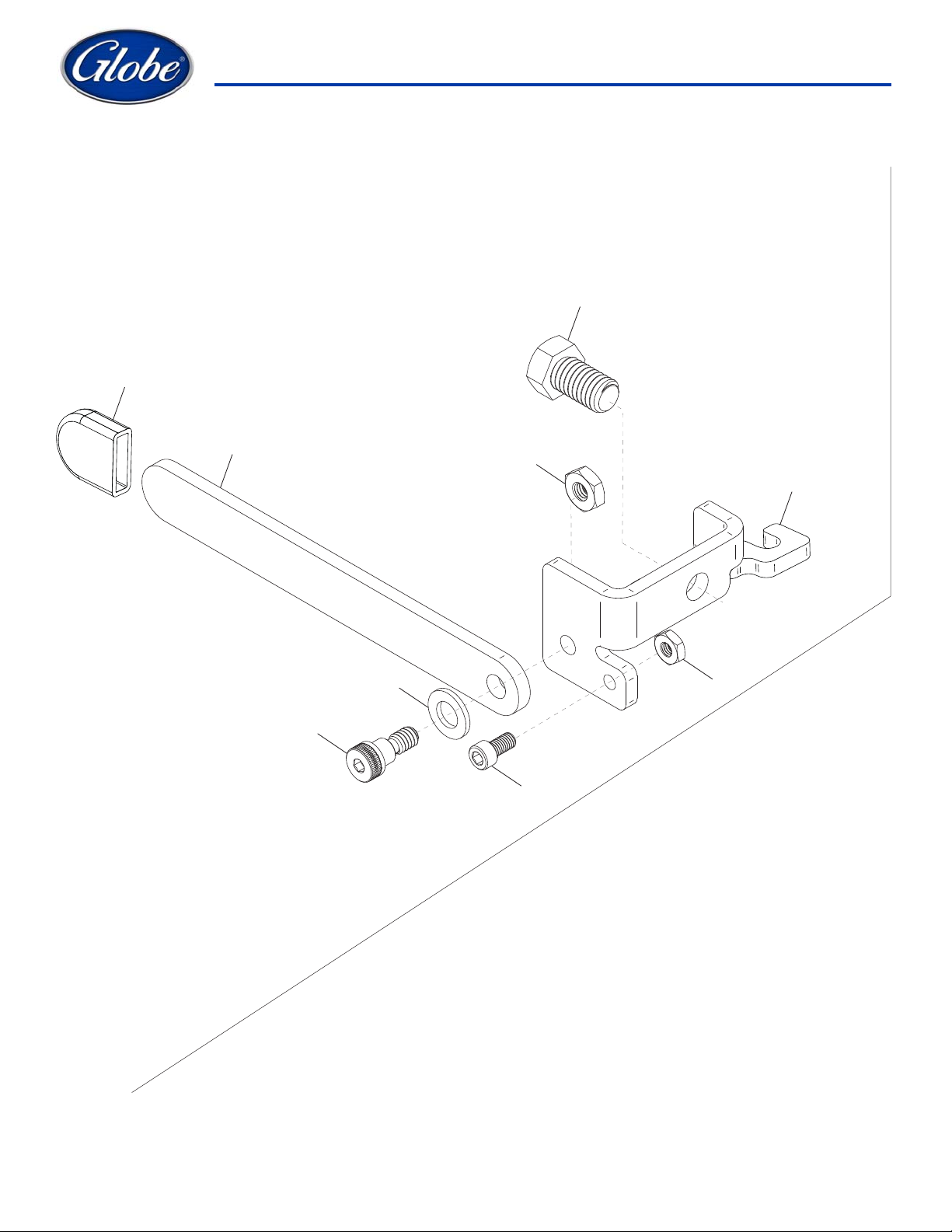

S13 Lift Lever Base Components 22
S13 Carriage and End Weight Assembly Components 24

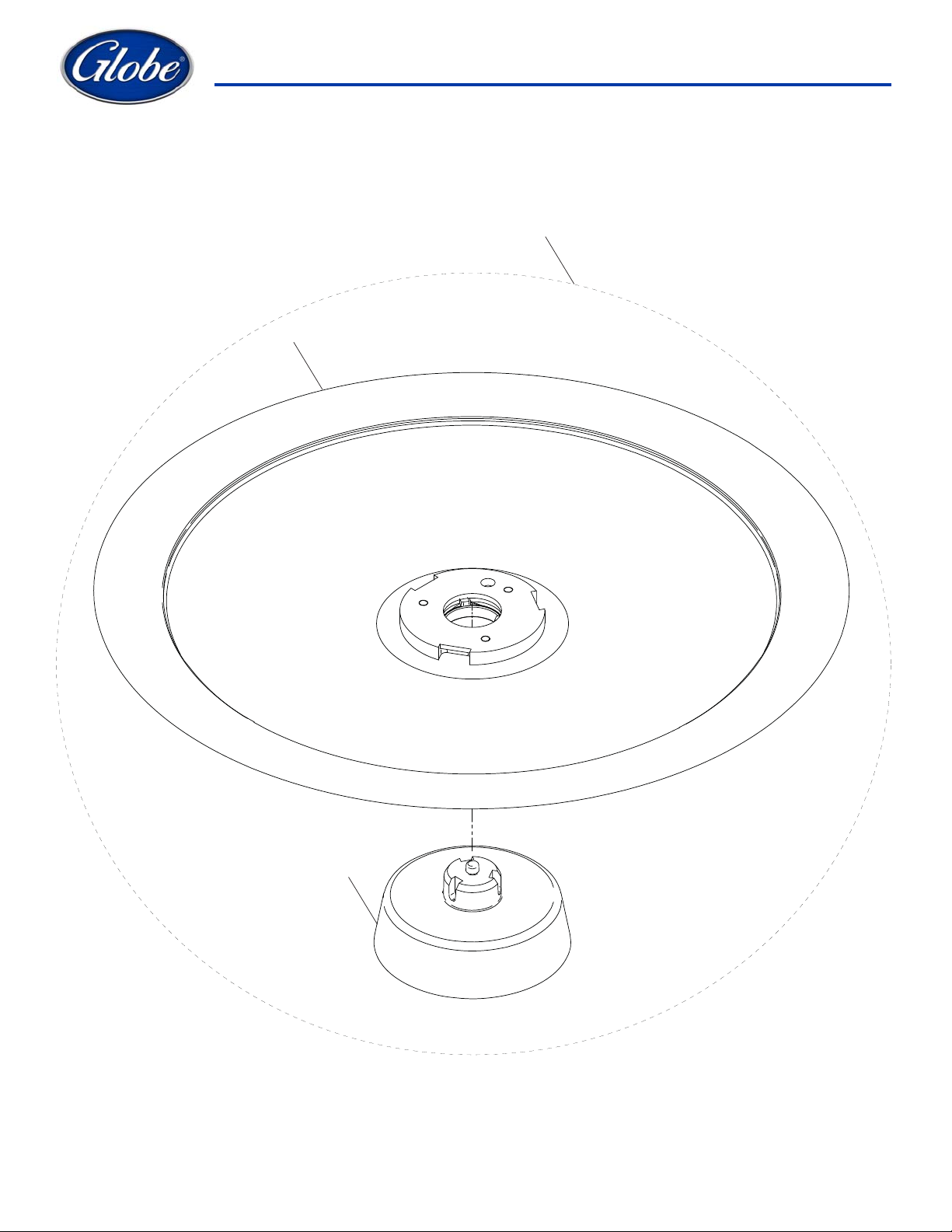

S13 Knife and Knife Cover Components 26
S13 Sharpener Assembly Components 28
S13 Removable Carriage Components - Option 30

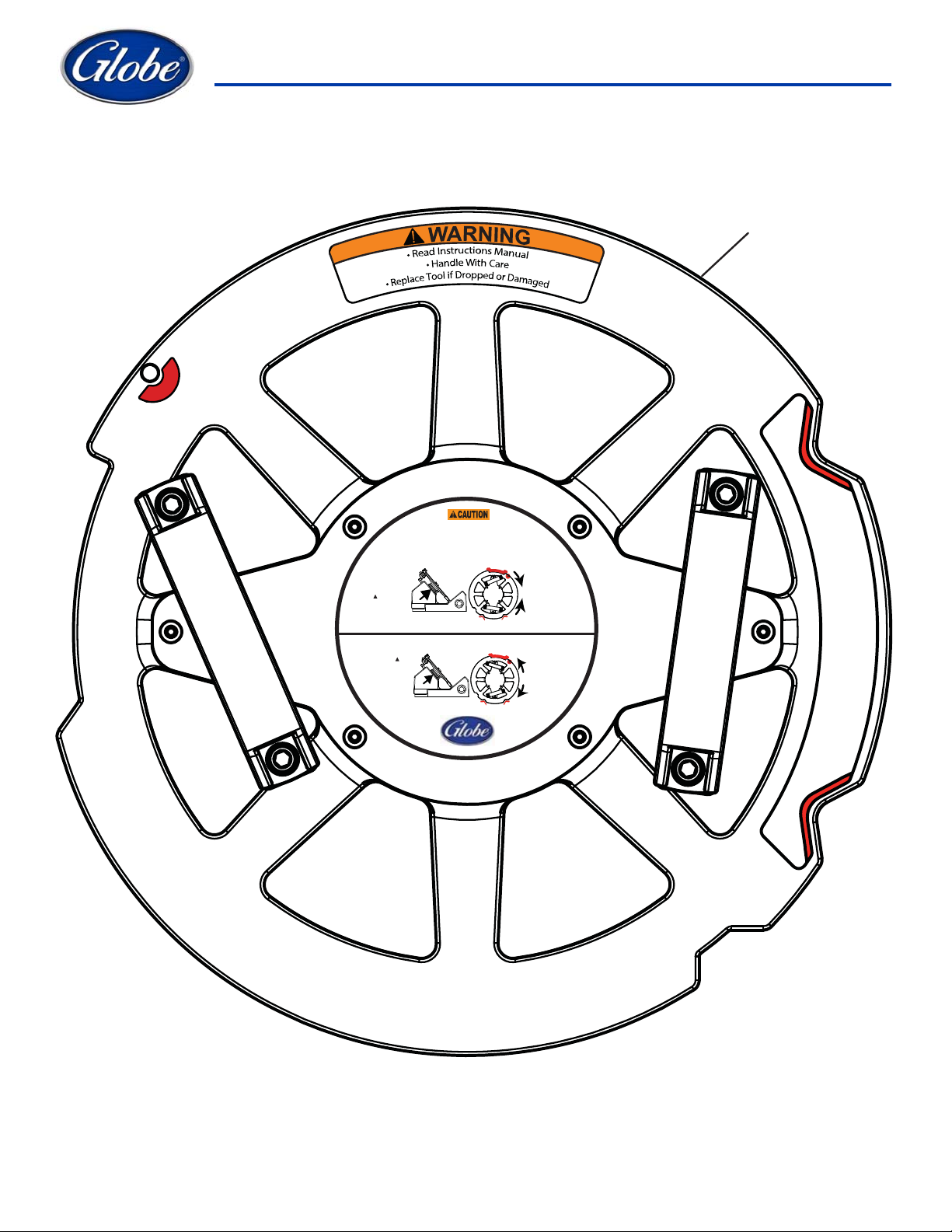

S13 Knife Removal Tool - Option 32
S13 Removable Knife Kit - Option 34
S13 Removable Knife Drive Kit - Option 36

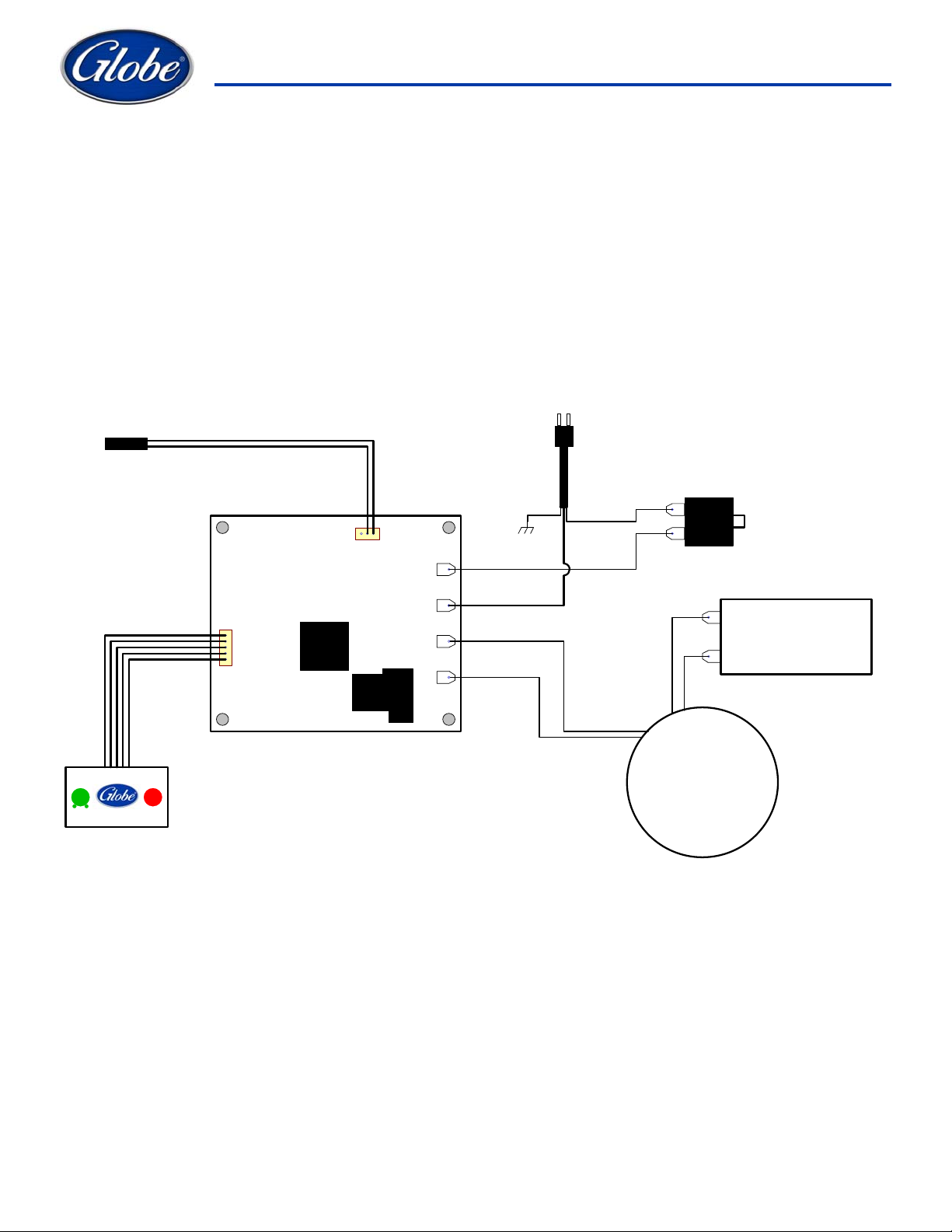

S13 Wiring Schematic 38
Page 4

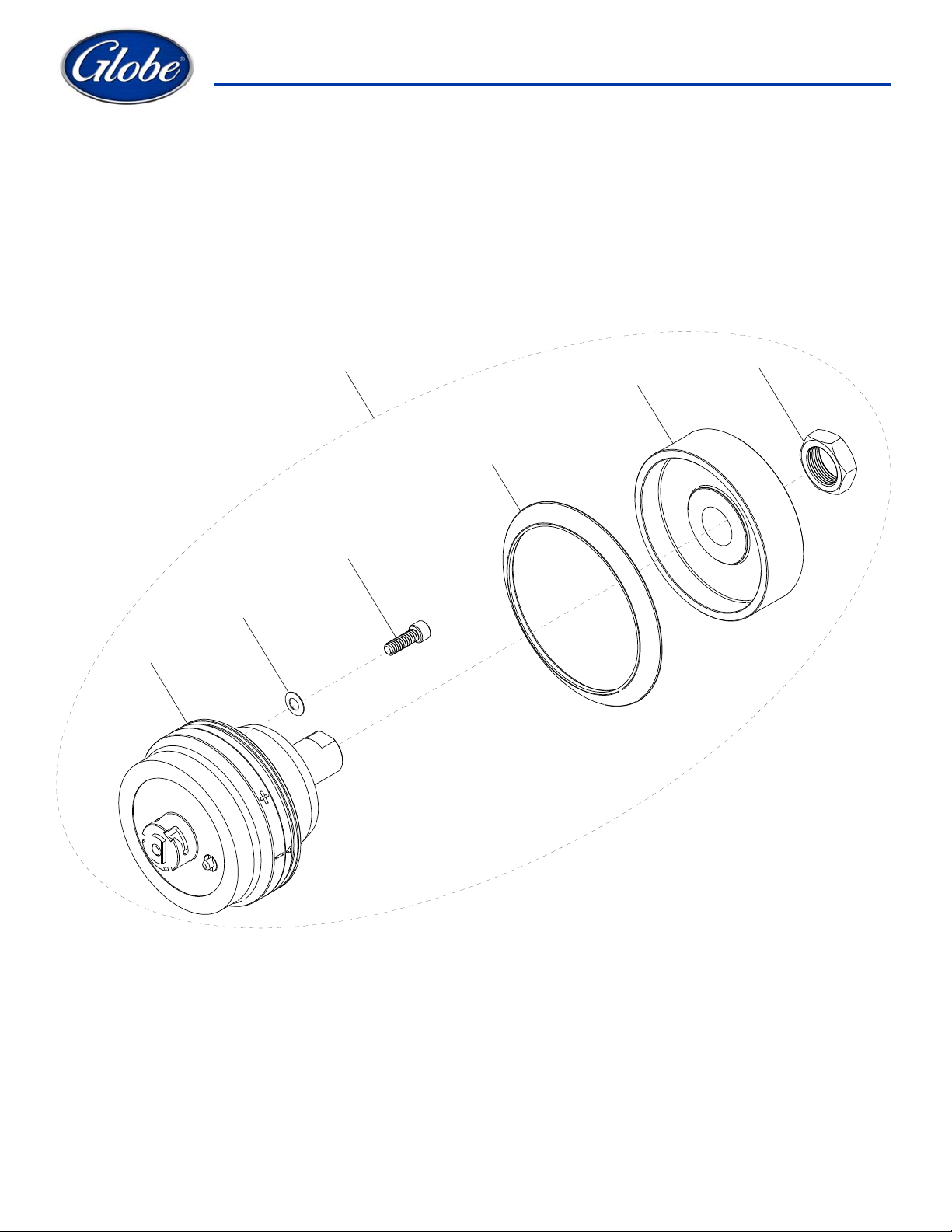

S13 Knife Drive Assembly Components
1
2
1
1
2
1
0
9 8
7 6 5 4
1
4
1
3
3
1
5
1
4
© Globe Food Equipment Company
Page 5
r
S13 Knife Drive Assembly Components
Q.
1 450211 1Knife Drive Assembly
2 420088 1Knife Drive Bearing Assembly
3 1Knife Cover Bumper
4 1Shaft, Knife Drive
5 1Knife Drive Bearing Mount
6 2Ball Bearing, Sealed
7 1Outer Ring, Bearing Spacer
8 1Inner Ring, Bearing Spacer
9 1Retaining Ring 5101-98 Bowed External
10 1Retaining Ring N5002-200
11 520244 1Knife Drive Boot
12 450115 1Knife Drive Pulley
13 510033 1Nut 7/8-20 Hex (Zinc)
14 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
15 810275 4Bellville Disc Spring Washer .255 ID x .50 OD
(Incl. items 2-15)
(Incl. items 3-10)
QtyDescriptionItem Part Numbe
Serial Number
5
© Globe Food Equipment Company
Page 6
S13 Index Knob Components
10
12
13
14
11
4
8
7
6
1
5
3
9
6
© Globe Food Equipment Company
2
Page 7
r
S13 Index Knob Components
Q.
1 500044 1Index Knob Assembly (Incl. items 2-3)
2 500022 1Index Knob
3 800136 1Index Knob Tension Spring
4 450214 1Index Bearing Hub Assembly Kit (Incl. items 5-9)
5 1Index Knob Bearing Hub
6 2Index Knob Bearing
7 1Spacer, Index Bearing
8 1Beveled Retaining Ring
9 800104 3Mach. Screw #10-24x5/8 Flat Hd Slotted
10 500050 1Index Cam Assembly
11 520350 1Index Cam
12 1Socket Cap Screw #10-32x3/4 Flat Hd (SS)
13 800105 1Socket Cap Screw #10-32x5/8 Button-Hd
14 3Set Screw, Knurl Grip Cup Pt 1/4-28x3/4 (SST)
(Incl. items 11-14)
QtyDescriptionItem Part Numbe
Serial Number
7
© Globe Food Equipment Company
Page 8
S13 Base Shroud Components
11
9
10
12
13
1
9
2
8
8
© Globe Food Equipment Company
4
6
5
7
3
Page 9
r
S13 Base Shroud Components
Q.
1 1Slicer Base
2 871-2 1Globe Logo Decal 3.5"
3 121070 1Membrane Switch Kit
4 1Membrane Switch, Manual
5 910088 1Pad, Alcohol Prep
6 1User Interface Panel, Manual
7 810422 2Nylon Locknut 6-32
8 510031 4Slicer Foot
9 920202 2Globe Logo Decal, S-Series
10 920200 1Warning Label, Large
11 920198 1Warning Label, Large French
12 920201 1Warning Label, Small
13 920199 1Warning Label, Small French
(Incls. items 4-7)
QtyDescriptionItem Part Numbe
Serial Number
9
© Globe Food Equipment Company
Page 10
S13 Gauge Plate Components
6
5
1
3
2
4
10
© Globe Food Equipment Company
Page 11
r
S13 Gauge Plate Components
Q.
QtyDescriptionItem Part Numbe
1 450212 1Gauge Plate Base Assembly
2 450054 1Post Nut, Gauge Plate Ball Joint
3 500001 1Gauge Plate Seal
4 890411 2
5 810228 2Flat Washer, fits 3/8 Screw, .885 OD
6 450070 1Gauge Plate
Cap Screw 3/8-16x1-1/2, Hex Hd with Nylon Patch
Serial Number
11
© Globe Food Equipment Company
Page 12
S13 Index Slide Assembly Components
19
17
24
15
14
25
7
8
9
10
6
11
12
13
5
27
22
23
2
1
28
21
3
18
20
16
26
4
30
29
31
12
© Globe Food Equipment Company
Page 13
r
S13 Index Slide Assembly Components
A
A
t
A
Q.
QtyDescriptionItem Part Numbe
1 400140 1Index Slide Kit
2 1Index Slide with Bushings
3 810400 2Set Screw #10-32x3/8 Cup Pt.
4 800146 4Set Screw 5/16-18x3 Sq. Hd Cup Point
5 800144 2Cap Screw 1/4-28x1-1/4 Socket Hd
6 800091 1Set Screw #8-32 x 3/16 Knurled Grip - Cup Pt.
7 400121 1Cam Follower Kit
8 1Follower
9 2Wave Spring Cam Follower
10 2Flat Washer .266 ID, .625 OD Type A
11 890390 1Jam Nut 3/8-24 Sharpener Wheel
12 1Follower Adjustment Post
13 810379 1Retaining Clip Ring 5304-18
14 1Stop Plate, Tilt Back
15 800145 2Nut 1/4-28 Hex
16 400122 1Index Slide Shaft Kit
17 1Index Slide Shaft
18 1Index Spring
19 800152 1Retaining Ring (Klipring) 5304-75
20 800058 2Washer 5/16-18-1 Hex Hd Tapping Screw
21 810431 1Cap Screw 1/4-20 x 3/4 Hex Hd
22 810432 1Nut, Thin 1/4-20 Hex
23 450057 2Screw, Anti-Rotation
24 450050 1Ball Joint Rest
25 800168 1Gauge Plate Spacer Kit (Kit of 4)
26 800043 1Nut 7/8-14 UNF Hex Jam
27 300154 1
28 800105 2Socket Cap Screw #10-32x5/8 Button-Hd
29 400128 1
30 1
31 810003 2
djustment Stop
nti-Rotation Plate Ki
nti-Rotation Plate
Screw 1/4-20x3/4 Crossed Rec., Flat Hd, Tapping
(Incl. items 2-28)
(Incl. items 8-13)
(Incl. items 17-20)
(Incl. items 29-31)
Serial Number
13
© Globe Food Equipment Company
Page 14

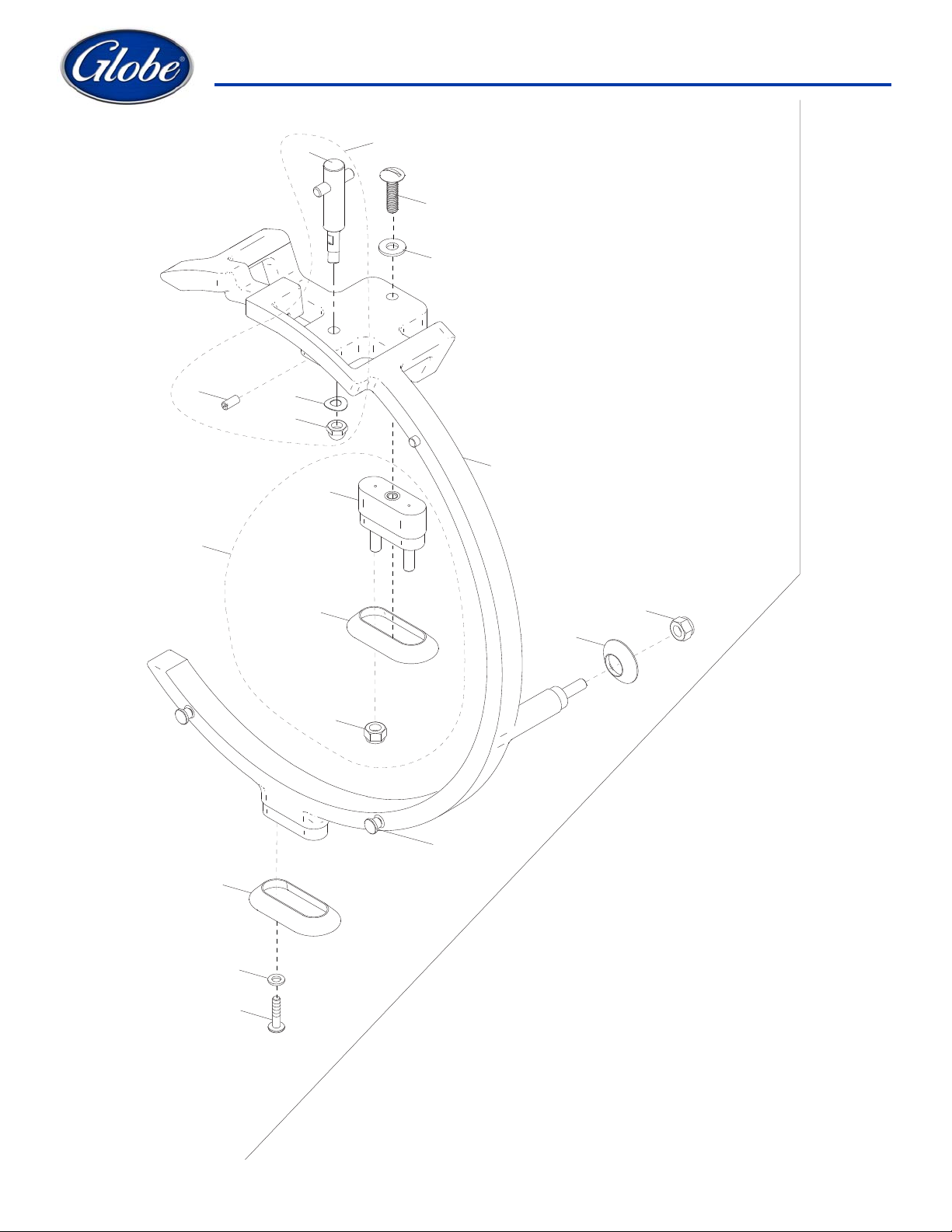

S13 Ring Guard Assembly Components
16
8
15
14
13
9
12
Item 1
Ring Guard Assembly
17
18
2
5
7
6
10
4
3
11
19
14
© Globe Food Equipment Company
Page 15
r
S13 Ring Guard Assembly Components
A
Q.
QtyDescriptionItem Part Numbe
1 500047 1Ring Guard Assembly Kit
2 520316 1Ring Guard
3 520243 1Round Boot, Ring Guard
4 810438 1Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
5 520242 1Oval Boot, Ring Guard
6 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted
7 810345 2Flat Washer 1/4 Screw Thread (18-8 SST)
8 450213 1Ring Guard Spacer Assembly
9 460064 1Spacer, Ring Guard
10 520242 1Oval Boot, Ring Guard
11 810438 2Nylon-Insert Nut 1/4-20 Grade 5 Stl Zinc Plated
12 460069 1Sharpener Mount Assembly Kit
13 1Sharpener Mount Assembly
14 800185 1
15 800184 1Curved Disk Spring, 1/4" Rod Size
16 810483 1Slotted Set Screw 10-32
17 810358 1Mach. Screw 1/4-20x1 Truss Hd Slotted
18 810345 1Flat Washer 1/4 Screw Thread (18-8 SST)
19 450130 2Locator Pin
corn Nut, 1/4-28 SST
(Incl. items 2-19)
(Incl. items 9-11)
(Incl. items 13-16)
Serial Number
15
© Globe Food Equipment Company
Page 16

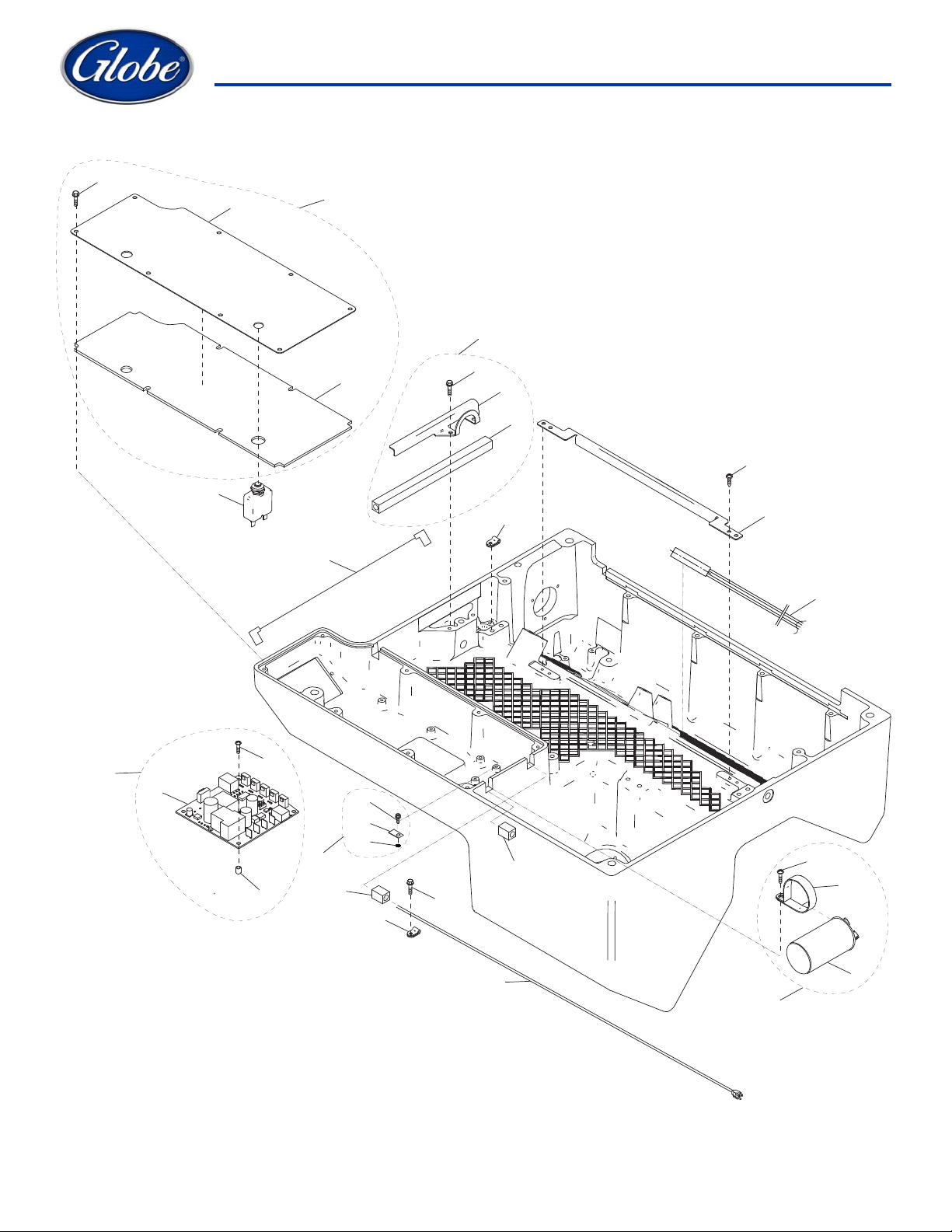

S13 Electrical Base Components
35
31
34
36
32
33
39
37
38
41
40
1
2
3
27
28
Items 8-11 Not Shown
Items 17-22 Not Shown
29
30
23
13
25
24
26
15
16
16
12
14
7
6
5
4
© Globe Food Equipment Company
Page 17
r
S13 Electrical Base Components
Q.
1 800069 4Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
2 310208 1Inner Wireway Cover
3 110107 1Harness, Reed Switch, Knife Cover Sensor
4 121082-01 1Capacitor Clamp Kit (Incl. items 5-7)
5 1Capacitor, Knife Motor (120V)
6 110228 1Capacitor Clamp
7 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping
8 121082-02 1Capacitor Clamp Kit
9 1Capacitor, Knife Motor (220V) Not Shown
10 110229 1Capacitor Clamp Not Shown
11 800069 1Screw #8-32x3/8 Cross Rec. Pan Hd. Tapping Not Shown
12 130225 1Power Supply Cord, 120VAC, 15A
13 510045-01 1Sleeve, Large Diameter Wire
14 510044-01 1Sleeve, Small Diameter Wire
15 110227 1Strain Relief, Power Cord
16 800057 1Screw 1/4-20x.75 Hex Washer Hd Tapping
17 130008-01 1Power Cord (220V) Not Shown
18 1Power Supply Cord Not Shown
19 1Male Power Plug, Europe CEE7/7, 50Hz Not Shown
20 130008-02 1Power Cord (220V) Not Shown
21 1Power Supply Cord Not Shown
22 1Three Blade Male Plug, NEMA 3-15, 60Hz Not Shown
23 121080 1Ground Location Tab Kit
24 1Ground Location Tab
25 1Screw, Green #8-32x5/16" SL Hex Washer Hd
26 1Lock Washer #8 External Tooth
27 121087 1Manual Control Board
28 121060 1Control Board Assembly
29 800175 4Screw #8-32x3/4 Crossed Recessed Tapping
30 810450 4Self Retaining Spacer
31 140017-01 1Circuit Breaker (120V)
31 140017-02 1Circuit Breaker (220V) Not Shown
32 300063 1Electronics Cover & Gasket Kit
33 1Gasket, Electronic Cover
34 1Cover, Electronics
35 800067 8Screw #10-24x1/2 Hex Washer Hd Tapping
36 100125 1Wire Harness, Circuit Breaker
37 300067 1Front Wireway Cover Kit
38 1Cover, Front Wireway
39 800067 2Screw #10-24x1/2 Hex Washer Hd Tapping
40 510044-02 1Sleeve, Small Diameter Wire
41 110226 1Clamp, Nylon Loop
(Fot Use w/120V Units)
(Incl. items 9-11) Not Shown
(Incl. items 24-26)
(Incl. items 28-30)
(Incl. items 33-35)
(Incl. items 38-40)
QtyDescriptionItem Part Numbe
Serial Number
17
© Globe Food Equipment Company
Page 18
S13 Knife Drive Motor Components
20
16
18
22
17
21
23
19
15
24
14
13
12
1
11
10
9
7
6
8
5
4
2
3
18
© Globe Food Equipment Company
Page 19
r
S13 Knife Drive Motor Components
Q.
1 400124 1Knife Tensioner Kit
2 800135 2Thread Forming Screw 1/4-20x5/8 PHP
3 1Cap Screw 5/16-18 x 1-3/4, Grade 8 Hex Hd
4 1Knife Motor Tensioner Bracket
5 2Sleeve Spacer
6 810420 1Nyloc Nut 5/16-18, Grade 5
7 400125 1Threaded Ball Joint, Knife Tensioner (Incl. items 8-9)
8 1Ball Joint Rod End 5/16'-24 Thd
9 1Tension Shaft 5/16-24 x 3 Full Thread
10 1Nut 5/16-24 UNF Zinc Plated Steel Hex Jam
11 1Nut 5/16-24x1 Hex Coupling
12 810416 1Flat Washer 5/16 (Zinc)
13 810417 1Washer 5/16 Neoprene
14 800161 1Washer 5/16 Leveling
15 120158-01 1Knife Drive Motor, Single Phase, 120V, 60Hz
15 120158-02 1Knife Drive Motor, Single Phase, 220V, 60Hz Not Shown
15 120158-03 1Knife Drive Motor, Single Phase, 220V, 50Hz Not Shown
16 400113 1Motor Mount Pivot Rod Assembly
17 1Motor Mount Pivot Rod
18 810429 1Retaining Ring, 5304-31 (Klipring)
19 810420 1Nyloc Nut 5/16-18, Grade 5
20 400123 1Motor Pivot Block Kit
21 1Motor Pivot Block
22 800094 1Set Screw #10-32x1/4, Knurl-Grip Cup Pt.
23 800068 2Washer #10-24x1 Hex Hd Tap. Screw Slotted
24 800092 1Knife Drive Belt
(Incl. items 2-14)
(Incl. items 17-19)
(Incl. items 21-23)
QtyDescriptionItem Part Numbe
Serial Number
19
© Globe Food Equipment Company
Page 20
S13 Transport Arm Assembly Components
34
37
38
8
35
36
39
20
9
24
23
22
21
16
17
12
11
5
42
43
2
40
44
41
1
4
33
15
14
13
31
18
19
28
7
10
29
3
6
26
27
30
25
20
© Globe Food Equipment Company
32
Page 21
r
S13 Transport Arm Assembly Components
A
k
Q.
QtyDescriptionItem Part Numbe
1 400129 1Carriage Arm & Gasket Kit (Incl. item 2)
2 500004 1Carriage Arm Gasket
3 500052 1Carriage Knob & Captive Clip Kit (Incl. items 4-5)
4 1Carriage Arm Tie Down Knob
5 800180 1Washer, Nylon
6 400115 1Transport Replacement Assembly
7 1Transport with Bushings
8 400017 1Transport Attachment Pin
9 1Shoulder Washer .51 IDx.88 Nylon
10 1Shoulder Washer .51 IDx1.125 Nylon
11 810406 1Hex Cap Screw 5/16-24x1,18-8 (SST)
12 1Shoulder Washer .51 IDx1.125 Nylon
13 810272 1Flat Washer 5/16 Screw Size (SST)
14 810420 1Nyloc Nut 5/16-18, Grade 5
15 1Mach. Sealing Screw 8-32x1/4 PH Phillips
16 1Dome Plug for 5/8 Hole
17 1Socket Hd Cap Screw 3/8-16 x 1 (SST)
18 800015 1Transport Tie Down Screw
19 800048 1Nut 5/16-24 Hex UNF Thread (Zinc Plated Steel)
20 800014 1Roller Bearing Assembly
21 1Roller Bearing Bolt
22 1Roller Bearing
23 1Bearing Sleeve
24 1Spacer Sleeve
25 400131 1Transport Roller Bar Kit
26 1Transport Roller Bar
27 810004 1Tapping Screw 1/4-20x1 Cross Rec. FH
28 400132 1Transport Shaft Kit
29 1Transport Shaft
30 800059 1Washer 5/16-18x1.25 Hex Hd Tapping Screw
31 800071 1Mach. Screw 5/16-18x1 Truss Hd Slotted
32 500005 1Transport Bumper
33 800131 1Sleeved Spring Assembly
34 300064 1Transport Cover Kit
35 300080 1Transport Cover
36 510058 1Oil Well Gasket
37 800109 1Screw 1/4-20x.50 Button Hd Cap
38 1Washer 1/4 Flat
39 800053 1Felt Insert
40 400114 1Carriage Arm Handle Assembly with Nut
41 1Carriage Arm Handle
42 810224 1Hex Nut, 1/2-13 Left Hand, Thread
43 810226 1Lock Washer, 1/2 Screw Size, Internal Tooth
44 400155 1
nti Rotation Bloc
(Incl. items 7-24)
(Incl. items 21-24)
(Incl. items 26-27)
(Incl. items 29-31)
(Incl. items 35-38)
(Incl. items 41-44)
Serial Number
21
© Globe Food Equipment Company
Page 22
10
S13 Lift Lever Base Components
Item 1
Manual Kickstand Assembly
9
3
6
7
8
2
5
4
22
© Globe Food Equipment Company
Page 23
r
S13 Lift Lever Base Components
Q.
1 300046 1Manual Kickstand Assembly
2 1Manaul Kickstand Bracket
3 1Manual Kickstand Arm
4 1Socket Hd. Cap Screw #10-32 x 3/8 SST
5 1Hex Nut #10-32 SST
6 1
7 810272 1Flat Washer 5/16 Screw Size (SST)
8 1Nylon-Insert Thin Hex Nut 1/4-20 SST
9 1Cap Screw, Hx Hd 5/16-18 UNC x 3/4
10 1Manual Kickstand Boot
Long Shoulder 5/16" Dia. x 1/4" Screw 1/4"-20 Thrd
(Incl. items 2-10)
QtyDescriptionItem Part Numbe
Serial Number
23
© Globe Food Equipment Company
Page 24

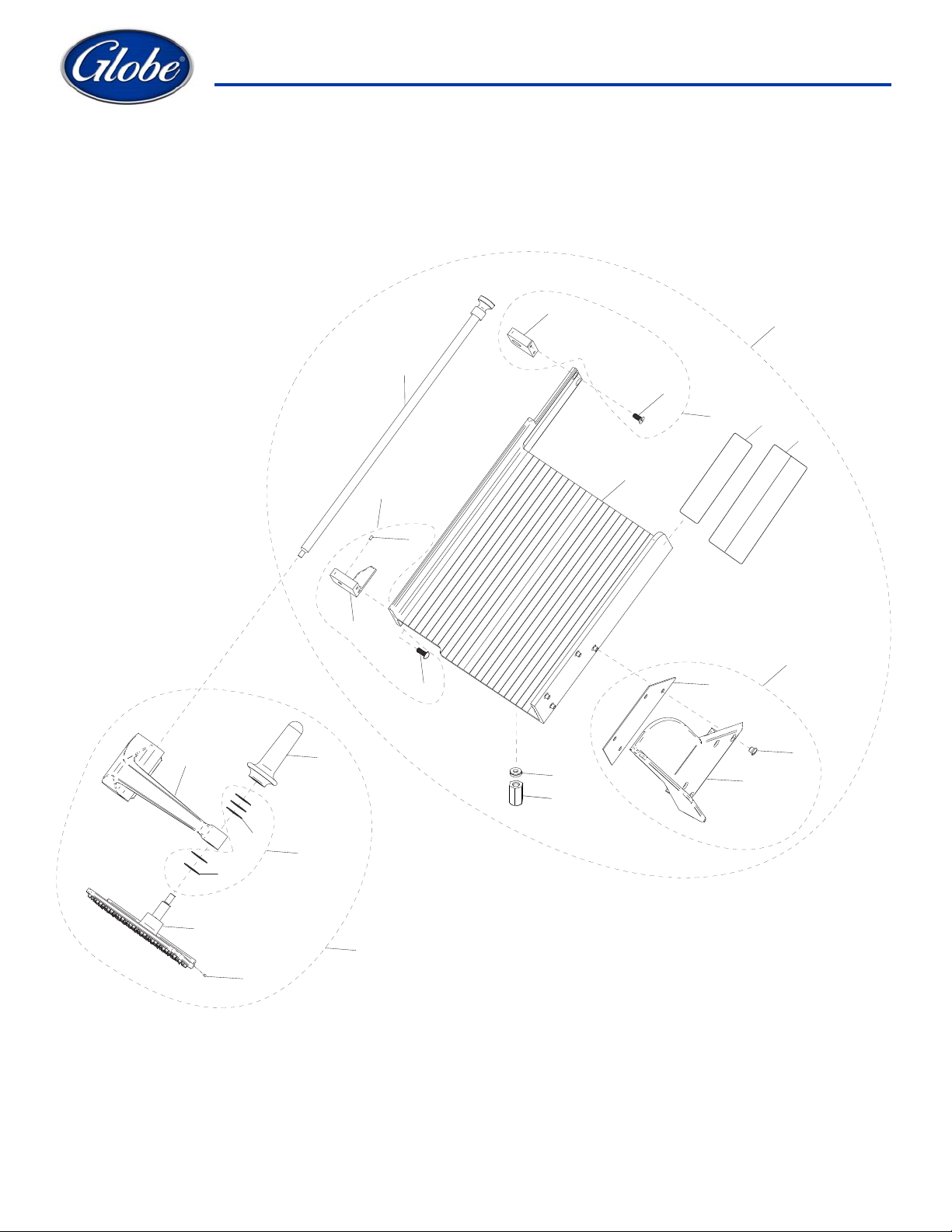

S13 Carriage and End Weight Assembly Components
B
E
F
O
R
E
T
I
L
T
I
N
G
F
O
O
D
C
H
U
T
E
,
P
U
L
L
F
O
O
D
C
H
U
T
E
T
O
H
O
M
E
P
O
S
I
T
I
O
N
A
N
D
C
L
O
S
E
S
L
I
C
E
R
T
A
B
L
E
.
B
E
F
O
R
E
T
I
L
T
I
N
G
F
O
O
D
C
H
U
T
E
,
P
U
L
L
F
O
O
D
C
H
U
T
E
T
O
H
O
M
E
P
O
S
I
T
I
O
N
A
ND
C
L
O
S
E
S
L
I
C
E
R
T
A
B
L
E
.
A
v
a
n
t
d
e
b
a
s
c
u
l
e
r
l
e
p
l
a
t
e
a
u
p
o
r
t
e
-
p
r
o
d
u
i
t
,
t
i
r
e
z
l
e
p
l
a
t
e
a
u
p
o
r
t
e
-
p
r
o
d
u
i
t
e
n
p
o
s
i
t
i
o
n
d
e
r
e
p
o
s
e
t
f
e
r
m
e
z
l
e
p
l
a
t
e
a
u
d
e
l
a
t
r
a
n
c
h
e
u
s
e
.
20
21
12
11
7
14
13
9
5
6
2
10
8
17
1
3
4
15
18
16
23
22
24
25
19
26
© Globe Food Equipment Company
24
Page 25
r
S13 Carriage and End Weight Assembly Components
Q.
1 400138 1Carriage Assembly Kit
2 400012 1Carriage Insert Assembly
3 920196 1Carriage Tilt Label
4 920197 1Carriage Tilt Label (French)
5 800085 4Washer 1/4'' Screw, Self Aligning
6 800188 4Custom Nut, 1/4-20
7 450158 1End Weight Shaft Assembly
8 400135 1Rod Mount Kit End Weight
9 1End Weight Rod Mount
10 800037 2Mach. Screw 1/4-20 x 5/8 FH Slotted
11 400136 1End Weight Stop Kit
12 1End Weight Stop
13 800038 2Mach. Screw 1/4-20 x 5/8 RH Slotted
14 800205 1Stop Pin, Delrin End Weight
15 500046 1Thumb Guard Assembly
16 1Carriage Thumb Guard
17 510038 1Carriage Thumb Guard Gasket
18 810366 4Thumb Guard Screw
19 500027 1End Weight Assembly
20 420065 1End Weight Arm Assembly
21 500024 1End Weight Handle
22 800164 1End Weight Face Washer Kit
23 1Washer .04 mm thick End Weight Face
24 4Washer .01 mm thick End Weight Face
25 500007 1Molded End Weight Assembly
26 800047 1Delrin 1/8 Dia x 3/8 Pin
(Incl. items 2-18)
(Incl. items 9-10)
(Incl. items 12-14)
(Incl. items 16-18)
(Incl. items 20-26)
(Incl. items 23-24)
QtyDescriptionItem Part Numbe
Serial Number
25
© Globe Food Equipment Company
Page 26

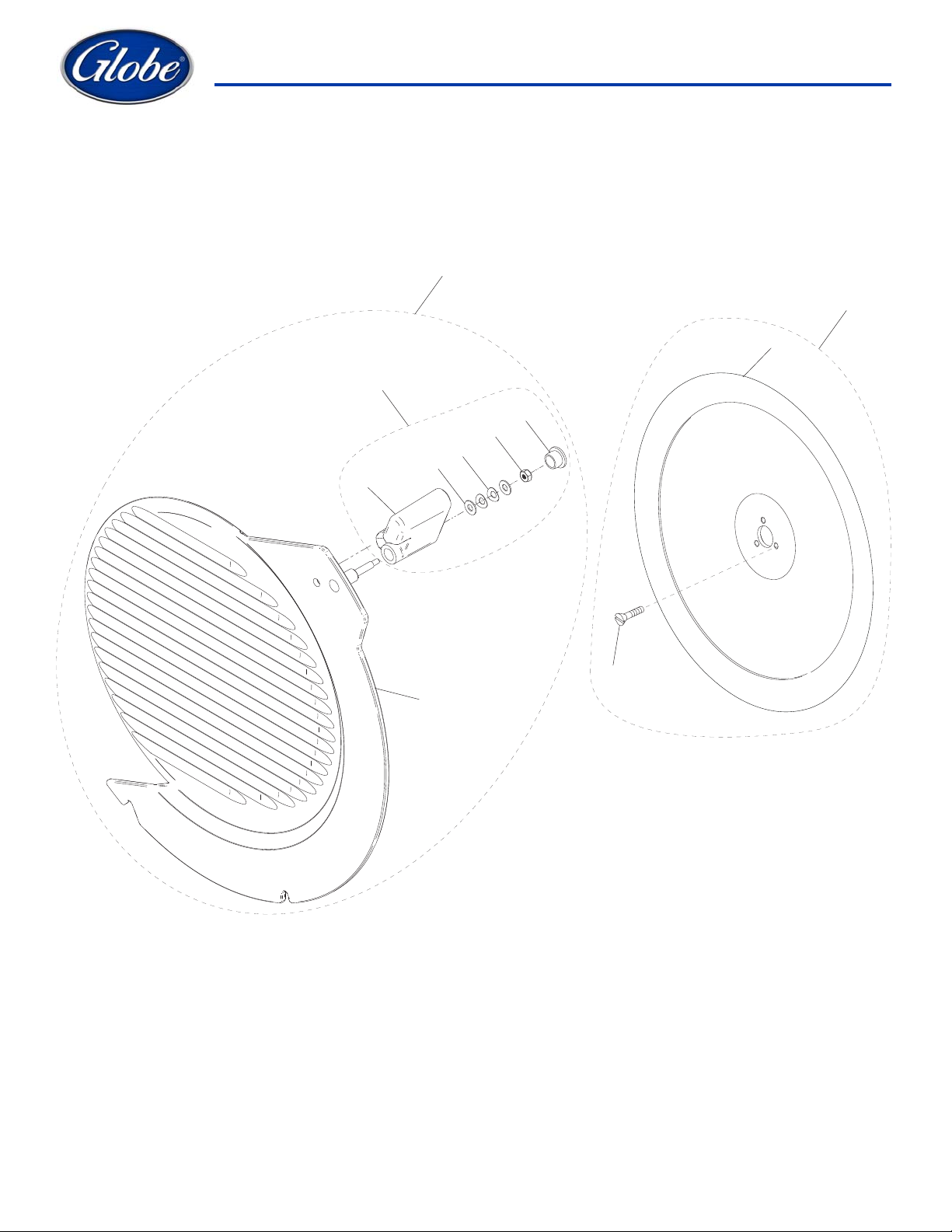

S13 Knife and Knife Cover Components
7
9
14
13
12
11
10
1
2
Items 4-6 Not Shown
3
8
26
© Globe Food Equipment Company
Page 27
r
S13 Knife and Knife Cover Components
Q.
1 400139 1Knife Kit (Incl. items 2-3)
2 1Knife, 13 Inch Steel
3 810274 1Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST)
4 400161 1Stainless Steel Knife Kit
5 1Knife, 13 inch (SST) Not Shown
6 810274 3Mach. Screw, Flat Hd Slotted 10-32x1/2 (SST) Not Shown
7 250247 1Knife Cover Assembly
8 460090 1Knife Cover Sub-Assembly
9 500045 1Knife Cover Swivel Lock Assembly
10 1Knife Cover Swivel Lock
11 2Flat Washer #10 Thin Profile
12 2Curved Disk Spring
13 1Nut, 6-32 INC-2B Hex, with Nylon Insert
14 520237 1Barrel Plug, Push-In
(incl. items 5-6) Not Shown
(Incl. items 8-14)
(Incl. items 10-14)
QtyDescriptionItem Part Numbe
Serial Number
27
© Globe Food Equipment Company
Page 28
S13E Sharpener Assembly Components
S
T
O
R
E
D
P
O
S
I
T
I
O
N
L
I
F
T
A
N
D
R
O
T
A
T
E
T
O
S
H
A
R
P
E
N
40
23
36
30
31
34
37
38
39
32
35
41
4
5
3
Item 1
Sharpener Assembly
6
10
7
2
9
8
12
11
24
33
25
17
29
26
28
27
13
22
21
20
18
19
14
16
15
28
© Globe Food Equipment Company
Page 29
r
S13E Sharpener Assembly Components
Q.
1 440044 1Sharpener Assembly
2 430051 1Honing Stone Assembly
3 1Honing Stone Shaft Assembly (Incl. items 4-6)
4 890390 1Jam Nut 3/8-24 Sharpener Wheel
5 240045 1Honing Stone
6 1Honing Stone Shaft Assembly
7 1Honing Stone Bracket
8 1Honing Stone Slide
9 2Mach. Screw 4-40x3/8 FH Phillips
10 810272 2Flat Washer 5/16 Screw Size (SST)
11 1Wave Spring, Honing Stone
12 1Retaining Ring, Type E, for 5/16 Shaft
13 430052 1Sharpening Stone Assembly
14 1Sharpening Stone Shaft Assembly
15 410048 1CBN Sharpening Stone
16 1Hex Nut 3/8-24 UNF-2B
17 1Shapening Stone Shaft
18 1Sharpening Stone Bracket
19 1Wave Spring, Sharpening Stone
20 810272 3Flat Washer 5/16 Screw Size (SST)
21 1Retaining Ring, Type E, for 5/16 Shaft
22 810437 1Flat Washer
23 400137 1Sharpener Mount Center Kit
24 1Sharpener Center Mount
25 1Slotted Ball Plunger, 1/4-28 SST
26 1Thin Hex Nut, 1/4-28
27 1Sharpener Return Spring
28 2Mach. Screw 6-32x3/8 Pan Hd Cross-Rec.
29 1Slotted Set Screw 10-32 Sharpener Actuator
30 1Honing Stone Lever
31 1Sharpener Handle Rod
32 1Slotted Set Screw 10-32 Sharpener Actuator
33 810437 1Flat Washer
34 800184 1Curved Disk Spring, 1/4" Rod Size
35 250069 1Sharpener Cover
36 510041 1Top Section, Sharpener Handle
37 810233 1
38 810246 2Mach. Screw, Truss Hd Slotted 10-32x1/2 (SST)
39 2Curved Disk Spring
40 920215 1Label, Sharpen Position
41 920216 1Label, Stored Position
Mach. Screw 8-32x1/2 Black, Phillips, w/Nylon Patch
(Incl. items 2-41)
(Incl. items 3-12)
(Incl. items 14-22)
(Incl. items 15-17)
(Incl. items 24-35)
QtyDescriptionItem Part Numbe
Serial Number
29
© Globe Food Equipment Company
Page 30
S13 Removable Carriage Components - Option
1
8
12
7
6
10
4
11
5
3
2
9
30
© Globe Food Equipment Company
Page 31
r
S13 Removable Carriage Components - Option
Q.
1 450221 1Removable Carriage Arm Assembly Kit
2 450217 1Carriage Arm for Removable Carriage
3 450220 1Removable Carriage Machanism Assembly Kit
4 500056 1Removable Carriage Knob Assembly
5 810358 2Mach. Screw 1/4-20x1 Truss Hd Slotted
6 1Lock Out Assembly
7 2Compression Spring
8 1E-Clip Retaining Ring for 1/4" Shaft
9 420103 1Guide Block
10 450219 1Removable Carriage Attachment Assembly Kit
11 1Carriage Attachment Assembly
12 500057 1Removable Carriage Gasket
QtyDescriptionItem Part Numbe
Serial Number
31
© Globe Food Equipment Company
Page 32
S13 Knife Removal Tool - Option
.
.4.2.2.2.
-
+
ÿ
-
+
ÿ
.1.
.5.4.4.
Use two hands when handling knife removal
tool. If dropped, damage to knife and tool can occur.
1. Close table, unplug
slicer, tilt carriage &
remove knife cover.
2. On the shaft under
the knife, align
with ( ) (See 2.)
3. Before installing
knife removal tool,
both handles must
be rotated outward.
On the knife shaft,
1.
(
align
(See 1.)
2. Align knife removal
tool with locations
on ring guard
.
in red
)
with ( )
+
KNIFE REMOVAL
( - )
2
KNIFE INSTALLATION
4.4
4. Align knife
5
removal tool with
locations on ring
guard in
inward to lock knife
into tool
5. Rotate both handles
6. Use both handles to lift
knife removal tool &
knife away from slicer.
3. Rotate both handles
outward to release
knife.
4. Use both hands
to lift tool away
from knife
removal tool.
1
red
.
S-Series
Knife Removal Tool
32
© Globe Food Equipment Company
Page 33
r
S13 Knife Removal Tool - Option
Q.
1 450200 1Removable Knife Tool Assembly
QtyDescriptionItem Part Numbe
Serial Number
33
© Globe Food Equipment Company
Page 34
S13 Removable Knife Kit - Option
1
2
3
34
© Globe Food Equipment Company
Page 35
r
S13 Removable Knife Kit - Option
Q.
1 450222-01 1Removable Knife Kit
2 1Knife, 13" Removable
3 1Post, Service Knife Release
4 450222-03 1Removable Knife Kit, SST (Not Shown)
5 1Knife, 13" SST Removable (Not Shown)
6 1Post, Service Knife Release (Not Shown)
QtyDescriptionItem Part Numbe
Serial Number
35
© Globe Food Equipment Company
Page 36
S13 Removable Knife Drive Kit - Option
2
7
1
6
5
4
3
36
© Globe Food Equipment Company
Page 37
r
S13 Removable Knife Drive Kit - Option
Q.
1 450226-01 1Removable Knife Drive Kit
2 1Shaft, Removable Knife Drive
3 520244 1Knife Drive Boot
4 450115 1Knife Drive Pulley
5 510033 1Nut 7/8-20 Hex (Zinc)
6 810229 4Socket Hd. 1/4-20x3/4 Cap Screw, SST
7 810275 4Bellville Disc Spring Washer .255 ID x .50 OD
QtyDescriptionItem Part Numbe
Serial Number
37
© Globe Food Equipment Company
Page 38
Knife Cover Sensor
P/N 110107
S13 Wiring Schematic
J4
Power Cord
120VAC - P/N 130225
240VAC - P/N 130226
GREEN
GND
BLACK
Circuit Breaker
120VAC - P/N 140017-01
240VAC - P/N 140017-02
Membrane Switch
P/N 910191
Printed Circuit Board
P/N 121060
P5 - UNIT PWR LED
P4 - KNIFE PWR LED
P3 - START
P2 - STOP
P1 - COM
J10
J7
J8
J9
J11
BLACK
P/N 100125
WHITE
BLACK
BLACK
120VAC/60Hz - P/N 120158-01
240VAC/60Hz - P/N 120158-02
240VAC/50Hz - P/N 120158-03
Capacitor
120VAC - P/N 140015
240VAC - P/N 140016
WHITE or BROWN
WHITE or BROWN
Motor
38
© Globe Food Equipment Company
Loading...
