Globe GSG14D, GSGDUE14D User Manual

Parts Catalog

Model GPG14D

ELECTRIC

SANDWICH GRILLS

MODELS: GPG14D, GSG14D, GPGDUE14D, GSGDUE14D

CANADIAN MODELS: GPG14D-C & GSG14D-C

1-5-15

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF UNIT.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

Not for resale

TABLE OF CONTENTS

PAGE
GPG14D/GSG14D/GPG14D-C/GSG14D-C 14 Inch Sandwich Grill 3
GPGDUE14D/GSGDUE14D 14 Inch Double Sandwich Grill 5
Wiring Diagram, GPG14D/GSG14D/GPG14D-C/GSG14D-C 7
Wiring Diagram, GPGDUE14D/GSGDUE14D 8

GPG14D/GSG14D/GPG14D-C/GSG14D-C 14 INCH GRILL COMPONENTS

3

4

5

2

1

15

17

18

19

20

23

21

22

24

25

7

16

6

9

10

14

11

26

8

12

13

3

GPG14D/GSG14D/GPG14D-C/GSG14D-C 14 INCH GRILL PARTS LIST

Item Description Part Number Qty Hardware

1 Handle Assembly U00681 1
2 Top Cover U00682 1
3 Upper Insulating Plate U01071040244 1
4 Upper Press Plate U00684 1
5 Upper Element U03061225118 1
6 Wiring Cover U01021005045 1
7 Back Bafe U00685 1

Upper Cast Iron - Sandwich Grill (Smooth) U00688

8

Upper Cast Iron - Panini Grill (Grooved) U00686
Lower Cast Iron - Sandwich Grill (Smooth) U00692

9

Lower Cast Iron - Panini Grill (Grooved) U00691

10 Body Assembly U00702 1

Cord & Plug U03021205012 1

11

Cord & Plug, GPG14D-C & GSG14D-C Only U03021205010 1
12 Adjust Nut U00690 2
13 Hardware Plate U00695 1
14 Side Handle U01141065037 2
15 Lower Element U03061225119 1
16 Lower Press Plate U00696 1
17 Lower Insulating Plate U00697 1
18 Triangle Plate U00519 4
19 Foot U02121165003 4
20 Base Plate U01071040242 1
21 Drip Tray U06051471181 1
22 Timer U03991290111 1
23 Indicator Light U03091240005 1
24 Dial U02101155013 1
25 Power Switch U03041215033 1
26 Thermostat U03051220022 1

1

1

4

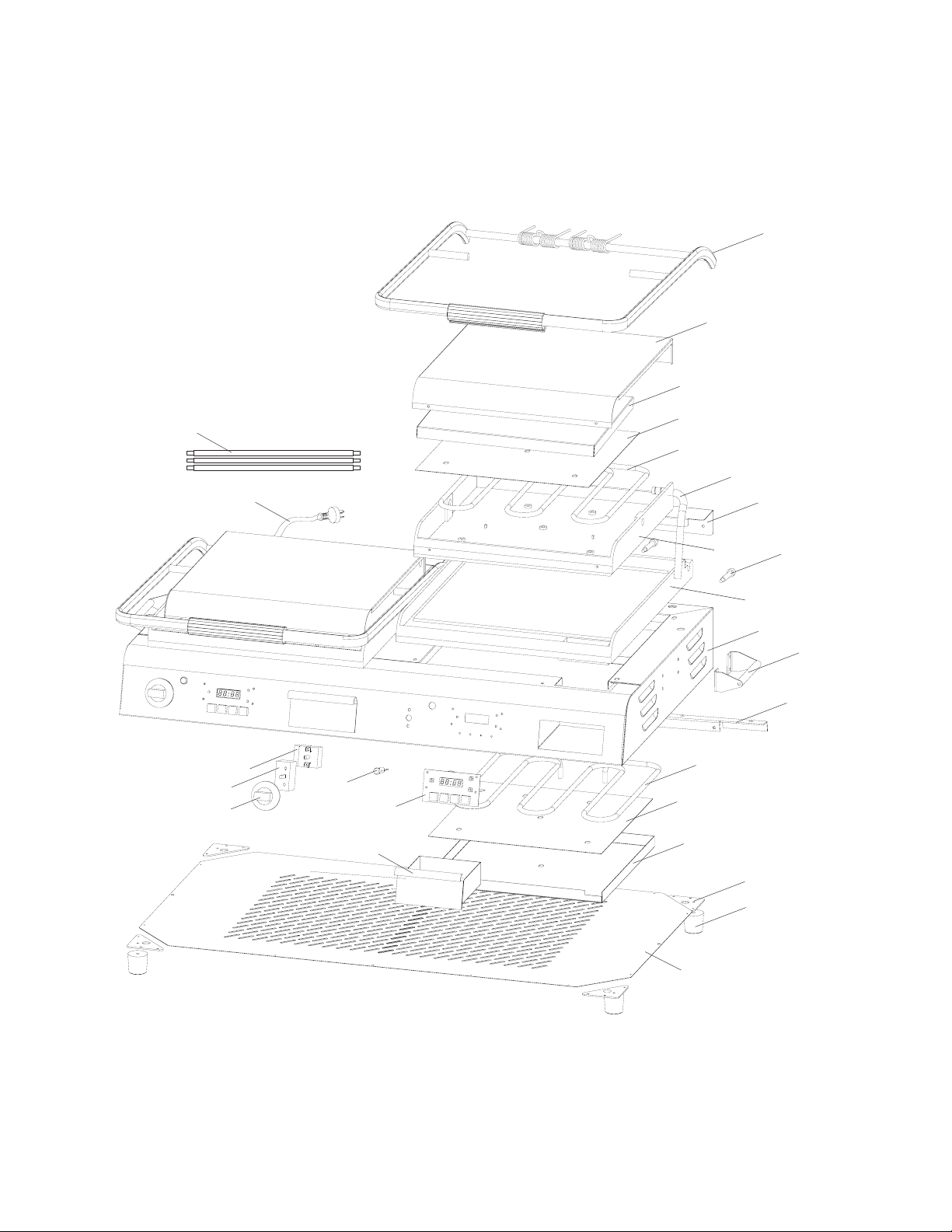

GPGDUE14D/GSGDUE14D 14 INCH DOUBLE GRILL COMPONENTS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

25

26

27

23

24

5

GPGDUE14D/GSGDUE14D 14 INCH DOUBLE GRILL PARTS LIST

Item Description Part Number Qty Hardware

1 Handle Assembly U00681 2
2 Upper Cover U00682 2
3 Upper Insulating Plate U01071040244 2
4 Upper Press Plate U00684 2
5 Upper Element U03061225116 2

Wiring Cover, Right U01021005045 1

6

Wiring Cover, Left U00701 1

7 Hardware Assembly, Rear U00685 2

14'' Upper Right Plate (Grooved) U00686 1

14'' Upper Left Plate (Smooth) U00687 1

8

14'' Upper Right Plate (Smooth) U00688 1

14'' Upper Left Plate (Grooved) U00689 1

9 Adjust Nut U00690 4

14'' Lower Cast Plate (Grooved) U00691 2
10

14'' Lower Cast Plate (Smooth) U00692 2
11 Main Body Assembly U00693 1
12 Side Handle Assembly U00694 2
13 Hardware Plate U00695 2
14 Lower Element U03061225117 2
15 Lower Press Plate U00696 2
16 Lower Insulating Plate U00697 2
17 Triangle Plate U00519 4
18 Feet U02121165003 4
19 Base Cover U00698 1
20 Drip Tray Assembly U06051471181 2
21 Timer U03991290110 2
22 Indicator Light U03091240006 2
23 Dial U02101155013 2
24 Switch U03041215033 2
25 Thermostat U03051220022 2
26 Cord & Plug U00699 1
27 Wiring Kits U00700 2

6

WIRING DIAGRAM, 14 INCH GRILLS: GPG14D/GSG14D/GPG14D-C/GSG14D-C

7

L1 L2G

208V/240VAC

ON/OFF SWITCH 1

ON/OFF SWITCH 2

THERMOSTAT 1

THERMOSTAT 2

POWER INDICATOR

LAMP 1

UPPER ELEMENT 1

LOWER ELEMENT 1

POWER INDICATOR

LAMP 2

UPPER ELEMENT 2

LOWER ELEMENT 2

TRANSFORMER 2

240VAC

12VAC

PCB

TRANSFORMER 1

240VAC

12VAC

PCB

WIRING DIAGRAM, 14 INCH DOUBLE GRILLS: GPGDUE14D/GSG1DUE4D

8

995093 GFE GPG14D/GSG14D, GPGDUE14D/GSGDUE14D Rev - ECN 1847 5Jan2015
