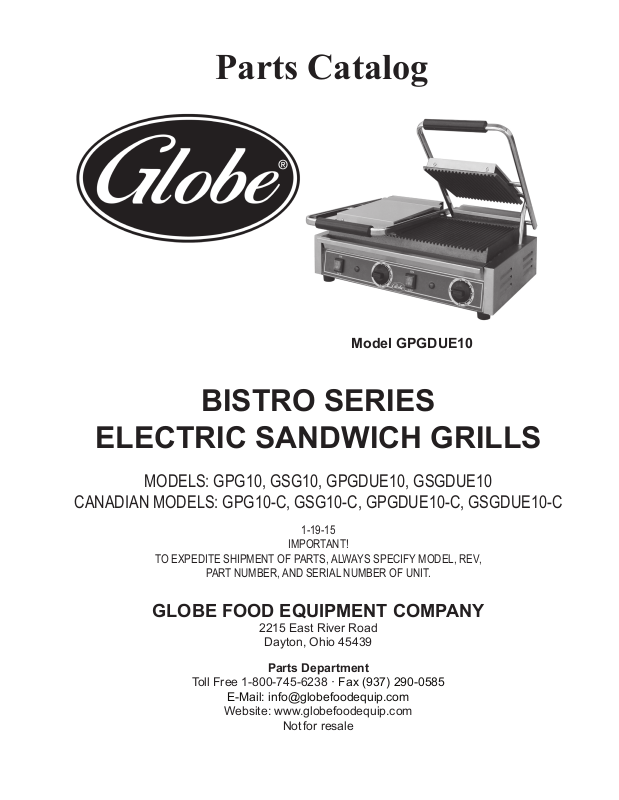

Parts Catalog

Model GPGDUE10

BISTRO SERIES

ELECTRIC SANDWICH GRILLS

MODELS: GPG10, GSG10, GPGDUE10, GSGDUE10

CANADIAN MODELS: GPG10-C, GSG10-C, GPGDUE10-C, GSGDUE10-C

1-19-15

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF UNIT.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

Not for resale

TABLE OF CONTENTS

PAGE
GPG10/GSG10/GPG10-C/GSG10-C Single Grill 1-2
GPGDUE10/GSGDUE10/GPGDUE10-C/GSGDUE10-C Double Grill 3-4
Wiring Diagram, GPG10/GSG10 5
Wiring Diagram, GPGDUE10/GSGDUE10 6

GPG10/GSG10/GPG10-C/GSG10-C 10 INCH SINGLE GRILL COMPONENTS

1

GPG10/GSG10/GPG10-C/GSG10-C 10 INCH SINGLE GRILL PARTS LIST

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 Top Cover U00707 1
2 Upper Insulating Plate U00708 1
3 Upper Mica Plate U00709 1
4 Upper Element U03061225050 1
5 Adjustable Tension Bracket U00710 1
6 Handle U00712 1

Upper Cast Iron - Sandwich Grill (Smooth) U00711

7

Upper Cast Iron - Panini Grill (Grooved) U00713
8 Back Bafe U00714 1
9 Wiring Cover U01021005045 1

Lower Cast Iron - Sandwich Grill (Smooth) U00715

10

Lower Cast Iron - Panini Grill (Grooved) U00716

11 Lower Element U03061225051 1
12 Lower Mica Plate U00717 1
13 Lower Insulating Plate U00718 1
14 Body Assembly U00719 1

Cord & Plug U03021205012

15

Cord & Plug (Models GPG10-C/GSG10-C Only) U03021205010
16 Foot U02121165004 4
17 Base Plate U01071040021 1
18 Power Switch U03041215027 1
19 Indicator Light U03091240005 1
20 Thermostat U03051220022 1
21 Dial U02101155019 1
22 Drip Tray U01051026865 1

1

1

1

2

GPGDUE10/GSGDUE10/GPGDUE10-C/GSGDUE10-C 10 INCH DOUBLE GRILL COMPONENTS

3

4

5

2

1

8

15

7

9

11

13

14

16

25

17

18

19

20

21

22

23

24

10

12

6

3

GPGDUE10/GSGDUE10/GPGDUE10-C/GSGDUE10-C 10 INCH DOUBLE GRILL COMPONENTS

ITEM DESCRIPTION PART NUMBER QTY HARDWARE

1 Top Cover U00720 2
2 Upper Insulating Plate U00733 2
3 Upper Element Insulating Plate U00721 2
4 Adjustable Tension Bracket U01021005138 2
5 Upper Element U03061225060 2
6 Handle Assembly, Left U00722 1
7 Handle Assembly, Right U00723 1

10" Upper Right Cast Iron - Panini Grill (Grooved) U00724

10" Upper Left Cast Iron - Panini Grill (Grooved) U00725

8

10" Upper Right Cast Iron - Sandwich Grill (Smooth) U00726

10" Upper Left Cast Iron - Sandwich Grill (Smooth) U00727

9 Back Plate, Right U00728 1
10 Back Plate, Left U00729 1
11 Wiring Cover, Right U01021005045 1
12 Wiring Cover, Left U00701 1

20" Lower Cast Iron - Sandwich Grill (Smooth) U00730

13

20" Lower Cast Iron - Panini Grill (Grooved) U00731

14 Body Assembly U00732 1

Cord & Plug U03021205011

15

Cord & Plug (Models GPGDUE10-C/GSGDUE10-C Only) U03021205010
16 Lower Element U03061225061 2
17 Lower Mica Plate U00721 2
18 Lower Insulating Plate U00733 2
19 Base Plate U01071040231 1
20 Foot U02121165004 4
21 Power Switch U03041215027 2
22 Indicator Light U03091240006 2
23 Thermostat U03051220022 2
24 Dial U02101155019 1
25 Drip Tray U01051027353 1

1

1

1

4

WIRING DIAGRAM, 10 INCH SINGLE GRILL: GPG10/GSG10

5

WIRING DIAGRAM, 10” DOUBLE GRILL: GPGDUE10/GSGDUE10

6

NOTES

995056 GFE GPG10/GSG10, GPGDUE10/GSGDUE10 Rev B ECN 1851 19Jan2015
