Globe GS30T User Manual

Parts Catalog

GS30T

PRICE COMPUTING SCALE

MODELS: GS30 & GS30T

01-08-2010

IMPORT ANT!

TO EXPEDITE SHIPMENT OF PARTS, ALW AYS SPECIFY MODEL, REV,

P AR T NUMBER, AND SERIAL NUMBER OF CHOPPER.

GLOBE FOOD EQUIPMENT COMPANY

P.O. Box 3209

Dayton, Ohio 45401

Parts Department

T oll Free 1-800-745-6238 • Fax [phone]

E-Mail: [e-mail]

W ebsite: www.globeslicers.com

Not for resale

GS30 SCALE ASSEMBL Y

1

GS30 SCALE P ARTS LIST

ITEM PART NUMBER DESCRIPTION QTY

1 E680411 KEY SHEET 1
2 E680600 SHEET, DISPLAY 2
3 E256809 PLATTER 1
4 E429406 CASE 1
5 E281800 KEY, GS30/GS30T 1
6 E247017 HARNESS, KEY - S2 1
7 E001621 PLATTER SUPPORT - RUBBER 4
8 E017201 SCREW, M4X25 4

9 E082301 NUT, M4 4
10 E016909 SCREW 4
11 E020801 SPRING WASHER 4
12 E017003 WASHER, M6 4
13 E255124 PLATTER SUPPORT 1
14 E281423 DISPLAY 2
15 E013004 SCREW, M4X10 11
16 E249002 LOAD CELL 1
17 E429311 BASE 1
18 E680703 DATA PLATE 1
19 E252509 HARNESS, BATTERY - S3 1
20 E002515 LEVELING FOOT 4
21 E429500 COVER, BATTERY 1
22 E024800 SEAL, WIRE - F1 4
23 E257609 SEAL WASHER 2
24 E016203 SCREW 2
25 E282008 CONNECTOR, INLET 1
26 E572705 LEVEL UNIT 1
27 E631103 POWER CIRCUIT BOARD 1
28 E012308 SCREW 2
29 E528402 TRANSFORMER 1
30 E249501 HARNESS, GND - S2 1
31 E248306 HARNESS, DISPLAY - S3 1
32 E282901 SCREW, M2X4.5 8
33 E182108 SCREW, M4X12 2
34 E014500 CABLE TIE 5
35 E133100 STORAGE BATTERY 1
36 E031901 BATTERY CUSHION 4
37 E333501 POWER CORD 1
39 E022701 SEAL SCREW, M4 1
40 E048600 SCREW, SEAL 1
41 E024800 SEAL, WIRE - F1 2
42 E024903 SEAL LEAD 2
46 E073009 FERRITE CORE 1

2

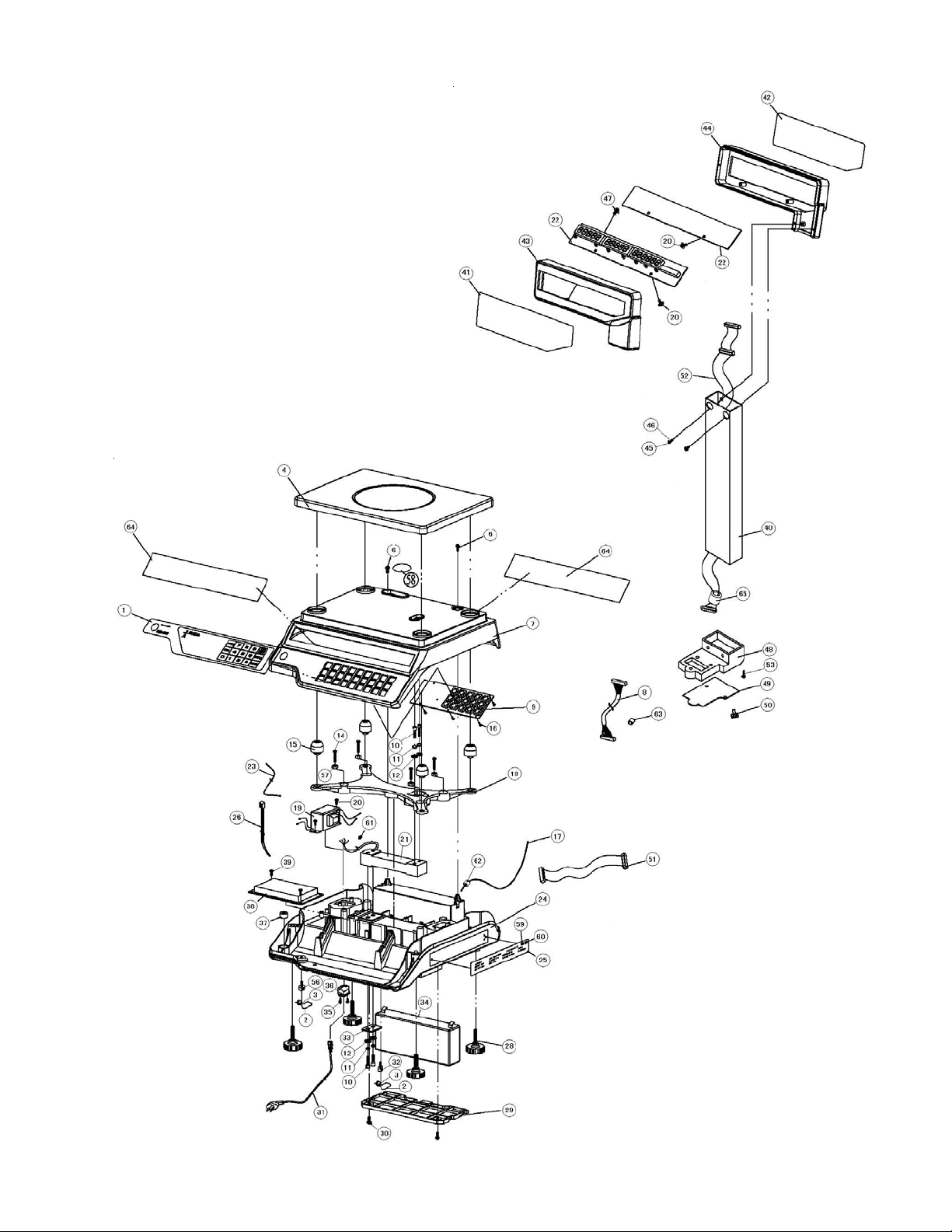

GS30T SCALE ASSEMBLY

3

GS30T SCALE P ARTS LIST

ITEM PART CODE DESCRIPTION QTY

1 E680411 KEY SHEET 1
2 E024800 SEAL, WIRE - F1 2
3 E024903 SEAL LEAD 2
4 E256809 PLATTER 1
6 E182108 SCREW, M4X12 2
7 E429406 CASE 1
8 E247017 HARNESS, KEY - S2 1

9 E281800 KEY, GS30/GS30T 1
10 E016909 SCREW 4
11 E020801 SPRING WASHER 4
12 E017003 WASHER, M6 4
14 E017201 SCREW, M4X25 4
15 E001621 PLATTER SUPPORT - RUBBER 4
16 E282901 SCREW, M2X4.5 8
17 E367404 HARNESS, GND - S2 1
18 E255124 PLATTER SUPPORT 1
19 E528402 TRANSFORMER 1
20 E013004 SCREW, M4X10 6
21 E249002 LOAD CELL 1
22 E281423 DISPLAY 2
23 E249501 HARNESS, GND - S2 1
24 E429311 BASE 1
25 E680807 DATA PLATE 1
26 E014500 CABLE TIE 3
28 E002515 LEVELING FOOT 4
29 E429500 COVER, BATTERY 1
30 E024800 SEAL, WIRE - F1 2
31 E333501 POWER CORD 1
32 E022701 SEAL SCREW, M4 1
33 E257609 SEAL WASHER 1
34 E133100 STORAGE BATTERY 1
35 E016203 SCREW 2
36 E282008 CONNECTOR, INLET 1
37 E572705 LEVEL UNIT 1
38 E631103 POWER CIRCUIT BOARD 1
39 E012308 SCREW 2
40 E286401 DISPLAY SUPPORT POST 1
41 E680214 DISPLAY, PANEL - FRONT 1
42 E680318 DISPLAY, PANEL - REAR 1
43 E515900 DISPLAY CASE, FRONT 1
44 E516004 DISPLAY CASE, REAR 1
45 E012101 SCREW, M4X6 2
46 E144407 WASHER, M5 2
47 E176004 O RING 4
48 E334800 BASE, DISPLAY SUPPORT POST 1
49 E334903 COVER, SUPPORT POST BASE 1
50 E364309 UNIT LEVELING AID 2
51 E363837 HARNESS, DISPLAY C2 1
52 E363930 HARNESS, DISPLAY S3 1
53 E013606 SCREW 2
56 E048600 SCREW, SEAL 1
57 E082301 NUT, M4 4
61 E073009 FERRITE CORE 1
62 E462401 FERRITE CORE 1
64 E680515 PANEL, DISPLAY 2

4

FORM GFE-GS30/GS30T 01/2010 Rev - ECN 1443

© GFE Co. Printed in USA
