Globe GPC16 User Manual

Parts Catalog

GPC16 Pasta Cooker

PASTA COOKER

MODEL: GPC16

1-15-16

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF PASTA COOKER.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238 • Fax [phone]

E-Mail: [e-mail]

Website: www.globefoodequip.com

Not for resale

© Globe Food Equipment Company, 2016

TABLE OF CONTENTS

Page

Control Box Components 1 - 2

Base Components 3 - 4

Wiring Diagram 5

GPC16 CONTROL BOX COMPONENTS

19

22

23

17

24

77

3

5

8

9

12

6

13

18

10

15

11

4

14

16

37

36

25

21

20

28

33

32

2

26

27

31

30

28 Ref

29

35

34

1

GPC16 CONTROL BOX PARTS LIST

Item Description Qty Part Number Standard Hardware

1 Control Box Assembly 1 U00576

2 Control Box 1 -

3 Back Cover 1 -

4 Cover Screw 5 H00571 M4-.7 x 8mm Phillips Pan Head

5 Thermal Cut Out/Reset 1 U00577

6 Transformer 1 U00578

7 Transformer Mounting Screw 2 H00571 M4-.7 x 8mm Phillips Pan Head

8 Lock Washer 2 H00033 M4 Lock Washer, External Tooth

9 Hex Nut 2 H00034 M4 Hex Nut

10 Power Cord and Plug 1 U03021205013

11 Strain Relief 1 U00579

12 Power Switch 1 U03041215027

13 Hex Nut, Ground Connection 2 H00034 M4 Hex Nut

14 Ground Washer 1 H00033 M4 Lock Washer, External Tooth

15 Ground Screw 1 H00031 M4-.7 x 16mm Phillips Pan Head

16 Power Indicator Lamp 1 U00581

17 Timer 1 U03991290110

18 Timer Mounting Nut 8 H00572 M2.5-.45 Hex Nut, Nylon

19 Thermostat 1 U00580

20 Thermostat Washer 2 H00573 M5 Flat Washer, Nylon

21 Thermostat Mounting Screw 2 H00029 M4-.7 x 6mm Phillips Pan Washer Head

22 Knob Assembly 1 U01033

23 Thermostat Knob 1 -

24 Spring Plate 1 -

25 Control Box Handle 1 -

26 Handle Washer 2 H00033 M6 Lock Washer, External Tooth

27 Handle Mounting Nut 2 H00548 M6 Hex Nut, Nylon Insert

28 Heating Element with Nuts 1 U00582

29 Heating Element Washer 2 U00591

30 Element Connection Washer 2 H00033 M4 Lock Washer, External Tooth

31 Element Connction Screw 2 H00029 M4-.7 x 6mm Phillips Pan Washer Head

32 Sensor Bushing 2 U02121165001

33 Sensor Wire Clamps (Set/2) 2 U01051025128

34 Heating Element/Sensor Clip 2 U1051025117

35 Element Handle Assembly 1 U00584

36 Heating Element Cover 1 U00585

37 Element Cover Screw 2 H00574 M4-.7 x 16mm Phillips Pan Head - SS

2

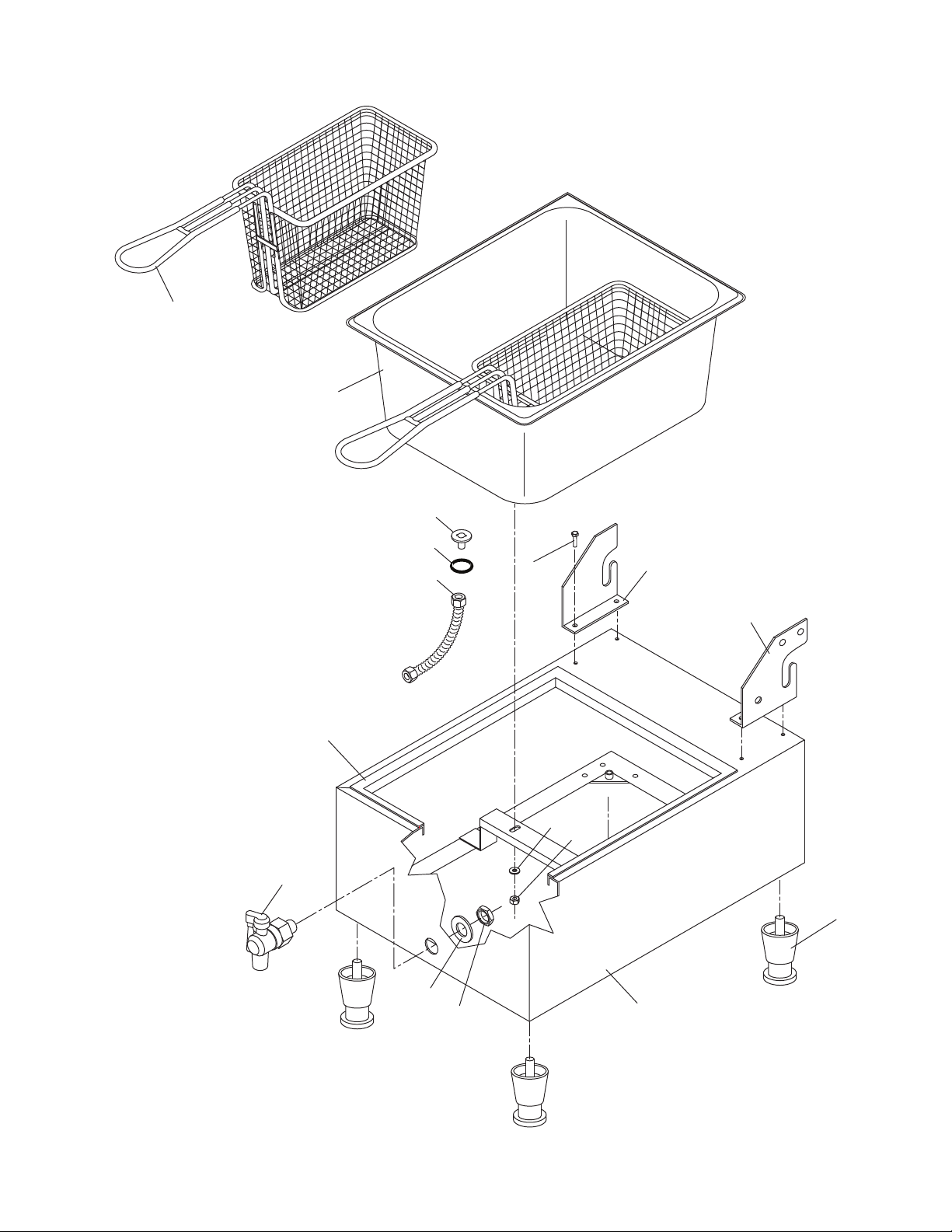

GPC16 BASE COMPONENTS

16

5

10

12

11

9

8

4

6

7

3

2

15

13

14

1

3

GPC16 ELECTRICAL BOX PARTS LIST

Item Description Qty Part Number Standard Hardware

1 Pasta Cooker Base 1 ­2 Electrical Box Mtg Bracket, RH 1 ­3 Electrical Box Mtg Bracket, LH 1 ­4 Bracket Mounting Screw 4 H00575 M4-.7 x 10mm Hex Hd
5 Pan 1 U00586
6 Pan Washer 2 H00014 M6 Flat Washer
7 Pan Mounting Nut 2 H00020 M6 Hex Nut
8 Pan Gasket 1 U00587

9 Corrugated Tube with Nuts 1 ­10 Pan Flange 1 ­11 Pan Drain Seal 1 ­12 Drain Spigot 1 U00588
13 Spigot Washer 1 U00599
14 Spigot Nut 1 U00600
15 Adjustable Foot 4 U01021005002

16 Basket

2 PASTABASKET
4 MINIBASKET

4

GPC16 Wiring Diagram, 208-240V

240V

WHT

2
N

WHT

1

RED

N

3 6

POWER

SWITCH

INDICATOR

LAMP

WHT WHT

BLK

5
L

4
L

BLK

BLK

L1L2 (N)

BLK

E

1

P

2

BLK

THERMAL

CUT OUT/RESET

RED

HEATING

ELEMENT

WHT BLK

2

THERMOSTAT

K

RED BLU

4

1

WHT

BLK

STEP DOWN

BLK BLU

TRANSFORMER

BLK

5

TIMER

BLK

BLK

Notes

6

995086 GFE-GPC16 15Jan2016 Rev A ECN 1894
