Parts Catalog
GG36G
Gas Cooking Equipment
Griddle
Model:
10/10/17 Rev -
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF UNIT.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
GG36G
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 · Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
© Globe Food Equipment Company, 2017
Not for resale
995129 ECN 1925
Table of Contents
PageDescription
GG36G Gas Griddle Components 4
GG36G Gas Orifice Elevation 6

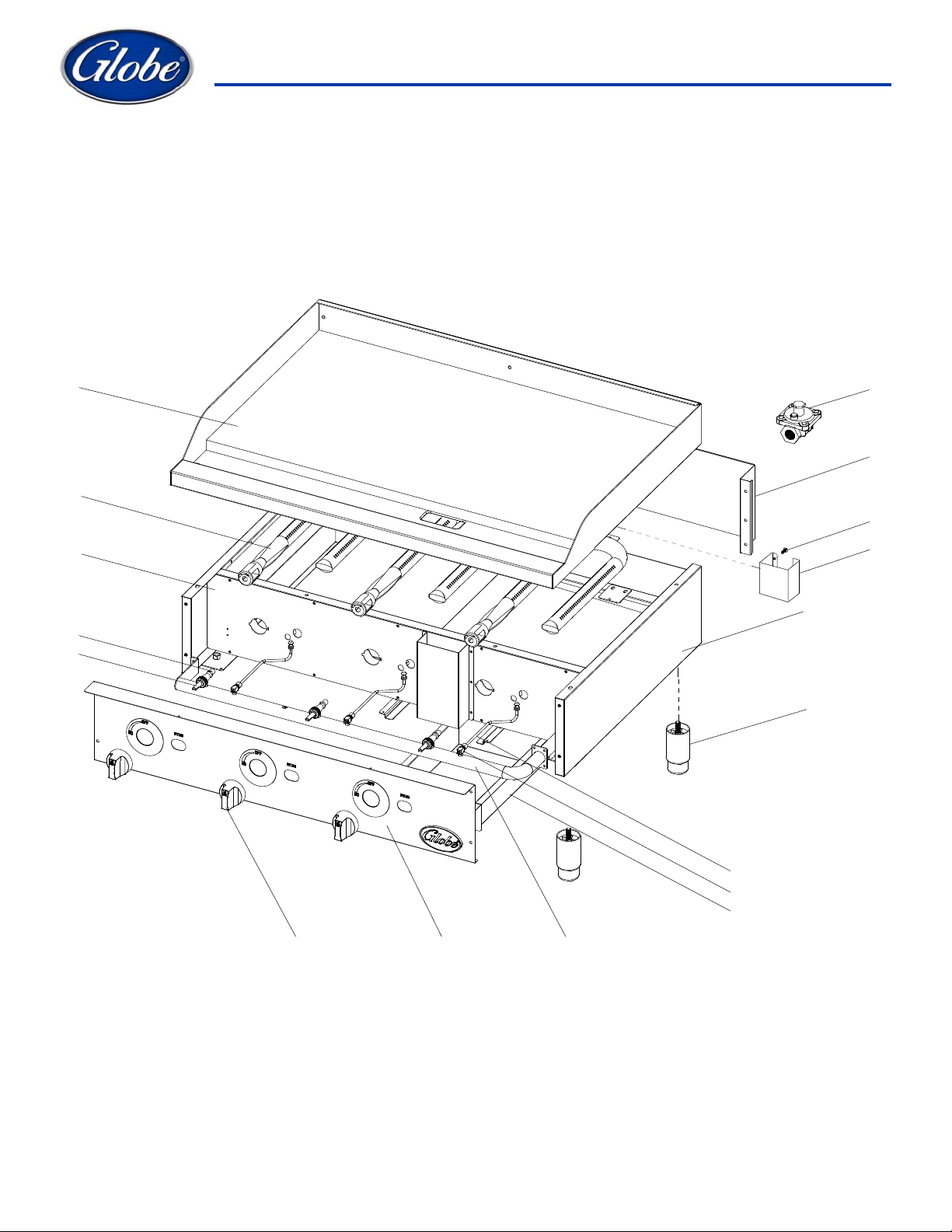

GG36G Gas Griddle Components
13
12
11
10
14
15
17
16
1
9
2
7 8
4
© Globe Food Equipment Company
6
3
4
5
r
GG36G Gas Griddle Components
Q.
QtyDescriptionItem Part Numbe
Serial Number
1 1Main Enclosure, Lower
U01021005165
2
3
4
5
U06051471014
U01201068509
U01051026835
4Foot, Adjustable - SS
3Pilot Pipe
3Pilot Valve, Single
1Drip Tray ->1614032270
5 U01082 1Drip Tray 1614032271 - 1615065888
5 U00811 1Drip Tray 1615065889 ->
6 1Manifold Assembly
7 1Control Panel
U01021005188
8
9
10
10
U01201068502
U01201068651
U01201068641
3Control Knob
3Valve
3Main Injector #51 LPG
3Main Injector #41 NG
11 1Isolating Plate, Front
U06051470384
12
13
12
14
15
06.05.1472234
U06051470672
U01221069501
U01151066092
3Stainless Steel Burner Assembly ->1614032270
1Griddle Plate Assembly
3Stainless Steel Burner Assembly 1614032271 ->
1Regulator, 6" NAT or 10" LP, 3/4"-PT
1Rear Panel ->1614032269
15 U01031 1Rear Panel 1614032270 ->Purchase with *
16 U01032 1Support Bracket *
17 U01075 4Screw *
U01021005186
18
1Ignition Bar Not Shown
19 1Isolating Plate, Lower Not Shown
5
© Globe Food Equipment Company
GG36G Gas Orifice Elevation
A
Rated
Model
Griddle 30000 U01201068641 (#41) U01201068651 (#51) U06051470839 (#43) U06051470824 (#52)
Input Per
Burner
(BTU/HR)
Nat LP Nat LP
Elevation
0-2000 ft
Elevation
2000 - 4000 ft
Elevation Elevation
4000 - 6000 ft 6000 - 8000 ft
Nat LP Nat LP
Griddle 30000 U06051470869 (#44) U06051470824 (#52) U06051470899 (#45) U06051470884 (#53)
Elevation
8000 - 10000 ft
Nat LP Nat LP
Griddle 30000 U06051470929 (#47) U06051470884 (#53) U01201068513 (.45mm) U01201068512 (.25mm)
For Thermostatic Griddle Only
Pilot
ll Elevations
All orifices sold as single quantities
6
© Globe Food Equipment Company
