Globe GEG36 Electrical
Project Name: AIA#:
Model #: Location:
SIS#: Item #: Quantity:

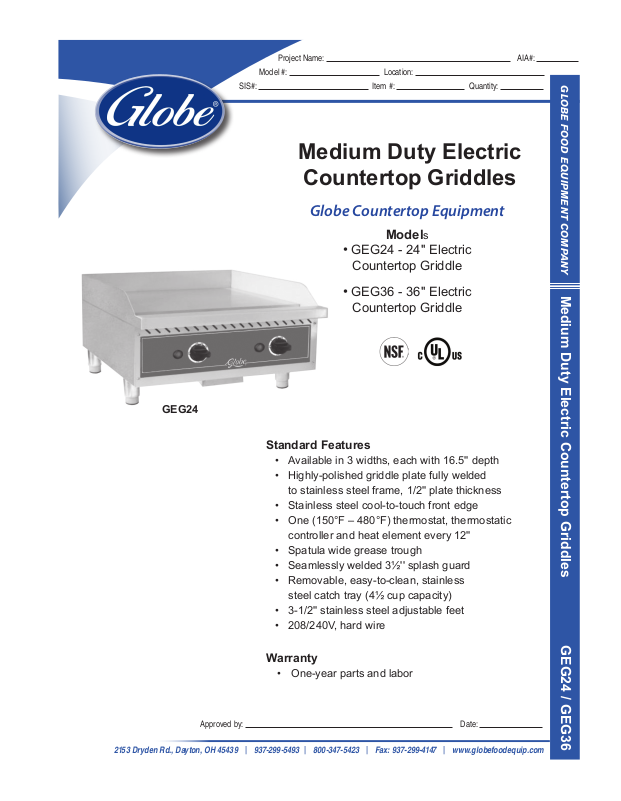

GLOBE FOOD EQUIPMENT COMPANY
Medium Duty Electric
Countertop Griddles
Globe Countertop Equipment
Models
• GEG24 - 24'' Electric
Countertop Griddle
GEG24
• GEG36 - 36'' Electric
Countertop Griddle
Standard Features
• Available in 3 widths, each with 16.5'' depth
• Highly-polished griddle plate fully welded
to stainless steel frame, 1/2'' plate thickness
• Stainless steel cool-to-touch front edge
• One (150°F – 480°F) thermostat, thermostatic
controller and heat element every 12''
• Spatula wide grease trough
• Seamlessly welded 3½'' splash guard
• Removable, easy-to-clean, stainless
steel catch tray (4½ cup capacity)
• 3-1/2'' stainless steel adjustable feet
• 208/240V, hard wire
Medium Duty Electric Countertop Griddles GEG24 / GEG36
Warranty
• One-year parts and labor
Approved by: Date:
2153 Dryden Rd., Dayton, OH 45439 | 937-299-5493 | 800-347-5423 | Fax: 937-299-4147 | www.globefoodequip.com
Medium Duty Electric Countertop Griddles GEG24 / GEG36
Specications
For Indoor Use Only
Wire terminal connection All are hard wire connections.
Electrical:
GEG24: 208-240V
4200W/5600W
(4.2/5.6 KW) 1P - 60HZ
(Can be 3PH wired)
GEG36: 208-240V
6300W/8400W
(6.3/8.4 KW) 1P - 60HZ
(Can be 3PH wired)
GEG48: 208-240V
8400W/11200W
(8.4/11.2 KW) 1P - 60HZ
(Can be 3PH wired)
Griddle Top Cooking Space:
GEG24: griddle area 24'' x 16.3''
(61 cm x 42 cm)
GEG36: griddle area 36'' x 16.3''
(91 cm x 42 cm)
Consistent Heating: Griddle will
maintain a constant, selected
temperature to ensure product
consistency.
Standard Equipment: Standard
equipment includes the electric
griddle and easy-to-remove catch
tray.
Catch tray: Stainless steel,
continuously collects grease and
crumbs while
cooking on the griddle.
GEG24 Dimensions:
Foot Print = 21.7'' x 24''
(55 cm x 61 cm)
Overall Length = 21.7'' (55 cm)
Overall Width = 24'' (61 cm)
Overall Height = 12.9'' (33 cm)
GEG36 Dimensions:
Foot Print = 21.7'' x 36''
(55 cm x 91 cm)
Overall Length = 21.7'' (55 cm)
Overall Width = 36'' (91 cm)
Overall Height = 12.9'' (33 cm)
SHIPPING:
GEG24 Shipping Information:
Net Weight: 92 lbs (41.7 kg)
Shipping Weight: 121 lbs. (55 kg)
Dimensions: 26.4'' W x 24.5'' D x 17'' H
(67 cm x 62 cm x 43 cm)
GEG36 Shipping Information:
Net Weight: 130 lbs (59 kg)
Shipping Weight: 161 lbs. (73 kg)
Dimensions: 38.3'' W x 24.5'' D x 17'' H
(97 cm x 62 cm x 43 cm)
Ships on an individual pallet.
Cartons are reinforced for shipping.
The weight and dimensions of this
reinforced carton are included above
and may vary from shipment to
shipment.
Thermostats: The temperature is
thermostatically controlled. Thermostat
element is every 12''.
''
21.7''
2153 Dryden Rd., Dayton, OH 45439 | 937-299-5493 | 800-347-5423 | Fax: 937-299-4147 | www.globefoodequip.com
Specifications are subject to change without notice.Printed in U.S.A. 07-2014
