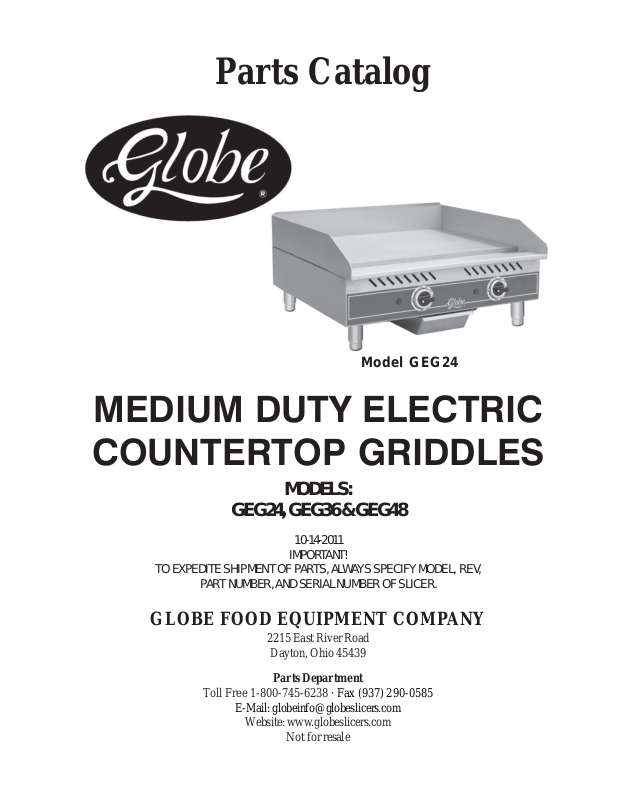

Globe GEG24 Parts List

Parts Catalog

Model GEG24

MEDIUM DUTY ELECTRIC

COUNTERTOP GRIDDLES

MODELS:

GEG24, GEG36 & GEG48

10-14-201 1

IMPORT ANT!

TO EXPEDITE SHIPMENT OF PARTS, ALW AYS SPECIFY MODEL, REV,

P ART NUMBER, AND SERIAL NUMBER OF SLICER.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

Dayton, Ohio 45439

Parts Department

T oll Free 1-800-745-6238 · Fax [phone]

E-Mail: [e-mail]

W ebsite: www.globeslicers.com

Not for resale

TABLE OF CONTENTS

GEG24 COMPONENTS
GEG36 COMPONENTS
GEG48 COMPONENTS

1 - 4
5 - 8

9 - 12

GEG24 ELECTRIC GRIDDLE COMPONENTS

12

14

13

11

10

9

15

8

7

6

5

4

2

3

16

17

1

1

GEG24 P ARTS LIST

Item Description Part Number Qty

1 Foot , A djust abl e - S S U01021005165 4
2 Pl ate, Foot S upport - 4
3 Drip Tray U01051025574 1
4 Pl ate, B ase U06051470499 1
5 Indicator Light U03091240006 2
6 Knob U02101155013 2
7 Swi t ch, ON/OFF U03041215033 2
8 T hermostat U03051220048 2

9 Enclosure Assembly - 1
10 Pl ate, Ins ulation U01071040229 1
11 Pl ate, E l em ent U01991090036 2
12 Pl ate, S ensor U01051027329 2
13 Heati ng E l em ent U03061225104 2
14 Pl ate, Gri ddle - 1
15 Box, Connect ion - 1
16 Bar, Connect i on U03081235018 1
17 Cover, Connection Box U01051027359 1

2

GEG24 ELECTRIC GRIDDLE SCHEMA TIC

CONNECTION

THREE PHASE

L3

1

L2

2

4

G

L1

L1

3

1

CONNECTION

SINGLE PHASE

3

L2

2

4

1 PH 1 PH

208V 240V

G

ON/OFF SWITCH 1

ON/OFF SWITCH 2

NOMINAL AMPS PER LINE

PILOT LIGHT 1

4,200 WATTS 5,600 WATTS

208V ~ 3 PHASE 240V ~ 3 PHASE

L1 L2 L3 L1 L2 L3

10.1 17.49 10.1 11.67 20.21 11.67 20.19 23.33
AWG #14 AWG #10 AWG #14 AWG #14 AWG #10 AWG #14 AWG #10 AWG #10

THERMOSTAT 1 THERMOSTAT 2

PILOT LIGHT 1

NOTE:

1. USE ONLY COPPER WIRE FOR SUPPLY CONNECTIONS.
WIRE TO BE SUITABLE FOR AT LEAST 90C (194F). USE
WIRE GAUGE SHOWN OR LARGER.

2. ALL INTERNAL WIRING IS #14 GAUGE.

3

HEATING ELEMENT 1 HEATING ELEMENT 2

GEG24 NOTES

4

GEG36 ELECTRIC GRIDDLE COMPONENTS

12

10

14

13

11

9

15

8

7

5

6

4

2

3

16

17

1

5

GEG36 P ARTS LIST

Item Description Pa rt Number Qty

1 F oot, Adjust abl e - SS U01021005165 4
2 Plate, F oot Support - 4
3 Dri p Tray U01051025574 1
4 Plate, B ase U06051470641 1
5 Indic at or Li ght U03091240006 3
6 Knob U02101155013 3
7 Swit ch, ON/OFF U03041215033 3
8 Thermostat U03051220048 3

9 Enclosure Assembly - 1
10 Pl at e, Insul at i on U01071040230 1
11 Pl at e, E l em ent U01991090036 3
12 Pl at e, S ens or U01051027329 3
13 Heati ng E l ement U03061225104 3
14 Pl at e, Griddl e - 1
15 Box, Connec tion - 1
16 Bar, Connect ion U03081235018 1
17 Cover, Connection B ox U01051027359 1

6

GEG36 ELECTRIC GRIDDLE SCHEMA TIC

1 PH 1 PH

208V 240V

C (194F). USE

NOMINAL AMPS PER LINE

6,300 WATTS 8,400 WATTS

208V ~ 3 PHASE 240V ~ 3 PHASE

L1 L2 L3 L1 L2 L3

17.49 17.49 17.49 20.21 20.21 20.21 30.29 35
AWG #10 AWG #10 AWG #10 AWG #10 AWG #10 AWG #10 AWG #8 AWG #6

NOTE:

WIRE GAUGE SHOWN OR LARGER.

1. USE ONLY COPPER WIRE FOR SUPPLY CONNECTIONS.

WIRE TO BE SUITABLE FOR AT LEAST 90

2. ALL INTERNAL WIRING IS #14 GAUGE.

7

GEG36 NOTES

8

GEG48 ELECTRIC GRIDDLE COMPONENTS

12

10

14

13

11

9

8

7

15

6

4

2

5

3

16

17

1

9

GEG48 P ARTS LIST

Item Description Part Number Qty

1 F oot , A dj ust able - S S U01021005165 4
2 Plate, Foot S upport - 4
3 Drip Tray U01051025574 1
4 Plate, B ase U06051470662 1
5 Indicat or Light U03091240006 4
6 Knob U02101155013 4
7 Swit ch, ON/ OF F U03041215033 4
8 Thermostat U03051220048 4

9Enclosure Assembly - 1
10 Pl at e, Ins ul at i on U01071040229 2
11 Pl at e, E lem ent U01991090036 4
12 Pl at e, S ens or U01051027329 4
13 Heating Element U03061225104 4
14 Pl at e, Griddl e - 1
15 Box, Connec t i on - 1
16 Bar, Connect i on U03081235018 1
17 Cover, Connec t i on B ox U01051027359 1

10

GEG48 ELECTRIC GRIDDLE SCHEMA TIC

1 PH 1 PH

208V 240V

C (194F). USE

NOMINAL AMPS PER LINE

8,400 WATTS 11,200 WATTS

208V ~ 3 PHASE 240V ~ 3 PHASE

L1 L2 L3 L1 L2 L3

26.71 17.49 26.71 30.87 20.21 30.87 40.38 46.67
AWG #8 AWG #10 AWG #8 AWG #8 AWG #10 AWG #8 AWG #6 AWG #4

NOTE:

WIRE GAUGE SHOWN OR LARGER.

1. USE ONLY COPPER WIRE FOR SUPPLY CONNECTIONS.

WIRE TO BE SUITABLE FOR AT LEAST 90

2. ALL INTERNAL WIRING IS #14 GAUGE.

11

GEG48 NOTES

12
