Serial #:
GCB36G

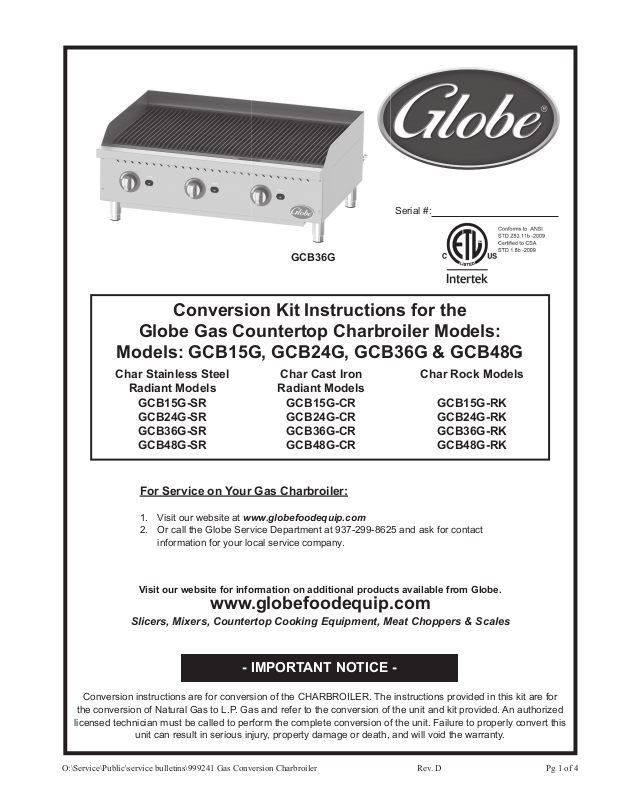

Conversion Kit Instructions for the
Globe Gas Countertop Charbroiler Models:
Models: GCB15G, GCB24G, GCB36G & GCB48G
Char Stainless Steel
Radiant Models
GCB15G-SR
GCB24G-SR
GCB36G-SR
GCB48G-SR
For Service on Your Gas Charbroiler:
1. Visit our website at www.globefoodequip.com
2. Or call the Globe Service Department at 937-299-8625 and ask for contact
information for your local service company.
Visit our website for information on additional products available from Globe.
Char Cast Iron
Radiant Models
GCB15G-CR
GCB24G-CR
GCB36G-CR
GCB48G-CR
Char Rock Models
GCB15G-RK
GCB24G-RK
GCB36G-RK
GCB48G-RK
www.globefoodequip.com
Slicers, Mixers, Countertop Cooking Equipment, Meat Choppers & Scales
- IMPORTANT NOTICE -
Conversion instructions are for conversion of the CHARBROILER. The instructions provided in this kit are for
the conversion of Natural Gas to L.P. Gas and refer to the conversion of the unit and kit provided. An authorized
licensed technician must be called to perform the complete conversion of the unit. Failure to properly convert this
unit can result in serious injury, property damage or death, and will void the warranty.
O:\Service\Public\service bulletins\999241 Gas Conversion Charbroiler Rev. D
Pg 1 of 4
Charbroiler
Conversion Kit Instructions
Do not attempt gas conversion by yourself. Gas conversion of your unit is to be
made by a certifi ed/licensed technician. Locate an authorized Globe servicer at
www.globefoodequip.com or call 800-347-5423.
CONVERSION
Instructions are for conversion from Natural Gas to Propane (L.P.) on all models. The conversion should be
done before connecting the unit to the gas supply. Units are shipped from the factory equipped for use on
natural gas. Parts necessary for L.P. (liquid propane) are provided with the unit. Turn off the main gas supply
before doing any maintenance. (Use only factory supplied regulator!)
Convertible
regulator with
octagon cap.
Unscrew from
regulator.
1. Remove the knobs and front panel.
2. Unscrew bolts and pilot valve, then
remove the manifold.
NAT
3. Replace the orifi ce fi ttings into the valve.
Note: Unit Number on side of orifi ce
fi ttings.
L.P.
5. Before installing the included convertible
regulator, unscrew the octagon cap. You can read
(NAT) on the plastic insert attached to the head of
the cap; fl ip it over and snap back in place.
Pictured is
the plastic
insert. Pull
off insert
from octagon
cap and
reverse the
plastic insert
position so
that the L.P.
position is
attached to
the octagon
cap head.
L.P. Position
of insert.
Regulator
is now
converted to
L.P.
L.P.
L.P. Position
4. Replace the front panel and knobs
Pg 2 of 4
6. Continue with installation.
Rev. D O:\Service\Public\service bulletins\999241 Gas Conversion Charbroiler
U01201068651
(# 51)
U06051470937
(#42)
U01201068651
(# 51)
Specifi cations are subject to change without notice.
U06051470907
(# 40)
U06051470832
(# 50)
Elevation Elevation Elevation Elevation Elevation
Per
Input
HR)
(BTU/
Burner
U06051470877
(# 39)
U06051470832
(# 50)
U06051470847
(# 38)
U01201068649
(# 49)
0-2000 ft 2000 - 4000 ft 4000-6000 ft 6000-8000 ft 8000-10000 ft
Nat LP Nat LP Nat LP Nat LP Nat LP
U01201068636
(# 36)
Model Rated
Gas Specifi cations Table
O:\Service\Public\service bulletins\999241 Gas Conversion Charbroiler Rev. D Pg 3 of 4
Charbroiler 40000
Specifi cations are subject to change without notice.www.globefoodequip.com
© Copyright Globe Food Equipment Company 2014 Produced in the United States of America 12/11 All Rights Reserved
Globe and the Globe logo are trademarks or registered trademarks of Globe Food Equipment Company in the United States and/or other countries.
Rev. D O:\Service\Public\service bulletins\999241 Gas Conversion Charbroiler Pg 4 of 4
