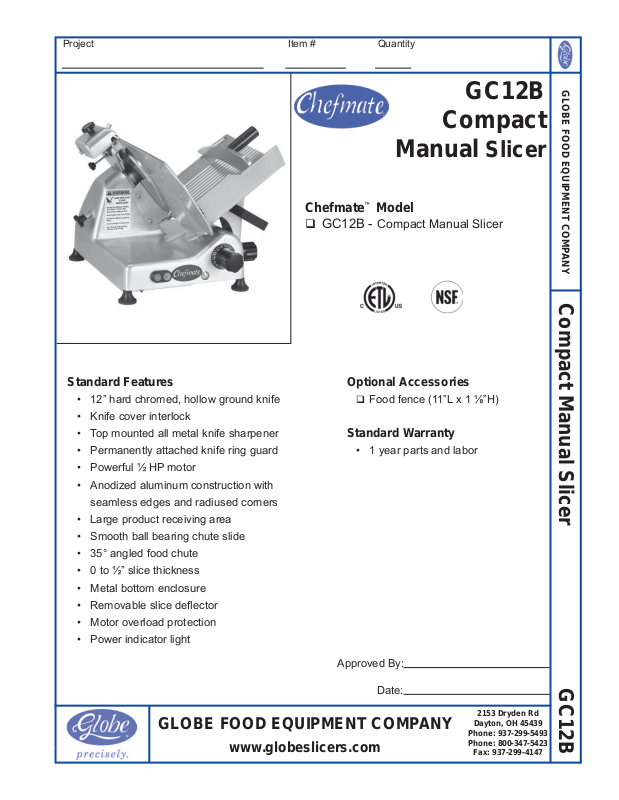

Globe GC12B User Manual
Project Item # Quantity
GC12B
Compact
Manual
Chefmate™ Model
GC12B - Compact Manual Slicer
Slicer
GLOBE FOOD EQUIPMENT COMPANY
Compact Manual Slicer GC12B
Standard Features
• 12” hard chromed, hollow ground knife
• Knife cover interlock
• Top mounted all metal knife sharpener
• Permanently attached knife ring guard
• Powerful ½ HP motor
• Anodized aluminum construction with
seamless edges and radiused corners
• Large product receiving area
• Smooth ball bearing chute slide
• 35° angled food chute
• 0 to ½” slice thickness
• Metal bottom enclosure
• Removable slice defl ector
• Motor overload protection
• Power indicator light
Optional Accessories
Food fence (11”L x 1 ⅛”H)
Standard Warranty
• 1 year parts and labor
Approved By:
Date:
GLOBE FOOD EQUIPMENT COMPANY
www.globeslicers.com
2153 Dryden Rd
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
Compact Manual Slicer GC12B
Specifi cations
Finish: Heavy gauge anodized
aluminum that is stain resistant,
long lasting, and easy to clean.
Motor: Powerful ½ HP, fan
cooled, 115-60-1, 6 amps,
permanently lubricated ball
bearings ensure quiet operation.
Knife Drive: Knife is driven by a
positive grooved belt that works
well in medium duty applications.
Slice Thickness: Food can be
sliced from 0 to ½” thick.
Knife Cover Interlock: Slicer
will not operate with the knife
cover removed.
Top Mounted Sharpener:
Sharpener is made of all metal
and is top mounted for easy
access. A two stone, dual
action design allows you to
quickly return a razor sharp
edge to your knife.
Hollow Ground Knife:
Nominal 12” diameter, hard
chromed, hollow ground blade
lasts longer and sharpens easier.
On/Off Controls: Moisture
protected separate on/off push
button type.
Ball Bearing Chute Slide
System: Ball bearing system
ensures smooth and easy
movement of the food chute
assembly.
Knife Hub: Knife hub bearings,
belt, and motor are fully enclosed
protecting them from food and
other debris.
Knife Ring Guard: Permanently
mounted knife ring guard
protects the non-slicing portion
of the knife. Slicer table protects
leading edge of the knife when
completely closed.
Table Rod: Separate table
support rod is protected by the
table casting and cover.
Underside: Components are
covered by a metal plate
protecting them from food and
other debris.
Slice Defl ector: Heavy duty
defl ector is securely fastened
to the slicer, yet is still easy to
remove without tools.
Capacity:
Height 8.5” (21.6cm), Width 9.5”
(24.1cm), Diameter 8” (20.3cm)
Cord & Plug: Attached 6 foot
fl exible 3 wire cord and plug fi ts a
grounded receptacle.
Dimensions:
Foot Print: 14.875”W x 19.125”D
(37.8cm x 48.6cm)
Overall Length: 24” (61cm)
Overall Width: 19.25” (49cm)
Overall Height: 17” (43.2cm)
Freight Class: 77.5
Net Weight: 54 lbs. (24.5kgs.)
Shipping Weight: 70 lbs (31.7kgs.)
Box Dimensions:
22”W x 26”D x 20”H
(55.9cm W x 66cm D x 50.8cm H)
Optional Accessories:
M500A Food fence
(11”L x 1 ⅛”H)
GLOBE FOOD EQUIPMENT COMPANY
www.globeslicers.com
Specifi cations are subject to change without notice.
Printed in U.S.A. 6-2008
2153 Dryden Rd
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
