Parts Catalog
G12A Slicer
SLICING MACHINE
MODEL: G12A
07-10-14N
Serial Number 600748 and Up
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF SLICER.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 • Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
Not for resale
TABLE OF CONTENTS
Serial Number 600748 and Up
Base Components 1 - 2
Chute Components 3
Knife & Sharpener Components 4
Auto Drive Components 5 - 6
Electrical Components 7
Wiring Diagram 8
Page
G12A BASE COMPONENTS
40
45
46
41
42
44
39
47
1
48
43
28
4
31
19
30
29
36
32
33
37
14
17
18
11
9
6
10
12
34
35
38
7
8
13
20
15
16
21
11
24
3
2
26
27
25
22
5
23
1
G12A BASE PARTS LIST
Item Description Qty Part Number Hardware
1 Slicer Base 1 2 Table Adjustment Knob 1 M00209
3 Table Adjustment Ferrule 1 M00211
4 Wave Washer 1 M003
5 Table Adjustment Cam 1 M004
6 Set Screw , Table Adjustment Cam 2 H00181
7 Table Slide Assembly (Items 8-17) 1 M305
8 Table Slide 1 -
9 Stud, Cam Actuator 1 M013
10 Flat Washer 2 H00191
11 Hex Nut, Table Slide Bottom 2 H00192
12 Set Screw, Table Slide Top 1 H00182
13 Set Screw, Table Slide End 1 H00185
14 Set Screw, Table Slide Side 2 H00186
15 Set Screw, Table Slide Bottom 1 H00188
16 Hex Nut , Table Slide Bottom 1 H00028
17 Table Slide Rod 1 MR36
18 Slide Rod Flat Washer 2 H00191
19 Slide Rod Screw, Hex Head 2 H00116
20 Table Slide Plate 1 M016
21 Slide Plate Screw 2 H00061
22 Carriage Slide Rod 1 M059
23 Carriage Spring 2 M061
24 Slide Rod Screw 2 M060
25 Wear Strip, Slide Bar 1 M063
26 Slide Bar, Square 1 M062
27 Slide Bar Screw 2 H00056
28 Motor Hub Seal 1 MGI77/5
29 Knife Hub Assembly (Items 30-36) 1 M319
30 Retaining Ring, Internal 1 H00193
31 Retaining Ring, External 1 H00195
32 Bearing 2 M020
33 Spacer, Knife Pulley 1 M021
34 Shaft, Knife Hub 1 M00241
35 Oil Seal, Hub 1 MR12/7
36 Pulley, Knife Hub 1 MCR12/2
37 Microswitch Mounting Bolt 1 MCR61
38 Knife Shaft Set Screw 1 H00184
39 Knife Cover Release Knob 1 M00225
40 Table 1 M00232
41 Table Support 1 M00227
42 Table Support Washer 2 H00191
43 Table Support Screw 2 H00196
44 Hole Cover, Base 1 M00228
45 Knife Wiper 1 M097
46 Thumb Screw, Knife Wiper 2 MCC23
47 Warning label 1 M91022
48 Label, Globe Logo 1 M91021
2

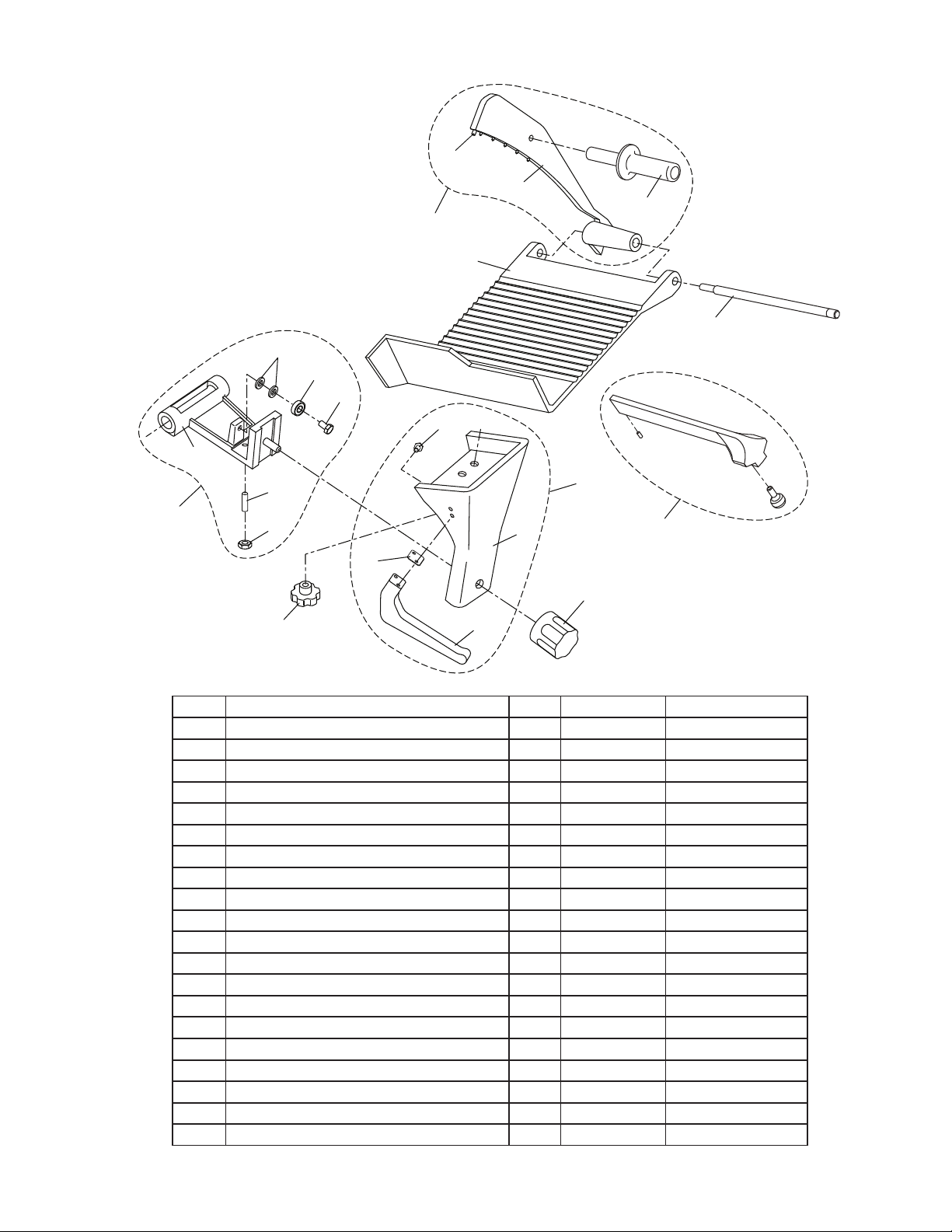

G12A CHUTE COMPONENTS
19
16
5
6
7
12
2
3
1
4
15
17
18
20
8
9
21
11
13
14
Item Description Qty Part Number Hardware
1 Chute Slide Assy (Item 2 - 7) 1 M00291
2 Chute Slide 1 3 Brass Stud 1 M053
4 Stud Nut 1 H00192
5 Bearing Washer 2 H00191
6 Bearing 1 M056
7 Bearing Screw 1 H00117
8 Chute Support Assembly (Item 9 - 12) 1 M00282
9 Chute Support 1 M00363
10 Chute Support Handle 1 M067
11 Chute Support Handle Seal 1 M00267
12 Chute Support Handle Screw 2 H00156
13 Chute Support Knob 1 M00268
14 Chute Release Knob 1 M00254
15 Chute 1 M00386
16 End Weight Assembly (Item 17 - 19) 1 M00286
17 End Weight 1 18 End Weight Handle 1 M00261
19 End Weight Bumper 1 MC39
20 End Weight Rod 1 M00283
21 Chute Fence Assembly 1 M500A
10
3

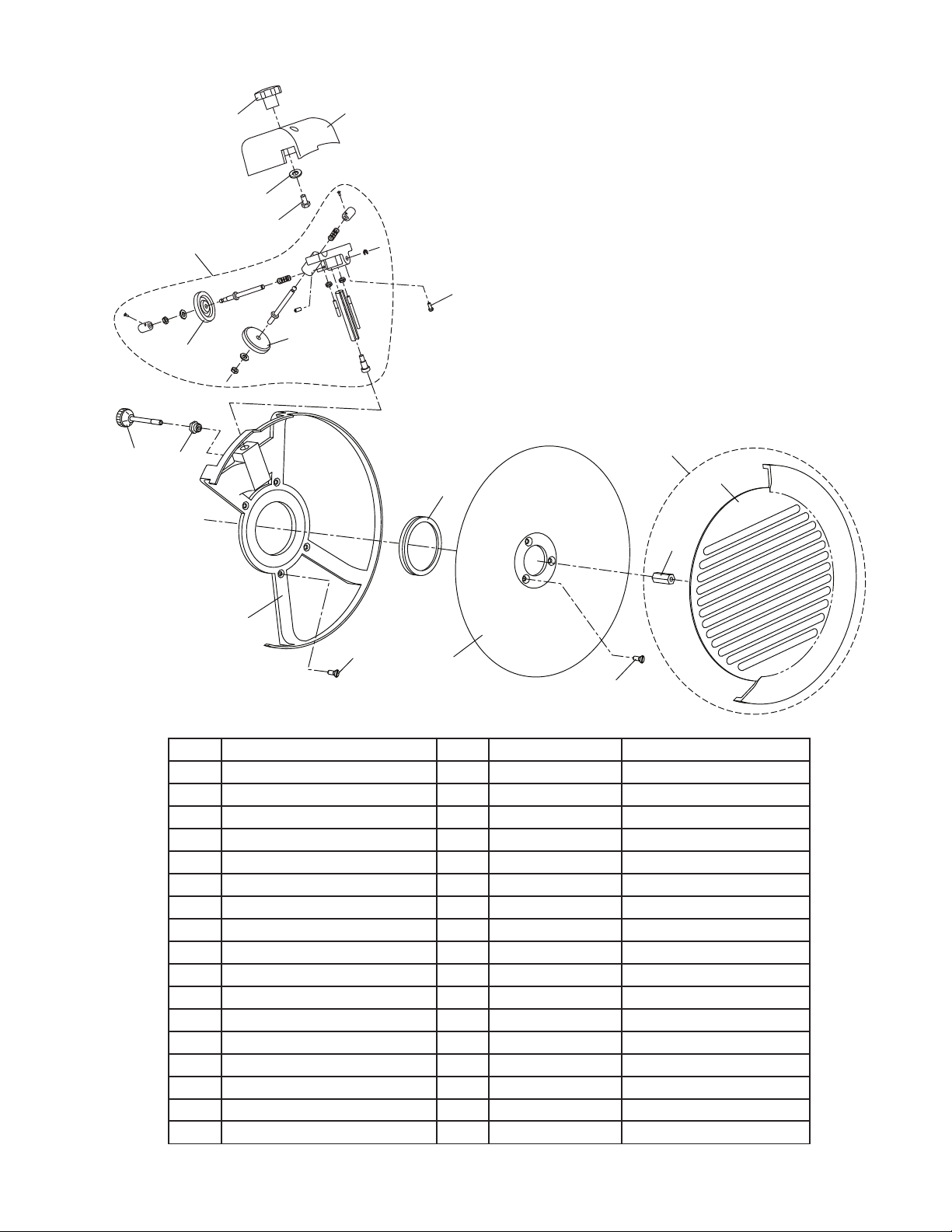

G12A KNIFE AND SHARPENER COMPONENTS
14
17
11
10
12
13
6
9
8
7
3
18
4
5
15
16
1
2
Item Description Qty Part Number Hardware
1 Knife 1 M047
2 Knife Mounting Screw 3 H00201
3 Knife Cover Assembly 1 M349
4 Knife Cover 1 -
5 Knife Cover Insert 1 M049A
6 Sharpener Frame Assembly 1 M00398
7 Deburring Stone 1 M092
8 Sharpening Stone 1 MCC17
9 Sharpener Cover Screw 2 H00187
10 Sharpener Cover 1 M074
11 Sharpener Cover Knob 1 M075
12 Cover Knob Washer 1 M035
13 Cover Knob Screw 1 H00197
14 Sharpener Release Knob 1 M096
15 Knife Rim Guard 1 M044
16 Rim Guard Mounting Screw 4 H00435
17 Knife Rim Guard Insert 1 M045
18 Knife Seal, V Ring - VA 80 1 M00405
4
G12A AUTO DRIVE COMPONENTS
Included
with Item 4
9
11
7
8
18
19
12
14
19
15
16
19
3
4
10
5
6
13
1
39
40
19
17
26
25
24
27
34
33
32
30
28
29
38
37
36
35
31
23
45
20
21
22
41
44
42
43
5
G12A AUTO DRIVE PARTS LIST
Item Description Qty Part Number Hardware
1 Chute Motor 1 M120
2 Motor Key (Not Shown) 1 M120-K
3 Reducing Gear 1 M121
4 Auto Drive Shaft (Item 5 - 8) 1 M129
5 Machine Key 2 H00323
6 Machine Key 1 H00324
7 Spacer 1 -
8 Retaining Ring, External 1 H00317
9 Auto Drive Coupling 1 M130
10 Sleeve Bearing, Long 1 M137
11 Coupling Screw 1 H00043
12 Connecting Rod A 1 M131
13 Connecting Rod C 1 M133
14 Sleeve Bearing, Long 1 M137
15 Sleeve Bearing, Short 1 MCRS8/2
16 Connecting Rod B 1 M132
17 Sleeve Bearing, Long 2 M137
18 Pivot 1 M144
19 Retaining Ring, External 4 H00317
20 Chute Slide Rod 1 M127
21 Stop Ring 1 M147
22 Auto Engage Lever Hub 1 M00255
23 Auto Engage Lever 1 M00277
24 Bushing, Chute Slide (Nylon) 1 M125
25 Actuator Slide Ring 1 M124
26 Chute Slide Nut (Nylon) 1 M123
27 Chute Slide Tube 1 M122
28 Chute Slide Stud 1 M126
29 Jam Nut 1 H00318
30 Cam 1 M136
31 Wavy Washer 1 MB32
32 Engagement Spring Mounting Bracket 1 M135
33 Mounting Bracket Washer 2 H00063
34 Mounting Bracket Screw 2 H00319
35 Engagement Spring 1 M134
36 Engagement Spring Washer 2 H00063
37 Engagement Spring Lock Washer 2 H00011
38 Engagement Spring Mounting Screw 2 H00061
39 Chute Slide Coupling 1 M143
40 Slide Coupling Mounting Screw 2 H00305
41 Apron, Chute Drive 1 M118BA
42 Apron Mounting Screw 4 H00316
43 Bottom Cover 1 M00325
44 Back Foot 2 M115
45 Front Foot 2 M00229
6
G12A ELECTRICAL COMPONENTS
4
3
17
19
18
22
1
2
6
7
16
5
12
9
10
Item Description Qty Part Number Hardware
1 Drive Belt 1 M024
2 Knife Motor 1 M030
3 Post, Motor Pivot 1 M031
4 Screw 1 H00189
5 Set Screw 1 M033
6 Hex Nut 2 M034
7 Flat Washer 2 M035
8 Cable Clamp 1 M037
9 Clable Clamp Screw 1 H00061
10 Motor Reset Switch 1 M038
11 Capacitor, 16µƒ 2 M039
12 Capacitor Mounting Bracket 2 -
13 Lock Washer 2 H00335
14 Hex Nut 2 H00192
15 Capacitor Washer 2 H00063
16 Capacitor Mounting Screw 2 H00061
17 Push Button Body 1 M00353
18 Power Switch 1 M00352
19 Power Switch Cover 1 MCRS59
20 Power Cord & Plug 1 M110
21 Strain Relief 1 M111
22 Terminal & Insulator Set 20 M00233
23 Ground Screw/Marking Tab Set 1 M00334
24 Terminal Block 1 MB80/2
25 Terminal Block Mounting Screw 1 H00203
26 Relay 1 MCRS75
27 Relay Socket 1 MCRS76
28 Relay Mounting Plate 1 M149
29 Hub Assembly Microswitch 1 M026
30 Chute Drive Microswitch 1 M139
31 Microswitch Mounting Screw 2 H00204
8
11
15
14
13
25
27
24
23
29
26
28
7
20
21
30
31

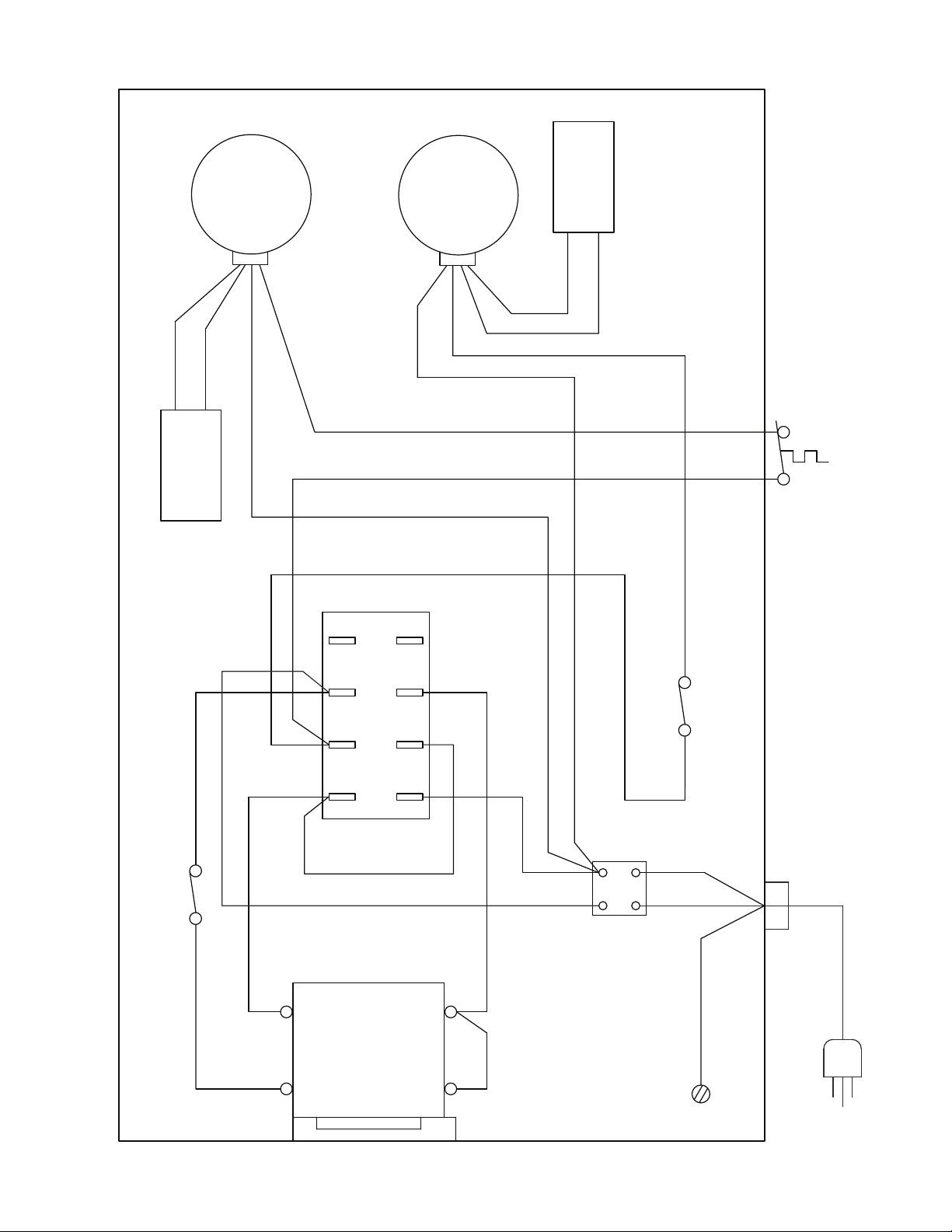

WIRING DIAGRAM - 115V, 50/60/Hz, 1 PH
KNIFE
WHT
BLK
WHT
CAPACITOR
MAY VA RY
WIRE COLOR
MOTOR
WHT
CAPACITOR
WHT
CHUTE
MOTOR
G12A Slicer
BLK
BLK
BLK
RED
1
NC
NO
2
RELAY
BLK
CSA RESET
INTERLOCK
MICROSWITCH
RED
WHT
BLK
COM
7 5 3
COIL
4
ON/OFF
1
8 6 4
SWITCH
WHT
WHT
3
WHT
2
8
BLK
RED
BLOCK
TERMINAL
CHUTE
RED
BLK
WHT
YEL/GRN
MICROSWITCH
GROUND
CONNECTOR
POWER CORD
995082 GFE-G12A NSF 10Jul2014 Rev B ECN 1830
