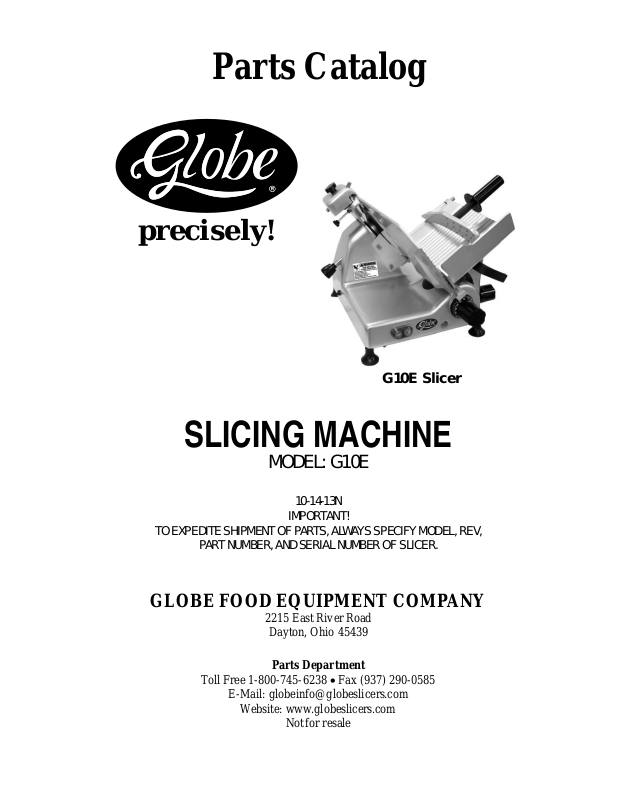

Globe G10E Parts List

Parts Catalog

precisely!

G10E Slicer

SLICING MACHINE

MODEL: G10E

10-14-13N

IMPORTANT!

TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,

PART NUMBER, AND SERIAL NUMBER OF SLICER.

GLOBE FOOD EQUIPMENT COMPANY

2215 East River Road

Dayton, Ohio 45439

Parts Department

Toll Free 1-800-745-6238

E-Mail: [e-mail]

Website: www.globeslicers.com

Not for resale

Fax [phone]

TABLE OF CONTENTS

Page

Base Components 1 - 2

Chute Components 3

Knife & Sharpener Components 4

Electrical Components 5

Wiring Diagram 6

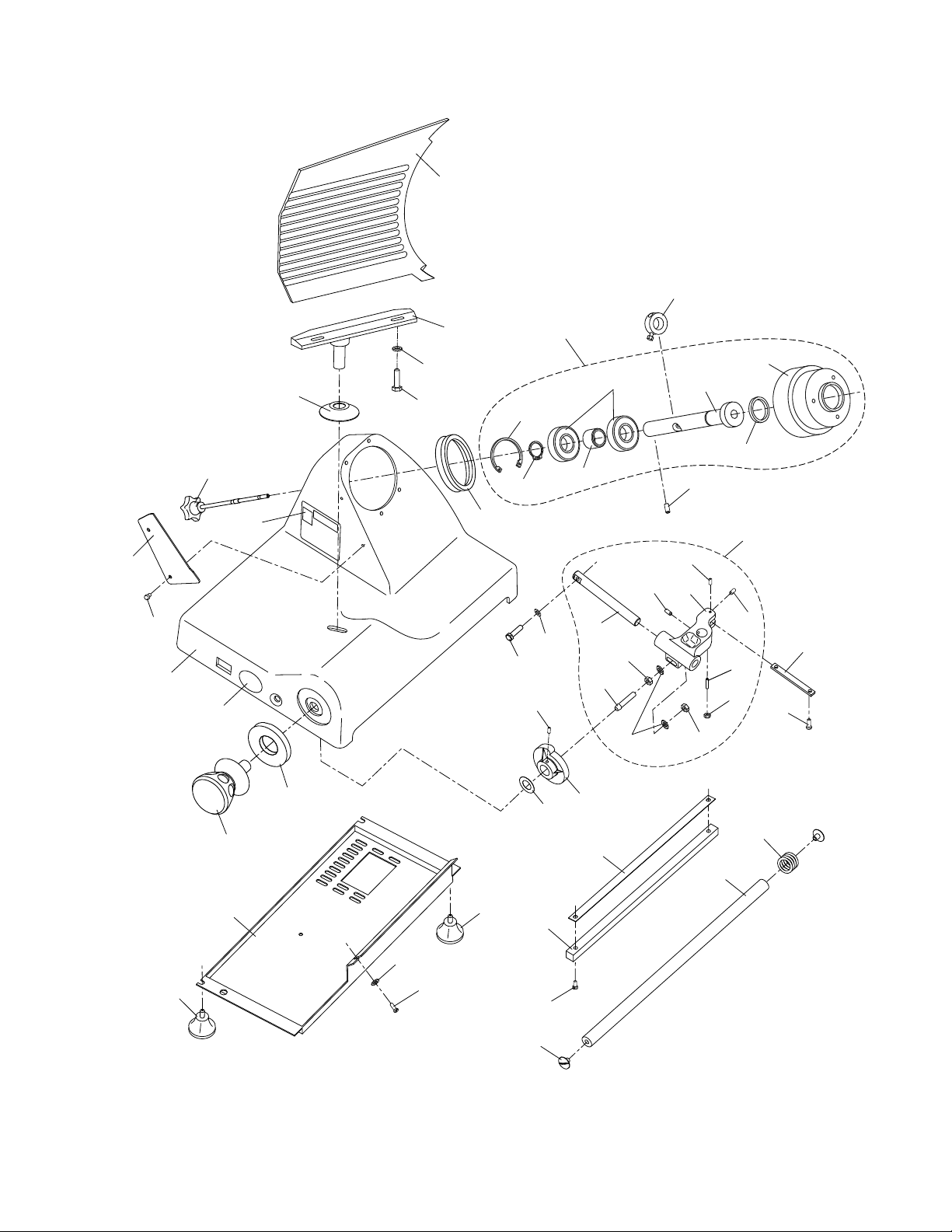

G10E BASE COMPONENTS

40

37

45

46

41

42

44

39

52

1

53

43

28

31

30

19

29

36

32

33

14

17

18

11

9

6

10

12

34

35

38

7

8

13

20

15

16

21

11

51

47

3

2

50

26

48

49

24

27

5

4

23

25

22

1

G10E BASE PARTS LIST

Item Description Qty Part Number Hardware

1 Slicer Base 1 -

2 Table Adjustment Knob 1 M00208

3 Table Adjustment Ferrule 1 M00211

4 Wave Washer 1 M003

5 Table Adjustment Cam 1 M004

6 Table Adjustment Cam Set Screw 2 H00181 M5x10 Dog Point

7 Table Slide Assy (Item 8 to 17) 1 M00212

8 Table Slide 1 -

9 Stud, Cam Actuator 1 MCA34

10 Flat Washer 2 H00014 M6 Flat Washer

11 Hex Nut, Table Slide Bottom 2 H00020 M6 Hex Nut

12 Set Screw, Table Slide Top 1 H00182 M5x10 Flat Point

13 Screw, Table Slide End 1 H00189 M4x10 Cylindrical Head

14 Set Screw, Table Slide Side 2 H00186 M8x10 Cup Point

15 Screw, Table Slide Bottom 1 H00187 M5x16 Cylindrical Head

16 Hex Nut, Table Slide Bottom 1 H00028 M5 Hex Nut

17 Rod, Table Slide 1 M014

18 Slide Rod Flat Washer 2 H00191 M8

19 Slide Rod Screw 2 H00116 M6x20 Hex Head

20 Table Slide Plate 1 M016

21 Slide Plate Screw 2 H00061 M5x10 Cylindrical Head

22 Carriage Slide Rod 1 MCA26

23 Carriage Spring 2 MCA27

24 Slide Rod Screw 2 MCA25

25 Wear Strip, Slide Bar 1 MA31/1

26 Slide Bar, Square 1 MCA31

27 Slide Bar Screw 2 H00187 M5x16 Cylindrical Head

28 Motor Hub Seal 1 MGI77/5

29 Knife Hub Assembly (Item 30 - 36) 1 M00280

30 Retaining Ring, Internal 1 H00053 M35, DIN 472

31 Retaining Ring, External 1 H00194 M15, DIN 471

32 Bearing 2 MCA12/3

33 Spacer, Knife Pulley 1 M00237

34 Shaft, Knife Hub - Switch Collar 1 M00337

35 Oil Seal, Hub 1 MR12/7

36 Pulley, Knife Hub 1 M00238

37 Microswitch Collar 1 MCB61

38 Knife Shaft Set Screw 1 H00183 M5x10 Cup Point

39 Knife Cover Release Knob 1 M00224

40 Table 1 M00221

41 Table Support 1 M00239

42 Table Support Washer 2 H00014 M6 Flat Washer

43 Table Support Screw 2 H00116 M6x20 Hex Head

44 Hole Cover, Base 1 M00218

45 Knife Wiper 1 M097

46 Thumb Screw, Knife Wiper 2 MCC23

47 Bottom Cover 1 M00240

48 Flat Washer 1 H00063 M5 Flat Washer

49 Cover Screw 1 H00061 M5x10 Cylindrical Head

50 Back Foot 2 M00219

51 Front Foot 2 M00220

52 Warning label 1 M91022

53 Label, Globe Logo 1 M91021

2

G10E CHUTE COMPONENTS

15

12

5

6

7

13

14

11

16

2

8

3

1

4

9

10

Item Description Qty Part Number Hardware

1 Chute Slide Assembly (Item 2 - 7) 1 M00272

2 Chute Slide 1 -

3 Brass Stud 1 M053

4 Stud Nut 1 H00192 M8 Hex Nut

5 Bearing Washer 2 H00014 M6 Flat Washer

6 Bearing 1 MCA29

7 Bearing Screw 1 H00043 M6x25 Hex Head

8 Chute Support 1 M00274

9 Chute Support Knob 1 M00268

10 Chute Release Knob 1 M00377

11 Chute 1 M00276

12 End Weight Assembly (Item 13 - 15) 1 M00264

13 End Weight 1 -

14 End Weight Handle 1 M00257

15 End Weight Bumper 1 M108

16 End Weight Rod 1 M00258

3

G10E KNIFE AND SHARPENER COMPONENTS

12

14

13

9

8

10

11

4

7

6

5

16

2

15

1

3

Item Description Qty Part Number Hardware

1 Knife 1 MCB13
2 Screw, Knife Mounting 3 H00201 M5x14 Flat Head
3 Knife Cover 1 M00327
4 Sharpener Frame Assembly 1 M00397
5 Deburring Stone 1 M092
6 Sharpening Stone 1 MCC17
7 Sharpener Cover Screw 2 H00187 M5x16 Cylindrical Head
8 Sharpener Cover 1 M074

9 Sharpener Cover Knob 1 M075
10 Flat Washer 1 H00014 M6 Flat Washer
11 Screw, Sharpener Cover Knob 1 H00197 M6x15 Hex Head
12 Sharpener Release Knob 1 M096
13 Knife Rim Guard 1 MCRB14/1
14 Insert, Knife Rim Guard 1 M045
15 Screw, Rim Guard 4 H00435 M4x10 Flat Head
16 V Ring, Knife Seal VA 80 1 M00405

4

G10E ELECTRICAL COMPONENTS

4

3

10

1

2

6

7

5

9

12

8

11

13

27

14

21

20

19

18

26

29

15

30

31

32

22

24

28

25

23

Item Description Qty Part Number Hardware

1 Drive Belt 1 MCB51
2 Knife Motor 1 M00348
3 Post, Motor Pivot 1 M031
4 Screw 1 H00189 M4x10 Cylindrical Head
5 Set Screw 1 H00347 M6x50 Flat Point
6 Hex Nut 2 H00020 M6 Hex Nut
7 Flat Washer 2 H00014 M6 Flat Washer
8 Motor Mounting Bracket 1 M00355
9 Motor Mounting Washer 2 H00063

10 Motor Mounting Screw 2 H00354
11 Cable Clamp 1 M037
12 Screw, Clable Clamp 1 H00061
13 Switch, Motor Reset 1 M038
14 Capacitor, 16μƒ 1 M039
15 Bracket, Capacitor Mounting 1 ­16 Lock Washer 1 H00335 M8 External Tooth Lock Washer
17 Hex Nut 1 H00192 M8 Hex Nut
18 Threaded Stud 1 H00188
19 Standoff, Cover Spacer 1 M00359
20 Cover Washer 1 H00014 M6 Flat Washer
21 Cover Mounting Screw 1 H00061 M5x10 Cylindrical Head
22 Power Switch 1 MCR69
23 Cover, Power Switch 1 MCR59
24 Power Cord & Plug 1 M110
25 Strain Relief 1 M111
26 Terminal & Insulator Set 15 M00233
27 Ground Screw/Marking Tab Set 1 M00334
28 Terminal Block 1 MB80/2
29 Terminal Block Mounting Screw 1 H00203 M4x20 Cylindrical Head
30 Relay 1 MCR75
31 Relay Socket 1 MCR76
32 Relay Mounting Plate 1 M00360
33 Hub Assembly Microswitch 1 M026

5

17

16

33

WIRING DIAGRAM - 115V, 50/60/Hz, 1 PH

MAY VARY

WIRE COLOR

WHT

CAPACITOR

WHT

RED

BLK

KNIFE

MOTOR

SWITCH

INTERLOCK

BOTTOM

VIEW FROM

BLK

BLK

OF SLICER

G10E Slicer

CSA RESET

22 12

NC

COIL

A2 A1

RED

COM

RELAY

21 1 1

NO

24 14

BLOCK

TERMINAL

WHT

ON/OFF

SWITCH

RED

36

25

WHT
RED

BLK

14

BLK

WHT

POWER CORD

GRN

GROUND

CONNECTOR

6

995079 GFE-G10E NSF 14Oct2013 Rev - ECN 1726
