Parts Catalog
E220
Slicing Machine
Model:
03/22/2019 Rev A
IMPORTANT!
TO EXPEDITE SHIPMENT OF PARTS, ALWAYS SPECIFY MODEL, REV,
PART NUMBER, AND SERIAL NUMBER OF UNIT.
GLOBE FOOD EQUIPMENT COMPANY
2215 East River Road
E220
Dayton, Ohio 45439
Parts Department
Toll Free 1-800-745-6238 · Fax (937) 290-0585
E-Mail: info@globefoodequip.com
Website: www.globefoodequip.com
© Globe Food Equipment Company, 2019
Not for resale
995060 ECN 1986
Table of Contents
PageDescription
E220 Slicer Base Components 4
E220 Chute Components 6
E220 Knife & Sharpener Components 8
E220 Electrical Components 10
E220 Wiring Diagram 12
5
E220 Slicer Base Components
1
2
3
4
7
6
32
9
44
43
37
36
10
11
14
12
8
13
26
33
31
15
23
16
22
34
42
17
20
18
21
24
25
27
28
39
38
41
39
40
29
30
4
© Globe Food Equipment Company
r
E220 Slicer Base Components
A
Q.
1 G00069 1Slicer Table
2 G00074 1Table Support Bracket
3 H00043 0Hex Head Screw M6x25 - Zn
4 G00076 1Base Hole Cover
5 G00077 1Cover Release Knob
6 G00078 1Deflector
7 22-A 2Deflector Screw
8 1
9 G00079 1Index Knob
10 G00081 1V Seal, Index Knob
11 G00082 1Index Knob Sleeve
12 H00047 2Set Screw, M5x5 Flat Pt, Hex Socket - BO
13 27 1Indexing Cam
14 H00066 1Wavy Washer
15 ET33 1Table Adjustment Assembly
16 1Table Adjustment Shaft
17 H00048 2Set Screw, M8x8 Cup Pt, Hex Socket - BO
18 1Table Slide
19 2Bearing, Table Slide (Not Shown)
20 H00014 1Flat M6 Washer - Zn
21 H00020 1Hex Nut, M6
22 H00044 1Square Nut M6 - Zn
23 1Indexing Cam Conic Shaft
24 H00028 1Hex Nut M5 - Zn
25 H00049 1Screw, Slotted Cyl Hd M5x16 - Brass
26 H00050 2Cap Screw, M5 x 16 Flat Head - Zn
27 1Plate, Table Adjustment
28 H00051 2Cap Screw, Hex Washer Head M5 x 10 - Zn
29 G00084 1Bottom Cover
30 H00051 4Cap Screw, Hex Washer Head M5 x 10 - Zn
31 D40 4Rubber Foot, New Style
32 G00085 2Rubber Foot, Large
33 ET52C 1V Seal, Drive Hub (Optional)
34 G00088 1Drive Hub Assembly
35 H00053 1Retaining Ring, Internal (Not Shown)
36 G00090 1Wear Strip, Slide Bar
37 G00091 1Slide Bar
38 H00054 2Cap Screw, Hex Washer Head M5 x 18 - Zn
39 H00057 4O Ring ø 4x14
40 G00093 1Slide Rod
41 H00054 2Cap Screw, Hex Washer Head M5 x 18 - Zn
42 55 1Drive Belt
43 81 1Warning Label
44 83-A 1Logo Label, Chefmate
luminium Base
QtyDescriptionItem Part Numbe
Serial Number
5
© Globe Food Equipment Company
1

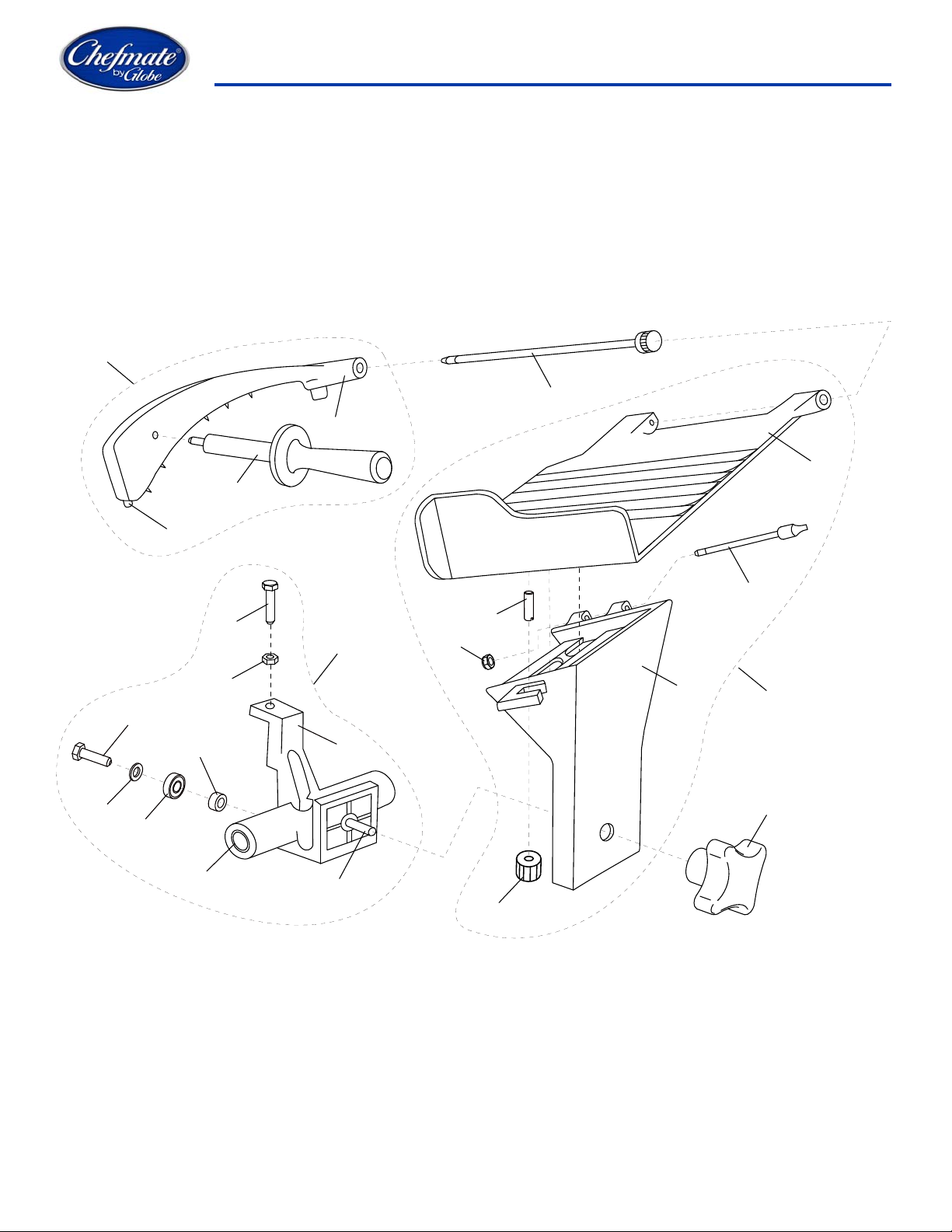

E220 Chute Components
6
2
8
3
20
19
21
4
22
23
16
17
24
15
18
11
9
13
12
10
7
14
6
© Globe Food Equipment Company
r
E220 Chute Components
Q.
1 G00122 1End Weight Assembly
2 1End Weight
3 G00124 1End Weight Handle
4 G00125 1White Plastic Bumber
5 2Bearing, End Weight (Not shown)
6 G00128 1End Weight Rod
7 G00135 1Chute Support Assembly
8 G00131 1Food Chute
9 H00060 1Set Screw, M6x16 Flat Pt Slotted - Zn
10 G00138 1Chute Unlock Shaft
11 H00064 1Hex Nut, Nylon Insert M5
12 G00140 1Chute Support
13 G00141 1Chute Unlock Knob
14 72 1Knob, Chute Support
15 G00144 1Chute Slide Assembly
16 H00145 1Screw, Hex Head M6 x 20 - Nylon
17 H00020 1Hex Nut, M6
18 1Chute Slide
19 H00043 1Hex Head Screw M6x25 - Zn
20 H00014 1Flat M6 Washer - Zn
21 47-B 1Bearing, Small
22 1Spacer
23 2Chute Slide Bearing (Not Shown)
24 46-A 1Chute Stud
QtyDescriptionItem Part Numbe
Serial Number
7
© Globe Food Equipment Company
5

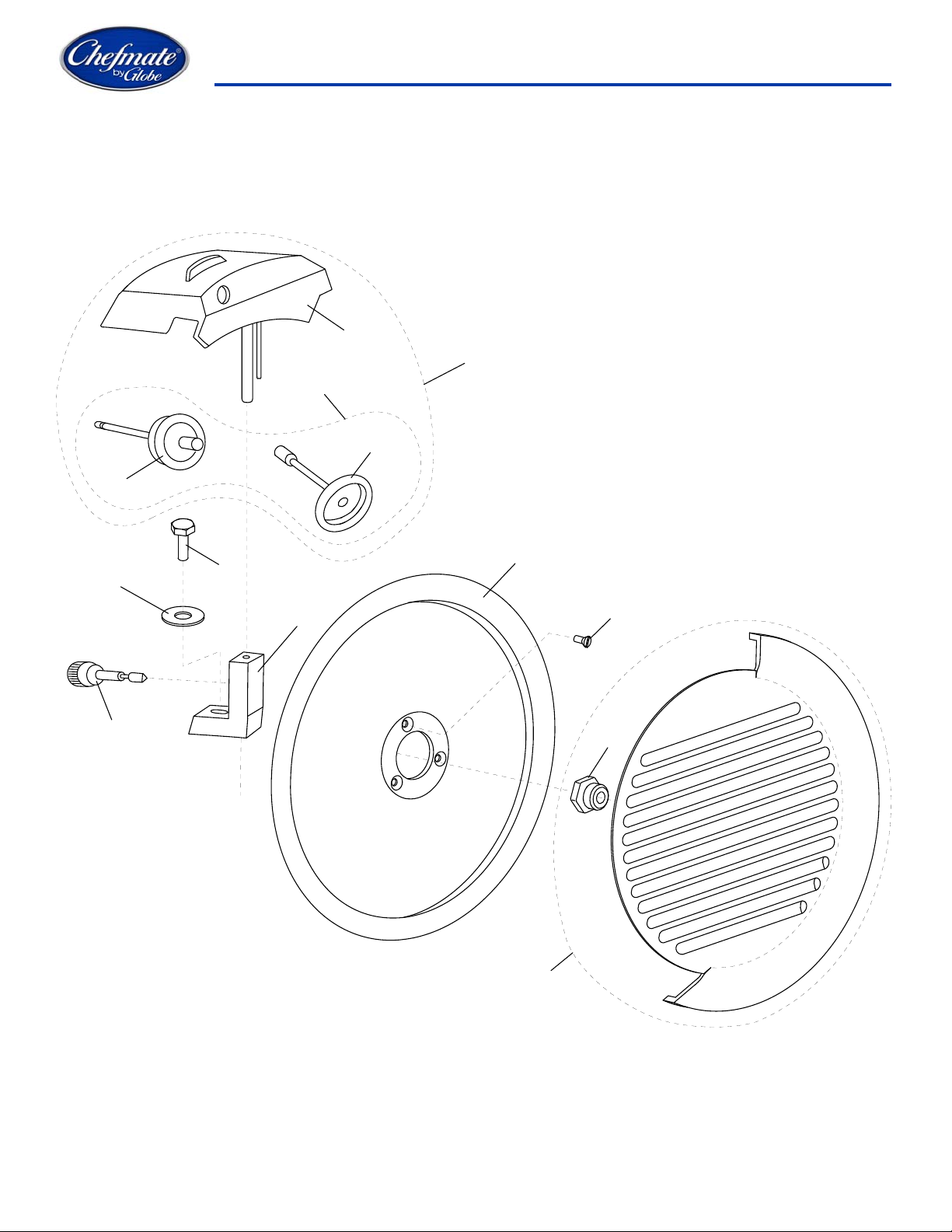

E220 Knife & Sharpener Components
2
1
3
4
8
9
7
6
12
11
13
10
8
© Globe Food Equipment Company
r
E220 Knife & Sharpener Components
Q.
1 G00098 1Knife Sharpener Assembly, Complete
2 G00094 1Sharpener Cover
3 G00102 1Sharpening/Truing Stone & Shaft Set
4 G00105 1Sharpening Stone (Coarse)
5 G00108 1Deburring Stone (Fine)
6 G00112 1Sharpener support
7 H00116 1Hex Head Screw M6-1.0x20 - Zn
8 H00120 1Flat Washer M6x18mm
9 10-B 1Sharpener Adjustment Screw
10 G00113 1Knife Cover
11 56-A 3Screw, Knife Mounting
12 56 1Slicer Knife
13 59-A 1Knife Cover Insert
QtyDescriptionItem Part Numbe
Serial Number
9
© Globe Food Equipment Company
E220 Electrical Components
8
7
5
5
6
5
4
18
3
2
17
16
15
19
13
20
3
9
10
14
11
Drive Belt shown
with Hub and Base
1
10
© Globe Food Equipment Company
12
r
E220 Electrical Components
Q.
1 G00151 1Motor
2 H00055 2Cap Screw, Hex Washer Head M5 x 23 - Zn
3 H00061 1Hex Head Screw M5x10, Zinc
4 1Belt Tightener Plate
5 H00020 3Hex Nut, M6
6 H00014 1Flat M6 Washer - Zn
7 H00043 1Hex Head Screw M6x25 - Zn
8 H00051 3Cap Screw, Hex Washer Head M5 x 10 - Zn
9 ET31 1Capacitor "Ducati UL"
10 1Capacitor Holder
11 877 1Strain Relief, Power Cord
12 132-3 1Power Cord
13 G00152 1Ground Screw/Marking Tab Set
14 89 1Reset Button with Cover
15 G00154 1Reset Button Cover
16 G00167 6Female Terminal & Insulator
17 ET28-1 1Power Switch
18 G00153 1Cover, Power Switch
19 H00065 1Terminal Block Mounting Screw, M2.9 x 13
20 G00155 1Terminal Block, 2 Position
QtyDescriptionItem Part Numbe
Serial Number
11
© Globe Food Equipment Company

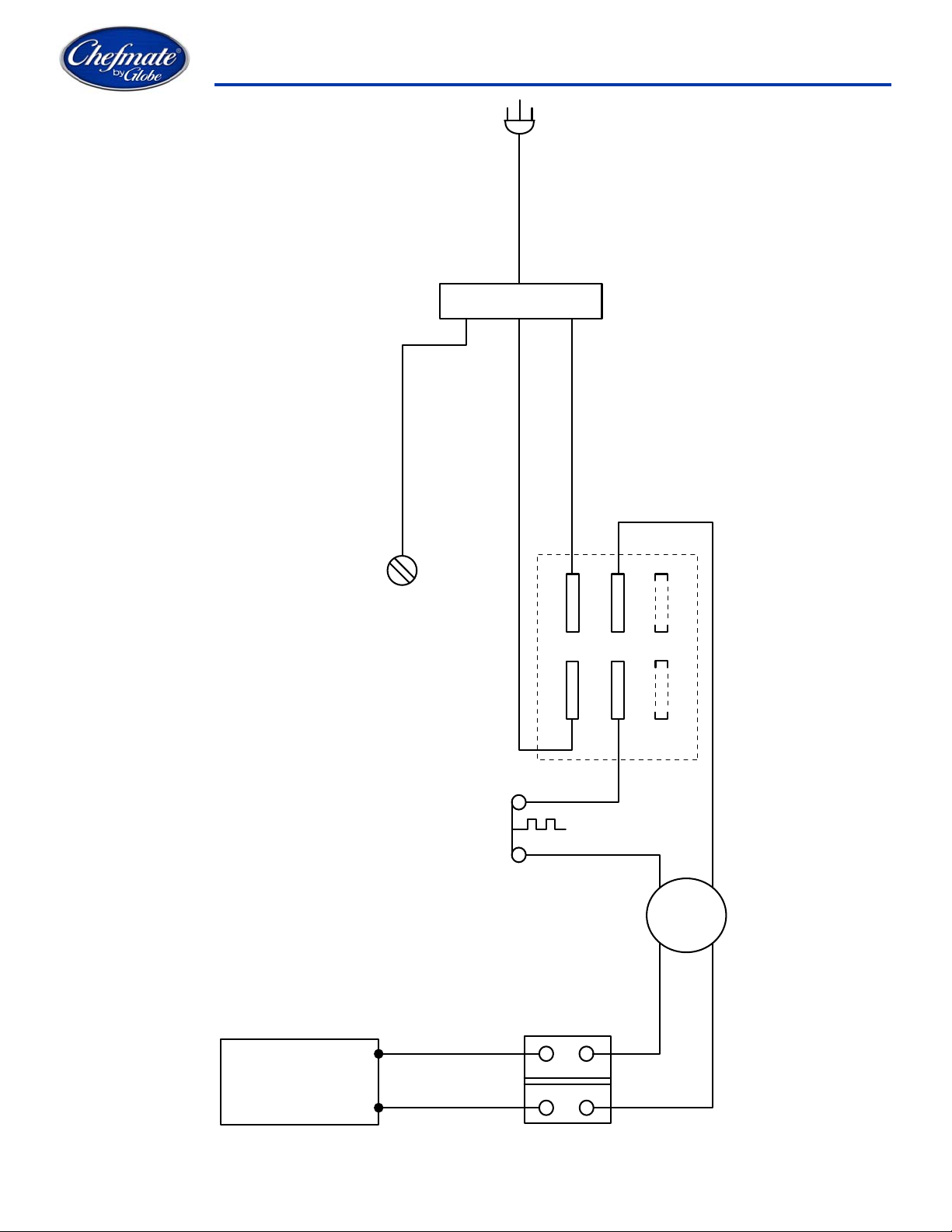

E220 Wiring Diagram
POWER
CORD
GROUND
CONNECTOR
WHITE
YELLOW/GREEN
ON - OFF
SWITCH
MOTOR
RESET
BLACK
BLUE
BLACK
BLACK
4 5
6
3 1 2
CAPACITOR
WHITE
WHITE
TERMINAL
12
© Globe Food Equipment Company
WHITE
WHITE
