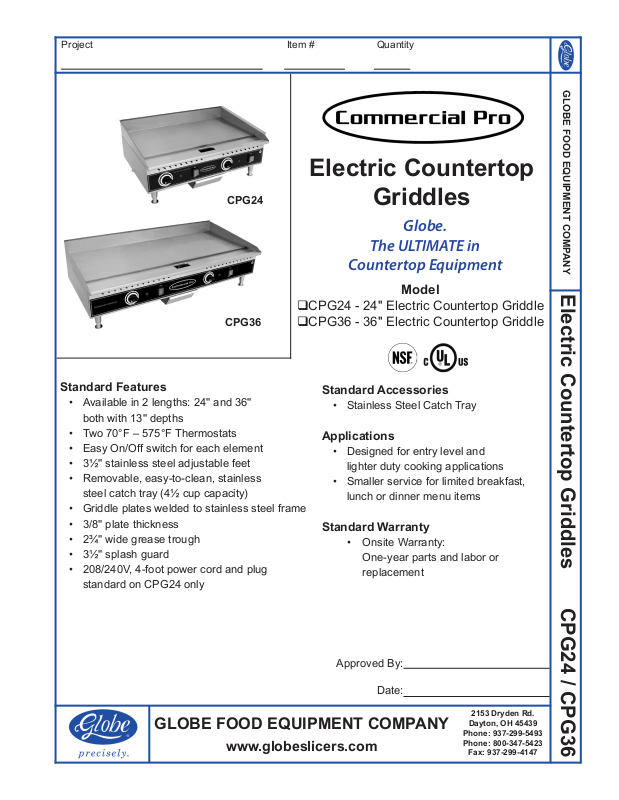

Globe CPG24 User Manual
Project Item # Quantity
Electric Countertop
GLOBE FOOD EQUIPMENT COMPANY
CPG24
CPG24 - 24'' Electric Countertop Griddle
CPG36
Standard Features
• Available in 2 lengths: 24'' and 36''
both with 13'' depths
• Two 70°F – 575°F Thermostats
• Easy On/Off switch for each element
• 3½'' stainless steel adjustable feet
• Removable, easy-to-clean, stainless
steel catch tray (4½ cup capacity)
• Griddle plates welded to stainless steel frame
• 3/8'' plate thickness
• 2¾'' wide grease trough
• 3½'' splash guard
• 208/240V, 4-foot power cord and plug
standard on CPG24 only
CPG36 - 36'' Electric Countertop Griddle
Griddles
Globe.
The ULTIMATE in
Countertop Equipment
Model
Standard Accessories
• Stainless Steel Catch Tray
Applications
• Designed for entry level and
lighter duty cooking applications
• Smaller service for limited breakfast,
lunch or dinner menu items
Standard Warranty
• Onsite Warranty:
One-year parts and labor or
replacement
Electric Countertop Griddles CPG24 / CPG36
Approved By:
Date:
GLOBE FOOD EQUIPMENT COMPANY
www.globeslicers.com
2153 Dryden Rd.
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
Electric Countertop Griddles CPG24 / CPG36
Specications
For Indoor Use Only
Electrical:
CPG24: 208-240V
2.7/3.6KW 13/15amps
CPG36: 208-240V
4.05/5.4KW 19.5/22.5amps
Griddle Top Cooking Space:
CPG24: griddle area 23.8'' x 13''
(60.5cm x 33cm)
CPG36: griddle area 35.8'' x 13''
(91cm x 33cm)
Cord and Plug: 4-foot exible,
three-wire cord with ground plug
(CPG24 only 6-20P).
(CPG36 MUST be hard wired)
Thermostats: The temperature is
thermostatically controlled. Griddle
is equipped with one thermostat per
various cooking service interval.
For the 24'' griddle - every 12'', for
the 36'' griddle - every 18''.
Consistent Heating: Griddle will
maintain a constant, selected
temperature to ensure product
consistency.
Standard Equipment: Standard
equipment includes the electric
griddle and easy-to-remove
catch tray.
Catch tray: Continuously collects
grease and crumbs while cooking on
the griddle.
CPG24 Dimensions:
Foot Print = 17'' x 24.6''
(41.2 cm x 62.5 cm)
Overall Length = 24.6'' (62.5 cm)
Overall Width = 17'' (41.2 cm)
Overall Height = 11.3'' (28.7 cm)
CPG36 Dimensions:
Foot Print = 19.3'' x 36''
(48.3 cm x 91.4 cm)
Overall Length = 36'' (91.4 cm)
Overall Width = 19.3'' (48.3 cm)
Overall Height = 11.3'' (28.7 cm)
SHIPPING:
CPG24 Shipping Information:
Net Weight: 63.4 lbs (28.8 kg)
Shipping Weight: 68 lbs (31 kg)
CPG24 Shipping Dimensions:
22''W x 29''D x 13.2''H
(55.9 cm x 73.7 cm x 33.5 cm)
CPG36 Shipping Information:
Net Weight: 88.8 lbs (40.3 kg)
Shipping Weight: 130 lbs (60 kg)
CPG36 Shipping Dimensions:
21.3''W x 39.6''D x 16''H
(54.1 cm x 100.6 cm x 40.6 cm)
Cartons are reinforced for shipping.
The weight and dimensions of this
reinforced carton are included above
and may vary from shipment to
shipment.
CPG24
CPG36
GLOBE FOOD EQUIPMENT COMPANY
www.globeslicers.com
Printed in U.S.A. 08-2010
2153 Dryden Rd.
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
Specications are subject to change without notice.
