Serial #:

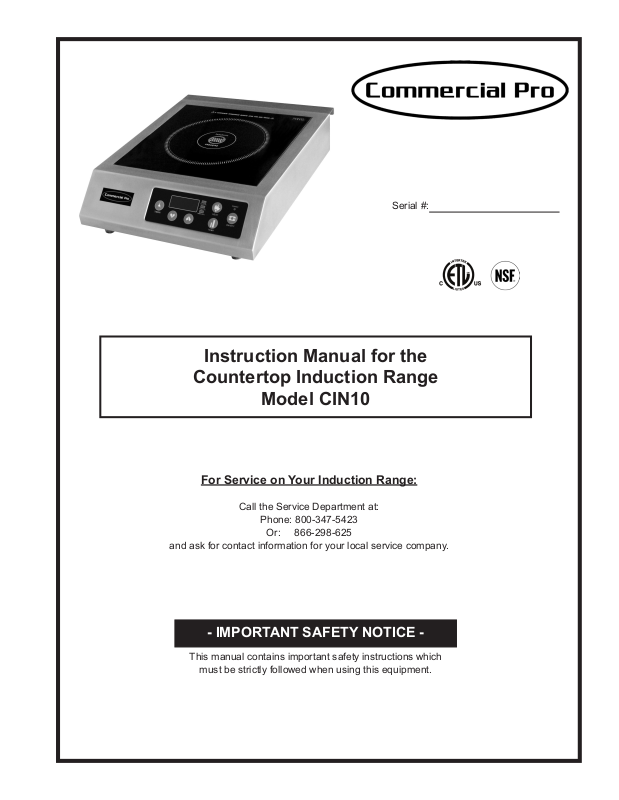

Instruction Manual for the
Countertop Induction Range
Model CIN10
For Service on Your Induction Range:
Call the Service Department at:
Phone: 800-347-5423
Or: 866-298-625
and ask for contact information for your local service company.
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
Index
ATTENTION OWNERS AND OPERATORS ................................................................................................................4
INSTALLATION ....................................................................................................................................................... 5-6
SAFEGUARDS & SAFETY INSTRUCTIONS .............................................................................................................7
OPERATING INSTRUCTIONS ................................................................................................................................ 8-9
CLEANING INSTRUCTIONS ....................................................................................................................................10
TROUBLESHOOTING ..............................................................................................................................................11
LIMITED INDUCTION RANGE WARRANTY ............................................................................................................12
2153 DRYDEN RD.
DAYTON, OH 45439
PHONE: 937-299-5493
TOLL FREE: 800-347-5423
FAX: 937-299-4147
Printed 12-2010 for Commercial Pro products © 2010
Attention Owners and Operators
Commercial Pro products are designed to provide safe and productive processing, cooking and warming of food products
as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Unless
the operator is adequately trained and supervised there is a possibility of serious injury. Owners of this equipment
bear the responsibility to make certain that this equipment is used properly and safely, and to strictly follow all of the
instructions contained in this manual and the requirements of local, state or federal law.
Owners should not permit anyone to touch this equipment unless they are over 18 years old, are adequately trained
and supervised, and have read and understood this manual. Owners should also ensure that no customers, visitors
or other unauthorized personnel come in contact with this equipment. Please remember that we cannot anticipate
every circumstance or environment in which its equipment will be operated. It is the responsibility of the owner and
the operator to remain alert to any hazards posed by the function of this equipment. If you are ever uncertain about a
particular task or the proper method of operating this equipment, ask your supervisor.
This manual contains a number of precautions to follow to help promote safe use of this equipment. Throughout the
manual you will see additional warnings to help alert you to potential hazards.
Warnings affecting your personal safety are indicated by:
or
Warnings related to possible damage to the equipment are indicated by:
If any warning labels or this manual are misplaced, damaged, or illegible, or if you require additional copies, please
contact your nearest representative or call the service number listed on the front of this manual.directly for these items
at no charge.
Please remember that this manual or the warning labels do not replace the need to be alert, to properly train and
supervise operators, and to use common sense when using this equipment.
Page 4
Installation
UNPACKING
Unpack the induction range immediately after receipt. If the machine is found to be damaged, save the packaging
material and contact the carrier within fteen (15) days of delivery. Immediately contact service or your local
dealer of the equipment. You have no recourse to damage after fteen (15) days.
TO AVOID SERIOUS PERSONAL INJURY:
• ALWAYS install equipment in a work area with adequate light and space.
• ONLY operate on a solid, level, nonskid surface that is nonammable and away from sinks and water hazards.
• NEVER bypass, alter or modify this equipment in any way from its original condition. Doing so may create
hazards and will void warranty.
• NEVER operate the induction range without all warnings attached to it.
PROPER GROUNDING
THIS MACHINE IS PROVIDED WITH A THREE-PRONG GROUNDING PLUG. THE OUTLET TO WHICH THIS
PLUG IS CONNECTED MUST BE PROPERLY GROUNDED. IF THE RECEPTACLE IS NOT THE PROPER
GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER PLUG (Fig. 5-1
and Fig. 5-2).
Fig. 5-1 Correct
1. Complete the warranty card and place it in the mail.
2. Induction range and outside covering/containment unit may become HOT after use. Use caution when
touching the unit.
SAVE THESE INSTRUCTIONS
Power Cord:
• A shorter power cord is provided to reduce risk of someone becoming entangled or tripping.
• Proper Use of Extension cord, if required.
1. The extension cord should be a grounding-type 3-wire cord: the marked electrical rating of the extension
cord should be at least as great as the electrical rating of the appliance, and
2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled
on by children or tripped over unintentionally.
3. Check local re & safety ordinances before using any extension cords.
Fig. 5-2 Incorrect
Page 5
Installation
INSTALLATION
1. Read this manual thoroughly before installation and operation. DO NOT proceed with installation and
operation if you have any questions or do not understand anything in this manual. Contact your local
representative or call the service number on the front of this manual.
2. Remove the induction range from the box. Once your induction range has been removed from the
packaging, be certain that all protective plastics and residues are removed from all surfaces.
4. Inspect the induction range to ensure all parts have been provided, if applicable.
3. Select a location for the induction range that has a level, solid, nonskid surface that is nonammable and away
from water hazards or sinks, and is in a well-lighted work area away from children and visitors.
5. Install the induction range in its location with at least 5'' between the appliance and the walls or other objects.
6. Proper connections and power supply are essential for efcient performance.
This equipment gets EXTREMELY HOT so make sure all ammable/combustible
materials are set away from this equipment.
COMMISSIONING:
Commissioning of your new Induction range is of the utmost importance. Commissioning is the thorough and
methodical testing of the equipment, sub systems, and systems to ensure that the nal product functions properly
and safely at the work site. By identifying any potential problems (i.e.: equipment location, ventilation, local re/
electrical codes, installation, operator training and certication) prior to equipment being placed into service, costly
outages and potential damages may be avoided.
SAFETY ALWAYS.
APPROVED COOKWARE MATERIALS
Suitable Pans:
Steel or cast iron, enameled cast iron, stainless steel and aluminum (if marked suitable for induction cooking), atbottom pan/pots with diameter of 12 to 26 cm or 4.75'' to 10.25''
Un-Suitable Pans or Pots:
Heat-resistant glass, ceramic container, copper pans, pots with feet, stainless steel and aluminum (if marked
not suitable for induction cooking), pottery, or bronze materials. Rounded-bottom pans or pots with their base
measuring less than 12 cm or 4.75''.
Page 6
Safeguards & Safety Instructions
IMPORTANT: PERSONS WITH PACEMAKERS
Persons with pacemakers should stay at least 3 feet away from this induction range.
When using induction range with the general public, a pacemaker notice should be
posted near the equipment in use.
TO AVOID SERIOUS PERSONAL INJURY:
• DO NOT operate the induction range on, near / around microwaves.
• DO NOT operate the induction range before reading the instruction manual rst.
• ALWAYS disconnect or unplug electrical power before cleaning, servicing or adjusting any parts or
attachments.
• NEVER bypass, alter, modify or attach any unauthorized parts to this equipment.
Doing so may create hazards and will void warranty.
• NEVER operate induction range with a damaged power cord or plug.
• NEVER leave the induction range on overnight or for prolonged periods of non-use.
• NEVER use the induction range as a heating source for your kitchen, space, or room.
• ALWAYS keep hands, hair and cloth away from heating elements.
IMPORTANT SAFEGUARDS & SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be followed.
DO NOT operate induction range if unit appears damaged or malfunctions in any
manner. Call customer service for assistance.
Including the following:
• Do not touch ceramic glass plate surfaces while, or after, cooking as ceramic glass surface will become hot
from heat generated by cooking pan.
• To protect against electrical shock do not immerse cord, plugs, or appliance in water or any liquid.
• Do not put induction range in a dishmachine for cleaning.
• Close supervision is necessary when induction range is being used. Operator must be properly trained on all
operational and safety procedures, especially when using near children.
• Unplug unit when not in use and before cleaning. Allow unit to cool before moving or cleaning.
• The use of any accessories or cooking pans, which are not recommended by the manufacturer, may cause
re or injuries.
• Do not use outdoors. For indoor use only.
• Do not allow power cord to hang over edge of table or counter, or to touch hot surfaces.
• Do not place the induction range in, on, or near open ames, electric burners, heated ovens, or other high
temperature equipment or surroundings.
• To disconnect, turn off all controls, then gently remove plug from wall outlet.
• Do not use induction range for anything other than cooking, with suitable pans and subversion.
• Do not immerse induction range in water, as this will cause permanent damage to unit.
• Do NOT use if ceramic glass cook top should break or crack, as cleaning solutions and spillovers may
penetrate the broken cooktop and could create an electric shock risk.
Page 7
Safeguards & Safety Operating Instructions
• Before Cleaning Ceramic Glass Plate Surface – Unit must be unplugged and cool to touch. Wipe ceramic
glass plate with damp cloth and only use a non-abrasive glass cleaning solution on spills.
• Caution - To ensure continued protection against risk of electric shock, connect to properly grounded
outlets only.
• Do not heat any empty pans or pots as this will automatically activate the over-heating protection device and
shut off the unit. Never heat any sealed metal cans on induction range as this could cause them to explode
and the unit to shut down.
• Do not place metallic objects such as knives, forks, spoons, lids, cans and aluminum foil on, or near, the top
glass plate.
• Allow sufcient space around the cooking area and always place unit on level at surface. Do not block the
air-intake panel as this may cause unit to overheat. Keep unit a minimum of 5'' from wall, or other equipment
or obstructions for proper ventilation.
• Never use or place the unit on low-heat-resistant or ammable materials (carpet, vinyl, paper, or fabric).
• Do not ever place any paper between the cooking pan and the cooking plate as the paper could ignite.
• When storing, DO NOT place any object(s) on top of the induction range. This could cause damage to cooking
surface or unit.
• Any items with a magnetic eld (such as, radios, televisions, automatic-banking cards and cassette tapes) can
affect the unit.
Operating Instructions
Operating the Induction range
Before operating induction range, it should be checked to see that it is sitting level.
NOTE: Upon rst use, induction range may produce a metal-burning smell.
This is normal and smell will regress with use.
Cookware : Suitable cookware includes :
- Steel or enamelled cast iron
- Iron, steel or non-enamelled cast iron
- 18/0 stainless steel and aluminium (if marked suitable for induction cooking)
Unsuitable cookware includes:
- Cookware with a diameter of less than 12cm
- Ceramic or glass cookware
- Stainless steel, aluminium, bronze or copper cookware, unless marked as suitable for induction cooking
- Cookware with feet
- Cookware with a rounded bottom (e.g. wok)
CONTROL PANEL
1. Time selection
2. Reduce time, temperature or power
3. LCD display
CONTROL PANEL
4. Increase time, temperature or power
5. Heat, Temperature and Timer indicator lights
6. Temperature button
7. On/Off button
8. Heat button
9. Power indicator
Page 8
Operating Instructions
COOKING:
1. Connect the appliance to the main power supply. A beep will sound and the display will briey light up.
2. Place suitable cookware on to the center of the glass plate.
NOTE: NEVER place empty cookware on the appliance.
3. Press the On/Off button to turn the appliance On.
4. Press either the HEAT or TEMP button, depending on your cooking requirements. The corresponding indicator
light comes on.
NOTE: If you desire to maintain a constant temperature during cooking, use the TEMP settings. To cook at a
specic power level, use the HEAT settings.
5. Press the UP or DOWN buttons repeatedly to reach the desired setting. This setting can be changed at any time
during the cooking process.
150°F, 160°F, 170°F, 180°F, 190°F, 200°F, 210°F, 220°F, 230°F, 240°F, 250°F, 260°F, 270°F, 280°F, 290°F,
300°F, 310°F, 320°F, 330°F, 340°F, 350°F, 360°F, 370°F, 380°F, 390°F, 400°F, 410°F, 420°F, 430°F, 440°F, 450°F
The default is 270°F.
300W ,400W, 500W, 600W, 700W, 800W, 900W, 1000W, 1100W, 1200W, 1300W, 1400W, 1500W ,1600W,
1700W, 1800W --- Total 16 level. The default is 1300W.
6. Press the TIMER button. ‘0’ appears on the display.
7. Press the UP or DOWN buttons repeatedly to set the cooking time. The time can be set in 5 minute increments
up to a maximum of 150 minutes, which then counts down in 1 minute increments.
NOTE: The time can be changed at any time while cooking. The HEAT/TEMP settings will remain unchanged.
8. A beep will sound when the cooking time has nished, and the appliance switches to standby mode.
9. After cooking is completed, press the ON/OFF button again to turn off the unit.
NOTE: The power will completely shut off within 9 seconds if either (a) the wrong type of cookware is applied or
(b) no cookware is placed on the unit.
Page 9
Cleaning Instructions
• ALWAYS unplug the induction range before cleaning.
• DO NOT use any cleaning uids that can be harmful to you, others around you, or the environement.
• DO NOT hose down, immerse or pressure wash any part of the induction range.
• NEVER use a scrubber pad, steel wool or abrasive material to clean the induction range.
ALWAYS DISCONNECT OR UNPLUG THE ELECTRICAL POWER FROM THE INDUCTION RANGE
BEFORE CLEANING.
RECOMMENDED CLEANING
It takes very little time and effort to keep the induction range attractive and performing at top efciency. Clean after
each use according to the cleaning schedule below:
PART REQUIRED ACTION FREQUENCY
Induction
range glass
top
Body Wipe down the unit with a damp cloth (DO NOT use benzene, thinner,
Controls Unit should be turned off when not in use.
Intake and
exhaust vent
NEVER run water over the unit.
Wipe down the unit with a damp cloth (DO NOT use benzene, thinner,
scrub brush or polishing powder to clean any surface on the induction
cooker.)
Note: If pots/pans are used without being cleaned, staining of the glass
top may result.
scrub brush or polishing powder to clean any surface on the induction
cooker.)
It is recommended that the unit be disconnected from the power supply
by shutting off power disconnect switch.
Use a clean cloth to wipe down controls and knobs
Once the unit has cooled, use a vacuum attachment to remove dirt /
debris from the intake and exhaust vents.
After each use
Daily
Daily
When needed
Page 10
An Authorized Servicer should perform any servicing
Troubleshooting
ISSUE CAUSE SOLUTION
Induction range not working Power supply Check power source
Power switch has not been turned on Check the unit is correctly plugged in
and turned on
Suitable cookware is not being used. Check cookware compatibilty. (Refer
to page, 6 of this manual)
No cookware placed on unit. Place suitable cookware on unit.
Range will not activate normally until
the contact with the proper cookware
is made.
Plug/cord damaged Call for service
Cooking surface is heating up slowly Temperature set to low Change temperature of range
Faulty elements Call for service
If problems persist and the assigned solution does not remedy the issue, please call our Service Department at:
866-299-8625.
ERROR CODE CAUSE & SOLUTION
“---” and the unit
sounds/beeps
E0 Electrical current is over 20A.
E1 Voltage is under 85V.
E2 Voltage is over 145V.
E3 The accessory and spare parts are damaged. Contact the nearest
E4 The accessory and spare parts are damaged.
E5 The accessory and spare parts are damaged.
E6 The cooking temperature is over 450°F in the function mode “TEMP“. After the
E7 Ventilation blocked, heat cannot be blown out of the machine smoothly. It
E8 The cooking temperature is over 300°F. If using the function mode “HEAT” to cook,
E9 Temperature sensor issue. Issue is caused by a concave pot or pan.
EE The timer’s total cooking time reaches 150 mins. After reaching 150 mins, the LED shows “EE” and sound,
Wrong type of cookware is applied to the induction top or no cookware has been placed on the unit.
Make sure the unit is turned on and place the correct / specied cookware onto to the induction range.
authorized service facility for troubleshooting, repair and adjustment.
Contact the nearest authorized service facility for troubleshooting, repair and adjustment.
Contact the nearest authorized service facility for troubleshooting, repair and adjustment.
unit has been cooled down, the unit would automatically switch to “standby
mode”.
causes the device inside to over-heat.
Please keep a minimum distance of 5'' (5 to 10 cm) from the device to walls or other items. Power off to
eliminate the this error code and let the unit cool down. Once the unit is cool, plug the power cord back in
and restart.
the max temperature is 300°F.
If the cooking temperature is over 300°F in this mode, the unit will error. Power off to eliminate the this
error code and let the unit cool down. Once the unit is cool, plug the power cord back in and restart.
If you would like the cooking temperature over 300°F, use the function mode “TEMP”. (The maximum
temperature for this mode is 450°F.)
Temp sensor is under the glass in the center of the coil. If the bottom of the pot or pan is concave it may
cause the range to not work. Change cookware and restart the induction.
If there is no issue with the cookware, restart the unit. If the error code still shows, contact the nearest
authorized service facility for troubleshooting, repair, and adjustment.
the device automatically goes into standby mode. Please press ON/OFF button to restart the unit.
Page 11
Limited Warranty
Commercial Pro products are warranted to the original purchaser of new equipment that said equipment, when
installed in accordance with our instructions within North America and subjected to normal use, is free from defects
in material or workmanship for a period of 1 year. The labor warranty is one year from original installation or 18
months from actual factory shipment date whichever date occurs rst. Unit must be sent prepaid to Globe Food
Equipment (“GFE”) for repair. No mileage or travel time is paid. Call for a Return Material Authorization.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. WE
EXPRESSLY DISCLAIM ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
COMMERCIAL PRO’S PRODUCT OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY
LIMITED TO REPAIRING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP
WITHIN THE APPLICABLE WARRANTY PERIOD. All repairs pursuant to this Warranty will be performed by Globe
Food Equipment during normal working hours. IN NO EVENT SHALL WE BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY, INCLUDING, WITHOUT LIMITATION, LOSS
OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER ECONOMIC LOSSES,
OR STATUTORY OR EXEMPLARY DAMAGES, WHETHER IN NEGLIGENCE, WARRANTY, STRICT LIABILITY,
OR OTHERWISE.
This warranty is given only to the rst purchaser from a retail dealer. No warranty is given to subsequent transferees.
This warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess
water, re, normal wear, improper set up and use. Periodic maintenance, not covered.
This warranty is not in force until such time as a properly completed and signed installation/warranty registration
form has been received within 30 days from the date of installation.
Proof of purchase is required if extended more than 1 year from date of shipment from the factory.
THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN
THE BUYER AND SELLER. COMMERCIAL PRO NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TO
ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SAID EQUIPMENT.
Example of items not covered under warranty, but not limited to just these items:
1. Acts of God, re, water damage, burglary, accident, theft.
2. Freight damage.
3. Improper installation or alteration of equipment.
4. Use of generic or after market parts.
5. Repairs made by anyone other than a designated servicer.
6. Lubrication.
7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.
8. Cleaning of equipment.
9. Misuse or abuse.
Page 12
Loading...
