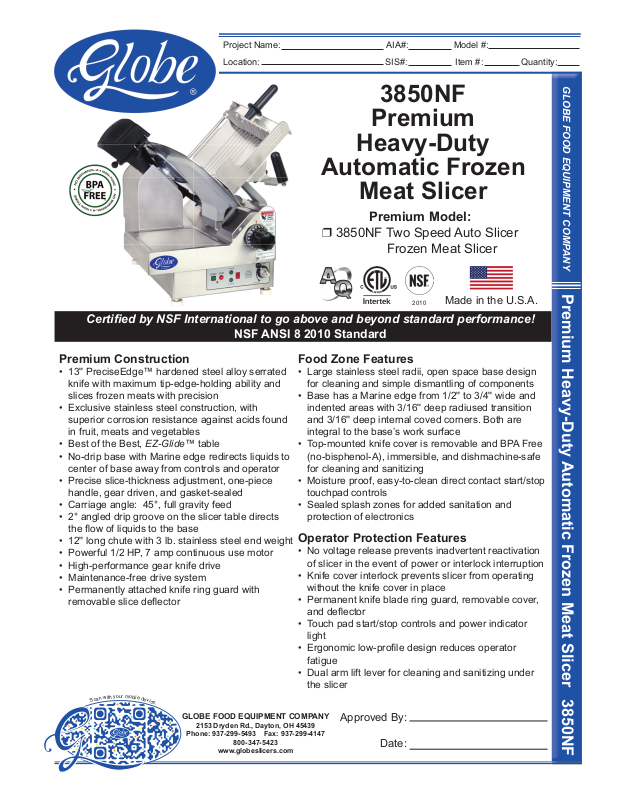

Globe 3850NF User Manual
Project Name: AIA#: Model #:
Location: SIS#: Item #: Quantity:
3850NF
Premium
Heavy-Duty
Automatic Frozen
Meat Slicer
Premium Model:
r 3850NF Two Speed Auto Slicer
Frozen Meat Slicer
GLOBE FOOD EQUIPMENT COMPANY
2010
Made in the U.S.A.
Certifi ed by NSF International to go above and beyond standard performance!
NSF ANSI 8 2010 Standard
Premium Construction
• 13'' PreciseEdge™ hardened steel alloy serrated
knife with maximum tip-edge-holding ability and
slices frozen meats with precision
• Exclusive stainless steel construction, with
superior corrosion resistance against acids found
in fruit, meats and vegetables
• Best of the Best, EZ-Glide™ table
• No-drip base with Marine edge redirects liquids to
center of base away from controls and operator
• Precise slice-thickness adjustment, one-piece
handle, gear driven, and gasket-sealed
• Carriage angle: 45°, full gravity feed
• 2° angled drip groove on the slicer table directs
the ow of liquids to the base
• 12'' long chute with 3 lb. stainless steel end weight
• Powerful 1/2 HP, 7 amp continuous use motor
• High-performance gear knife drive
• Maintenance-free drive system
• Permanently attached knife ring guard with
removable slice de ector
u
r
o
m
y
o
h
b
t
i
i
w
n
a
c
S
l
e
d
e
v
i
c
e
.
GLOBE FOOD EQUIPMENT COMPANY
2153 Dryden Rd., Dayton, OH 45439
Phone: 937-299-5493 Fax: 937-299-4147
800-347-5423
www.globeslicers.com
Food Zone Features
• Large stainless steel radii, open space base design
for cleaning and simple dismantling of components
• Base has a Marine edge from 1/2'' to 3/4'' wide and
indented areas with 3/16'' deep radiused transition
and 3/16'' deep internal coved corners. Both are
integral to the base’s work surface
• Top-mounted knife cover is removable and BPA Free
(no-bisphenol-A), immersible, and dishmachine-safe
for cleaning and sanitizing
• Moisture proof, easy-to-clean direct contact start/stop
touchpad controls
• Sealed splash zones for added sanitation and
protection of electronics
Operator Protection Features
• No voltage release prevents inadvertent reactivation
of slicer in the event of power or interlock interruption
• Knife cover interlock prevents slicer from operating
without the knife cover in place
• Permanent knife blade ring guard, removable cover,
and de ector
• Touch pad start/stop controls and power indicator
light
• Ergonomic low-pro le design reduces operator
fatigue
• Dual arm lift lever for cleaning and sanitizing under
the slicer
Approved By:
Date:
Premium Heavy-Duty Automatic Frozen Meat Slicer 3850NF
Premium Heavy-Duty Automatic Frozen Meat Slicer 3850NF
24.9(63.2)
Elevation / Front View
4.1(10.4)
23.0(58.5)
14.0(35.5)
17.3 (43.9)
Side View/Lift Lever
27.7(69.1)
25.1(63.7)
3850NF
Side View
26.7 (67.9)
21.6(54.8)
Drawings available through KCL. www.kclcad.com
Model Elevation Right Plan Back BIM 3D Revit
3850NF
Plan / Top View
Note: Different chute options
will change overall height
SPECIFICATIONS
Model Auto or
Manual
3850NF Both 1/2 HP 115-60-1 7 Gear All Day
Motor Volts Amps Drive
Type
Slicing Volume
per Day
Cheese
Slicing
Time
100%0
Blade
Diameter
13''
(33.02 cm)
Cord & Plug: Attached 7 foot exible 3-wire cord with molded plug ts a grounded receptacle. NEMA 5-15
FACTORY INSTALLED OPTIONS:
r Quick-Clean™ proprietary non-stick
nickel-based coating (knife cover and
slice table)
r Correctional package
r 15'' long food chute
r 13'' stainless steel knife
SLICER ENHANCEMENT ACCESSORIES:
r Stainless steel low food fence
(12'' L x 1 ⅜'' H)
r Stainless steel high food fence
(12'' L x 3'' H)
r 7'' D x 14'' L Stainless steel
vegetable hopper
Max
Slice
1-1/4''
(3.18 cm)
WARRANTY:
• 15 years on the knife drive gears
• Two-years parts
• One-year labor
Contact factory for warranty in other countries
Product Cutting Capacity
D
(Diameter)
7.5''
(19.50 cm)
Warranty valid in North America.
W
(Width)
11.6''
(29.46 cm)
(Height)
(22.86 cm)
r Clear plastic slicer cover
(Tip: Recommended for preconstruction)
r Additional cleaning brush
DIMENSIONS & SHIPPING INFORMATION
Cartons are reinforced for shipping. The weight and dimensions of this reinforced carton are included below, may vary from shipment to shipment and may include the
weight from an attached skid.
Model Foot Print Overall Dimensions Net Weight Shipping Dimensions Shipping Weight
3850NF 14'' D x 21.6'' W
(35.5 cm x 54.8 cm)
26.7'' L x 23'' W x 25.1'' H
(69.7 cm x 58.5 cm x 63.7 cm)
145 lbs.
(67.1 kg)
28'' L x 25'' W x 34'' H
(71.1 cm x 63.5 cm x 86.4 cm)
Freight Class 77.5
172 lbs.
(78 kg)
H
9''
GLOBE FOOD EQUIPMENT COMPANY
www.globeslicers.com
Ver. 1. 0612-B Rev. 1 GFE0812
Specications are subject to change without notice.Printed in U.S.A. 06-2012
2153 Dryden Rd.
Dayton, OH 45439
Phone: 937-299-5493
Phone: 800-347-5423
Fax: 937-299-4147
