Global Sun Technology GL2411RT-0B Users Manual
GL2411RT-0B
Wireless Access Point Router
USER MANUAL
Version 1.1 Jan. 28, 2002
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy.
If this equipment is not installed and used in accordance with the manufacturer's instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by during the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance
with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
and your body.
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not represent a commitment on
the part of the vendor. No warranty or representation, either expressed or implied, is made with respect to the
quality, accuracy or fitness for any particular purpose of this document. The manufacturer reserves the right to
make changes to the content of this document and/or the products associated with it at any time without
obligation to notify any person or organization of such changes. In no event will the manufacturer be liable for
direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this
product or documentation, even if advised of the possibility of such damages. This document contains
materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or
transmitted in any form, by any means or for any purpose without expressed written consent of its authors.
Product names appearing in this document are mentioned for identification purchases only. All trademarks,
product names or brand names appearing in this document are registered property of their respective owners.
Printed in Taiwan
2
Contents
Section 1 About GL2411RT-0B……………………………....………………..5
1-1 Features...........................................................................................................5
1-2 Benefits……………………………………………………………...………6
1-3 Applications…………………………………………………………………7
1-4 Product Kit……………………………………………………………..……8
Section 2 Hardware Installation………………………………………………...9
2-1 Equipment Requirement……………………………………………..……...9
2-2 Wireless Access Point Router Hardware Installation………………….……9
2-3 Software Limitation………………………………………………….…….10
2-4 The Front View…………………………………………………………….11
2-5 The Rear View……………………………………………….…………….11
Section 3 Connect Wireless Access Point Gateway To The Network……........14

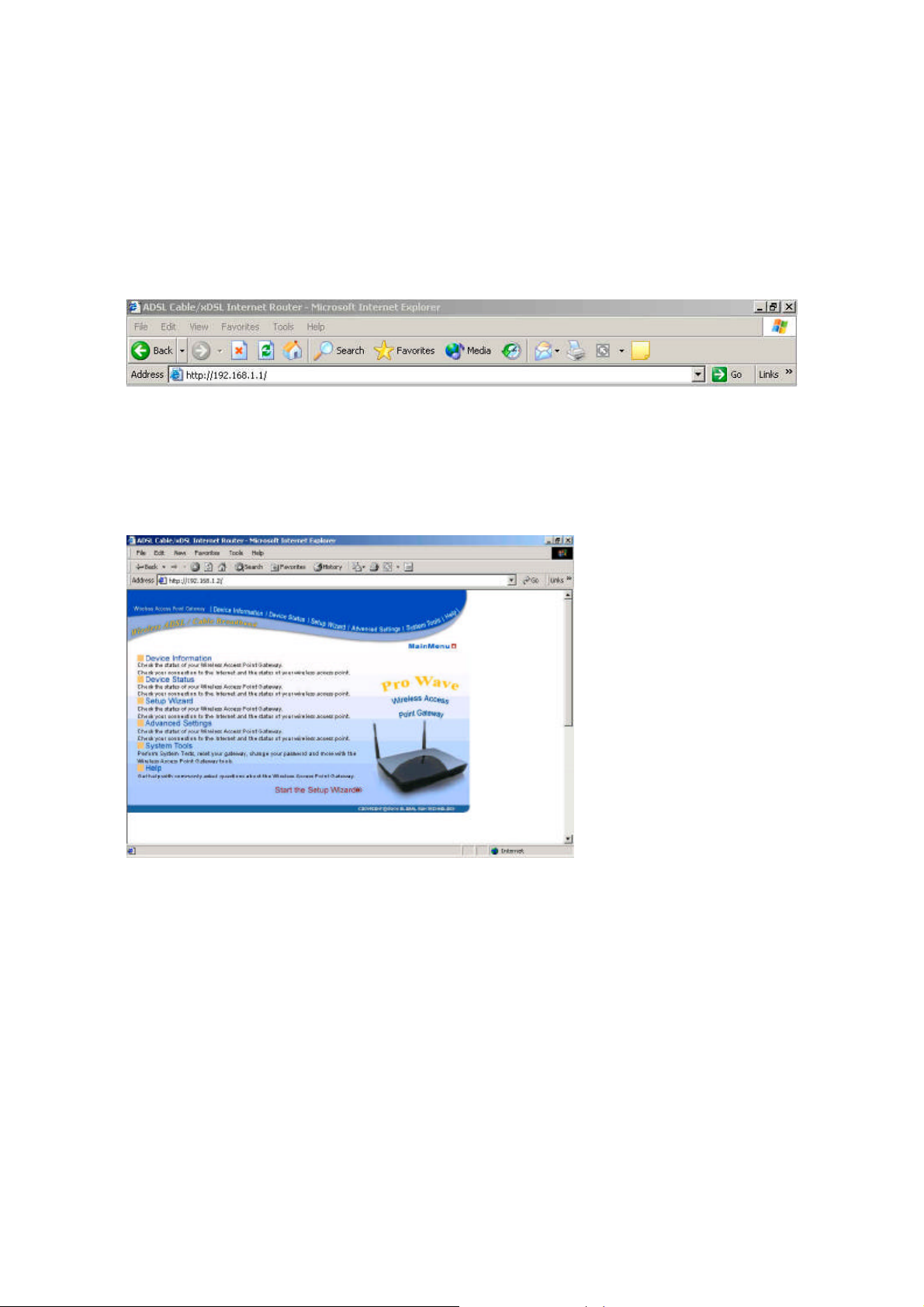

Section 4 Configuring Your Wireless Access Point Router……………...……16

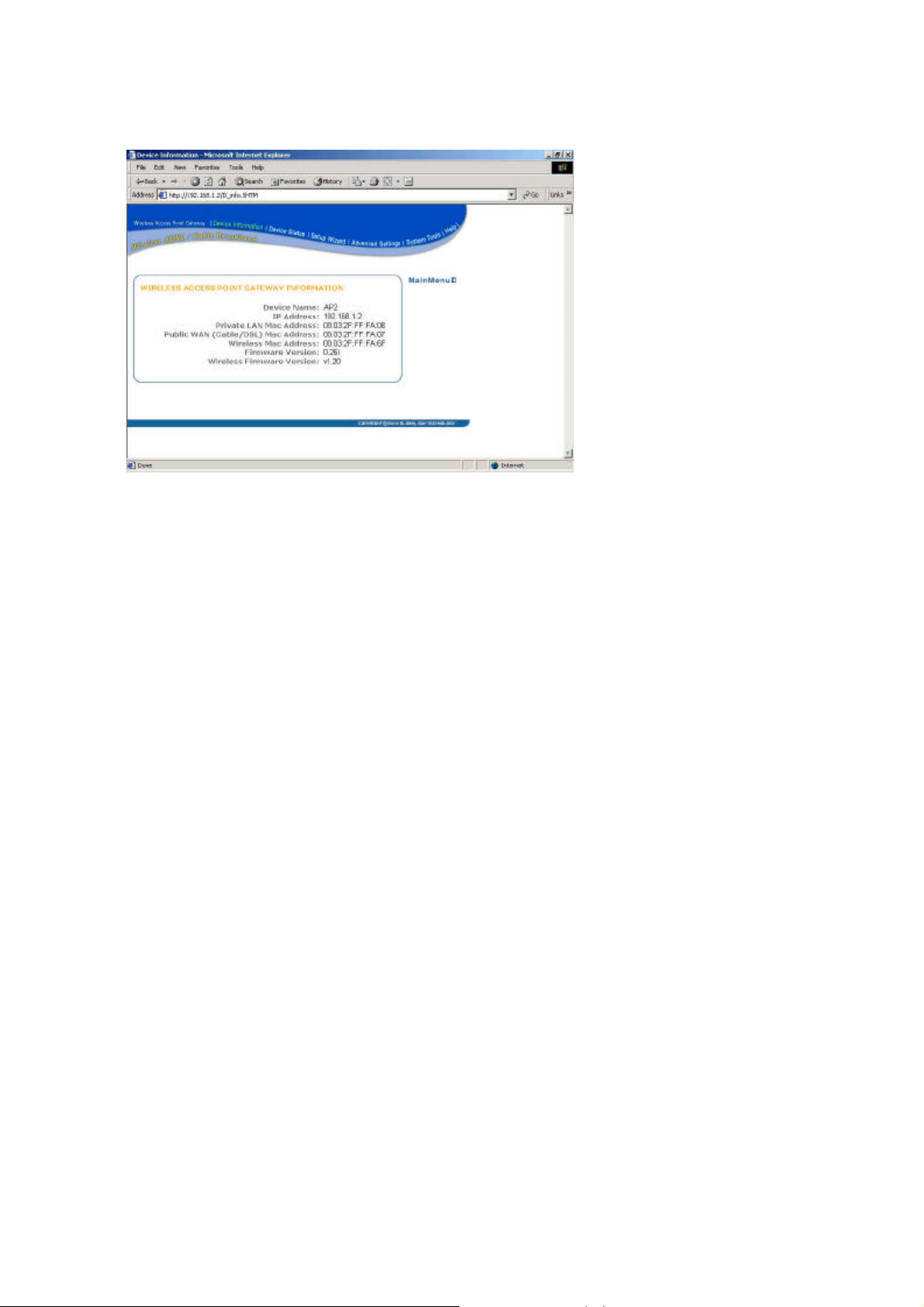

4-1 Device Information……………………………………………...…………16

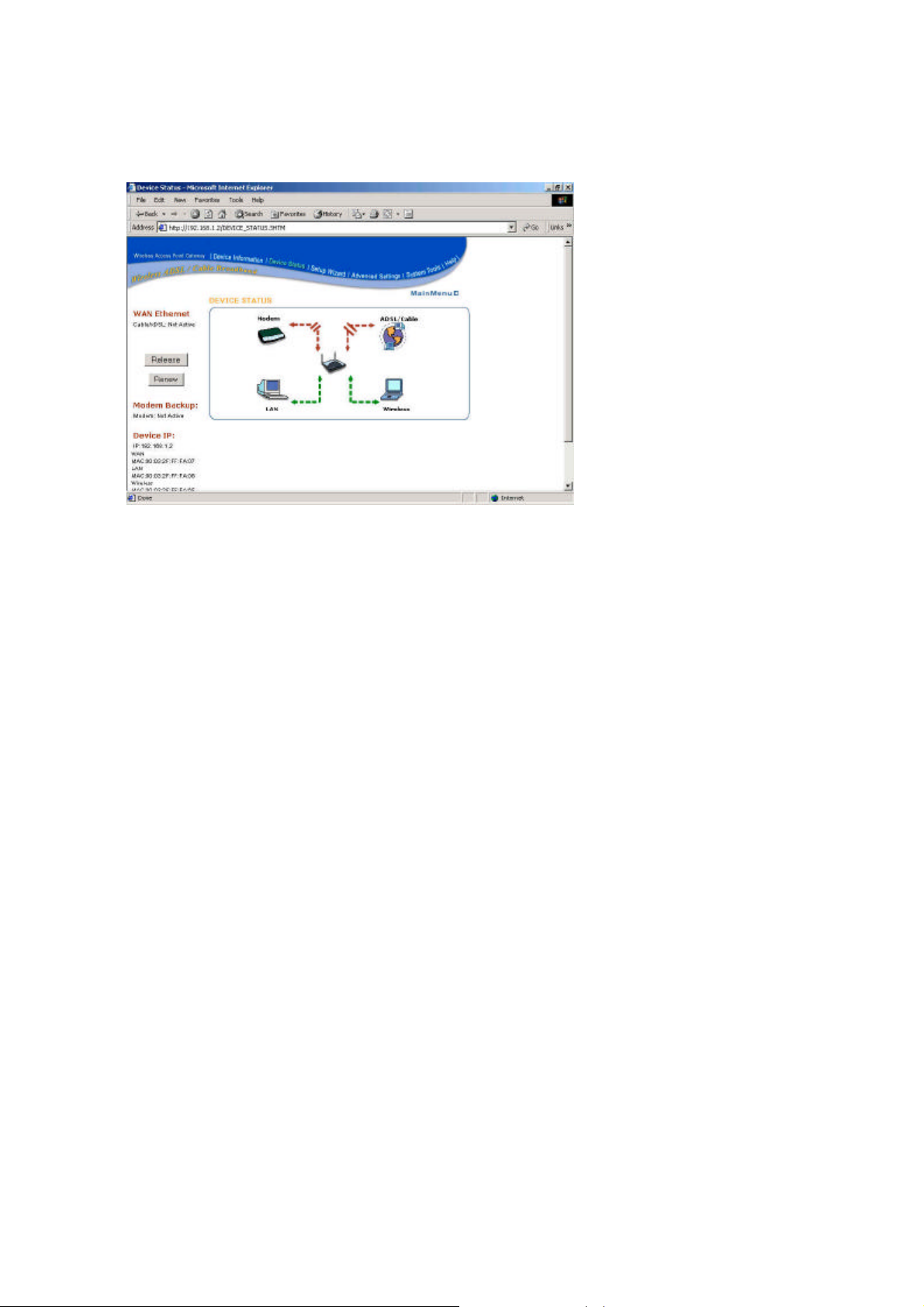

4-2 Device Status………………………………………………………………17
4-3 Setup Wizard………………………………………………………………19

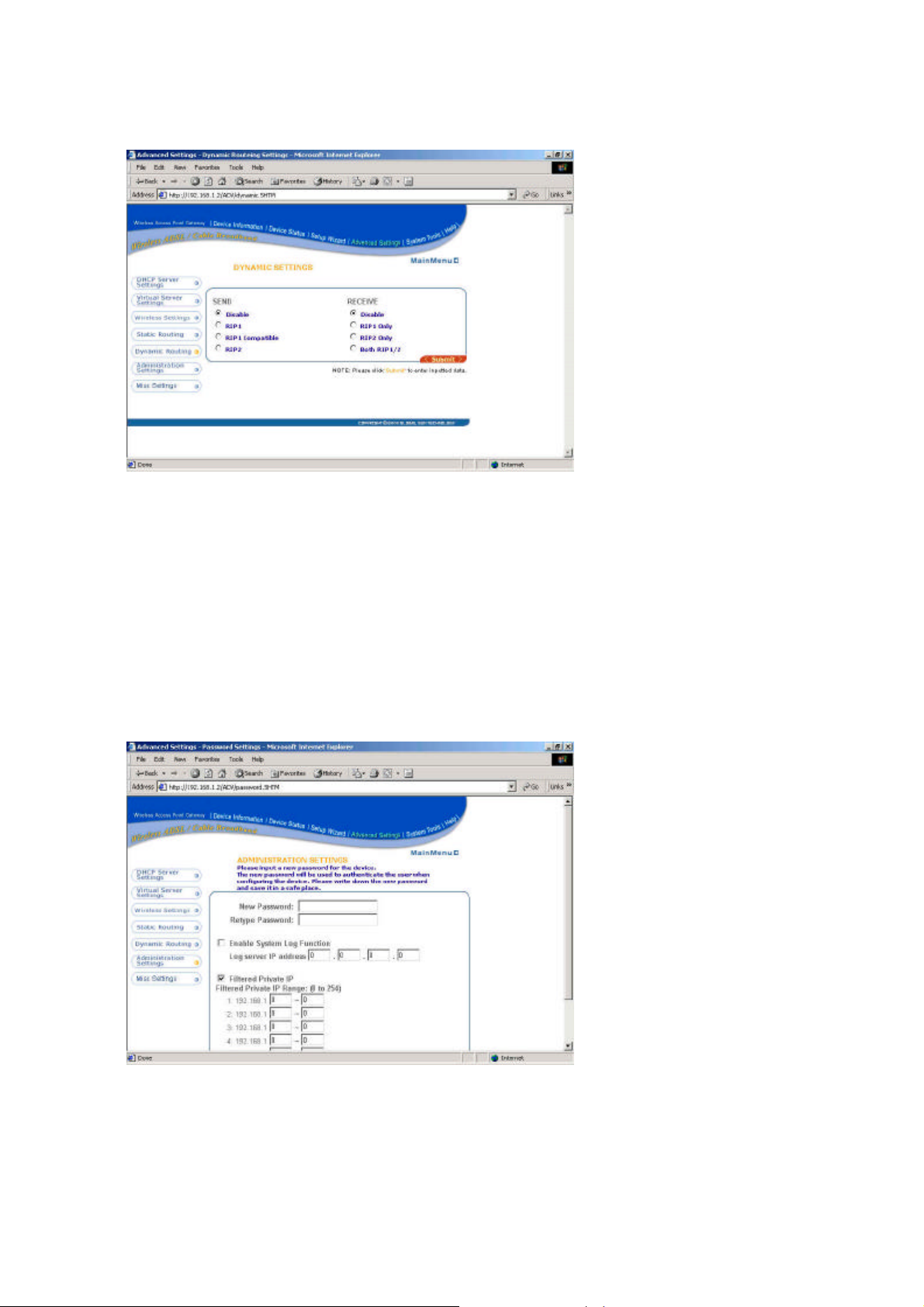

4-4 Advanced Settings…………………………………………………………25
4-5 System Tools………………………………………………………………31
Section 5 Configuring Your Wireless Access Point Router With Telnet..……35
Section 6 How To Configure Your PC To Connect The Router………………37
Appendix A Specifications……………………………………………...…….51
Appendix C Glossary……………………………………………………...… ..52
3
Section 1 About GL2411RT-0B-4
Ideal for home/SOHO users whom like to share a broadband connection without the reconnecting cost of extra IP addresses and want the flexibility of a wire-free connection.
The latest SOHO wireless AP gateway router from Global Sun tech. offers freedom to
notebook, desktop PC and other internet device users: connect them to your home
network with the same Wi-Fi certified wireless LAN PC Card. The GL2411RT-0B-4
wireless LAN AP router is an ideal solution for connecting to Cable Modem, DSL for
always-on high speed Internet access to any desktop or notebook, plus the flexibility of a
built-in 3 ports Ethernet switch.
1-1 Features
i Web-based browser configuration for simplified management.
i Up to 300 feet from the gateway.
i 11Mbps wireless connection between the gateway and each device.
i Wi-Fi certified for compatibility with other wireless products.
i Easy initial configuration via LAN port
i BR5024p has an integrated 3 built-in 10/100 Mbps Ethernet switch
i Connect to a cable, xDSL or ISDN modem through an Ethernet RJ-45 WAN port
for always-on high speed Internet access.
i The Serial port can be used as a dial-up backup link when the WAN port connection
is failed.
i Routing (Static), Bridging, PPPoE to support a wide range of applications
i DHCP Client and Server allow true plug-and play installations.
i Network Address /Port Translation (NAT/PAT) and Virtual Server Mapping allow
LANs to be served with one of few IP addresses
i Support multimedia applications, such as NetMeeting, ICQ, Real Player,
QuickTime, DialPad, PC Anywhere and H.323 Applications etc.
4
i Firewall support for access-list control, DoS Attack prevention, stateful
inspection(SPI).
i PPTP server for secure remote access.
i IPsec server for secure tunneling.
i Provide Simple Network Management Protocol (SNMP) Management Information
Base (MIB2).
i Support VPN Pass Through for L2TP.
i Wed-based firmware upgradeable.
Benefits
i Enjoy the freedom of going online without wires
Connect your desktop or notebook PC to the Internet anywhere, anytime without
wires, up to 300 feet from the gateway.
i Share high-speed Internet access, personal files, Internet appliances
Support multiple users for a single global IP address using NAT (Network Address
Translation) or a few IP addresses using PAT (Port Address Translation) via Cable,
ADSL modem. No need to string wires or carry disks to share resources or play multiplayer games.
i Easy to Install, Easy to Manage
Just plug into power outlet and broadband modem-- no holes to drill or wires to string.
No software to load. Easy Web-based installation wizard gets your wireless network
up and running in minutes.
i The only solution with both wireless and wired Ethernet LAN connections
11Mbps wireless data speed is as fast as many offices. 4 integrated 10/100Mbps Ethernet
ports support wired devices.
i IPsec Server for secure tunnel
Build-in IPsec server, provide DES/3DES encryption for secure tunnels.
5
i PPTP Server for secure remote access
Built-in PPTP server provides convenient and secure remote access for telecommuters
and travelers.
i Secure Internet and network data
Built-in firewall helps protect your network and your information from hackers, 40-bit
encryption safeguards your wireless network data.
A powerful packet filtering firewall ensures only authorized users can access your local
network, and automatically detects and combats common denial of service attacks.
PAPS, CHAP & MS-CHAP are supported for authenticating Internet and inter-office
connections.
i Wi-Fi certified for compatibility with other wireless networking products
Industry certification protects your investment as you add to or upgrade your network.
Lets you use at work or school to connect to your home network.
1-3 Applications
The Serial of LAN products offer a fast, reliable, cost-effective solution, allowing
clients to wirelessly access the network in applications such as following:
1. Remote access to corporate network information
E-mail, file transfer and terminal emulation
2. Difficult-to-wire environments
Historical or old buildings, asbestos installations, and open area where wiring is
difficult to employ
3. Frequently changing environments
Retailers, manufacturers and banks who frequently rearrange the workplace and
change location
4. Temporary LANs for special projects or peak time
Trade shows, exhibitions and construction sites need temporary setup for a short
time period. Retailers, airlines and shipping companies need additional
workstations for a peak period. Auditors require workgroups at customer sites.
6
5. Access to database for mobile workers
Doctors, nurses, retailers, white-collar workers need access to database while
being mobile in the hospital, retail store or office campus.
6. SOHO (Small Office and Home Office) users
SOHO users need easy and quick installation of a small computer network.
1-4 Product Kit
u Wireless Access Point Router… .……………………………………….x 1
u Antenna (fixed)………………………………..…………………………x 2
u A/C Power Adapter………………………………...……………………x 1
u Users Manual……..………………………………...……………………x 1
u RJ45 Cable……………..…………………………...……………………x 1
If any of the listed items are not included or found damaged, please contact your local
dealer.
7
Section 2 Hardware Installation
2-1 Equipment Requirement
Installation of Wireless Access Point Router requires:
1. An A/C power outlet (100~240V,50~60Hz) which supply the power for the
Wireless Access Point Router
2. A 10/100 Base-T (UTP) Ethernet cable drop (RJ-45 connector)
3. Microsoft I.E 4.0 or later version or Netscape Navigator 4.0 or later version
4. One computer with an installed 10Mbps, 100Mbps or 10/100Mbps Ethernet card
5. One Modem or ISDN TA (if a dialup backup connection is needed)
6. One RJ-45 ADSL/Cable Internet connection
7. TCP/IP protocol installed
8. UTP network Cable with a RJ-45 connection
2-2 Wireless Access Point Router Hardware Installation
Please follow these procedures while setting up the hardware:
1. Site Selection
Choose a proper place for your Wireless Access Point Router.
In general, the best location to place your Wireless Access Point Router to the
center of your wireless coverage, with line of sight to all your mobile stations.
2. Adjust the direction of the Antenna
Adjust the direction of the antenna placement to improve the Wireless Access Point
Router’s performance. Try to place the antenna in the position which can best cover
its BSS. Normally, the higher you place the antenna, the better the performance will
be. The character of diversity enhances the receiving sensitivity.
3. Connect the Ethernet Cable
Wireless Access Point Router can be connected to the 10/100 Base-T Ethernet
network. Connect your UTP Ethernet cable to the RJ-45 connector of the Wireless
Access Point Router and connect the other side of UTP Ethernet cable to a hub.
4. Connect the Power Cable
8
Connect the power adapter cable to the DC5V Power Socket of the Wireless Access
Point Router. ONLY use the power adapter supplied with the Wireless Access Point
Router. Otherwise, the product may be damaged.
2-3 Software Limitation
Operating System:
Windows 95/98/NT/2000/ME/XP
