Global Specialties 4005 User Manual
4005
Revision: 11/2010
Sweep Function Generator
with External Frequency Counter
Instruction Manual
2
3
Model 4005 5MHz Sweep/Function Generator
Thank you for purchasing the Model 4005. For proper use of this precision instrument, please read
this operation manual carefully.
Note
1. To fully maintain the precision and reliability of the 4005, please use it within the range of its
intended use (temperature 10 C~35 C, humidity 45%~85%)
2. Please allow a pre-heating period of 30 minutes before use.
3. This instrument should be used with a triple line power cord for safety.
4. Specification of this instrument may be changed without notice.
5. Please contact Global Specialties if you have further questions beyond the scope of this manual.
Safety Summary
Please take a moment to read these operating instructions thoroughly and completely before
operating this instrument. Pay particular attention to WARNINGS used for conditions and actions that
may pose a hazard to the user and CAUTIONS used for conditions and actions that may damage the
instrument.
Always inspect the instrument and other accessories for any sign of damage or abnormality
before every use.
Never ground yourself and keep your body isolated from ground.
Never touch exposed wiring, connections or any live circuit conductors.
Do not install substitute parts or perform any unauthorized modification to the instrument.
Use caution when working above 60V DC or 30V AC rms. Such voltages pose a shock hazard.
Remember that line voltage is present on some power input circuit points such as on-off switches,
fuse, power transformers, etc., even when the equipment is turn off.
Also, remember that high voltage may appear at unexpected points in defective equipment.
4
Safety Symbols
1.
2
. Functional earth terminal on the rear panel.
3
4.
5.
6.
Caution, risk of danger
7. Caution, risk of electric shock
5
CONTENTS
1. PRODUCT DESCRIPTION
1-1. Introduction -----------------------------------------------------------------
( 6 )
1-2. Technical Specifications -------------------------------------------------
( 6 )
1-3. Equipment Ratings --------------------------------------------------------
( 8 )
1-4. Supplied Accessories ----------------------------------------------------
( 8 )
2. INSTALLATION
2-1. Initial Inspection -----------------------------------------------------------
( 9 )
2-2. Connecting AC Power ----------------------------------------------------
( 9 )
2-3. Cooling And Ventilation --------------------------------------------------
( 9 )
2-4. Position ----------------------------------------------------------------------
( 9 )
2-5. Warm-Up ----------------------------------------------------------------
( 9 )
3. OPERATION
3-1. Controls, indicators and connectors ----------------------------------
( 10 )
3-2. Operating instructions --------------------------------------------------
( 13 )
3-3. Use As Function Generator ---------------------------------------------
( 13 )
3-4. Use As Pulse Generator -------------------------------------------------
( 16 )
3-5. TTL/CMOS Output --------------------------------------------------------
( 18 )
3-6. Use As FM Signal Generator -------------------------------------------
( 18 )
3-7. External Control Of VCF -------------------------------------------------
( 19 )
3-8. Programmed Frequency Selection ------------------------------------
( 20 )
3-9. Use As Sweep Generator -----------------------------------------------
( 21 )
3-10. Use As Externally Controlled Sweep Generator -----------------
( 21 )
3-11. Use As External Frequency Counter --------------------------------
( 21 )
4. MAINTENANCE
4-1. Fuse Replacement --------------------------------------------------------
( 23 )
4-2. Adjustment And Calibration ---------------------------------------------
( 23 )
4-3. Cleaning and decontamination -----------------------------------------
( 23 )
6
1. Model 4005 PRODUCT DESCRIPTION
1-1. Introduction
The 4005 is designed to be used as a FUNCTION GENERATOR, SWEEP GENERATOR, PULSE
GENERATOR and a FREQUENCY COUNTER, offering a wide range of applications in both analog
and digital electronics such as engineering, manufacturing, servicing, education and hobbyist fields.
VCF (voltage controlled frequency) produces precision sine, square and triangle waves over the
0.05Hz to 5MHz for sub-audible, audio, ultrasonic and RF applications. A continuously variable DC
offset allows the output to be injected directly into circuits at the correct bias level.
Variable symmetry of the output waveforms converts the instrument to a pulse generator capable of
generating rectangular waves or pulses, ramp or sawtooth waves and skewed sine waves of variable
duty cycle. The sweep generator offers linear sweep with variable sweep rate and sweep width up to
100:1 frequency change. The frequency response of any active or passive device up to 5 MHz can be
determined.
1-2. Technical Specifications
OUTPUT CHARACTERISTICS

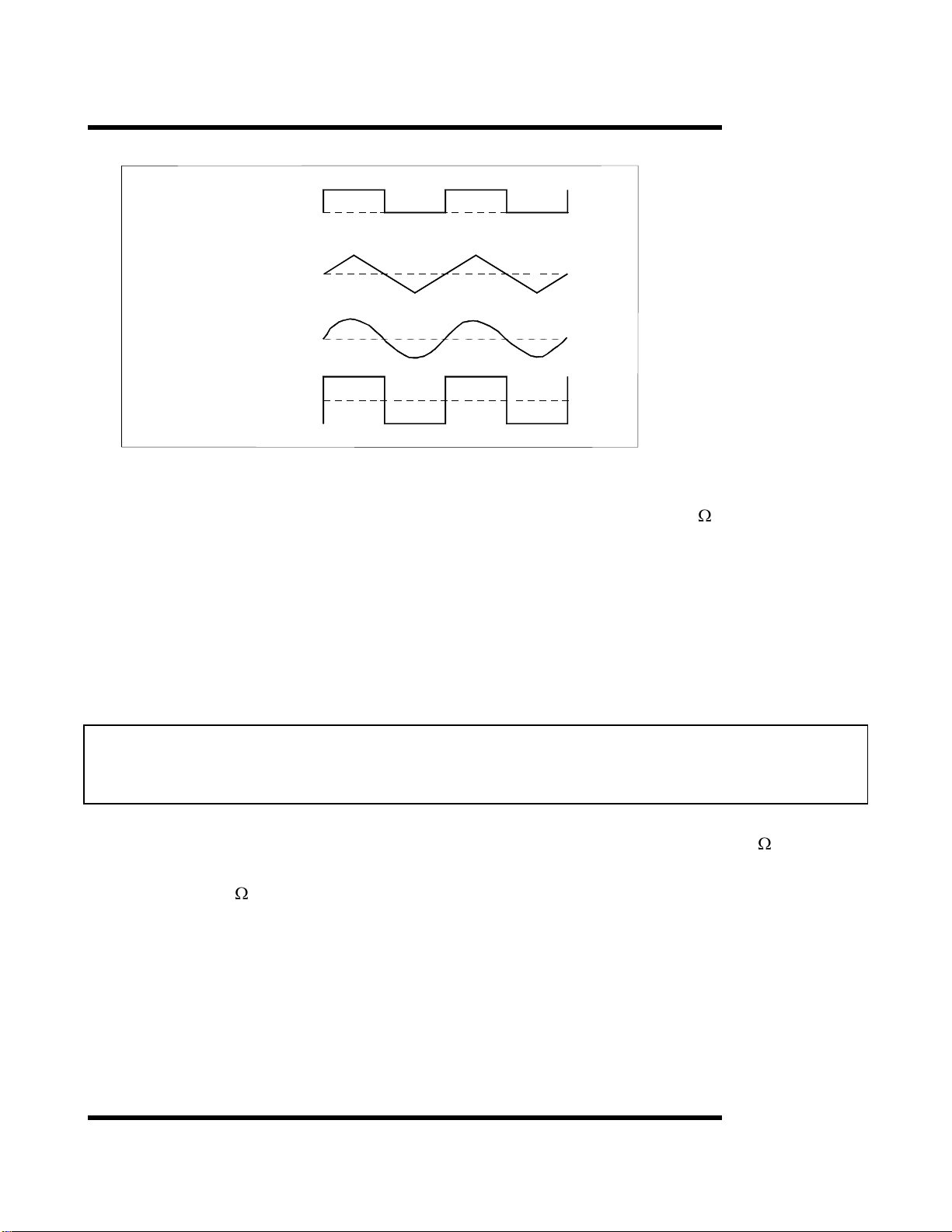

Waveforms : Sine, Square, Triangle, Skewed Sine, Pulse, Ramp
Sawtooth, TTL/CMOS Leveled Square, DC
Frequency Range : 0.05Hz to 5MHz in 7 Ranges (5, 50, 500, 5K, 50K, 500K,
5M)
Frequency Accuracy : ± 2% (5, 50, 500, 5K, 50K, 500K, 5MHz Range, Full Scale)
Output Level : Sine & Tringle wave:
20 Vpp in open circuit, 10 Vpp into 50 Load
Square Wave: 19 Vpp in open circuit, 9.5 Vpp into 50
Load
Output Impedance : 50 ±5%
Attenuator : -20 dB fixed and continuously variable (more than –20dB)
7
WAVEFORM CHARACTERISTICS
Sine wave -Flatness : ± 3dB to 5 MHz (more than 14Vpp)
-Distortion : Less than 1% at 10 Hz to 100 KHz
Square wave -Rise and Fall Time : Less than 25 nS (at 5MHz)
Triangle wave -Linearity : More than 99% at 0.5 Hz to 100 KHz
TTL Output -Rise and Fall Time : Less than 30 nS (at 1MHz)
-Output Level : TTL Level (H 2.4V, L 0.4V)
CMOS Output -Rise and Fall Time : Less than 180 nS (at 1MHz)
-Output Level : 4V to 15V ± 2V, Variable
DUTY RATIO : 1:1 to 10:1
SWEEP FUNCTION CHARACTERISTICS
Mode : Linear
Width : Variable from 1:1 to 100:1
Rate : 0.5 Hz to 50 Hz (20 mS to 2 S)
External VCF Input : Input Voltage: 0 to 10 V
Input Impedance : Approx. 1 K
FREQUENCY COUNTER CHARACTERISTICS
Display : 6 Digit Seven Segment – Green LED, Gate time, MHz,
KHz, Hz and mHz.
Frequency Range : 2Hz to 50 MHz with Auto Range.
Accuracy : ±Time base Error ± 1 count
Time base : 10 MHz Crystal Oscillator, ±20ppm
Input Sensitivity : 200 mVrms (2Hz ~100Hz), 100mV rms (100Hz~50MHz)
Input Impedance : 50
Max. Input Voltage : 250 Vpp
PHYSICAL CHARACTERISICS
Dimensions WHD : 3.4 x 3.5 x 10.6” (240 x 90 x 270mm)
Weight : Approx. 5.5 lb (2.5 kg.)
8
Input Voltage
Fuse
Power Max.
103 126V AC (50/60Hz)
F 0.5A / 250V
15 W
206 252V AC (50/60Hz)
F 0.2A / 250V
1-3. Equipment Ratings
Plug and Socket : 3 wire AC power plug and 3 wire outlet
Power & Fuse Ratings
Operating Environment
TEMPERATURE : 0 °C to + 40 °C (Accuracy Specified at 23°C ± 5 °C)
HUMIDITY : up to 85% to 40°C without temperature extremes which may
cause condensation within the instrument.
Storage Environment
TEMPERATURE : -20°C to +70°C
HUMIDITY : below 85% RH
Overvoltage Category : CAT II
Insulation Category II: Portable equipment.
Pollution Degree : 2
Protection to IEC 529: Ordinary
Note: Specifications are subject to change without notice Please visit
www.globalspecialties.com for the most current product informaiton.
1-4. Supplied Accessories
User’s Manual ---------------------------------------------------------------------------- 1
BNC Cable ------------------------------------------------------------------------------ 1
Power Cord ------------------------------------------------------------------------------ 1
Spare Fuse ------------------------------------------------------------------------------- 1
9
2. INSTALLATION
2-1. Initial Inspection
This instrument was carefully inspected both mechanically and electrically before shipment. It should
be physically free of damage. To confirm this, the instrument should be inspected for physical
damage in transit. Also, check that supplied accessories are present and correct.
2-2. Connecting AC Power
This instrument requires 115V AC or 230V AC (50-60 Hz) power socket with protective earth contact
(PE-contact).
CAUTION
AC POWER OF THIS INSTRUMENT IS PRESET TO 115V IN FACTORY. BEFORE POWERING
ON THIS INSTRUMENT, CHECK AND MAKE SURE THE VOLTAGE OF THE POWER SOURCE IS
SAME WITH THE MARKING OF UNIT.
FOR USE WITH AC230V, THE VOLTAGE SELECTOR (on rear panel) SHOULD BE SWITCHED
TO THE 230V POSITION.
2-3. Cooling and Ventilation
No special cooling and ventilation is required. However, the instrument should be operated where the
ambient temperature is maintained.
2-4. Position
This instrument is built as a bench-type instrument with rubber feet and tilt stand in place. Stand-up
angle can be adjusted by rotating angle of carrying handle.
2-5. WARM-UP
Allow 30 minutes for the unit to warm up so that it is stabilized and ready for use.
