Globalsat BTH-818 User Manual

BTH-818 Bluetooth Headset User Manual v2.01

1. BTH-818 Headset

1.1 Introduction to your new headset

Thank you for purchasing the new BTH-818 Bluetooth Headset – We trust it will deliver the
best that both Bluetooth convenience and reliability has to offer.
The BTH-818 represents the latest innovation in both functionality and audio quality –
enabling users with compatible mobile devices the use of a calling number display while
also supporting the latest SmartPhones utilising both Handsfree and Headset Profiles –
Ensuring compatibility with Nokia, Sony Ericsson and many more mobile phones along
with Windows powered SmartPhones. This guide is provided as an introduction to using
the headset with Bluetooth mobile phones using either a Handsfree or Headset profile.

1.2 Key Features

 Bluetooth operating distance - 10 meters.
 Talk time – 7 hours.
 Standby time – Approx 300 hours.
 Uses high capacity rechargeable Li-ion polymer battery
 Detects and warns of low battery conditions.
 Convenient user interface with on-board LCD.
 Call List function for up to ten recently used phone numbers
 Phone Book function with ten permanent quick dial number memory
 Five ring tone options.
 Mute-call function.
 Setup and Time display.
 Up to 5 Bluetooth devices can be paired simultaneously.
 Easy to use and setup.

1.3 Technical Specification

Bluetooth Standard v1.1
Operation Range 10 meter (Approx 33 feet)
Audio Codec 15 bit resolution, S/N > 60dB
Operating Frequency 2.4 Ghz - 2.4835 Ghz ISM Band
Dimensions: (L)72mm*(W)26mm * (H)16mm
Connection Point-to-point
Device Weight 35g (including battery)
Talk time 7 hours
Standby time 300 hrs
Output Power 0 Dbm (class II)
Security 128 bits encryption
Power Consumption 40mA working, 1mA standby
Battery Rechargeable Li-ion polymer 300mAh
Charging 5vdc, 100~240V AC adapter
Charging time 2~3 hrs
Operating Temperature -10º~55º C
Storage Temperature -20º~60º C
Certification CE, FCC, BQB
LCD 1/16 duty cycle 5V.
Headset passkey 0000

1

2. BTH-818 Appearance and Pushbutton Descriptions:

2.1 Operational Button Descriptions

Figure 1

Power Switch / Terminates the current call.

Initiates an outgoing call or accepts an incoming call.

Increase Volume

Decrease Volume

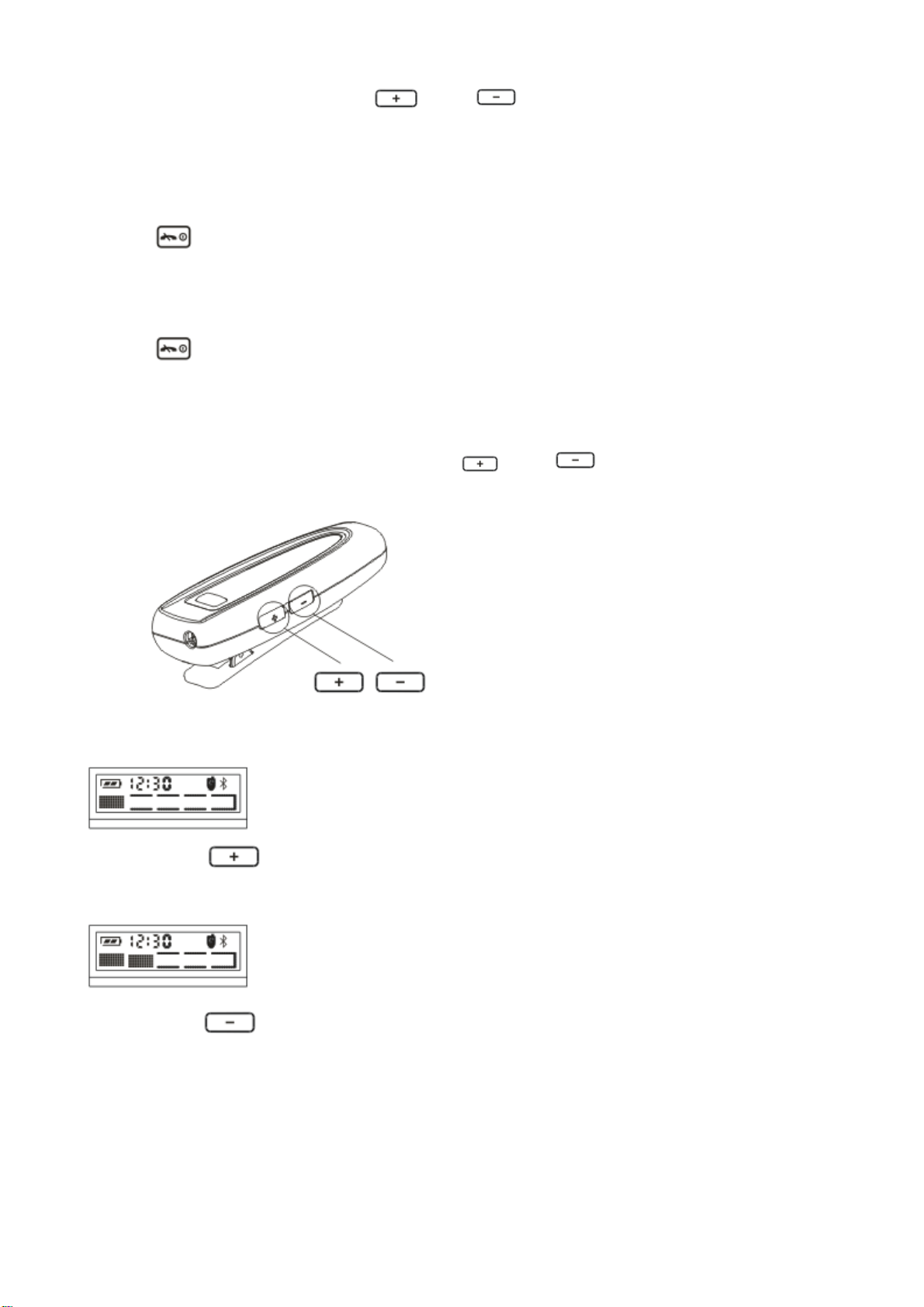

Earpiece on-cable switch allows call pickup - Identical to key in function.

2.2 Plugging in the Headset

Insert the earpiece into the earphone socket.

Note: There is a button in providing a call pickup function identical to key.
Refer to Figure 2 and Figure 3.

2

Figure 2

Figure 3

3

2.3 Operation and Fitting

Figure 4

Figure 5

4

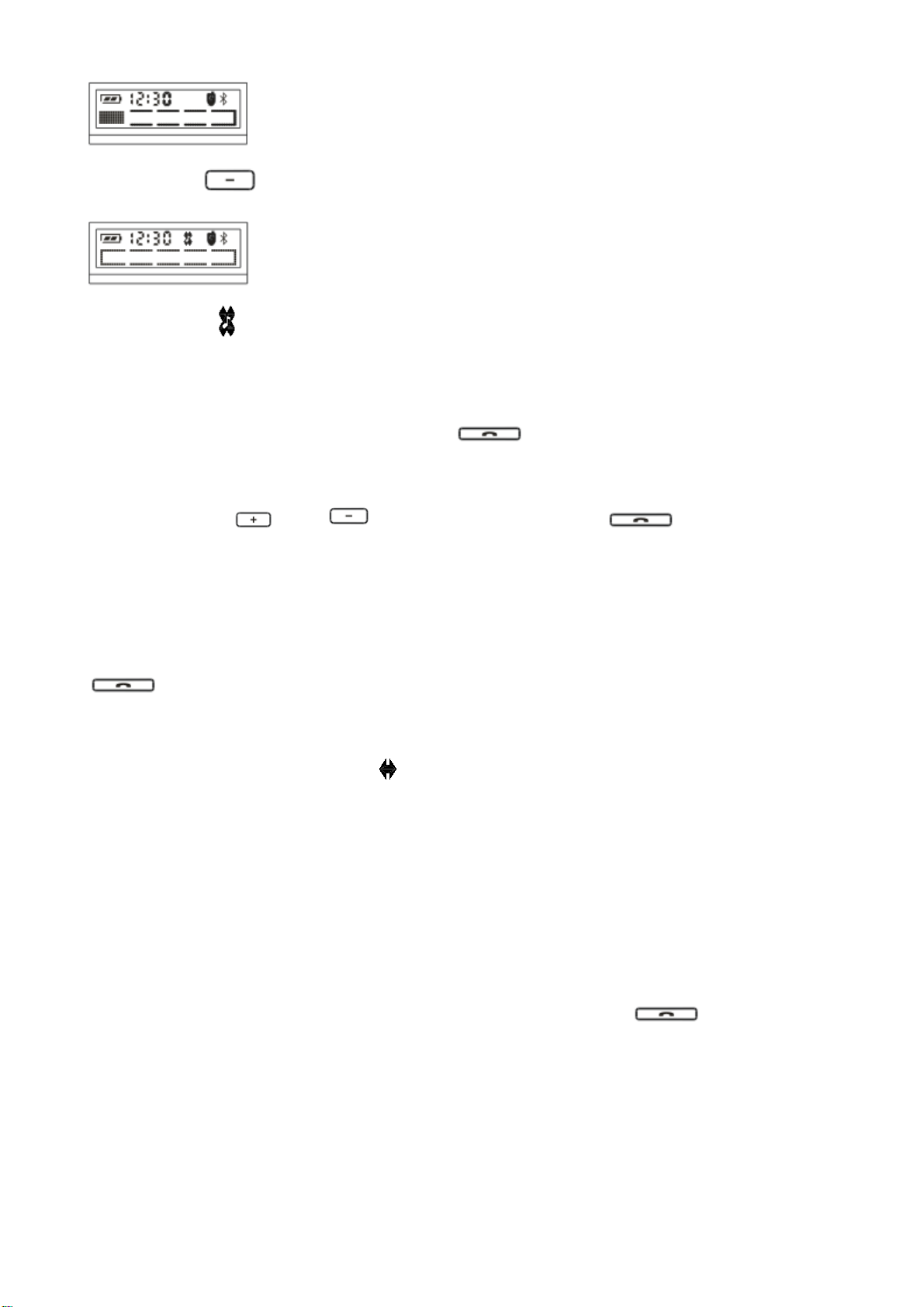

2.4 Symbols Displayed on LCD Display

Battery charge condition
Turn off the ring tone

Call & Phone Book Indicator

Missed Call Indicator

Activating the Bluetooth

Bluetooth is Being Connected
Time of Graphic Display

3. Operation

3.1 Setting Up the Headset for the First Time

3.1.1 Initial Recharge of The BTH-818

Before initially using this product, please charge the battery for 2-3 hours. The headset can
be charged via the computer’s USB interface or household charger as provided. For more
information on charging the headset, please refer to Figure 6 and Figure 7.

Battery State Indicator:

When the battery symbol is flashing, the headset is charging.

A solid graphic indicates a complete charge.

An empty battery graphic indicates charging is immediately required.

5
