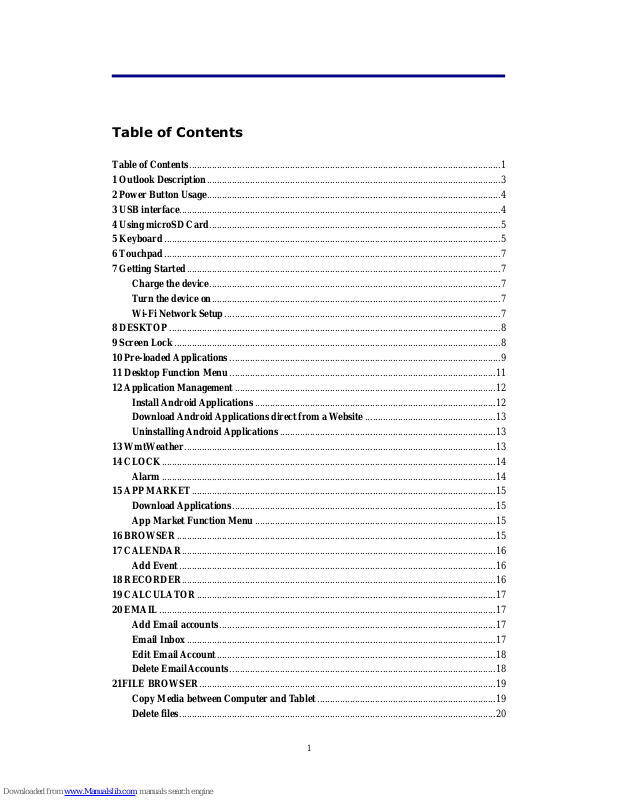

Table of Contents
Table of Contents ............................................................................................................................ 1
1 Outlook Description ..................................................................................................................... 3
2 Power Button Usage ..................................................................................................................... 4
3 USB interface ................................................................................................................................ 4
4 Using microSD Card .................................................................................................................... 5
5 Keyboard ...................................................................................................................................... 5
6 Touchpad ...................................................................................................................................... 7
7 Getting Started ............................................................................................................................. 7
Charge the device .................................................................................................................... 7
Turn the device on ................................................................................................................... 7
Wi-Fi Network Setup .............................................................................................................. 7
8 DESKTOP .................................................................................................................................... 8
9 Screen Lock .................................................................................................................................. 8
10 Pre-loaded Applications ............................................................................................................ 9
11 Desktop Function Menu .......................................................................................................... 11
12 Application Management ........................................................................................................ 12
Install Android Applications ................................................................................................ 12
Download Android Applications direct from a Website .................................................... 13
Uninstalling Android Applications ...................................................................................... 13
13 WmtWeather ............................................................................................................................ 13
14 CLOCK ..................................................................................................................................... 14
Alarm ..................................................................................................................................... 14
15 APP MARKET ......................................................................................................................... 15
Download Applications ......................................................................................................... 15
App Market Function Menu ................................................................................................ 15
16 BROWSER ............................................................................................................................... 15
17 CALENDAR ............................................................................................................................. 16
Add Event .............................................................................................................................. 16
18 RECORDER ............................................................................................................................. 16
19 CALCULATOR ....................................................................................................................... 17
20 EMAIL ...................................................................................................................................... 17
Add Email accounts .............................................................................................................. 17
Email Inbox ........................................................................................................................... 17
Edit Email Account ............................................................................................................... 18
Delete Email Accounts .......................................................................................................... 18
21FILE BROWSER ...................................................................................................................... 19
Copy Media between Computer and Tablet ....................................................................... 19
Delete files .............................................................................................................................. 20
2
22 MY MUSIC ............................................................................................................................... 20
Play Music .............................................................................................................................. 20
The Operation with Music and Playlist............................................................................... 20
23 MY VIDEO ............................................................................................................................... 21
Play Video .............................................................................................................................. 21
The Operation with Video and Playlist ............................................................................... 21
24 MY PHOTO ............................................................................................................................. 22
Doodle..................................................................................................................................... 22
25CONTACTS .............................................................................................................................. 23
Add New Contacts ................................................................................................................. 23
Add Contact to Favorites...................................................................................................... 23
Edit Contacts ......................................................................................................................... 23
Delete Contacts ...................................................................................................................... 23
26PICTURE CAPTURE .............................................................................................................. 23
27TASK MANAGER .................................................................................................................... 24
Stopping Applications ........................................................................................................... 24
Uninstall Applications ........................................................................................................... 24
28 YouTube.................................................................................................................................... 24
29 Wi-Fi Settings ........................................................................................................................... 25
30 3G Settings ................................................................................................................................ 25
31 ADSL Settings .......................................................................................................................... 26
32 Ethernet .................................................................................................................................... 26
33 SETTINGS ................................................................................................................................ 26
Frequently Asked Questions ........................................................................................................ 28
Battery Management .................................................................................................................... 29
Important Safety Precautions ...................................................................................................... 30
Appendix: The Optional parts and models ................................................................................. 30
3
1 Outlook Description
Front:
Right side:
Left side:
Top:
4
2 Power Button Usage
Turn On: Press the power button and hold for 2 seconds.
Turn Off: Press the power button and hold for 2 seconds, →tap power off→tap OK.
Sleep Mode On/Off: Press & release the power button quickly to turn sleep mode on and off.
Force Off: If device does not respond, press and hold the power button for 5seconds.
Note: If it is necessary, we don’t suggest use Force Off. You should follow the steps to perform
the shutdown.
Reset Button:
Press the reset button to reset the device. Reset will erase all data on the device,
please caution this feature. (
Note:
Current the reset function can not be restart, so after reset you
need to press the power button to re-boot.)
3 USB interface
Insert U-Disk
Insert your U-disk into the Tablet. When ready for use, it will directly into the File
5
Browser to open U disk folder.
Remove U-Disk
Close all applications or documents which have been opened on the U-disk. Tap
→ Settings → SD card, U-disk & device storage → Unmount U-disk. And then
you can unplug the U-disk.
☆ Wireless Book has three main USB Interface
☆ Don’t insert and remove the U-disk repeatedly in a short time, as this may cause
damage to the U-disk.
4 Using SD Card
☆ The device supports a maximum 32GB SD card.
Insert your card into the SD slot until it clicks into place. it’s OK
Remove SD Card
Close all applications or documents which have been opened on the card. Tap
→ Settings → SD card, U-disk & device storage → Mount SD card. Press the
card lightly; it is partially ejected allowing you to pull the card out.
☆ Don’t insert and remove the U-disk repeatedly in a short time, as this may cause
damage to the card.
☆ We recommend using major brands of memory cards to avoid incompatibility.
5 Keyboard
Wireless Book was used 80 keys of standard keyboard template.
There are some functions of key combination
6
Home
Lock Screen
Num keyboard
Users press to change Num mode and than they can input The corresponding number by
Num key.Press it again to get back normal mode.
Commonly used buttons:
Esc: Back
Enter: OK
Arrow keys: Corresponds to the direction of(up down left right)
F1: Browser
F2: My Music
F3: My Video
F4: My Photo
F5: Calculator
F6: WmtWeather
F7: My Recorder
F8: Clock
F9: Calendar
F10: File Browser
F11(Fn+F1): Task Manager
F12(Fn+F2): Settings
7
6 Touchpad
Touchpad is a mouse device it can be used as a regular mouse. Touch pad buttons on both sides of
the left and right mouse buttons and common features with the same.
Note:
Do not place heavy objects on the touchpad to avoid being scratched or deformed
☆
Do not plug the frequent U disk, it may be damaged.
7 Getting Started
Charge the device
☆ You cannot charge the battery using the USB cable.
☆ You can use the device while the battery is charging, although the charging time is
longer when operating and charging at the same time.
Plug the power adapter into an electrical wall outlet, and then connect to the device to fully
charge the battery before use (approx. 4hour).
While charging, the battery indicator light is red. When fully charged, the battery indicator
light is green.
Turn the device on
Press the power button and hold for 2 seconds.
Wi-Fi Network Setup
Since many features require a Wi-Fi connection, we recommend you set up your Wi-Fi
network now.
1. Tap , → Settings, → Wireless & network.
2. Select Wi-Fi to turn on.
The device automatically scans and lists all local Wi-Fi Network found. A
indicates secure networks that require login name/password to connect.
3. Tap the desired network to which you want to connect, → enter the Network
Password if applicable, → tap Connect.
4. Tap to return to the Desktop screen.
☆ If your Wi-Fi network is set as hidden, it won’t be found
by the auto scan. Tap Add Wi-Fi network and follow the prompts
to add your network.
8
8 DESKTOP
① Return to Desktop from other apps
② Battery charge status
③ Current Time
④ Picture capture icon
⑤ Volume reduction icon
⑥ Volume increase icon
⑦ Function Menu icon
⑧ Back icon
⑨ Tap to view the applications screen
☆ Tap on any application icon to launch it.
☆ Touch, hold and then slide icons to reposition then on the screen.
☆ Touch, hold and slide icons onto to remove them from the
Desktop screen.
9 Screen Lock
Can be set to automatically lock screen or quickly press the power button to manually lock
screen. Lock screen displays the following:
9
Drag the icon to turn on or turn off silent mode.
Drag the icon to unlock the screen.
10 Pre-loaded Applications
Wmtweather
Display the weather.
Clock
Use as alarm clock with scheduled alarms.
App Market
Downloaded applications quickly & easily.
Browser
Access the Internet and “surf the web” whenever desired.
Calendar
Calendar with ability to set events.
Calculator
Do calculation.
10
Email
Send/Receive email using your existing email addresses.
File Browser
File manager application for viewing and managing files and apps.
Use to install Android apps, and to backup files to your SD card.
My Music
Play and manage audio files.
My Video
Play and manage video files.
My Photo
View and manage photo files.
Contacts
Create a list of personal contacts, which can also be linked with
your email.
Capture
Capture image of the screen.
PK
Manager
Application manager for managing processes.
YouTube
Quick launch to YouTube.com videos.
Settings
Multiple settings for personalizing and enhancing your Device.
Wi-Fi Settings
Set Wi-Fi network.
3G Settings
Set 3G network.
ADSL Settings
Set ADSL network.
Ethernet
Configure Ethernet.
☆ To move an icon to the Desktop screen, touch & hold on the icon,
and then release it when it appears on the Desktop screen.
11
☆ Touch, hold and then slide icons to reposition then on the screen.
☆ Touch, hold and slide icons onto to remove them from the Desktop
screen.
11 Desktop Function Menu
On the Desktop screen, you can tap to display the Function Menu.
Add
The viewable portion of the Desktop screen allows only 16 icons. In
order to add more items, finger slide the screen horizontally to
expose available space, and then tap the Add icon again. If the
screen is full, the Add icon won’t response.
Shortcuts
Add quick launch shortcuts on the Desktop to
applications, bookmarks or settings.
☆ If you select items that are
shortcuts already on the Desktop
screen, they will be duplicated,
resulting in multiple icons for the
same item.
Widgets
Analog clock: Add a round analog clock.
Calendar: Add a calendar widget to display current
date & events.
Music Player: Add a music widget to quickly begin
playing music without launching the music
12
application.
Folders
New Folder: Add a folder into which you can add
applications as desired. To move applications on the
Desktop screen into the folder, touch, hold & drag
the icons directly on top of the folder icon.
To add applications from the All Application
screen, first tap on the folder to open it, open the All
Application screen, and then touch & hold on an
application icon. It is copied into the folder.
Wallpaper
Select wallpaper from Picture and Wallpapers.
Search
Perform a quick Google search.
Tap in the entry field, → enter the desired search
text, → tap .
Notifications
List any pending notifications (i.e., new email,
calendar events, etc).
Settings
See “Settings” on page 25.
12 Application Management
Install Android Applications
☆ There are many interesting and free Android applications that can be found on the
web. Just launch your web browser and do a search for “Android applications”.
Purchased or free Android applications that you have downloaded to your computer can
be installed quickly & easily on your Tablet using the File Browser application.
1. Copy the .apk files that you want to install onto a SD card or USB device, →
insert or connect to your Device.
13
2. Tap the File Browser application icon.
3. Tap or and locate the folder in which the .apk application files were
saved.
4. Tap on a .apk file → Install.
The application is installed and the application icon is added to the Applications
screen.
5. Tap Open to launch the application now, or tap Done to return to the File Browser
screen.
Download Android Applications direct from a Website
You can download Android applications directly from websites, and then quickly and
easily install them on your device.
1. Tap the Web application icon to launch the internet browser.
2. Enter the desired website URL, and tap the download link for the application you
want to install on your device.
3. After the download is complete, touch & hold on the download file (in the
Download history screen), → tap Open → Install.
Uninstalling Android Applications
You can also quickly and easily uninstall the Android applications that you have
installed.
1. Tap → Settings → Applications → Manage applications.
2. Tap the application you want to uninstall, → Uninstall.
3. Tap OK to confirm the Uninstall.
13 WmtWeather
Tap the WmtWeather application icon.
General setting
You can set Temperature Unit(℃), Update frequency and Auto Wallpaper.
My cities
You can add city and set it to be my city.
You can make the weather displayed on the Desktop through adding widget. The way is: tap
→ Add → Widgets → WmtWeather。
14
14 CLOCK
Tap the Clock application icon. You can see the time and date.
Alarm
You can use your device as an alarm clock by setting multiple alarms.
☆ This clock icon displayed at the top of screens indicates
that one or more alarms have been set and are active.
Add Alarm
1. Tap the Clock application icon.
2. Tap → Add alarm.
3. Set up your alarm as desired.
☆ If you don’t select a repeat, the alarm is automatically
deleted after it is activated.
4. Tap Turn alarm on.
5. Tap Done.
Shut Off Alarm Alert
When a scheduled alarm is activated, a pop-up window with the alarm title appears.
Tap Snooze if you want to be reminded again in 10 minutes.
Tap Dismiss to cancel the alert.
Turn Alarm on
On alarms that you have set to repeat, you may want to temporarily turn on alarms
rather than delete them.
1. In the Alarm screen, tap on the alarm(s) you want to turn on.
2. Tap to turn on again.
Edit Alarm
1. Tap the Clock application icon.
2. Tap on the alarm you want to edit, → make desired edits.
Delete Alarm
1. Tap the Clock application icon.
2. Tap on the alarm you want to delete.
3. Tap → Delete alarm.
15
Tap to return to the Desktop screen.
15 APP MARKET
The App Market has many applications that you can quickly and easily download to your
Tablet.
Download Applications
1. Tap the App Market application icon.
☆ The first time, you are prompted for your App Market login information. If you
have not yet registered an account, tap Register.
Otherwise, tap Login and enter your login information and then tap Login
again.
2. You can select applications from the default Featured group, by Categories, Top
(latest, hottest, random), or search by name.
3. Tap on an application, → Download.
4. After the app is downloaded, tap Install.
5. Tap Open to launch now, or Done to return to the App Market screen.
History
After downloading apps, tap on History to manage the installed applications. You
can add and/or view comments from other users, launch apps, and uninstall them.
App Market Function Menu
Tap to display the App Market Function Menu.
Profile
Tap to access your profile information. You can Change Password, Change Email
and Save Password. Tap Logout on the top right corner of Profile to exit your
account.
About
Displays App store version and support information.
16 BROWSER
Users can connect to the Internet through a browser.
Click the browser icon on the Desktop , and then you can open the Web browser.
16
17 CALENDAR
Tap the Calendar application icon.
For the first time using the Calendar, you need to add an Exchange account. Enter account
email address and password. Click Next and follow the prompts to complete the account
configuration. Then you can use the Calendar.
Add Event
1. On the Calendar screen, tap on the date to which you want to add an event.
2. Tap on the event time, → tap in each entry field to enter the desired event
information.
3. Tap Done.
4. Tap to select desired Calendar screen.
☆ Dates with green bars indicate scheduled events.
18 RECORDER
1.Tap the recorder icon.
2.Tap the record icon to record
3.Tap the record icon to stop record
17
4.Tap the play button to listen the voice of recording
19 CALCULATOR
1. Tap the Calculator application icon.
2. Tap the numbers and sign of operation to do the calculation.
3. Tap CLEAR to clear the result one by one, tap and hold CLEAR to clear all.
20 EMAIL
☆ POP3 and SMTP accounts are supported.
Add Email accounts
You can enter one or more personal email addresses that you would like to access
through your Tablet.
1. Tap the Email application icon.
2. On the Your Accounts screen, tap Next.
3. Tap in the Email address entry field, → enter your email address.
4. Tap in the Password entry field, → enter your email password.
5. Tap Done.
6. Manual Setup (optional): The server settings are automatically populated based on
your email account provider (i.e., gmail.com, etc). However, if you need to change
the server settings tap Manual Setup and make necessary changes.
7. Tap Next.
8. Optional: Enter a name for the account.
9. Enter name for outgoing message, → tap Done.
☆ After setup, if you are unable to connect to a free email account, check with your
email provider to make sure their servers support free accounts on Post Office
Protocol (POP) or Simple Mail Transfer Protocol (SMTP).
Email Inbox
1. Tap the Email application icon.
2. If you set up only one email account, it opens immediately. If you set up multiple
accounts, they are listed in the Accounts screen.
3. Tap on the desired email account, → tap Inbox.
18
Open Email Message
1. On the Inbox screen, tap on an email to open it.
2. For attachments, tap Open to launch appropriate application, or tap Save to
save attachment to a SD card.
3. To replay, tap Reply or Reply all.
a. Tap in the Compose Mail entry field to enter your reply message.
b. Tap Send to send immediately, Save as draft to save without send or Discard
to discard without saving or sending.
4. To delete the email immediately, tap Delete.
Compose New Email Message
1. On the Inbox screen, tap → Compose.
2. Tap in the To entry field and then enter the recipient’s email address.
3. Optionally, if you want to add Cc or Bcc recipients, tap → Add
Cc/Bcc, and then enter the recipient’s email address.
4. Tap in the Subject entry field to enter your desired subject title.
5. Tap in the Compose Mail area to enter your personal message.
6. If desired, tap → Add Attachment to attach a file.
7. When ready to send the email, tap → Send.
Edit Email Account
1. Tap the Email application icon.
2. On the Inbox screen, tap → Account settings.
3. Set your desired preferences to customize your email account.
4. Tap to return to the Inbox screen.
Delete Email Accounts
☆ If you have multiple accounts, and you delete the account designated as the default
account, the next email listed is automatically set as the default.
1. Tap the Email application icon.
2. On the Inbox screen, tap → Accounts.
3. Touch & hold on the account you want to delete.
4. In the pop-up Account options window, tap Remove account.
5. Tap OK to confirm the deletion.
Set Default Email Account
You must always have one account designated as the default account, so if you have
multiple email accounts, you can select any one as the default.
19
1. Tap the Email application icon.
2. On the Inbox screen, tap → Account Settings.
3. Tap Default Account to select it.
If you delete the account that was designated as the default account, the next email listed
is automatically designated as the default.
21 FILE BROWSER
Tap the File Browser application icon to view the files on all storage devices
(Internal memory, SD card, USB device), and to quickly & easily install Android application
on your Tablet.
Use the icons across the top of the screen as follows:
Local disk (Internal memory)
Your SD card
U-disk/USB flash drive
Display precious folder
Create a new folder
Allows you to multi-select items
Copy Media between Computer and Tablet
You can use the File Browser to copy files between an external storage devices and your
computer. You can first copy the desired files onto a SD card or USB device or directly
use an USB cable to connect the device and the computer and then copy files.
☆ The internal device storage is titled “LocalDisk”, a memory
card “sdcard”, and a USB storage device is titled “udisk”.
☆ The instructions below are for copying from a SD card or USB
storage device into the device. You can use the same method
to copy from the device to a SD card or USB storage device,
and then connect the storage device to your computer to
transfer the files into the desired folder on your computer.
1. Tap the or to display the contents of your storage device.
2. Tap and hold in the folder/file you want to copy, → tap Copy.
20
3. Tap on the Internal Memory, → tap on the folder into which you want to
copy the file, → tap Paste.
Delete files
Tap and hold on the folder/file you want to delete, → tap Delete → OK to confirm
the deletion.
22 MY MUSIC
☆ Audio file formats supported: MP2, MP3, WAV, AAC, WMA.
Play Music
1. Tap the My Music application icon.
2. Select an audio file from All/Albums/Artists/Directories/My Favourites/User
Defined Playlists to play it.
3. To stop the music, tap the Pause icon.
4. To leave the music playing and return to previous screens, tap or tap
to return to the Desktop screen.
Tap the photo on the left corner can enter the Music Player interface. It shows like:
At this interface, you can do: view the lyrics, play / pause, switch to the previous / next,
added to favorites, loop and random operation etc.
The Operation with Music and Playlist
21
Add playlist
1. Tap the User Defined Playlists .
2. Input the playlist name.
3. Tap Add.
Rename or Delete playlist
Tap and hold in the playlist, → tap Rename or Delete.
Add music
1. Tap and hold in the music you want to add, → tap .
2. Click the following item to add music in it (if you don’t want to add, tap
Cancel).
Delete music
Tap and hold in the music you want to delete, → tap .
MultiSelect
Tap and hold in one music can do multiselect, tap to select all or clear all.
23 MY VIDEO
☆ Video file formats supported: MPEG1/2/4
、
MJPG、H263、H264. In
addition to H264 which is supported by (720× 480) resolution,
the other video formats are supported (1280×720) resolution.
Play Video
1. Tap the My Video application icon.
2. Select a video file from All/ Directories/My Favourites/User Defined Playlists to
play it.
3. Tap on the screen to display video controls (adjust volume, pause/play,
previous/next, adjust brightness).
4. Tap Back button or to return to the My Video screen.
The Operation with Video and Playlist
Add playlist
1. Tap the User Defined Playlists .
2. Input the playlist name.
3. Tap Add.
Rename or Delete playlist
22
Tap and hold in the playlist, → tap Rename or Delete.
Add video
1. Tap and hold in the video you want to add, → tap Add.
2. Click the following item to add video in it (if you don’t want to add, tap
Cancel).
Delete video
Tap and hold in the video you want to delete, → tap Delete.
24 MY PHOTO
☆ Photo file formats support: JPG, JPEG, BMP, and PNG.
1. Tap the My Photo application icon, → tap on a group of photos.
2. To view individual photo, tap on the desired photo.
3. Tap Back button to return to the photo gallery screen.
4. Tap to make slideshow. There is Normal play, Reminiscently, Activity, Romantic,
Tranquil and Fresh.
5. Tap to make the picture sort by color.
6. Tap to make the picture sort by time.
7. Tap to make the picture sort by name.
After entering a group of photos, tap and hold on a picture to enter multiple selections state.
In the multiple selection state you can delete photos, and do dynamical switching wallpaper
setting.
1. — Multiselect.
2. — Delete.
3. — Add a picture to the group
Doodle
In My Photo you can do doodle.
Click the icon to enter doodle interface. You can select different doodle
operations, including: word balloons, titles, stickers and brush.
23
25 CONTACTS
You can create an address book of your personal contacts, including personal notes as
desired.
Add New Contacts
1. Tap the Contacts application icon.
2. Tap → New Contact.
3. Tap in the name fields to enter the contact’s first & last name.
4. Tap at the right of options to reveal additional choices.
5. Tap on the option name to reveal choices.
6. Tap in the option entry fields to enter the contact’s information.
7. Tap Done.
Add Contact to Favorites
1. In the Contacts screen, tap on the desired contact name.
2. Tap in the upper right corner.
3. Tap to return to the Contacts screen.
4. Tap Favorites to view list of favorite contacts.
Edit Contacts
1. In the Contacts screen, tap on the desired contact name you want to edit.
2. Tap → Edit Contact.
3. Make desired changes, → tap Done.
Delete Contacts
1. In the Contacts screen, touch & hold on the contact, → tap Delete contact.
OR
In the Contacts screen, tap on the contact you want to delete, tap → Delete
Contact.
2. Tap OK to confirm the deletion.
26 PICTURE CAPTURE
You can capture a screen image by tapping at any time.
24
Tap the Picture Capture application icon to set options for a screen capture.
●Select a delay timer to automatically capture the screen in desired number of seconds.
●Select the default storage device for saving your images.
After the images are saved, they can be viewed though My Photo application.
27 Task MANAGER
Use Task Manager to manager applications and widgets.
Stopping Applications
Android does not automatically stop applications after they are loaded, so you can
manually stop the applications as desired.
1. Tap the Task Manager application icon. The list of applications that are
running is displayed.
2. Tap on an application you want to stop, → tap Force stop.
Uninstall Applications
1. Tap the Task Manager application icon. The list of applications that are
running is displayed.
2. Tap , → tap Third Party or All to list more applications.
3. Tap on an application you want to uninstall, → tap Uninstall.
4. Tap OK to confirm uninstall.
28 YouTube
1. Tap the YouTube application icon to view YuTube.com videos.
2. Tap on a video to launch it.
3. Tap on the screen to display video controls (adjust volume, pause/play, previous/next,
adjust brightness).
4. Tap Back button to return to the YouTube screen.
25
29 Wi-Fi Settings
Tap Wi-Fi Settings application icon.
1. Select the box behind to open Wi-Fi;
2. All the AP in the vicinity will be listed, click to select the name you want to connect to
AP;
3. If the AP is connected successful before, the AP information will be saved in the pop-up
window, select "Connect" starts to connect, choose "forget" to remove AP information;
4. If the AP is not encrypted, in the pop-up window, select "Connect" Start Connection;
5. If the AP is encrypted, enter the password in the pop-up window, and click "Connect"
Start Connection;
6. When internet connections are successful, the wireless connection icon in the status bar
appears.
30 3G Settings
First of all you need to buy 3G wireless network card according to China Telecom, China
Mobile or China Unicom. The currently supported on the 3G card type please refer to
Appendix.
We strongly recommend on buy the 3G Network Cards, in order to ensure normal 3G Internet
access. Please come to the prepaid card into the purchase of 3G Network Cards, and then
insert the adapter cards 3G on the book. At this time it will be bright lights on the 3G network
card, which indicated that it could begin to connect the 3G network.
Tap 3G Settings application icon.
Tap “Add 3G network”:
Name: In the popup dialog box, name field enter the name you want free you can.
Device: If you use this manual in the format described in China Unicom's 3G network cards
and device column to the default settings, you do not need to select other items; When you
use the manual as described in the 3G standard of China Telecom on the card, the device
should be chosen CDMA2000(Bora9380/AWIT-U8); When you use the manual as described
in the 3G standard of China Mobile on the card, the device should be chosen
TD-CDMA(TD368) Modem.
Device number and APN: Please fill in the information provided by carriers. (As in China:
If you use China Unicom and China Mobile's 3G network card, device number field need to
fill in "*99#", APN need to fill in the "cmnet"; if China Telecom formats 3G on the card,
phone number need to fill in the column "T#777", APN do not need to fill in the name of
column.)
User and Password: If you use the standard of China Unicom and China Mobile's 3G
network card, user and password fields are free to fill or not fill; if you use the standard of
26
China Telecom's 3G network card, user and password fields, please request to China
Telecom.
Fill then click the link, and you will see the screen above the status bar 3G symbol
appears, indicating the completion of 3G is connected, and then you can get online.
31 ADSL Settings
Tap ADSL Settings application icon.
Input name and password then click connect to access the broadband network.
32 Ethernet
Push the network cable into the Ethernet port, the status bar at the top of the screen appears
"ETH" icon
Tap Ethernet application icon.
The device can automatically access network IP address connection. And you can choose
manual setup IP address to get a connection.
33SETTINGS
27
Wireless &
networks
Wi-Fi
Turn on Wi-Fi.
Wi-Fi Settings
Set up & manage wireless access points.
Airplane mode
Disable all wireless connections.
3G network settings
Set up 3G network.
Ethernet
Configure Ethernet.
Pppoe
settings
Do ADSL settings. Input user name and password to
connect.
USB
Mass storage
Configure USB to mass storage.
ADB
Configure USB to ADB.
Sound
Silent mode
Silence all sounds except media & alarms.
volume
To adjust the Media volume, Alarm volume and
Notification volume. Tap & slide
and then tap OK.
Notification ringtone
Select desired ringtone sound.
Audible selection
Select to enable a sound when making a screen selection.
Screen lock sounds
Play sounds when locking and unlocking the screen.
Display
Brightness
Tap & slide to adjust the screen
brightness as desired, and then tap OK.
Screen timeout
Adjust the delay before the screen automatically turns off.
Suspend timeout
Adjust the delay before the device automatically suspend
after the screen turn off.
Security
Set up screen lock
Lock screen with a pattern, PIN, or password.
Visible passwords
Show password as you type.
Select device
administrators
Add or remove device administrators.
Use secure
credential
Allow applications to access secure certificates and other
credentials.
Install from
SD card
Install encrypted certificates from SD card.
Set password
Set or change the credential storage password.
Clear storage
Clear credential storage of all contents and rest its
password.
Applications
Unknown sources
Allow installation of non-Market applications.
Manage applications
Manage and remove installed applications.
Running services
View and control currently running services.
Development
Set options for application development.
Quick launch
Set keyboard shortcuts to launch applications.
Privacy
Factory data reset
Tap to reset the device to its initial factory state, erasing all
data and downloaded applications. Tap Reset Device to
proceed with reset, or tap to cancel and return to
previous screen.
WARNING! The following will be erased during the
28
factory reset:
~ Google account
~ System and application data and settings
~ Downloaded applications
The factory reset will NOT erased:
~ Current system software and bundled applications
~ SD card files, such as music or photos
SD card ，
U-disk &
device storage
Total space,
Available space
It values appears when a SD card/U-disk is inserted in
device.
Mount SD
card/U-disk
When the SD card/U-disk is inserted, tap it to safety
remove the SD card/U-disk.
Format SD
card/U-disk
N/A for this device.
Language &
keyboard
Select language
Select the language and region according to your location.
Android keyboard
Onscreen keyboard settings.
User dictionary
You can add words to a personal dictionary, words that
may not be included in the default dictionary.
Date & time
Set date
Set the date.
Select time zone
Select the time zone.
Set time
Set the time.
Use 24-hour format
You can choose to use 24-hour format or 12-hour format.
Select date format
You can select the date format.
About device
View Status (Battery, Wi-Fi, etc), Battery use, Legal
information, Model number, Android version, Kernel
version and Build number.
Frequently Asked Questions
Android
Q: What Android OS version is on my Device?
A: 2.2
Basic Device Functionary
Q: Do I have to charge the battery before use?
A: You should charge the battery for at least 4 hours, but you can use the device while
it’s charging. Use the include power adapter to charge; this device does not charge
via the USB cable.
Email
Q: Can I use any of my personal email addresses to send/receive email?
A: The device supports POP3 and SMTP accounts. Some free email accounts are not
29
supported on mobile devices. Check with your email provider to see if you account
is supported.
Media Cards
Q: Which media cards are compatible with my Device?
A: micro SD cards.
Music
Q: What type of music files can I play on my device?
A: MP2, MP3, WAV, AAC, WMA
Q: How do I add music files to my device?
A: Copy the music files from your computer onto a SD card or USB storage device, and
then use the File Browser application to copy the files into the device.
Photos
Q: What type of photo files can I view on my device?
A: JPG, JPEG, BMP and PNG.
Q: How do I add photo files to my device?
A: Copy the photo files from your computer onto a SD card or USB storage device, and
then use the File Browser application to copy the files into the device.
Video
Q: What type of video files can I play on my device?
A: MPEG1/2/4、MJPG、H263、H264. In addition to H264 which is supported by (720
× 480) resolution, the other video formats are supported (1280 × 720) resolution.
Q: Can I play YouTube videos on my device?
A: Yes. You can tap the YouTube application icon to quick access videos.
Q: How do I add video files to my device?
A: Copy the video files from your computer onto a SD card or USB storage device, and
then use the File Browser application to copy the files into the device.
Wi-Fi
Q: Do I need a Wi-Fi adapter to connect to the Internet?
A: No. The Wi-Fi adapter is built-in to the device.
Inconsistent with the physical specifications, please prevail in kind.
Battery Management
The battery is not fully charged out of the box, so it is recommended that you charge the
battery for at least 4 hours before you start to use the device.
The rechargeable battery is designed and manufactured to be used and recharged frequently.
As with all batteries, the capacity of the battery reduces each time it is charged/depleted.
30
However, you can still try to prolong the battery’s lifetime by following the suggestions
below:
● Use your Tablet at least once a week.
● Charge the battery regularly and fully.
● Never leave the battery fully discharged for a long period of time.
● Always keep the device and the battery away from heat.
Charge battery
Plug the power adapter into an electrical wall outlet, and then connect to the device to
fully charge the battery before use (approx. 4hour).
☆ You cannot charge the battery using the USB cable.
When fully charged, the battery icon displays as: .
A fully discharged battery takes approximately 5 hours to fully charge, but you can use
the device while plugged in when desired.
Important Safety Precautions
Always follow these basic safety precautions when using your Tablet. This reduces the risk of
fire, electric shock, and injury.
● Do not expose this product to rain or moisture.
● Keep the device out of direct sunlight and heat sources.
● Protect the power cord. Route power cords so that they are not likely to be walked
on or pinched by items placed on or against them. Pay particular attention to the
point where the cord attaches to the device.
● Only use the AC adapter included with the device. Using any other power adapter
voids your warranty.
● Do not remove the cover. There are no user-serviceable parts inside.
Clean your Device
Treat the screen gently. To clean fingerprints or dust from the screen, we recommend
using a soft, non-abrasive cloth such as a camera lens cloth.
Appendix: The Optional parts and models
Parts name
Parts type
3G Wireless Network Card
TD-CDMA
TD368
WCDMA
HUAWEI E220
HUAWEI E230
HUAWEI E160X
HUAWEI E169G
HUAWEI E1750
31
Alcatel X060S
Alcatel X200
CDMA2000
Bora 9380
AWIT-U8
Loading...
