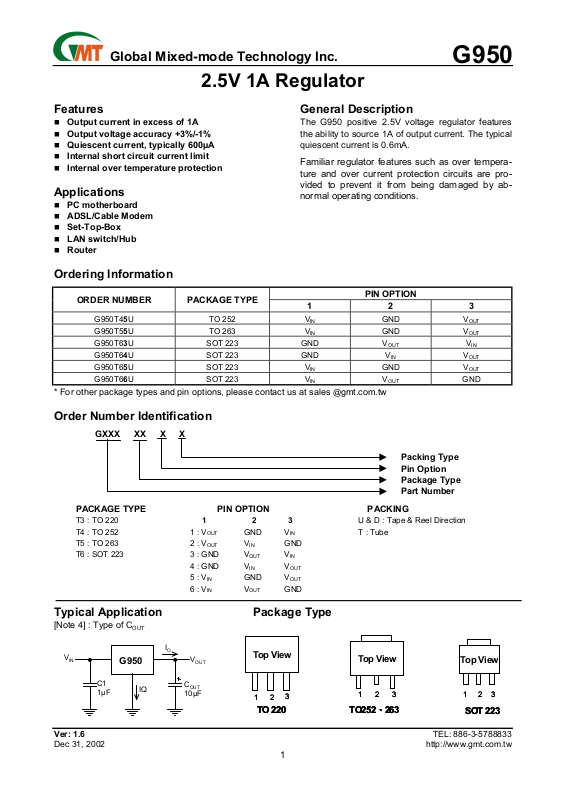

Global Mixed-mode Technology G950 Datasheet

Global Mixed-mode Technology Inc.

2.5V 1A Regulator

Features

Output current in excess of 1A



Output voltage accuracy +3%/-1%



Quiescent current, typically 600µA



Internal short circuit current limit



Internal over temperature protection



Applications

PC motherboard



ADSL/Cable Modem



Set-Top-Box



LAN switch/Hub



Router



Ordering Information

ORDER NUMBER PACKAGE TYPE

G950T45U TO 252 V

G950T55U TO 263 V

G950T63U SOT 223 GND V

G950T64U SOT 223 GND VIN V

G950T65U SOT 223 V

G950T66U SOT 223 VIN V

* For other package types and pin options, please contact us at sales @gmt.com.tw

General Description

The G950 positive 2.5V voltage regulator features the ability to source 1A of output current. The typical quiescent current is 0.6mA.

Familiar regulator features such as over temperature and over current protection circuits are provided to prevent it from being damaged by abnormal operating conditions.

1 2 3

GND V

IN

GND V

IN

GND V

IN

PIN OPTION

G950

OUT

V

OUT

GND

OUT

IN

OUT

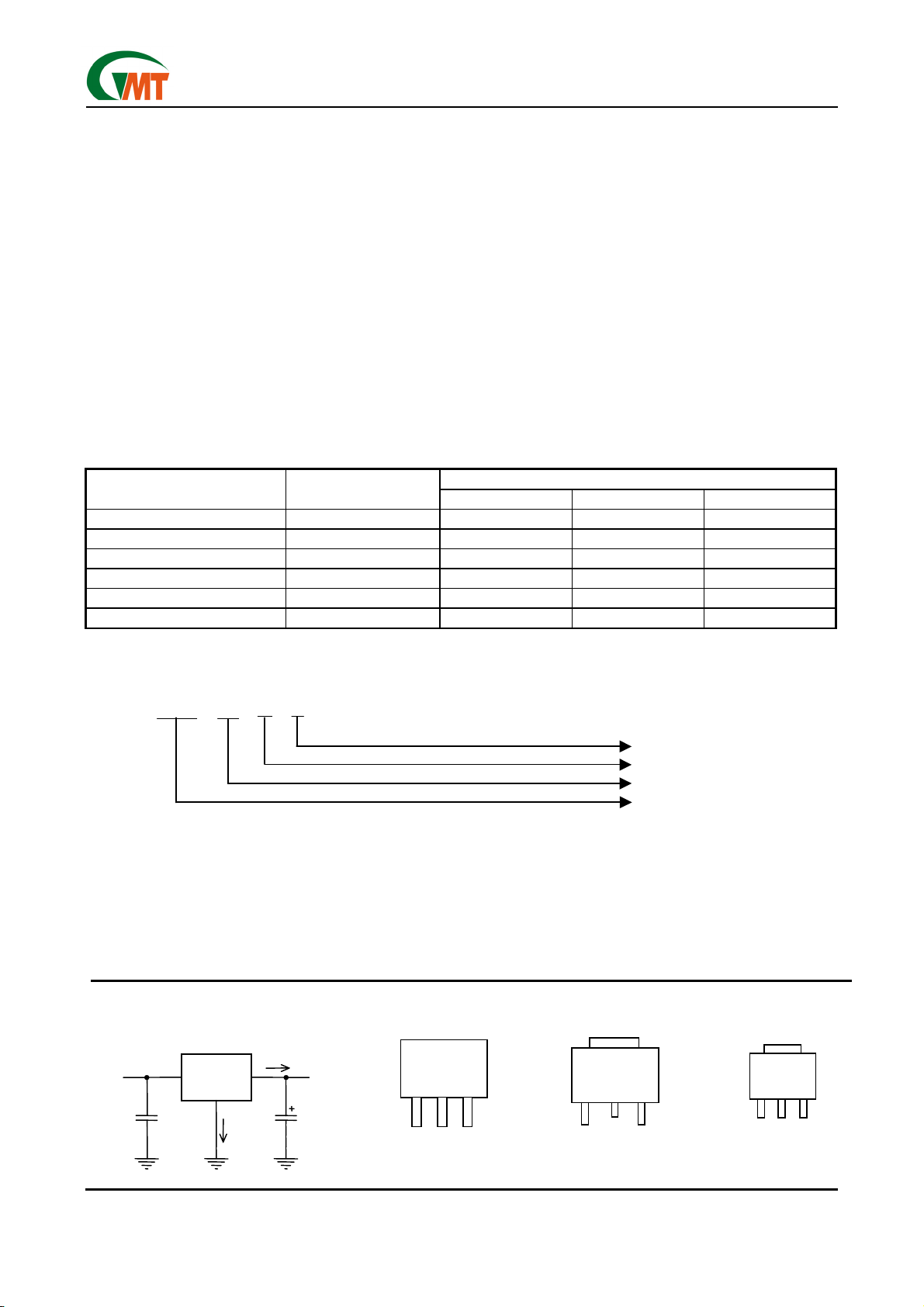

Order Number Identification

GXXX XX X X

Packing Type Pin Option Package Type Part Number

PACKAGE TYPE PIN OPTION PACKING

T3 : TO 220 T4 : TO 252 1 : V T5 : TO 263 2 : V T6 : SOT 223 3 : GND V 4 : GND V 5 : V 6 : V

1 2 3

GND VIN T : Tube

OUT

VIN GND

OUT

GND V

IN

V

IN

VIN

OUT

V

IN

GND

OUT

U & D : Tape & Reel Direction

Typical Application Package Type

[Note 4] : Type of C

V

IN

C1 1µF

OUT

G950

IQ

I

O

V

OUT

C

OUT

10µF

Top View

2

1

TO 220

Top View

1

3

1

TO252

2

、、、、

263

3

Top View

Top ViewTop View

1

2

SOT 223

3

Ver: 1.6

Dec 31, 2002

TEL: 886-3-5788833

http://www.gmt.com.tw

1

Global Mixed-mode Technology Inc.

Absolute Maximum Ratings

Input Voltage……………………………………..…..…7V Power Dissipation Internally Limited …. (Note 2)

(Note 1)

Operating Conditions

Input Voltage…………………………………….3.3V~6V Temperature Range……………………0°C ≤ T

G950

(Note 1)

≤125°C

J

Maximum Junction Temperature…..…………… …..150°C Storage Temperature Range….…..-65°C ≤ T

≤+150°C

J

Lead Temperature, Time for Wave Soldering TO 220 Package………………………………260°C, 10s TO 252, TO 263, SOT 223 Package…….…...260°C, 4s Continuous Power Dissipation (T SOT 223 TO 252 TO 263

Note

(1)

……………………….….……….………..0.8W

(1)

………..……………….……….….………..1.0W

(1)

………..……………….……….….………..1.6W

(1)

: See Recommended Minimum Footprint.

Electrical Characteristics

VIN =5V, IO = 1A, CIN = 1µF, C

= + 25°C)

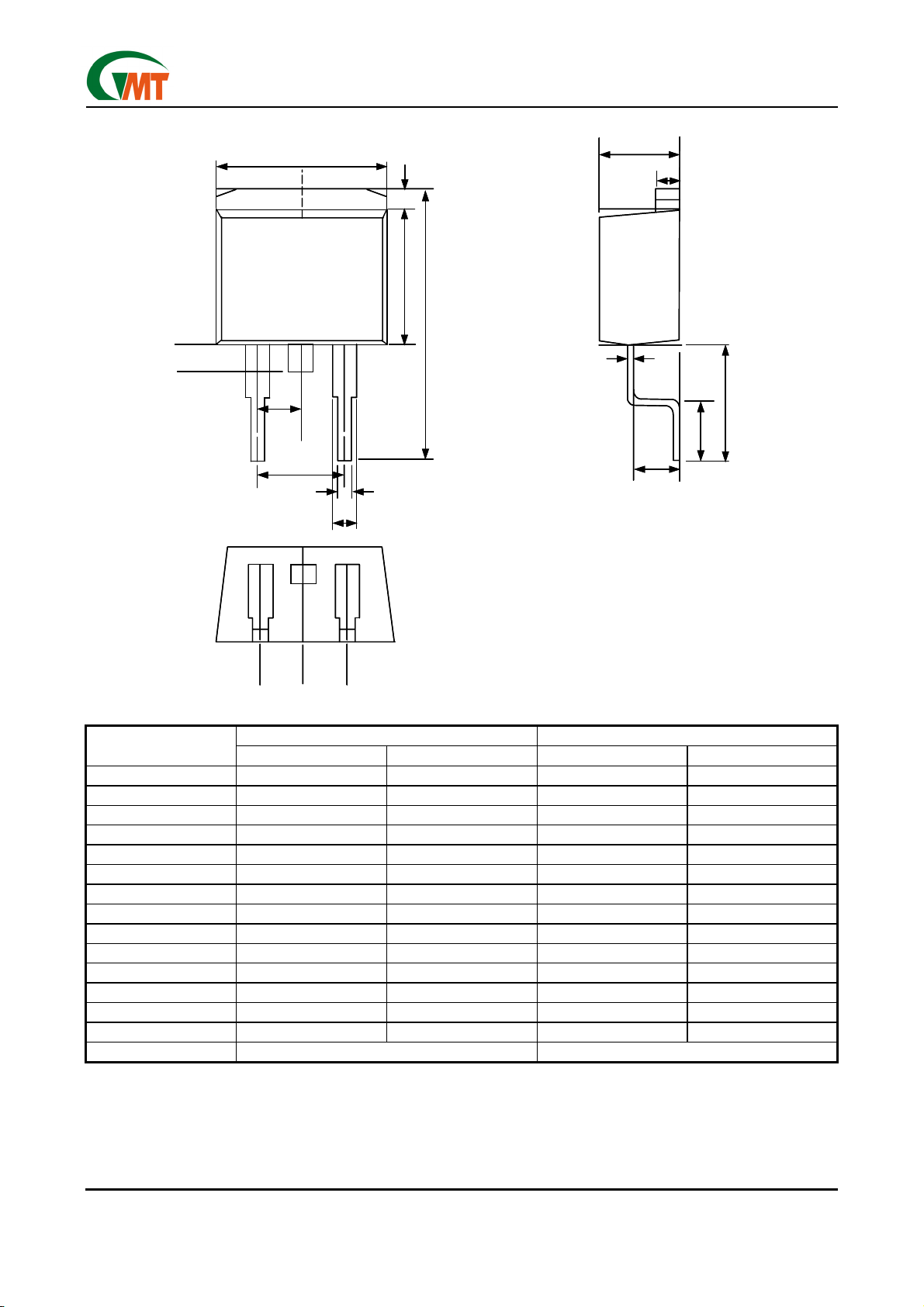

A

=10 µF, All specifications apply for TA = TJ = 25°C. [Note 3]

OUT

PARAMETER CONDITIONS MIN TYP MAX UNITS

V

= 5V, 10mA < IO < 1A

Output Voltage

Line Regulation 3.3V < VIN < 6V, IO = 10mA 3 30 mV

Load Regulation

Output Impedance 200mA DC and 100mA AC, fo = 120Hz 80 Quiescent Current V Ripple Rejection fi = 120Hz,V

Dropout Voltage

Short Circuit Current 1.6 A Over Temperature 150

IN

= 3.3V, 10mA < IO < 500mA

V

IN

V

= 5V, 10mA < IO < 1A 35 50 mV

IN

= 3.3V, 10mA < IO < 500mA 25 mV

V

IN

= 5V 0.6 mA

IN

IO = 1A 1.15 V IO = 500mA 420 mV

= 100mA 200 mV

I

O

ripple

=2V

Io = 100mA 46 dB

P-P,

2.475 2.50 2.575 V

mΩ

°C

Note 1:

Absolute Maximum Ratings are limits beyond which damage to the device may occur. Operating Conditions are conditions under which the device functions but the specifications might not be guaranteed. For guaranteed specifications and test conditions see the Electrical Characteristics.

Note 2:

The maximum power dissipation is a function of the maximum junction temperature, T sistance, perature is T will go into thermal shutdown. For the G950 in SOT 223 package, is 75°C/W, and in the TO 252 package,

θ

, and ambient temperature TA. The maximum allowable power dissipation at any ambient tem-

JA

θ

/

jmax-TA

. If this dissipation is exceeded, the die temperature will rise above 150°C and IC

JA

θ

is 156°C/W; in TO 263 package,

JA

θ

is 125°C/W (See recommend minimum footprint). The safe

JA

; total thermal re-

Jmax

θ

JA

operation in SOT 223,TO 252 & TO 263 package, it can see “Typical Performance Characteristics” (Safe Operating Area).

Note3: Note4:

Low duty pulse techniques are used during test to maintain junction temperature as close to ambient as possible. The type of output capacitor should be tantalum or aluminum.

Definitions

Dropout Voltage

The input/output Voltage differential at which the regulator output no longer maintains regulation against further reductions in input voltage. Measured when the output drops 100mV below its nominal value. Dropout voltage is affected by junction temperature, load current and minimum input supply requirements.

Line Regulation

The change in output voltage for a change in input voltage. The measurement is made under conditions of low dissipation or by using pulse techniques such that average chip temperature is not significantly affected.

Ver: 1.6

Dec 31, 2002

Load Regulation

The change in output voltage for a change in load current at constant chip temperature. The measurement is made under conditions of low dissipation or by using pulse techniques such that average chip temperature is not significantly affected.

Maximum Power Dissipation

The maximum total device dissipation for which the regulator will operate within specifications.

Quiescent Bias Current

Current which is used to operate the regulator chip and is not delivered to the load.

TEL: 886-3-5788833

http://www.gmt.com.tw

2

Global Mixed-mode Technology Inc.

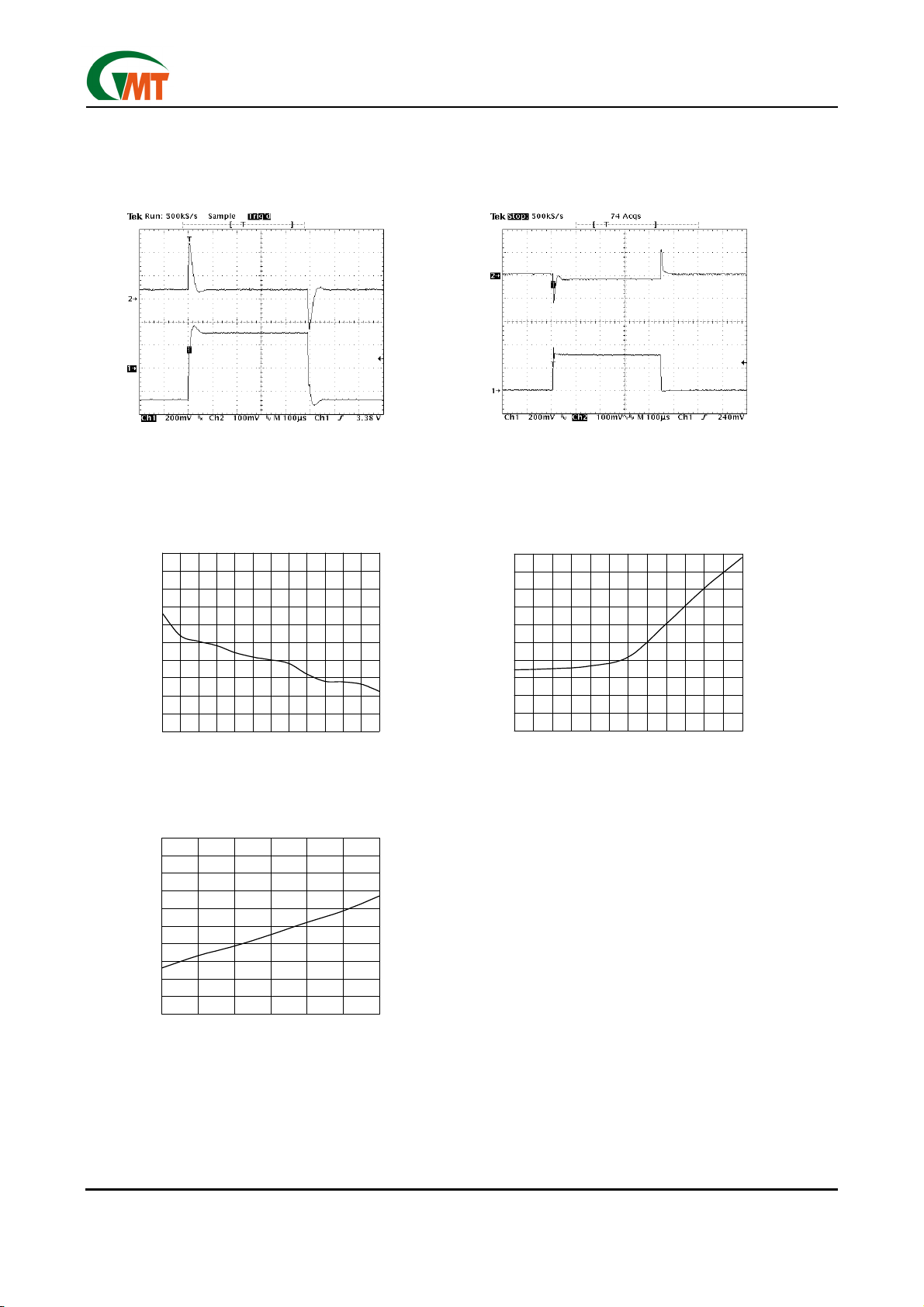

Typical Performance Characteristics

(VIN= +5V, CIN=1µF, C

Ch1: Vin (offset=5.0V) Ch2: Vout (offs et=2.50V) CIN = 1uF Iout=100mA

Output Voltage vs. Load Current

2.600

2.580

2.560

2.540

2.520

Ootput Voltage (V)

2.500

2.480

0 100 200 300 400 500 600 700 800 900 1000

=10µF, TA=25°C, unless otherwise noted.)

OUT

Line Transient Load Transient

Load Current (mA)

Ch1: Iout (1A/div) Ch2: Vout (offs et=2.50V)

Dropout Voltage vs. Load Current

1200

1100

1000

900

800

700

600

500

400

300

Dropout Voltage (mV)

200

100

0

0 100 200 300 400 500 600 700 800 900 1000

Load Current (mA)

G950

Ground Current vs. Load Current

2.00

1.80

1.60

1.40

1.20

1.00

0.80

0.60

0.40

Ground Current (mA)

0.20

0.00

0 100 200 300 400 500 600 700 800 900 1000

Ver: 1.6

Dec 31, 2002

Load Current (mA)

TEL: 886-3-5788833

http://www.gmt.com.tw

3

Global Mixed-mode Technology Inc.

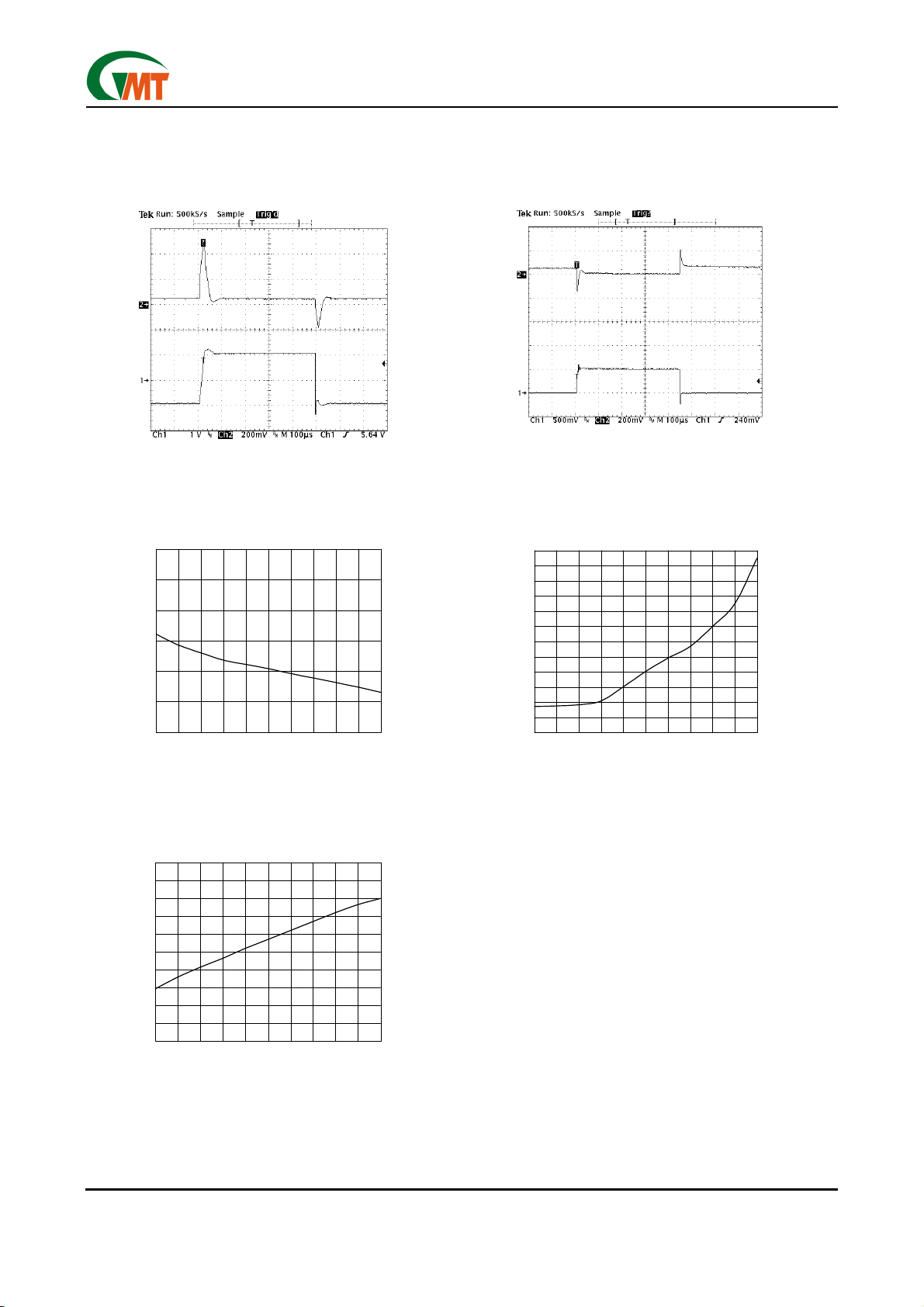

Typical Performance Characteristics

(VIN= +3.3V, CIN=1µF, C

Line Transient

Ch1: Vin (offset=3.3V) Ch2: Vout (offset=2.50V) CIN = 1uF Iout=100mA

Output Voltage vs. Load Current

2.550

2.545

2.540

2.535

2.530

2.525

2.520

2.515

Ootput Voltage (V)

2.510

2.505

2.500 0 50 100 150 200 250 300 350 400 450 500 550 600

Load Current (mA)

=10µF, TA=25°C, unless otherwise noted.)

OUT

Load Transient

Ch1: Iout (400mA/div) Ch2: Vout is AC coupled

Dropout Voltage vs. Load Current

500

450

400

350

300

250

200

150

100

Dropout Voltage (mV)

50

0

0 50 100 150 200 250 300 350 400 450 500 550 600

Load Current (mA)

G950

Ground Current vs. Load Current

2.00

1.80

1.60

1.40

1.20

1.00

0.80

0.60

0.40

Ground Current (mA)

0.20

0.00 0 100 200 300 400 500 600

Ver: 1.6

Dec 31, 2002

Load Current (mA)

TEL: 886-3-5788833

http://www.gmt.com.tw

4

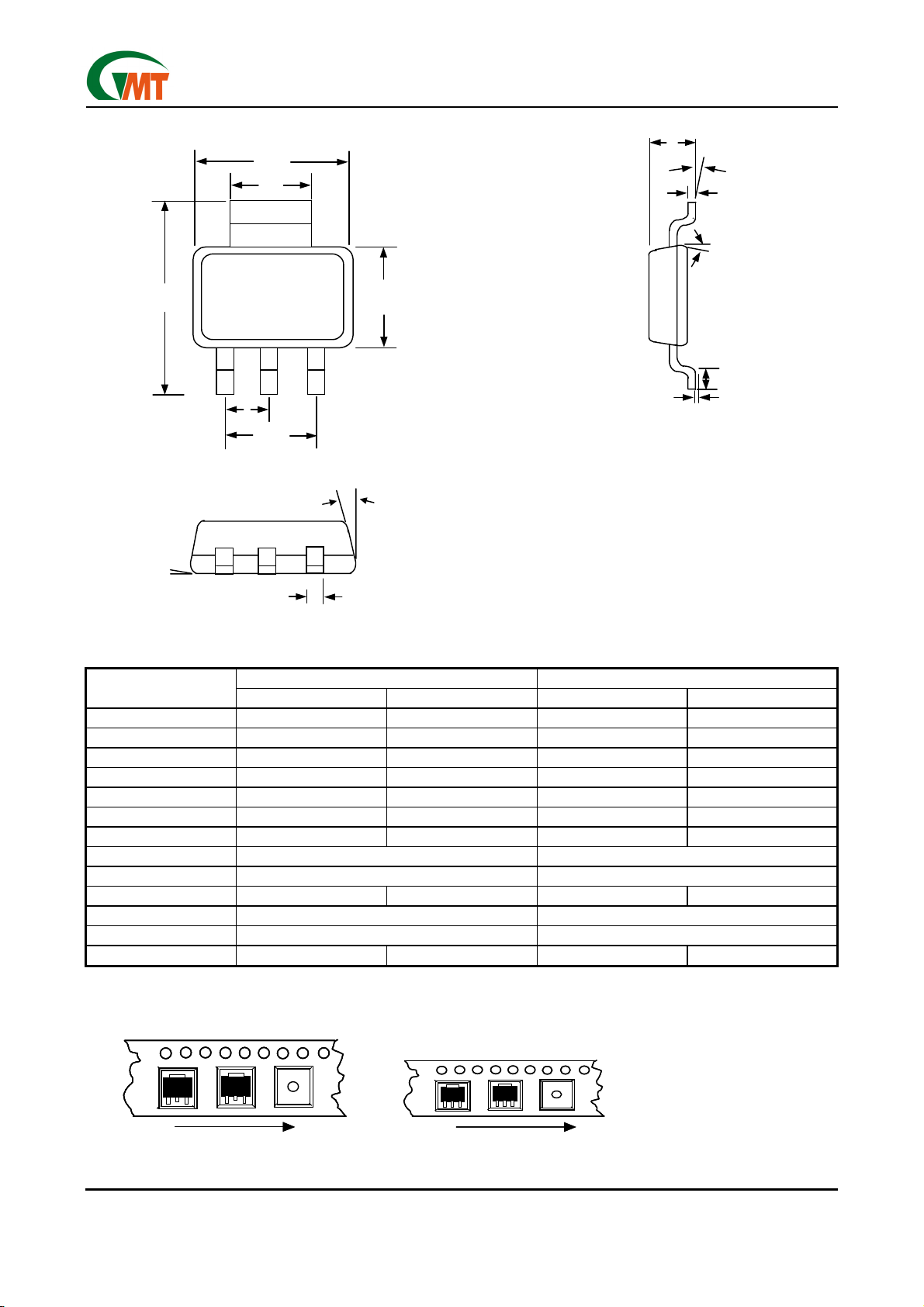

Global Mixed-mode Technology Inc.

G950

Safe Operating Area of SOT-223

1200

TA=25°C,Still Air

1000

Output Current (mA)

1oz Copper on SOT-223 Package Mounted on recommended mimimum footprint (R

800

Maximum Recommend ed Output Current

600

400

200

0

1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

=156°C/W)

JA

θ

Input-Output Voltage Differential VIN-V

(max)

Note: V

IN

<= 6.5V

TA=25

TA=55

TA=85

OUT

℃

(V)

Power Dissipation of SOT-223

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

Power Dissipation (W)

0.0

25 35 45 55 65 75 85 95 105 115 125

Still Air 1oz Copper on SOT-223 Package Mounted on recommend mimimum footprint (R

=156°C/W)

JA

θ

Amibent Temperature TA (°C)

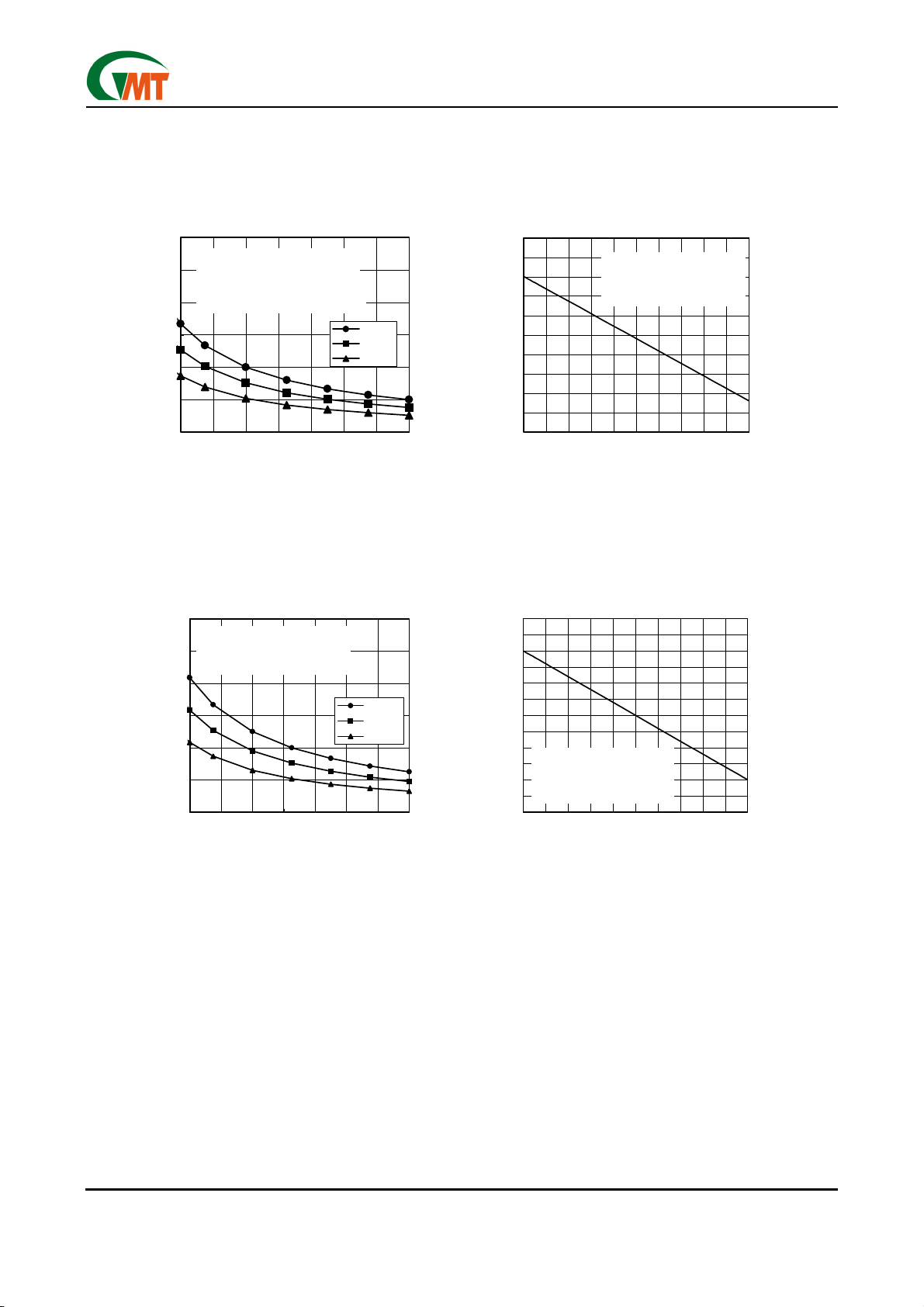

Safe Operating Area of TO-252

1200

TA=25°C,Still Air

1oz Copper on TO-252 Package

1000

Mounted on recommended mimimum footprint (R

Maximum Recommend ed Output Current

800

600

400

Output Current (mA)

200

0

1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

Input-Output Voltaage Differential VIN-V

(max)

Note: V

IN

=125°C/W)

JA

θ

<= 6.5V

TA=25

TA=55

TA=85

OUT

℃

(V)

Power Dissipation of TO-252

1.2

1.1

1.0

0.9

0.8

0.7

0.6

0.5

0.4

Still Air

0.3

1oz Copper on TO-252 Package Mounted on recommend mimimum

0.2

Power Dissipation (W)

footprint (R

0.1

0.0

25 35 45 55 65 75 85 95 105 115 125

=125°C/W)

JA

θ

Amibent Temperature TA (°C)

Ver: 1.6

Dec 31, 2002

TEL: 886-3-5788833

http://www.gmt.com.tw

5

θ

Global Mixed-mode Technology Inc.

G950

Safe Operating Area of TO-263

1200

TA=25°C,Still Air

1000

800

600

400

Output Current (mA)

200

0

1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

Note: V

Maximum Recommend ed Output Current

1oz Copper on TO-263 Package Mounted on recommended mimimum footprint (R

Input-Output Voltaage Differential V

(max)

=75°C/W)

JA

<= 6.5V

IN-VOUT

TA=25

TA=55

TA=85

℃

(V)

Power Dissipation of TO-263

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

Power Dissipation (W)

0.4

0.2

0.0

25 35 45 55 65 75 85 95 105 115 125

Still Air 1oz Copper on TO-263 Package Mounted on recommend mimimum footprint (R

Amibent Temperature T

JA

θ

=75°C/W)

(°C)

A

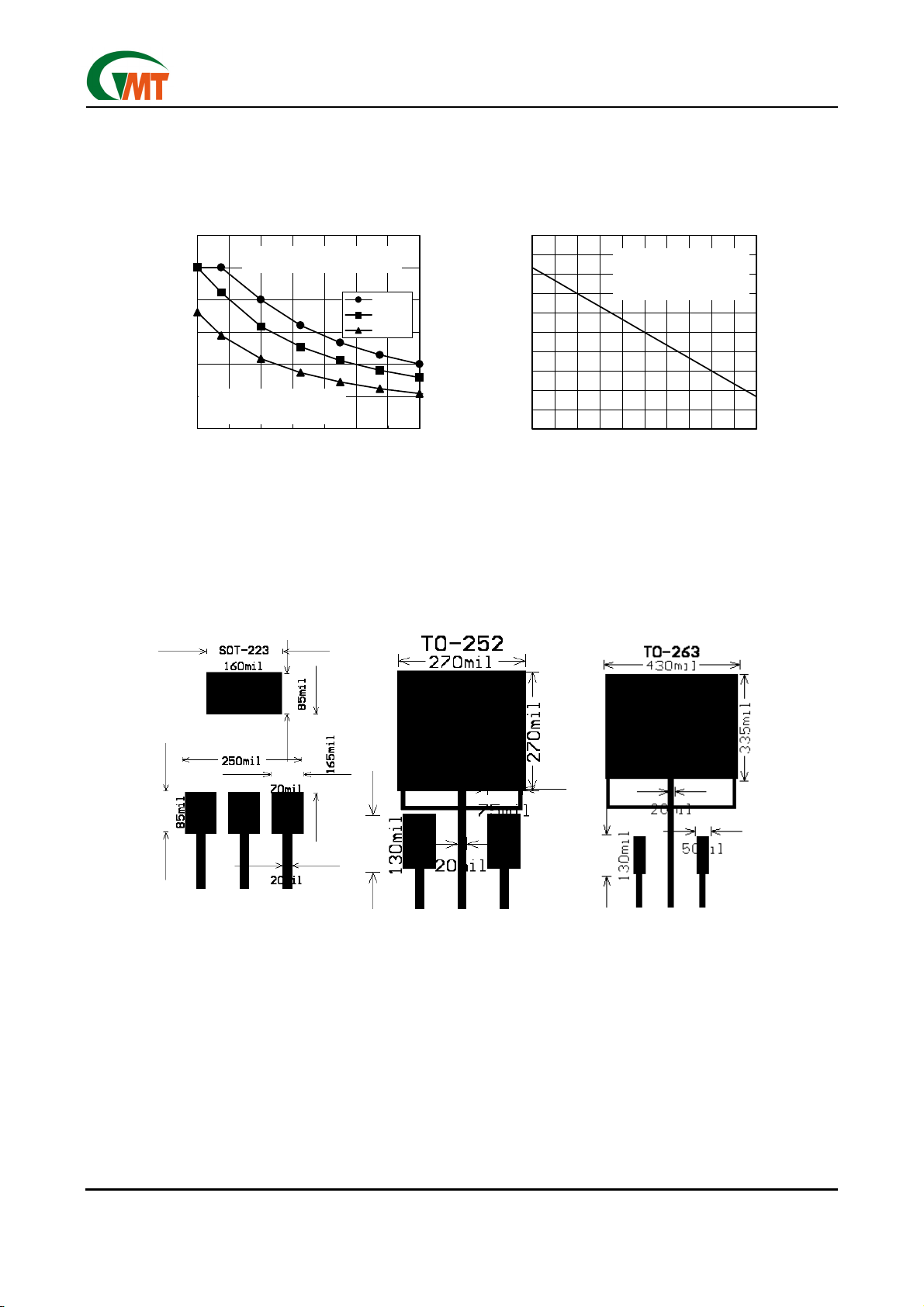

Recommend Minimum Footprint

Ver: 1.6

Dec 31, 2002

6

TEL: 886-3-5788833

http://www.gmt.com.tw

Global Mixed-mode Technology Inc.

Package Information

d

D

L

E

E1 E1

G950

A

R

F

D1

I

e

b

e1

b1

C

A1

TO-220 (T3) Package

SYMBOLS

A 4.318 4.826 0.170 0.190

A1 2.46 2.72 0.097 0.107

b 0.69 0.94 0.027 0.037

b1 1.143 1.397 0.045 0.055

C 0.304 0.460 0.012 0.018

D 3.429 3.683 0.135 0.145

D1 8.53 9.04 0.336 0.356

d 2.62 2.87 0.103 0.113

E 9.906 10.40 0.390 0.410

E1 2.84 5.13 0.112 0.202

e 2.29 2.79 0.090 0.110

e1 4.83 5.33 0.190 0.210

F 1.143 1.397 0.045 0.055

I 3.454 3.962 0.136 0.156

L 13.589 14.351 0.535 0.565

MILLIMETERS INCHES

MIN MAX MIN MAX

Ver: 1.6

Dec 31, 2002

7

TEL: 886-3-5788833

http://www.gmt.com.tw

Global Mixed-mode Technology Inc.

B

R

V

4

A

12

S

F

Notes:

1. Dimensioning and tolerancing per ansi y14.5m, 1982.

Controlling dimension : inch

2.

3

K

L

D

2 PL

G

0.13 (0.005)MT

TO-252 (T4) Package

G950

SEATING

T

PLANE

C

E

Z

U

J

H

DIM

A 0.235 0.250 5.97 6.35

B 0.250 0.265 6.35 6.73

C 0.086 0.094 2.19 2.38

D 0.027 0.035 0.69 0.88

E 0.033 0.040 0.84 1.01

F 0.037 0.047 0.94 1.19

G 0.180BSC 4.58BSC

H 0.034 0.040 0.87 1.01

J 0.018 0.023 0.46 0.58

K 0.102 0.114 2.60 2.89

L 0.090BSC 2.29BSC

R 0.175 0.215 4.45 6.46

S 0.020 0.050 0.51 1.27

U 0.020 --- 0.51 ---

V 0.030 0.050 0.77 1.27

Z 0.138 --- 3.51 ---

MIN MAX MIN MAX

INCHES MILLIMETERS

Ver: 1.6

Dec 31, 2002

TEL: 886-3-5788833

http://www.gmt.com.tw

8

Global Mixed-mode Technology Inc.

G950

A

A1

C

L

L2

A2

L1

E

L3

D

H

e

e1

b

b1

TO-263 (T5) Package

SYMBOLS

A 4.30 4.70 0.169 0.185

A1 1.22 1.32 0.048 0.055

A2 2.45 2.69 0.104 0.106

b 0.69 0.94 0.027 0.037

b1 1.22 1.40 0.048 0.055

C 0.36 0.56 0.014 0.022

D 8.64 9.652 0.340 0.380

E 9.70 10.54 0.382 0.415

e 2.29 2.79 0.090 0.110

e1 4.83 5.33 0.190 0.210

H 14.60 15.78 0.575 0.625

L 4.70 5.84 0.185 0.230

L1 1.20 1.778 0.047 0.070

L2 2.24 2.84 0.088 0.111

L3 1.40MAX 0.055MAX

MILLIMETERS INCHES

MIN MAX MIN MAX

Ver: 1.6

Dec 31, 2002

TEL: 886-3-5788833

http://www.gmt.com.tw

9

Global Mixed-mode Technology Inc.

G950

A

D

B1

H

e

e1

E

L2

13°(4X)

α

C

13°(4X)

L

A1

SYMBOLS

A 1.55 1.80 0.061 0.071

A1 0.02 0.12 0.0008 0.0047

B 0.60 0.80 0.024 0.031

B1 2.90 3.10 0.114 0.122

C 0.24 0.32 0.009 0.013

D 6.30 6.70 0.248 0.264

E 3.30 3.70 0.130 0.146

e 2.30 BSC 0.090 BSC

e1 4.60 BSC 0.181 BSC

H 6.70 7.30 0.264 0.287

L 0.90 MIN 0.036 MIN

L2 0.06 BSC 0.0024 BSC

α

Package Orientation

B

SOT-223 (T6) Package

MILLIMETERS INCHES

MIN MAX MIN MAX

0º 10º 0º 10º

Feed Direction

TO252

GMT Inc. d oes not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and GMT Inc. reserves the right at any time without notice to change said circuitry and specifications.

263 Package Orientation

Feed Direction

、、、、

Ver: 1.6

Dec 31, 2002

Feed Direction

SOT 223 P ackage Orientation
