Global Machinery Company GEN User Manual

INSTRUCTION MANUAL

850W
Generator

Ideal for Home & Camping

• Melbourne • Perth • Auckland • Hong Kong • Shanghai

• Taipei • New York • Verona • London • Paris

GEN

031 20 8 PR E D9

Contents

Full 2 Years Home Use Warranty

Whilst every effort is made to ensure your complete
satisfaction with this tool, occasionally, due to the mass
manufacturing techniques, a tool may not live up to our
required level of performance and you may need the
assistance of our service department.

This product is warranted for a 2-year period for home
domestic use from the date of the original purchase. If
found to be defective in materials or workmanship, the
tool or the offending faulty component will be replaced
free of charge with another of the same item. A small
freight charge may apply.

The warranty replacement unit is only made available by
returning the tool to the place of purchase with a
confirmed register receipt. Proof of purchase is essential.
We reserve the right to reject any claim where the
purchase cannot be verified.

This warranty does not include damage or defects to the
tool caused by or resulting from abuse, accidents,
alterations or commercial or business use.

It also does not cover any bonus accessories unless the
tool is a GMC Platinum Professional model.

Please ensure that you store your receipt in a safe place

.
Conditions apply to the above warranty.
If you need direction of what constitutes a free of

charge warranty claim, please review the guide given on
the rear of the Receipt Holder. An indication is given as
to the types of claim that are permissible, and those
that are not.

Warranty 2
Introduction 3
Environmental protection 3
Scope of product 3
Description of symbols 3
General safety instructions for power tools 4
Risk of electrocution and fire 5
Risk of fire 6
Risk of injury and property damage

when transporting generator 7
Risk of breathing - inhalation hazard 7
Risk of unsafe operation 7
Risk of hot surfaces 8
Risk of moving parts 8
Risk from lifting 8
Additional safety rules for generators 9
Unpacking 9
Know your product 10
Fitting the handle 11
Mixing the fuel 11
Filling the tank 11
Earthing the generator 11

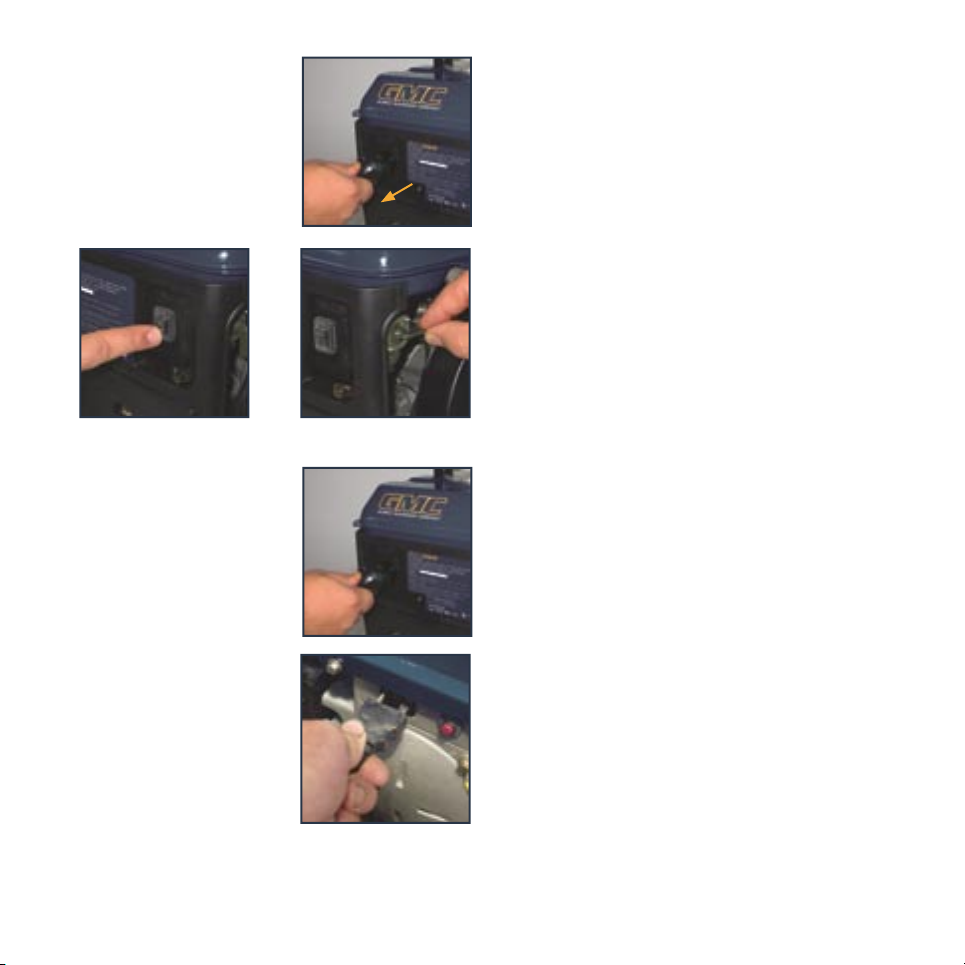

Starting the engine 11
Stopping the engine 12
Connecting apparatus to compressor 12
AC and DC overload cut out 12
Periodic maintenance 13
Generator maintenance 13
Storage 13
Spark plugs 13
Air filter 13
Fuel filter 13
Petrol tank filter 14
Cleaning 14
Repairs 14
Troubleshooting 15

Dear Customer

If you require any help with your product, whether it
is a Warranty claim, spare part or user information,
please phone our Help Line for an immediate response. Phone
1300 880 001 in Australia or 0800 445 721 in New Zealand.

Introduction

Your new GMC tool will more than satisfy your expectations.
It has been manufactured under stringent GMC Quality
Standards to meet superior performance criteria.

You will find your new tool easy and safe to operate,
and, with proper care, it will give you many years of
dependable service.

Caution. Carefully read through this entire Instruction

Manual before using your new GMC Tool. Take special care
to heed the Cautions and Warnings.

Your GMC tool has many features that will make your job
faster and easier. Safety, performance, and dependability
have been given top priority in the development of this
tool, making it easy to maintain and operate.

Environmental protection

Recycle unwanted materials instead of
disposing of them as waste. All tools, hoses
and packaging should be sorted, taken to
the local recycling centre and disposed of
in an environmentally safe way.

Scope of product

This product is suited for home and camping applications.
It will allow you to power outdoor lights, sound system,
small television and recharges your car battery.

Description of symbols

The rating plate on your tool may show symbols. These
represent important information about the product or
instructions on its use.

Wear hearing protection.
Wear eye protection.
Wear breathing protection.

Conforms to relevant standards for electromagnetic
compatibility.

Specifications

AC Output: 240Vac
Rated Power: 650W
Peak Power: 850W
Phase: Single
Power Factor: coso| =1
Displacement: 63ml
DC Output: 14V, 8A
Motor: 2HP, 2 stroke
No load speed: 3600 RPM
Fuel Tank Capacity: 4.2L
Fuel Type: Unleaded
Fuel Mixture: Unleaded oil (50:1)
Operation noise level: 60dB/7m

Net Weight: 21kg

3

General safety instructions for power tools

To use this tool properly, you must observe the safety
regulations, the assembly instructions and the operating
instructions to be found in this Manual. All persons who
use and service the machine have to be acquainted with
this Manual and must be informed about its potential hazards.
Children and infirm people must not use this tool. Children
should be supervised at all times if they are in the area in which
the tool is being used. It is also imperative that you observe the
accident prevention regulations in force in your area. The same
applies for general rules of occupational health and safety.

Warning. When using power tools, basic safety

precautions should always be taken to reduce the risk of
fire, electric shock and personal injury. Also, please read
and heed the advice given in the additional important
safety instructions.

1. Keep the work area clean and tidy. Cluttered work

areas and benches invite accidents and injury.

2. Consider the environment in which you are working.

Do not use power tools in damp or wet locations.
Keep the work area well lit. Do not expose power tools
to rain. Do not use power tools in the presence of
flammable liquids or gases.

3. Keep visitors away from the work area. All visitors

and onlookers, especially children and infirm persons,
should be kept well away from where you are working.
Do not let others in the vicinity make contact with the
tool or extension cord.

4. Store tools safely. When not in use, tools should be

locked up out of reach.

5. Do not force the tool. The tool will do the job better

and safer working at the rate for which it was designed.

6. Use the correct tool for the job. Do not force small

tools or attachments to do the job best handled by a
heavier duty tool. Never use a tool for a purpose for
which it was not intended.

7. Dress correctly. Do not wear loose clothing or jewellery. They

can be caught in moving parts. Rubber gloves and non-

slip footwear are recommended when working outdoors.
If you have long hair, wear a protective hair covering.

8. Use safety accessories. Safety glasses and earmuffs

should always be worn. A face or dust mask is also
required if the drilling operation creates dust.

9. Secure the work piece. Use clamps or a vice to hold

the work piece. It is safer than using your hand and
frees both hands to operate the tool.

10. Do not overreach. Keep your footing secure and

balanced at all times.

11. Look after your tools. Keep tools sharp and clean for

better and safer performance. Follow the instructions
regarding lubrication and accessory changes. Inspect tool
cords periodically and, if damaged, have them repaired by
an authorised service facility. Inspect extension cords
periodically and replace them if damaged. Keep tool
handles dry, clean and free from oil and grease.

12. Remove adjusting keys and wrenches. Check to see

that keys and adjusting wrenches are removed from
the tool before switching on.

13. Stay alert. Watch what you are doing. Use common

sense. Do not operate a tool when you are tired.

14. Check for damaged parts. Before using a tool,

check that there are no damaged parts. If a part is
slightly damaged, carefully determine if it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, proper mounting and any other
conditions that may affect the operation of the tool.
A part that is damaged should be properly repaired
or replaced by an authorised service facility, unless
otherwise indicated in this Instruction Manual.

15. Use only approved parts. When servicing, use only

identical replacement parts. Use an authorised service
facility to fit replacement parts.

WARNING. The use of an accessory or attachment, other

than those recommended in this Instruction Manual, may
present a risk of personal injury.

4

Save these instructions important safety instructions

Risk of electrocution and fire

Hazard What could happen How to prevent it

Improper storage of extension cord.

Operation of generator in rain, wet,
icy, or flooded conditions.

Placing generator on or against
highly conductive surface, such as a
steel walkway or metal roof.

Use of worn, damaged or
ungrounded extension cords.

Operation of unit when damaged,
or with guards or panels removed.

Extension cord can come into contact
with hot engine parts resulting in
damage. Using a damaged extension
cord can result in electrocution or death.

Water is an excellent conductor of
electricity! Water which comes in
contact with electrically charged
components can transmit electricity
to the frame and other surfaces,
resulting in electrical shock to anyone
contacting them.

Accidental leakage of electrical current
could charge conductive surfaces in
contact with the generator.

Contact with worn or damaged extension
cords could result in electrocution.

Use of ungrounded cordsets could
prevent operation of circuit breakers
and result in electrical shock.

Attempting to use the unit when it
has been damaged, or when it is not
functioning normally could result in
fire or electrocution.

Removal of guarding could expose
electrically charged components and
result in electrocution.

Remove extension cord from the
generator and store seperately away
from generator.

Operate generator in a clean, dry, well
ventilated area. Make sure hands are
dry before touching unit.

Place generator on low conductivity
surface such as a concrete slab.

ALWAYS operate generator a
minimum of 2 meters from any
conductive surface.

Inspect extension cords before use and
replace with new cord if required.

Always use a cordset having a grounding
wire with an appropriate grounding plug.
DO NOT use an ungrounded plug.

Do not operate generator with
mechanical or electrical problem. Have
unit repaired by an Authorized Service
Centre.

Do not operate generator with
protective guarding removed.

5
