Integrating Global Caché with
AMX and Crestron Systems
September 6th, 2007
Global Caché
Page 2
www.globalcache.com
The Company
• Founded in 2002 by Silicon Valley veterans from
the IT industry
• Focused on IP-enabling and connectivity products
for residential, educational, and commercial
markets
• Open systems based on industry standards
• GC-100 is first product of its kind
• Market leadership with over 20,000 units
installed in the field
Page 3
www.globalcache.com
Sales Channel
• Global Caché products are available through
Distributors
VARs – Sell as part of total solution; retain GC brand
OEMs – Sell under their brand
Page 4
www.globalcache.com
Why Global Caché?
• Our claim to fame? We’re open!
Architecture
Public API
We work with everybody
• Why do you want it?
Choice
Cost
Allows for changing environment
Page 5
www.globalcache.com
Partners
• Software and hardware partners (partial list)
AMX
Control4
Exceptional Innovation (Lifeware)
Niveus
NetStreams
LG Electronics
Many more…
Page 6
www.globalcache.com
GC-100 Network Adapters
• IP-enable any device
• Address several market segments
Residential
• Home theater
• Home automation
• Hi-rise (MDUs)
Commercial
• Boardrooms
Educational
• Classroom multimedia control
• AV asset management
Page 7
www.globalcache.com
• Control systems and software operate on TCP/IP
networks
• Networks are everywhere - home and business
environments
• Many common devices don’t connect directly to a
network
Common non-IP devices
• IR – A/V equipment
• Serial – HVAC, A/V equipment, lighting, pools, security
• Relay – curtains, projector drops, motors
Why a Network Adapter?
Page 8
www.globalcache.com
TV
Plasma
AV Equipment
HVAC
Security
Switch Controlled
On/Off
Contact Closure
Lights
Curtains
Irrigation
Relay Controlled
Devices
Video Signal
Sensor
Voltage Sensor
Contact Closure
Sensor
30KHz - 500KHz
Audio
Video
Plasma
DVD
IR Controlled
Devices
IP-Enabling
Infrared (IR), Serial (RS232), Relay Devices and Sensor Input
Serial Controlled
Devices
GC-100-12 Network Adapter
Serial Relay IR or Sensor
PWR
LAN
IP Network
PC/Computing Device
Control Software
Sensor Input
GC-100: IP-Enabling
Page 9
www.globalcache.com
GC-100 Hardware
Page 10
www.globalcache.com
• Features
Open architecture, API open and
available
Flexible and easy to install and
use
IR, serial, and relay
Reliable, no moving parts
Sensor and IR input over a
network
Three models, plus rack mount
option
Cost effective
• Benefits
Saves installation time and
money
Very little training required
Simpler more flexible
design choices
Fewer support issues
Future proof
Expands installation
opportunities
GC-100 Features & Benefits
Page 11
www.globalcache.com
• Male DB9 connector
• Bi-directional
• 1200 baud to 57.6Kbaud
• Hardware flow control and parity
GC-100 Serial Ports
Page 12
www.globalcache.com
IP-Enabling Serial (RS232) Devices
GC-100-12 Network Adapter
LAN
IP Network
PC/Computing Device
Control Software
LAN
IR and SensorSerial
PWR
Relay
Lighting systems
HVAC
Plasma Displays
Security
GC-100 Serial Ports (cont.)
Page 13
www.globalcache.com
• Three dry contact relay ports
• Phoenix style connectors
• Rated for 24 volt AC/DC @ 500mA max
Ideal for low voltage applications
GC-100 Relay Ports
Page 14
www.globalcache.com
IP-Enabling Relay (Contact Closure) Devices
GC-100-12 Network Adapter
LAN
IP Network
PC/Computing Device
Control Software
LAN
IR and SensorSerial
PWR
Relay
Relay Controlled
Devices
Drop down
Screen
Curtains Garage Door
GC-100 Relay Ports (cont.)
Page 15
www.globalcache.com
• Generates Infrared (IR) for device control
Wide frequency range (32kHz – 500kHz) to support
high-end equipment, such as B&O
Emitters for each IR port included
Supports Control-S direct cable connection
Output to other IR environments (Xantech) via GC-CGX
cable
Individually configurable as sensor input ports
GC-100 IR Ports
Page 16
www.globalcache.com
Serial IR or Sensor
PWR
GC-100-06 Network Adapter
LAN
Audio/Visual
Equipment
IP Network
Emitter
Dual Emitter
PC/Computing Device
Control Software
IR Emitters Over a Network
Page 17
www.globalcache.com
GC-CGX Converter Cable
Stick-on Emit ters
Serial IR or Sensor
PWR
GC-100-06 Network Adapter
LAN
IP Network
PC/Computing Device
Control Software
Xantech
SpeakerCraft
Niles
GC-CGX
IR Distribution
Block
Power
Supply
IR Receiver Port
GC-100
GC-CGX
Audio/Visual
Equipment
IR Blaster
Connecting Other IR Environments
Page 18
www.globalcache.com
IP-Enabling Devices in a Wireless
Environment
Wireless Bridge
Wireless Access
Point (WAP)
GC-100-12 Network Adapter
Ethernet
Ethernet
IR Controlled
Devices
Relay Controlled
Devices
IP Network
Traffic
PC/Computing Device
Control Software
Serial Relay IR or Sensor
PWR
Sensor Input
Serial Controlled
Devices
LAN
GC-100 Wireless Environment
Page 19
www.globalcache.com
• Embedded web server for easy configuration
GC-100 Configuration
Page 20
www.globalcache.com
• Configure IR ports as sensor input
• Device state condition accessible over a network
Verify IR command
Interfacing with other systems
Providing feedback
• Three Sensors for maximum flexibility
Video signal sensor
Power sensor
Contact closure sensor
Sensor Products
Page 21
www.globalcache.com
LAN
IR and SensorSerial
PWR
Relay
IP Network
GC 100-12
GC-SV1
GC-SP1
GC-SC1
Voltage Detection
Sensor
Contact Closure
Sensor
Composite Video
Sensor
PC/Computing Device
Control Software
GC-SV1
GC-SV1
Video
Out
GC-100
Patch
Plug
GC-SP1
GC-SP1
AC/DC
Input
GC-100
GC-SC1
Push
Button
GC-SC1
Contact
Closure
GC-100
Power Source
Sensor Input over a Network
Page 22
www.globalcache.com
• Monitors on/off status of video equipment
Detects presence of composite or component video
signals
Ideally suited for DVDs and VCRs
Plugs directly into GC-100
Can be polled by control system or send automatic
notifications
Power
IR Output
Ground
6 ft. Cable
GC-SV1
Video Out
GC-100
GC-SV1 Video Out Sensor
Page 23
www.globalcache.com
• Monitors on/off status of powered state of
electronic equipment
Detects AC or DC voltage ± 2V up to 24 volts
• Equipment, power strips (via wall adapter) or ring condition of
a telephone circuit
Optically isolated for circuit protection
Plugs directly into the GC-100
Can be polled by control system or send automatic
notifications
Power
IR Output
Ground
6 ft. Cable
GC-SP1
AC/DC Inpu t
GC-100
GC-SP1 AC/DC Voltage Sensor
Page 24
www.globalcache.com
• Detects the open and closed status of a pair of
isolated contacts such as a relay or switch
Ideal for detecting contact closures on thermostats,
motion sensors, security contacts, and doors
• Filters false triggers associated with contact
bounce (debounce)
• Plugs directly into the GC-100
• Can be polled by control system or send
automatic notifications
Power
Sensor Output
Ground
6 ft. Cable
GC-SC1
Contact Closure
GC-100
GC-SC1 Contact Closure Sensor
Page 25
www.globalcache.com
• GC-100-06
Power input
Network connection
Serial port
Three independent IR outputs or sensor
inputs
Dimensions: 6.0" L x 3.0" D x 1.3" H
• GC-100-12
Power input
Network connection
Two serial ports
Three relays
Six independent IR outputs or sensor inputs
Dimensions: 12.0" L x 3.0" D x 1.3" H
• GC-100-18
Same configuration as GC-100-12
Dimensions: 17.5" L x 3.0" D x 1.3" H
• GC-100-18R
Same configuration as GC-100-18 with rack
mount kit installed
Serial
IR and SensorPWR
LAN
GC-100-06
Serial Relay IR and Sensor
PWR
LAN
GC-100-12
GC-100-18 / GC-100-18R
Serial Relay IR and Sensor
PWR
LAN
GC-100 Models
Page 26
www.globalcache.com
IR Products
• Integrated IR solutions for IP network
environments
GC-IRL IR Learner
GC-IRE IR Extender
GC-RG1 IR Receiver
Page 27
www.globalcache.com
• Learns and digitizes IR codes simply and easily
• Full frequency IR spectrum 30KHz to 500KHz
• Free software utility to capture IR codes directly to the
Windows clipboard for easy database creation
• Plugs directly into any serial port
• Tiny footprint; fits in your pocket
• Very cost effective
• Must have tool for dealers and installers
• No external power supply required
GC-IRL IR Learner
Page 28
www.globalcache.com
Learns IR commands
Displays
GC-100 or
CCF format
Auto copies to clipboard
for easy database creation
Captures full IR spectrum
signals (30KHz - 500KHz)
Digitizes IR signals
Works with PCs
Windows 2000/XP
IR sensor
Remote
6 - 24
inches
GC-IRL
GC-IRL
RS232
RS232
PC
GC-IRL Learner Utility
Free GC-IRL IR Learner Utility
IR Learning for Dealers/Installers
Page 29
www.globalcache.com
• Digitize IR signals from receivers
• Powered by the serial port
• Full frequency IR spectrum 30KHz to 500KHz
• Compatible with GC-RG1 receiver
• Compatible with other receivers via GC-CXG
converter cable
Xantech
Speakercraft
Niles
GC-IRE IR Extender
Page 30
www.globalcache.com
Any Serial Port
GC-100-12 Network Adapter
Digitizes IR signals
GC-IRE
GC-RG1
IR Receiver
LAN
IR and SensorSerial
PWR
Relay
RS232
Remote
PC/Computing De vice
Controller
Converting IR Signals to Digital
Page 31
www.globalcache.com
• General spectrum IR receiver 30KHz to 80KHz
• Plasma display and fluorescent light friendly
• Compatible with Xantech and other IR distribution
systems
• Very small footprint - 10mm x 21mm x 25mm
(.40”x.82”x.95”)
• Plugs directly into the GC-IRE or IR distribution box
• No external power supply required
• Cost effective
GC-RG1 Receiver
Page 32
www.globalcache.com
GC-IRE
GC-RG1
IR Receiver
RS232
Remote
IR Distribution
Block
Xantech
SpeakerCraft
Niles
Receiver Port
GC-RG1
IR Receiver
GC-RG1 (cont.)
Page 33
www.globalcache.com
• Use IR remote control as input device for control
systems with the GC-RG1 and GC-IRE
Activate events or other system-wide commands
IR Events
Page 34
www.globalcache.com
IR to Digital Input Events
• A remote can now activate any event
IR input received by Software can
now trigger any system event
Sends digitized IR signals over the
network to control software
PC/Computing Device
Controller
IP Network
New IR commands
New Serial commands
New relay commands
Other system commands
Insteon, Z-Wave, ZigBee,
etc.
GC-100-12 Network Adapter
Serial Relay IR or Sensor
PWR
LAN
Digitizes IR signals
GC-IRE
GC-RG1
IR Receiver
RS232
Remote
Page 35
www.globalcache.com
6 ft. Cable
GC-CXG
Converter
GC-IRE
Not Used
Ground
Emitter Output
Ground Power
IR Output
Converts voltage levels
Optically isolates
IR Receiver
Remote
Xantech
SpeakerCraft
Niles
GC-CXG
Receiver Port
Emitter Ports
Power
Supply
IR input received by Software can
now trigger any system event
Sends digitized IR signals over the
network to control software
PC/Computing Device
Controller
IP Network
New IR commands
New Serial commands
New relay commands
Other system commands
Insteon, Z-Wave, ZigBee,
etc.
GC-100-12 Network Adapter
Serial Relay IR or Sensor
PWR
LAN
GC-CXG
GC-IRE
RS232
GC-IRE
Digitizes IR
Signals
GC-IRE
IR Distribution
Block
IR to Digital Input Events (cont.)
GC-CGX Converter Cable
Page 36
www.globalcache.com
Benefits of using with AMX
• Easily add IR, serial, and relay control to any room
by running a single Cat5 network cable
• Leverage existing AMX equipment
• Auto discovery of GC-100s via the AMX Duet
driver makes installation easy
• Cost effective
Page 37
www.globalcache.com
AMX without GC-100
Equipment Room
Living Room
SD
Col 1 2 3 4 5 6 7 8 9
Power
Link/Activity
Hub
Home Theatre System
Network Cable
Network Cable
Serial Cable
AMX Touch Panel
LINK/ACT Status Output Input
AMX NetLinx Controller
IR Emitter Wire
IR Emitter Wire
Page 38
www.globalcache.com
AMX with GC-100
Equipment Room
Living Room
SD
Col 1 2 3 4 5 6 7 8 9
Power
Link/Activity
Hub
Home Theatre System
Network Cable
Network Cable
Network Cable
AMX Touch Panel
IR Emitters
Serial
Connection
LINK/ACT Status Output Input
AMX NetLinx Controller
Page 39
www.globalcache.com
Using the AMX Duet Driver
• Download and install the GC-100 Duet driver
from AMX’s website
• Define devices for each GC-100 module (serial
ports, relay ports, and IR ports)
• Initialize the driver
• Include IR conversion program code
• Call the driver to send IR, serial, or relay control
commands
Page 40
www.globalcache.com
Using the AMX Duet Driver
• Define device numbers in NetLinx application
Page 41
www.globalcache.com
Using the AMX Duet Driver

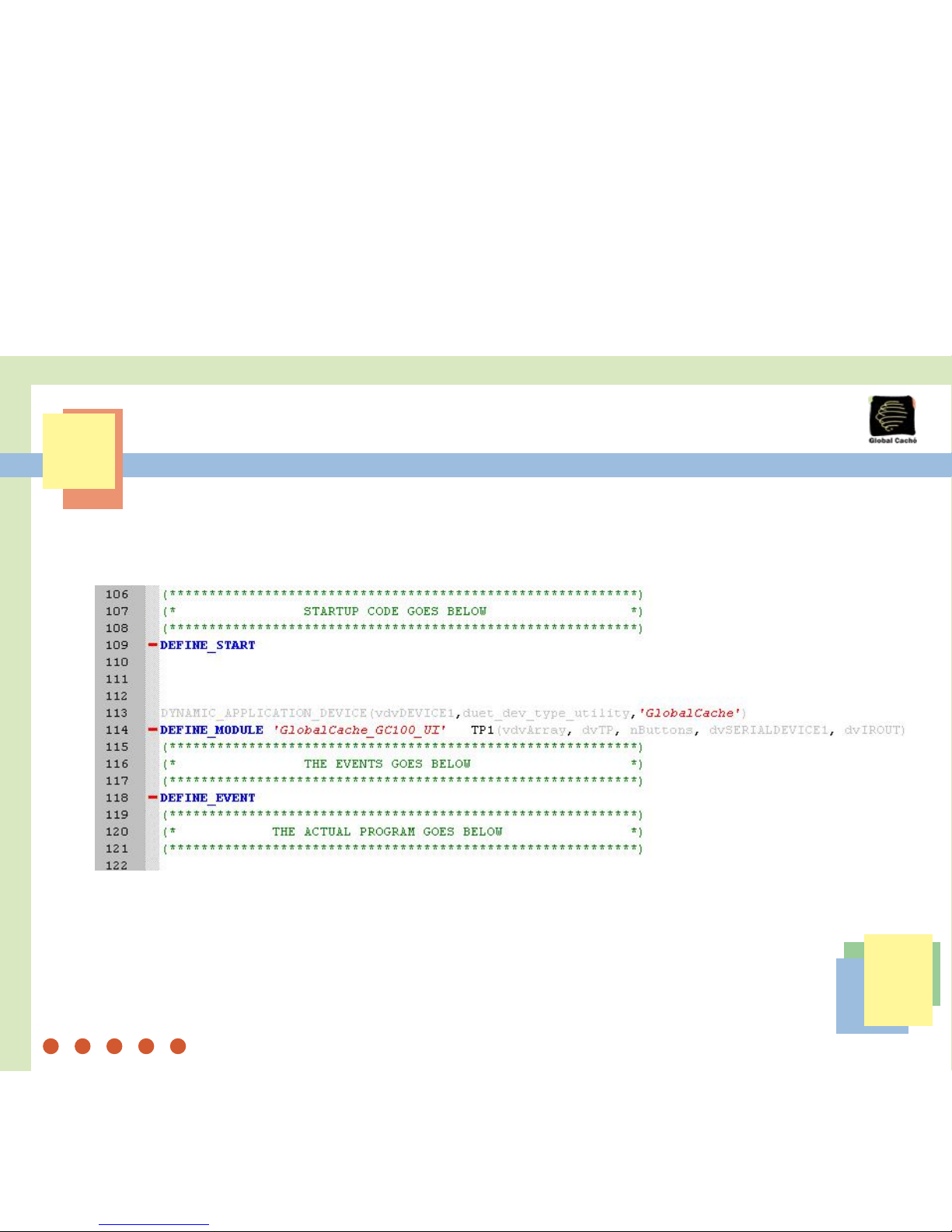

• Initialize the driver
Page 42
www.globalcache.com
Using the AMX Duet Driver
• Include IR conversion program code
Page 43
www.globalcache.com
Using the AMX Duet Driver
• Sending IR commands
Page 44
www.globalcache.com
Using the AMX Duet Driver
• Sending Relay Commands
Page 45
www.globalcache.com
Using the AMX Duet Driver
• Sending RS232 Serial Data
Page 46
www.globalcache.com
Benefits of using with Crestron
• Easily add IR, serial, and relay control to any room
by running a single Cat5 network cable
• Leverage existing Crestron equipment
• Cost effective
Page 47
www.globalcache.com
Crestron without GC-100
Equipment Room
Living Room
SD
Col 1 2 3 4 5 6 7 8 9
Power
Link/Activity
Hub
Home Theatre System
Serial Cable
Touch Panel
Controller
IR Emitter Wire
IR Emitter Wire
Page 48
www.globalcache.com
Crestron with GC-100
Equipment Room
Living Room
SD
Col 1 2 3 4 5 6 7 8 9
Power
Link/Activity
Hub
Home Theatre System
Network Cable
Touch Panel
IR Emitters
Serial
Connection
Controller
Page 49
www.globalcache.com
Using the Crestron Module
• Download and install the GC-100 Crestron
template module from Global Caché’s website
• Create TCP/IP Client objects
• Initialize the module and set model number
• Module provides functions for sending IR, relay
control, and sensor inputs.
• Serial communications are done directly with the
TCP/IP Client objects
Page 50
www.globalcache.com
Using the Crestron Module
• Add module to your Simpl Windows application
Page 51
www.globalcache.com
Using the Crestron Module
• Logic pins for GC-100 module
Page 52
www.globalcache.com
Using the Crestron Module
• TCP/IP Client objects
Page 53
www.globalcache.com
Using the Crestron Module
• Initialize module and set model number
Page 54
www.globalcache.com
Using the Crestron Module
• Send IR by loading the IR command text into one
of the IR output pins
Page 55
www.globalcache.com
Using the Crestron Module
• Control relay outputs via digital input pins
Page 56
www.globalcache.com
Using the Crestron Module
• Poll for sensor input states
Page 57
www.globalcache.com
Using the Crestron Module
• Serial communications are performed directly on
the TCP/IP Client objects and are not interpreted
by the module
Page 58
www.globalcache.com
• Established leader in the market
• First product of its kind
• Partnered with almost every control system
provider
• Flexible, cost effective, and embraces open
systems
• Simple hardware design for high reliability
• Simplest way to glue it all together via IP
networking
Conclusion
Page 59
www.globalcache.com
• Sales – Robin Ford
robin.ford@globalcache.com
• Technical Support
support@globalcache.com
• Marketing - Rusty Keller
rusty.keller@globalcache.com
More Information
Loading...
