SNOW STORM
MACH IN E
T h e Snow Storm
EVAPORATIVE SNOW
ww w.globalspecialeects.com
©2008 Global Special Eects, Inc.
New and Improved Machine
* DMX WILL NOT WORK UNLESS
TERMINATOR IS PLUGGED IN
G
eneral In
f
orma
t
ion
WELCOME
Important Information About your SNOW STORM Snow Machine
THE SNOW STORM
Congratulations on your purchase of this Global Special Effects snow
machine. With your snow machine you will dazzle and entertain audiences
in large or small venues. Your SNOW STORM snow machine is loaded with
advanced features, but at the same time it is very easy to use.
The SNOW STORM is a modernized design in a family of special effects snow machines used for
years in Movie Productions, Theatres, Malls, and Presentations. This futuristic modeled “work- horse”
sprays evaporative snow from its nozzle section and creates a realistic snowfall effect without residue
or cold air. With its reliable, efficient and low-volume design, the SNOW STORM is a marvel for stage
productions, fancy presentations or unique weddings. The tethered remote and the DMX give the user
control over snow flake size and instant activation.
IMPORTANT PRODUCT AND SAFETY INFORMATION
Failure to follow these ins tructions can cause s erious bodily injury or proper t y damage.
CAUTION: YOU MUST READ THE FOLLOWING BEFORE
OPERATING THE SNOW STORM
The SNOW STORM is an Electric Product - not a Toy. To avoid the risk of fire, burns, personal
injury, and electric shock,
small children.
personal injury. Never remove the covers or open the enclosures.
The SNOW STORM generates evaporative snow™ that normally dissipates completely when
dispensed from the ground to 20-30 ft in the air.. Since the residue is slippery, it is important to
follow all the directions in this manual to avoid this type of problem.
Never operate the SNOW STORM without evaporative snow™ in the solution bottle. Do not run the
SNOW STORM when the Gallon Solution bottle is holding less than a pint of solution. If you do not
follow these directions, the SNOW STORM can be damaged and warranty voided.
Never leave the SNOW STORM unattended while operating. Do not operate it in the rain or near
standing water. Always use an outlet with an earth grounding receptacle and a Ground Fault Circuit
Interrupt (GFCI).
Never use this product for any activity other than for what it is intended.
Never add flammable liquids (oil, gas, alcohol, perfume) to the snow solution.
Adult supervision is continuously necessary to avoid the risk of electric shock or
it should not be played with and should be placed out of the reach of
2
F
ea
t
ure
s
and
S
pe
c
i
f
i
c
a
t
ion
s
SNOW STORM Snow Machine Features and Specifications
Features
The best Evaporative Snow Machine in the world.
4-channel DMX control
Remote control (rented/sold separately)
Variable stand alone features
Lifetime warranty
24-Hour Technical Service
Repeat Cycle Timer (5 min. and 15 min. cycles)
Specifications
Voltage: 110 60 Hz or 220v 220v 100v
Current:
Size: 22” Wide, 27” Long and 25” Tall (without the yoke and “C” Clamp)
20 Amps
Weight: 55 lbs
Materials: Predominately: Polyethylene Exterior with steel covers, bracket and yoke.
Color: Black and White
Snow Solution: Usage Rate of 3 gallons per hour of solution.
Solution Contains: 1 gallon or 4.3 liters
Power Cable
Length: 7 ft
Tether Length
To Remote: 30 ft
Sound: 74 db @ 9.8 feet
3
S
olu
t
ion
M
ix
t
ure
Evaporative Snow™ Solution Mixture
Solution Mixture:
Global Special Effects™ Labs are constantly inventing and reformulating solutions in order to
improve the snow from the SNOW STORM. Please contact Global Special Effects™ at 256-2295551 for more information. In order to prevent operation problems and observe the Warranty
guidelines, always use a Global Special Effects™ approved solution. The FG-100 Snow Solution
comes premixed and ready to use. You will have to pour the solution into the plastic bottle that
comes with the SNOW STORM, if the solution bottle does not fit into the well on the SNOW
STORM.
FG-100 Evaporative Snow™ premixed. Recommended
Global Special Effects premixed solutions are designed with the highest grade of available water
based surfactants. The surfactant-based solution is mixed with de-ionized water to leave no residue
when using the snow machine properly. The use of de-ionized water is necessary to create a bright
fluffy snowflake. Global Special Effects Laboratories have researched and developed the driest
available snow solution on the market today. FG-100 premixed weight: 9.8 pounds.
Using Evaporative Snow™ concentrate solution FG-100C
Global Special Effects Labs have designed a concentrated version of FG-100 premixed in an attempt to
save shipping cost to our customers. The ratio mix for this snow solution is 8 oz. of solution per one
gallon of water. It is important to remember that the kind of water used will affect the quality of snow.
The recommended water to use is de-ionized water. This form of water has no minerals, hard
properties or chlorine. De-ionized water is the base ingredient in our formulation, because it makes
the best foam and leaves no water stains. It was originally used for the movie industry, so if the snow
landed on a camera lens, it would not leave a water ring. Since this formulation has no chemical, it
dries and leaves no film. De-ionized water is not available in grocery stores and can only be found at
medical supply companies. If your event does not require the use of a movie camera or will not land
on glass, distilled water may be used. Be aware that if you use tap water, it may have hard agents that
can cause poor looking snow. In this case, order FG-100 premix. The use of tap water, city water or
well water can be used with the following warnings: Certain tap waters contain high mineral content
and will produce a minimal amount of snow. These minerals will not produce a bright white flake. If
de- ionized water is not available, use distilled water.
See chart below (Chart 1) for some examples of common water/solution ratios. Please read before
mixing this product with water. Make sure you adhere to the mixing proportions.
Warning
be able to generate snow. FG-100C Concentrate 8 oz bottle weight: 0.5 lb.
Chart 1
if you mix water with FG-100 premixed (non-concentrate), you will not
WATER
Tablespoons or Pints or Fluid Ounces
½ gallon 8 ¼ 4
1gallon 16 ½ 8
2 gallons 32 1 16
5 gallons 80 2 ½ 40
Lightly Shake or Stir the solution in the container before operating the
SNOW STORM.
FG-100 CONCENTRATE
4
Opera
t
ing In
s
t
ru
c
t
ion
s
General Operating Instructions
Operating Instructions:
The SNOW STORM has some simple instructions that must be carefully followed in order to
create the desired evaporative snowfall, ensure the safety of the operators/participants and to
protect the equipment from damage.
PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY.
1)
Mount the SNOW STORM on a secure, dry and level platform. Since the larger the flake size the
slower it will be to evaporate, Chart 2 recommends Rotary Switch or Remote settings to minimize
residue on the ground. For safety reasons, the SNOW STORM should be unplugged from the
electrical outlet while placing it in your desired location. The Nozzle should be pointed in the
direction you want it to spray snow. Hang or route the 30 ft. tethered remote as required to the
desired operating location without pinching the wire. Do not operate the SNOW STORM in
the rain. The SNOW STORM is not waterproof. If it gets wet, unplug the snow
machine and contact “Global Special Effects™” technical support at 1-256-229-
5551.
Chart 2
Rotary Switch
* 10 ft is probably too low to prevent some residue on the ground.
Approximate Rotary Switch or Dial Remote Settings
Relative to Mounting Height to Minimize Residue
or Remote
Setting
880-899
879-860
859-840
839-820
819-800
Setting
900s
5 1/4 - 1/2 inch 30 ft
4 3/16 - 3/8 inch 25 ft
3 1/8 - 1/4 inch 20 ft
2 1/16 - 3/16 inch 15 ft
1 0 - 3/16 inch 10
2)
If the snow solution is a concentrate, prepare the snow solution in the empty plastic gallon bottle
provided (located in the SNOW STORM solution bottle well) per the “Solution Mixture” section of
this manual (See Chart 1). If the correct water/concentrate mix is not blended properly, the SNOW
STORM may not create the ideal evaporative snowflakes. Place the clear tube in the container with
the “Solution Mixture” and push it down so that the open end reaches the bottom of the filled
container. The pump in the SNOW STORM is self-priming.
3) In order to start the SNOW STORM, plug the Snow Machine power cord into an outlet with a
rd
3
lead grounded conductor (preferably a Ground Fault Circuit Interrupt -GFCI). Next, turn the
power
Snowflake Size
Mounting
Height
ft*
5
Opera
t
ing In
s
t
ru
c
t
ion
s
General Operating Instructions
8 9 6
Operating Instructions:
switch “ON” in the back of the SNOW STORM. If you are using the DMX features, read the section
on DMX settings to get the proper response. If you are using the remote, set the DMX display on the
back
of the SNOW STORM unit to any number between 900-999. Press the “ON” switch on the tethered
remote to start the snowfall. Adjust the dial on the remote to set the desired snowflake size (See
Chart 2). Rotate the dial clockwise to obtain larger flakes and counterclockwise for smaller flakes. If
the flakes are sticking to the ground during an initial run, adjust the dial counterclockwise, after
drying off the ground surface (snowflakes accumulate more easily on a wet surface). Press “OFF” to
turn off the snow on the tethered remote. Do not operate the SNOW STORM without the
clear tube submerged in the filled solution container.
4)
If the solution has drained out of the clear tube during a rest period for
the SNOW STORM, it may take a minute or two for the pump to selfprime itself from the solution container liquid.
5)
On the tethered remote, a blinking light signifies that the Power is “ON”.
A constant light from the LED signifies that the SNOW STORM is
blowing evaporative snow. If the light on the remote is completely off,
the unit is not powered up and cannot be controlled from the remote.
6)
To turn the power OFF, push down on the red “O” button on the back of the unit.

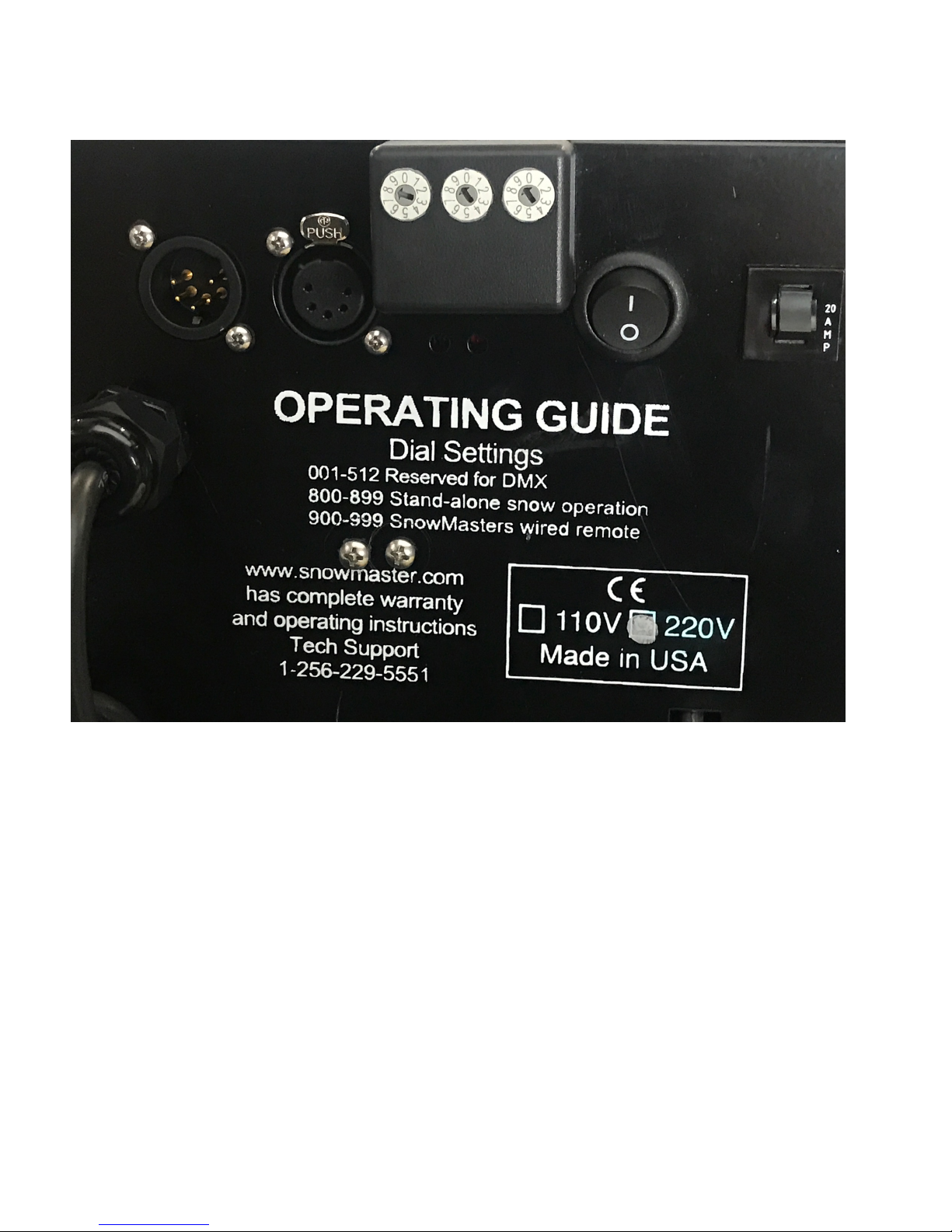

DMX Settings SNOW STORM
The DMX settings are key to the operation of the SNOW STORM. The three-digit number on the back of the
SNOW STORM panel determines the operation mode for the SNOW STORM. Warning: there are DMX
settings where the SNOW STORM will appear not to operate, so always review the tables below during
setup and operation.
RANGE ACTIVITY
DMX Address- Outside Interface
599 Standby- No Activity
600 699 Short Cycles of ON/OFF Activity
700 799 Long Cycles of ON/OFF Activity
800 849 Zero to Minimal Snow-Blower Operates
850 859 Snow Flurry- Lowest Outputs
860 879 Light Snowfall- Smallest Flakes
880 889 Sub-Blizzard- Larger Snow Flakes
890 895 Ideal Range of Operation at 30 ft height
896 899
900 999
Maximum Snow Output- Largest Flakes
Remote Control Activated (Note: 5 Pin DMX
must be disconnected.)
See Chart 2 for Remote Controlled Flake Size
6
100
Always On
:
75
74
15 Min Cycle
:
51
50
5 Min Cycle
:
25
24
Off
:
0
A B C
Mode
0 0 0
Idle
0 0 1
: : :
DMX
5 0 9
5
1
0
: : :
Idle
5 9 9
6 X X
5 Min Cycle
7
X
X
15 Min
Cycle
8
X
X
Always On
9
X
X
Remote
U
s
ing
t
he
C
on
t
roller
Using the Controller
Snow Machine Controller
The snow machine controller consists of one fan relay, a pump controller and control interface capable
of receiving a DMX signal or a proprietary remote control signal. The DMX address is set via a three digit
rotary switch located on the back of the device. The DMX address is set in a decimal fashion.
*SELECTED START ADDRESS
Cycle
Time
100 100 100 100
: : : :
0 0 0 0
Flake
Size
order.
DMX Mode Channel Level
The DMX interface is compliant with DMX-512
standards and electrically isolated to 1000VAC. The
starting address can be set from 1 to 509. The DMX
protocol requires 4 dimmers defined as Mode, Cycle
Time, Duration and Flake Size. The Mode dimmer
defines the overall operation of the snow machine
- Off, On, and Momentary. The Mode dimmer will
correspond to the selected start address, with the Cycle
Time, Duration, and Flake Size channels in the following
When the mode channel is set to one of the Momentary
positions (either 5 or 15 min cycle), the Cycle Time and
Duration channels become active. The cycle time channel
establishes the time it takes for the entire event. Duration
channel is the length of time of snow output. The minimum
time of one cycle is 18 seconds with a ten second ON
time, a four second SNEEZE, and a four second WAIT. A
sneeze is when the blower remains on without the pump
and dries the sock, preventing postnasal drip.
The following tables show all the settings that can be attained with the use of the three digit rotary
switch located on the back of the device. An ‘X’ indicates that the number in that position does not
matter for the required result to be attained. Switch A is in the hundreds position, Switch B is in the
tens position, and Switch C is in the ones position.
Table 1- Mode Settings
Table 1
shows that there are six modes in which
the device may operate: Idle, DMX, 5 minute
cycle, 15 minute cycle, always on, and remote.
7
A B C ON Time
WAIT Time
6 0 X
15 Seconds
4 Minutes 45 Seconds
6 1 X
30 Seconds
4 Minutes 30 Seconds
6 2 X
1 Minute
4 Minutes
6 3 X
1 Minute 30 Seconds
3 Minutes 30 Seconds
6 4 X
2 Minutes
3 Minutes
6 5 X
2 Minute 30 Seconds
2 Minutes 30 Seconds
6 6 X
3 Minutes
2 Minutes
6 7 X
3 Minute 30 Seconds
1 Minute 30 Seconds
6 8 X
4 Minutes
1 Minute
6 9 X
4 Minute 30 Seconds
30 Seconds
A B C ON Time
WAIT Time
7 0 X
45 Seconds
14 Minutes 15 Seconds
7 1 X
1 Minute 30 Seconds
13 Minutes 30 Seconds
7 2 X
3 Minutes
12 Minutes
7 3 X
4 Minutes 30 Seconds
10 Minutes 30 Seconds
7 4 X
6 Minutes
9 Minutes
7 5 X
7 Minute 30 Seconds
7 Minutes 30 Seconds
7 6 X
9 Minutes
6 Minutes
7 7 X
10 Minute 30 Seconds
4 Minute 30 Seconds
7 8 X
12 Minutes
3 Minutes
7 9 X
13 Minute 30 Seconds
1 Minute 30 Seconds
A B C Flake Size
6/7 X 0
1
6/7 X 1
2
6/7 X 2 3 6/7 X 3 4 6/7 X 4 5 6/7 X 5
6
6/7 X 6
7
6/7 X 7
8
6/7 X 8 9 6/7 X 9
10
U
s
ing
t
he
C
on
t
roller
Using the Controller
Snow Machine Controller
Table 2 – 5 Minute Cycle
Table 3 – 15 Minute Cycle
Table 4 – Flake Size Settings
Table 2
for the 5 minute cycle.
Within this mode, the device
cycles are dependent on
the B switch setting. The
cycle time is the total time
of the event, and the “on
time” is the length of time of
snow output, similar to the
duration in the “DMX mode”.
Otherwise, the machine is in
a WAIT state
Table 3
for the 15 minute cycle.
Within this mode, the device
cycles are dependent on
the B switch setting. The
cycle time is the total time
of the event, and the “on
time” is the length of time of
snow output, similar to the
duration in the “DMX mode”.
Otherwise, the machine is in
a WAIT state
displays the settings
displays the settings
Table 4 shows the use of
switch C during 5 minute
or 15 minute cycle modes
(Switch A is 6 or 7). Switch C
controls the flake size.
8
U
s
ing
t
h
e
C
on
t
roller and
t
he
R
emo
t
e
Using the Controller and the Remote
Snow Machine Controller
Table 5
B and C work similarly to Switch C when in the 5 minute and 15 minute cycle modes. It controls the
flake size. The user then has 100 choices of flake size.
shows the use of switches B and C when switch A is set to 8 (Always On state). Switches
Table 5 -Always on Flake size setting.
A B C Flake Size
8 0 0 1%
8 : : :
8 9 9 100%
Note: The user should avoid configuring the ‘A’ selector to the 9 position while a DMX connection
is being used.
There is a provision on the controller board for an additional fan control relay rated at 10 amps. This
relay has a completely separate power interface.
The DMX interface is also provided as a pass
through connection. The remote interface
utilizes standard pins 4 and 5 of the 5 pin
XLR connector to supply power to the remote
control. Pins 4 and 5 are pass through when
used in a DMX configuration. Pins 4 and 5
have power applied to them only when the
DMX selector is set to the 900s and this power
is used to power the remote.
Remote Control
NOT INCLUDED, SOLD SEPARATELY
The remote control provides a tethered remote control connection to the snow machine. The 3
rotary switches must be at 900 or greater for remote function to be enabled. The remote has control
over the on/off and flake size functions. The flake size knob provides variable settings from small (0)
to large (5) flakes. There is also a status LED to inform the user that the unit is on and powered.
When the unit is powered and the power switch on the remote is set to the off position, the red LED
on the remote will slowly pulse to inform the user that the unit is in standby. When the user changes
the switch to on, the LED will go to a solid red.
While in “remote mode”,
Rotary Switch controls the flake
size. The “remote mode” also
allows for the use of a quick
on/off switch located on the
remot
e con trol.
9
M
ain
t
enan
c
e
Maintenance Information and Precautions
General Maintenance
The SNOW STORM is a low maintenance unit.
Cleaning and Storing the SNOW STORM
In order to clean the SNOW STORM, fill another plastic container half full with water and run the
unit for
3-5 minutes with the nozzle tilted downward into another container (if possible). You may clean the
plastic exterior of the SNOW STORM with detergent and water. Do not stack other boxes or items
on top of the SNOW STORM. Store the SNOW STORM in a cool, dry environment between 40-80
degrees F. If electrical wires are frayed, contact the factory at 256-229-5551 for service. Never
operate the SNOW STORM with a frayed electrical wire.
Caution: Never remove the cover or housing screws on the Snow Machine. This action will nullify
the warranty. Contact customer service at 256-229-5551.
General Repair:
require you to disassemble the unit.
5551 if you have questions on its operation or warranty.
Always use Global Special Effects™ approved snow solutions or the
Lifetime Warranty will be nullified.
The SNOW STORM Snow Machine has a lifetime warranty
and should never
Please contact Global Special Effects™ service at 256-229-
1
T
rouble
s
hoo
t
ing
Types of Trouble and Their Solutions
Symptoms and Cause and/or Corrective Actions
1
2
3
4
If the SNOW STORM does not generate snow, review the following checklist.
a)
When turned “ON”, is the Fan Operating? (Air is shooting out the nozzle of the SNOW STORM).
Yes:
Move on to (b)
No: Check the electric plug interface at the outlet connection, and make sure the remote connector
is connected to the main unit. Check to see if the power switch is “ON” on the main unit. A red
LED light should be illuminated on the back of the SNOW STORM when power is “ON”. Make
sure that the DMX settings meet your desired criteria (see the DMX section of this manual-the
unit should always be operating with settings between 880-899). Also, the LED light on the
remote should be illuminated (blinking) if the main power is “ON” and the DMX setting is in the
900s. A constant light will illuminate on the remote if snow is being generated. If the lights are
not illuminated, call customer service at 256-229-5551 or the 24 hr tech line at 256-229-5551
Option 2.
b)
Is the Pump Operating?
Yes:
If you feel the clear plastic tube vibrating, then the pump is operating.
Go to (c)
No:
operate and blow snow with settings between 880 and 899.
Contact customer service at 256-229-5551 or 256-229-5551 Option 2.
c)
Check to see if the tube is fully submerged in solution and is not pinched. A hole in the hose
would require replacement. It sometimes takes up to 2 minutes for the self-priming pump to
saturate the nozzle sock with liquid.
d)
Set the Rotary Switch between 880 and 899 to prove that the unit operates.
e)
Create a new “Solution Mixture”, per the instructions, if the nozzle sock is saturated with liquid
but no snow is being made.
Recheck the DMX settings per the DMX settings in the manual. The unit should always
Is the Snow generated very wet or light in volume? Always allow two minutes or so for the SNOW
STORM to come to full operation after an extended storage or for the first time operating.
f)
Remake another batch of your recipe solution, and check your water to solution ratio carefully.
g) Make sure the clear tube is completely submerged in the solution.
h) Contact customer service at 256-229-5551, or the 24 hr tech line at 256-229-5551 Option 2.
Technical Service or Purchasing Global Special Effects™ Liquid Solutions:
Use customer service at 256-229-5551
The fan is not turning on. The fan has its own controller on the back of the machine.
24 Hour Technical Service - Off Hours 256-229-5551 Option 2
W
ha
t
i
s
E
vapora
t
ive
S
no
w
™
What is Evaporative Snow
™
Incorporating Evaporative Snow™ In Your Production Design
Global Special Effects is a pioneer of the “evaporative snow” process. In order to help you
incorporate “evaporative snow” in your production design, we are providing you the following
explanation as to exactly what it is and how a snow machine works.
The “snow flake”
machine. A small plastic feed tube takes the fluid from the reservoir to a small nylon sock at the
front of the machine by means of a pump. The sock is mounted to the front end of a high output
blower. The sock material is a very fine mesh weave and acts like hundreds of very tiny bubble
wands, producing clusters of bubbles appearing as “flakes”. The “flake” size varies according to the
speed of the pump, and the amount of fluid reaching the sock. More fluid results in more and larger
clusters of bubbles or “flakes”.
The “flake” size is the key to making any evaporative snow truly evaporative and residue
free. Ideally you want to set the flake size so that the snow evaporates just as the snow hits the
ground. Imagine for a moment blowing a traditional soap and water bubble with a bubble wand.
The air pressure in the bubble is greater than the surrounding air pressure, and keeps the bubble
inflated, much like a latex balloon. As air currents keep it aloft, it will remain intact until enough
water evaporates from it’s surface, the thinned film can no longer maintain surface cohesion and
the bubble’s internal air pressure causes it to burst. Evaporative snow fluid contains an advanced
evaporative solution to make the “flakes” disintegrate more rapidly. The combination of air
pressure and solution mixture produces a very esthetically pleasing, moderate snow fall. While
you can certainly create a blizzard effect with these machines, additional safety precautions must
be considered, as the snow will build up on the floor or stage, resulting in a slippery surface.
Air flow and evaporative snow
“cone” of snow which is smallest near the machine and disperses as you get farther away creating a
“curtain effect” (see the Overhead View diagram next page). You can increase the overall effected
area through the use of judiciously placed fans, both near the machine and on the ground. Fans
near the machine (some larger machines have these incorporated into their design) will help disperse
the snow into a larger area. Fans on the ground will also help with dispersion, as well as provide
beautiful updrafts and swirls. Often these machines are used in ballrooms for holiday parties and
occasionally in arenas. The key to coverage in a larger venue (or when you want to make it snow on
the audience at a theatre) is not determined as much by the number of machines as it is by the air
handler’s circulation in the room itself. Air handlers in arenas and many modern ballroom facilities
are designed to re-circulate thousands of cubic feet of air per minute. Experiment with air handler’s
currents to circulate snow around the venue. Staggering the placement and alternating the direction
of the snow machines so that the edges of the air streams from the machines interact in opposing
directions is another technique for creating a swirling effect.
Back lighting and to some extent side lighting is vital to the audience’s visual experience.
If lit from the front only, the effect’s visibility will be poor at best. Lighting can be especially
challenging in a ballroom or other “total environment” setting or venue, when your audience will be
viewing the snow from multiple angles and positions. Ideally you want your lighting to come from
above, yet below the snow machines. Obscuring the snow machines in the dark above the light
sources allows the snow to capture light, adding a sense of wonder to your event.
Noise reduction is another factor
extent it can be covered with music. Global Special Effects engineers have developed the quietest snow
machines using better sound insulation, and quieter blowers such as the T-1600 Snow Machines series.
starts as a clear fluid in a reservoir or bottle usually found at the back of the
in your production design. First, all snow machines produce a
to be considered in your production design. To a large
24 Hour Tech Support
888-391-7669
Snow Machine Switch Settings
001-500 Address for machine while under DMX Control (all other functions disabled)
(See below for DMX Channel Control Information)
600’s Mode Repeat Cycle Timer Stand-Alone Mode(five minute Timer)
First digit set to “6”
The second digit controls the percentage of time on in five minutes (10%-90%)
The third digit controls the flake size (0-9)
700’s Mode Repeat Cycle Timer Stand-Alone Mode(fifteen-minute timer)
First digit set to “7”
The Second Digit controls the percentage of time on in fifteen minutes (10%-90%)
The Third Digit controls the flake size (0-9)
800’s Mode Stand-Alone Operation Continuous (ON)
First digit set to “8”
800-899 controls the flake size and amount of snow
900’s Mode Hard Wired for Remote Controller
First Digit set to “9”
All other switches disabled
Sales Information
800-745-8599
Control Format for all DMX Snow Machines
Addressing
DMX starting address is manually programmed via thumb dial switches. Valid starting addresses are 001-512. The
Snow Machines utilize four channels.
The first channel has four settings:
0-63 Snow Machine is "off"
64-127 Allows for a 0 to 5 minute cycle time based on the settings of the 2nd channel
(This setting turns on the short internal timer circuit)
128-191 Allows for a 0 to 15 minute cycle time based on the settings of the 2nd channel
(This setting turn on the long internal timer circuit)
192-255 Snow Machine is set to "on"
The second channel: **
When Channel 1 is set from 64-127 then the second channel sets the overall duration of cycle time
anywhere from zero (0) to five minutes (255).
When Channel 1 is set from 128-191 then the second channel sets the overall duration of cycle time
anywhere from zero minutes (0) to 15 minutes (255).
The third channel: **
Sets the % of "on time" during the duration set by the second channel. This value is a range from 0(0) to
100%(255)
The fourth channel:
Sets the amount of snow output from minimum output (1) to 100%(255). This channel is effective anytime
the machine is “on”
**During all timer-controlled modes, internal limits enforce a minimum on time of at least 10seconds and a
minimum off time of at least four seconds.
www.globalspecialeffects.com for additional technical information
Document SM-DMX2.100
Created 10/04/06 - GMS
1
NEW SNOW BOARD
SETTINGS FOR STAND ALONE 891 TO 899
801 TO 899 THE SNOWSTORM WILL USE 1 GALLON OF FLUID IN 16 MINS
881 TO 889 - 24 MIN PER GALLON.
871 TO 879 - 27 MIN PER GALLON.
861 TO 869 - 30 MIN PER GALLON.
851 TO 859 - 36 MIN PER GALLON.
841 TO 849 - 48 MIN PER GALLON.
831 TO 839 - 57 MIN PER GALLON.
821 TO 829 - 1.5 HOURS GALLON.
811 TO 819 - 1 HOUR AND 48 MINS PER GALLON.
801 TO 809 - 3 HOURS 17 MINS PER GALLON.
Limited Lifetime Warranty
Global Special Effects™ provides a limited lifetime warranty for the SNOW
STORM from any manufacturing defects. Any misuse, abuse, or
negligence automatically voids our warranty. Running any other
liquids/materials other than the Global Special Effects™’ solutions through
the pump automatically voids our warranty. Global Special Effects™ is not
responsible for loss of income, labor, or business as a result of a SNOW
STORM’s malfunction. Global Special Effects™ is not responsible for
damage, scratching or tube damage after shipping from Global Special Effects™’
Manufacturing facility. For safety reasons, Global Special Effects™ will repair
damaged electrical wires per the warranty. There is a lifetime warranty on
the circuit board and other electronics to the fan or pump. Direct all questions
and claims to the Global Special Effects™ customer service at 256-229-5551
from 8-5 Central time or the 24 hr tech support line at 256-229-5551 Option
2.
physical
11054 County Road 71
Lexington, AL 35648
www.globalspecialeffects.com
AUSTRALIA • NASHVILLE
LOS ANGELES •
FORT LAUDERDALE
Sales: 256-229-5551
Fax: 256-229-5552
24 Hour Tech Support
256-229-5551 Option 2
Loading...
