GLIDEROL TM 315 User Manual

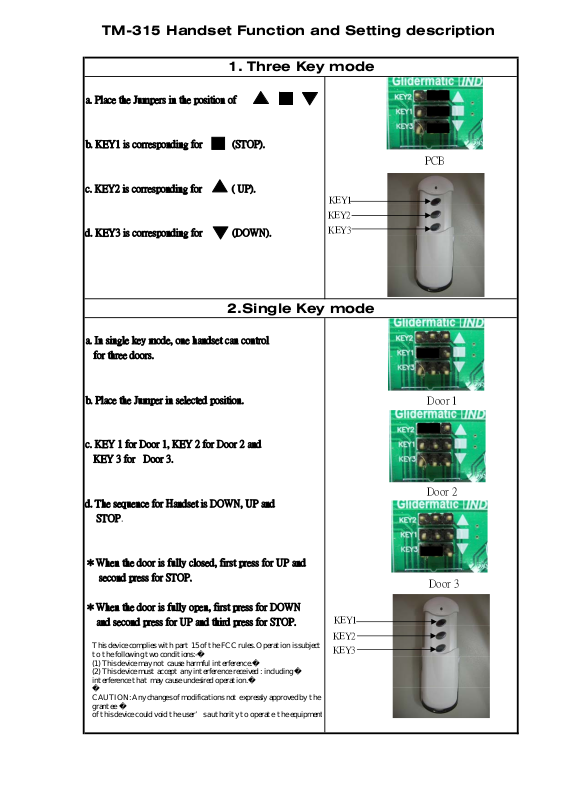

TM-315 Handset Function and Setting description

This device complies with part 15 of the FCC rules. Operation is subject 
to the following two conditions:-
(1) This device may not cause harmful interference.
(2) This device must accept any interference received : including 
interference that may cause undesired operation.

CAUTION: Any changes of modifications not expressly approved by the 
grantee 
of this device could void the user’s authority to operate the equipment.

1. Three Key mode

a. Place the Jumpers in the position of

b. KEY1 is corresponding for (STOP).

PCB

c. KEY2 is corresponding for ( UP).

KEY1

KEY2

d. KEY3 is corresponding for (DOWN).

KEY3

2.Single Key mode

a. In single key mode, one handset can control

for three doors.

b. Place the Jumper in selected position.

c. KEY 1 for Door 1, KEY 2 for Door 2 and

KEY 3 for Door 3.

d. The sequence for Handset is DOWN, UP and

STOP.

＊When the door is fully closed, first press for UP and

second press for STOP.

Door 1

Door 2

Door 3

＊When the door is fully open, first press for DOWN

and second press for UP and third press for STOP.

KEY1

KEY2

KEY3
