Pro Series C33
Combination Primary and
Backup Sump Pump System
Instruction Manual &
Safety Warnings
Table of Contents
Important Safety Warnings and
Instructions
Electrical precautions 1
Battery preparation 1
Battery precautions 1
Introduction
Items included in system 2
Additional items needed 2
System specifications 2
Installing the Pipe and Pump 3
Battery Instructions 4,5
System Connections
Connecting the backup pump 5
Installing the battery fluid sensor 5
Connecting the battery 6
Connecting the primary pump 6
Product Operation
Float switches 7
Controllers 7
1/8” weep holes 7
Understanding the Warning
Lights and Alarms
Silencing the alarm during
an emergency 7
Battery fluid low 7,8
Battery corroded or defective 8
Cleaning battery terminals 8
Replacing the battery 9
Not receiving AC power 10
Fuse alarm 10
Backup pump activated 10
Replacing the backup pump 11
Replacing the primary pump 12
Battery power level 13
Remote alarm 13
Testing the System
Testing the backup float switch 13
Testing the primary float switch 14
Maintenance Check List 14
Parts & Service Information
Technical support 14
Replacement Parts Diagram & List 15
Troubleshooting Guide 16
Warranty 17
Page 2
Controller
Dual Float
Considera Pro Series Batter y
Backup SumpPump System
Glentronics, Inc. 800.991.0466 www.stopflooding.com
ModelNo. DFC1
#DFC1
CAGED DUAL
FLOAT SWITCH
& CONTROLLER
#1142001
1-1/2” RUBBER
COUPLING
#1100021
(3) #10–24 x 1-1/2”
LONG S.S. PAN HEAD
MACHINE SCREWS
#1100024
#14 x 3/4” PAN HEAD
SLOTTED SHEET METAL
SCREW 2 REQ.
PRIMARY PUMP
BACKUP PUMP
BACKUP DOUBLE
FLOAT SWITCH
MAIN PVC PIPE
BACKUP
PVC PIPE
#1011010
2400
BACKUP PUMP
#1143000
SUMP FOOT
#S3033-GL
PRIMARY PUMP
(2) #1141001
(SPC-250 GT)
1-1/2” CHECK
VALVES
(2) #1142000
NO-HUB
COUPLINGS
#1120007
Y-PIPE
#1120008
45º ELBOW
#1122002
2-1/2” HOSE CLAMP
CAGED DUAL
FLOAT SWITCH
PHCC2400
CAGED DUAL
FLOAT SWITCH
& CONTROLLER
CAGED DUAL
FLOAT SWITCH
Replacement Parts List
PS -C33 Description Part No.
Controller for backup pump PHCC-2400-CON1
Dual float switch with controller for AC pump DFC1
1/3 HP AC sump pump S3033-GL
PHCC 2400 backup pump 1011010
Battery box 1113003
PVC “Y” fitting 1120007
Battery cap with hole 1125000
Sump foot 1143000
Instructions 1806065
Battery fill bottle BF
Stainless steel screw, #10-24 x 1-1/2” * 1100021
45º PVC pipe fitting, 1-1/2” * 1200008
Pipe adapter for backup pump, 1-1/2” FTP x
1-1/2” slip * 1120009
Wire tie for float switch, 11” * 1122000
Stainless steel hose clamp, 2-1/2” diameter * 1122002
Check valve, 1-1/2” MPT x 1-1/2” SLIP * 1141001
No-hub coupling, 1-1/2” * 1142000
*Stock items available in plumbing department

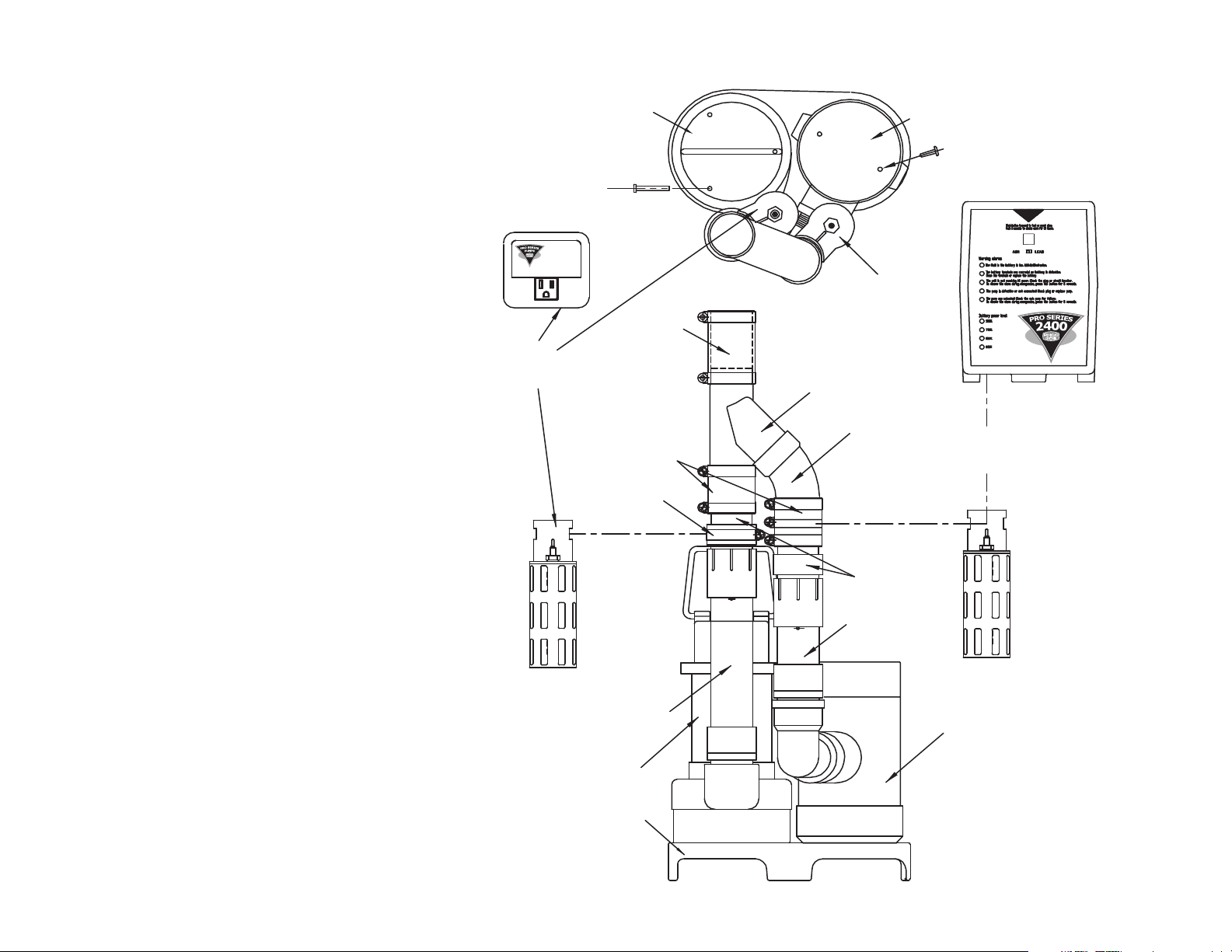

BOTTOM VIEW
Call 800-991-0466, option 3 to order parts.
Page 15
SIDE VIEW
