Glensound DARK1616D User guide

DARK1616D

DANTE/AES67 NETWORK AUDIO

8 x AES3 INPUTS 8 x AES3 OUTPUTS

INTERFACE

PRODUCT DETAILS

6 BROOKS PLACE, MAIDSTONE, KENT, ME14 1HE. ENGLAND. TEL: [phone] Visit our Website at www.glensound.com

Glensound Electronics Ltd

Thank you for choosing a new Glensound product.

All rights reserved.

Information contained in this manual is subject to change without notice, if

in doubt please contact us for the latest product information.

If you need any help with the product then we can be contacted at:

Glensound Electronics Ltd

1 – 6 Brooks Place

Maidstone

Kent

ME14 1HE

United Kingdom

Telephone: [phone]

Fax: [phone]

EMAIL ADDRESSES

General enquires: [e-mail]

Technical enquires: [e-mail]

Sales enquires: [e-mail]

Page 2 of 25

PRODUCT WARRANTY:

All equipment is fully tested before dispatch and carefully designed to

provide you with trouble free use for many years.

We have a policy of supporting products for as long as possible and

guarantee to be able to support your product for a minimum of 10 years.

For a period of one year after the goods have been despatched the

Company will guarantee the goods against any defect developing after

proper use providing such defects arise solely from faulty materials or

workmanship and that the Customer shall return the goods to the

Company’s works or their local dealer.

All non-wear parts are guaranteed for 2 years after despatch and any

defect developing after proper use from faulty materials or workmanship

will be repaired under this warranty providing the Customer returns the

goods to the Company's works or their local dealer.

SAFETY WARNING

The DARK1616D contains no user serviceable parts and must not be
dissasembled in any way.

Page 3 of 25

EU DECLARATION OF CONFORMITY FOR:

DARK1616D

Sixteen channel AoIP, AES3 I/O interface

This declaration of conformity is issued under the sole responsibility of

the manufacturer.

This equipment is manufactured by Glensound Electronics Ltd of Brooks

Place Maidstone Kent ME14 1HE is marked and conforms to the

following Union harmonisation legislation:

Low Voltage Directive: EN60065 and EN62368-1:2014
Emissions: BS EN55032:2015
Immunity: BS EN55035:2017

Signed for and on behalf of Glensound Electronics Ltd.

Gavin Davis, Managing Director
Maidstone, Kent, England

Date: 15/11/2019

Page 4 of 25

RoHS DIRECTIVE

Lead

0.1%

Mercury

0.1%

Hexavalent Chromium

0.1%

Polybrominated Biphenyls

0.1%

Polybrominated Diphenyl Ethers

0.1%

Cadmium

0.01%

EC directive 2002/95/EC restricts the use of the hazardous substances
listed below in electrical and electronic equipment.

This product conforms to the above directive and for this purposes, the
maximum concentration values of the restricted substances by weight in
homogenous materials are:

Page 5 of 25

WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT REGULATIONS 2006 (WEEE)

Glensound Electronics Ltd is registered for business to business sales of
WEEE in the UK our registration number is:

WEE/JJ0074UR

Page 6 of 25

GLENSOUND DARK1616D

Handbook Contents

Issue 1

Description Page No.

Contents

PRODUCT WARRANTY: .................................................................................................................................... 3

OVERVIEW ................................ ................................................................ ................................ ........................... 8

DARK1616D FRONT PANEL LAYOUT ............................................................................................................. 9

DARK1616D REAR PANEL LAYOUT ............................................................................................................. 11

SIMPLIFIED BLOCK DIAGRAM ...................................................................................................................... 13

CONNECTING THE DARK1616D TO A DANTE NETWORK ................................................................ ....... 14

Getting Dante Controller ............................................................................................................................... 14

Connecting Dark1616Ds To The Network ................................................................................................. 14

Audio Over IP Network .................................................................................................................................. 14

Running Dante Controller ............................................................................................................................. 15

Dante Controller TIP ...................................................................................................................................... 15

UPDATING FIRMWARE ................................................................................................................................... 16

UPDATING THE BROOKLYN MODULE ........................................................................................................ 21

AES67 MODE ...................................................................................................................................................... 22

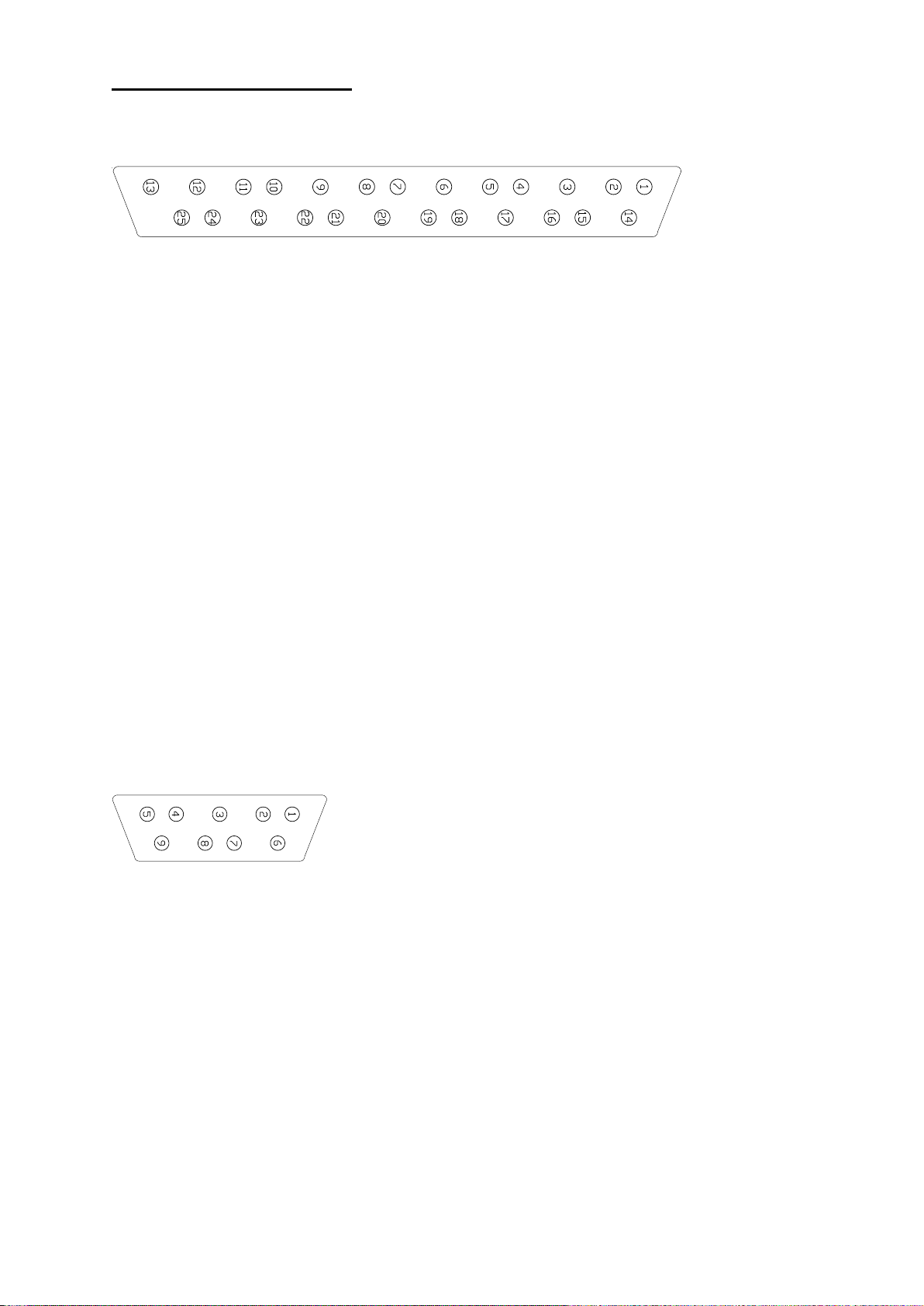

WIRING INFORMATION .................................................................................................................................. 25

Page 7 of 25

OVERVIEW

The Glensound DARK1616D is a digital to digital converter designed to connect
AES3 audio circuits to/ from a Dante/ AES67 audio network.

Dante network audio is a common protocol for distributing high quality linear audio
over standard IP networks and it is widely used by many audio equipment
manufacturers. The Glensound Dark1616D Dante audio interface will be compatible
with any other manufacturers Dante audio interface. Further details of Dante network
audio can be found at www.audinate.com

Being designed for live on-air broadcast applications the Glensound Dark1616D has
been designed with multiple redundancy capabilities. It has 2 mains power sources
and it also has fully redundant network connections for both Copper & Fibre circuits.

The Dark1616D provides 8 balanced AES3 inputs and 8 balanced AES3 outputs to
the Dante network on rear panel D25 connectors wired to AES59 (also known as the
Tascam standard).

As per our other Dante equipment 0dBu = -18dBFs

Page 8 of 25

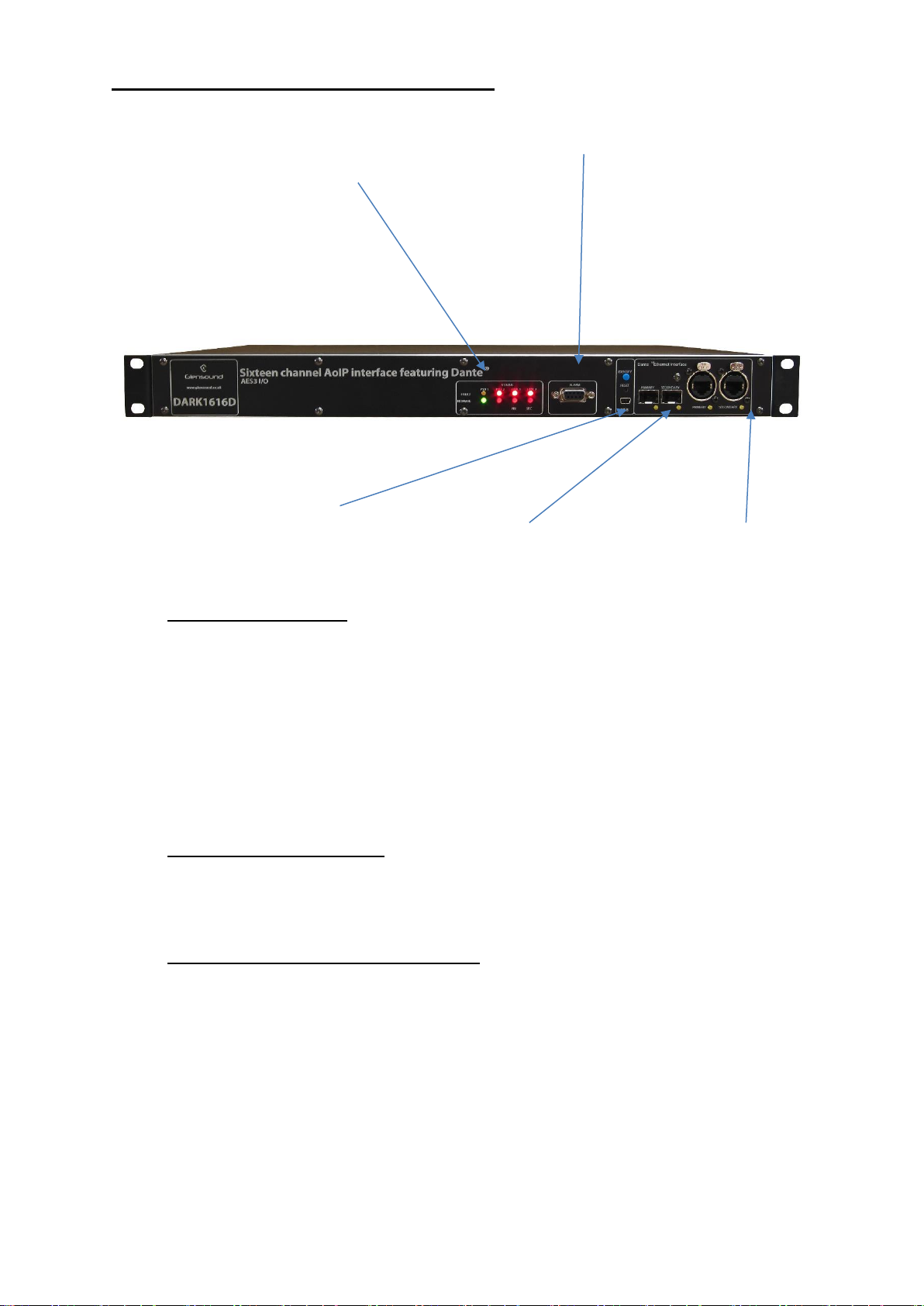

DARK1616D FRONT PANEL LAYOUT

1. PSU and Link status

2. Alarm status connection

3. USB connector and
update buttons

4. Network SFP
connections

5. Network RJ45
connections

1. PSU and Link status
There are 4 red LEDs and 4 green LEDs that illuminate depending on the

status of the link. Red indicates no connection, green indicates a successful
connection.

For example, if you have connected the DARK1616D to two separate PSUs,

only one of which works then you will have a red ‘Fault’ LED illuminate to

warn you that there is no power detected on the connection that is not
receiving mains power.

2. Alarm status connection
This 8-way female D-type connector will report the failure of a link status if

one is detected whilst in operation.

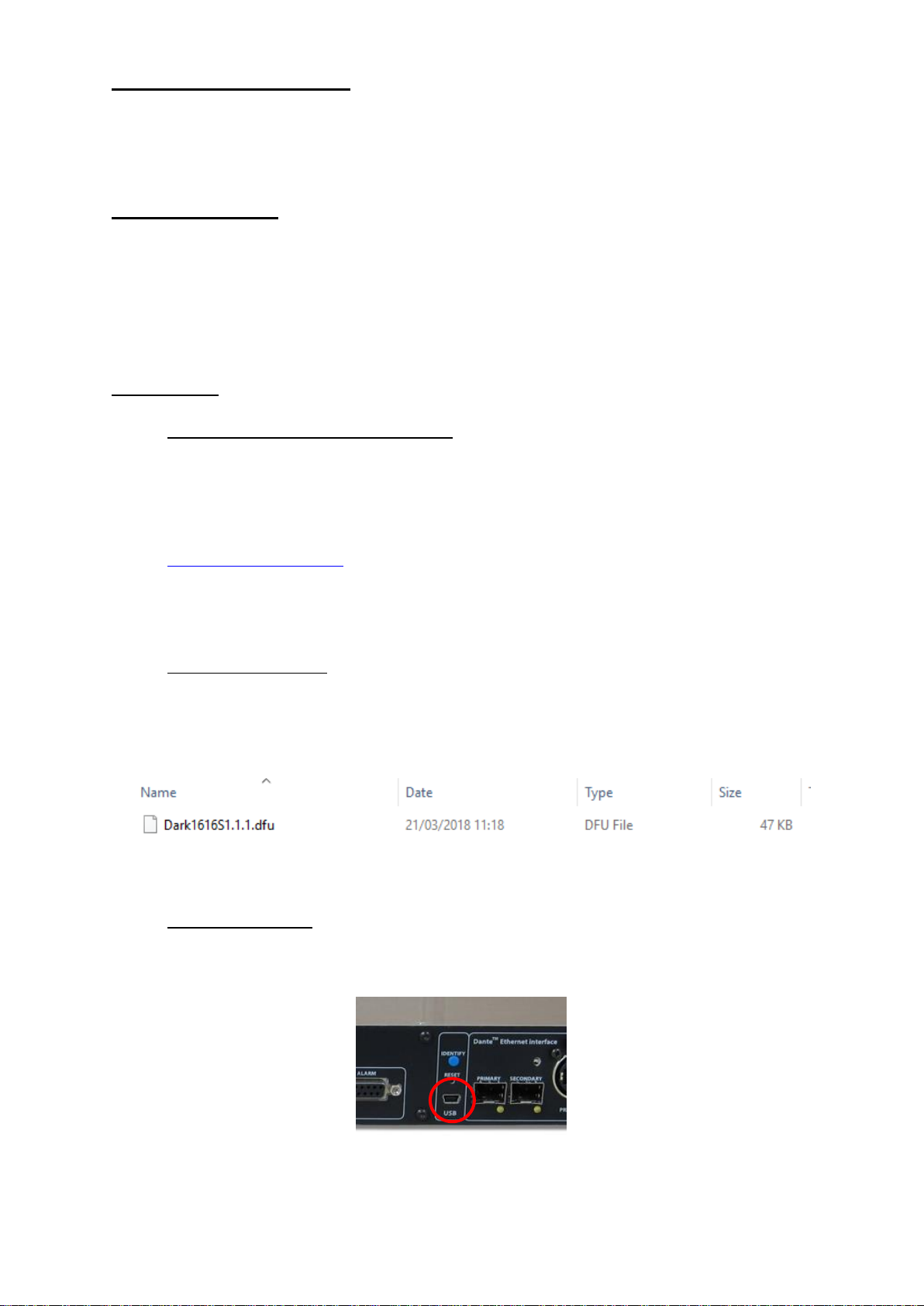

3. USB connector and update buttons
The MINI USB connection allows the firmware of the DARK1616D to be

updated. To prepare the DARK1616D for a firmware update; power on the
unit, press and hold down the reset button, press and hold down the identify
button, release the reset button and then release the identify button a second
after.

Page 9 of 25

4. Network SFP Connections
There are 2 standard network data SFP sockets provided to allow redundant

network connectivity if using Dante network audio protocol. They are both
gigabit network connections. They accept standard SFP modules. The status
LEDs flash to show when data is being correctly communicated with the
attached switch.

If you require SFP modules then please email [e-mail] for a
quotation.

Network Note

Factory default is to have the SFP & RJ45 sockets set to work in switch mode.
It is possible using Dante controller to set these network interfaces to work in

redundant mode instead of the switch mode.

5. Network RJ45 connections
There are 2 standard network data RJ45 sockets provided to allow redundant

network connectivity if using Dante network audio protocol. They are both
gigabit network connections. The status LEDs flash to show when data is
being correctly communicated with the attached switch.

Page 10 of 25

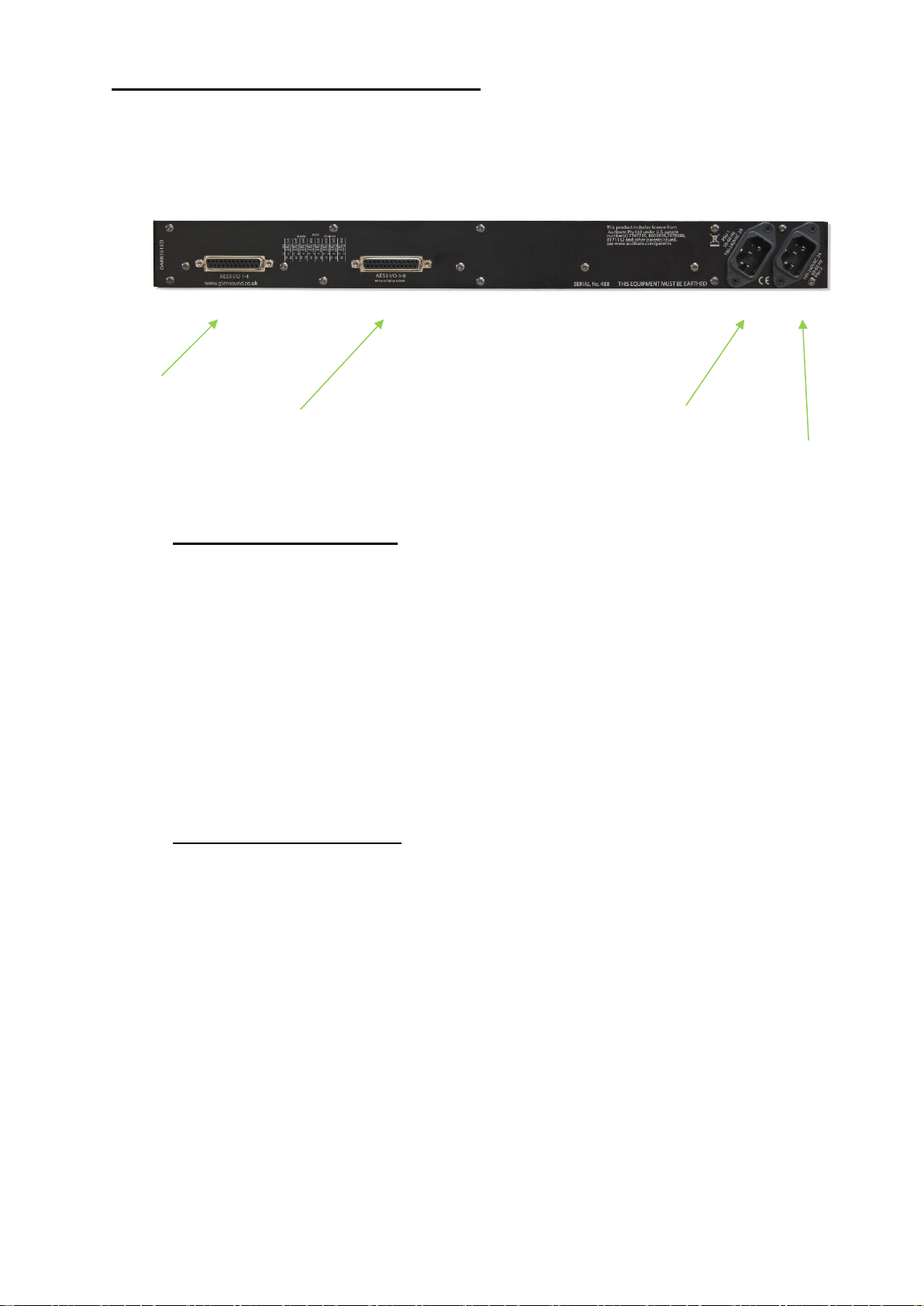

DARK1616D REAR PANEL LAYOUT

1. AES3 inputs/outputs 1 - 4

2. AES3 inputs/outputs 5 - 8

3. Primary IEC Mains

4. Secondary IEC Mains

A detailed wiring table for the pins of rear panel connections can be found at the end of the manual.

1. AES3 inputs/outputs 1 - 4

A 25-way female D-type connector allows a breakout cable to be attached to
send and receive 1 – 4 balanced digital AES3 signals. This audio can be
routed to anywhere on a network via Dante.

The AES3 inputs can accept any sample rate up to 192kHz. The input is fed
via a sample rate converter and is automatically set to match the Dante
newtork sample rate.

The AES3 outputs can be up to 192kHz. The actual output sample rate is set
to be synchroneous with the Dante network sample rate.

2. AES3 inputs/outputs 5 – 8

A 25-way female D-type connector allows a breakout cable to be attached to
send and receive balanced digital AES3 signals on channels 5 - 8. This audio
can be routed to anywhere on a network via Dante.

The AES3 inputs can accept any sample rate up to 192kHz. The input is fed
via a sample rate converter and is automatically set to match the Dante
newtork sample rate.

The AES3 outputs can be up to 192kHz. The actual output sample rate is set
to be synchroneous with the Dante network sample rate.

Page 11 of 25

3. Primary IEC Mains

The standard IEC mains plug accepts external AC voltages of 100 - 240 VAC
+/- 10%. There is a non-accessable internal fuse for this input.

The DARK1616D is designed to operate with either primary or secondary
mains sources or both for power redundancy.

4. Secondary IEC Mains

The standard IEC mains plug accepts external AC voltages of 100 - 240 VAC
+/- 10%. There is a non-accessable internal fuse for this input.

The DARK1616D is designed to operate with either primary or secondary
mains sources or both for power redundancy.

Page 12 of 25

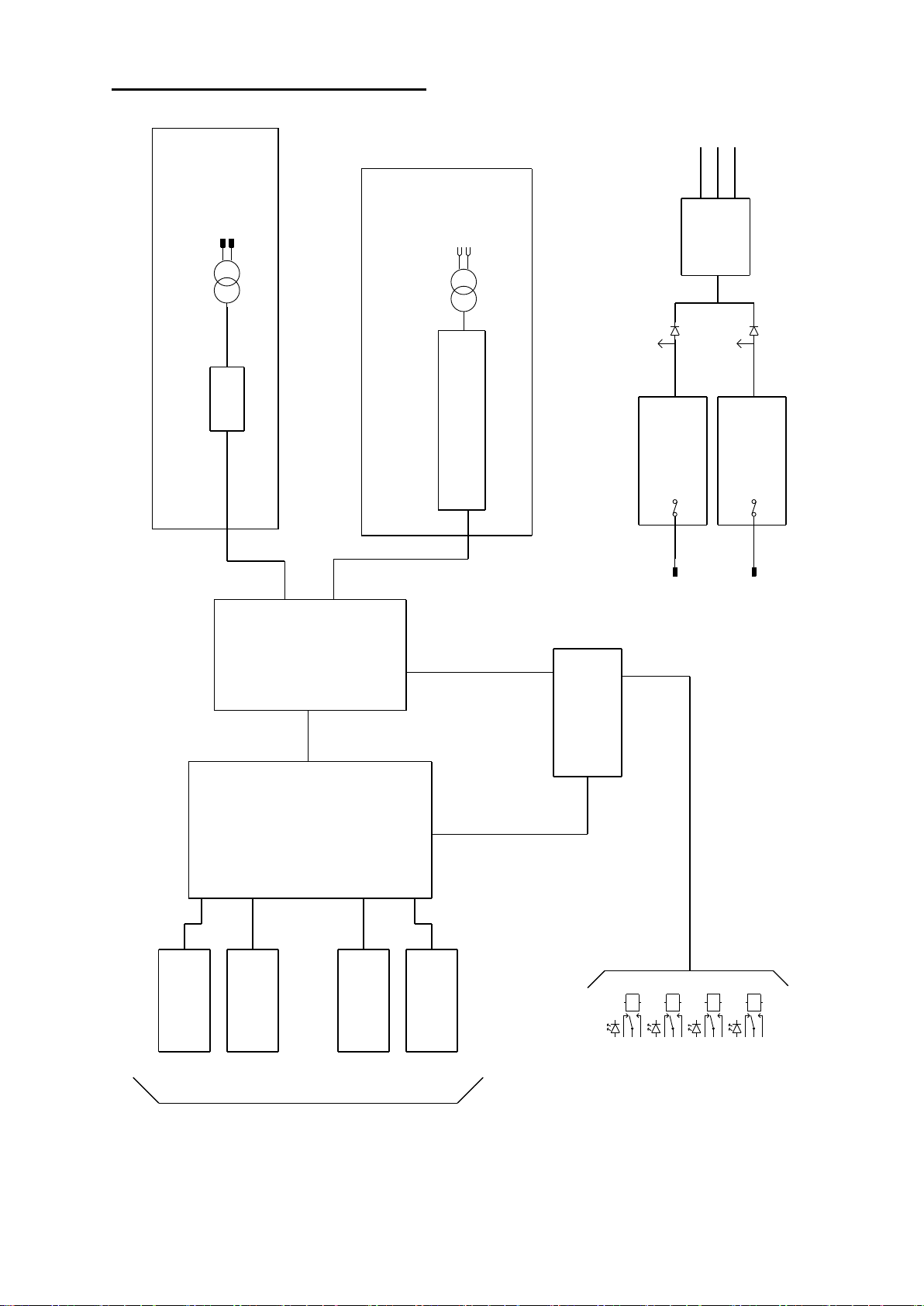

SIMPLIFIED BLOCK DIAGRAM

ETHERNET PHY

COPPER

ETHERNET PHY

FIBRE (SFP)

ETHERNET PHY

COPPER

ETHERNET PHY

FIBRE (SFP)

ETHERNET SWITCH

REDUNDANT

BI-DIRECTIONAL

DANTE AUDIO

UP TO 192kHz

DANTE FPGA

MICROCONTROLLER

1 OF 8 OF INPUTS

AES3 IN

AES3 OUTAES TX

AES OUTPUT FREQUENCY = DANTE AUDIO FREQUENCY

1 OF 8 OF OUTPUTS

AC/DC PSU100 - 240 VAC

+12VDC

AC/DC PSU100 - 240 VAC

+12VDC

DC/DC

+12V

+3.3V

-12V

TO MICRO

TO MICRO

PSU 1 STATE

PSU 2 STATE

PRIMARY DANTE LINK STATE

REDUNDANT DANTE LINK STATE

RELAY LOOP OUTPUTS & FRONT PANEL LED STATUS

SAMPLE RATE CONVERTER

Page 13 of 25

CONNECTING THE DARK1616D TO A DANTE NETWORK

The Dark1616D is a network audio device utilizing the reliable and versatile Dante
audio over IP protocol. Dante is a proprietary system (although very widely used) the
originators of which are Audinate.

The information below is only meant as a very basic guide. Full details of the power
of Dante network audio and instructions for using it can be found at

www.audinate.com

Getting Dante Controller

If you are connecting the inferno to a new Dante network the first thing you will need
to do is to get the free Dante controller software from Audinate.

This can be downloaded by visiting Audinate’s web site at www.audinate.com

Connecting Dark1616Ds To The Network

Dark1616Ds can be connected to the network that you are going to use for your
audio distribution simply by plugging in either, and, or any of the network
connections on the rear. Once connected to the network it will be possible to see the
Dark1616D from within the Dante controller and route its’ audio circuits.

Audio Over IP Network

We strongly recommend that you consider your network topology carefully and
would not recommend sharing broadcast audio and general data on the same
network.

For more details of audio over IP network structure please visit www.audinate.com

Page 14 of 25

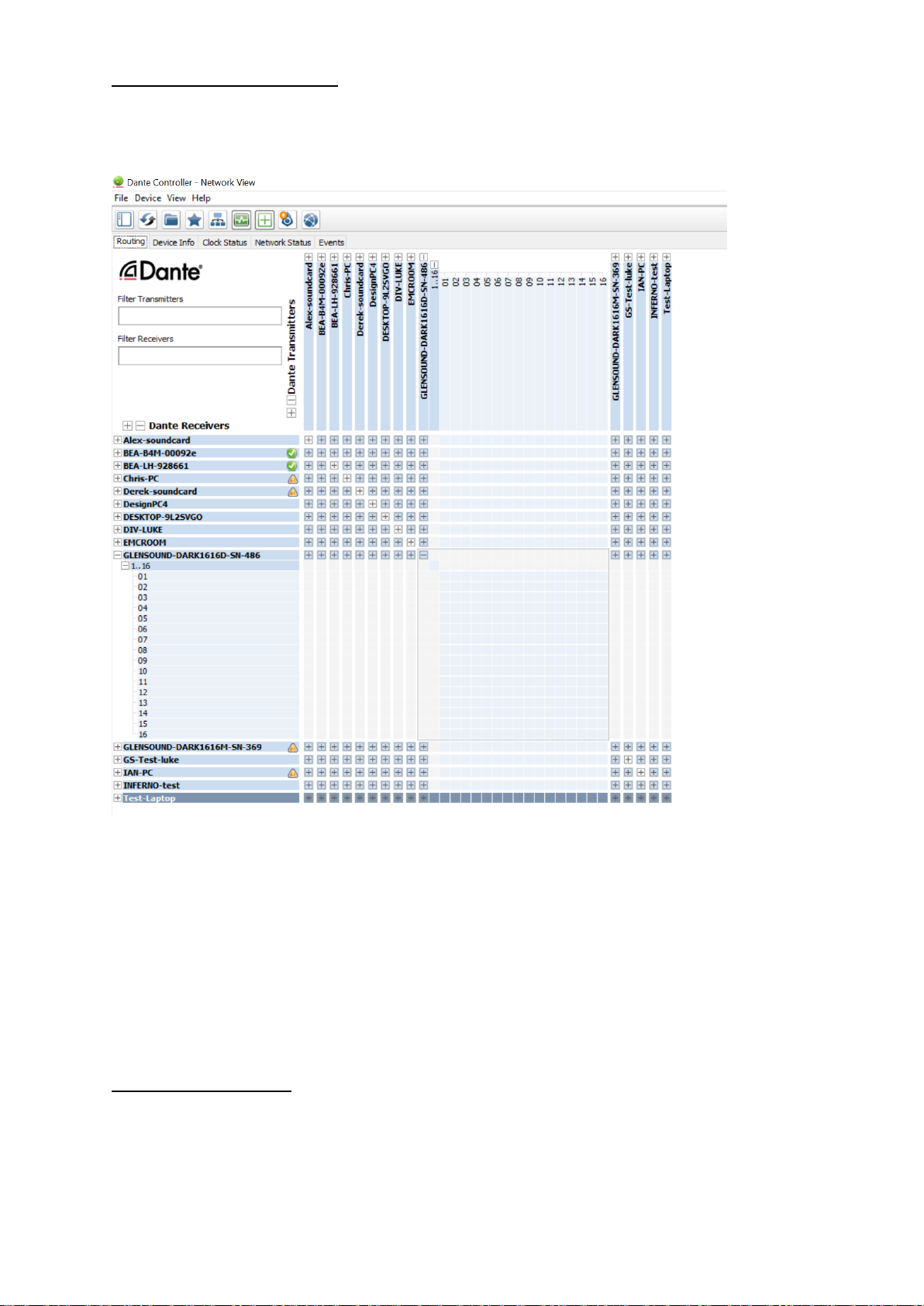

Running Dante Controller

At the time of writing this manual the Dante Controller looks as per the screenshot
below:

The Dark1616D will have been named at the factory during test to allow them to be
identified by the Dante controller.

The format used for the factory name is:

‘GLENSOUND-DARK1616D-SN-XXX’
Where ‘SN-XXX’ relates to the Dark1616D’s serial number which can be found

printed on its rear panel.

Dante Controller TIP

If you have never run Dante controller before then make sure that on the bottom left

of the Dante controllers’ screen ‘P’ or ‘S’ is next to a green square as this indicates
that it is connected to a network. By clicking ‘P’ or ‘S’ a pop up box opens to allow

you to set what network interface the controller is using.

Page 15 of 25

UPDATING FIRMWARE

Figure 2 Front panel USB
connector

Figure 1 Example filename

The DARK1616D is a complex digital audio system comprising of a DSP and several
Micro Controllers. All these items run software and may need to be occasionally
updated.

Equipment needed

 A windows based PC
 USB Type A to Mini B cable
 A copy of ‘DfuSe Demo’ software
 The latest firmware from Glensound
 A DARK1616D and mains power

Instructions

1. Download and install DfuSE Demo
‘DfuSE Demo’ is a firmware updating tool that is required for loading new

firmware on to the DARK1616D.
It can be downloaded from the STMicroelectronics website found here:

https://goo.gl/AbzhsA. It is the file named “STSW-STM32080”.

Once you have downloaded this file you will need to extract the .exe

“DfuSe_Demo_V3.0.5_Setup.exe”, then run and install it.

2. Download firmware
The latest firmware for the DARK1616D can be found on the Glensound

website, under the product page for DARK1616D. Once you have
downloaded the file, place it in a folder or location of your choice.

3. Connect To A PC
Connect the DARK1616D to the PC via the USB cable. The Mini USB

connector is located on the front panel of the DARK1616D.

Page 16 of 25

Figure 3 Device successfully recognised

4. Firmware update preperation
To prepare the DARK1616D for a firmware update;

1. Power on the unit

2. Press and hold down the reset button

3. Press and hold down the identify button

4. Release the reset button and then release the identify button a second

after

Your PC should make an audible sound when this process is successful as
windows is detecting a new USB device.

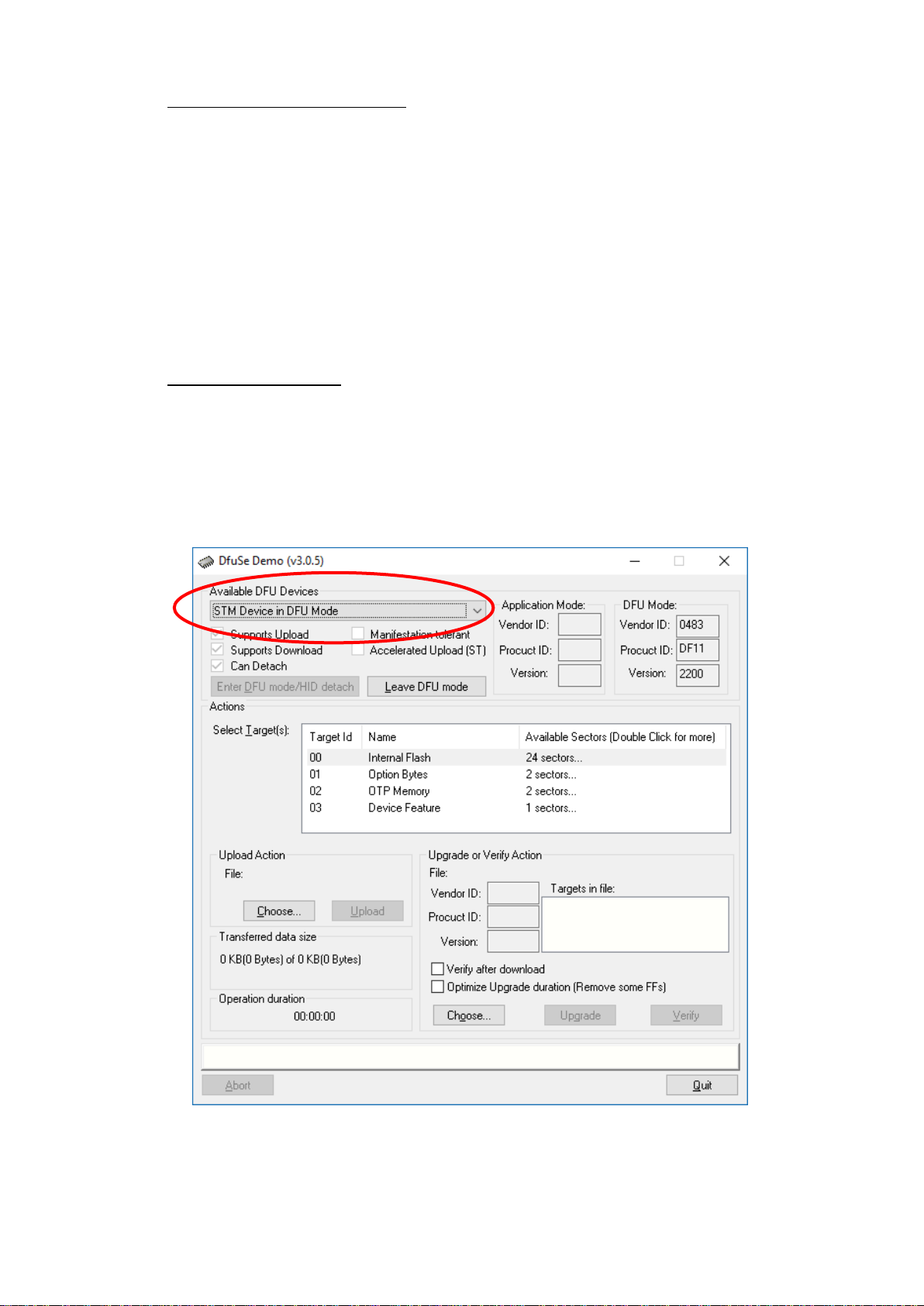

5. Loading the firmware
Now open DfuSe Demo.
If the DARK1616D successfully entered DFU mode then it will appear as

‘STM Device in DFU Mode’ under the ‘Available DFU Devices tab’.

Page 17 of 25

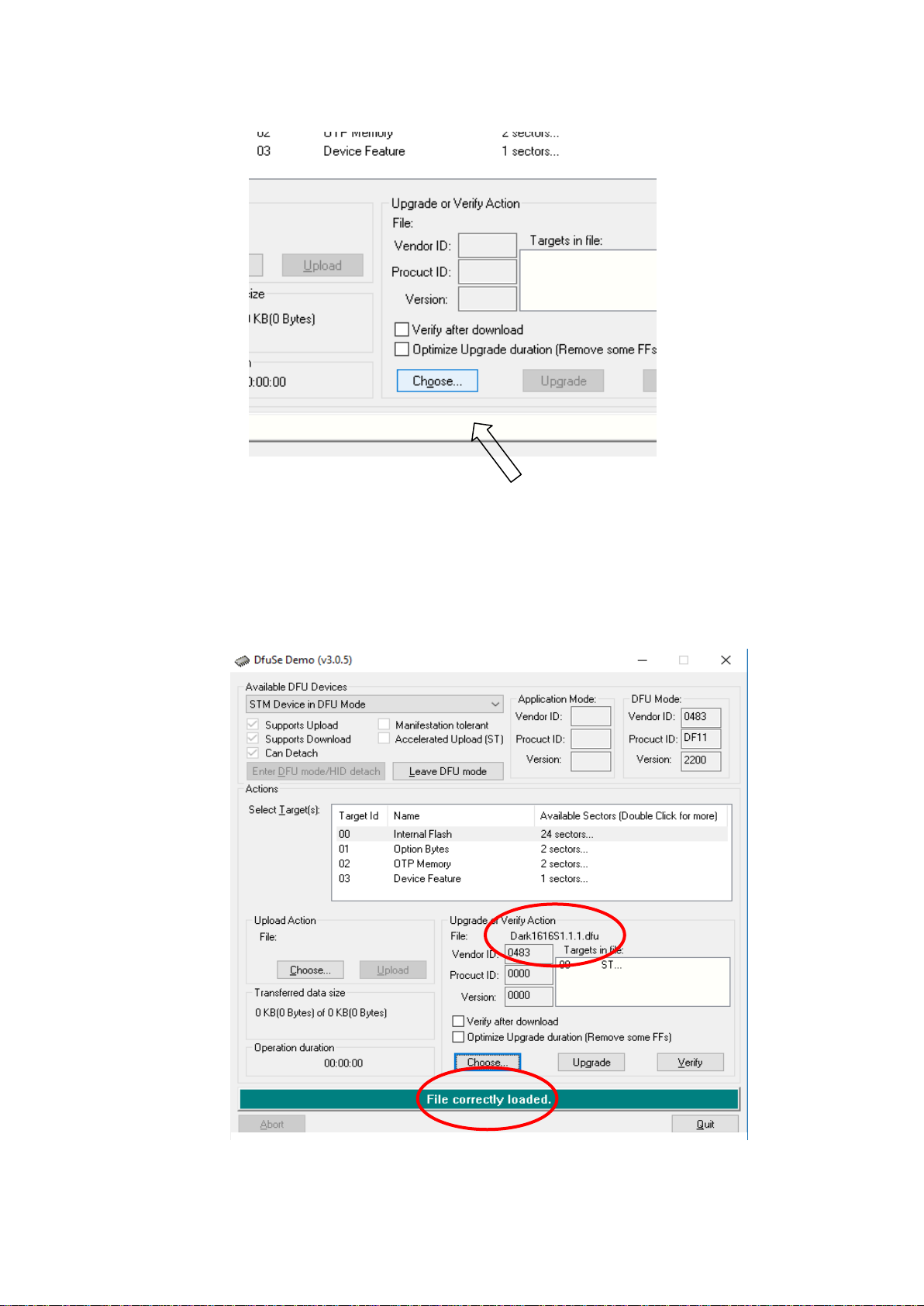

Now the .dfu file needs to be selected so that DfuSe Demo knows the correct

Figure 4 Choose .dfu file

Figure 5 .dfu successfully loaded

firmware to put on to the DARK1616D.

Click choose and then select the .dfu file that you downloaded from the
Glensound website. This will be located in your downloads folder by default.

If the file loads successfully then it will read along the bottom ‘File correctly
loaded’.

Page 18 of 25

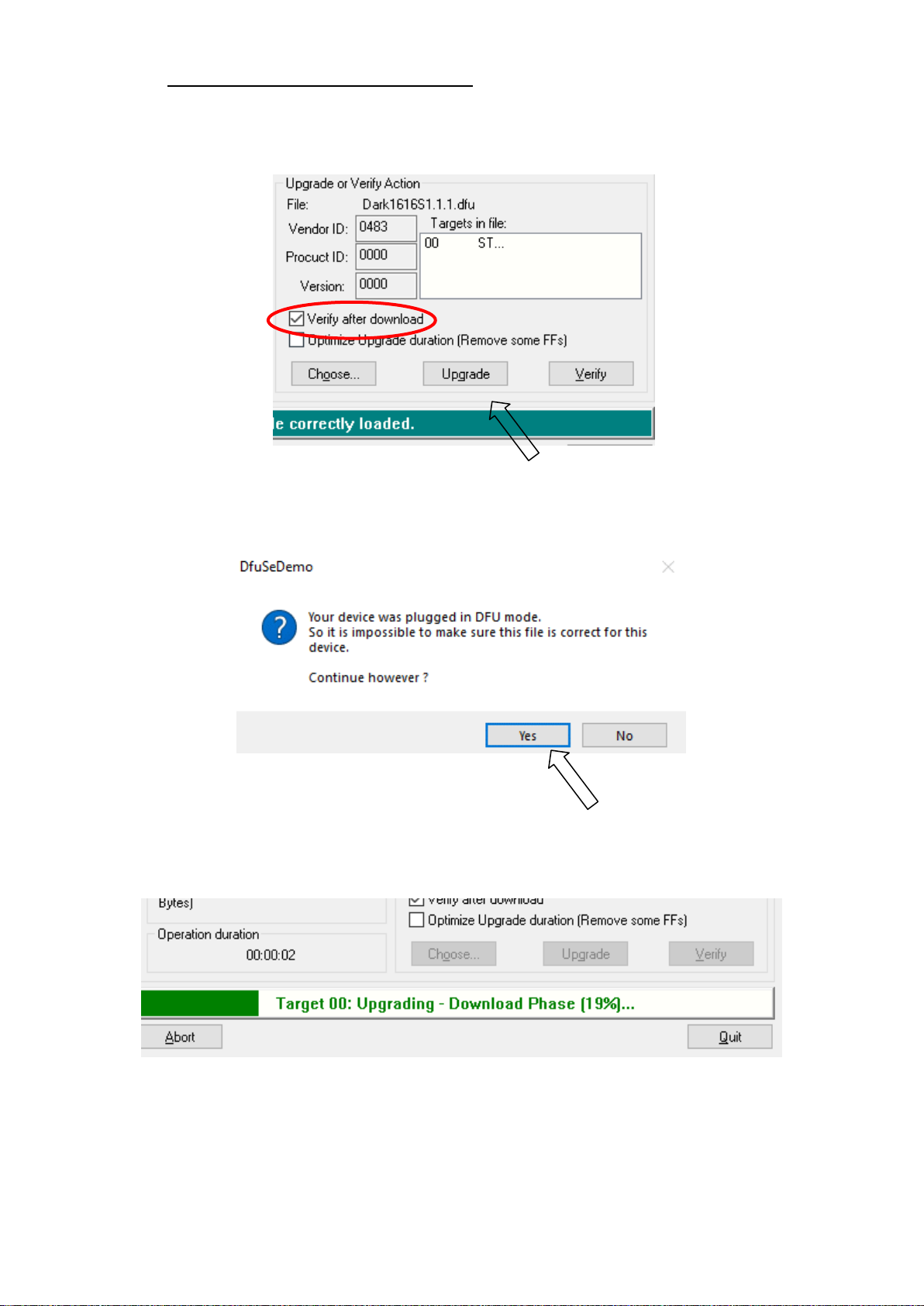

6. Upgrading the DARK1616D firmware

Figure 6 Upgrade

Figure 7 Start upgrade

Figure 8 Upgrade status

The firmware is now ready to be put on to the DARK1616D. Tick the ‘Verify
after download’ box first and then click ‘Upgrade’.

Click yes to proceed.

The progress bar along the bottom will show the status of the operation.

Page 19 of 25

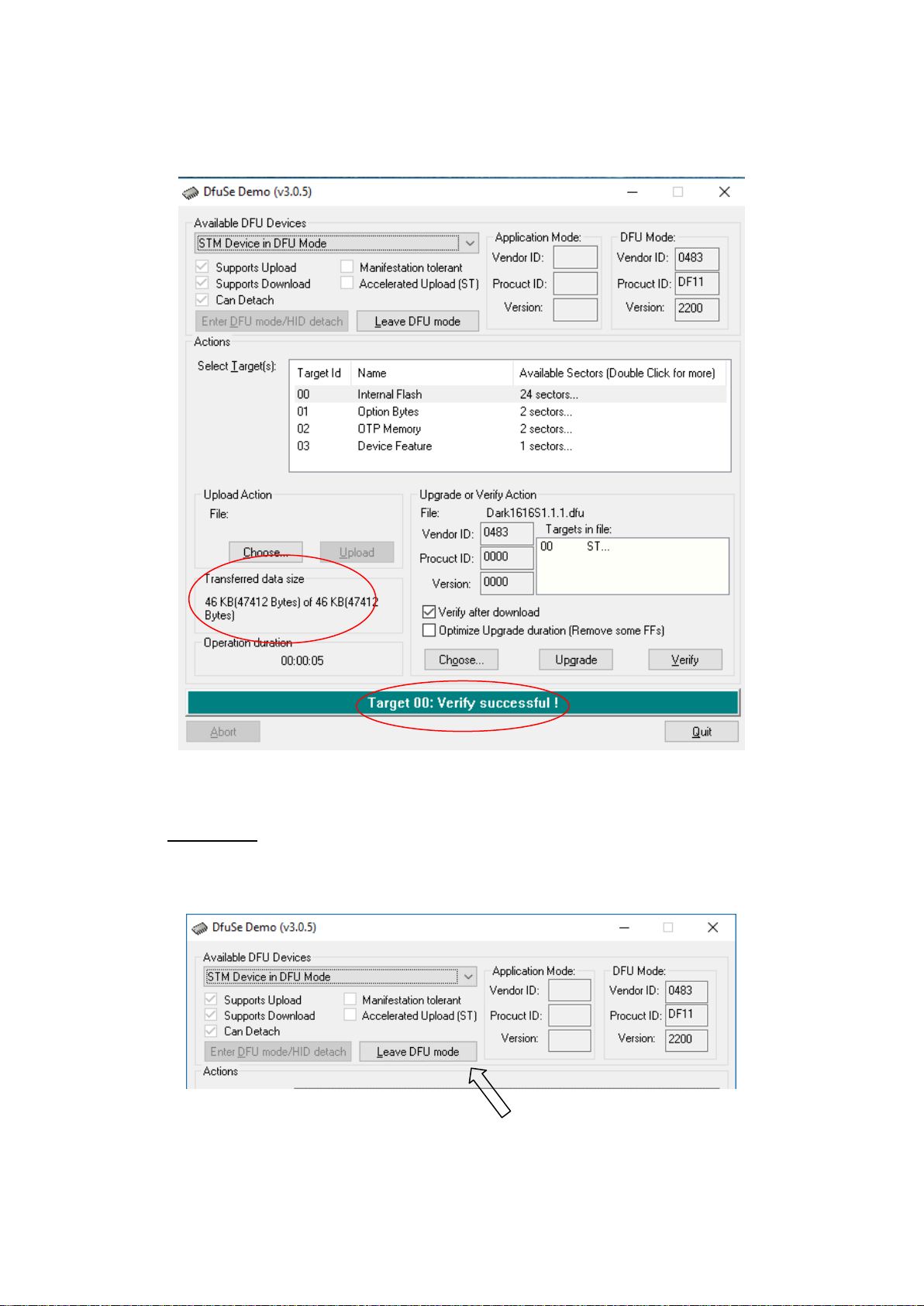

If the operation was successful, DfuSe Demo will report that “Targery 00: Verify

Figure 9 Successful upgrade!

Figure 10 Final step

Successful!”.
You may also see that it will report how much data was successfully transferred.

7. Final steps
Now click “Leave DFU mode” to finish the procedure.

You may now disconnect the USB cable and continue to use the DARK1616D
with the freshly updated firmware!

Page 20 of 25

UPDATING THE BROOKLYN MODULE

The Brooklyn module is a device supplied by Audinate that does most of the
processing for the actual Dante/ AES67 network audio streams. There is one
Brooklyn module in each Dark1616D. We supply special code (a .dnt file) that sets
up/ initiates the Brooklyn module and makes it work in particular way and we also
run extra code on its internal microprocessor to make it work correctly with the
Dark1616D.

1. Finding Out Current Installed Version

Open Dante Controller.
Open Device Info tab.

Double Click in the device that you are working with….a new window will open called

‘Device View (name of device’

Open the status tab.

The Firmware Version (of the Brooklyn module) will be found under the ‘Device

Information’ heading.

2. Finding Out What The Latest Available Version Is

Go the Dark1616D’s web page and open the ‘Firmware Latest Version’ Tab.
This will give both the latest version numbers/ file names and also the location to
download the file from.

3. Updating the Brooklyn Module

The firmware that runs on the Brooklyn module is updated using Audinate’s
Firmware updating tool. The updating tool and a user guide can be downloaded from
Audinate’s website:

https://www.audinate.com/products/firmware-update-manager

Please note we strongly advise that when you do the update that only your PC and
the Dark1616D that you want to update are on the network to save accidently
updating the wrong Dante device.

Page 21 of 25

AES67 MODE

The Dark1616D uses a module from Audinate called a Brooklyn Module for its
network audio interface. Audinate are the company behind Dante

module’s primary network audio protocol is Dante

®

, however Audinate have enabled
their module to comply with AES67 and therefore the Dark1616D can be set to
AES67 mode for interaction with other AES67 devices.

Please note however that Glensound are relying on Audinate’s AES67 interface and

are unfortunately not able to provide full AES67 support for the unit. AES67 support
should be sought directly from Audinate.

1. Turning On AES67 Mode

If you want to use your Dark1616D on an AES67 network and it has not been set to
AES67 mode then this can be set in Dante controller by double clicking the
Dark1616D to open the Device View window where you will find an AES67 tab to
enable AES67 support.

®

and as such the

Once the AES67 drop down box has been enabled you’ll have to reboot the
Daek1616D for the change to take effect. After the reboot go back to the AES67 tab
and set the multicast prefix address to one that is suitable for your newtork.

Page 22 of 25

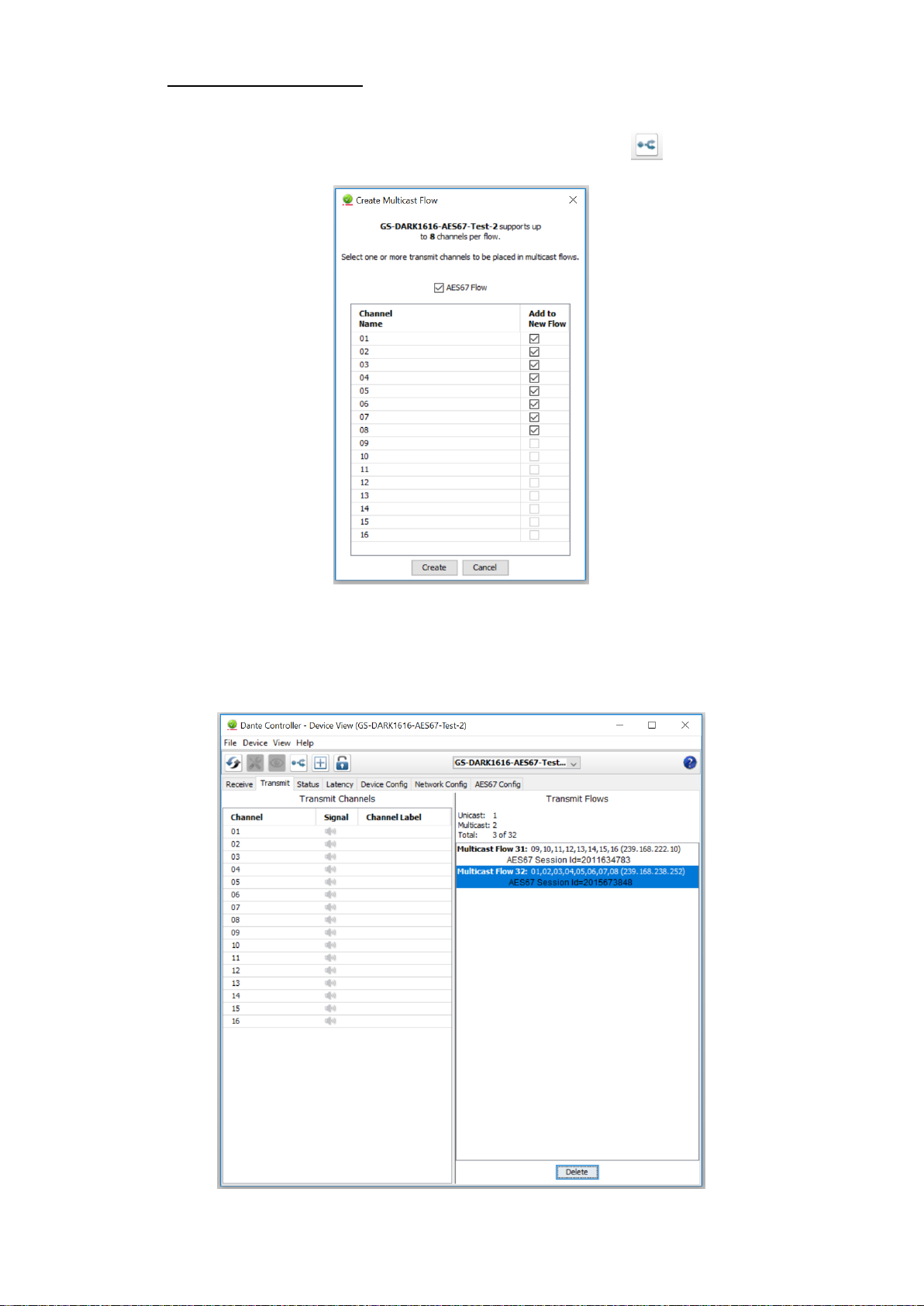

2. Sending AES67 Audio

To transmit AES67 audio to the network a multicast flow must first be setup.
This is done by selecting the ‘Create New Multicast Flow’ Icon in the Device

View.

Tick the AES67 Flow check box, then select up to 8 channels to be included in the
flow then click ‘Create’

Once set the flows can be seen in the transmit tab of the device view.

Page 23 of 25

3. Receiving AES67 Audio

Once a compatible AES67 stream is detected on the network by Dante Controller the
AES67 flows will appear in the Dante Transmitters section in the Routing tab.

4. AES67 Restrictions

AES67 flows can only be generated with the following constraints:

 Multicast Only
 Non-redundant
 Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16),

port 5004

 48kHz sampling rate
 24 bit linear (L24) encoding
 1 msec packet time
 Up to 8 channels per stream

Received AES67 flows have the following constraints:

 Multicast Only
 Non-redundant
 Destination address in range 239.nnn.0.0 to 239.nnn.255.255 (239.nnn/16),

port 5004. Must match destinatio address range.

 48kHz sampling rate
 L16 or L24 encoding
 125usec, 250usec, 333usec, 1 msec packet time
 Up to 8 channels per stream

Page 24 of 25

WIRING INFORMATION

AES3 AUDIO INPUTS/ OUTPUTS 1 - 4

Input 1/2

Pins 24, 12, 25

In Phase, Mate, Ground

Input 3/4

Pins 10, 23, 11

In Phase, Mate, Ground

Input 5/6

Pins 21, 9, 22

In Phase, Mate, Ground

Input 7/8

Pins 7, 20, 8

In Phase, Mate, Ground

Output 1/2

Pins 18, 6, 19

In Phase, Mate, Ground

Output 3/4

Pins 4, 17, 5

In Phase, Mate, Ground

Output 5/6

Pins 15, 3, 16

In Phase, Mate, Ground

Output 7/8

Pins 1, 14, 2

In Phase, Mate, Ground

AES3 AUDIO INPUTS/ OUTPUTS 5 – 8

Input 9/10

Pins 24, 12, 25

In Phase, Mate, Ground

Input 11/12

Pins 10, 23, 11

In Phase, Mate, Ground

Input 13/14

Pins 21, 9, 22

In Phase, Mate, Ground

Input 15/16

Pins 7, 20, 8

In Phase, Mate, Ground

Output 9/10

Pins 18, 6, 19

In Phase, Mate, Ground

Output 11/12

Pins 4, 17, 5

In Phase, Mate, Ground

Output 13/14

Pins 15, 3, 16

In Phase, Mate, Ground

Output 15/16

Pins 1, 14, 2

In Phase, Mate, Ground

ALARMS

PSU1 Failure NC

Pin 1

Closed Contact when PSU1 fails

PSU1 Failure NO

Pin 6

Open Contact when PSU1 fails

PSU2 Failure NC

Pin 2

Closed Contact when PSU2 fails

PSU2 Failure NO

Pin 7

Open Contact when PSU2 fails

LINK Primary Failure NC

Pin 3

Closed Contact when Primary link fails

LINK Primary Failure NO

Pin 8

Open Contact when Primary link fails

LINK Secondary Failure NC

Pin 4

Closed Contact when Secondary link fails

LINK Secondary Failure NO

Pin 9

Open Contact when Secondary link fails

COMMON

Pin 5

Common for above (Internally linked to Ground)

AUDIO I/O D25 SOCKET PIN OUT

The wiring used for the DARK1616 conforms to AES59 (Also known as the Tascam
standard). Pre-made break out cables are available from a number of suppliers.

ALARMS D9 SOCKET PIN OUT

Page 25 of 25
