Our Warranty
Should you need it . . . .
Inside the paperwork which has come with this appliance,
there is a leaflet and card explaining the terms of our
extended warranty and guarantee.
In order to apply for our five year guarantee, simply fill in
the details on the card and post it off, this will register your
appliance.
Should you wish to take out extended warranty, please fill
in the details on the leaflet and post this off to:
Glen Dimplex Australia,
Unit 2, 205 Abbotts Road
Dandenong South
Victoria 3175
Australia
If your appliance is covered by the warranty and guarantee,
you will not be billed for work undertaken should your
appliance be faulty, terms and conditions do apply, so
please read through the literature carefully.
Please ensure that you have available your appliances
model number and serial number, there is a space at the
back of this book for recording that information.
Contents
User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before using your cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About your cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cooker safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the programmer/clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Hob - Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your gas hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using your griddle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your Ovens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your Multifunction oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using you fan oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Oven and grill functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using your grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using your multifunction oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fanned oven guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cooking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Roasting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Baking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Defrosting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Your Slow Cook Oven - Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your slow cook oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Keeping food warm/how to use your slow cook oven . . . . . . . . . . . . . . . . . . . . . . . 22-23
Cleaning Your Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning your hob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning your ovens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
Before you call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing light bulbs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Requirements and Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Gas Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fitting accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-34
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-44
Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
!!
1
!!
!!
!!
Before Using Your Cooker
Before using this appliance please make sure that
!
you have removed all packaging and wrapping.
Some of the furniture inside this
appliance may have additional wrapping.
It is also advised that you turn the ovens and/or
i
grill on for a short while, this will burn off any
residues left from manufacturing. There may be a
smell which accompanies this process - but this is
nothing to worry about and is harmless.
We also recommend that you wash the oven
i
shelves, the baking tray, the grill pan, and the grill
pan trivet before their first use in hot soapy water,
this will remove the protective oil coating.
Although every care has been taken to ensure this
!
appliance has no burrs, or sharp edges, we
recommend that you wear protective gloves when
installing and moving this appliance.
This will prevent any injury.
This appliance is for
!
use in a domestic
kitchen only, it is not
designed, or intended,
for commercial use.
Our policy is one of constant development and
i
improvement. Strict accuracy of illustrations and
specifications cannot be guaranteed. Modification
to design and material may be necessary
subsequent to publication.
Please bear in mind that not all the sections inside
i
this handbook are relevant to your appliance, but
you should read carefully the sections which are
relevant before installation and use. This will save
you time.
Always use a registered installer for this appliance.
!
Environmental protection:
Stoves by Eurolec are committed to protecting the
environment.
All packaging with this appliance is recyclable and
environmentally friendly.
Please recycle whenever possible - contact your
local authority for your nearest recycling centre.
About Your Cooker
The illustrations below show the different
cavity and hob layouts available within
dual fuel ranges.
A
= Programmable oven
(see timer section)
2
Medium
burner
Small
burner
Small
burner
Medium
burner
Wok
burner
Medium
burner
Large
burner
Multifunction
oven & grill
Storage
drawer
Fascia
panel
A
Fanned
oven
Slow cook
oven
3
!!
Hob & Cooker Safety

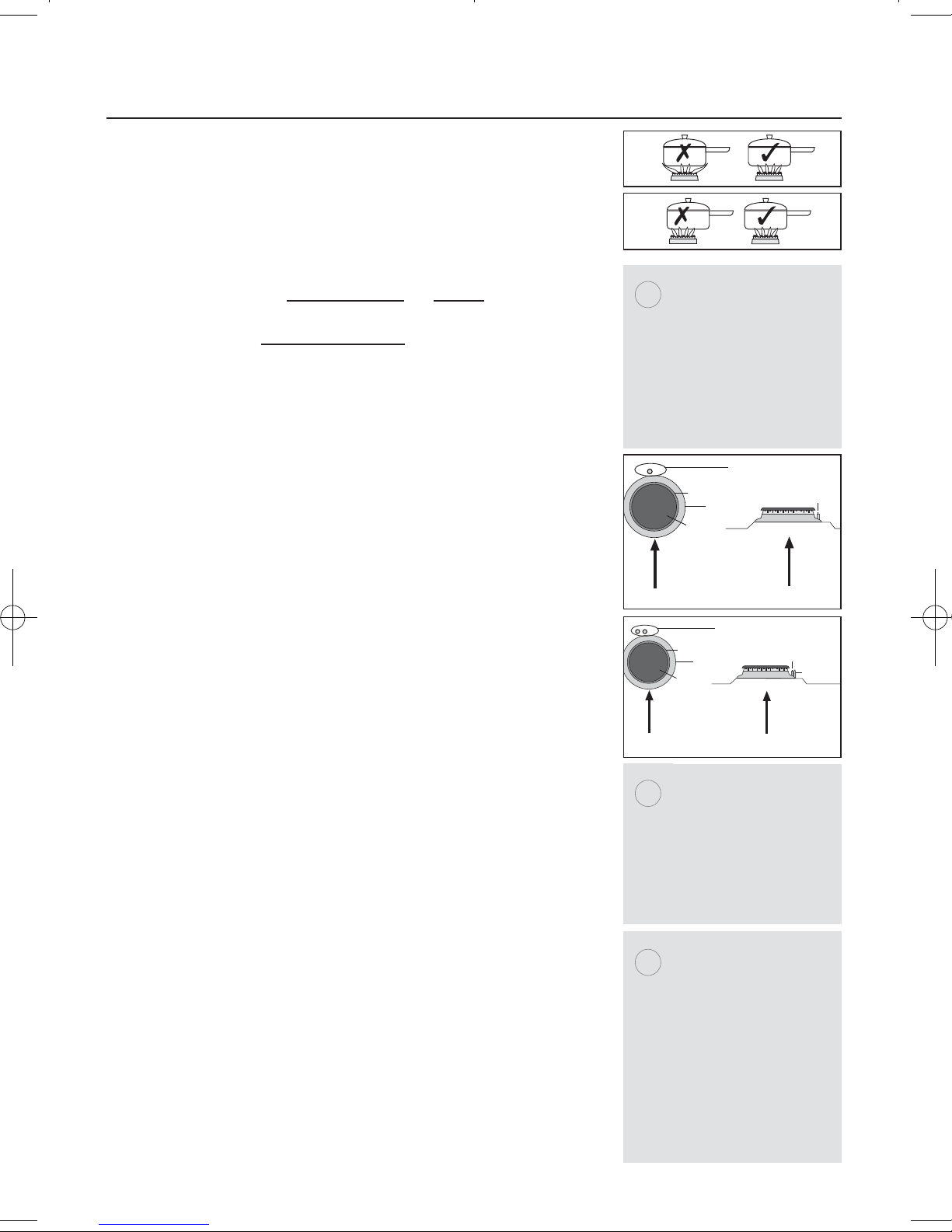

Always ensure that pan bases are dry, and flat before
using them on the hob.
Always position pans over the centre of the burner, and
turn the handles to a safe position so they cannot be
knocked or grabbed.
Always use pans which are no smaller than 100mm
(4”), or larger than 250mm (10”).
Always take care when removing food from the oven
as the area around the cavity may be hot.
Always use oven gloves when handling any utensils
which have been in the oven as they will be hot.
Always make sure that the oven shelves are resting in
the correct position in between two runners. Do not
place the oven shelves on top of the highest runner,
this will lead to spillage and injury if the baking tray, or
dish falls.
Never use double pans, rimbased pans, old or
misshapen pans, or any pan which is not stable on a
flat surface.
Never leave cooking fat, or oil, unattended.
Never use commercial simmering aids, or heat
diffusers, as they create excessive heat and can
damage the surface of the hob.
Never use the hob for any other purpose than cooking
food.
Plastic cooking utensils can melt if they come into
contact with a warm hob. Never leave them close to,
or on top of, the hob.
Never leave the burner alight without a pan covering it.
This causes a fire hazard.
Do not place items of the door while it is open.
WARNING: Parts of
!
the appliance may
become hot while in
use, always make sure
that children are
supervised when they
are near to the
appliance.
Always make sure that the
burner caps, rings and
pansupports are correctly
placed. This will prevent pans
becoming unstable while in
use, and ensure an
uninterrupted gas flow.
Call for a service
i
engineers visit if:
You find over a period of
time that the gas oven
becomes hotter at a
particular temperature - the
thermostat may need
replacing.
The cooling fan fails to work.
Do not wrap foil around the oven shelves, or allow it to
block the flue.
Do not drape tea towels near the oven while it is on,
this will cause a fire hazard.
Do not pull heavy items, such as turkeys, or large
joints of meat, out from the oven on the shelf, as they
may overbalance and fall.
Do not spray aerosol in the vicinity of this appliance
while it is in operation
Do not use this appliance to heat anything other than
food items, and do not use it for heating the room.
Chip Pan Fires
What causes a chip pan fire?
Chip pan fires start when oil of fat overheats and catches fire,
or when oil or fat spills on to the cooker because the pan has
been filled too high.
They can also start when wet chips are put into hot oil,
making it bubble up and over flow.
Preventing a chip pan fire
Never fill the pan more than a third full with oil of fat.
Never leave the pan alone with the heat on - even for a few
seconds.
Dry chips before putting them in the pan.
Never put chips in the pan if the oil has started smoking.
Turn off the heat and leave the oil to cool down, or else it
could catch fire.
In the event of a chip pan fire
If your chip pan does catch fire - don’t panic, and don’t move
the pan. Serious burns are often caused by picking up the
pan and running outside with it.
If it is safe to do so, and you don’t have to reach across the
pan, turn off the heat.
Never throw water, or use a fire extinguisher.
If you can, drape a damp cloth or towel over the pan to
smother the flames.
Leave the pan to cool down for at least half an hour.
If you can’t control the fire yourself, close the door, get out
and tell everybody else to get out.
Call the fire brigade. Don’t go back inside whatever the
reason.
4
Using The Programmer/Clock5
Through your programmer you will be able to set the time
of day, set the minute minder, and use the semi and fully
automatic cooking functions. The programmer is vital to
the working of your appliance, and reading this section will
make sure that you get the most out of your ovens.
The programmer buttons
There are three buttons on this type of timer. The table
below shows you what their symbols look like, depending on
the model type, and what they do.
Symbol Symbol What is it?
Down / Minus
Used to decrease cook / end time, remove
minutes from the minute minder and adjust
-
+
the time of day.
Also for listening to and setting the alarm
tone.
Up / Plus
Used to increase cook / end time, add minutes
to the minute minder and adjust the time of
day.
What your timer symbols
mean.
Automatic
symbol
Cook Pot
A
Minute Minder
symbol
Function button
Used to select the functions available on this
timer.
Press once for: Minute Minder.
Press twice for: Cook time
Press three times for: End time.
How to use these functions is explained later
on in this section.
Setting the time of day
Press the Plus and Minus buttons together for a few
seconds and release.
Set the time of day using the Plus and Minus buttons.
Press once for single digit increase, press and hold for
rapid increase..
Once the time of day has been set wait approx 10
seconds until the ‘’ stops flashing.
Use the appliance as normal.
Setting an alarm tone
There are three tones to choose from.
Press and release the minus button.
Once the minus button is released, the tone is selected.
This is a 24 hour clock.
i
Before you do anything
with your appliance you must set the correct
time of day.
A
Using The Programmer/Clock 6

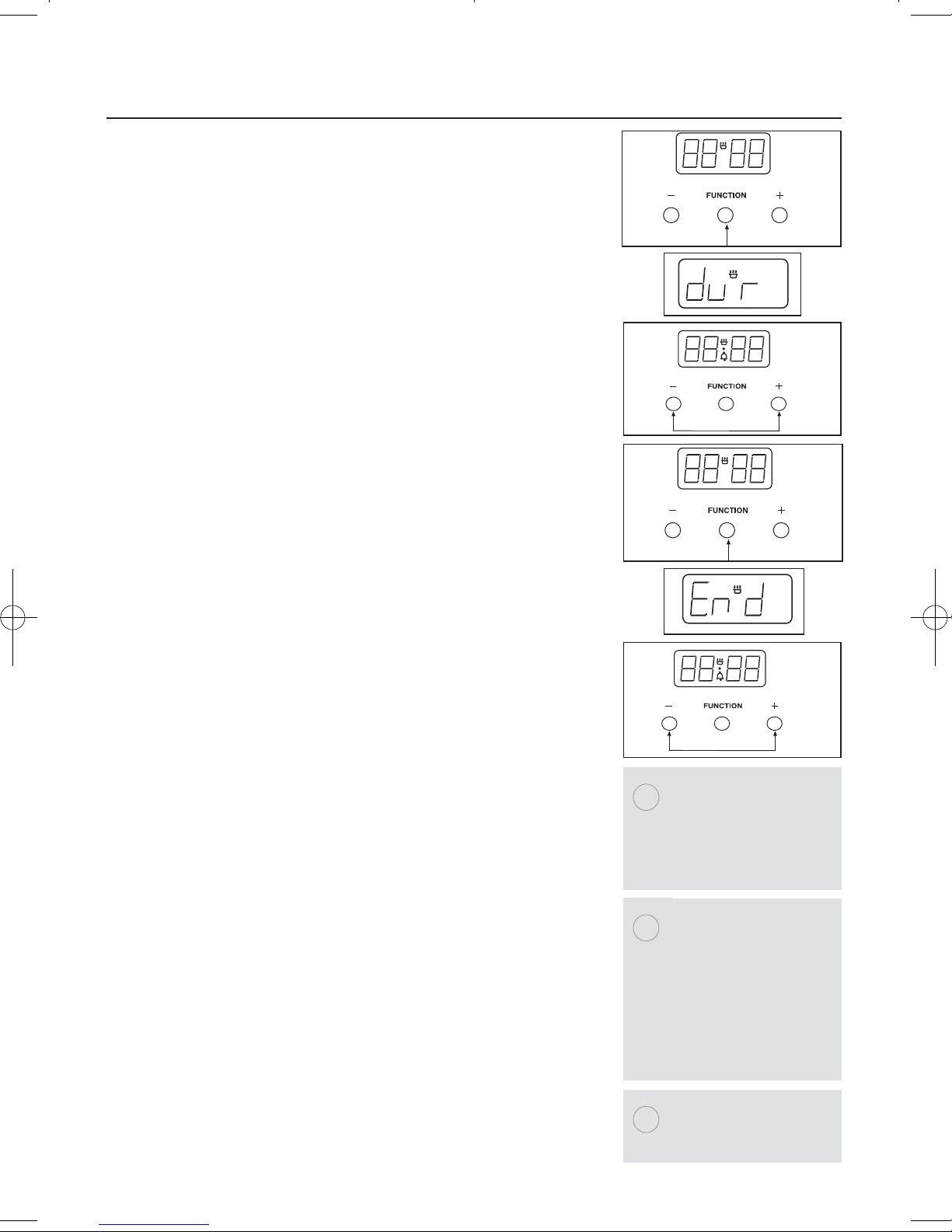

Setting the minute minder
To set the Minute Minder, press the Function button
once. The bell symbol will appear and start flashing.
The flashing only lasts for 5 seconds so the time must be
set within this time frame.
Use the Plus and Minus button to set the length of time
required. Once this has been done, the Minute Minder
is set.
When the desired length of time has counted down the
alarm will sound. To cancel the tone, press any of the
buttons.
To cancel the Minute Minder at any time, press the Plus
and Minus buttons together.
Semi - Automatic Cooking
The Duration method
Switch off after a set time period
Press the Function button twice, which will skip past the
Minute Minder.
The display will flash the word ‘dur’, and the ‘A’ will flash
on the left hand side of the display.
Use the Plus and Minus buttons to set the length of time
you want to cook for. This must be done within 5
seconds or the time of day will show again.
Once this is done the oven will automatically switch off
once the time has elapsed, and the alarm will sound. To
switch off the alarm, press any button.
To view any remaining time press the function button
twice.
The End Time method
Switch off at a set end time
Press the Function button three times, which will skip
past the Minute Minder and the Duration programmer.
The display will flash the word ‘End’ and the ‘A’ will flash
on the left hand side of the display.
Use the Plus and Minus buttons to select the time the
oven is required to turn off.
Once this is done the oven will turn itself off at the time
you have selected. To switch off the alarm, press any
button.
A
A
A
A
A
A
7
Setting the Programmer
Fully Automatic Cooking
Switch on and off automatically
This requires both the duration and the end time to be
entered. The timer will work out the start time and begin
cooking.
Press the Function button twice, which will skip past the
Minute Minder.
The display will flash the word ‘dur’, and the ‘A’ will flash
on the left hand side of the display.
Use the Plus and Minus buttons to set the length of time
you want to cook for. This must be done within 5 seconds or the time of day will show again.
Press the Function button three times, which will skip
past the Minute Minder and the Duration programmer.
The display will flash the word ‘End’ and the ‘A’ will flash
on the left hand side of the display.
Use the Plus and Minus buttons to select the time the
oven is required to turn off.
Once this is done the oven will turn itself off at the time
you have selected. To switch off the alarm, press any
button.
Set the temperature of the oven and place the
food inside.
The timer will calculate the appropriate start time.
A
A
A
A
A
A
When using the Programmer:
Do:
Familiarise yourself with the use of the programmer.
Select foods which are as fresh and as cold as possible
preferably straight from the refrigerator.
Choose foods which are suitable for cooking from a cold
start, as some dishes will be affected by being left
uncooked, at room temperature.
Make sure that meat, poultry and uncooked food are
thoroughly thawed before placing them in the oven.
Cover dishes with lids or foil.
Try to keep the end time as close to your return as
possible.
Do not:
Place warm food in the oven for delayed cooking foods
must be thoroughly cooled before placing in the oven,
the oven must also be cool before you start.
Cook dishes containing left over cooked meat or poultry,
or pastry dishes with wet fillings, they are not suitable!
Over-fill dishes containing liquids.
The automatic cooking
i
symbol will appear to
show that the oven is
no longer in manual
mode but in automatic
mode.
Important: Once the
i
oven has switched itself
off please make sure
you turn to oven controls to the ‘off’ position
and set the oven to
manual by pressing the
Cook Time and Ready
Time buttons together.
Important: Remove
i
food as soon as it is
cooked.
Using Your Gas Hob
Hob Ignition
Models without thermocouples:
To turn on
the burner you wish to use.
Push in and turn the selected control knob
anticlockwise, to the full on symbol.
If your hob has an ignition button or switch on the
fascia, press it in until your burner lights.
If your hob has automatic ignition it will spark next to
the burner when you push in the control knob.
To simmer
symbol. This will ensure that the flame is just large
enough to gently heat the contents of the pan.
To turn off
position.
Always make sure that your pans are place correctly on
the burners as shown, and do not allow the flame to
extend over the base of the pan.
, place your pan onto the pansupports above
, turn the control knob to the small flame
, turn the control knob clockwise to the ‘off’
How can I tell if my hob
i
has thermocouples?
Picture A below:
shows a burner without
thermocouples.
Picture B below:
shows a burner with
thermocouples.
Electrode
Burner ring
Burner skirt
Burner cap
8
A
Electrode
Models with thermocouples:
Ignition as above, but:
Hold the control knob in for 15 seconds. Do not hold
the control knob in for any longer than 15 seconds. If
the burner fails to light within this time, release the
control knob and wait one minute before attempting to
re-ignite.
Energy Saving
Position pans centrally over the elements.
Only heat the amount of liquid you need.
Once liquids have been brought to the boil, reduce the
heat setting to a simmer.
Consider using a pressure cooker if possible.
Vegetables in small pieces will cook quicker.
Use a pan which is a close match to your element size.
Smaller elements are ideal for simmering and stewing
in smaller pans, while the larger elements are ideal for
frying and boiling
Front
of the appliance.
Thermocouple and electrode
Burner ring
Burner skirt
Burner cap
Front
of the appliance.
In the event of a power
i
failure, or the ignition
not working:
Push in and turn the
control knob to start the
gas, then hold a lighted
match or taper to the
burner until it lights.
Use flat based pans
i
which are the correct
size for your burners
and suitable for your
hob type.
We recommend the
following sizes:
100mm or 4” min.
250mm or 10” max.
Smaller or larger pan
sizes may lead to slower
cooking times.
Viewed from the side
of the burner
Viewed from the side
of the burner
B
Electrode
Thermocouple
9
!!
!!
Using Your Griddle
Only use the griddle which has been approved for use on
this appliance. Do not
use any other griddle, as this may
be hazardous.
Please read these instructions thoroughly
before using the
griddle for the first time.
Before using the griddle for the first time
Wash the griddle thoroughly in hot soapy water. (see
“Cleaning” section).
Season sparingly with a minimum amount of cooking oil.
Heat the griddle on full rate for 3 minutes. The griddle
plate is now ready for use.
Using the griddle
The griddle should only be positioned front-to-back
over the burners indicated by the griddle symbol on the
fascia panel.
Do not
Place the griddle carefully on the pan support over the
use the griddle over the large burners.
burners, using the locating feet on the underside of the
griddle. Take care to avoid damage to the surface of the
pan supports.
Before cooking, preheat the griddle for 3 minutes on full
rate, which is indicated on the control knobs by a large
flame symbol.
After preheating, turn the control knobs to the small
flame symbol.
The griddle is now ready for cooking.
Do not use metal implements, as they may damage the
non-stick surface.
Always make sure that
!
children are supervised when they are
near to the appliance
when it is in use.
Always allow the griddle
!
to cool completely before
moving or cleaning.
About your griddle:
i
The griddle is made of
quality cast iron, and
has a non-stick cooking
surface.
Regular seasoning will
prolong the life of the
griddle and prevent
rusting. If the griddle
shows signs of rust,
wash and re-season.
Seasoning the
i
griddle: see the
‘Cleaning’ section of this
handbook.
Using Your Multifunction Oven
10
The multifunction oven may be controlled by the programmer (see The Programmer/Clock for details).
The programmer, if fitted must be set to manual before it
can be used, or programmed.
Switching on the multifunction oven
Use the function control knob to select the function you
wish to use - see the functions table for details.
NNoottee::
You can change function during cooking if you
wish, as long as the oven is in manual mode.
Turn the temperature control knob to the temperature
you wish to use.
The thermostat indicator will come on to show that the
oven is heating, and once the temperature is achieved,
it will go out.
To switch off the oven, simply turn the control knob
back to the ‘ ‘ position.
The cooling fan may come on during use, and may con-
tinue to run for some time afterwards.
Important: Never
i
place food, or dishes on
the base of the main
oven, the element is
here and it will cause
over heating.
11
Using Your Fanned Oven (if fitted)
Switching on the fanned oven
Use the fanned oven control to turn your oven on, and
select your temperature.
The thermostat indicator will come on to show that the
oven is heating, and once the temperature is achieved,
it will go out.
To switch off the oven, simply turn the control knob
back to the ‘ ‘ position.
The cooling fan may come on during use, and may
continue to run for some time afterwards.
Important: Never
i
place food, or dishes on
the base of the main
oven, the element is
here and it will cause
over heating.
Oven & Grill Functions
The chart below details all of the functions which are available. Your oven may
not have all of the functions shown here.
Main Oven Function Recommended Uses
12
Base Heat Only Used to finish off the bases of food following cooking using the conventional
Top Heat Only The heat is ideal from browning off the tops of food as it is not as fierce as
Conventional Oven This function is ideal for traditional roasting. The meat is placed in the
Intensive Bake Suitable for food with a high moisture content, such as quiche, bread and
Fanned Grill The fan allows the heat to circulate around the food. Ideal for thinner foods
Fanned Oven The even temperature in the oven makes this function suitable for batch
or fanned modes. The base heat can be used to provide additional
browning for pizzas, pies and quiche. Use this function towards the end of
cooking.
the grill following conventional or fanned cooking. Provides additional
browning for dishes like Lasagna or Cauliflower cheese. Use this function
towards the end of
cooking.
middle of the oven, roast potatoes towards the top.
cheesecake. It also eliminates the need for baking pastry blind.
such as bacon, fish and gammon steaks. Foods do not require turning. Use
with the oven door closed.
baking, or batch cooking foods.
Defrost To defrost foods, such as cream cakes/gateaux, use with the oven door
Dual Grill This function cooks food from the top and is ideal for a range of food from
Single Grill For smaller quantities of food, but is still ideal for
Base Heat with Fan Used to cook open pies (such as mince pies) the base element ensures that
Lights only Use when the oven is switched off and cold to aid cleaning the oven cavity.
closed. For cooling dishes prior to refrigeration, leave the door open.
toast to steaks. As the whole grill is working, you can cook larger quantities
of food.
anything from toast to steaks.
the base is cooked while the fan allows the air to circulate around the filling
- without being too intensive.
13
Using the Grill
Detachable grill pan handle
grid
grill pan
handle
handle position
indicators
Place the handle over the edge of the grill pan, at the narrow side edges. Slide the
handle to the centre, and locate between the handle position.
The handle should be removed from the pan during grilling, to prevent
overheating.The handle is designed for removing / inserting the grill pan under the
grill when grilling.
If cleaning the grill pan when it is hot, use oven gloves to move it. Do not
handle to pour hot fats from the grill pan.
Food for grilling should be positioned centrally on the trivet.
use the
Using Your Multifunction Oven Grill
14
Before you start grilling. . . .
Before you use the grill, make sure you have placed the
grill shelf in the position you need as once the grill is on
you may injure yourself if you try to move the shelf.
This grill function can be used with the door open, or
closed.
Turn the selector control knob to the grill setting.
Turn the grill control knob to either the dual or single
grill setting. Then select the heat setting.
To switch off, return the control knobs to the ‘off’
position.
The cooling fan will come on during use, and may
continue to run for some time afterwards.
To adjust your results, you can turn the grid over, or
remove it altogether.
If your grill is a dual grill:
The
dual grill
uses all of the top element and is ideal for
grilling large quantities of food.
The
single grill
uses part of the element only, and is
better suited to grill smaller amounts of food.
The grill neon
When grilling with the door closed, the neon will cycle on
and off as the temperature is maintained inside the cavity.
If the door is open, it will not cycle on and off.
Warning: Accessible
i
parts may become hot
when the grill is in use.
Children should be kept
away.
Types of grill
i
ed rate grill: has a
Fix
full ‘on’ setting and ‘off’.
ariable rate grill: has
V
adjustable heat settings
1 (low) to 8 (high) or 5
(high) - depending on
the model.
Single gri
element.
Dual gri
elements which can be
used together, or as a
single grill.
For best results:
i
Pre-heat the grill for
about 3 minutes.
ll: has one grill
ll: has two grill
Fanned Oven Guide15
Some adjustment will have to be made to conventional
cooking temperatures.
The table below shows conventional cooking
temperatures, fanned temperatures and gas marks.
For optimum results using the fanned oven setting,
conventional temperatures need to be converted to the
fanned oven temperatures.
For example and item which would cook at 180˚C will
now cook at the fanned oven temperature of 160˚C.
This is a high efficiency oven, you may notice an
emission of steam when the door is opened.
When cooking chilled or frozen foods, use the
recommended cooking times and temperature on the
packaging. Always make sure the food is piping hot
throughout before serving.
There are no zones of heat, and no flavour transfer when
using a fanned oven - allowing you to cook a greater
variety of foods together.
If you are cooking on more than one shelf, you may need
to slightly increase the cooking time.
Always make sure that there is enough space between
dishes, to allow food to rise, and to air to circulate.
Conventional
temp (˚C)
100
110
130
140
150
160
180 - 190
200
220
230
250
‘A’ Efficiency oven
(˚C)
100
110
120
130
140
150
160
170
180
190
200
Gas mark
1/4
1/4
1/2
1
2
3
4 - 5
6
7
8
9
Cooking Guide
Pre-heating
To get the best results from your oven, we recommend
pre-heating for around 5 to 15 minutes before placing
your dishes in. This is especially important for items
which are chilled, frozen, batter based, yeast based or
whisked sponges.
If you are using a fanned function, you should still preheat but for a shorter time.
The items in the cooking guide below are based on a
pre-heated oven, but can be adjusted to take into account
personal taste.
Oven and bakeware
Always use high quality trays and tins for cooking. Poor
quality tins and trays can warp in the oven producing
uneven results.
Never use dishes which are cracked, damaged or not oven
proof as heating may lead to shattering inside the oven.
16
Food Type Temp.
Setting ˙C
Cakes
Small cakes
Victoria sandwich
Semi rich fruit cake
Christmas cake
Puddings
Bread & butter
pudding
Fruit crumble
Miscellaneous
Yorkshire pudding:
large
small
Shortcrust pastry
Conv
190
180
150
150
170
200
220
220
200
Fanned
160
160
125
125
150
175
200
200
180
Intensive
-
-
-
-
-
-
200
200
180
Time
Approx.
15 - 25
20 - 30
1/2
2
- 3hrs
1/2
2
- 3hrs
45 - 1hr
40 - 1hr
40 - 45
15 - 20
depends on
filling
Shelf
Position
7 & 13
7
5
3
9
9
11
12
top - middle
17
Roasting times depend on the weight, shape and texture
Roasting Guide
of the meat and personal preference. In order to
calculate the roasting time, weigh the meat or poultry,
including the stuffing, and follow the times given
below.
Meat joints (including chicken) should be roasted at
180 - 200˚C Con
ventional/ 160 - 180˚C Fanned for
20 - 30 mins per 450g/1lb, plus 20 minutes on shelf
position 2.
Frozen meat must be thoroughly thawed before
cooking. For large joints, it is advisable to thaw
overnight.
Frozen poultry must be thoroughly thawed before
cooking. The time required depends on the size of the
bird - eg: a large turkey may take up to 48 hours to
thaw.
When cooking stuffed meat or poultry, calculate the
cooking time from the total weight of the meat plus the
stuffing.
Cooking joints in foil, covered roasters, lidded
casseroles, or roasting bags will help to reduce meat
shrinkage, give a more moist result and may reduce fat
splashing. However, a slightly longer cooking times will be
required, add 5 - 10 minutes per 450g (1lb) to the
calculated cooking time. When using roasting bags do
not exceed the temperatures recommended by the
manufacturer, and do not allow the roasting bag to touch
the sides or top of the oven.
Use of a trivet with the roasting tin will reduce fat
splashing during open roasting, and will help to keep the
oven interior clean.
The use of a roasting tin larger then that supplied is not
advised, as this may impair performance and lead to
extended cooking times.
Roasting Guide 18
Roast turkey
Roasting turkey perfectly involves cooking two different
types of meat - the delicate light breast meat, which
must not be allowed to dry out, and the darker leg meat,
which takes longer to cook.
The turkey must be roasted long enough for the legs to
cook, so frequent basting is necessary. The breast meat
can be covered once browned.
Turkey should be roasted at 180 - 190˚C Conventional/
160˚C Fanned for 20 mins per 1lb, plus 20 minutes.
The turkey can be open roasted, breast side down, for
half of the cook time, and then turned over for the
remainder of the cooking time.
If the turkey is stuffed, add 5 minutes per 1lb to the
cooking time.
If roasting turkey covered with foil, add 5 minutes per
1lb to the cooking time.
To test if the turkey is cooked, push a fine skewer into
the thickest part of the thigh. If the juices run clear, the
turkey is cooked. If the juices are still pink, the turkey
will need longer cooking. Always make sure that the
turkey is cooked properly before serving.
TTuurrkkeeyy RRooaassttiinngg ttiimmeess.
Most Turkeys are measured by the kilogram. Timing should
be calculated in either of these ways:
40 minutes per 1kg plus 10 minutes per 1/4 kg.
or
20 minutes per 1lb, plus 20 minutes.
m
The
maaxxiimmuumm
approximately 9kgs.
Please do not attempt to roast a Turkey larger than this, as
the results cannot be guaranteed.
size Turkey for this appliance is: 20lbs
.
General Baking Guide19
Trouble-shooting - Fruit Cakes
PROBLEM POSSIBLE CAUSE
Fruit sinking to the bottom Low oven temperature which may cause the cake to
take longer to set, allowing the fruit to sink. Or, too
much liquid, or raising agent. The fruit may not have
been properly washed and dried.
Cake sinking / dipping in the centre Too much raising agent in the mixture. Too hot, or too
cool an oven. Or, not enough liquid or insufficient
creaming.
Surface cracks Too small a tin, or too much mixture in the tin. Too
much raising agent in the mix, plus not enough liquid
or insufficient creaming. The oven may be too hot.
Hard outer crust with a damp patch inside Oven too hot, therefore the cake baked too quickly.
Too much sugar, or insufficient liquid.
Burnt outside Oven temperature too high. Oven too small for the
size of cake. Insufficient protection around the tin.
Cake baked on too high a shelf.
Texture with pronounced holes. Too much raising agent. Flour unevenly mixed.
Texture too close and cake insufficiently risen. Not enough raising agent. Not enough liquid. Too cool
an oven. Insufficient creaming.
Cake crumbles when cut Not enough liquid. Baked for too long. Not enough
sugar. Too much baking agent.
Too dry Over baking. Insufficient egg or liquid. Too much rais-
ing agent.
Trouble-shooting - Sponge Cakes
Domed top Insufficient creaming of mixture. Cake baked on too
high a shelf position, or at too high a temperature.
Paper liners can cause the outer edge not to rise and
the centre to peak.
Hollowed / sunken top Too much raising agent. Oven temperature too low, or
incorrect shelf position. Cake removed from oven
before it’s cooked. Use of soft tub margarine.
Very pale, but cooked Oven temperature too low. Baked too low in the oven
Overflowing tin Tin too small for the amount of mixture
‘Cooling & Defrosting’ Function
To cool foods quickly straight after cooking, but before
refrigerating or freezing, turn the oven control to the
defrost position, and open the door.
To defrost frozen foods, turn the oven control to the
defrost position, place the food in the centre of the oven
close the door.
and
Defrosting times
Small or thin pieces of frozen fish or meat - eg; fish
fillets, prawns, and mince will take approximately 1 - 2
hours. Placing the food in a single layer will reduce the
thawing time.
A medium sized casserole or stew will take around 3 - 4
hours.
A 1
Always check foods are thoroughly defrosted before
1
⁄2kg / 3lb oven ready chicken will take around 5
hours, remove the giblets as soon as possible.
cooking.
20
Be safe
Do not defrost stuffed poultry using this method.
Do not defrost larger joints of meat and poultry over 2kg
/ 4lb using this method.
Never place uncooked food for defrosting next to cooked
food which is to be cooled, as this can lead to cross
contamination.
Defrosting meat, poultry and fish speeded up using this
method, but make sure they are completely thawed
before cooking thoroughly.
Place meat and poultry on a trivet in a meat tin, to catch
the juices from the defrosting process.
21
Using Your Slow Cook Oven (if fitted)
Introduction
One of your oven compartments is an electric oven which
provides a gentle heat suitable for slow cooking or keeping
food warm. The slow cook element is positioned in the
base of the lower compartment - always make sure that the
cooking pot is placed centrally on the base of this compartment.
Do not use the compartment to store food or canned
items.
Cooking times
The cooking time varies according to the type of food being
cooked, and experience will show how long foods should be
cooked for, according to personal taste and preference.
In general foods should be cooked for at least 5 hours, and
may be left up to 8 - 10 hours without spoiling if covered.
Foods cooked using the slow cook oven will take about
three times longer than they would in a conventional oven.
Utensils
Any oven proof utensils may be used for slow cooking provided they have a close fitted lid.
To rectify a badly fitting lid a piece of cooking foil may be
placed over the dish, under the lid.
The most useful utensils for slow cooking are the flame
proof type which can be used over direct heat and for oven
cooking, and are sufficiently attractive to use as serving
dishes.
Benefits of Slow Cooking
Slow cooking has always been the best way to prepare hot
meals with the minimum of preparation and maximum time
away from the kitchen.
The advantages of slow cooking are as follows:
Food can be left to cook unattended for several hours
and will keep hot for several hours if left covered.
Inexpensive cuts of meat become deliciously tender
when slow cooked. There is also a reduction in meat
shrinkage.
Dishes such as soups, vegetables, puddings savoury
dishes and preserves are also suitable for slow cooking.
There is no topping up of steamers, steam filled kitchens
or constant checking to do.
Using Your Slow Cook Oven (if fitted)
Keeping food warm
Turn the oven control knob to the on position, and place the
food in the oven. If food is to be kept moist then it is
important to cover the dish or plate to prevent food from
drying out. This can be done using aluminium foil if the
dish does not have a lid.
Do not use cling film to cover food.
Some foods are best left uncovered if you wish to keep
the food dry and crisp.
Do not add gravy to plated meals until serving.
Carved meat should be placed on one plate and covered,
adding just one tablespoon of gravy to keep it moist.
When keeping plated meals warm it is recommended
that the food is placed on hot rather than cold plates.
Slow Cooking
Turn on the slow cook oven and place the prepared
cooking pot centrally on the base of the oven. Follow the
guide lines for the best results.
The maximum capacity of ovenproof dishes should be no
more than 2.5 litres (4.5 pints). Please note: The more
you fill the dish/pot the longer it will take to cook.
All meat and poultry recipes need a minimum of 5 hours
to cook.
Make sure all frozen ingredients are well thawed out.
Cut root vegetables into smaller pieces as they take
longer than meat to cook. If possible they should be
sauteed for 2 - 3 minutes before slow cooking.
Ensure that root vegetables are always at the bottom of
the pan immersed in the cooking liquid.
A meat thermometer should be used when cooking pork
joints and poultry. The internal temperature of the food
should reach 88˙C,
Stuffed meat or stuffed poultry should not be slow
cooked. Cook any stuffing separately.
Cover casseroles with a lid, or foil to prevent loss of
moisture.
Adjust seasoning and thickening at the end of cooking
time.
Opening the door during cooking, leads to heat loss, and
will lead to increased cooking times.
22
Plate Rack (if fitted)23
To fit the plate rack:
Pull the shelf out of the cavity.
Tilt the plate warmer towards you and make sure that it
hooks underneath the shelf bars at the front.
Drop the plate warmer carefully into position.
The plate warmer is now secure and you can place your
plates into it.
Always make sure that you use oven gloves if you are
putting the plate warmer into a hot, or recently used oven
to prevent burns.
Always make sure that your plates are suitable for
warming - some plates may shatter or crack when exposed
to heat.
We recommend that you heat the oven to 70˚C, or below,
if you are warming plates.
Cleaning your Gas Hob
!!
24
Sometimes when a hob is not working well, it is because
it needs cleaning.
Enamel parts
Use a mild cream cleaner for example ‘Cif’. Stubborn
marks can be removed with a soap filled pad.
Stainless steel surfaces
Only use a clean cloth wrung out with warm, soapy
water and dried off with a soft cloth. For stubborn
marks use a specialist stainless steel cleaner.
Do not use steam cleaners.
Sharp implements and objects can mark the surface of
stainless steel, however they do become less noticeable
in time.
Cast iron parts
Ensure the parts have fully cooled and scrape off any
stubborn marks, and bits of food with a plastic, or
wooden cooking implement. Rinse in warm soapy
water and dry with a tea towel.
Do not clean in a dishwasher.
If you notice any rusting on your griddle, or
pansupports, simply clean in warm soapy water, then
re-season.
Burner caps and heads
The slots in the burner head where the flames burn
should be cleared of deposits.
Clean with a nylon brush, rinse and then dry
thoroughly. There may be brownish coloured markings
Always allow your
!
appliance to cool
down, and switch off
the electricity before
you clean any part of
it.
Baby oil can be used to
i
restore stainless steel
finishes - but only use a
few drops. Don’t use
cooking oils as they can
contain salts which will
damage the metal.
Don’t use:
i
undiluted bleaches,
products containing
chlorides, wire wool or
abrasive cleaners on
aluminium, stainless
steel, or plastic/painted
parts they can damage
the appliance. Nylon
pads can also be
unsuitable
Seasoning the
i
griddle:
Pour a drop of unsalted
cooking oil onto the
cooking side of the
griddle, use kitchen roll
to cover the griddle
evenly. Ol
suitable for seasoning.
Regular seasoning
prevents rust.
ive oil is not
on your burners, these are carbon deposits or fat stains
and can be removed using a soap filled pad.
Do not put burners in the dishwasher or soak them.
Using dishwasher powders, washing up liquids and
burner cap
correct
parallel
caustic pastes can damage the burners.
Burner caps and heads must be repositioned correctly
so that they sit squarely on to the hob as shown on the
the left.
This is particularly important with stainless steel models
burner head
incorrect
angled
as failure to reposition the caps correctly may result in
discolouration of the stainless steel around the burners.
burner cap not central
Painted & Plastic parts
Only use a clean cloth wrung out in hot soapy water.
incorrect
25
!!
Cleaning your Cavities
Cleaning the oven cavities
Some foods can cause fat to spit, especially if you have
open roasted, this leaves the inside of the cavity
greasy.
It is important to clean the oven cavity as a build up of
fat can damage the appliance and may invalidate your
guarantee.
Chrome plated parts.
Use a moist soap filled pad, or place in a dishwasher.
Shelf runners can be removed to enable you to clean
then thoroughly. Make sure they are cool to touch and
then grasp the runners and slide out of their hanging
holes.
Pristine enamel surfaces
The enamel can be cleaned by wiping the surfaces
with a clean cloth which has been wrung out in hot,
soapy water.
If larger splashes of fat do not readily disappear, you
can use a mild cream cleaner to remove them. More
stubborn marks can be removed using a soap filled
pad.
Rinse well, and allow to dry before use.
Vitreous enamel surfaces
The enamel can be cleaned by wiping the surfaces
with a clean cloth which has been wrung out in hot,
soapy water.
Stubborn marks can be cleaned using a moistened
soap filled pad, or a mild cream cleaner.
Rinse well, and allow to dry before use.
Always allow your
!
appliance to cool
down, and switch off
the electricity before
you clean any part of
it.
Pull out to clean
Don’t use:
i
Caustic or abrasive
cleaners, bleaches,
coarse wire wool or
hard implements,
these will damage
your appliance.
Using a trivet while
i
roasting meat may help
to reduce fat splashes.
Cleaning your Appliance
!!
26
Painted & Plastic parts
Only use a clean cloth wrung out in hot soapy water.
Do not use abrasive cleaners, such as “Cif”, wire or nylon
cleaning pads on these parts.
Stainless steel & Aluminium surfaces
Only use a clean cloth wrung out in hot soapy water, and
dry with a soft cloth.
Stubborn marks can be removed using a stainless steel
cleaner. Supplies can be purchased from the Customer
Care Centre.
Sharp objects can mark the surface of stainless steel, but
will become less noticeable with time.
Wipe any spillage immediately, taking care to avoid burn-
ing your hands.
Some foods are corrosive eg; vinegar, fruit juices and
especially sal
t - they can mark or damage the metal if
they are left on the surface.
Enamel surfaces & parts
Clean with warm, soapy water and a clean cloth.
Dry with a soft clean towel or cloth.
Do not use steam cleaners.
Glass parts
Only use a clean cloth wrung out in hot soapy water, or
a specialist glass cleaner.
Rinse away any excess cleaner and dry with a soft cloth.
Do not use abrasives or polishes as they will scratch and
damage the glass.
The inner door glass panel can be removed for cleaning
but it must be replaced the right way up. If there is any
writing on the glass, you must be able to read it clearly
when the cavity doors are open.
Always make sure that the glass is pushed fully into the
Stop position.
To remove the glass panel, open the door wide, hold the
top and bottom edges and slide out.
WWaarrnniinng
g
:
Do not
operate the appliance without the glass
panel correctly fitted.
Always allow your
!
appliance to cool
down, and switch off
the electricity before
you clean any part of
it.
Take extra care when
i
cleaning over symbols
on fascia panels,
excessive cleaning can
lead to the symbols
fading.
Baby oil can be used to
i
restore stainless steel
finishes - but only use a
few drops. Don’t use
cooking oils as they can
contain salts which will
damage the metal.
Don’t use:
i
undiluted bleaches,
products containing
chlorides or abrasive
cleaners on aluminium
or stainless steel, they
can damage the
appliance.
Glass door panels
For your safety, glass door
panels are made of toughened
glass. This ensures that, in
the unlikely event that a panel
breaks, it does so into small
fragments to minimise the risk
of injury.
Please take care when
handling, using or cleaning all
glass panels, as any damage
to the surfaces or edges may
result in the glass breaking
without warning or apparent
cause at a later date.
Should any glass panel be
damaged, we strongly
recommend that it is replaced
immediately
.
27
Before you call. .
Problem? Advice
The ignition won’t work.
(Gas and dual fuel models)
There’s condensation on the
doors.
Check there is a spark when the
ignition button is depressed. If
there is no spark, check the
electricity supply is switched on at
the socket.
Check that the gas supply is
switched on.
Try another appliance in the
socket, if that works replace the 3
amp fuse in the cooker plug.
Condensation is caused by hot,
moist air meeting a cooler surface
(i.e. the oven door). You cannot
always prevent it, but you can
minimise it when it happens by
doing the following:
Pre-heat the oven at a high
temperature before putting food in
the oven, and cover the food you
are cooking wherever possible.
Whenever you can, cook wet
foods at higher temperatures.
There’s been a power failure
and the oven won’t work.
(models with clocks and
automatic programmers)
Don’t leave food in the oven to
cool down.
Automatic cooking will normally
produce condensation when the
oven is cooling down with food
inside.
Switch off the electricity supply.
When the power returns - re-set
the programmer/Clock to the
correct time of day.
This will allow you to use your
appliance.
Changing Light Bulbs
Warning: There is a risk of electric shock, so always
make sure you have turned off and unplugged your
appliance.
Not all appliances have the same number and type of
bulbs. Before replacing your bulb, open the top/main
oven door and see which type you have. Then use the
table to help you change your bulb correctly.
Please remember that bulbs are not covered by
your warranty.
Bulbs can be purchased from hardware stores (always
take the old bulb with you).
28
No. of
lamps
2
(@25W)
1
(@25W)
Bulb
Location
side All Wait until the oven is cool,
rear Fanned /
Oven
type
Multifunction
Instruction for
changing the bulb
then remove the oven
shelves.
Grasp the lens cover on the
light fitting and pull it away
from the side of the oven.
Unscrew the bulb.
Wait until the oven is cool,
then remove the shelves.
The oven light is at the rear
of the oven cavity.
Remove the loose oven back
- unscrew the 4 securing
screws (one at each corner).
Unscrew the lens cover (turn
anticlockwise). Unscrew the
bulb and replace. Replace
lens cover and replace oven
back.
1
(@25W)
rear Conventional Wait until the oven is cool,
then remove the oven
shelves.
The oven light is at the rear
of the oven cavity.
Unscrew the lens cover (turn
anticlockwise). Unscrew the
bulb and replace. Replace
lens cover.
29
Always make sure that your appliance is fitted correctly,
by a competent installer. This is a Class 1 appliance
regarding installation requirements.
Always make sure that you have carefully read through
the installation pages of this book - careful planning at the
beginning will ensure a quick and easy installation.
Take care when moving this appliance, it may be
heavier than it looks! If you need to lift the appliance,
make sure you use an appropriate lifting method.
Soft, or uneven flooring may be damaged unless the
appliance is moved with care.
Do not attempt to move the cooker by pulling on the
handles or doors, we recommend that you open the
door and grasp the frame of the cooker. Please wear
protective gloves for this, and make sure the door
cannot trap your fingers.
Installing Your Cooker
Before you start
Please make sure that you have enough space for your
appliance. Clearances and more installation details are
given on the following page.
Installing Your Cooker 30
Clearances
This cooker may be fitted flush to the base units of your
kitchen.
No shelf, overhang, cupboard, or cooker hood should
be less than 650mm above the hob top, but please
check this with the hood manufacturers instructions.
If your appliance has a side opening door, we
recommend a side clearance of 60mm to allow the
oven door to fully open.
The cooker must have a side clearance above hob level
of 90mm up to a height of 400mm.
The important dimensions are those around the
appliance.
Flush fit to
base units
90
mm
For all appliance sizes:
700mm
800mm
900mm
1000mm
1100mm
1200mm
650mm
minimum
90
mm
400mm
clearance
Flush fit to
base units
31
The information below is crucial to installing this appliance
correctly and safely.
Gas Safety (Installation & Use) Regulations
This appliance must by an authorised person in accordance with the manufacturers installation instructions,
local gas fitting regulations, the AGA Gas Installation, the
Australian Gas Installation Code AG601 / AS5601 and any
other relevant statutory regulations.
Particular attention should be given to relevant requirements regarding ventilation.
Failure to install appliances correctly is dangerous
and could lead to prosecution.
Installing Your Cooker
Installing Your Cooker 32
Fitting the plinth (if applicable)
Make sure the appliance is raised to a height of 915mm
or above before beginning.
915mm - you can only fit the plinth cover labelled
You can adjust the height using the feet (1) of the
appliance.
If your appliance has a storage drawer at the bottom,
you access the required holes through the base of the
drawer after lifting the mat.
Open the appliance doors, and loosen screw A located
on bracket (2). Do not remove this screw entirely.
Insert screw B, through slot (3) and screw into the small
hole at the bottom of bracket (2).
Make sure that the plinth cover is flush to the appliance,
but not over tightened.
If the appliance is below
Y
Y
.
Door
Y
Oven cavity
(1)
X
B
Plinth cover
A
(2)
(3)
Fitting the splashback (if applicable)
Loosely fit screw A and nut B into hole 1 at both ends of
the rear surface of the appliance.
Locate fitted screw A through the slots in both of the
metal splashback plates.
Tighten screw A and nut B.
Now locate and tighten screw C and nut D through hole
(2) at both ends of the rear surface of the appliance.
Make sure that the splashback is securely attached, but
avoid over tightening.
Fitting the towel rail (if applicable)
On the towel rail there are two hole, top (A) and bottom
(B), these holes have corresponding holes on the fascia
at each end.
The screw for the top hole (A), must be screwed into
the supplied adaptor, whereas the remaining screw just
goes through the bottom hole (B). Both screws are M6
screws. Using the allen key provided, tighten the screws
making sure that the towel rail is flush to the fascia,
but not over tightened.
A
(1)
B
C
A
B
(2)
D
Installing Your Cooker33
ll
Stabilising and Securing
Your cooker comes with a stability chain and stability
bracket, this will keep the cooker from moving and will
prevent damage to the flexible hosing at the back of the
cooker. Your cooker must be secured to a wall or a solid
partition behind the cooker.
Your stability bracket
The stability bracket can fitted as follows:
Place the cooker in position and draw a pencil line level
with the front edge.
Remove the cooker and mark off 450mm from the
pencil line to locate the front edge of the lower
bracket.
Fix the bracket to the floor. Measure from floor level to
engagement edge in the back of the cooker and add
3mm.
Assemble the underside of the top part of the bracket
to this height.
See the drawings for the location of the bracket and
the recommended positioning.
Stability Hook
(not supplied)
Stability chain to
be as short as
possible
Cooker stability chain not designed
with bracket engagement slot
Rear of cooker
Firmly fix chain
to cooker rear
Levelling
Once your cooker is secure:
Place a spirit level onto a baking tray, on an oven shelf.
These cookers are fitted with adjustable feet which will
allow you to adjust the height of the appliance until it is
level. The adjustable feet are at the rear of the cooker.
Front edge for
lower bracket
X
Locate stability bracket here
Model viewed from rear
Rear
plinths
3
450
mm
Rear wa
Stability bracket
1 Pencil line
2 Centre
of range
4
on floor
5 Underside of top bracket
slots into engagement
edge in back of cooker.
Installing Your Cooker 34
Stabilising and Securing
After installation check for soundness,
The burner pressure is tested at the pressure regulator or
rear middle hob burner.
With reference to the users instructions:
Check that the hotplate burners ignite correctly and burn
with a steady flame.
Check for a steady flame at the lowest setting (small
flame setting)
Finally instruct the user on the operation of the cooker
and give them this book for reference.
35
Installing Your Cooker
Connecting the electricity supply
Warning: This appliance must be earthed!
For your own safety we recommend that your cooker be
installed by a competent person. The cooker should be
installed in accordance with AS/NZS 3000:2000
This appliance must be fitted using a double pole unit
of 30 ampere minimum capacity with 3mm minimum
contact at all poles.
Access to the mains terminal is gained by opening the
terminal block cover at the rear of the appliance - use
a flat bladed screw driver for this.
Connection should be made with a 6.0mm
2
twin and
earth cable.
First strip the wires. then push the cable through the
cable clamping the terminal block cover.
Connect the cable to the terminal block and tighten the
cable clamp screw - see diagram.
Close the terminal box, ensuring that the cover is
engaged on the locking tabs.
Sufficient cable should be used to allow the cooker to
be pulled out, but must hang clear of the floor so it
does not become twisted or trapped when the cooker
is pushed back.
Please ensure that the user has this copy of the
handbook, and the appliance is in place. Thank you.
(Red or Brown)
(Black or Blue)
(Green / Yellow
Live
Neutral
Earth
or sleeving)
Cable
clamp
1
2
3
4
5
Installing Your Cooker 36
Connecting to the gas supply
Means of isolation shall be provided at the shut off point by
either an approved quick connect device or a Type 1 manual shut off valve. The outlet of the quick connect device
shall be at, or below, the horizontal position.
Connection to the gas supply should be made using the
Aquaknect AS/NZS 1869 class B hose assembly with an
internal diameter of not less than 10mm (supplied with the
appliance) and regulator (regulator for use with natural
gas)
NOTE: Maximum length of hose 900mm.
The temperature rise of the areas at the rear of the cooker
that are likely to come into contact with the flexible hose do
not exceed 70˙C.
Ventilation requirements
Ventilation must be as specified by AS5601 Installation code.
The room containing the appliance should have an air supply.
An appliance should be installed in a location for complete
combustion of gas, proper flueing and to maintain ambient
temperature of the immediate surrounding at safe limits,
under normal conditions.
LP Gas only - Do not install this appliance in a room below
ground level. This does not preclude installation into rooms
which are basements with respect to one side of the building, but open to ground level on the opposite side.
Failure to install appliances correctly
lead to prosecution.
After installation make sure all connections are gas
sound.
Commissioning
Pressure settings:
Natural Gas - 1.0 kPa
Butane - 2.75 kPa
Propane - 2.75 kPa
is
dangerous and could
Turn on gas supply and check for soundness at the hotplate injector. Light two burners and check that the pressure is correct.
Hob
Technical Data - Notes37
Type of gas:
Please see data badge your for specified gas
* Can be converted from Natural gas to LP Gas
type.
Never attempt to convert an appliance unless the data badge states that you can.
Burner Aeration:
Fixed
Pressure setting:
Natural Gas - 1.0 kPa
Butane - 2.75 kPa
Propane - 2.75 kPa
Electrical supply:
220 - 240V ~ 50Hz
Injectors used (hotplate)
Size Natural
Gas
Small
Medium
Large
Wok
82 50
118 70
142 87
138 & 72 87 & 35
LP gas
Countries of destination:
AUS
Technical Data - Notes 38
Fuel Type Hotplate Burner /
Element
Natural Gas
LP Gas
Hob - small
Hob - medium
Hob - Large
Hob - wok
Total heat input
7 burners
Hob - small
Hob - medium
Hob - Large
Hob - wok
Total heat input
7 burners
Fuel Type Multifunction
oven
Nominal Rate
Qn
3.6MJ/h
7.2MJ/h
10.8MJ/h
12.6MJ/h
51.5MJ/h
3.8MJ/h
7.2MJ/h
10.2MJ/h
12.6MJ/h
52.0MJ/h
Conventional
top oven
Butane
g/h
-
-
-
-
-
-
-
-
-
-
Propane
g/h
-
-
-
-
-
-
-
-
-
-
Fanned oven Slow cook oven
(if fitted)
Electric
2.3kW 1.3kW 2.3kW 0.2kW (Sterling 800)
@ 230V
Fuel Type Dual Variable
grill
Electric
2.5kW - 2.6kW 25W each
@ 230V
Appliance
800 900 1000 1100
size
Maximum
load
0.16kW (all other
models)
Oven lamps
5275W (Sterling)
,
A
39
STOVES STERLING 1100DF-AU
LH SIDE MULTIFUNCTION OVEN
Page 1/2 Issue
Wiring colour code: Bk-Black, Bn-Brown, Bu-Blue, Gn-Green, Or-Orange, R-Red, W-White, Y-Yellow
332
332
530
410
537
V
531
525
R
475
Or
Bu
536
LH SIDE
COOLING
FAN
Bn
3
THERMOSTAT
Bn
Y
Bk
527
Bu
525
1
P7
7
P6
6
P5
5
P4
4
P3
3
P2
2
OVEN SWITCH
P1
1
527
LH OVEN FAN
ELEMENT
Bu
Bu
Bk
527
Bk
2
Gn
527
473
Or
Or
535
473
534
534
530
32
Bu
Bk
Bk
Gn
GRILL ELEMENT
527
Bk
OVEN NEON
463
R
453
FAN TIMER
BOARD
419
473
Or
V
527
W
Bk
410
531
527
448
Bk
Bk
R
Bk
49
Or
Bn
431
I/P 2
I/P 1
Bk
Bu
Y
448
R
W
Bk
I/P 3
Bu
8
7
6
5
4
3
2
1
511
O/P L N
537
P8
P7
Bu
P6
P5
P4
P3
P2
535
P1
SELECTOR SWITCH
R
Bu
Bn
Bk
Or
453
525
431
32
Gn
511
Bk
LH OVEN
Y
STIR
FAN
525
Bn
3
R
536
525
R
BASE
ELEMENT
527
GRILL NEON
Bk
Bk
475
4,N
Or
GRILL REG.
2,A
535
453
Bk
51
49
PILOT
P1,L
463
Or
Bk
527
Gn
MAIN (LH)
OVEN LAMP
Bk
Bu
P2,B
Bn
410
527
PROGRAMMER
LN
Bn
27
Gn
Or
Bk
Bu
W
MAIN (LH)
OVEN LAMP
Bn
REAR
THERMAL
CUTOUT
L150C
A
Gn
64
Bn
453
Gn
Gn
410
Bn
R
Bn
Bn
Or
Bu
525
TOP THERMAL
CUTOUT L100C
525
Rear
Gn
Gn
W
Bu
Bu
Bk
Bk
Bk
51
Front
(LH) 4 WAY
TERMINAL
BLOCK
506
W
Bu
410
506
Bn
Bn
Bn
L
32
Y
Bk
Gn
Gn
N
INLET TERMINAL BLOCK
LEFT HAND IGNITION SWITCHES
Bn Bn
Bn
Bn
Bn
BnBn
Bn
B
06/07/06
A
40
STOVES STERLING 1100DF-AU
RH SIDE OVEN AND SLOW COOK
Page 2/2 Issue
Wiring colour code: Bk-Black, Bn-Brown, Bu-Blue, Gn-Green, Or-Orange, R-Red, W-White, Y-Yellow
IGNITION
GENERATOR
N
L
Bk
546
Or
430
A
RIGHT HAND OVEN
NEON
RH OVEN
CONTROLS
1
THERMOSTAT
Gn
64
422
Or
4
444
3
2
Y
1
W
41
OVEN SWITCH
Bk
W
2
P4
P3
P2
P1
Bn
101
64
Gn
64
Gn
R
60
Bk
469
B
(RH) 4 WAY
W
Bu
RIGHT HAND
W
Bu
RH SIDE
COOLING
FAN
467
W
OVEN
LAMPS
TERMINAL
BLOCK
430
3 WAY TERMINAL
BLOCK
BACK
W
Bu
Bu
W
419
Bu
FRONT
RH OVEN
422
STIR
FAN
474
W
64
Gn
W
Bu
Bk
Bu
Y
Bk
Bk
Bk
Bk
546
546
Gn
546
546
416
Bk
401
Or
Bk
SLOW COOK
NEON
Bk
Gn
Bk
BACK
W
FRONT
Bk
Gn
546
Bn
Bn
Bu
RH REAR
THERMAL
469
CUTOUT
R
Bn
Bn
538
538
60
Bn
SLOW COOK
OVEN SWITCH
L150C
W
Or
444
Bn
R
474
101
Bn
L
INLET TERMINAL BLOCK
401
Bk
Gn
N
474
Bk
Or
RH OVEN FAN
ELEMENT
444
SLOW COOK
ELEMENT
463
PUSH ON
EARTH TAB
Bn
BnBn
Bn Bn
RIGHT HAND IGNITION SWITCHES
Bn
06/07/06
Notes41
Notes 42
Notes43
Service Record 44
Please record your model number and serial number in the space below.
Where are my model and serial numbers?
Freestanding HL appliances: base of storage drawer
Freestanding appliances: front frame near oven cavity
Built in oven: front frame near oven cavity
Hobs: base plate of the hob
Having these numbers to hand will help us to help you, quickly and more efficiently.
When contacting us, please use the Customer Care number on the back cover of this
handbook.
Model Number
Serial Number
Date of purchase Installer stamp / Printed name Date of installation
Place of purchase:
Date Part(s) replaced Engineers Stamp/
Printed Name
Contact Us
Calling for a service
If you should experience any problems with your cooker please contact your retailer or
place of purchase.
Important note:
Service work is to be conducted by authorised persons only. It is also adviseable that
your cooker is checked regularly and maintained in good condition. An annual maintenance is recommended.
Always check the instruction book before calling a service agent to make sure you have
not missed anything.
Glen Dimplex Australia Pty Ltd Customer Care:
Tel: 1-300-556-816
Before you contact a service agent, make sure that you have the following information to
hand:
Model Number
Serial Number
Date of Purchase
Postcode
Glen Dimplex Australia Pty Ltd, Unit 2, 205 Abbotts Road, Dandenong,
08 27319 02 © 08.2007
Dual Fuel Range - Model Names: Sterling 1100DF
South Victoria 3175, Australia
e-mail: sales@glendimplex.com.au
web: www.glendimplex.com.au
Loading...
