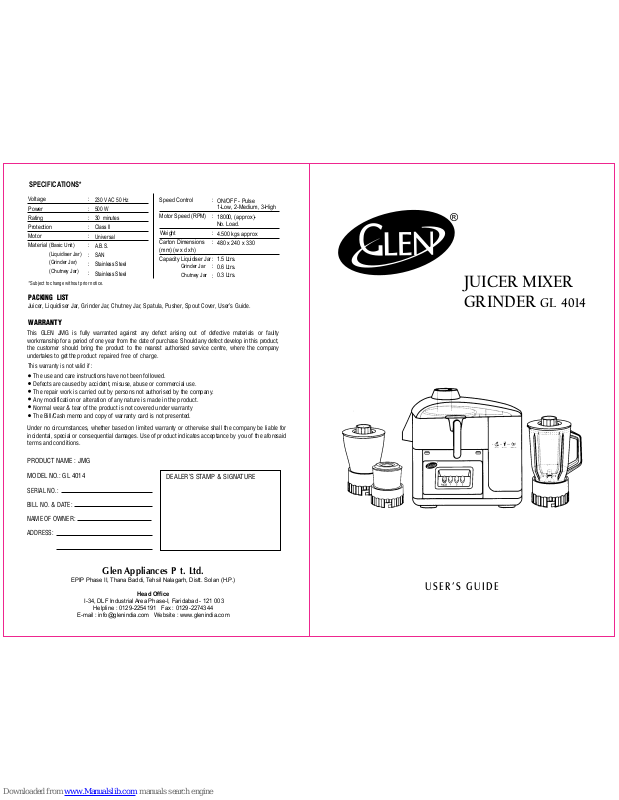

Glen GL 4014 User Manual

®

®

JUICER MIXER
GRINDER GL 4014

U S E R ’ S G U I D E

SPECIFICATIONS*

Voltage

Power

Rating

Protection

Motor

Material

Speed Control

Motor Speed (RPM)

Weight

Carton Dimensions
(mm) (w x d x h )

Capacity Liquidiser Jar

:

:

:

:

:

:

:

:

:

:

:

:

:

:
:

:

230 V AC 50 Hz

500 W

30 minutes

Class II

Universal

A.B.S.

SAN

Stainless Steel

Stainless Steel

(Basic Unit)

(Liquidiser Jar)

(Grinder Jar)

(Chutney Jar)

Grinder Jar

Chutney Jar

Under no circumstances, whether based on limited warranty or otherwise shall the company be liable for
incidental, special or consequential damages. Use of product indicates acceptance by you of the aforesaid
terms and conditions.

DEALER’S STAMP & SIGNATURE

PRODUCT NAME : JMG

MODEL NO.: GL 4014

SERIAL NO.:

BILL NO. & DATE:

NAME OF OWNER:

ADDRESS:

*Subject to change without prior notice.

Juicer, Liquidiser Jar, Grinder Jar, Chutney Jar, Spatula, Pusher, Spout Cover, User’s Guide.

This warranty is not valid if :

PACKING LIST

WARRANTY

This GLEN JMG is fully warranted against any defect arising out of defective materials or faulty
workmanship for a period of one year from the date of purchase. Should any defect develop in this product,
the customer should bring the product to the nearest authorised service centre, where the company
undertakes to get the product repaired free of charge.

The use and care instructions have not been followed.
Defects are caused by accident, misuse, abuse or commercial use.
The repair work is carried out by persons not authorised by the company.
Any modification or alteration of any nature is made in the product.
Normal wear & tear of the product is not covered under warranty
The Bill/Cash memo and copy of warranty card is not presented.

Glen Appliances Pvt. Ltd.

EPIP Phase II, Thana Baddi, Tehsil Nalagarh, Distt. Solan (H.P.)

Head Office

I-34, DLF Industrial Area Phase-I, Faridabad - 121 003

Helpline : 0129-2254191 Fax : [phone]

E-mail : [e-mail] Website : www.glenindia.com

ON/OFF - Pulse
1-Low, 2-Medium, 3-High

18000, (approx)­No. Load.

4.500 kgs approx

480 x 240 x 330

1.5 Ltrs.

0.6 Ltrs.

0.3 Ltrs.

CLEANING THE LIQUIDISER JAR

OVER LOAD PROTECTION

STEPS TO SAFETY

CLEANING THE GRINDER /
CHUTNEY JAR

froth for Lassi, Cold Coffee

use the Pulse switch)

To remove the Jar, switch
off the machine & turn the
Jar gently in anti-clockwise

direction.

After use unlock the Jar
and pour out the contents
& put it back over the
Coupler on the Basic Unit.

Fill of the Jar with warm
water, add little liquid soap.

Fix the Lid & run the
machine for about 30
seconds by pressing speed
No. 1 Switch OFF and
unplug the machine.

Pour out the soap water &

unscrew the Goblet by
rotating anti-clockwise and
wash the Jar in running tap
water. Wipe the screw area
with a wet cloth and then
with dry cloth.

Wipe clean the rubber

gasket and blade assembly
and refit the Goblet Seat
on the Liquidiser Jar.
Ensure that the rubber
gasket is put on top/

bot tom of the bla de

assembly before
tightening the Jar with
Goblet Seat.

While grinding always ensure that the blades are
covered by the substance to be ground.
Give a break of atleast one minute after continuous
Dry Grinding of 3 minutes.
Fill the blender Jar only upto ¼th of its capacity
and add required amount of water or milk so that
the blades don’t get jammed.
Fill the Jar only ¾th of its capacity to avoid spilling
of liquid, when you start the machine.
Do not allow children to handle the JMG.
Keep the machine away from direct heat and
sunlight, at a suitable height on a flat surface for
easy operation.
Do not use the JMG for ice crushing or grinding raw
Meat.
Before running the machine ensure that the mesh
assembly, jars and lids are firmly placed and
locked. Do not remove or replace jars when the
motor is on.
While operating run the machine in short cycles
of 30-90 second as per requirement, do not run
if for a long duration.
Clean the mesh with a soft nylon brush. Do not
use any metallic object or knife etc.
Wide voltage fluctuations during operation may
affect the quality of grinding, the motor may still
be sate. It is safer to use a JMG only when you get
Steadier voltage in your area.
While dry grinding the jar may get heated up due
to friction. Don’t worry it has nothing to do with
the motor.
Do not run the JMG empty.
Do not overload the machine.
In case of smoke or smell put off the machine.

After Dry grinding remove

the content and wipe the

Jar with dry cloth.

After use remove the

contents from the Chutney

Jar and wash the Jar under

running tap water & wipe

with dry cloth.

To protect the motor from burning, in
case of overload, the appliance is fitted
with an automatic overload protector
under the base of the basic unit. If the
motor stops it is an indication of excess
load. Switch off the unit, take out excess material
from the jars. Wait for 2/3 minutes and press the
overload protection plunger. Then restart the unit.

Note : Overload protection plunger is to be pressed
to restart only after 2/3 minutes.

Plunger

USING THE JUICER

USING THE LIQUIDISER / DRY
GRINDER / CHUTNEY JAR

Mount the juicer body &
pulp collector on the basic

unit.

Wash ingredients and cut
Suitably to fit fe eder
opening.

Place a glass under the
spout. Se t switch to

position “1”.

Push ingredients into the
feeder with the foo d
pusher.

Check that the blade
assembly of the Jar rotates
freely.

Place the Jar over the
Coupler on the Basic Unit.
Turn clockwise to lock.

Cover the Jar with the Lid
after p ut ti ng th e
ingredients.

Switch on the machine.
To start with, press switch
no. 1 and then for higher
Speeds move on to speed
No. 2 and 3. (for additional

Place the juicer mesh into
the juicer body. Ensure
that the mesh sits properly
an d l oc ks th e l ower
coupler of the basic unit.
If necessary push down
slightly or rotate themesh
a little. Don’t apply any
undue pressure. The mesh
is a very fine and precisely
balanced component.

Slide the juicer spout
(outlet) cover in position
and press.

Mount the juicer cover
onto the juicer body and
lock the clamps, plug the

cord in and the juicer is

ready for use. Press the

switch marked ‘pulse’ to

check if the filter mesh

ass emb ly is proper ly

seated with the lower

coupler of the basic unit.

The mesh should spin
evenly without wobbling.

Main Unit

IDENTIFY YOUR JUICER MIXER GRINDER GL 4014

Spatula Pusher

Juicer Spout Cover

Liquidiser Jar Grinder Jar Chutney Jar Juicer Mesh
