Glem GQA90SC, GQA90TB, GQA120TB, GQA85UC User Manual
OFF BOARD RANGEHOOD SOLUTIONS by GLEM
INSTALLATION AND OPERATION GUIDE
Rangehood models GQA90SC - GQA120TB - GQA90TB - GQA85UC
Quiet Air rangehoods take the noise out of the kitchen.
The fan motor and housing are located separate from the hood. If there isn’t a space available in
which to locate the fan motor (such as in an apartment) then this rangehood should be considered unsuitable for installation.
Call Glem Service on 1 300 307 917 if in doubt.
Quiet Air Rangehoods are a product of Glem Gas Australasia Pty. Ltd.
2
00
980
263 827
OFF BOARD RANGEHOOD SOLUTIONS by GLEM
76
-
5
70
500
278
900/1200
MODELS GQA90TB and GQA120TB
300
500 min
980 max
80
30
282
850

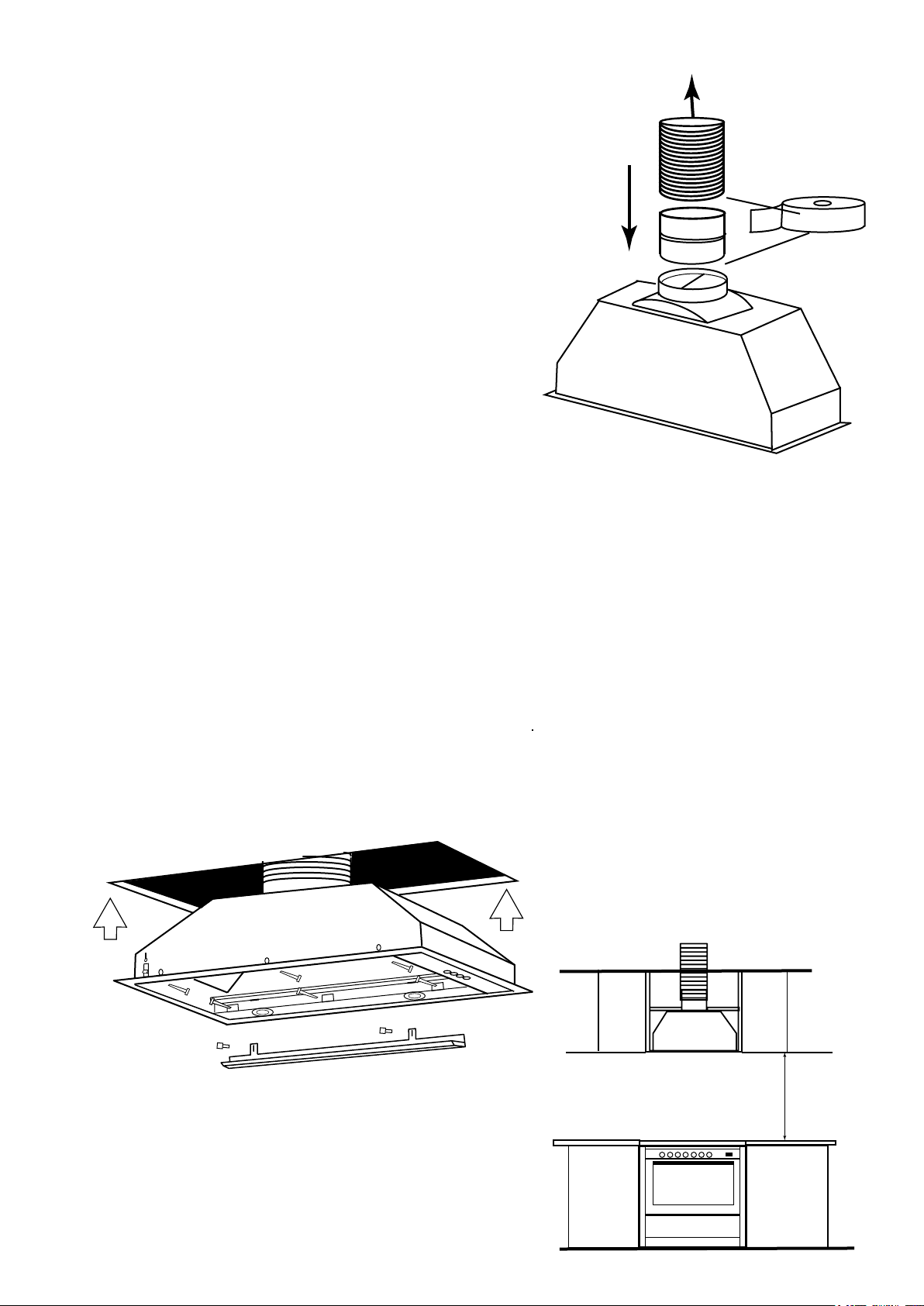

MODEL GQA85UC
276 278

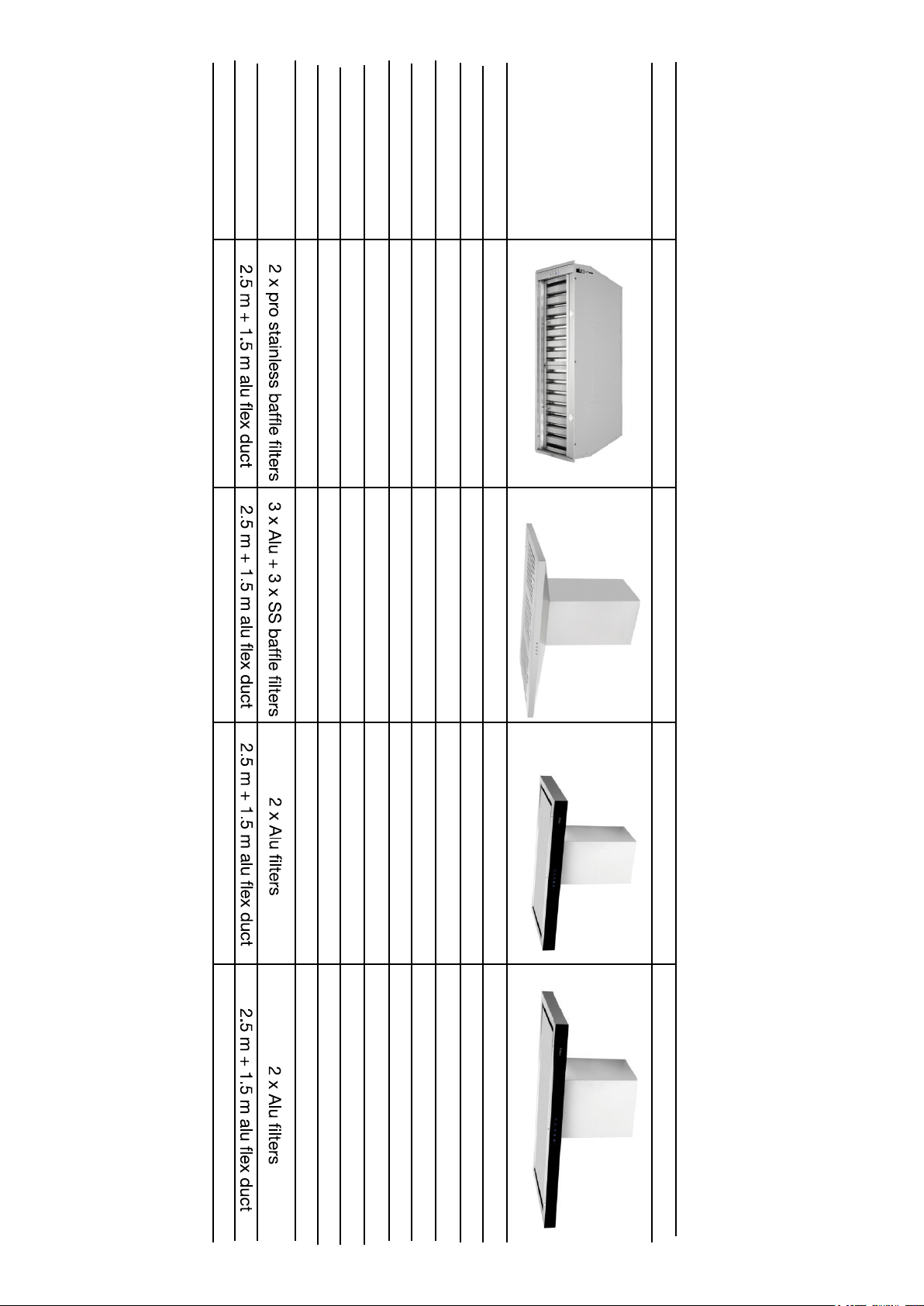

INCLUDED
FLEXIBLE DUCTING X 2
CONNECTOR SLEEVE X 3
REMOTE FAN MOTOR UNIT
500
900
MODEL GQA90SC
CHIMNEY TOP MOUNTING BRACKET (CANOPY HOODS)
INSTRUCTION BOOK
BLACK ATTACHMENT MODULE X 3
FASTENERS AND FITTINGS
MOTOR MOUNTING BRACKET X 2
FOR VERTICAL MOUNTING

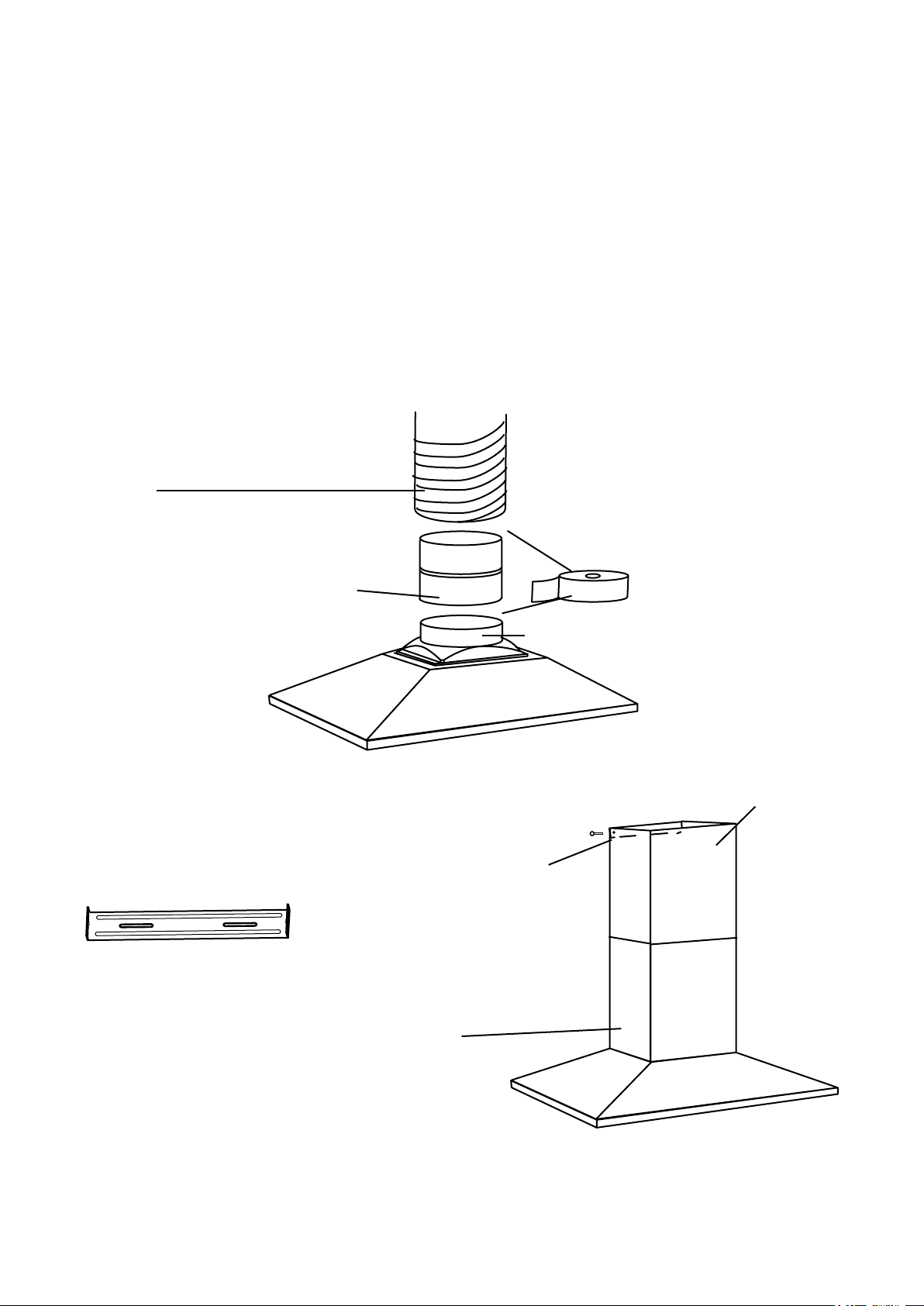

2 X CHIMNEY (FLUE) LENGTHS ON
CANOPY MODELS ONLY
3 MESH FILTERS - GQA90SC ONLY
2
OFF BOARD RANGEHOOD SOLUTIONS by GLEM
CONGRATULATIONS
Thank you for purchasing the new Quiet Air rangehood.
This manual has been written to assist you and instruct you in the operation of your new Quiet Air
rangehood. It will help you get the best performance an make full use of the rangehood’s features.
The safety precautions and warnings are listed for your safety and the safety of others when operating this rangehood.
Please keep this manual in a safe place for future reference.
This rangehood has been designed for use in a domestic cooking environment. Any other application
other than for domestic (household) use is considered inappropriate. The manufacturer accepts no
responsibility in the event of problems caused by improper use, incorrect use or faulty installation. A
signed installation certicate including the details of the qualied installer is desirable.
IMPORTANT!
This appliance is designed and intended for use in a domestic household application.
It is not suitable for any non domestic application.
IT SHOULD NOT BE USED IN A COMMERCIAL ENVIRONMENT.
The appliance guarantee will be void if the appliance is used within a
non domestic environment. This includes semi commercial, commercial
or communal applications such as clubs and schools.
MODEL NUMBER DETAILS ARE ON THE INSIDE OF THE RANGEHOOD.
Quiet Air Rangehoods have been designed and constructed to meet the following standards:
AS/NZS 60335-1 General Requirements for Domestic electrical appliances
AS/NZS 60335-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NSZ 1044 Electromagnetic Compatibility Requirements.
The rangehood is not intended for use by young children or inrmed persons unless they have been
properly trained in the use of the rangehood.
Please retain your proof of purchase to aid in any warranty enquiries.
MODEL
Date of Purchase
Retailer or supplier
Invoice number
All Quiet Air Rangehoods are covered by a full 2 year warranty. The warranty form and conditions
are detailed at the end of this manual. Proof of purchase is compulsory for any Warranty claims.
3
FIRST TIME USE
IMPORTANT !
Remove all packing material and literature from the rangehood before connecting the
electrical supply.
A protective plastic lm maybe coated on the stainless steel inside and on the outside of the
rangehood. It must be removed before use.
We suggest removing the lm prior to installing the rangehood.
IMPORTANT !
• DO NOT spray aerosols in the vicinity of your cooking area while it is in operation.
• DO NOT allow young children to use the rangehood
• DO NOT touch surfaces when they are hot
• DO keep the rangehood clean to avoid res
This appliance is not recommended for use in marine craft, caravans or mobile homes.
If the rangehood fails to operate correctly, call Glem Gas Australasia Pty Ltd on 1300 307 917
or their appointed agent for service. DO NOT ATTEMPT REPAIRS YOURSELF.
Glem Gas Australasia Pty. Ltd. does not accept any responsibility for any damage
coming from inappropriate, incorrect and irrational use. For more detailed information,
refer to the Warranty Card. Contact Glem Gas Australasia Pty. Ltd. on 1300 307 917
for all service enquiries.
DO NOT MODIFY THIS APPLIANCE
DO NOT INSTALL IF THE RANGEHOOD IS DAMAGED
NOTE:
FAN MOTOR LOCATION
Quiet Air Rangehoods achieve low noise levels due to the remote location of the main fan motor
assembly. Typically this asssembly is installed remotely inside the roof space above the rangehood. In
some cases the fan assembly can be installed in another location however the intention of the rangehood is for installation inside a ceiling cavity. If you are in doubt call Glem on 1300 307 917 or email
on info@glemgas.com.au.
The remote motor assembly is NOT weather proof in any way and is only for internal installation.
Quiet Air Rangehoods are not considered to be suitable for installation in an apartment or dwelling
that does not have sufcient space in which to locate the fan motor.

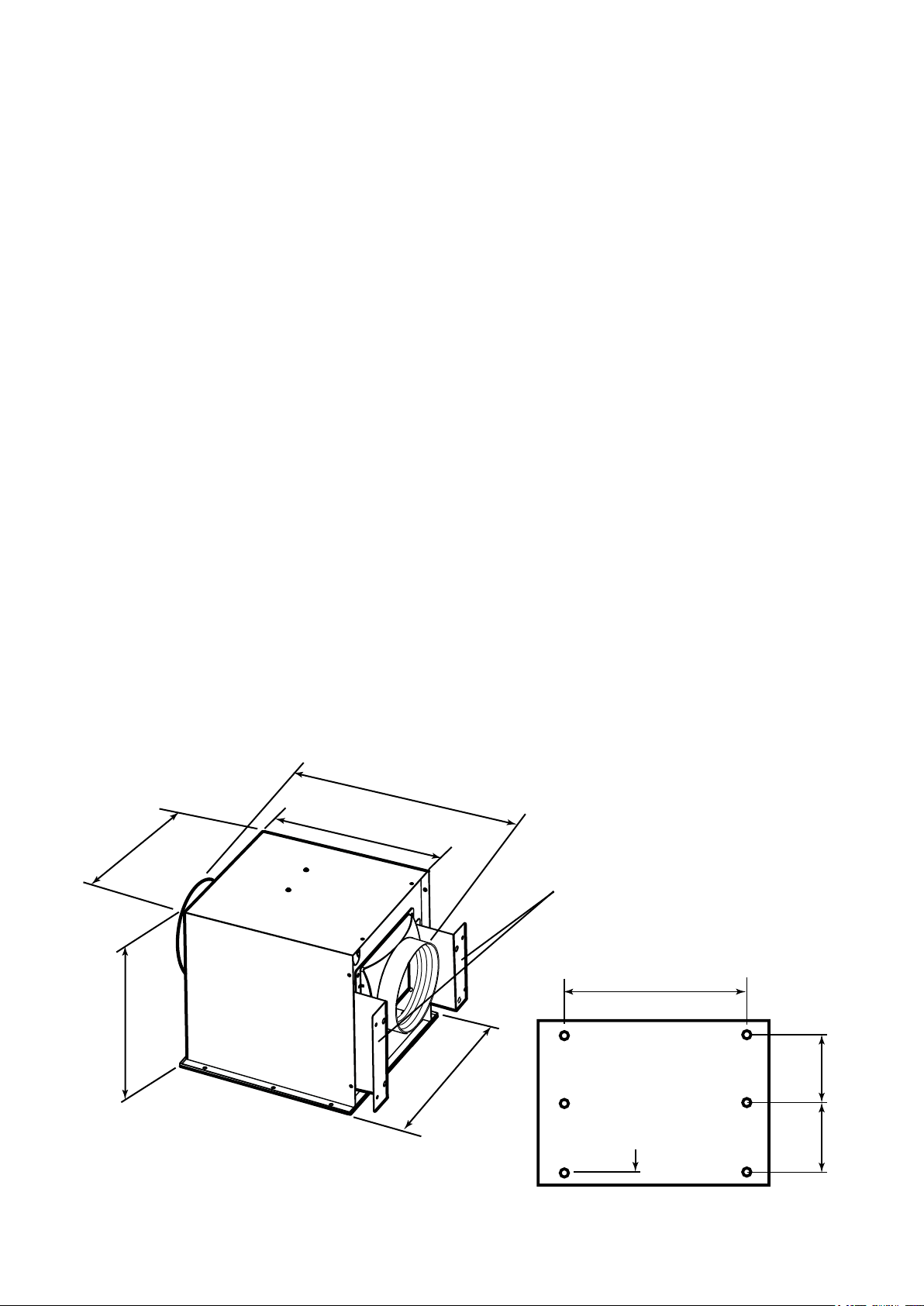

Roof Space fan motor location
414
280
322
317
313
4
SAFETY WARNINGS
Please read all points below before attempting to operate the rangehood.
1. BEFORE INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
• Only a qualied and trained service technician can undertake the work of installation and
servicing.
• The electrical technical specication is on the data plate inside the rangehood.
• Check that the main voltage corresponds to the one indicated on the rating plate xed
inside the hood. Ensure that the rangehood is correctly earthed.
• If the hood is used in conjunction with non-electrical appliances (e.g. gas burning appli
ances), a sufcient degree of ventilation must be guaranteed in the room in order to prevent
the backow of exhaust gas. The kitchen must have an opening directly with the open air in
order to guarantee the entry of clean air.
• The minimum distance is 750mm from the range hood to a gas hob, and is 650mm to an
electric hob. If the installation instructions for gas hobs specify a greater distance, this must
be taken into account.
NOTE: Two or more people are required to install or move this appliance.
Failure to do so can cause physical injuries.

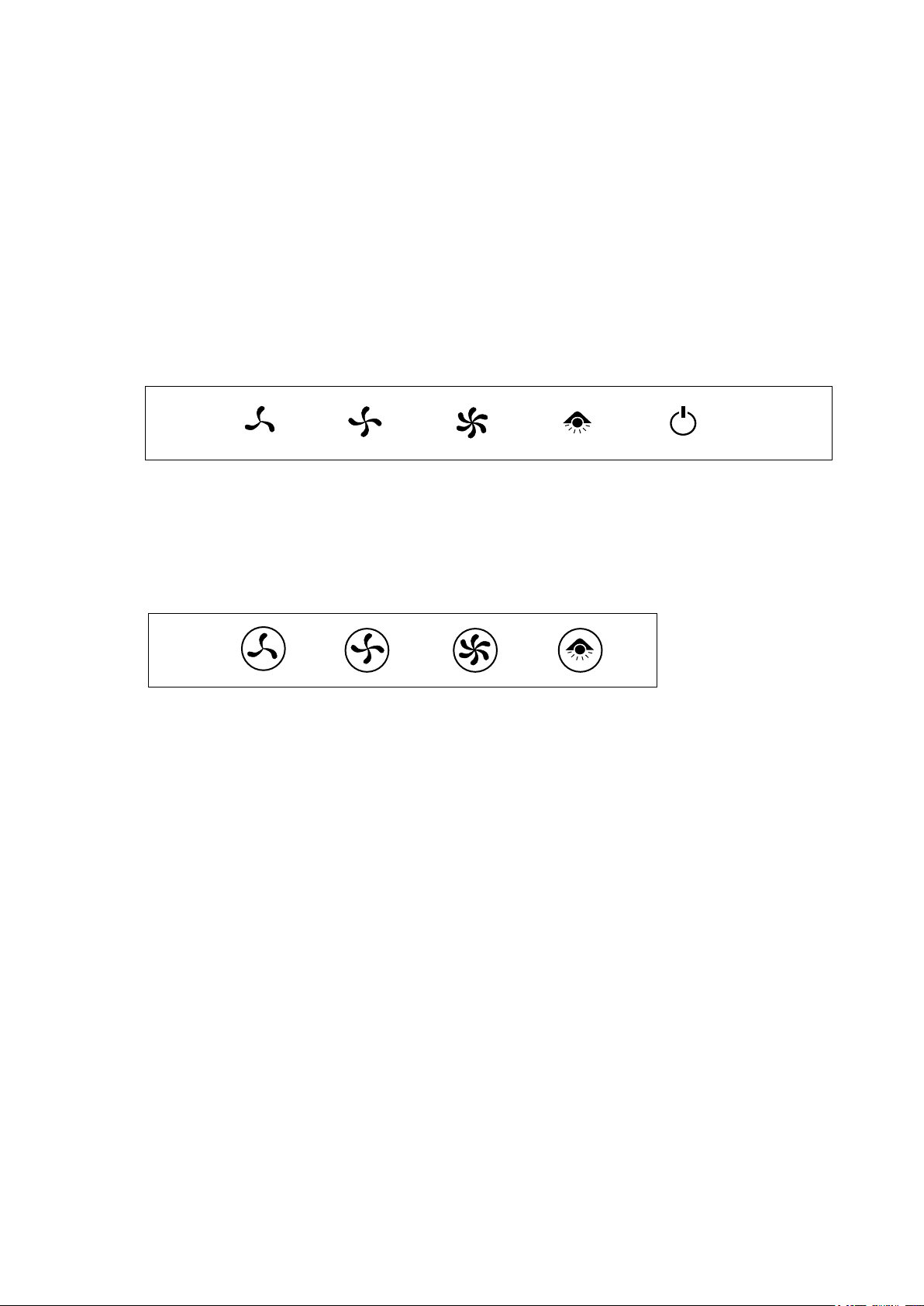

2. CORRECT USAGE
• The range hood has been designed only for domestic use to eliminate kitchen fumes.
• Never use the hood for purposes other than what it has not been designed for.
• Never leave high naked ames under the hood when it is in operation.
• Adjust the ame intensity to direct it onto the bottom of the pan only; making sure that it
does not engulf the pan sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into
ame.
• The hood should not be used by children or persons not instructed in its correct use.
• Do not ambe under the rangehood. This will damage the rangehood and may void
warranty.
• Air extraction products must be installed in accordance with local Government laws.
• Do not use the rangehood without the lters installed.
• Turn the rangehood on prior to commencement of cooking and leave it to run for
10 minutes after the cooking has nished.
• Never ignite gas burners and leave them running without a vessel.
3. MAINTENANCE
• Proper maintenance of the range hood will assure proper performance of the unit.
• Disconnect the hood from the main supply before carrying out any maintenance work.
• Clean and/or replace aluminum grease lters and activated charcoal lters after the speci
ed period of time.
• Before performing any cleaning or maintenance task disconnect the rangehood from the
mains by unplugging it.
• Clean the hood using a damp cloth and a neutral liquid detergent.
IMPORTANT: Never attempt to repair this appliance yourself. Always refer to a qualied technician.
if in doubt call Glem Gas service on 1 300 307 917
