Dear Customer,
If you follow the recommendations contained in this Instruction Manual, our
appliance will give you constant high performance and will remain efficient
for many years to come.
Product Specification & Technical Parameters
Model CK90FP
Rated Voltage 230V
Rated Power Frequency 50Hz
Light Power 2x2W
Motor Power 140W
Total Power 144W
Motor 1
Diameter of Outlet Adapter 150mm
Dimension (mm) W600/900 X D500 X H244
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
* The manufacturer will not be held liable for any damages resulting from
incorrect or improper installation.
* Please read this instruction manual before installing and using this range
hood. Please keep this instruction manual in a safe place for future
reference.
* Only a qualified and trained service technician can undertake the work of
installation and servicing.
* Check that the main voltage corresponds to the one indicated on the rating
plate fixed inside the hood.
* If the hood is used in conjunction with non-electrical appliances (e. g. gas
burning appliances), a sufficient degree of ventilation must be guaranteed in
the room in order to prevent the backflow of exhaust gas. The kitchen must
have an opening directly with the open air in order to guarantee the entry of
Page 3
clean air.
* The minimum distance is 750mm from the range hood to a gas hob, and is
650mm to an electric hob. If the installation instructions for gas hobs specify
a greater distance, this must be taken into account.
NOTICE: Two or more people are required to install or move this appliance.
Failure to do so can cause physical injuries.
USE
* The range hood has been designed only for domestic use to eliminate
kitchen fumes.
* Never use the hood for purposes other than what it has been designed for.
* Never leave high naked flames under the hood when it is in operation.
* Adjust the flame intensity to direct it onto the bottom of the pan only;
making sure that it does not engulf the pan sides.
* Deep fat fryer must be continuously monitored during use: overheated oil
can burst into flame.
* The hood should not be used by children or persons not instructed in its
correct use.
MAINTENANCE
* Proper maintenance of the range hood will assure proper performance of
the unit.
* Disconnect the hood from the main supply before carrying out any
maintenance work.
* Clean and/or replace aluminum grease filters and activated charcoal filters
after specified period of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
Page 4
WARNING!!
In certain circumstances electrical appliances may be a danger hazard.
* Do not check the status of the filters while the cooker hood is operating
* Do not touch the light bulbs after appliance use
* Do not disconnect the appliance with wet hands.
* To reduce the risk of fire or electric shock, do not use this fan with any
solid-state.
* Avoid free flame, as it would do damage to the filters from a fire hazard
* Constantly check food frying to avoid that the overheated oil may become
a fire hazard
* Disconnect the electrical plug prior to any maintenance or servicing.
* Children don’t recognize the risks of electrical appliances. Therefore use or
keep the appliance only under supervision of adults and out of the reach
from children.
* TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
b) Sufficient air is needed for proper combustion and exhausting of
gases
through the flue (chimney) of fuel burning equipment to prevent back
drafting.
c) When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
* Don’t use this product outdoors.
* This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction,
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
* There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
* There is a fire risk if cleaning is not carried out in accordance with
instructions.
Page 5
* The exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
CHARACTERISTICS

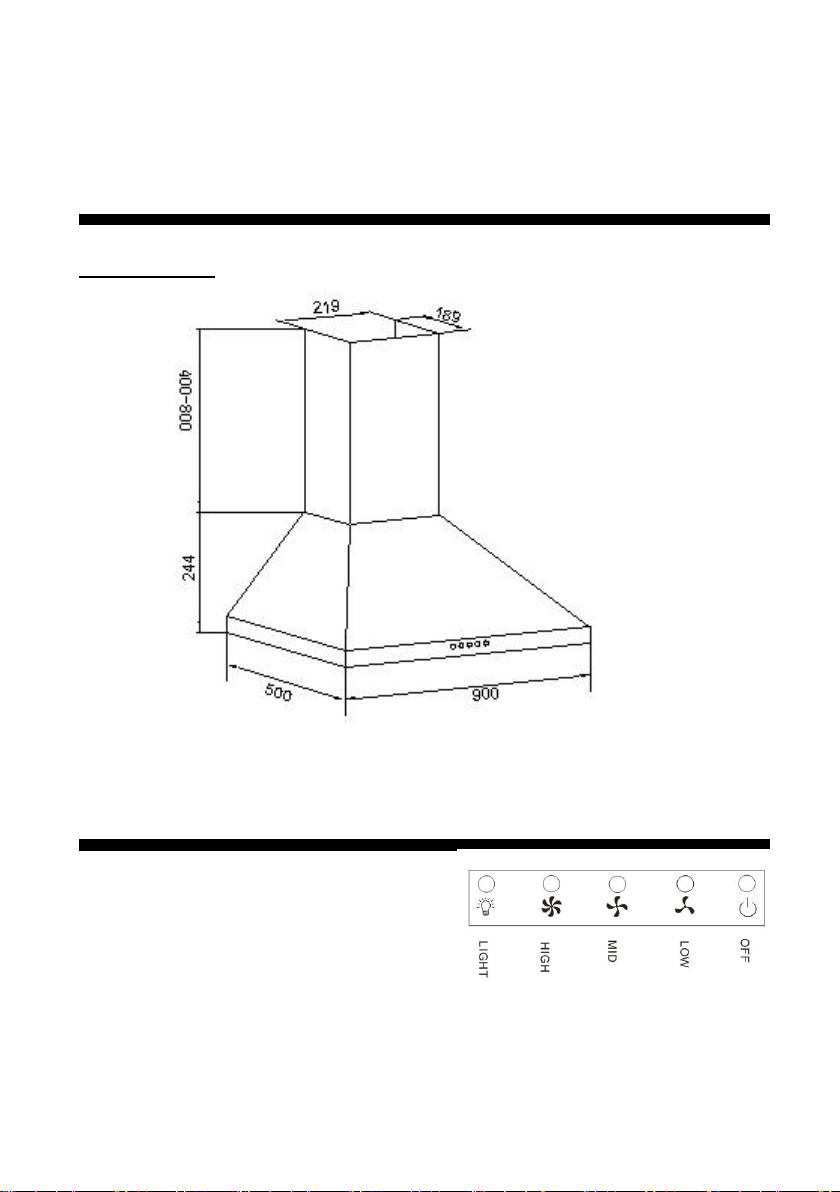

DIMENSIONS
INSTALLATION & USE
OPERATION OF CONTROLS
The hood is operated using the push
button on the front panel.
The light switch turns the lamps on and
off.
The blower switch turns the blower on to three speed settings:
0 - OFF
1 - LOW SPEED
2 - MEDIUM SPEED
Page 6
3 - HIGH SPEED
Grease Filters
The grease filters should be cleaned frequently. Use a warm detergent
solution. Grease filters are washable.
See “INSTALL FILTERS” section for removal and installation instructions.
Non-Ducted Recirculation charcoal filter
The non-ducted recirculation charcoal filter should be changed every 6
months.
See “INSTALL FILTERS” section for removal and installation instructions.

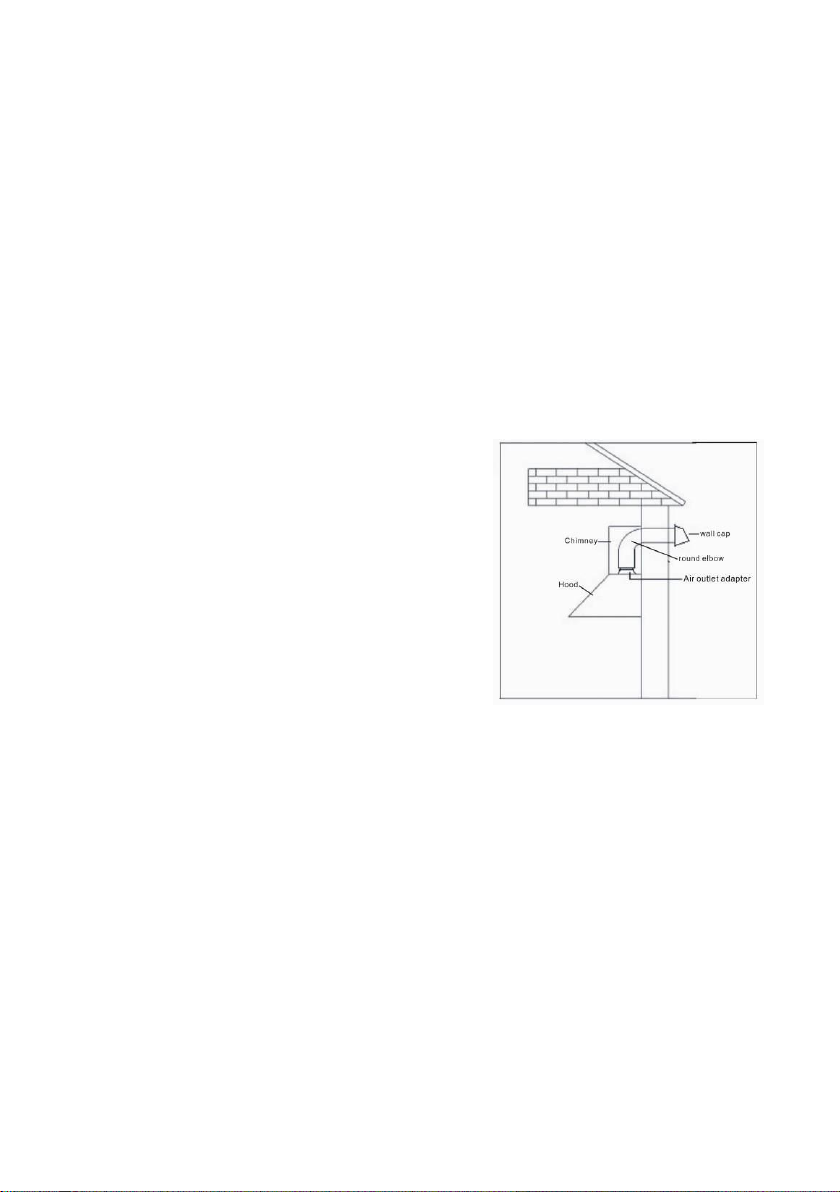

INSTALL THE DUCTWORK
(DUCTED HOODS ONLY)
Caution: To reduce the risk of fire, use metal
ductwork is preferred.
1. Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow the
hood to perform most efficiently.
3. Long duct runs, elbows, and transitions
will reduce the performance of the hood. Use as few of them as possible.
Larger ducting may be required for best performance with longer duct
runs.
4. The air must not be discharge into a flue that is used for exhausting
fumes from appliances burning gas or other fuels" "Regulations
concerning the discharge of air have to be fulfilled.
5. Install wall cap. Connect round metal ductwork to cap and work back
towards hood location. Use duct tape to seal the joints between
ductwork sections.
INSTALL ELECTRICAL
Electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards. This range hood must be properly grounded.
Page 7
Turn off electrical power at service entrance before wiring.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
INSTALL THE HOOD
Note 1 : On stainless steel hoods, carefully remove the plastic protective film
from all exterior surfaces of the hood and chimney prior to final installation.
Note 2: At least two people will be required to mount the hood.
INSTALL THE HOOD
Minimum hood distance above the cooker
must not be less than 650mm.
A maximum of 750mm above the cooker is
highly recommended for best capture of
cooking impurities.
Distance over 750mm above the cooker are at
the installer’s and user’s discretion - providing
that ceiling height and flue length permit.
1. Secure the hood mounting bracket to the
wall using (2) ST 5 x 50mm mounting
screws and dry wall anchors. Align the hood body with the hood
mounting bracket. Gently lower the hood until it securely engages the
bracket.
2. Fix the discharge collar into the air outlet adapter.
3. Attach an adequate length of 150mm round duct to the air outlet
adapter.solid 150mm round PVC pipe recommended to reduce sound.
4. Carefully slide the decorative chimney top down inside the decorative
chimney bottom. Carefully place the decorative chimney bottom into the
recessed area of the hood body top.
5. Secure the chimney mounting bracket to the wall using (2) ST 5 x
50mm mounting screws and dry wall anchors.
6. Raise the decorative chimney top until its holes align with holes in the
chimney mounting bracket (located on the wall).
Page 8
7. Level the hood and secure the chimney with 2 chimney bracket screws.
8. Fix the Decorative Chimney Bottom with 3 decorative Chimney Bottom
screws from inside of body.
Chimney Mounting
Bracket
Decorative
ST5*50
Hood Body
Hood Mounting
Bracket
Discharge Collar
Air outlet Adapter
Duct
Chimney
Top
Decorative
Chimney
Bottom
INSTALL FILTERS
1. To remove the grease filter, push in on the metal latch tab. This will
disengage the filter from the hood. Tilt the filter downward and remove.
2. To install the grease filter, align rear filter tabs with slots in the hood.
Push in the metal latch tab, push filter into position and release. Make
sure the filter is securely engaged after assembly.
3．To install the charcoal filter (optional), and lock it until the stop click is
heard.
4. Install grease filter after charcoal filter is installed.
Page 9
5.
WIRING DIAGRAM
Page 10
GLEM GAS AUSTRALASIA PTY. LTD. PRODUCT WARRANTY
Thank you for choosing an Emilia Glem Appliance, the purchase of this appliance is an important investment in your home and s o to
protect your investment we urge you to complete the registration card attached, please return it immediately.
IT IS A WARRANTY REQUIREMENT THAT PROOF OF PURCHASE BE PROVIDED PRIOR TO REQUESTING A SERVICE CALL.
THIS WARRANTY SHALL NOT APPLY IF THE APPLIANCE WAS NOT INSTALLED BY A LICENSED TECHNICIAN AND PROOF IS NOT
SUPPLIED.
The benefits conferred by this warranty are in addition to all other conditions and warranties in respect of this product which the
consumer may have under the Trade Practices Act 1874 of the Commonwealth of Australia and/or similar State or Territory Laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail t o be of acceptable qu ality and the failure does not amount to a major failure.
Glem Gas Australasia Pty Ltd warrants, this appliance to be free from defects in workmanship and materials for a period of:
a) Where the appliance is intended to be used and is used for DOMESTIC USE – 24 MONTHS FROM DATE OF DELIVERY TO THE
ORIGINAL PURCHASER.
b) Where the appliance is intended to be used and is used for COMMERCIAL USE – 90 DAYS FROM DATE OF DELIVERY TO THE
ORIGINAL PURCHASER.
Glem Gas Australasia Pty Ltd, during the period of warranty, will at its option, and subject to the terms and conditions stated below,
repair or replace free of charge this appliance or any component part, which upon examination by Glem Appliances P/L. is found to be
defective.
THIS WARRANTY SHALL NOT APPLY:
a) If the rating plate has been removed or the serial number or other details on it have been removed or rendered illegible.
b) If the appliance is connected to any voltage other than shown on ratin g plate.
c) If the appliance has been subjected to misuse, abuse accident or want of care.
d) If the appliance has been installed, operated or maintained contrary to the instructions supplied by Glem Gas Australasia P/L.
e) If any defect or failure is due to connection t o an inadequate or faulty power supply.
f) If damage is caused by f oreign objects in or on the appliance or by reason of its use for purposes other than that for which it was
delivered.
g) If a repair has been made or attempted by the purchaser.
h) Where the appliance is installed outside an 80km radius from the GPO of any Australian Capital City to freight and travel costs
beyond that radius.
This warranty does not cover any glass damage or replacement of light bulbs.
Parts covered under warranty that need replacing i.e.: seals, knobs or filters. These can be posted to customer to put on at their
discretion.
This Warranty is given by Glem Gas Australasia Pty Ltd and no other person or organisation is authorised t o vary its provisions and
conditions.
Complete this section and keep it for your own record.
Appliance type Model No. Serial no.
Purchased from Date of purchase
Please complete the section below and return to:
Glem Gas Australasia Pty. Ltd, PO Box 63 Blaxcell PO South Granville or fax to 02 9721 2766
WARRANTY FORM
Appliance type Model No. Serial no.
Purchased from Date of purchase
Customer Name Addr ess
Installers Name Installers licence no.
Install ers Si gnature
Installers Compliance Number
