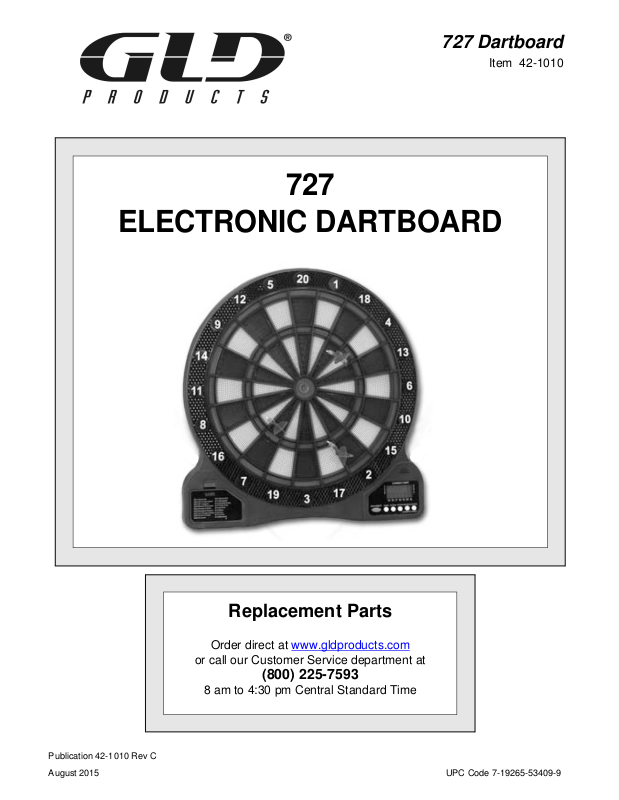

Gld 727 User Manual

GLD Products 727 Dartboard

Item 42-1010

727

ELECTRONIC DARTBOARD

Replacement Parts

Order direct at www.gldproducts.com

or call our Customer Service department at

[phone]

8 am to 4:30 pm Central Standard Time

Publication 42-1010 Rev C

August 2015 UPC Code 7-19265-53409-9

GLD Products 727 Dartboard

Item 42-1010

Staple your receipt here.

Important: A copy of your receipt will be needed to activate your warranty (see page 25).

GLD Products 727 Dartboard

Item 42-1010

Congratulations and THANK YOU for purchasing the
727 Dartboard. You have chosen a product that
should provide years of entertainment. To assist you
with customer service and warranty claims,
staple your receipt to the inside cover, then keep this
manual in a safe place for future reference.

GLD Products

S84 W19093 Enterprise Drive

Muskego, WI 53150 USA

1-800-225-7593

Fax: [phone]

Email: [e-mail]

Web: www.gldproducts.com

This manual may have been updated. For the latest manual visit the GLD products website.

Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.

If you notice missing or defective parts, please call us at:

1-800-225-7593

Please read and understand all instructions before beginning assembly.

This assembly will reqire 2 adults.

Choking Hazard

This game has small parts that may break free and present a choking
hazard. Children should be supervised by an adult when playing this game.

3 1-800-225-7593

www.gldproducts.com

GLD Products 727 Dartboard

Item 42-1010

IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST

Please see page 25.

GLD Products

Available 8 am to 4:30 pm Central Standard Time

S84 W19093 Enterprise Drive

Muskego, WI 53150 USA

1-800-225-7593

Fax: [phone]

Email: [e-mail]

Web: www.gldproducts.com

For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.

If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.

PRODUCT REGISTRATION

Important: The product registration form on page 27 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.

Online registration is also available. Go to www.gldproducts.com/index.php/registration or
click on this link. Follow the online instructions.

WARNING:

Parents - Please read instructions carefully. Not

for use by children without adult supervision.

Thank you for purchasing the GLD 727 Dartboard. The computerized scoring system makes
game playing easy and enjoyable. With 36 games and 132 options to choose from,
beginners and more advanced players will find challenging games to suit them.

TOOLS REQUIRED

• Tape measure

• Nail or marker

• Phillips screwdriver

• Level

• Mounting hardware (provided)

1-800-225-7593 4
www.gldproducts.com

GLD Products 727 Dartboard

Item 42-1010

UNPACKING THE GAME

After unpacking the game, it is important to save the original box, all packing material, and
the receipt. These items will be needed if it ever proves necessary to return the game for
service.

MOUNTING (PHYSICAL INSTALLATION)

One method for mounting the dartboard is available.

1. Use the two keyhole slots and mount the center of the dartboard following the illustration.
The two screws are screwed into the wall until the screw head is 3/8" away from the wall.
The dartboard is positioned so the two screw heads are inside the keyhole. Slide the
dartboard down to secure. The head of the screw that is used must be larger than 5/16"
and smaller than 3/8".

Wall Anchors

A wall with studs is the most common type of wall to mount the dartboard.

1. Locate a stud and use wood screws or sheet metal type screws to secure the dartboard.

2. If a stud cannot be located or is not in the proper location, use an anchor that is suitable
for the type of wall.

Some common anchors are:

Plastic - Drill a snug hole in drywall and push the anchor in up
to the head. When the screw is screwed into the anchor, the
plastic will expand, locking the anchor in place. Do not use on
thin panelling.

Toggle Bolt - Drill hole through wall. Hole must be large
enough for the wings to pass through. Insert screw through the
holes in the dartboard and thread the toggle wings just onto
the screw. Fold the wings back and push through the hole until
the wings spring open. Pull back on the screw to hold wings
against the inside of the wall and tighten screw.

Hollow wall anchor - Drill a snug hole through the wall. Tap
anchor into the hole until the prongs on the underside of the
head are seated securely into the wall. Turn screw in and
apply pressure to keep the anchor head from turning. Tighten
screw until resistance is felt. Do not over tighten. Turn screw
out to remove. Anchor will stay and screw can be replaced.

Other methods are available. Consult a hardware store if questions arise.

5 1-800-225-7593

www.gldproducts.com

GLD Products 727 Dartboard

Center of Bullseye

Wall

Throwing or

Toe Line

Plumb Line from

Face of Board to Floor

Floor

96 in.

68 in.

Item 42-1010

Mounting Using the Keyhole Slots

1. Choose a location that has at least 10 feet of open floor space in front of the board.
Locate and use a wall stud for mounting whenever possible.

2. Determine the location for the dartboard. Place a mark on the wall 68 inches (172.7 cm)
from the floor. This mark is the final position of the center of the dartboard (bullseye).

3. Locate studs and use wood screws or sheet metal screws to secure the dartboard if the
mark is on the stud. The head of the screw must be larger than 5/16" and smaller than
3/8".

4. If the mark is not over a stud, use the mounting hardware that came with your dartboard.

5. Measure 7" (17.7 cm) directly up from the bullseye mark and place a mark on the wall.
Use a level to check that the 2 marks are vertical.

6. Use the top mark and measure out level 2 3/4" (6.9 cm) to the left and right. Place a mark
on the wall.

7. Drill pilot holes at the two marks. These are for the mounting screws.

8. If using wall anchors, follow the instructions under Wall Anchors on page 5.

9. Insert screws into anchors until a 1/4" (6.5 mm) gap is left between the wall and the
screw head.

10.Hold the dartboard so the two screw heads fit into the lower part of the keyholes. The
dartboard should slide down 1/2-inch and the screw heads will hold it on the wall.

11.Screws can be tightened or loosened to provide a secure mounting.

1-800-225-7593 6
www.gldproducts.com

GLD Products 727 Dartboard

7"

68"

To Floor

Bullseye

Keyhole Slots

5.5"

2.75"

Item 42-1010

Create the Toe Line

Place a toe line 96" from the face of the board for the throwing distance. Adhesive tape or
masking tape, 2 feet long by 2-1/2" wide, may be used. GLD Products offers a Viper
Throwing Line and a Dart Mat for this purpose. Refer to the parts order form at the back of
this manual.

POWER INSTALLATION

The dartboard is designed to be powered by two AA batteries. The battery compartment is
located on the front of the dart board.
Always install the correct size and grade of battery suitable for the intended use. Replace all
batteries of a set at the same time, taking care not to mix old and new ones, or batteries of
different types. Clean the battery contacts and also those of the device prior to battery
installation. Ensure the batteries are installed correctly with regard to polarity (+and -).
Remove batteries from equipment which is not to be used for an extended period of time.
Remove used batteries promptly.
For energy saving purposes, this dartboard is equipped with auto sleep and auto power off
mode. If the dartboard is not being played, it will automatically go into sleep mode after 3
minutes. If it hasn’t been played for 30 minutes, it will automatically power off.

7 1-800-225-7593

www.gldproducts.com

GLD Products 727 Dartboard

Item 42-1010

WARNING:

Not for use by children without adult supervision.
Darts are not toys and may cause injury if used
improperly. Everyone must stand behind the dart
thrower.

IMPORTANT NOTES

1. During shipping or in the course of normal play, it is possible for scoring segments of this
board to become temporarily jammed, resulting in a “frozen” board. If this occurs, the
built-in Self Diagnostic Function of the e-BOARD Computer will be activated
automatically. Your dartboard will run a self-test routine to determine which segment is
stuck. An error message will flash on the display together with the number for the
“Frozen” segment.

Error Code Malfunction

E30 Stuck Bounce/Eliminate Button

E31 Stuck Play/Next Button

E33 Stuck Game Button
E34 Stuck Player Button
E35 Stuck Option Button
Other buttons wont work Stuck Double/On/Off Button
E(segment number) A segment is stuck

Take the following steps immediately when the error message appears.

a. Find the “frozen” segment according to the display.

b. Press firmly down on the “frozen” segment until it breaks free and the loose fit is

restored. Once the “frozen” segments are loosened, the error message should be
gone and the board will continue to operate normally.

2. This game is designed for use with 3/4" length soft-tip darts only! Never use metal tipped
darts or longer soft-tip darts on this dartboard! Metal tipped darts will seriously damage
the circuitry, the e-BOARD computer and electronic operation of the dartboard.

3. Electronic and mechanical reaction time is required between shots. If two shots occur too
close together, pull out second dart and rethrow to properly record your score.

4. Do not use excessive force when throwing darts. Throwing a dart too hard will cause
frequent tip breakage and cause excessive wear on the board.

5. Do not spill liquids on the dartboard. Do not use spray cleaners that contain ammonia or
other harsh chemicals, as they may damage the dartboard. Instead, we suggest regular
dusting with a damp cloth. Make sure the game is unplugged and use a mild detergent
and a damp cloth for more vigorous cleaning.

6. This game is for indoor use only.

1-800-225-7593 8
www.gldproducts.com

GLD Products 727 Dartboard

Double

Outer Single

Triple

Inner Single

Single Bullseye

Double Bullseye

Item 42-1010

Helpful Tip: To prevent dart tips from loosening, twist the dart to the right (clockwise) when
pulling it from the board. This motion will make dart removal easier and will prolong the life of
your dart tips.

GAME OPERATIONS

Segment Scoring Scoring Rules

Single scoring segment score times 1
Double scoring segment score times 2
Triple scoring segment score times 3
Outer bullseye 25 times 1
Center bullseye 25 times 2

QUICK START - IF YOU JUST WANT TO START THROWING DARTS

1. Turn game on by pressing the DOUBLE/ON/OFF button.

2. Press the PLAY/NEXT button.

NOTE: The default game is G01 Count-up with two players.

3. Take turns throwing darts. The first player to get their score to 100 wins.

727 GAME MENU

Game

Number

G01 Count-up 100 1 1-8

G01 Count-up 200 1 1-8

G01 Count-up 300 1 1-8

G01 Count-up 400 1 1-8

G01 Count-up 500 1 1-8

G01 Count-up 600 1 1-8

G01 Count-up 700 1 1-8

G01 Count-up 800 1 1-8

G01 Count-up 900 1 1-8

G02 301 Count-down 4 1-8

G02 501Count-down 4 1-8

Name Options Players

G02 601 Count-down 4 1-8

G02 701 Count-down 4 1-8

G02 801 Count-down 4 1-8

G02 901 Count-down 4 1-8

9 1-800-225-7593

www.gldproducts.com

GLD Products 727 Dartboard

Item 42-1010

Game

Number

G03 301 League 4 4

G03 501 League 4 4

G03 601 League 4 4

G03 701 League 4 4

G03 801 League 4 4

G03 901 League 4 4

G04 Round The Clock 12 1-8

G05 Simple Cricket 3 1-8

G06 Standard Cricket 3 1-8

G07 Cut Throat Cricket 3 1-8

G08 Scram Cricket 1 2

G09 Hi-score 10 1-8

G10 Shoot Out 10 1-8

G11 Shanghai 12 1-8

G12 Double Down 1 1-8

Name Options Players

G13 Forty One 1 1-8

G14 All Five 5 1-8

G15 Big 6 5 2-8

G16 Over 3 2-8

G17 Under 3 2-8

G18 Baseball 3 2-8

Total 132

1-800-225-7593 10
